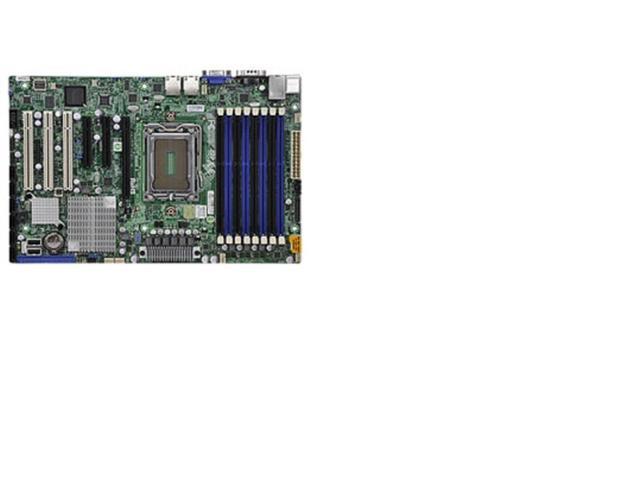

SuperMicro Motherboard H8SGL
SKU: 9SIAH8W9C5320921.937.305₫
MPN: H8SGLBrand: Supermicro
Description
Product SKUs
MBD-H8SGL
H8SGL
Physical Stats
Form Factor
ATX Form
Dimensions
12″ x 8″ (30.5cm x 20.3cm)
Processor/Chipset
CPU
Single 1944-pin Socket G34
Supports one 16/12/8-Core ready AMD Opteron™ 6000 Series processors
HT3.0 Link support
Chipset
AMD chipset SR5650/SP5100
System Memory
Memory Capacity
Eight DIMM sockets
Support up to 128GB DDR3 1600/1333/1066 MHz memory
Quad channel memory bus
See Detailed Memory Support Matrix
Memory Type
DDR3 1600/1333/1066 MHz Registered ECC SDRAM or Unbuffered ECC/non-ECC 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
1GB, 2GB, 4GB, 8GB, 16GB
Memory Voltage
1.35V or 1.5V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
AMD SP5100 (RAID 0, 1, 10)
Network Controllers
Two Intel® 82574L controller, Dual-Port Gigabit Ethernet
10/100/1000BASE-T support
VGA
Matrox G200 16MB DDR2
Super I/O
Winbond® W83527 chip
Input / Output
SATA
6x SATA2.0 (3Gb/s) Ports
USB
8x USB 2.0 ports
2x Rear, 2x header(4x ports), and 2x TypeA
VGA
1x VGA port
Keyboard / Mouse
PS/2 keyboard and mouse ports
Serial Ports
1x Fast UART 16550 serial port
1x serial port header
Expansion Slots
PCI-E/PCI
1/1/1/3 PCI-E 2.0 x8 (in x16) / x8 / x4 (in x8) / PCI
Learn more about the Detailed Specifications
| Date First Available | June 01, 2019 |
|---|
