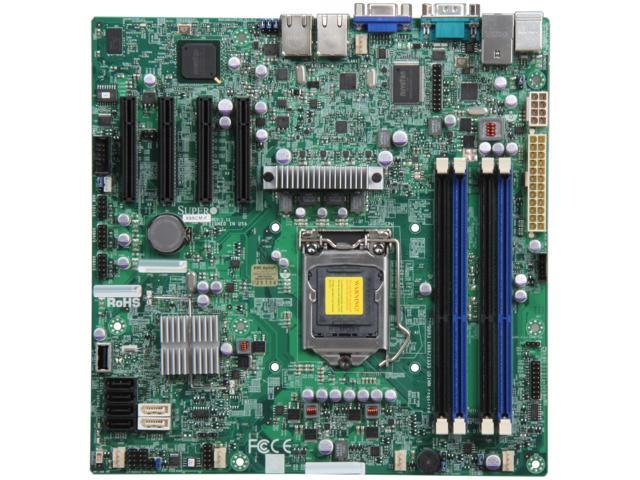

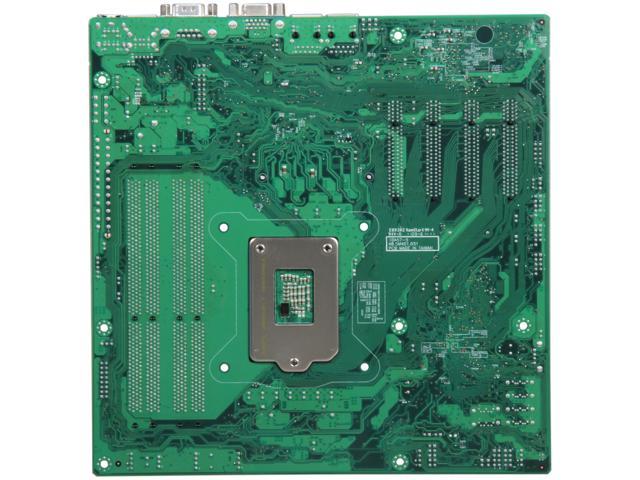

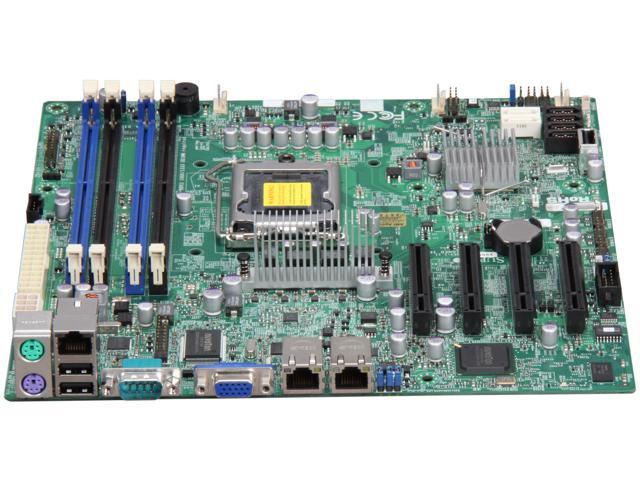

SUPERMICRO MBD-X9SCM-F-O Server Motherboard

Features

• Single socket H2 (LGA 1155) supports
  Intel® Xeon® E3-1200 & E3-1200 v2
  series, 2nd and 3rd Gen Core i3
  processors***, Pentium, Celeron
• Intel® C204 PCH Chipset
• Up to 32GB DDR3 ECC 1333MHz /
  1600MHz*** UDIMMs in 4 sockets
• Intel® 82579LM and 82574L,
  2x Gigabit Ethernet LAN ports
• 4x SATA2 3Gb/s w/ RAID 0, 1, 5, 10;
  2x SATA3 6Gb/s w/ RAID 0, 1
• 2x (x8) PCI-E 3.0*** slots,
  2x (x4) PCI-E 2.0 in x8 slots
• 9x USB 2.0 ports
  (2 rear + 6 via header + 1 Type-A)
• Integrated IPMI 2.0 with KVM and
  Dedicated LAN

Specifications

Product SKUs
MBD-X9SCM-F -B	X9SCM-F (Bulk Pack)
Physical Stats
Form Factor	uATX
Dimensions	9.6″ x 9.6″, (24.4cm x 24.4 cm)
Processor/Cache
CPU	Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *** * Socket H2 (LGA 1155)
System Memory
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V, 1.35V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C204 PCH chipset
SATA	4x SATA2 (3Gb/s) w/ RAID 0, 1, 5, 10 2x SATA3 (6Gb/s) w/ RAID 0, 1
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® 82579LM and 82574L, 2x Gigabit LAN ports Virtual Machine Device Queues High efficient I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA	BMC integrated Matrox G200
Super I/O	Nuvoton NCT6776F
Input / Output
Serial ATA	6 SATA ports 6 SATA hard drives supported
LAN	2x RJ45 LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	9x USB 2.0 ports total (2x rear + 6x via header + 1x type A)
VGA	1x VGA port
Serial Port / Header	2x Fast UART 16550 serial port (one header and one rear port)
DOM	1x DOM (Disk on Module) power connector
TPM	1x TPM 1.2 20-pin Header
System BIOS
BIOS Type	64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI (SMBIOS) 2.7 ACPI 4.0 PCI 2.3 USB Keyboard support

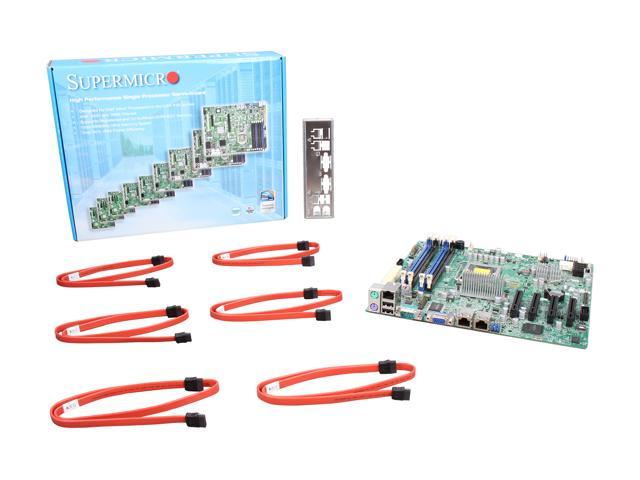

Whats in the Box
