SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1866/1600/1333/1066/800

SKU: 9SIAWFGJGX2657

Post Views: 207

26.034.255₫

Dual LGA 2011
Intel C602 Chipset
16 x 240pin

Hotline tư vấn mua hàng

0927.000.333

Hỗ trợ thông tin

Zalo Official

Category: Mainboard Supermicro

Description
Reviews

Description

/* Insert SKU number in place of “sku-13-182-260” */
#overview-content.sku-13-182-260 .banner {width:100%; height:60px; margin-bottom:0; background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-260/SUPERMICRO_033016.jpg) no-repeat left; }
#overview-content .bt{ color: #333333;font-size: 24px; font-weight: bold; line-height: 30px; text-align:center}
#overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;}
#overview-content .st {margin:0 auto 20px;background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-260/title_033016.jpg) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; }
#overview-content table.specs { width:100%; margin:0 auto; border:#CCC 1px solid; border-collapse:collapse; font-size:12px;}
#overview-content table.specs td{ border:#CCC 1px solid; border-collapse:collapse;}
#overview-content h2{ color: #333333;font-weight: bold;font-size: 24px;text-transform: uppercase;}

MBD-X9DAi-O

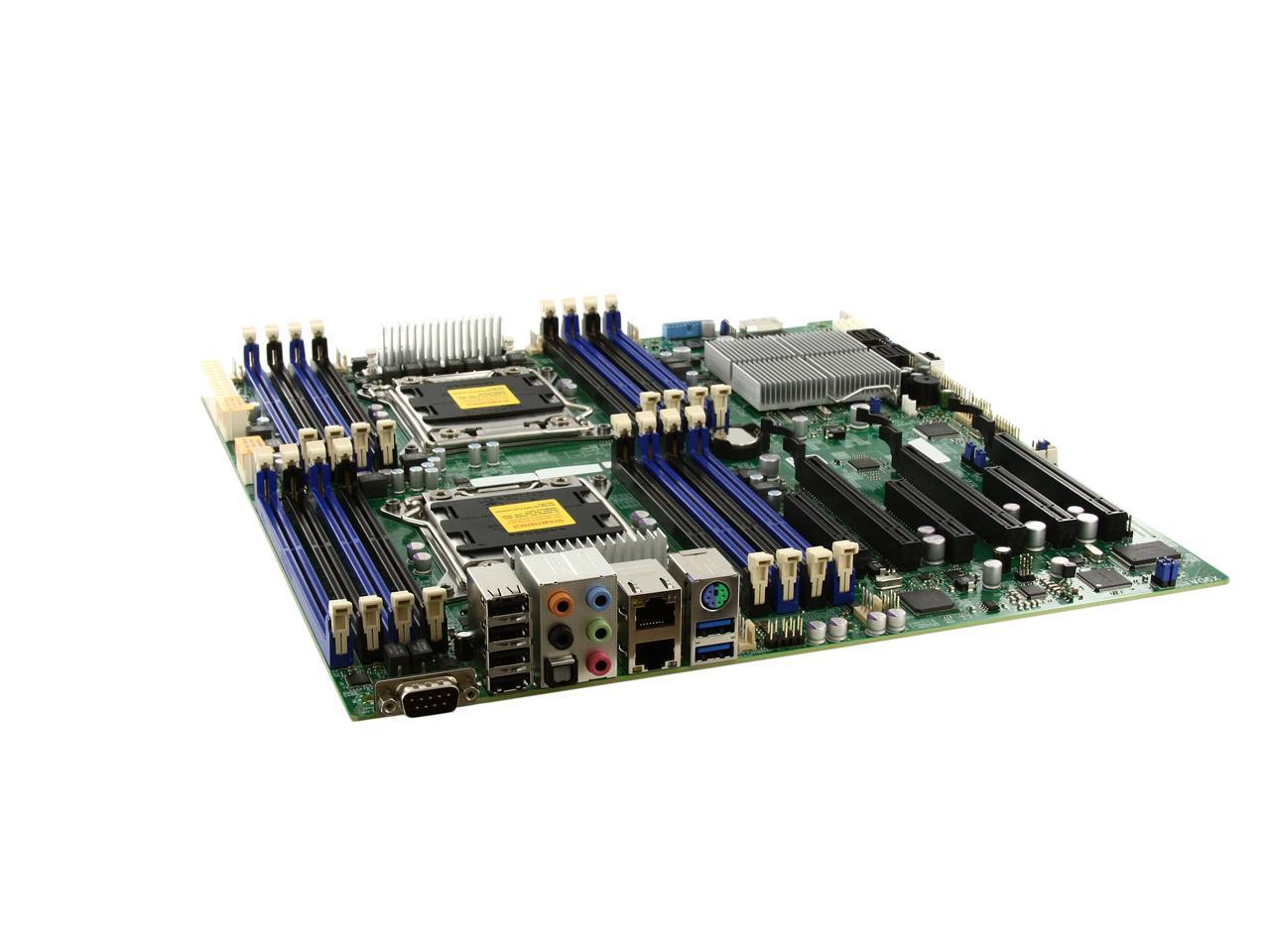

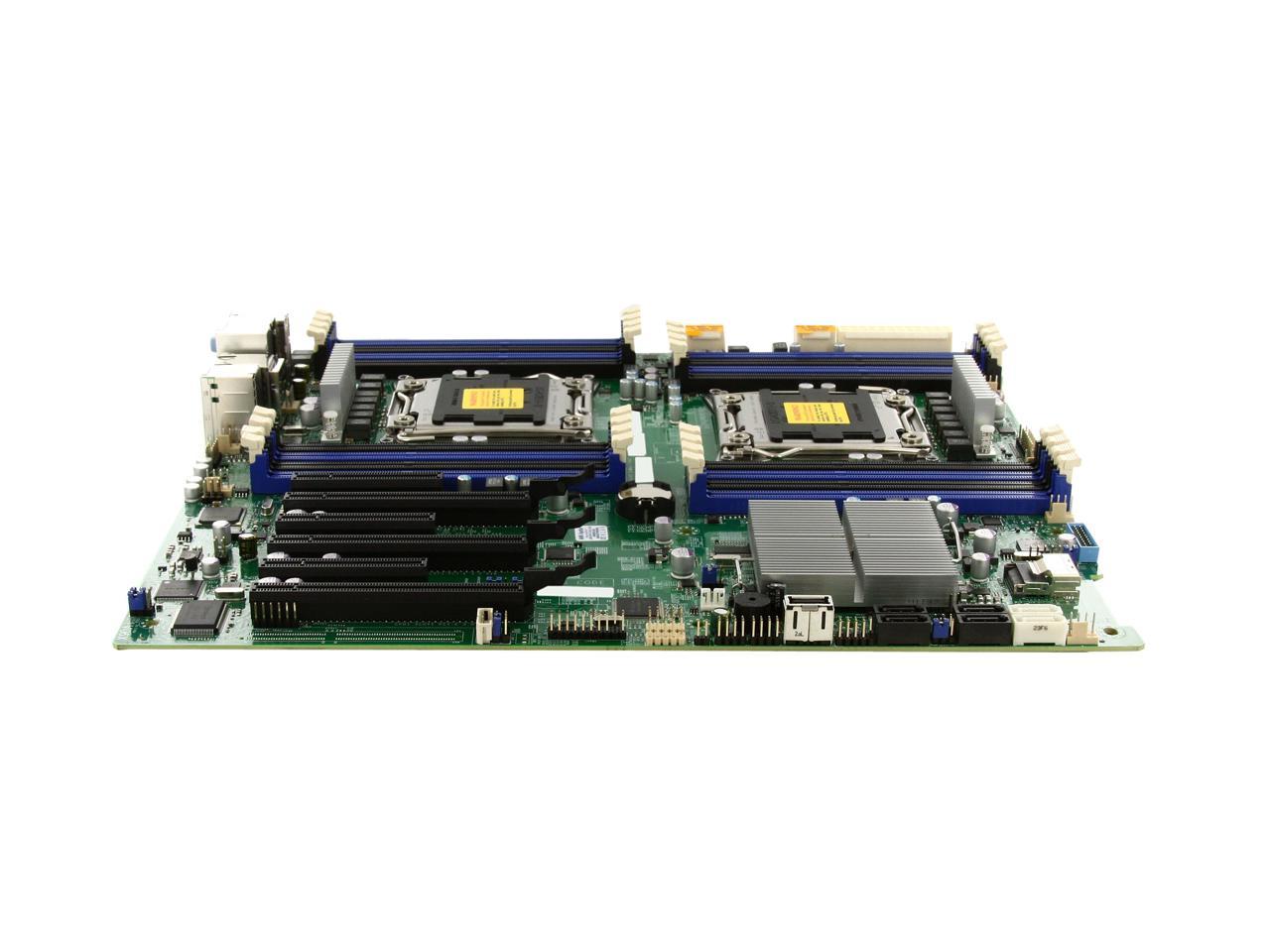

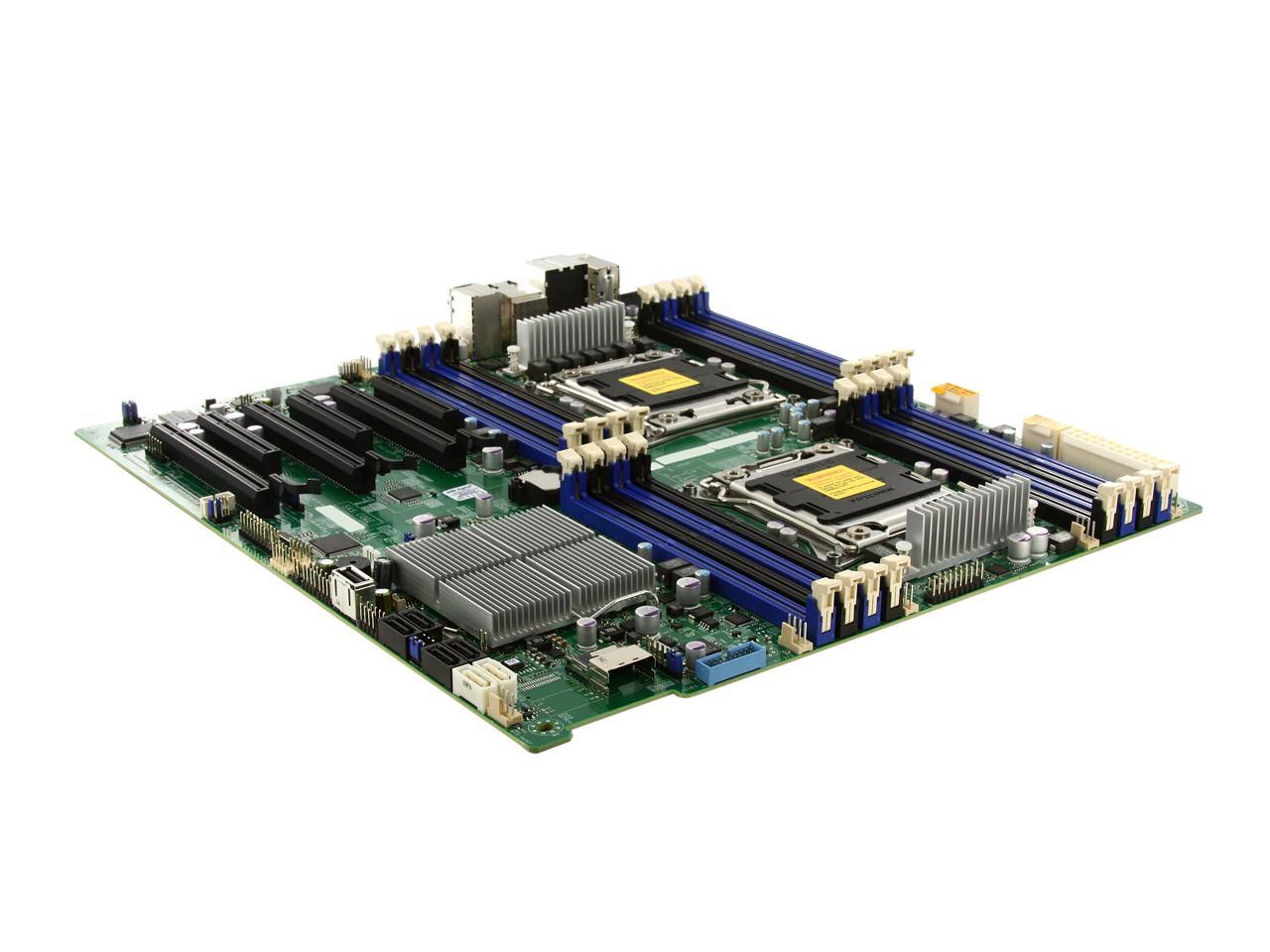

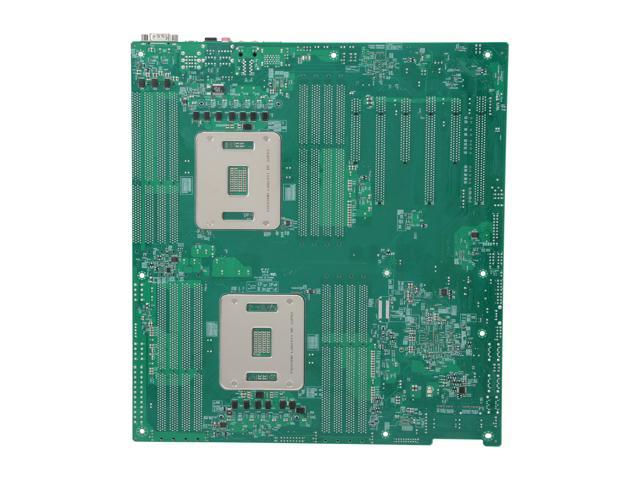

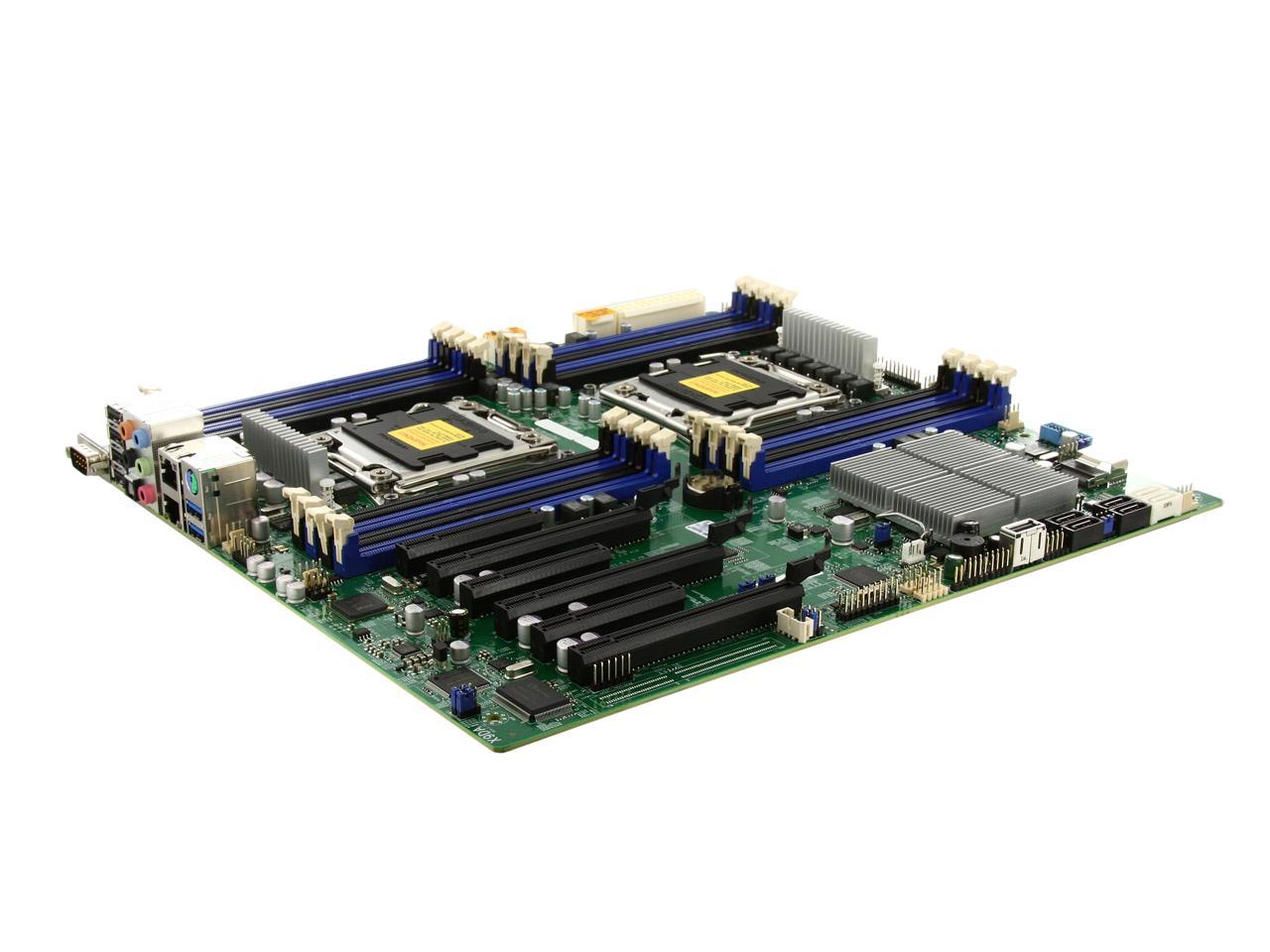

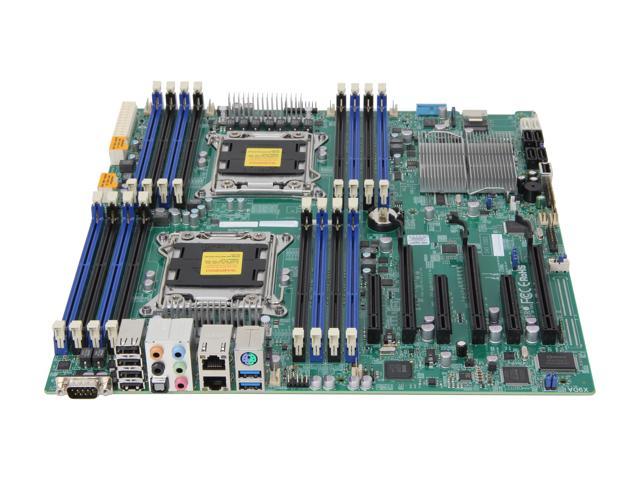

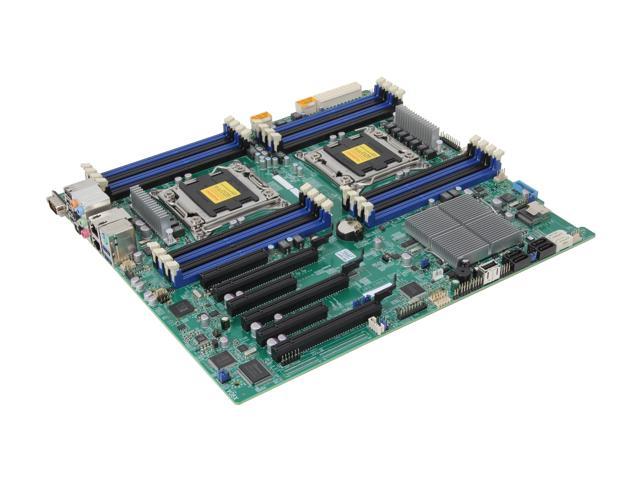

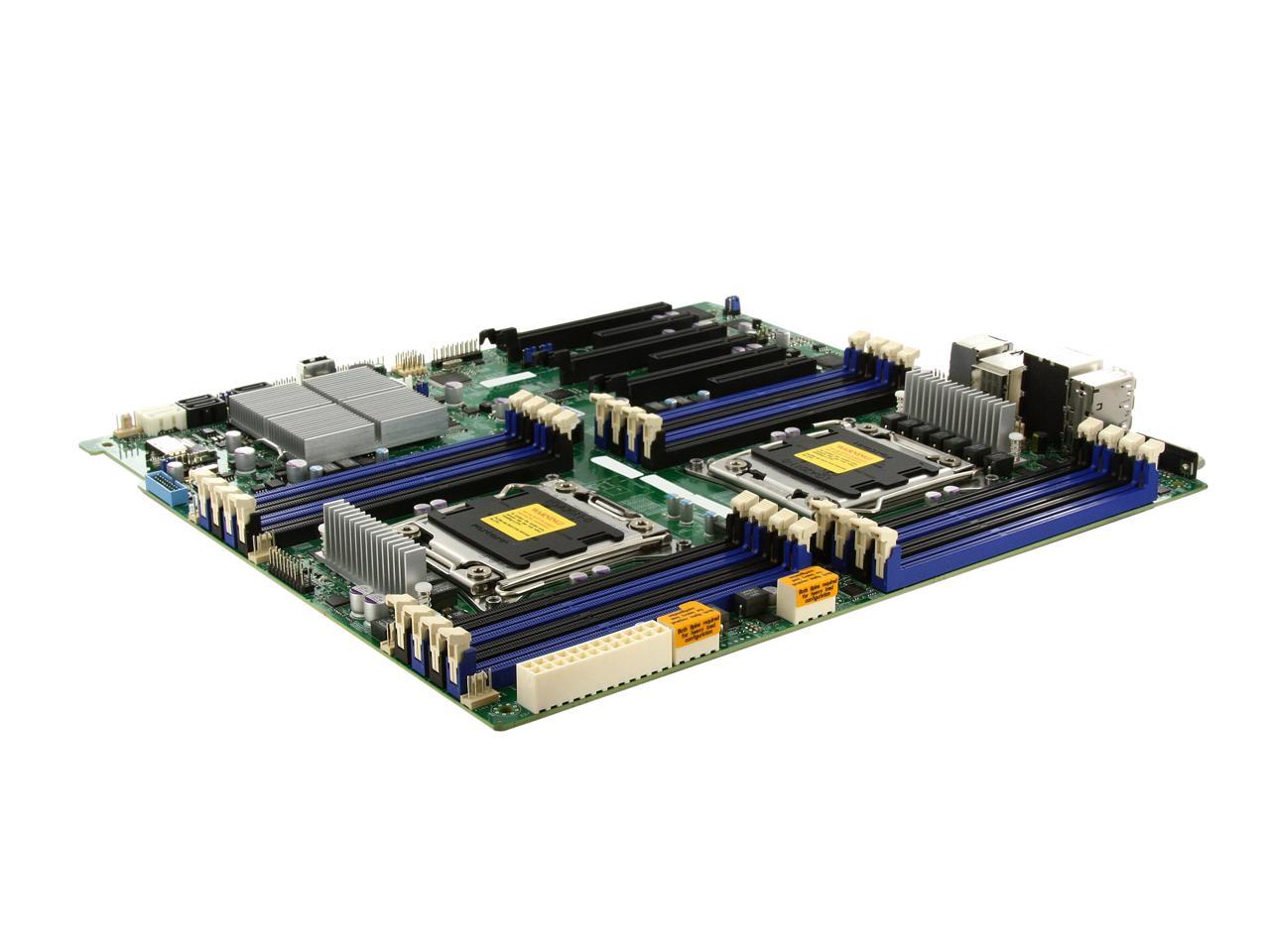

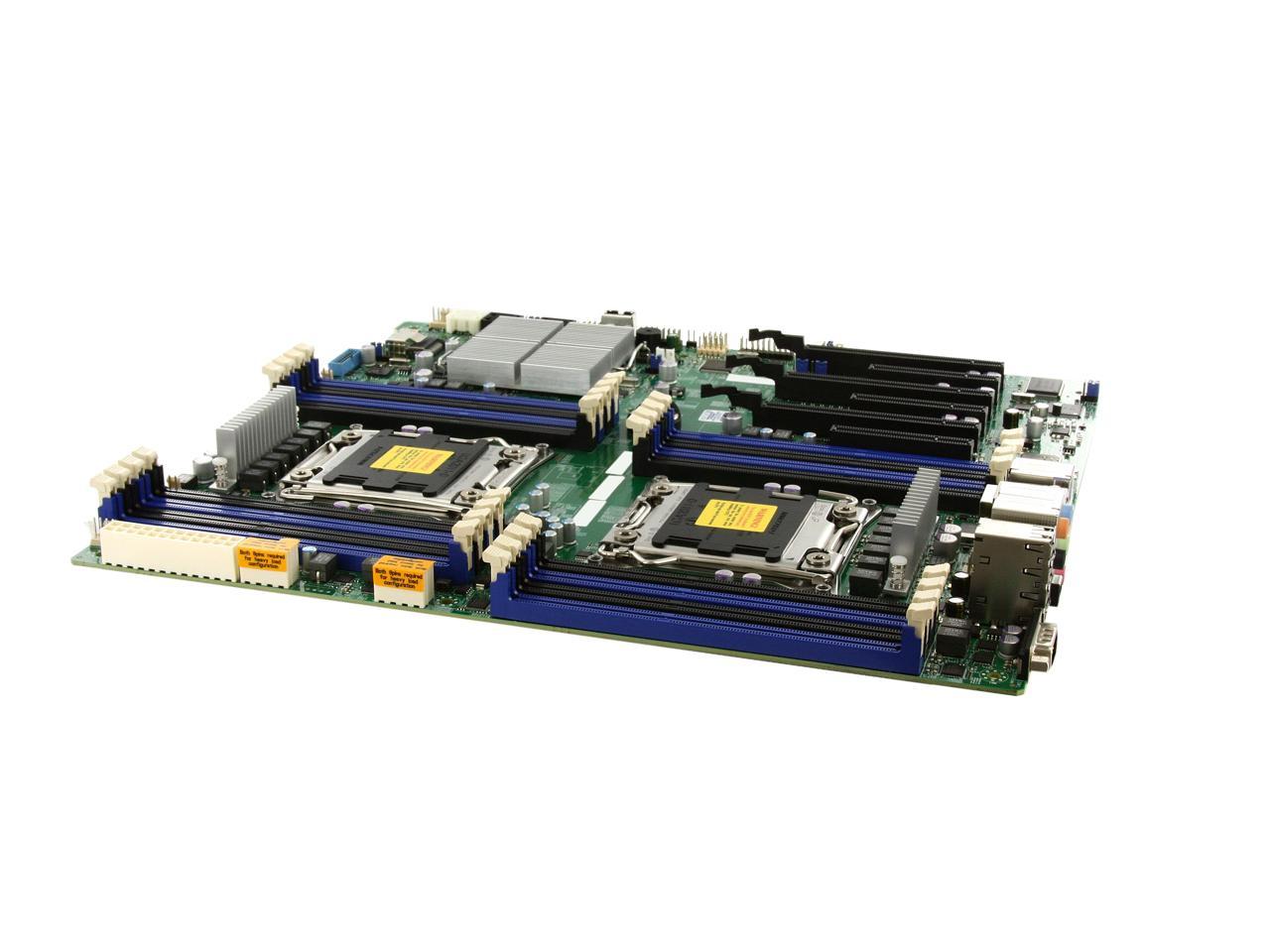

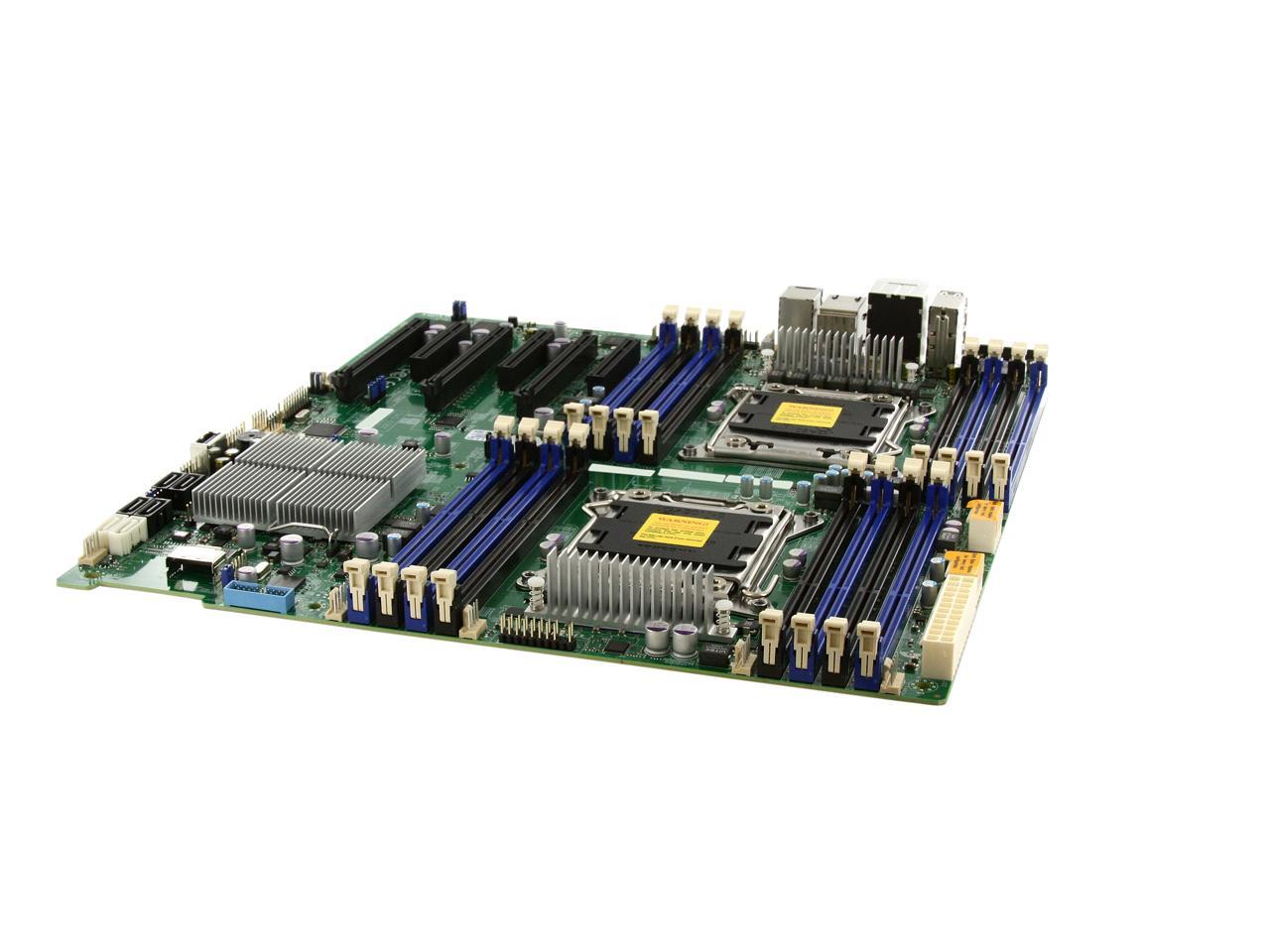

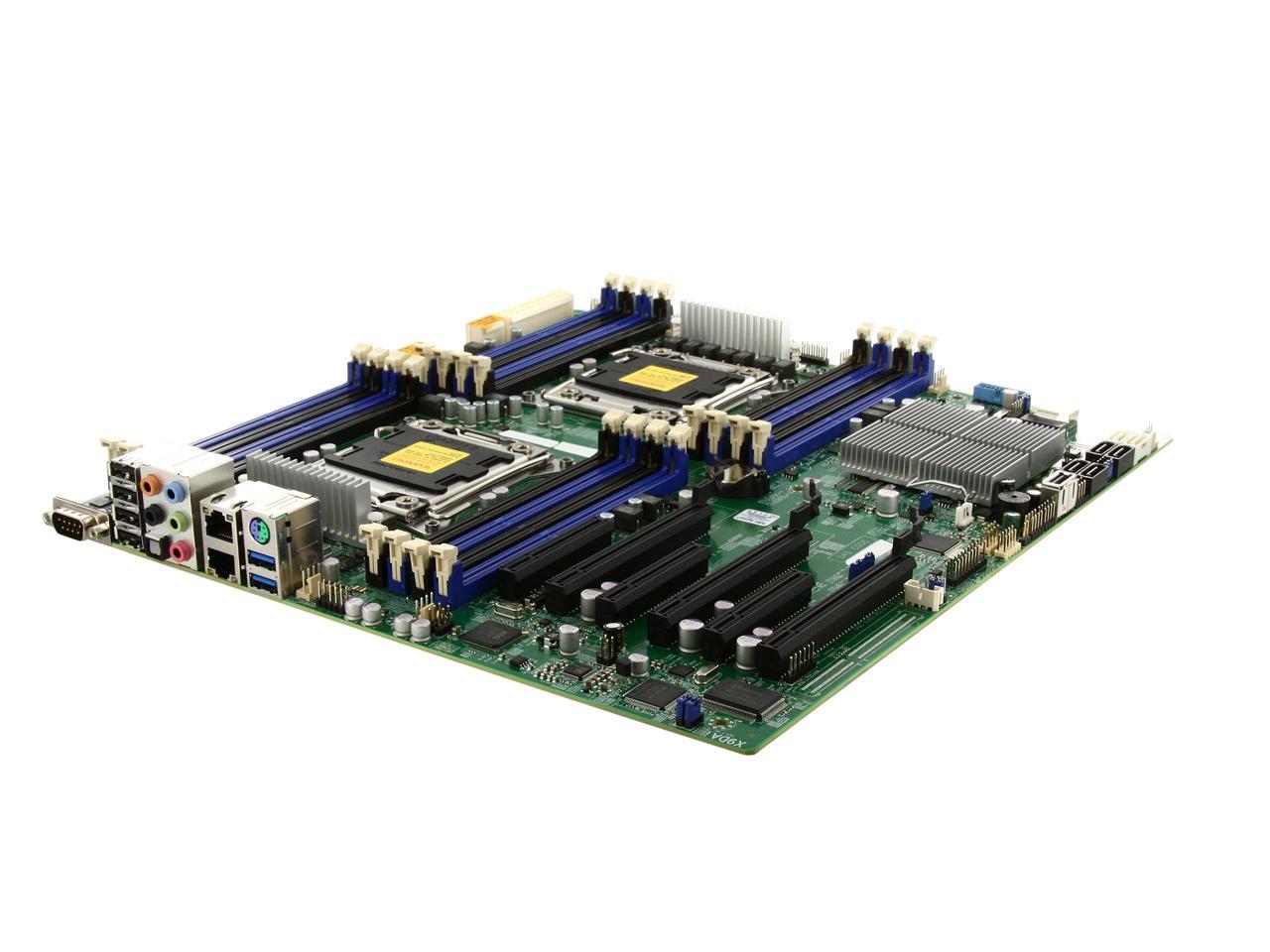

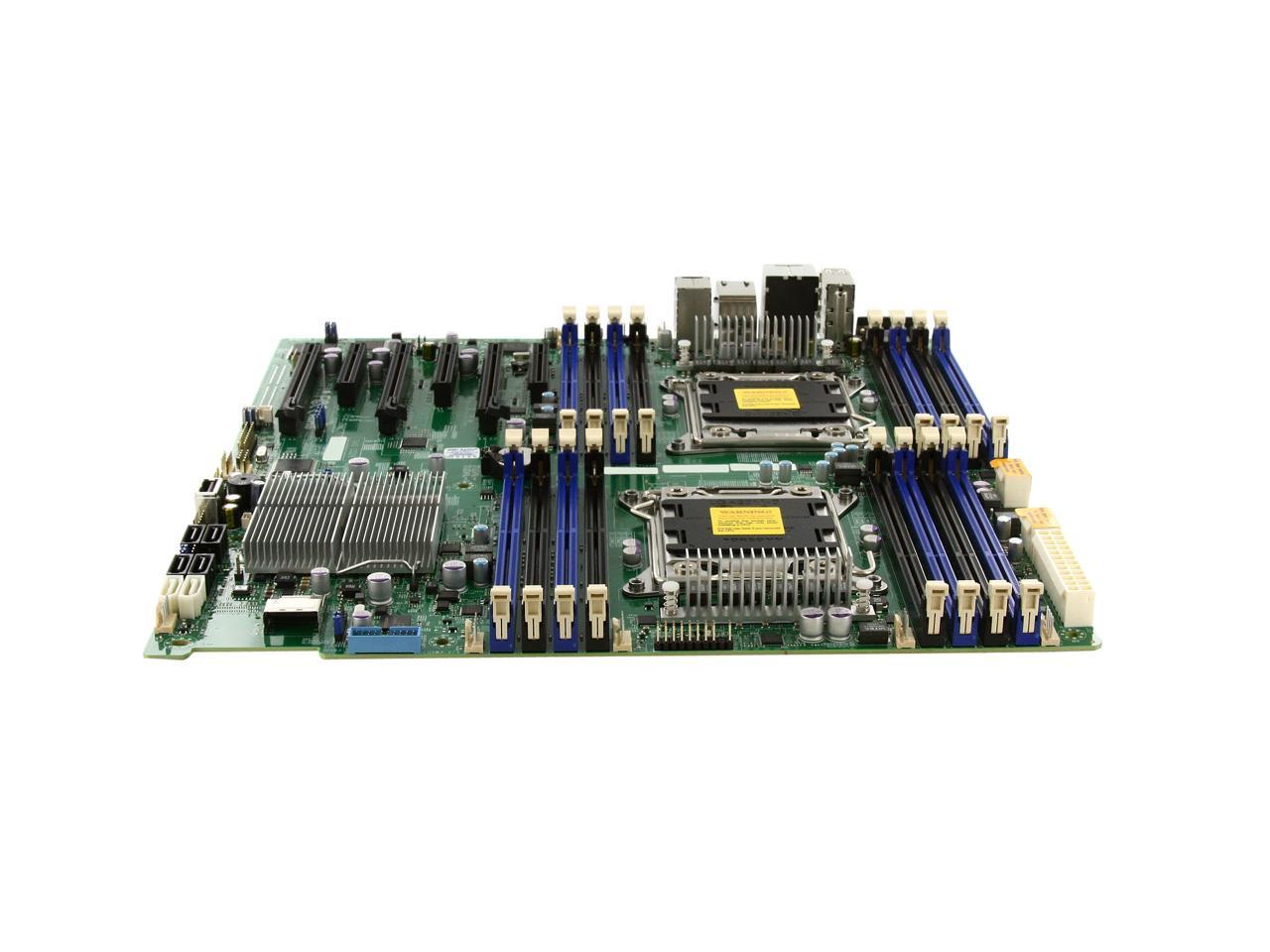

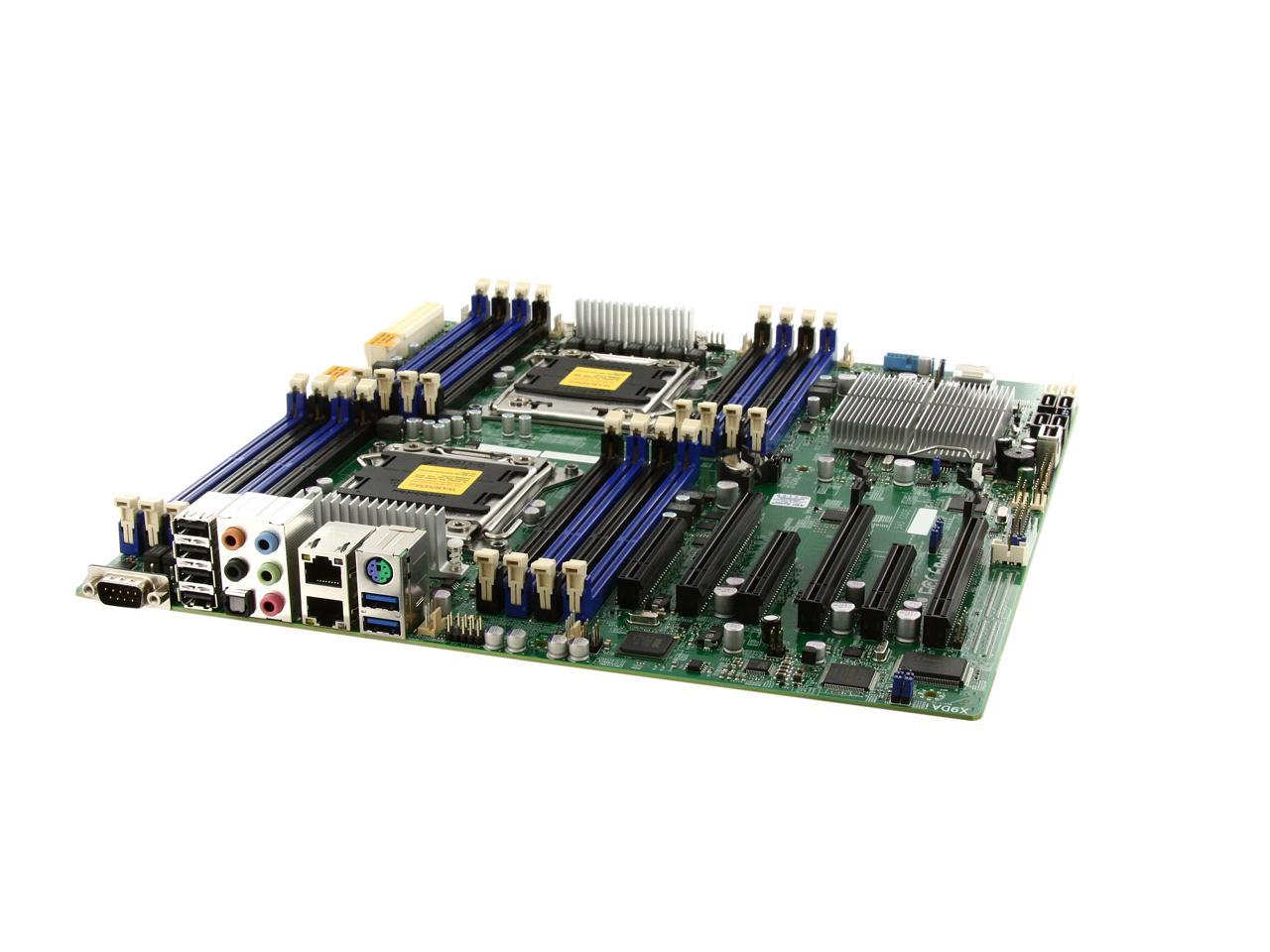

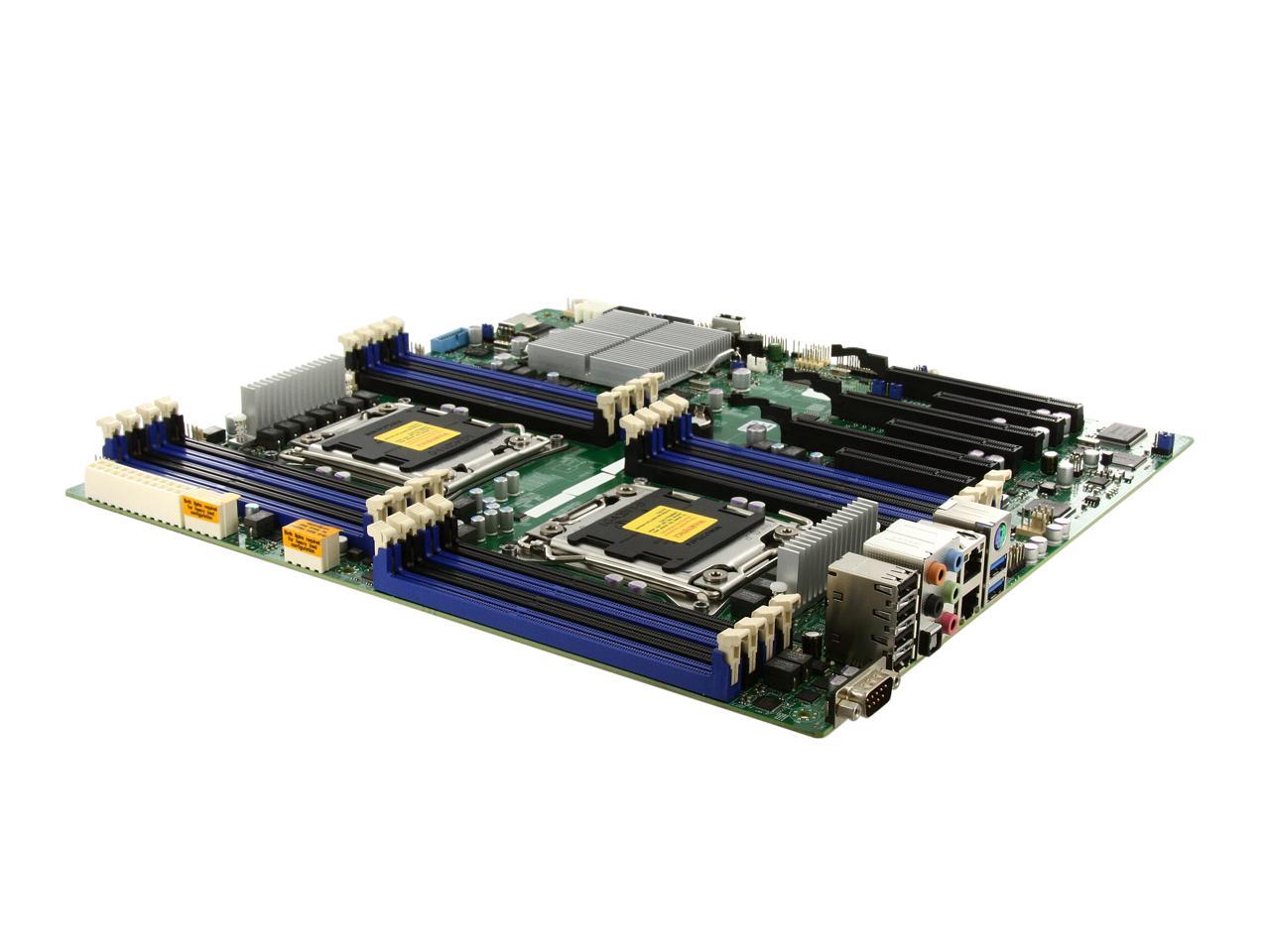

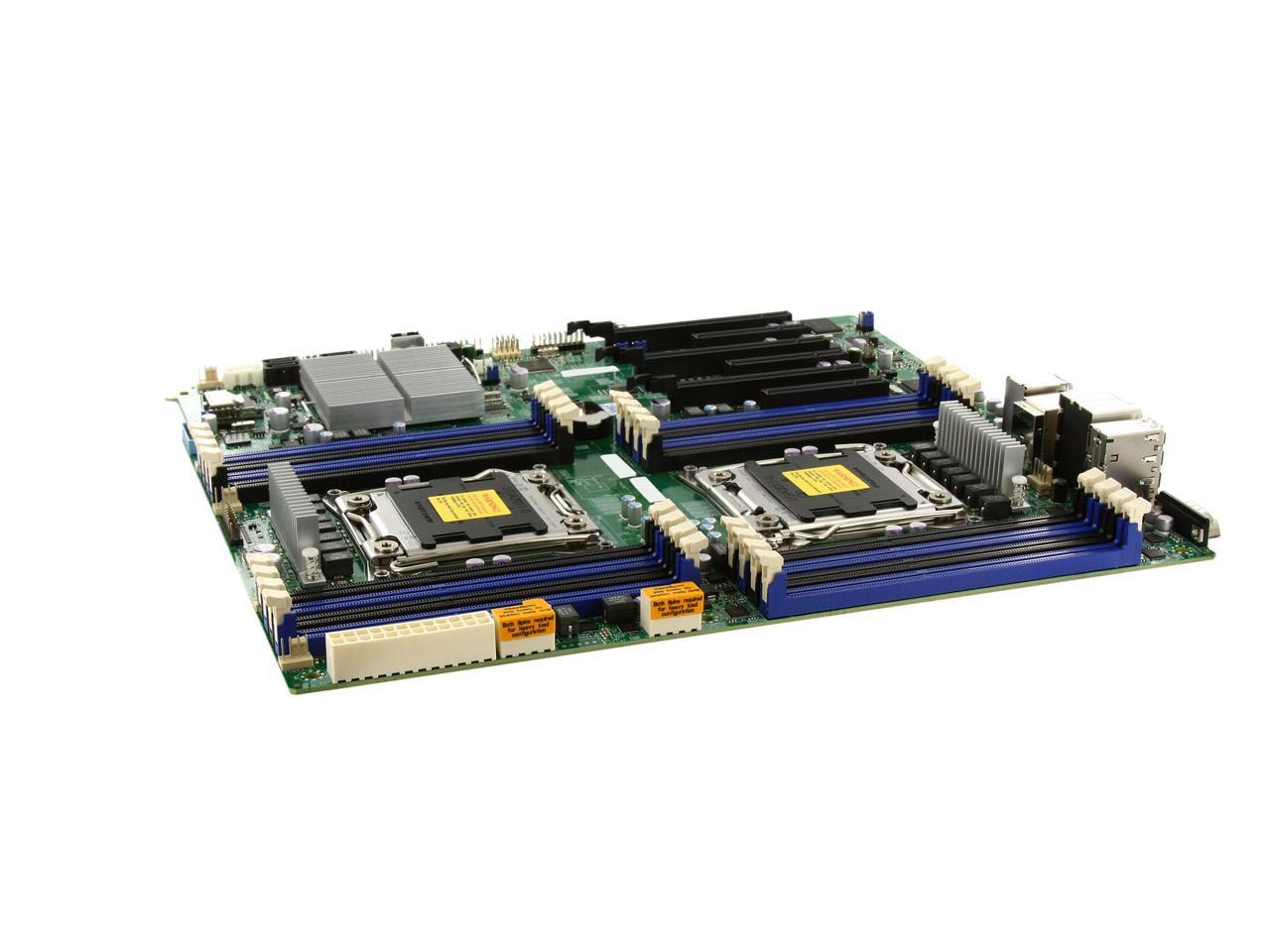

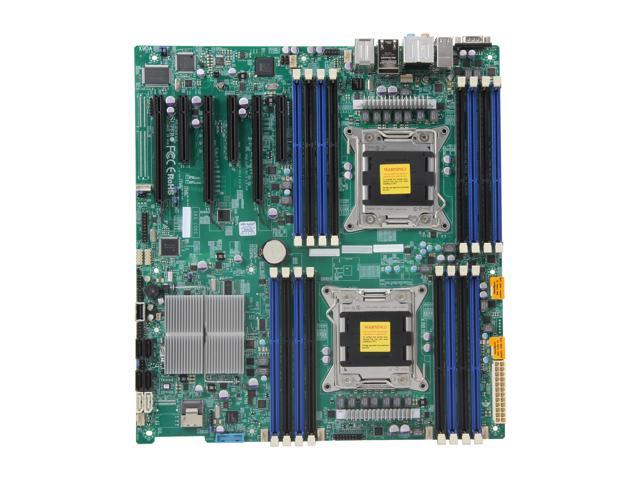

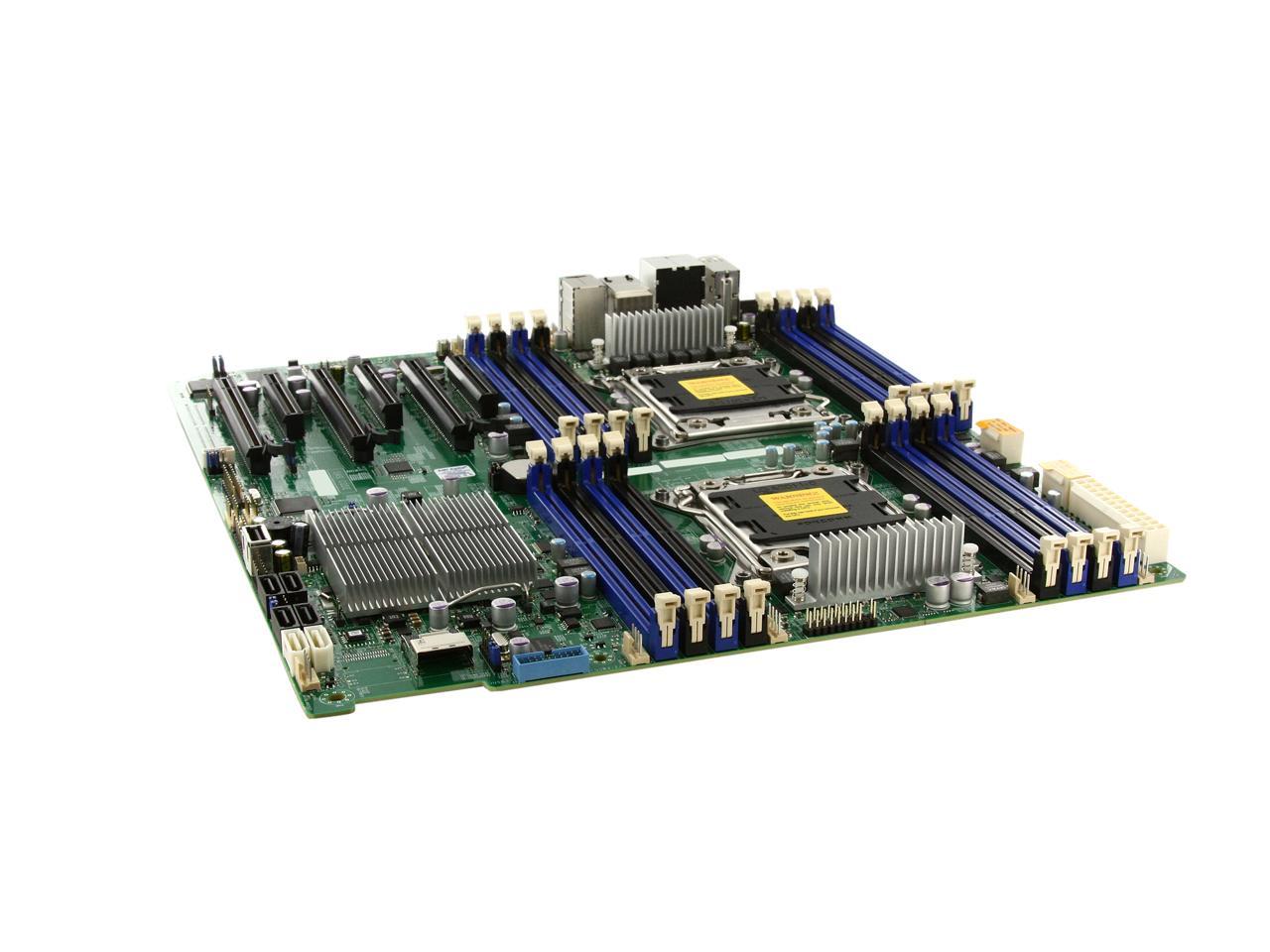

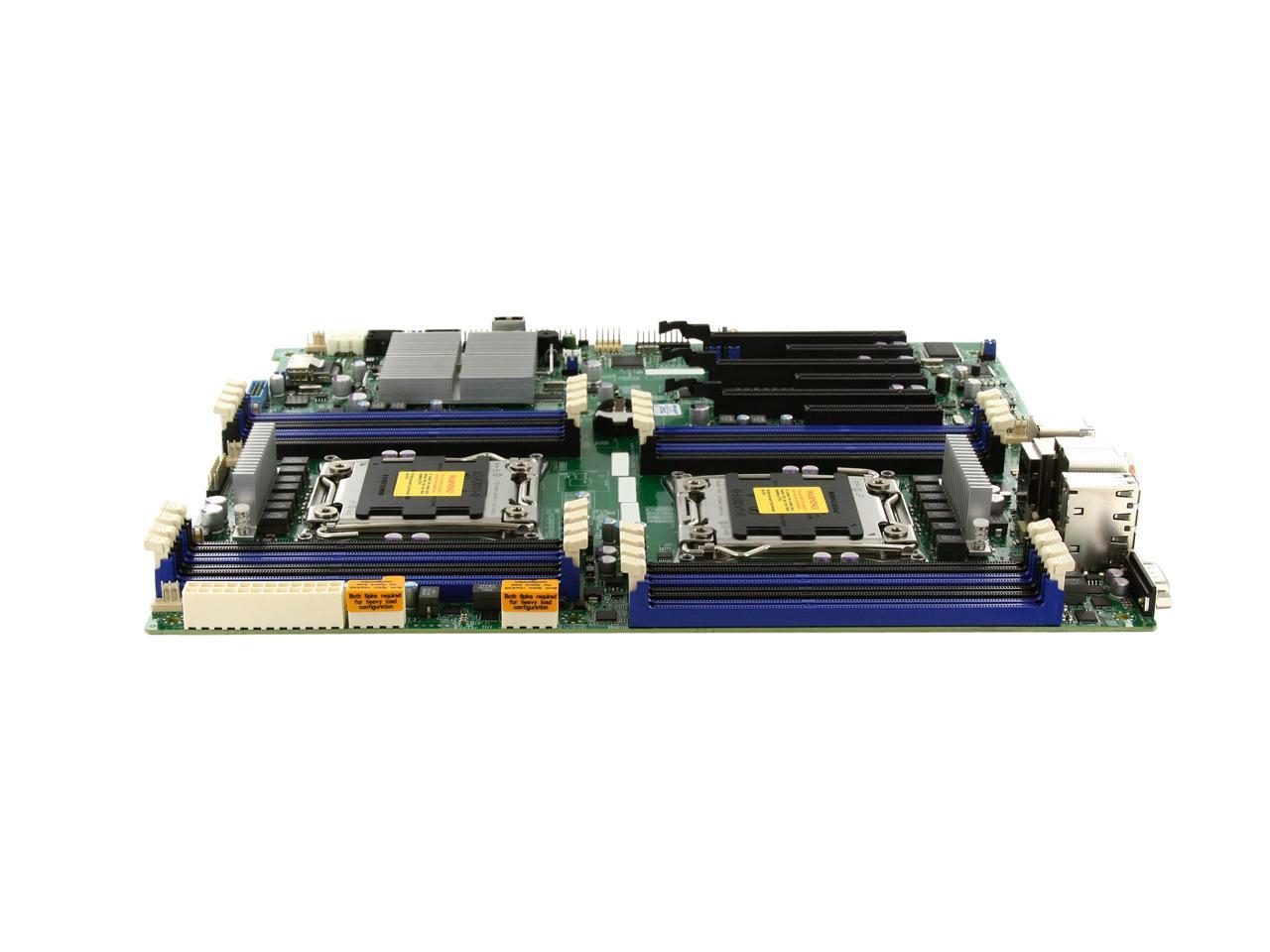

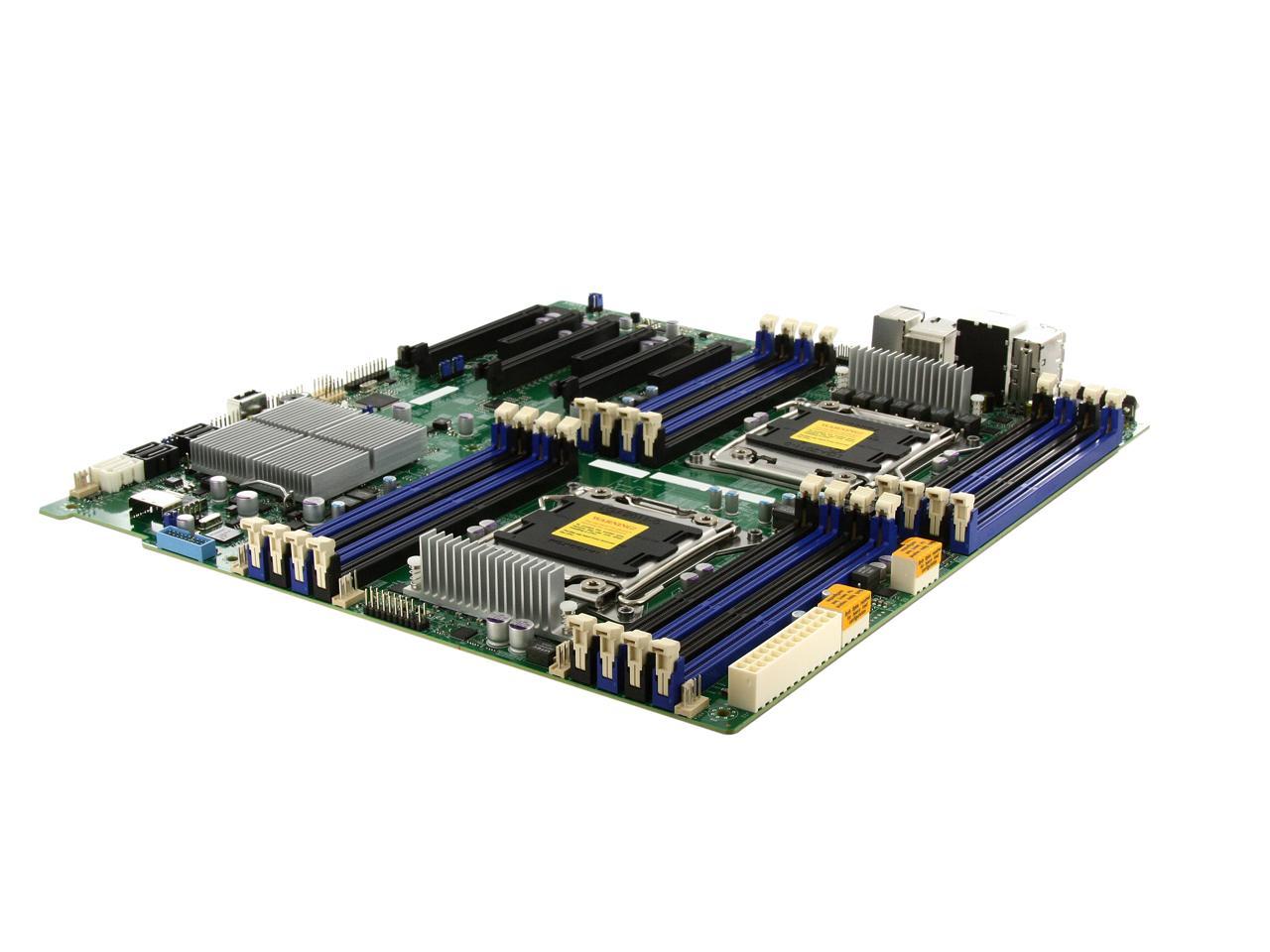

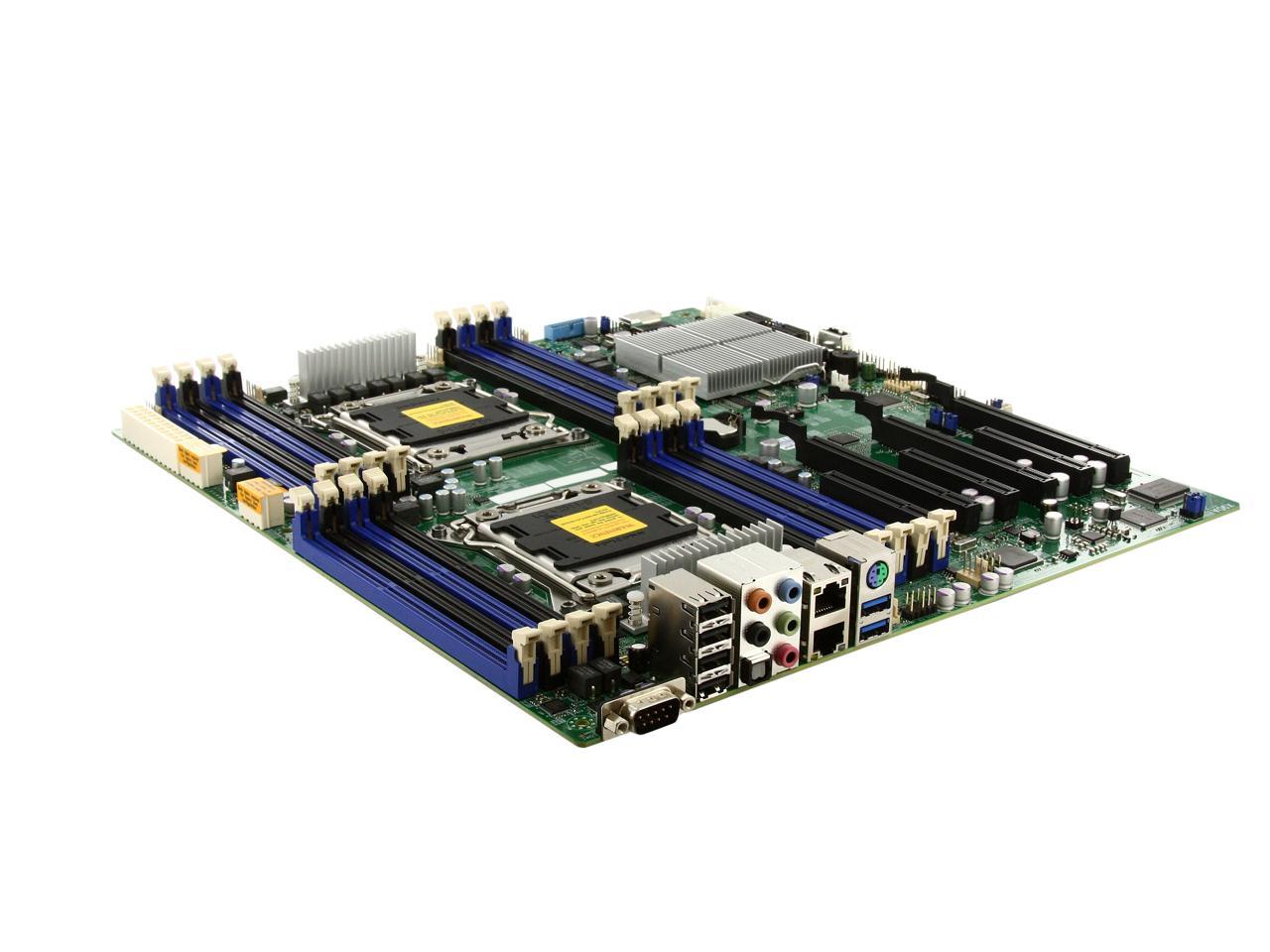

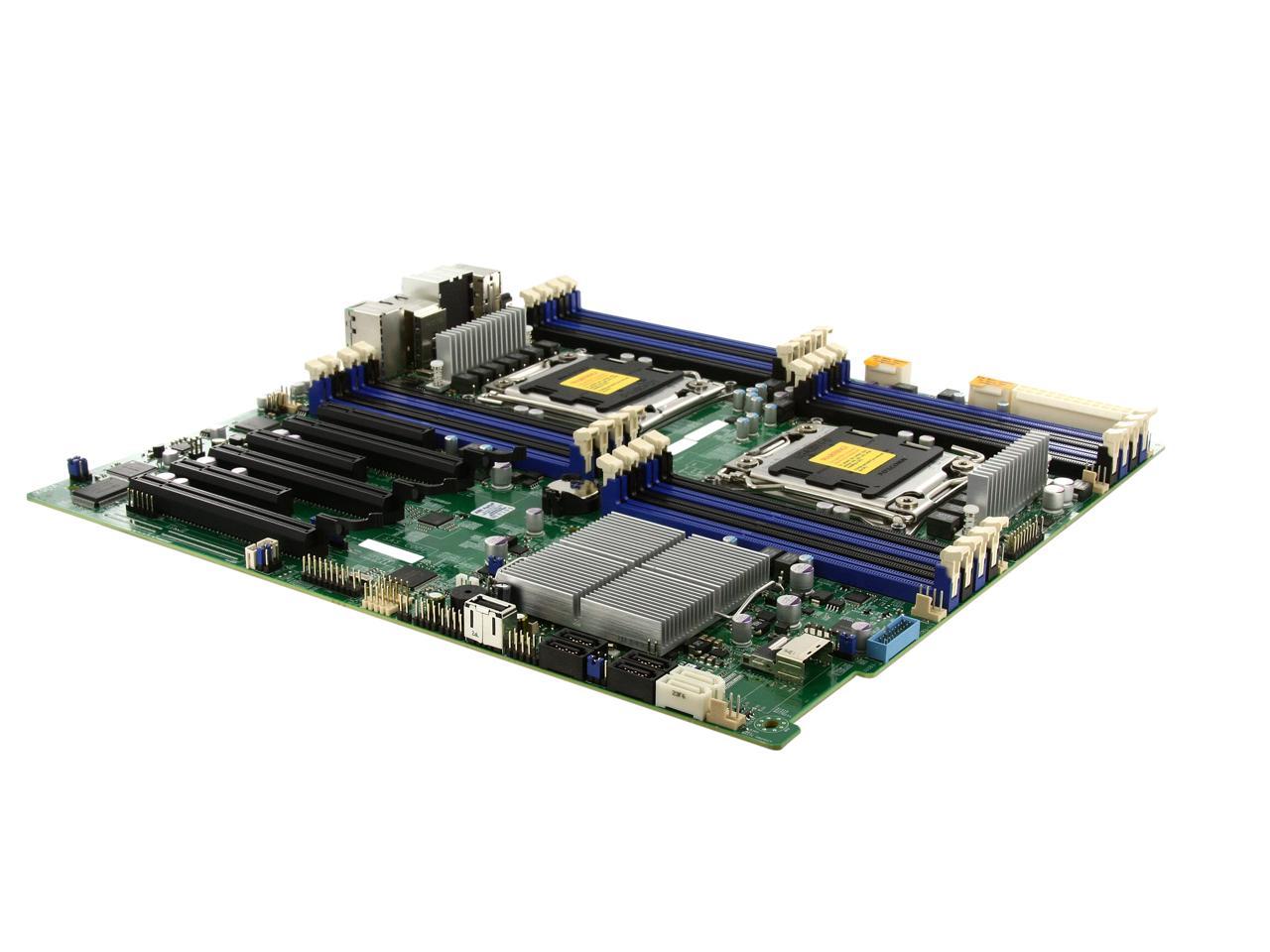

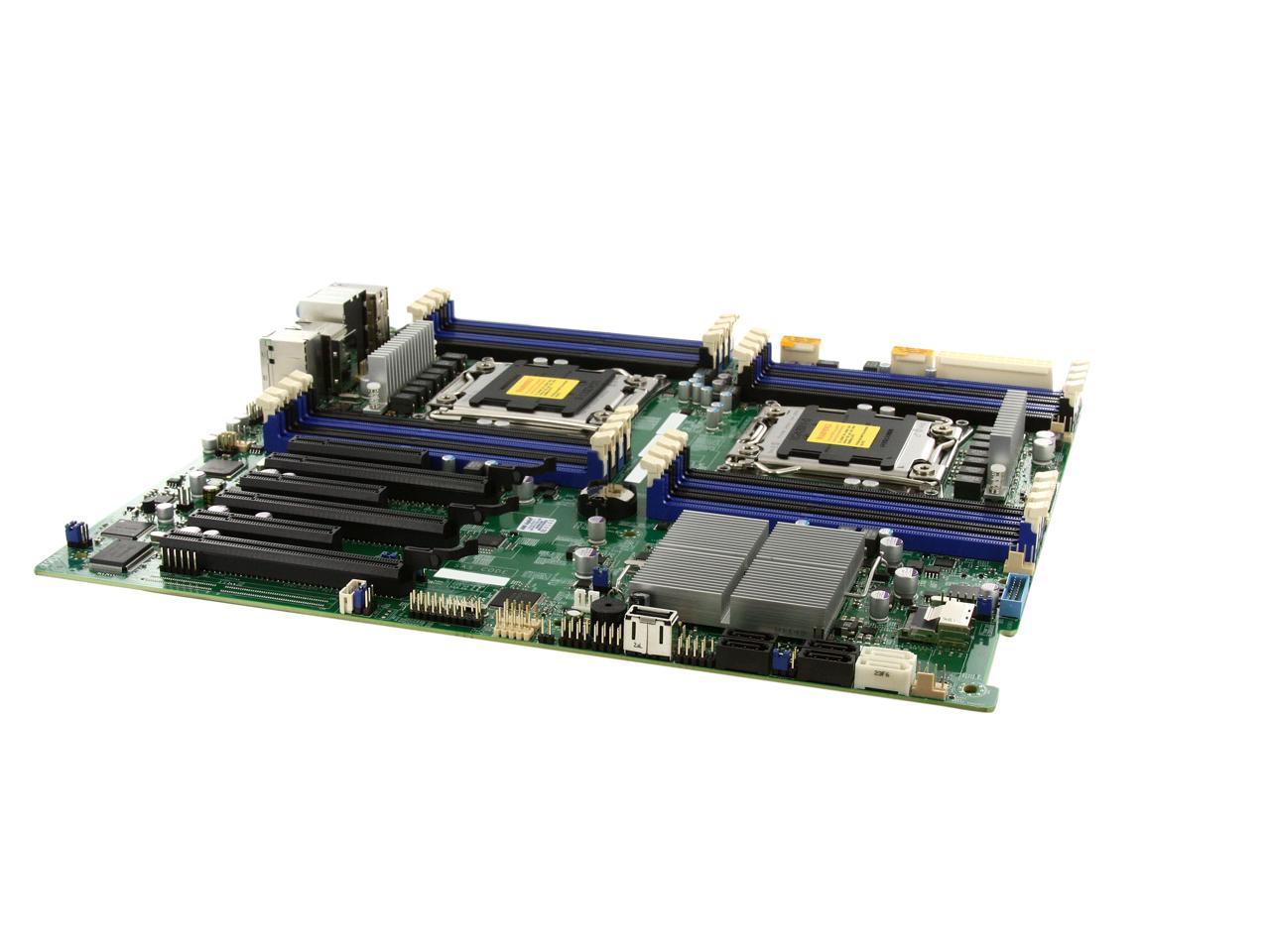

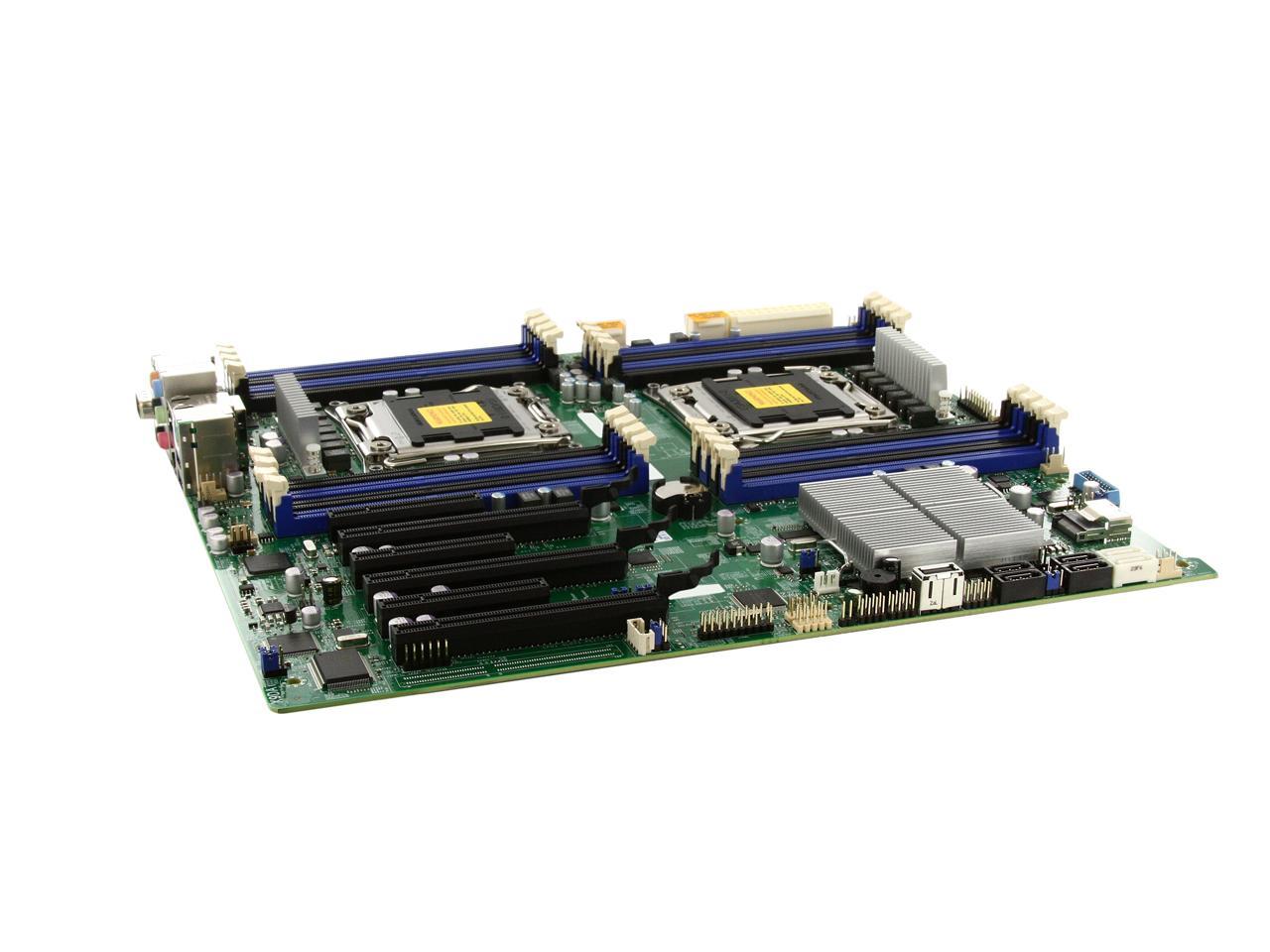

SUPERMICRO MBD-X9DAi-O Extended ATX Server Motherboard

Features

MBD-X9DAi-O

Dual socket R (LGA 2011) supports
Intel® Xeon® processor E5-2600
and E5-2600 v2 family†
Intel® C602 chipset; QPI up to 8.0GT/s
Up to 1TB ECC DDR3, up to 1866MHz;
16x DIMM slots
Expansion slots: 3x PCI-E 3.0 x16, 2x
PCI-E 3.0 x8 & 1x PCI-E 3.0 x4 (in x8)
Intel® i350 Dual port GbE LAN
8x SATA2 and 2x SATA3 ports
4x USB 3.0 and 7x USB 2.0 ports

Specifications

Product SKUs
MBD-X9DAi -O	X9DAi (Standard Retail Pack)
MBD-X9DAi -B	X9DAi (Bulk Pack)
Physical Stats
Form Factor	E-ATX
Dimensions	12″ x 13″ (30.5cm x 33.2cm)
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 150W TDP **) Dual Socket R (LGA 2011)
Cache	Up to 30MB
System Bus	QPI up to 8 GT/s
Note	† BIOS version 3.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support
System Memory
Memory Capacity	16x 240-pin DDR3 DIMM slots Up to 1TB DDR3 ECC LRDIMM Up to 512GB DDR3 ECC RDIMM Up to 128GB DDR3 ECC/non-ECC UDIMM
Memory Type	1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs Support ECC and non-ECC UDIMMs * Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C602 chipset
AHCI SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SCU SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Input / Output
AHCI SATA	2x SATA 3.0 ports (6Gbps) 4x SATA 2.0 ports (3Gbps)
SCU SATA	4x SATA 2.0 ports (3Gbps)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.0 ports (Renesas uPD720200A; 2 rear + 2 via header) 7 USB 2.0 ports (4 rear + 2 via header + 1 Type A)
Audio	7.1 HD Audio with optical S/PDIF
Keyboard/Mouse	PS/2 Keyboard Combo port
Serial Port / Header	1 Fast UART 16550 port
IEEE 1394a	2 Headers
DOM	1 DOM (Disk on Module) power connector
TPM	1 TPM 1.2 20-pin Header
Expansion Slots
PCI-Express	3x PCI-E 3.0 x16 slots 2x PCI-E 3.0 x8 slots 1x PCI-E 3.0 x4 (in x8) slot (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1
Management
Software	SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / ACPM Power Management Main Switch Override Mechanism CPU Fan auto-off in sleep mode Power-on mode for AC power recovery Suspend to RAM (STR)
PC Health Monitoring
Voltage	Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 6+1 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support RoHS

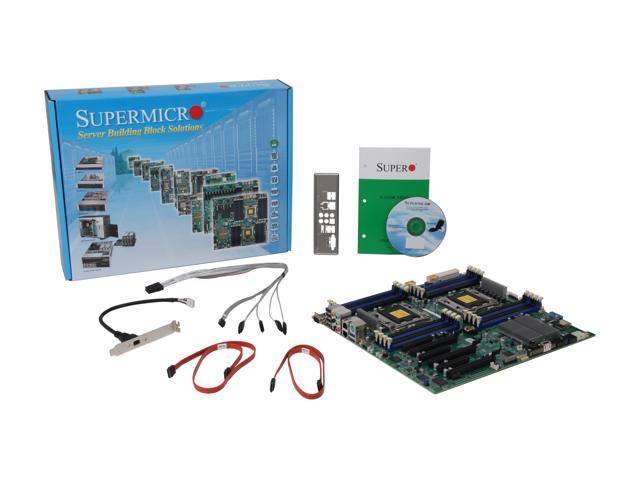

Whats in the Box

MBD-X9DAi-O

Learn more about the Supermicro MBD-X9DAi-O

Model
Brand	SUPERMICRO
Model	MBD-X9DAi-O

Supported CPU
CPU Socket Type	Dual LGA 2011
CPU Type	2 x Intel Xeon E5-2600 Series (up to 150W TDP)
QPI	Up to 8 GT/s

Chipsets
Other Chipset	Intel C602 Chipset

Memory
Number of DDR3 Slots	16 x 240pin
DDR3 Standard	DDR3 1866/1600/1333/1066/800
Maximum Memory Supported	512GB(RDIMM), 128GB(UDIMM)
ECC Supported	Yes
Registered	Yes

Expansion Slots
PCI Express 3.0 x16	3x PCI-E 3.0 x16 slots
PCI Express x8	2x PCI-E 3.0 x8 slots
PCI Express x4	1x PCI-E 3.0 x4 (in x8) slot

Storage Devices
SATA	4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
Additional SATA	4 x SATA 3.0Gb/s
Additional SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset Audio Chipset	Realtek ALC889
Audio Channels Audio Channels	7.1 High Definition Audio with S/PDIF header

Onboard LAN
LAN Chipset	Intel I350-AM2
LAN Speed	10/100/1000Mbps
Max LAN Speed	Dual 10/100/1000Mbps

Rear Panel Ports
PS/2 PS/2	1 x PS/2 keyboard/mouse port
COM	1
USB 1.1/2.0	2 x USB 3.0 + 4 x USB 2.0

Onboard Ports
Onboard USB	USB 2.0: 2 via header + 1 Type A USB 3.0: 2 via header
Onboard 1394	2 x IEEE 1394a Header

Features
Features	Memory Capacity: Supports up to 512 GB DDR3 ECC Registered memory (RDIMM) Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM) *Motherboard supports this maximum TDP. Please verify your system can thermally support. DOM: 1 x DOM (Disk on Module) power connector

Dimensions
Form Factor	Extended ATX
Dimensions (W x L)	12.0″ x 13.0″

Packaging
Package Contents	NC4036

Additional Information
Date First Available	July 25, 2022

Customer Reviews of the Supermicro MBD-X9DAi-O

There are no reviews yet.
