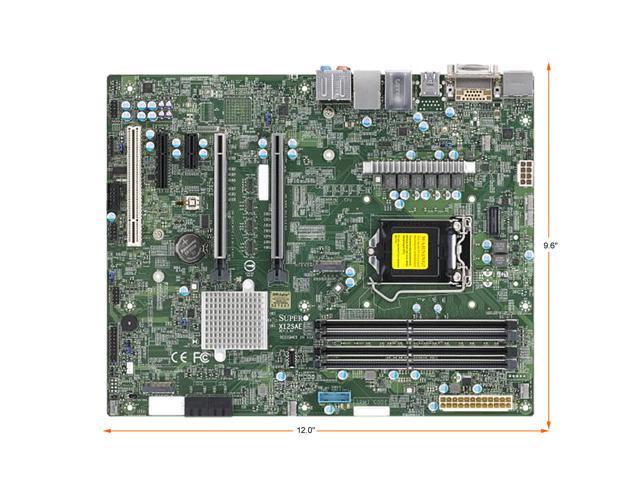

SUPERMICRO MBD-X12SAE ATX Server Motherboard LGA 1200 Intel W480
SKU: N82E1681318376313.370.955₫
10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Intel W480
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
1 PCI-E 3.0 x4, 2 PCI-E 3.0 x16 slots (16/NA or 8/8), 1 PCI-E 3.0 x1, 1 – 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI – D port
Intel W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
Single LAN with Intel Ethernet i225V
Description
Learn more about the Supermicro MBD-X12SAE
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X12SAE |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors |
| North Bridge | Intel W480 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2933 |
| Maximum Memory Supported | Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC) |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 (16/NA or 8/8) |
|---|---|
| PCI Express x4 | 1 x PCI Express 3.0 x4 |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2280/22110 Key: M-Key |
| Audio Chipset Audio Chipset | Realtek ALC888S |
|---|
| LAN Chipset | Intel I225-V |
|---|---|
| LAN Speed | 2.5Gbps |
| Second LAN Chipset | Intel I219-LM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Back I/O Ports | 1 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 2.5 Gigabit Ethernet LAN port 2 x USB 2.0 ports (2 via headers) 3 x USB 3.2 Gen1 ports (1 via header + 2 Type A) 5 x USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header) 1 x DP (DisplayPort) port, 1 HDMI port, 1 DVI – D port 1 x COM Port (1 header) 1 x TPM Header |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Date First Available | November 03, 2022 |
|---|
