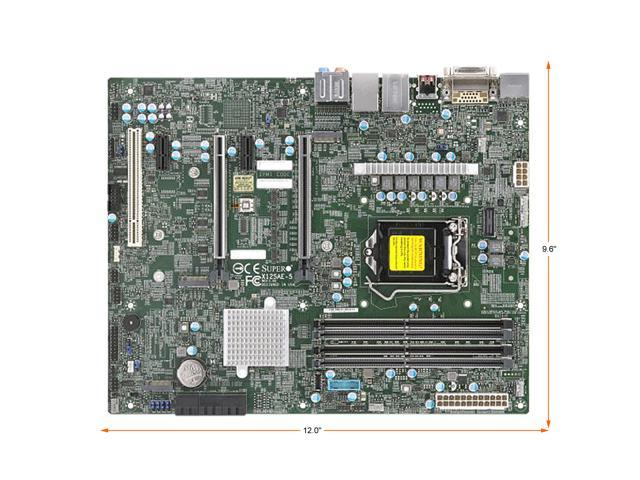

SUPERMICRO MBD-X12SAE-5-O ATX Server Motherboard LGA 1200 Intel W580
SKU: N82E1681318376215.605.655₫
11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1300 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Intel W580
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1, 1 – 5V PCI 32bit
M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
RAID 5 only applied for INTEL Storage Device
1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI – D port
Intel W580 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Single LAN with Intel Ethernet i225V
Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
Description
Learn more about the Supermicro MBD-X12SAE-5-O
| Best Seller Ranking | #45 in Server Motherboards |
|---|
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X12SAE-5-O |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1300 Processors |
| North Bridge | Intel W580 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 (16/NA or 8/8) |
|---|---|
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2280/22110 Key: M-Key RAID 5 only applied for INTEL Storage Device |
| Audio Chipset Audio Chipset | Realtek ALC888S |
|---|
| LAN Chipset | Intel I225-V |
|---|---|
| LAN Speed | 2.5Gbps |
| Second LAN Chipset | Intel I219-LM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Back I/O Ports | 1 x RJ45 2.5 Gigabit Ethernet LAN port 1 x RJ45 Gigabit Ethernet LAN ports 2 x USB 2.0 ports (2 via headers) 2 x USB 3.2 Gen1 ports (2 via headers) 4 x USB 3.2 Gen2 ports (4 Rear Type A) 2 x USB 3.2 Gen2x2 ports (1 Type C) 1 x DP 1.4a port, 1 HDMI 2.0b port, 1 DVI – D port 1 x COM Port (1 header) 1 x TPM Header |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Date First Available | September 14, 2021 |
|---|
