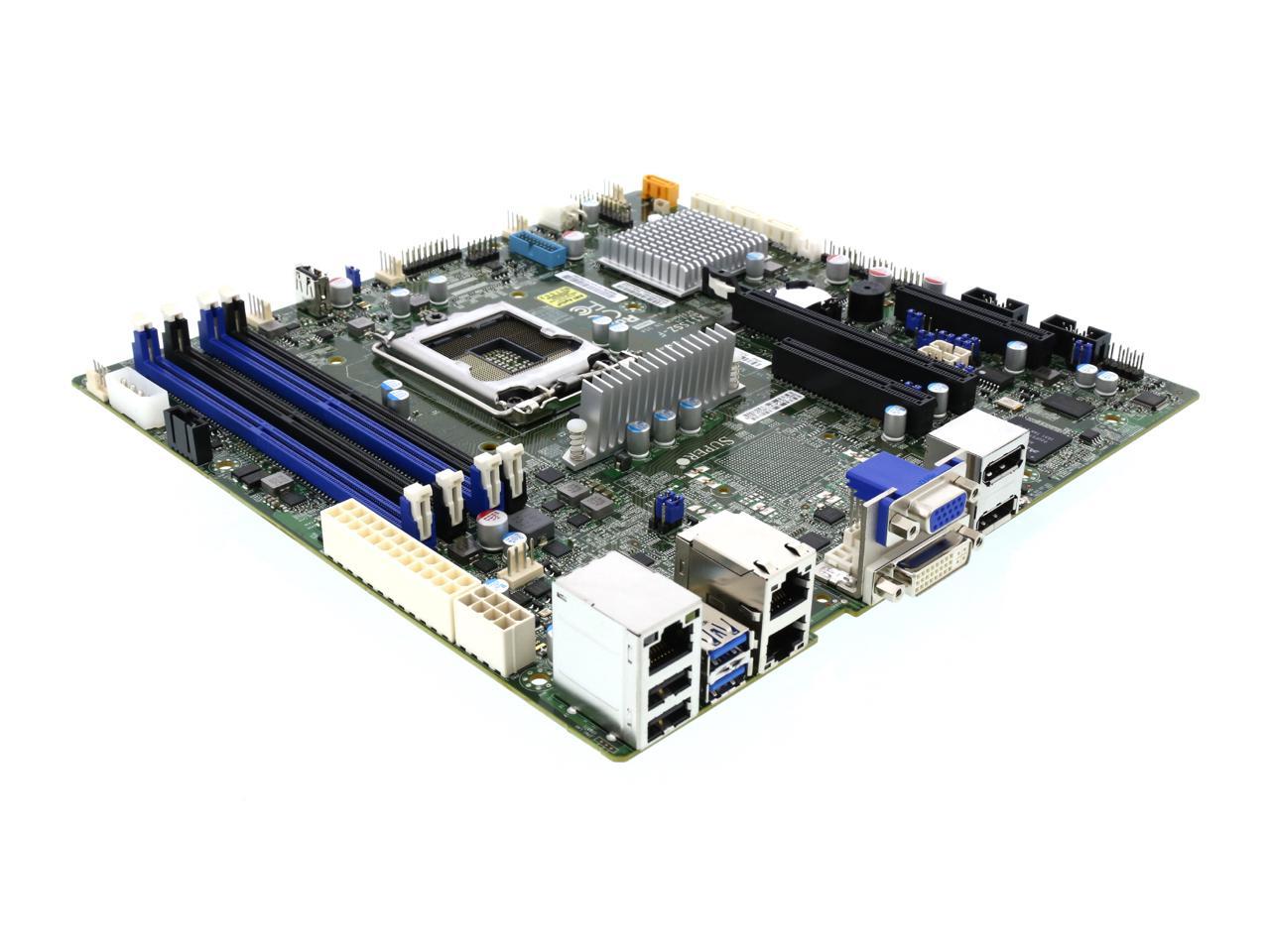

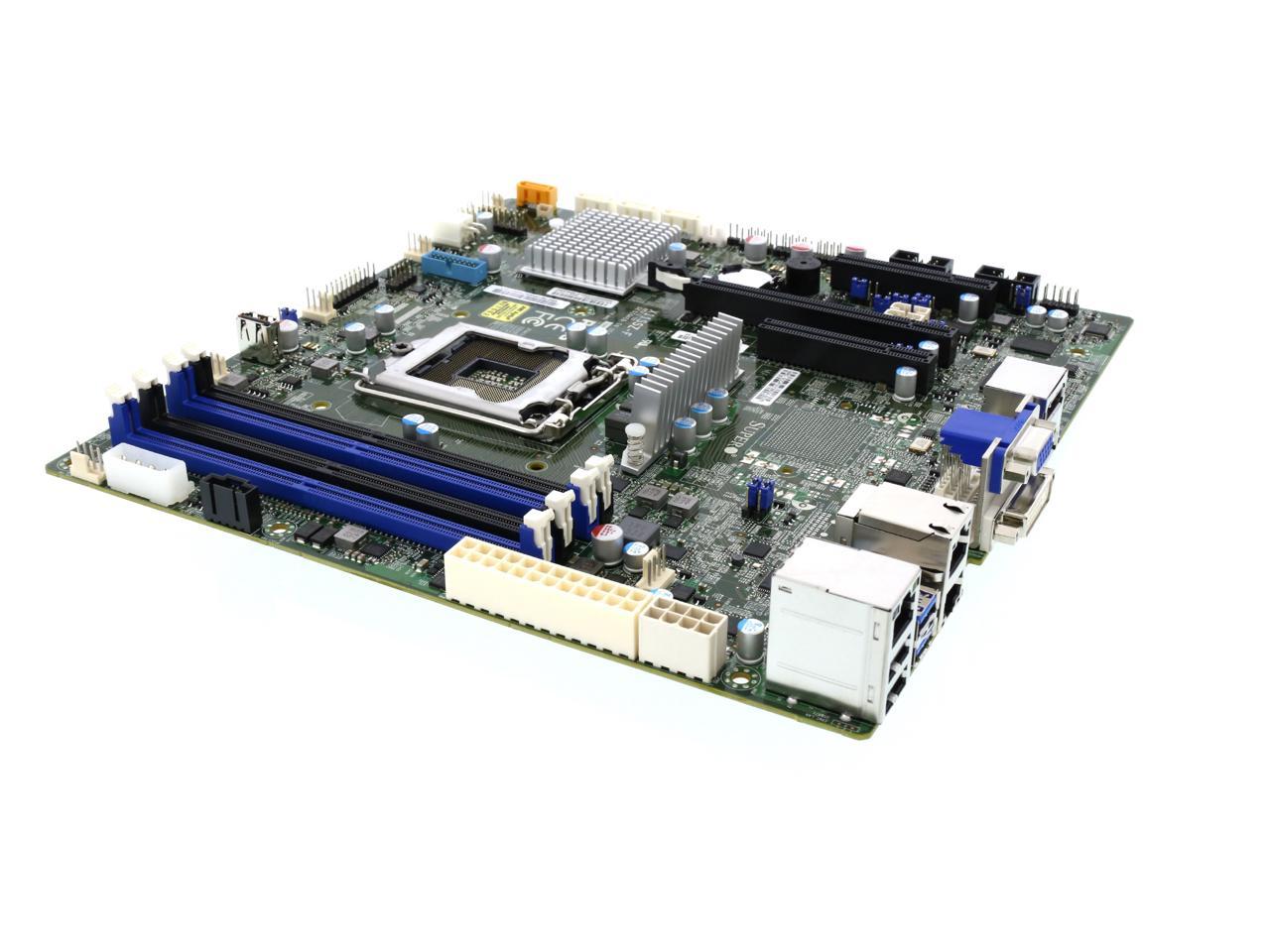

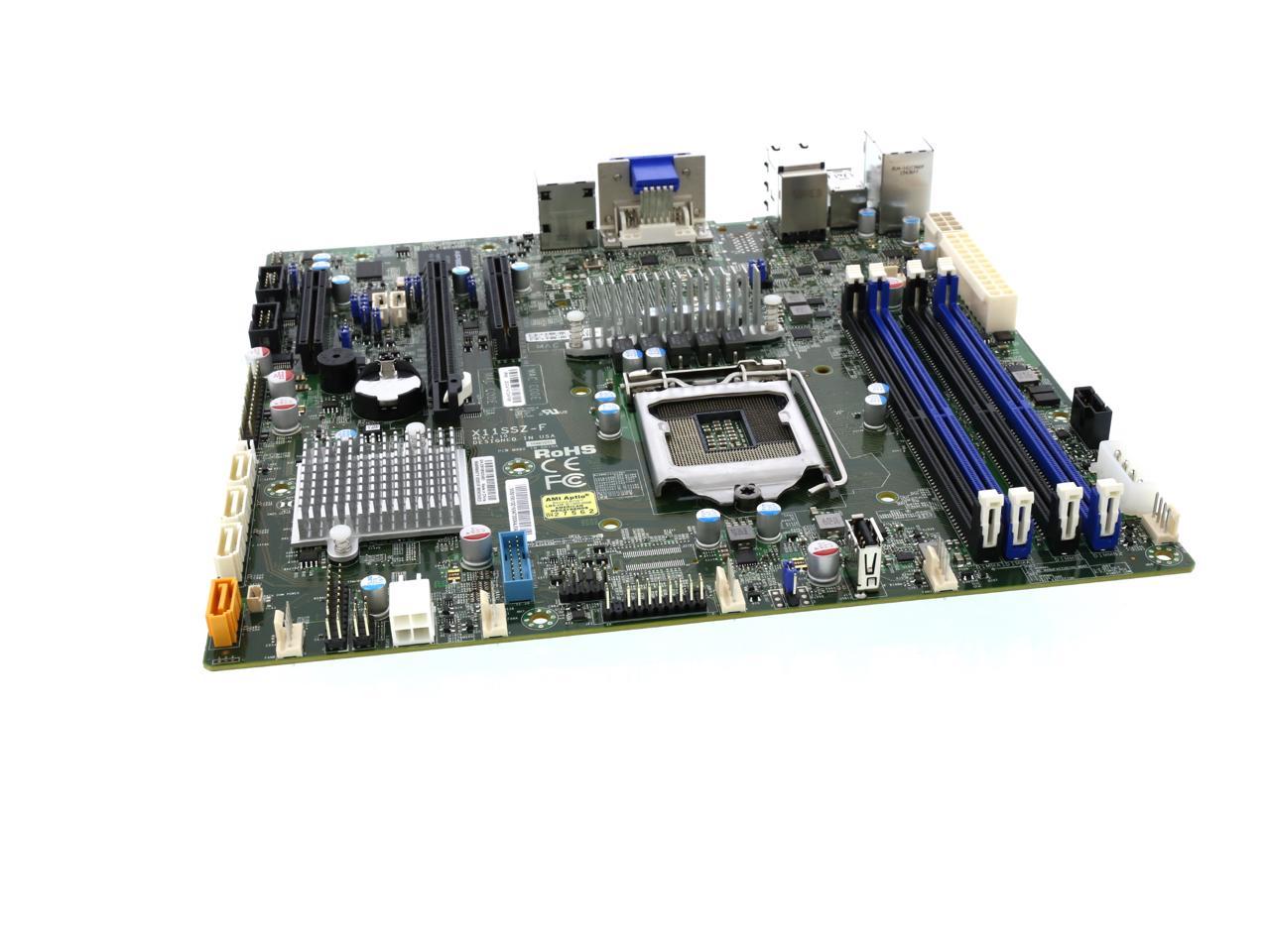

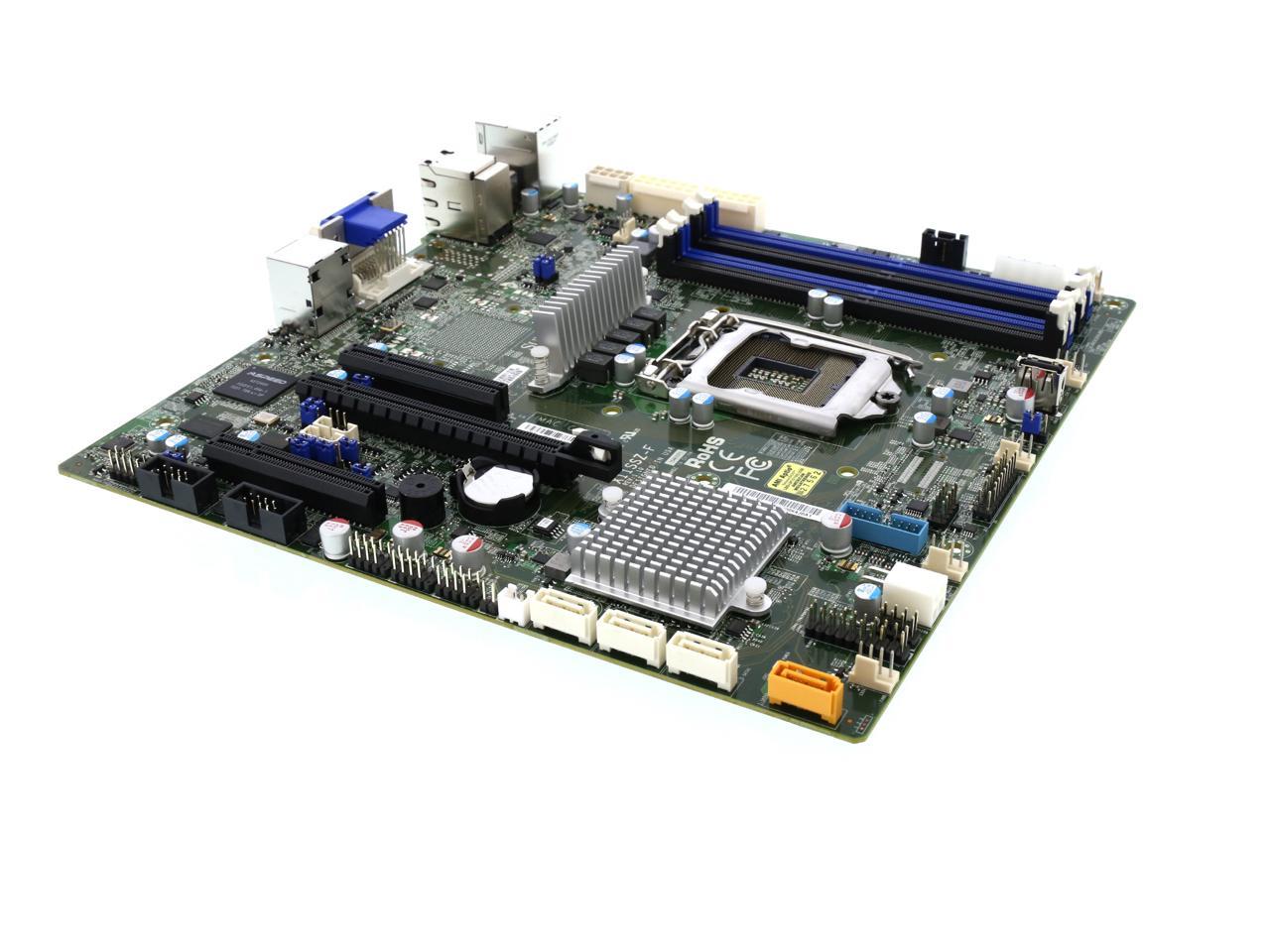

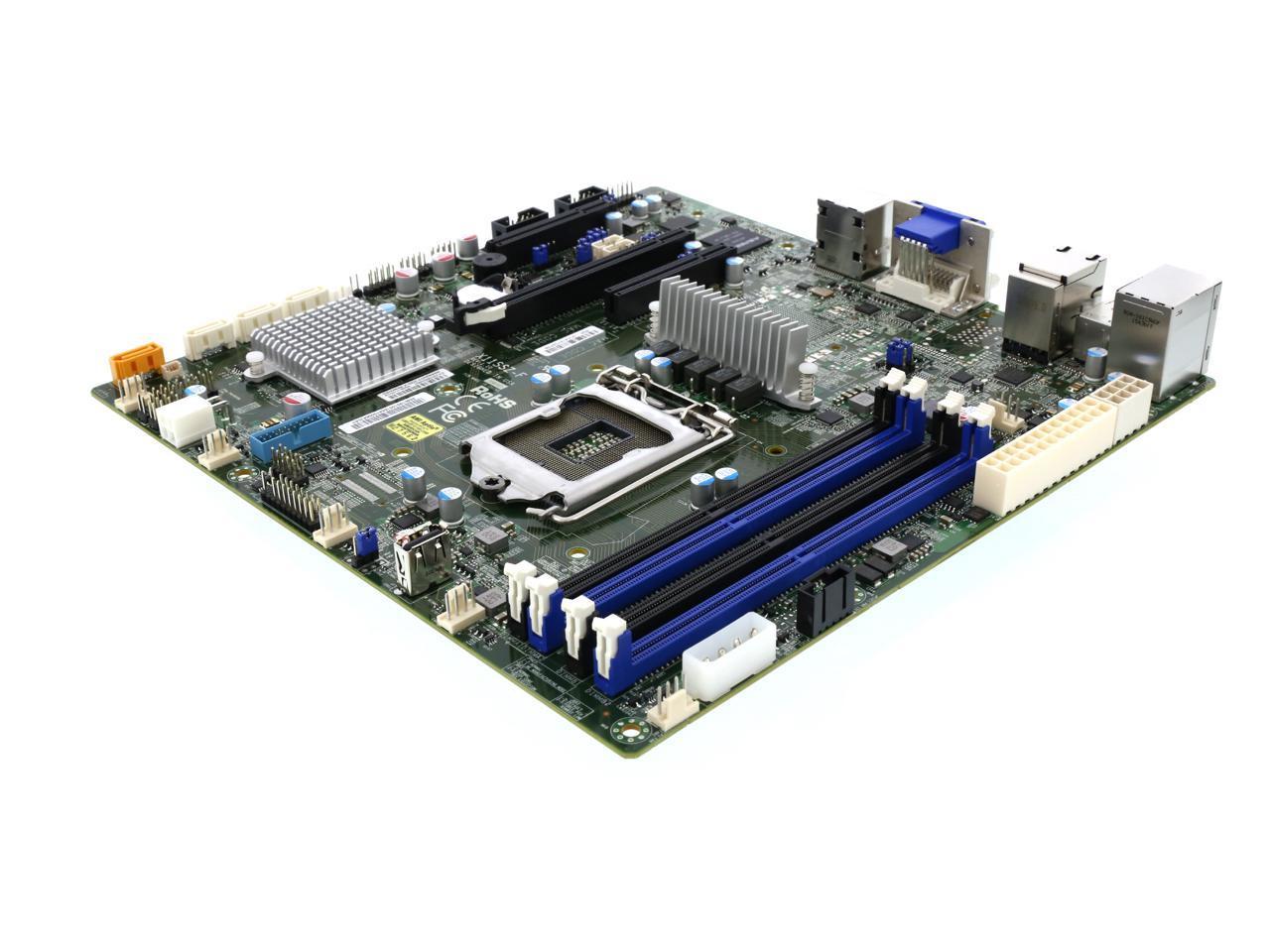

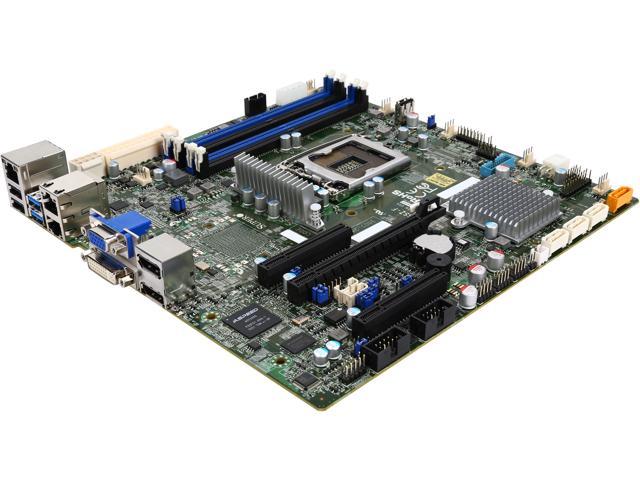

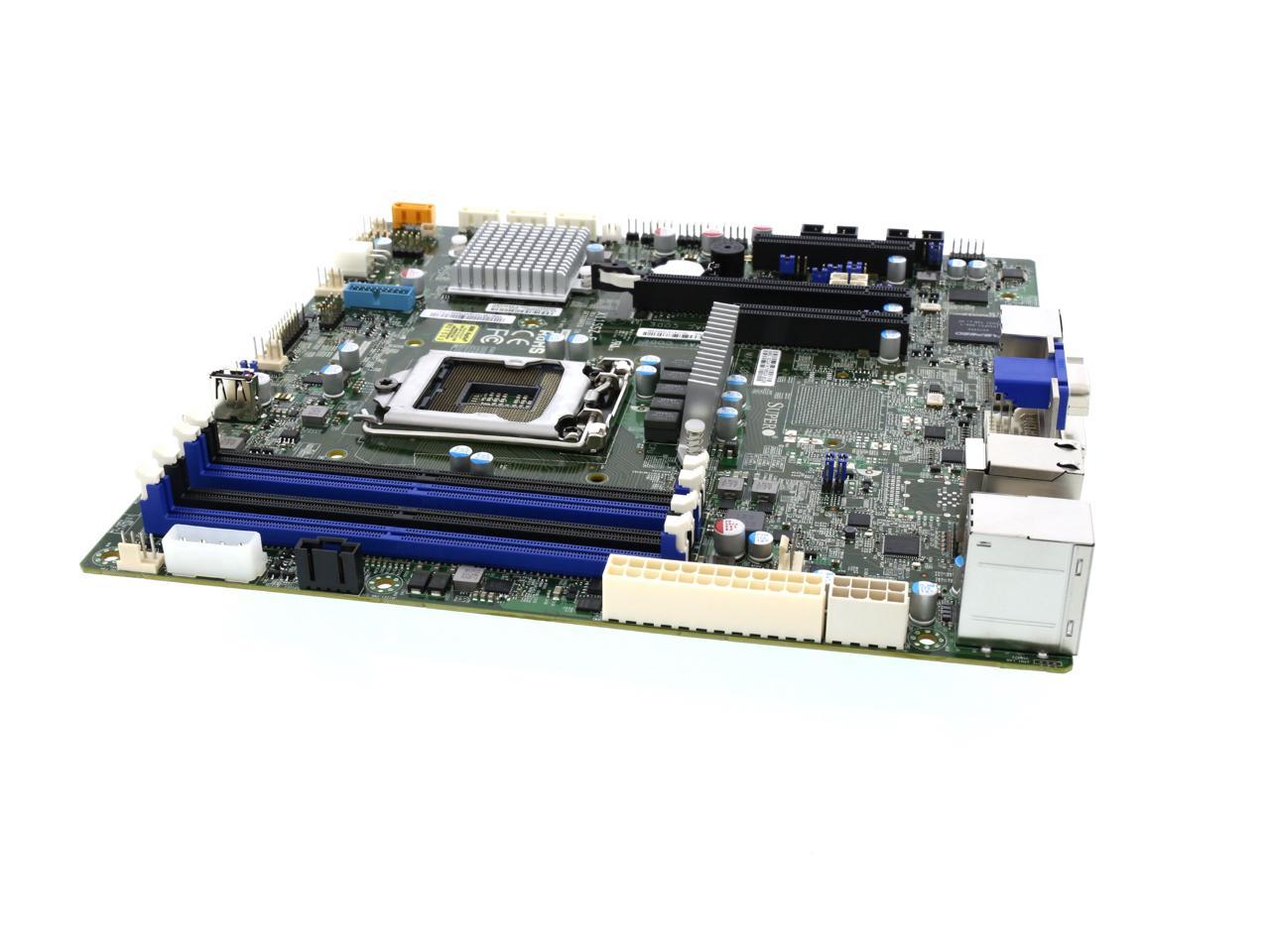

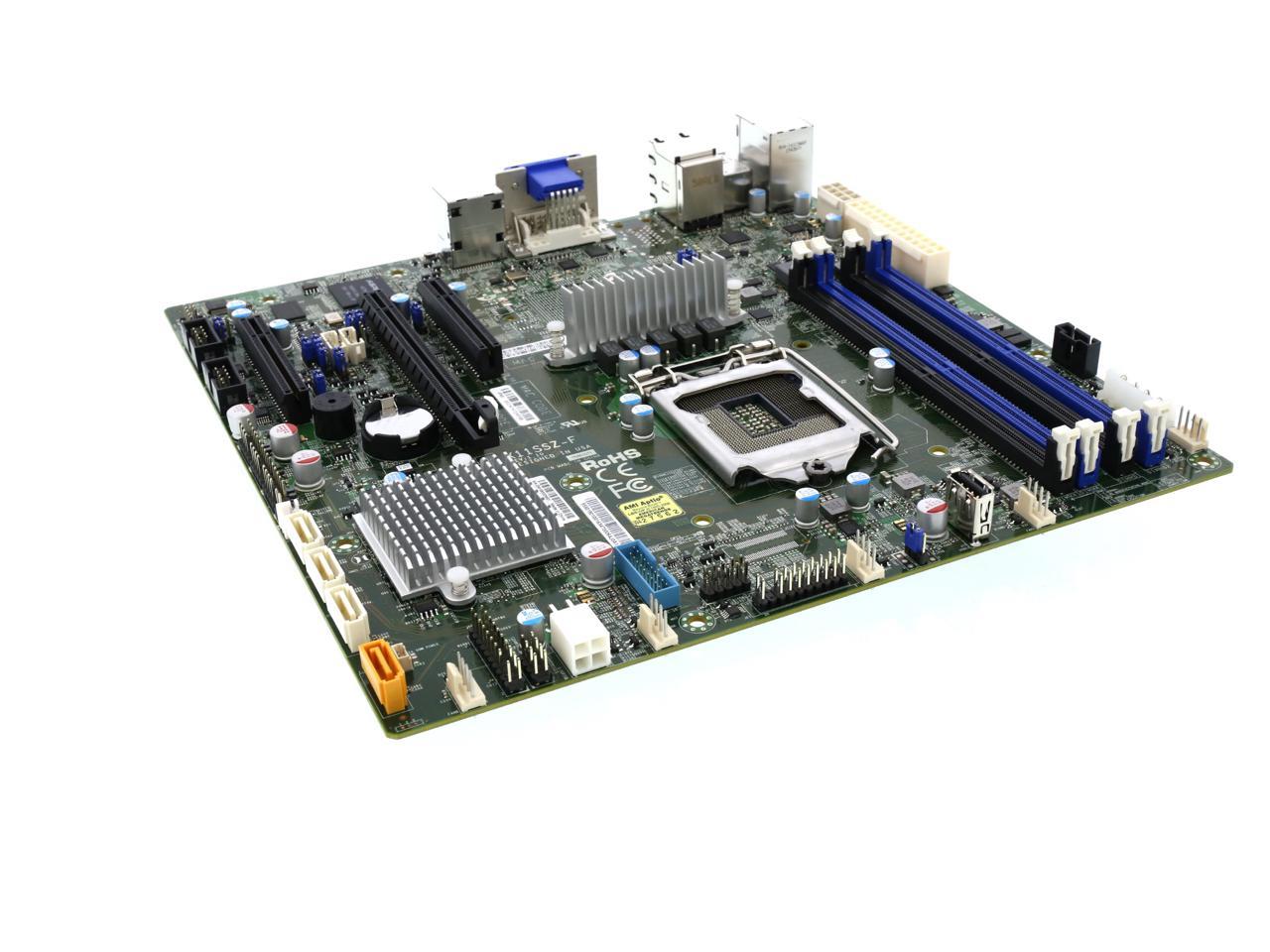

SUPERMICRO MBD-X11SSZ-F-O Micro ATX Server Motherboard LGA 1151 Intel C236
SKU: 9SIA17PHG5105214.153.100₫
Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset
4 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
2 x DP, 1 x DVI-I, 3 x independent displays via Intel HD Graphics, VGA port for BMC
Supports 12V DC power input
Description
/* Insert SKU number in place of “sku-13-182-991” */
#overview-content.sku-13-182-991 .banner {width:100%; height:60px; margin-bottom:0; background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-991//SUPERMICRO_030416.jpg) no-repeat left; }
#overview-content .bt{ color: #333333;font-size: 24px; font-weight: bold; line-height: 30px; text-align:center}
#overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;}
#overview-content .st {margin:0 auto 20px;background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-991//title_030416.jpg) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; }
#overview-content table.specs { width:100%; margin:0 auto; border:#CCC 1px solid; border-collapse:collapse; font-size:12px;}
#overview-content table.specs td{ border:#CCC 1px solid; border-collapse:collapse;}
#overview-content h2{ color: #333333;font-weight: bold;font-size: 24px;text-transform: uppercase;}

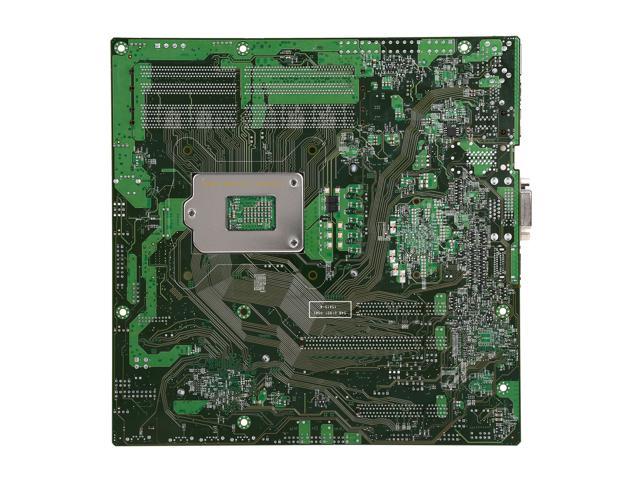

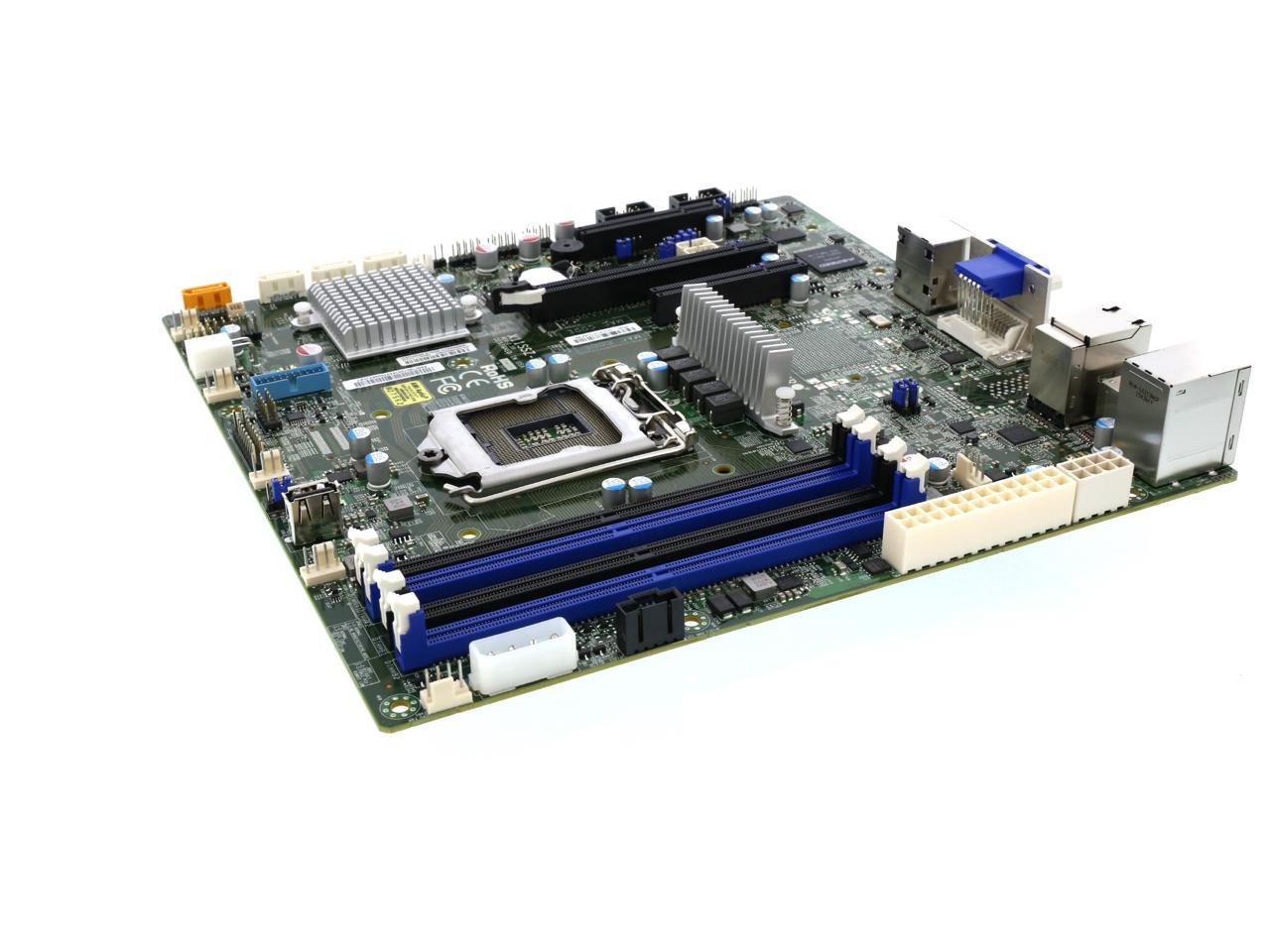

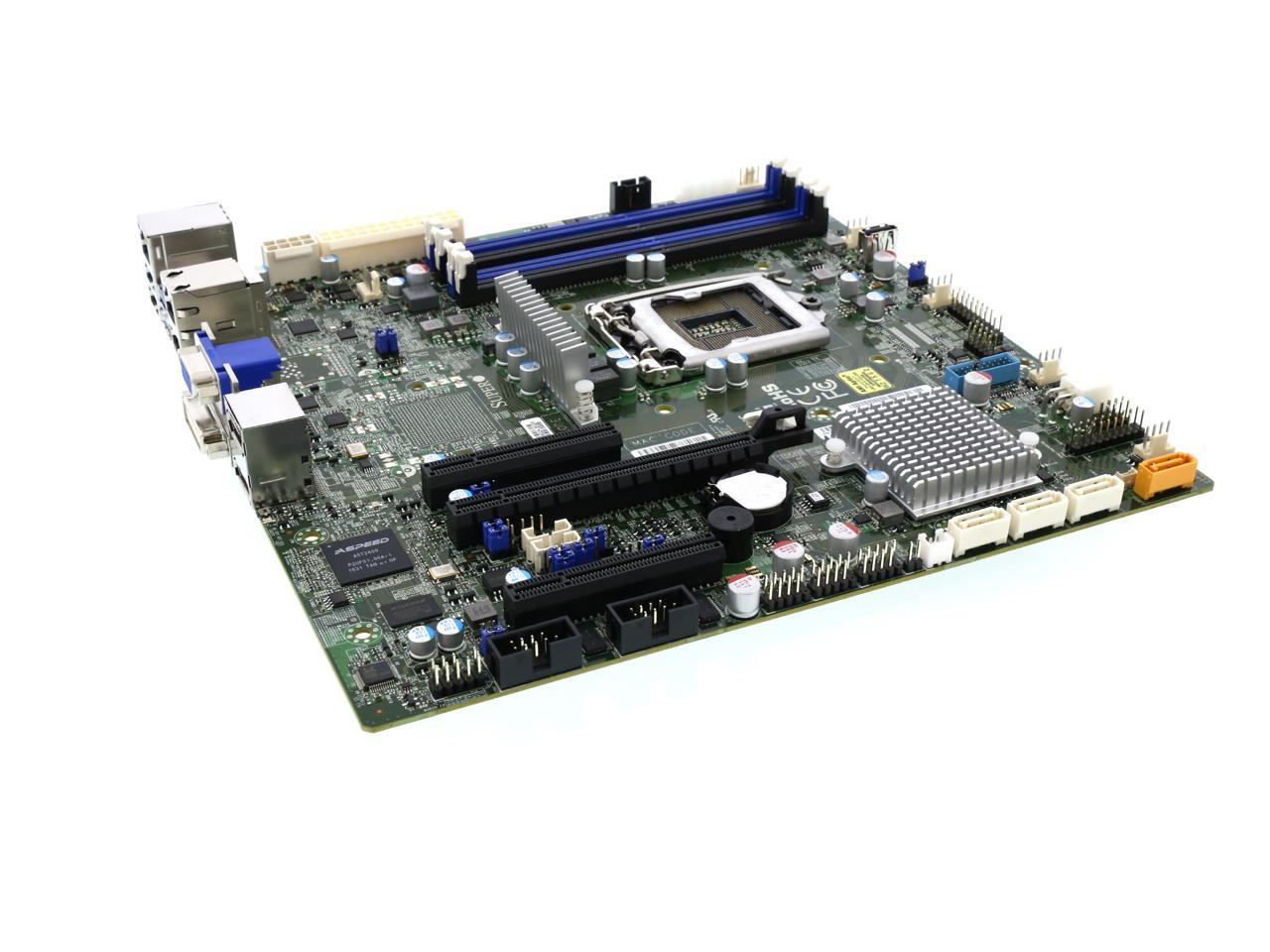

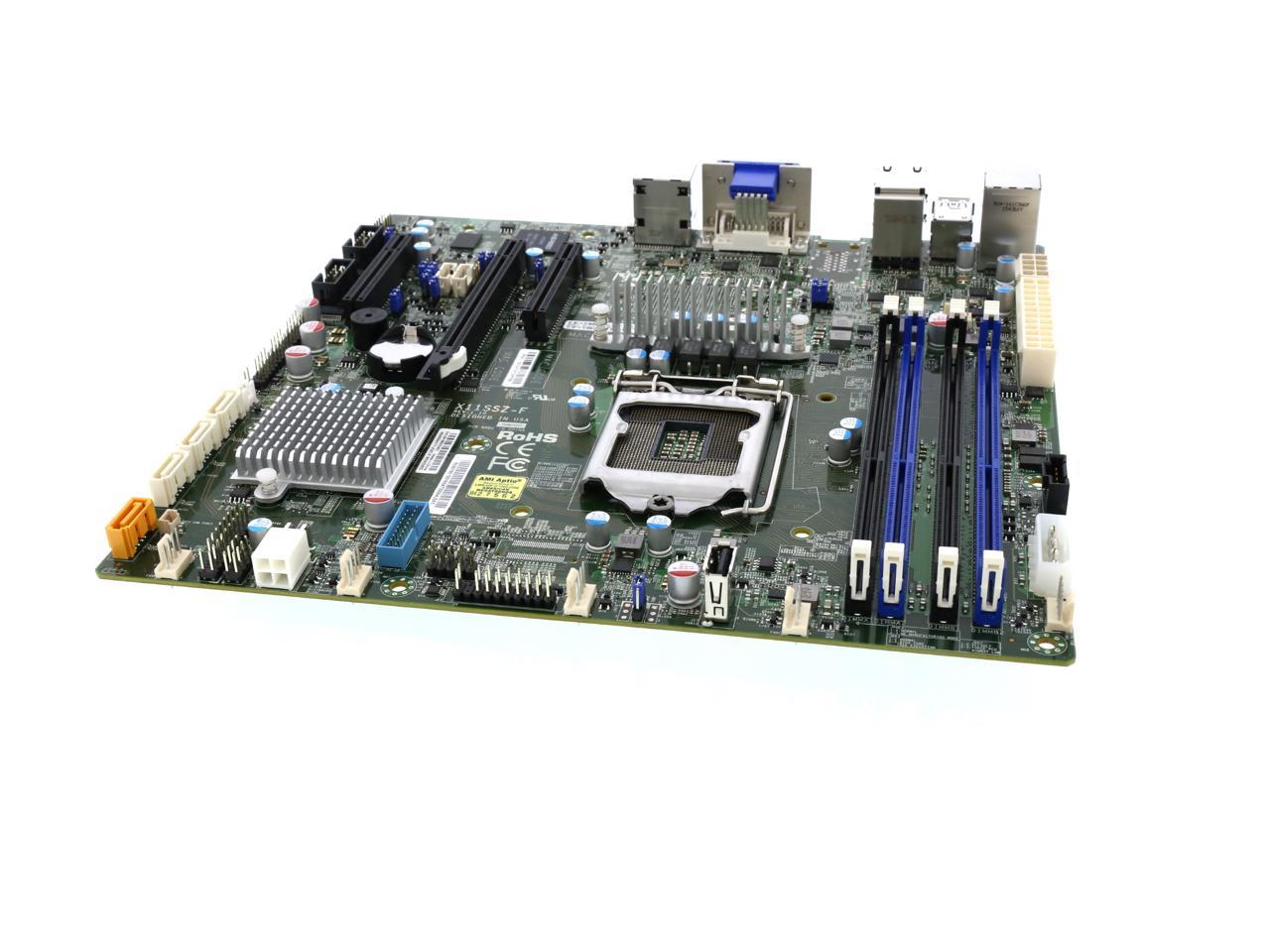

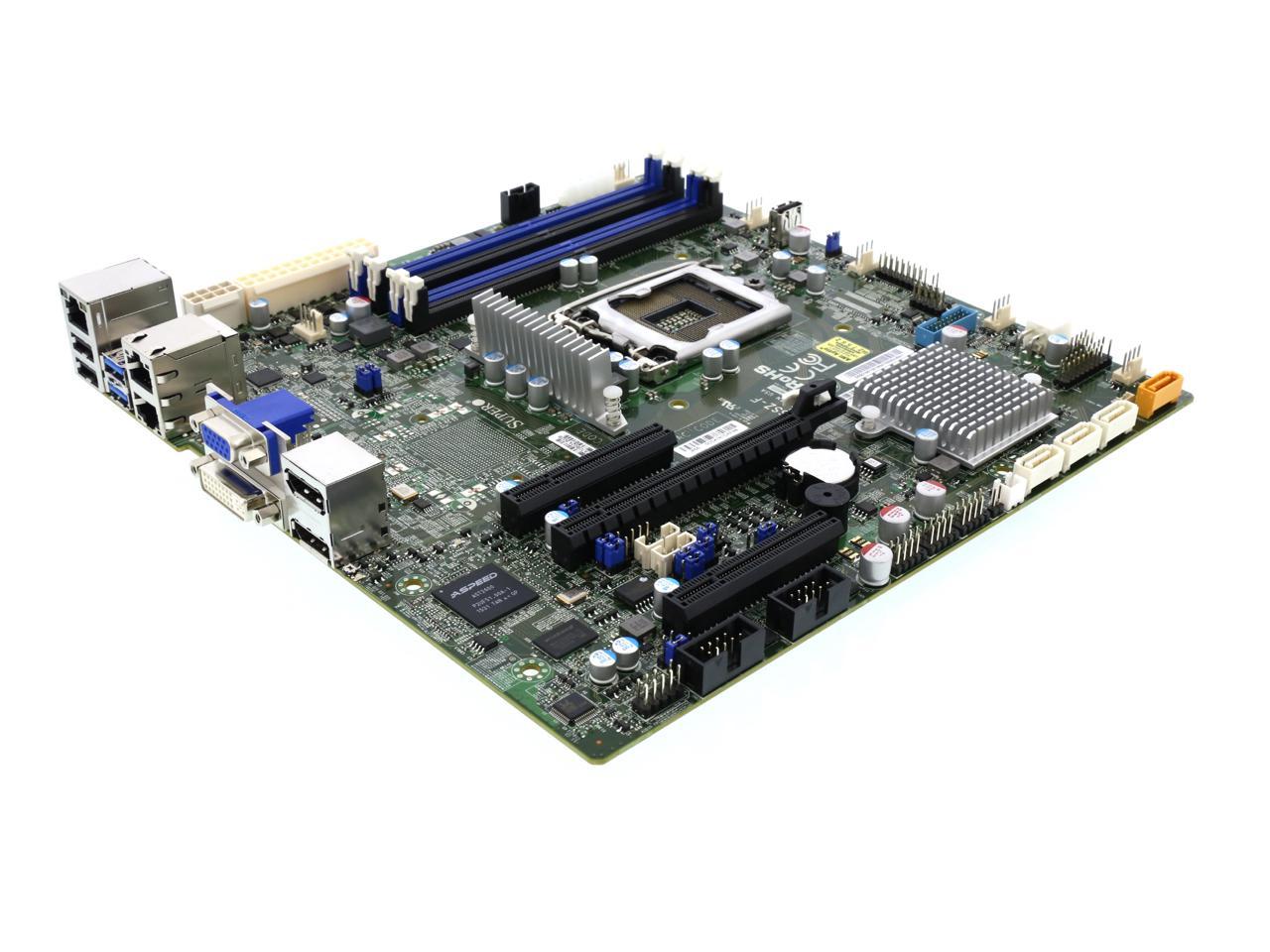

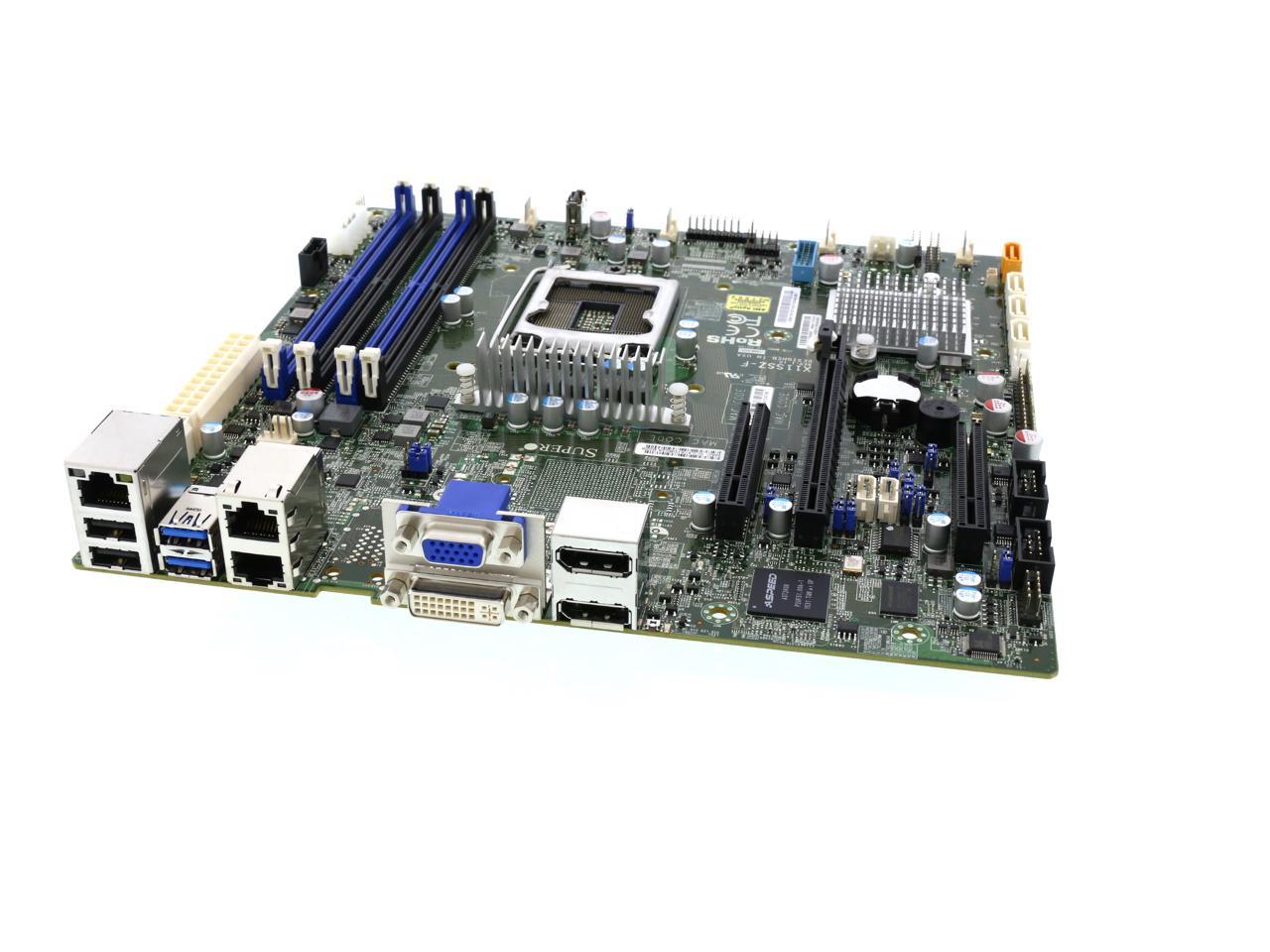

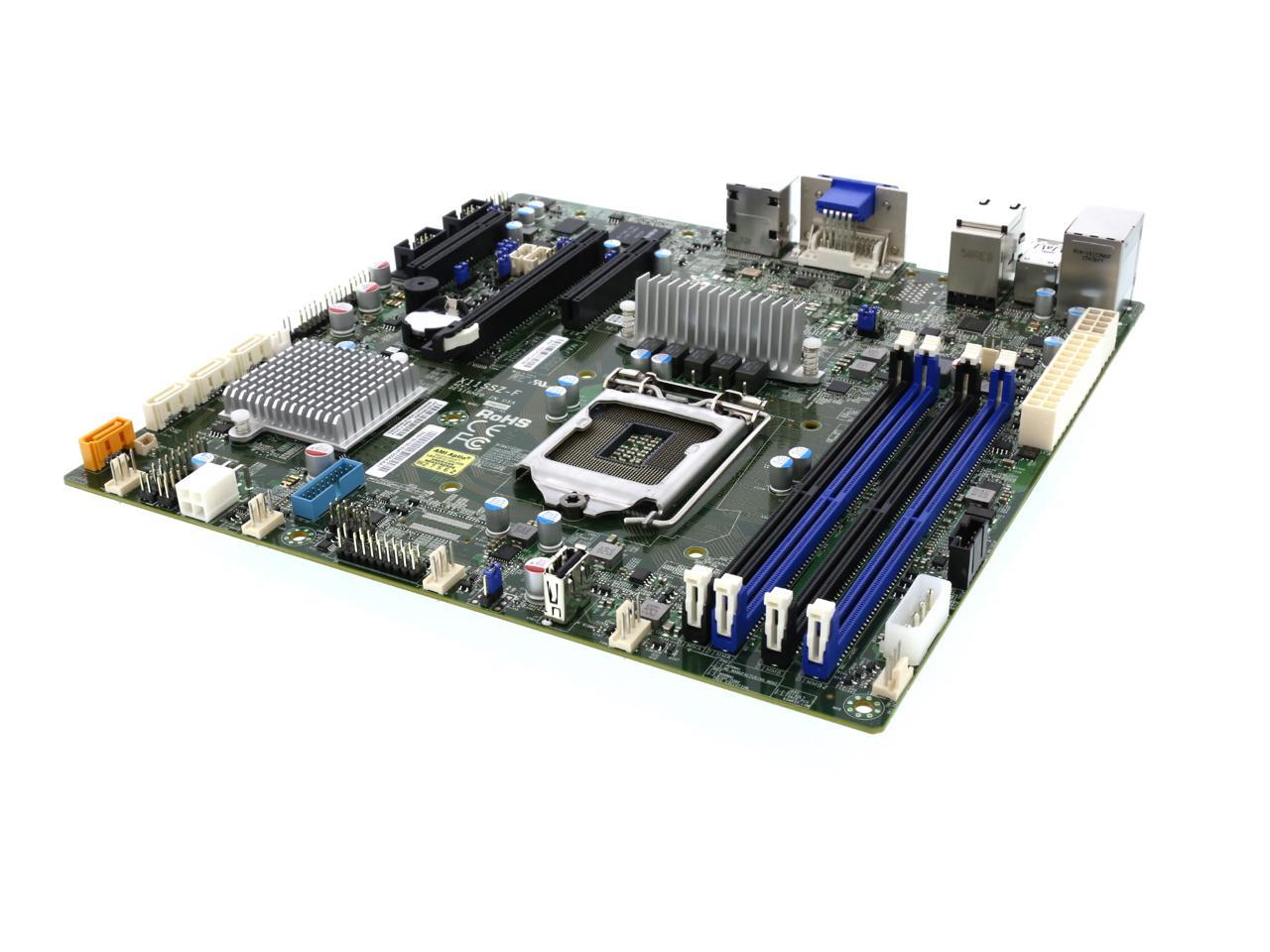

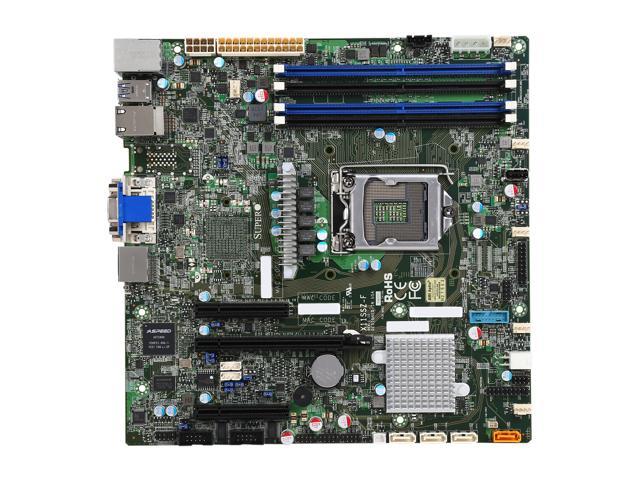

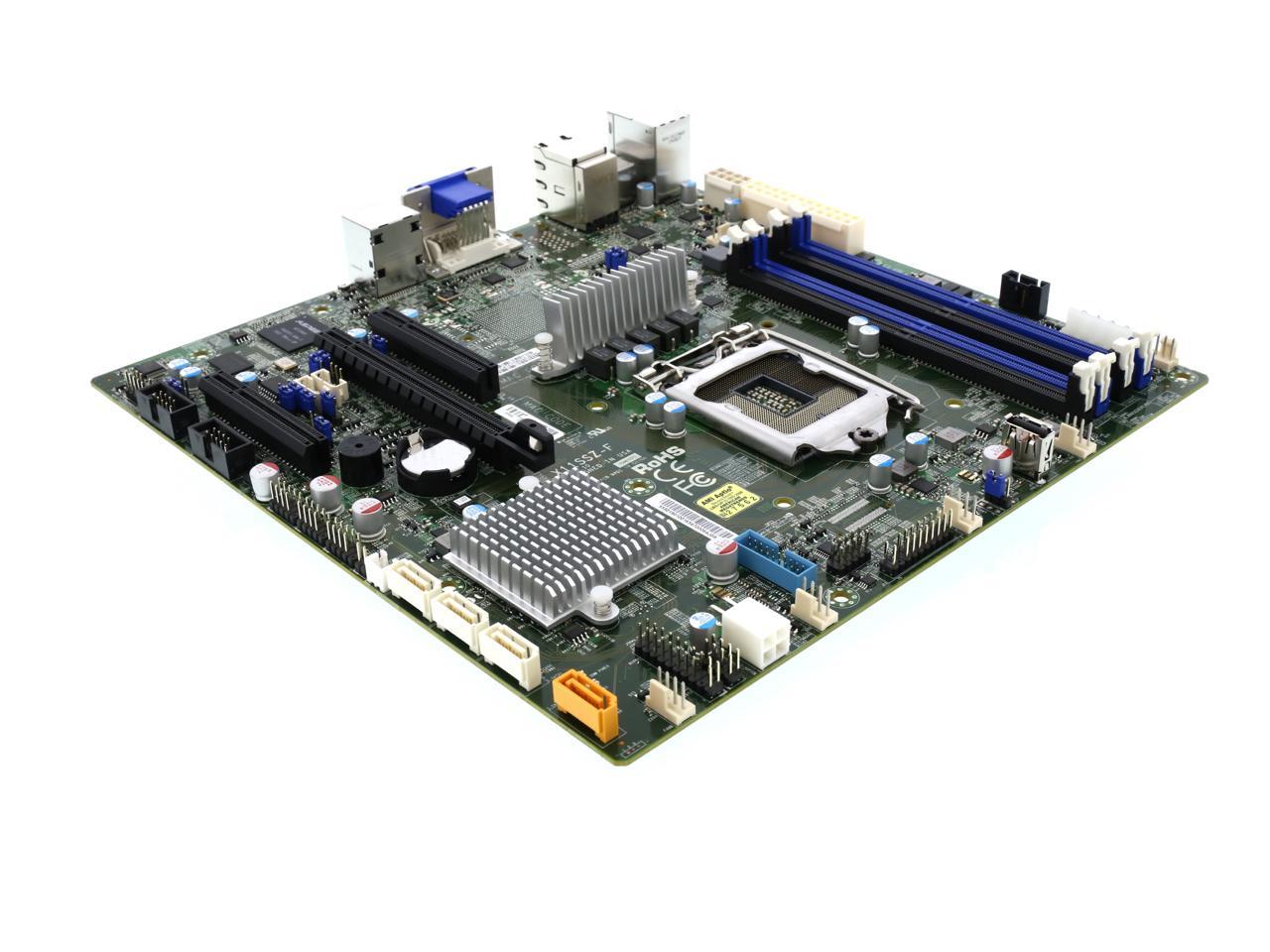

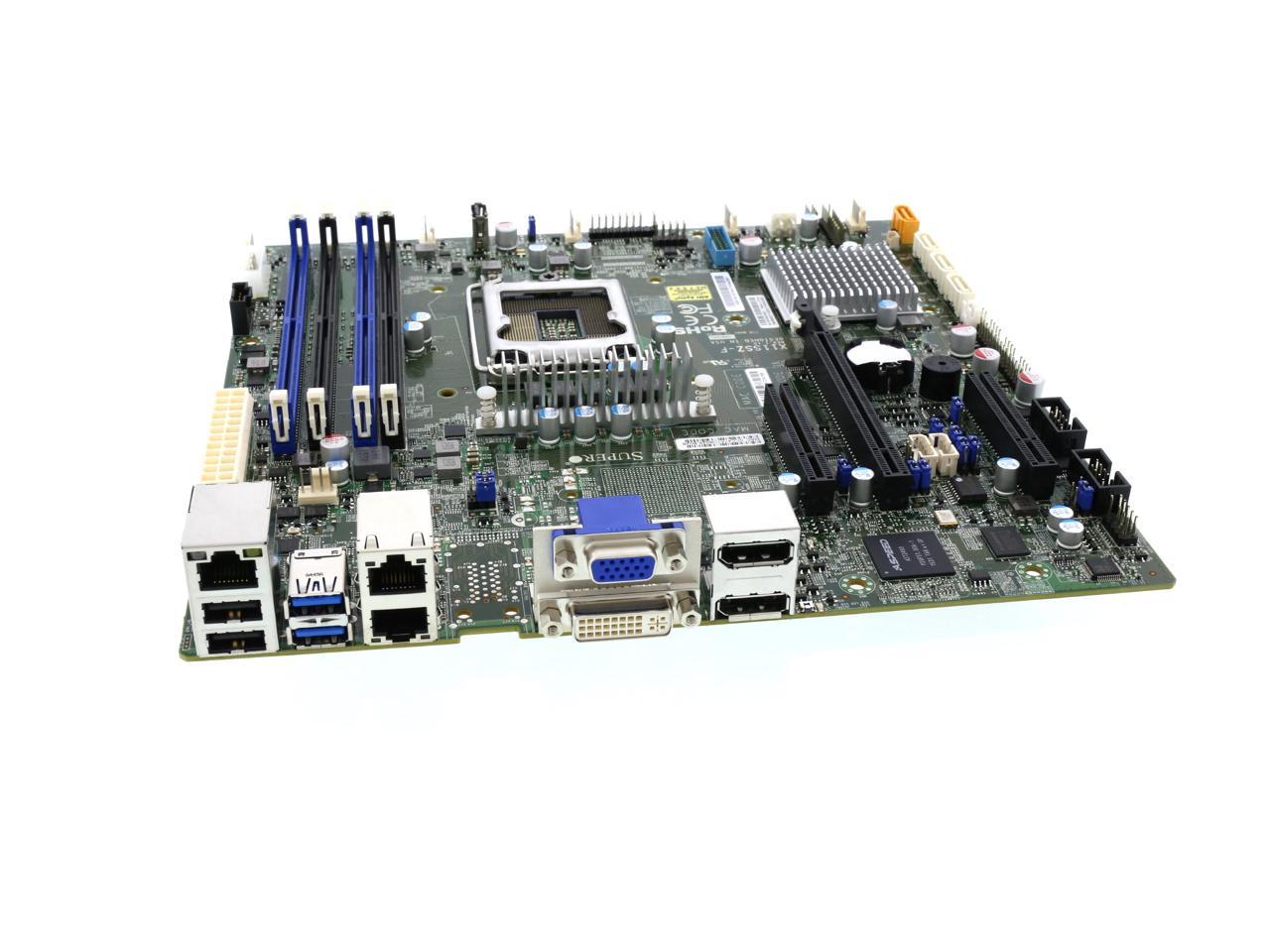

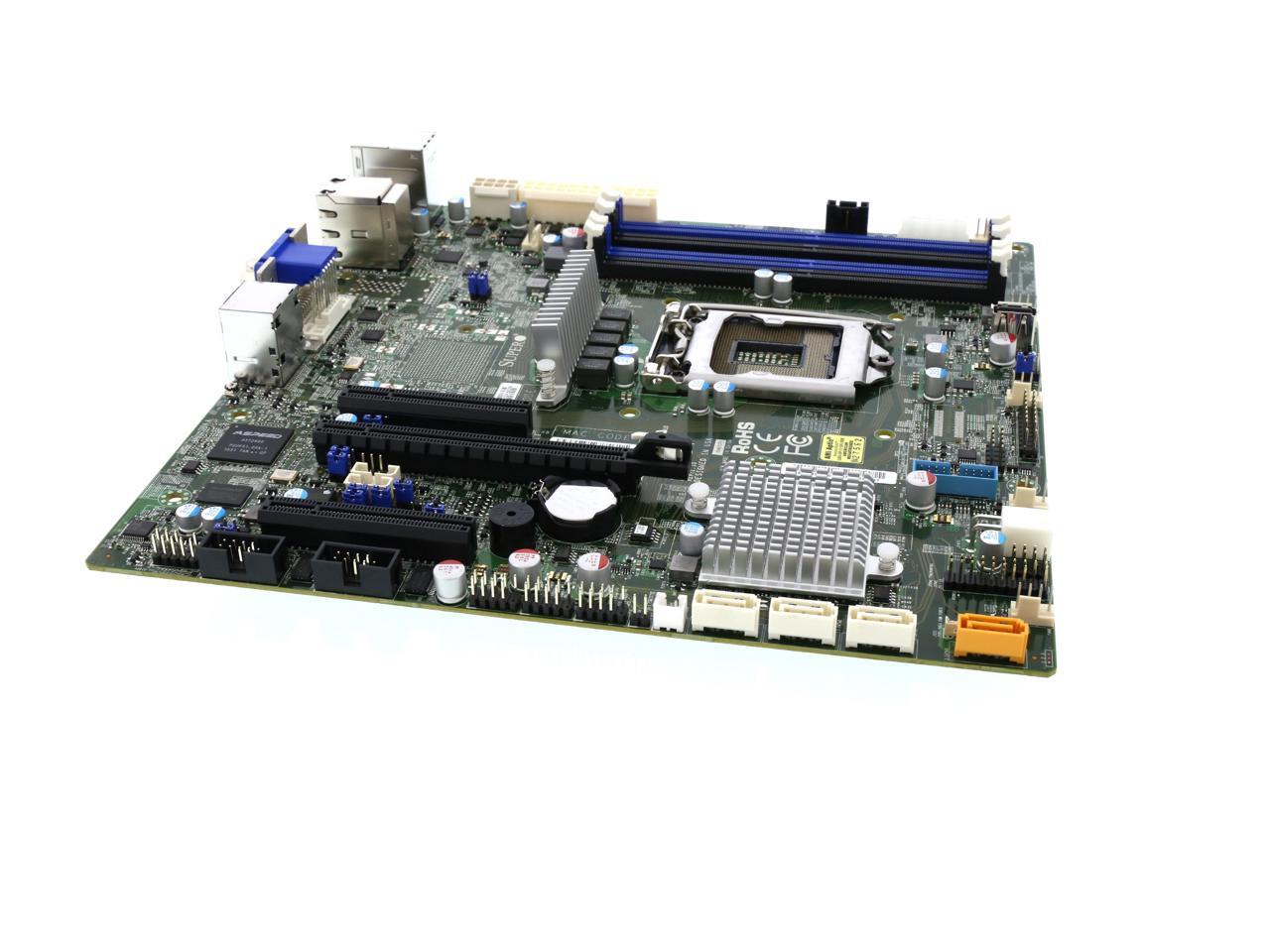

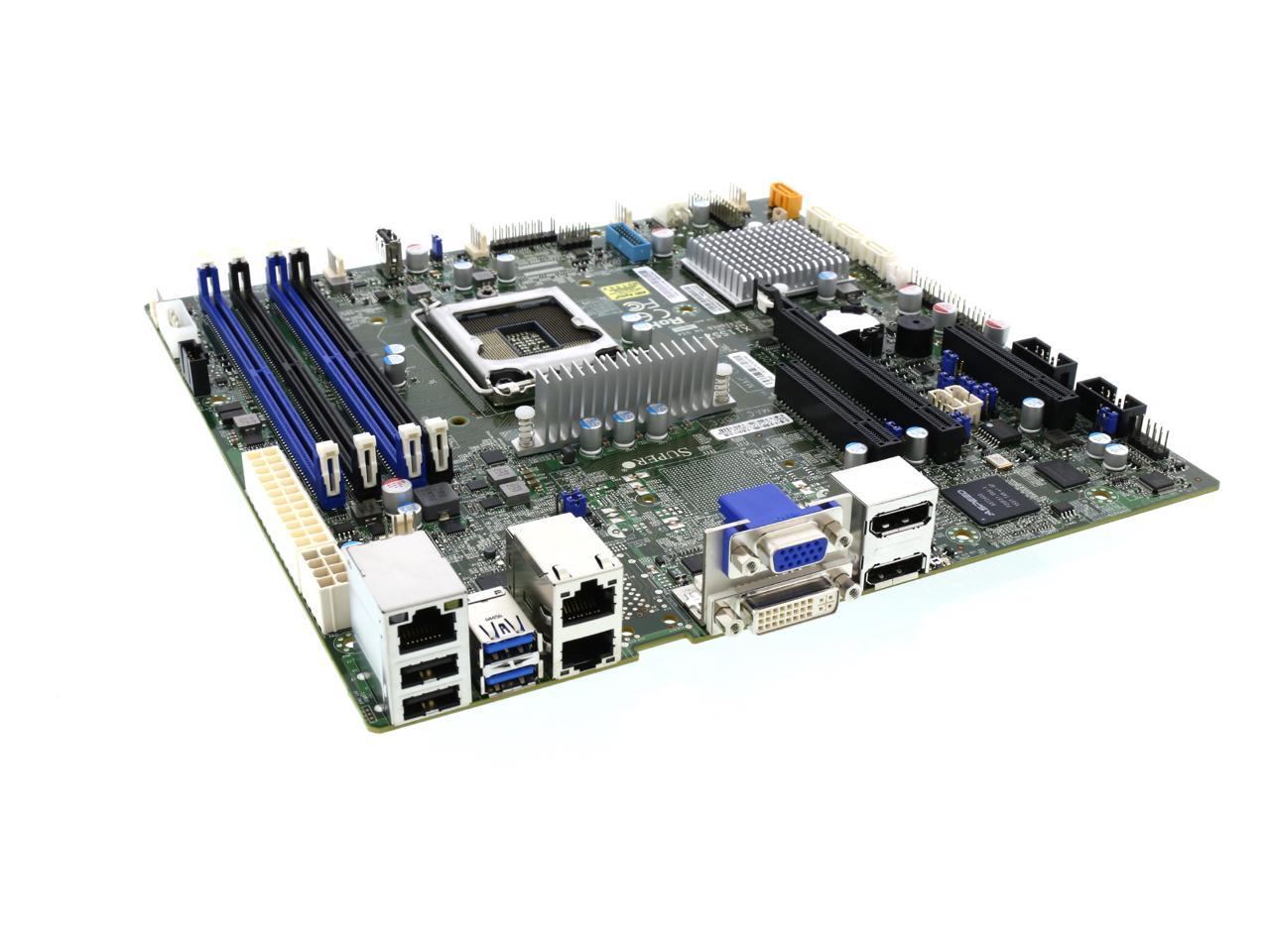

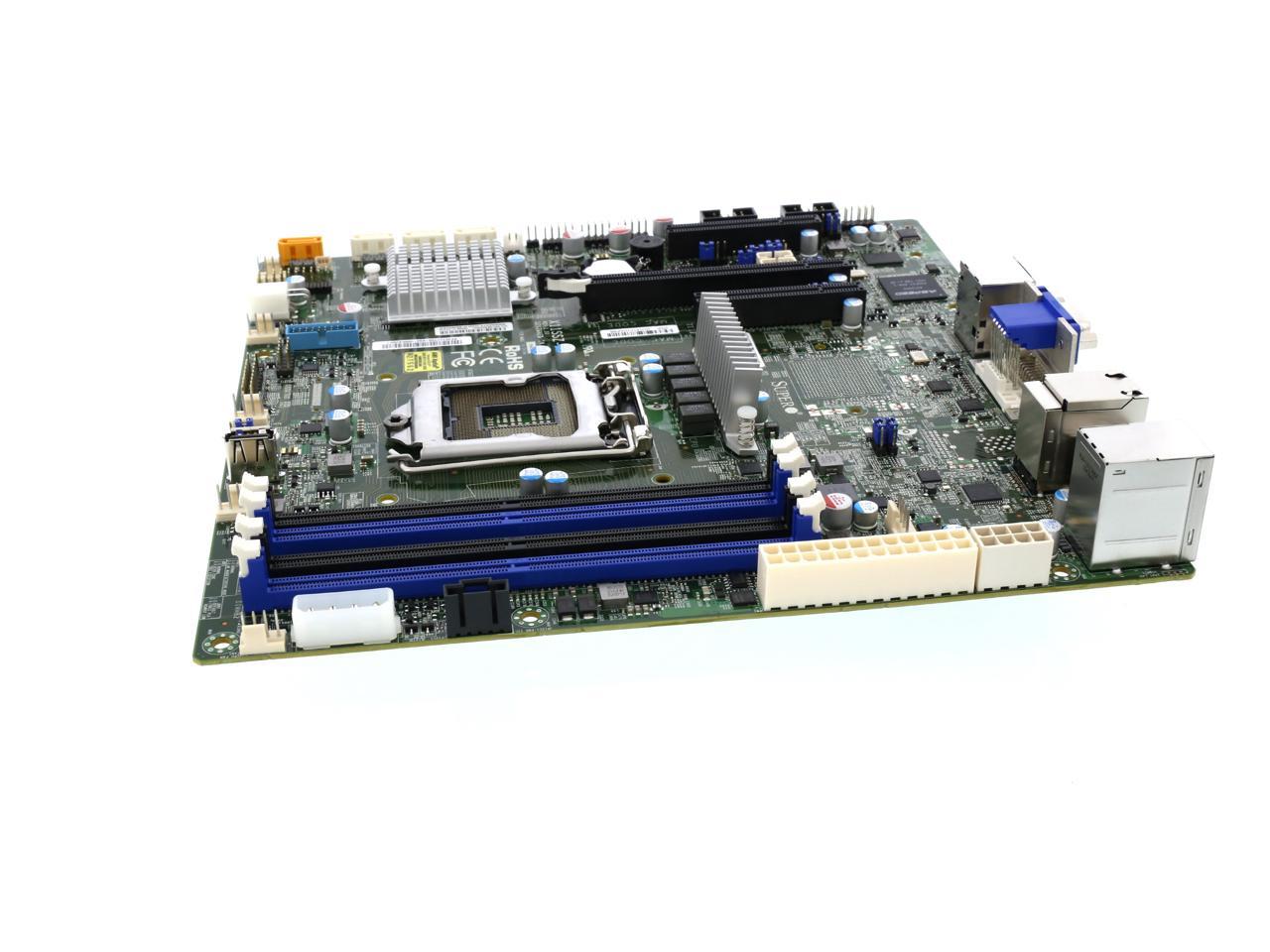

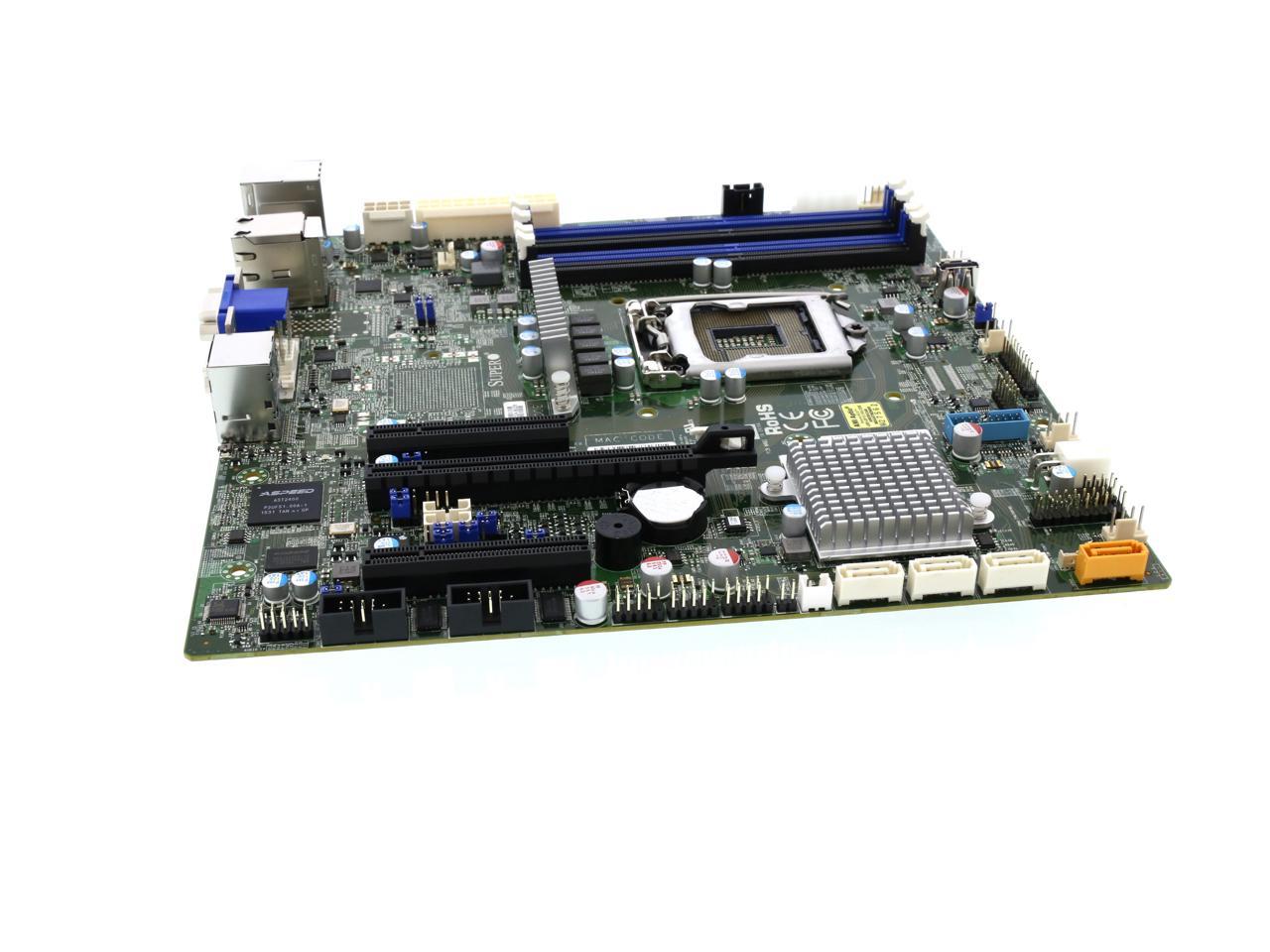

SUPERMICRO MBD-X11SSZ-F-O Micro ATX Server Motherboard
Features
- Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5,
Intel® 6th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium® - Intel® C236 chipset
- Up to 64GB DDR4 2133MHz ECC/non-
ECC Unbuffered UDIMM; 4x DIMM slots - Expansion slots:
1 PCI-E 3.0 x16 (in x16),
2 PCI-E 3.0 x4 (in x8) - 1 GbE LAN with Intel® i210-AT
1 GbE LAN with Intel® PHY i219LM - 4x SATA3 (6Gbps) via C236;
RAID 0, 1, 5, 10 - 2x DP, 1 DVI-I, 3x independent
displays via Intel HD Graphics,
VGA port for BMC - I/O: 1x SATA DOM, 2x COM, TPM 1.2
header, ALC 888S HD Audio - 4x USB 3.0 (2 rear + 2 via header)
9x USB 2.0 (2 rear + 6 via headers +
1 Type A) - Support 12V DC power
- AMT 11.0
Specifications
| Product SKUs | |
| MBD-X11SSZ-F -B | X11SSZ-F (Bulk Pack) |
| Physical Stats | |
| Form Factor | microATX |
| Dimensions | 9.6″ x 9.6″, (24.4cm x 24.4cm) |
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C236 chipset |
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Audio | RealTek ALC 888S High Definition Audio |
| Graphics | ASPEED AST2400 BMC |
| Input / Output | |
| SATA | 4x SATA3 (6Gbps) ports |
| LAN |
|
| USB |
|
| Video | Front Panel Audio Header |
| Video/Display | 2x DP (Display Ports), 1x DVI-I via Intel® HD Graphics with 3x Independent Displays, 1x VGA port for Aspeed AST 2400 BMC |
| Serial Port / Header | 2x COM ports (2 headers) |
| SuperDOM | 1x SuperDOM (Disk on Module) ports with built-in power |
| TPM | 1x TPM 20-pin Header |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|

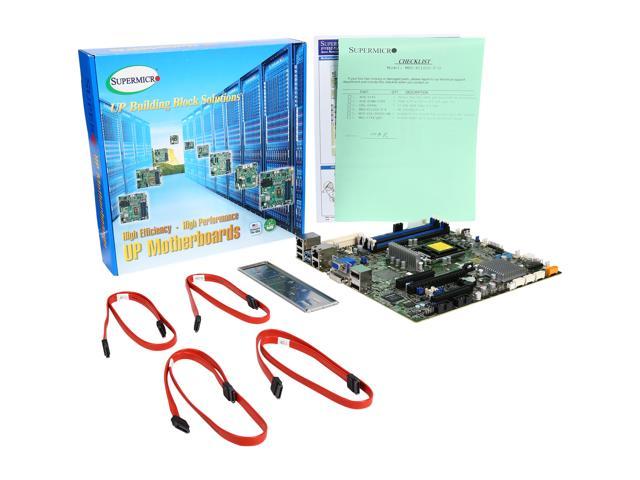

Whats in the Box
Learn more about the Supermicro MBD-X11SSZ-F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SSZ-F-O |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i7 / i5 / i3, Intel Pentium, Intel Celeron processors |
| North Bridge | Intel C236 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2133 / 1866 / 1600 |
| Maximum Memory Supported | 64GB |
| ECC Supported | Yes |
| Other Slots | 1 PCI-E 3.0 x16 (in x16) slot 2 PCI-E 3.0 x4 (in x8) slots |
|---|
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset Audio Chipset | Realtek ALC 888S HD |
|---|
| LAN Chipset | Single Intel I210-AT Gigabit Ethernet LAN port Single Intel PHY I219LM Gigabit Ethernet LAN port |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| USB 1.1/2.0 | 2 x USB 2.0 |
|---|---|
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| Features | Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset Up to 64GB DDR4 2133 MHz ECC / non-ECC Unbuffered UDIMM; 4 x DIMM slots Expansion slots:1 PCI-E 3.0 x16 (in x16), 2 PCI-E 3.0 x4 (in x8) 1 GbE LAN with Intel i210-AT, 1 GbE LAN with Intel PHY i219LM 4 x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 2 x DP, 1 DVI-I, 3 x independent displays via Intel HD Graphics, VGA port for BMC I/O: 1 x SATA DOM, 2 x COM, TPM 1.2 header, ALC 888S HD Audio 4 x USB 3.0 (2 rear + 2 via header) 9 x USB 2.0 (2 rear + 6 via headers + 1 Type A) Support 12V DC power AMT 11.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Date First Available | April 15, 2022 |
|---|
