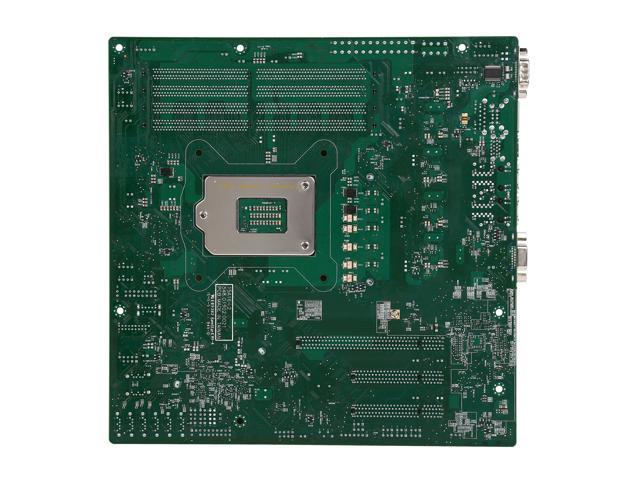

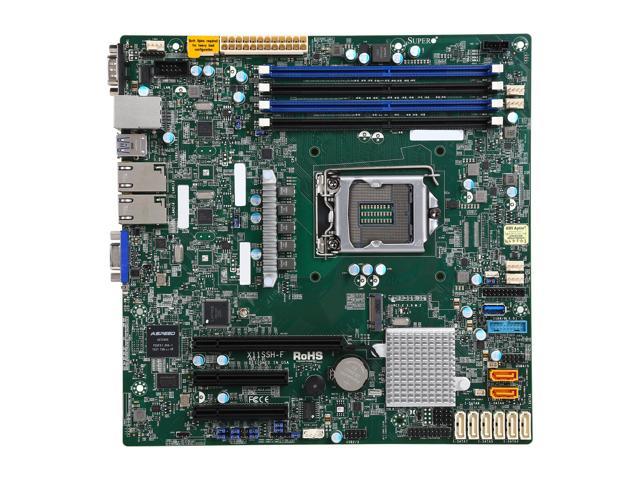

SUPERMICRO MBD-X11SSH-F-O Micro ATX Server Motherboard

Features

• Single socket H4 (LGA 1151) supports
  Intel® Xeon® processor E3-1200 v5,
  Intel® 6th Gen. Core™ i3 series,
  Intel® Celeron® and Intel® Pentium®
• Intel® C236 chipset
• Up to 64GB Unbuffered ECC UDIMM, DDR4 2400MHz; in 4 DIMM slots
• Expansion slots:
  1 PCI-E 3.0 x8 (in x16),
  1 PCI-E 3.0 x8,
  1 PCI-E 3.0 x4 (in x8)
• Dual GbE LAN with Intel® i210-AT
• 8x SATA3 (6Gbps) via C236;
  RAID 0, 1, 5, 10
• I/O: 1x VGA, 2x COM, TPM 1.2 header
• 2x SuperDOM with built-in power
• 5x USB 3.0 (2 rear + 2 via header +
  1 Type A), 6x USB 2.0 (2 rear +
  4 via headers)
• M.2 NGFF connector
• Support Intel VHD with selected CPU

Specifications

Product SKUs
MBD-X11SSH-F -B	X11SSH-F (Bulk Pack)
Physical Stats
Form Factor	microATX
Dimensions	9.6″ x 9.6″, (24.4cm x 24.4cm)
Processor/Cache
CPU	Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W
System Memory
Memory Capacity	4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM
Memory Type	/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C236 chipset
SATA	SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST2400 BMC

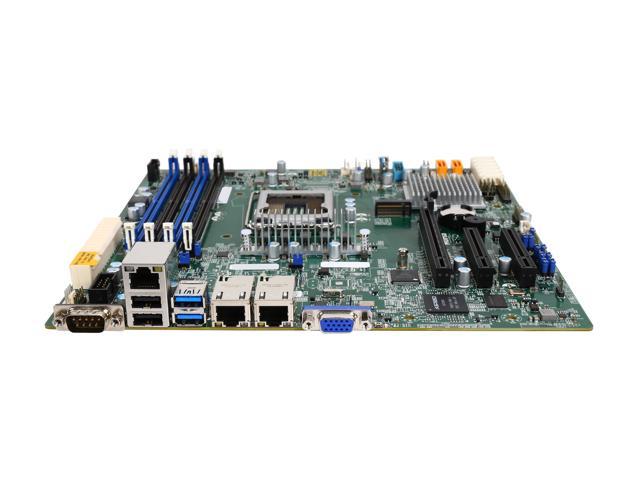

Input / Output
SATA	8x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) 6x USB 2.0 ports (2 rear + 4 via header)
Video	1x VGA port
Serial Port / Header	2x COM ports (1 rear, 1 header)
SuperDOM	2x SuperDOM (Disk on Module) ports with built-in power
TPM	1x TPM 1.2 20-pin Header
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup

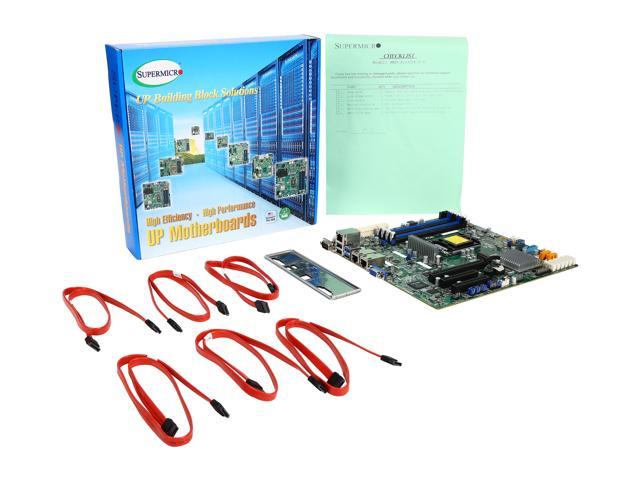

Whats in the Box
