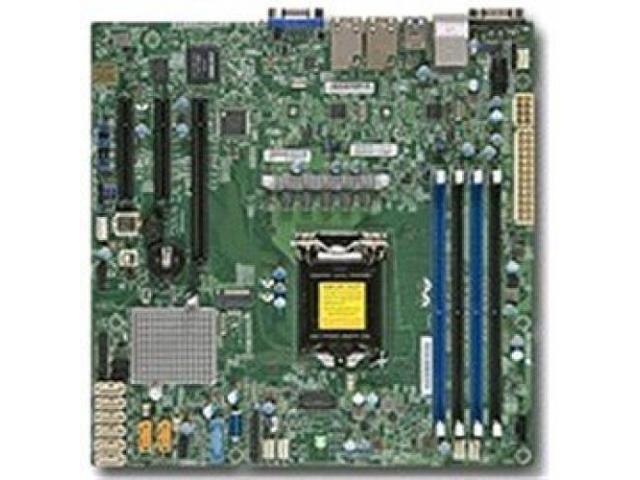

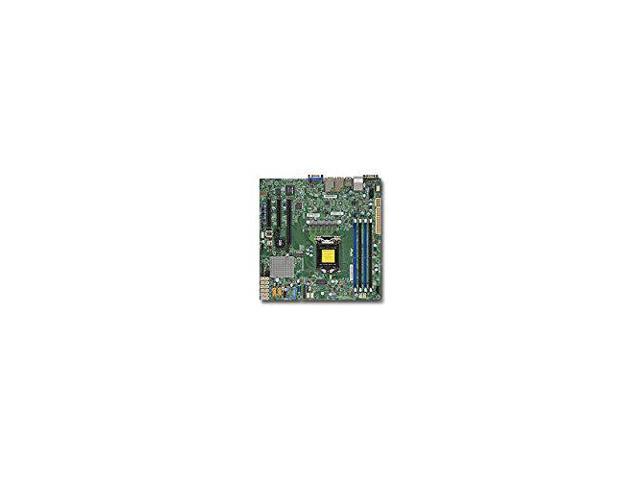

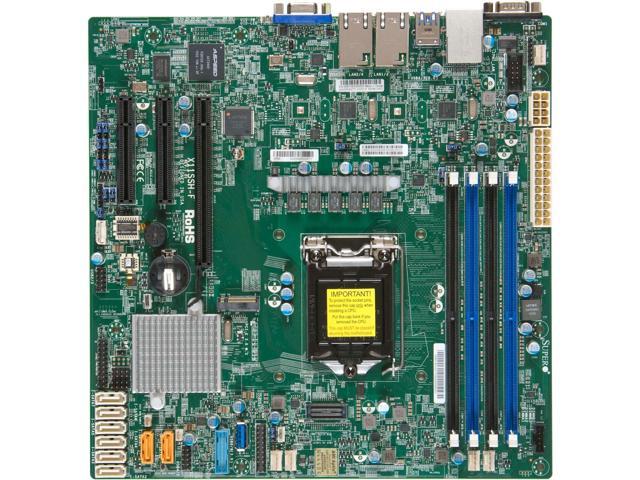

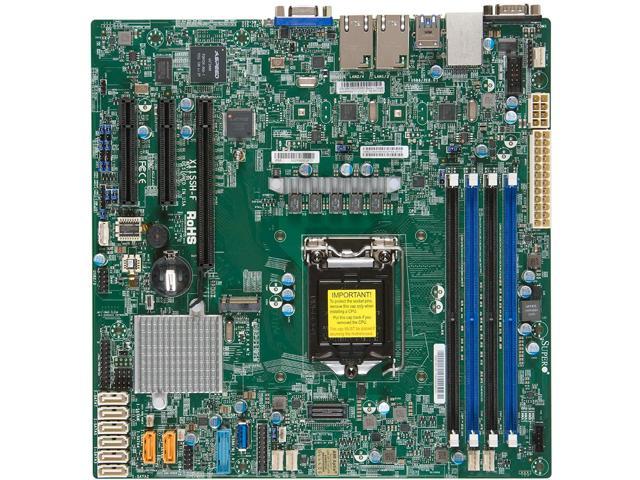

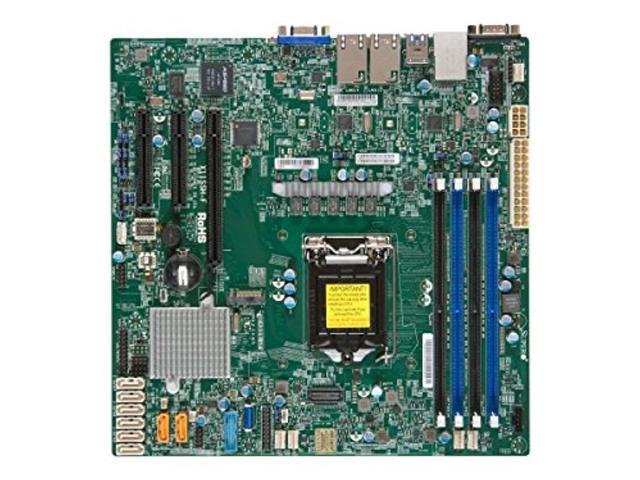

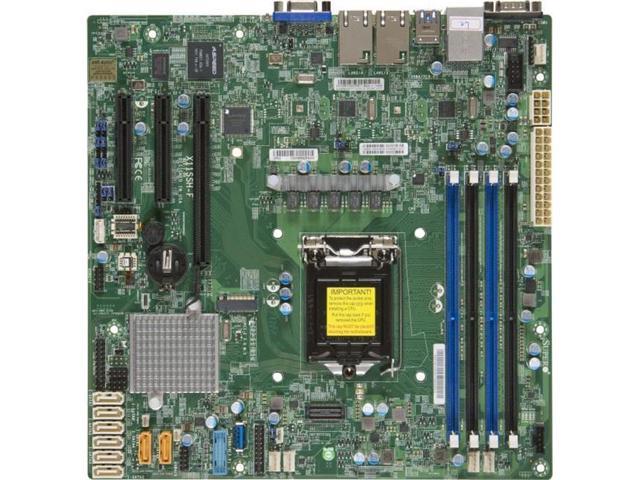

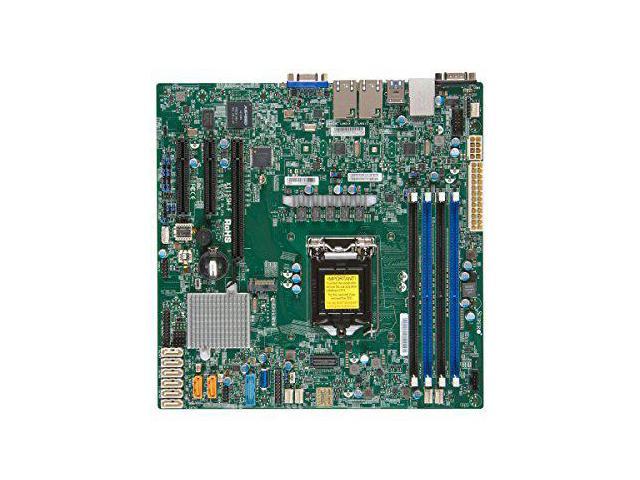

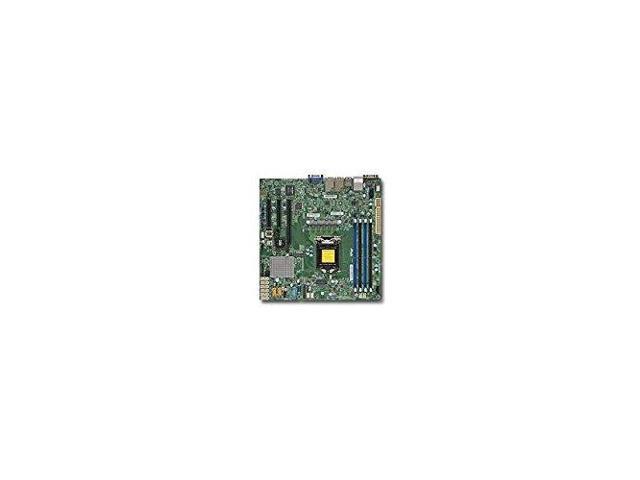

Supermicro MBD-X11SSH-F-B Server Motherboard
SKU: 9SIAN0MBB2914511.247.990₫
LGA 1151
Intel C236
Description
Supermicro’s single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0 /USB 3.1, PCI-E 3.0 M. 2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro’s single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
Learn more about the Supermicro MBD-X11SSH-F-B
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SSH-F-B |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel 7th / 6th Generation Core i3 series, Intel Celeron, Intel Pentium, Intel Xeon processor E3-1200 v6 / v5 Socket H4 (LGA 1151) supported, CPU TDP support 80W |
| North Bridge | Intel C236 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2400 / 2133 / 1866 / 1600 MHz ECC SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| Maximum Memory Supported | 64GB Unbuffered ECC UDIMM, DDR4-2400 MHz, in 4 x DIMM slots |
| ECC Supported | Yes |
| PCI Express x8 | 1 x PCI-E 3.0 x8 (in x16 slot) 1 x PCI-E 3.0 x8 |
|---|---|
| PCI Express x4 | 1 x PCI-E 3.0 x4 (in x8 slot) |
| Other Slots | M.2 Interface: PCI-E 3.0 x2 Form Factor: 2280 Key: M-Key Double Height Connector |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2400 BMC |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210-AT |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| COM | 1 |
|---|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| Features | Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset Up to 64GB Unbuffered ECC UDIMM DDR4 2133 MHz; 4 x DIMM slots Expansion slots: 1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 3.0 x8, 1 x PCI-E 3.0 x4 (in x8) Dual GbE LAN with Intel i210-AT 8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1 x VGA, 2 x COM, TPM 1.2 header Support Intel VHD with selected CPU 5 x USB 3.0 (2 x rear, 2 x via headers, 1 x Type A), 6 x USB 2.0 (2 x rear, 4 x via headers) M.2 NGFF connector |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Date First Available | May 11, 2020 |
|---|
