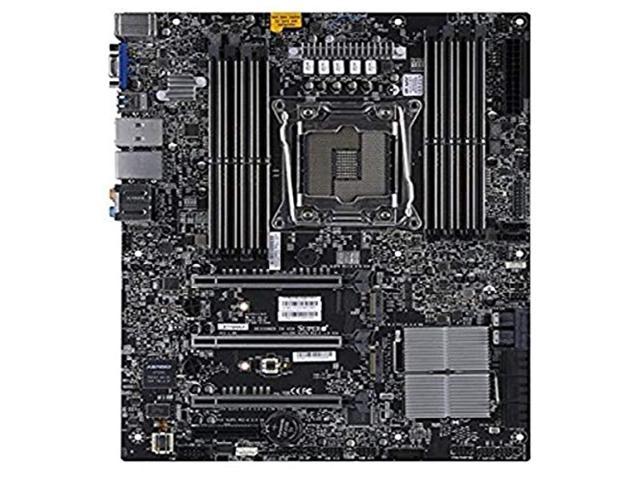

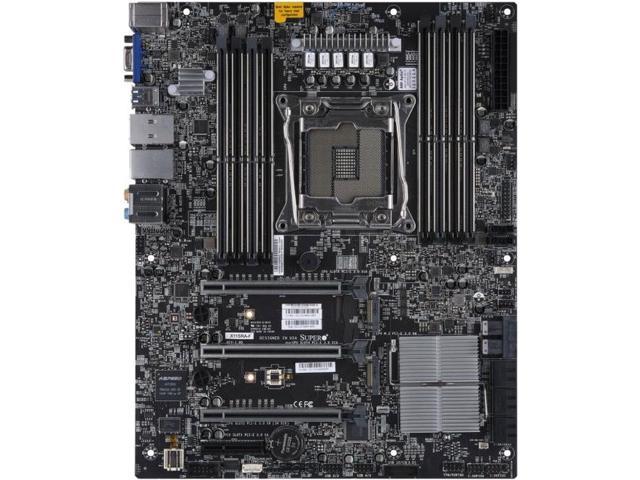

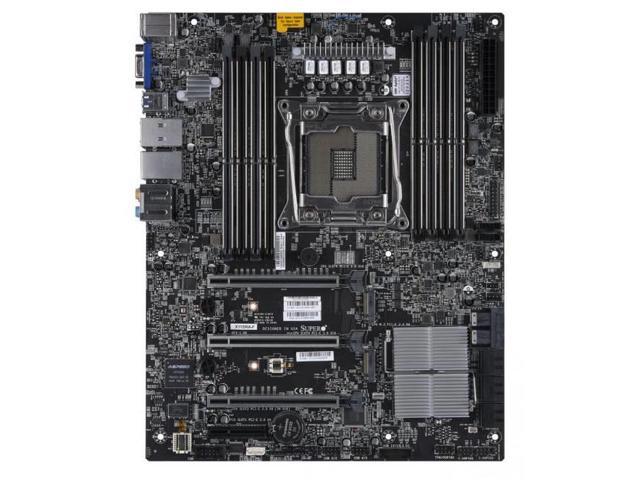

SUPERMICRO MBD-X11SRA-F-O LGA 2066 Intel C422 ECC DDR4 U.2 M.2 5G LAN USB 3.1 ATX Workstation Motherboard
SKU: 9SIAN0MBAR099416.611.270₫
LGA 2066
Intel C422
Description
Learn more about the Supermicro MBD-X11SRA-F-O
| Best Seller Ranking | #67 in Server Motherboards |
|---|
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SRA-F-O |
| CPU Socket Type | LGA 2066 |
|---|---|
| CPU Type | Supports Intel Xeon W-2100 / W-2200 Processors |
| North Bridge | Intel C422 |
|---|
| DDR4 Standard | DDR4 ECC 2666 / 2400 / 2133 / 1866 / 1600 MHz SDRAM 72-bit 288-pin RDIMM / LRDIMM |
|---|---|
| Maximum Memory Supported | Up to 256GB Registered ECC RDIMM, DDR4-2666 MHz; Up to 512GB Registered ECC LRDIMM, DDR4-2666 MHz, in 8 x DIMM slots |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 3 |
|---|---|
| PCI Express x16 | 3 x PCI Express x16 |
| PCI Express x4 | 1 x PCI-E 3.0 x4 |
| Other Slots | M.2 Interface: 2 x PCI-E 3.0 x4 Form Factor: 22110 Key: M-Key (RAID 0, 1 support) *M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID. |
| SATA | Intel C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 *iRST enabled, only SATA2 to SATA5 support RAID. |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 |
|---|
| Audio Channels Audio Channels | 7.1 Channels |
|---|
| Number of LAN | Single LAN with Intel Ethernet Controller I210-AT Single LAN with Aquantia 5G LAN chip AQC108 |
|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
|---|---|
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| Features | Intel Xeon Processor Skylake-W, Intel Xeon Processor W Family. Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W
Intel C422 Up to 256GB Registered ECC RDIMM, DDR4-2666 MHz; Up to 512GB Registered ECC LRDIMM, DDR4-2666 MHz, in 8 X DIMM slots 3 x PCI-E 3.0 x16, 1 x PCI-E 3.0 x4 1 x VGA port Intel C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 Single LAN with Intel Ethernet Controller I210-AT, Single LAN with Aquantia 5G LAN chip AQC108 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Date First Available | May 04, 2020 |
|---|
