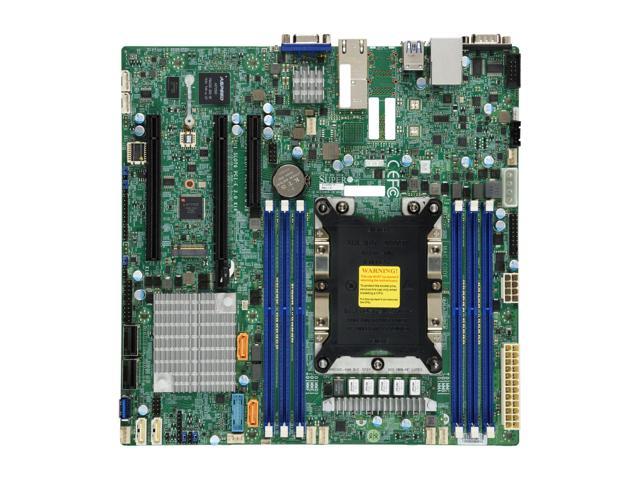

SUPERMICRO MBD-X11SPM-TF-O Micro ATX Server Motherboard LGA 3647 Intel C622
SKU: N82E1681318362921.564.855₫
LGA 3647
Intel C622
Description
UP Xeon Motherboards – Socket P (LGA 3647) BOARDS supporting Intel Xeon Scalable Processors / Socket P (LGA 3647)Supermicro’s new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.Chipset Manufacturer: IntelTotal Processor Supported: 1Processor Socket: Socket P LGA-3647Processor Supported: XeonNumber of Memory Slots: 6Memory Form Factor: RDIMMMemory Form Factor: DIMMMemory Form Factor: LRDIMMMaximum Memory: 768 GBMemory Speed Supported: 2.67 GHzMemory Speed Supported: 2.40 GHzMemory Speed Supported: 2.13 GHzMemory Speed Supported: 1.87 GHzMemory Speed Supported: 1.60 GHzMemory Technology: DDR4 SDRAMController Type: Serial ATA/600RAID Supported: YesRAID Levels: 10RAID Levels: 5RAID Levels: 1RAID Levels: 0Onboard Video: On-board Video ChipsetGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2500Audio Channels: 7.110Gigabit Ethernet: YesNumber of Total Expansion Slots: 3Total Number of PCI Express Slots: 3Number of PCI Express x8 Slots: 1Number of PCI Express x16 Slots: 2Total Number of USB Ports: 4Number of USB 3.0 Ports: 2VGA: YesNumber of SATA Interfaces: 12Number of M.2 Interfaces: 1Total Number of Onboard USB Ports: 7Number of Onboard USB 3.0 Ports: 3Form Factor: Micro ATXWidth: 9.6Depth: 9.6″Compatibility: Chassis: SC813MFTQC-350CB2 SC813MFTQC-R407CB SC113MFAC2-341CB SC113MFAC2-R606CB SC512F-350B SC823TQ-653LPB SC213LT-600LPB SC825TQC-R740LPB SC833T-653B “
Learn more about the Supermicro MBD-X11SPM-TF-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SPM-TF-O |
| CPU Socket Type | LGA 3647 |
|---|---|
| CPU Type | Supports 1st / 2nd Gen Intel Xeon Scalable Processors |
| North Bridge | Intel C622 |
|---|
| Number of DDR4 Slots | 6 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2666 / 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM / LRDIMM |
| Maximum Memory Supported | Up to 768GB ECC 3DS LRDIMM Up to 384GB ECC LRDIMM Up to 192GB ECC RDIMM |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 2 |
|---|---|
| PCI Express x8 | 1 x PCI-E 3.0 x8 |
| Other Slots | 1 x M.2 mini-PCIe connector Support PCIe 3.0 x4 & SATA3 Support: 2280 and 2242 FF |
| SATA | 12 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 BMC |
|---|
| Number of LAN | Dual LAN with 10GBase-T with Intel X722 + X557 |
|---|---|
| Max LAN Speed | Dual 10Gbps |
| COM | 1 |
|---|---|

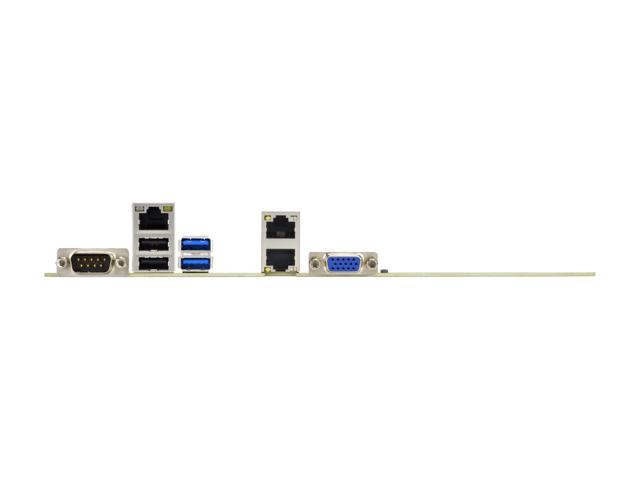

| Video Ports | 1 x VGA port |
| RJ45 | 2 x RJ45 10GBase-T ports |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| Features | Intel Xeon Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
Intel C622 chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666 MHz; 6 x DIMM slots Expansion slots: 2 x PCI-E 3.0 x16, 1 x PCI-E 3.0 x8 (in x8) 2 x 10 GbE LAN ports 12 x SATA3 (6 Gbps) via C622 Supports 12V DC power input 4-pin Internal power connector 5 x USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 x USB 2.0 (2 rear, 4 via headers) I/O: 1 x VGA, 2 x COM, TPM header |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Date First Available | January 30, 2018 |
|---|
