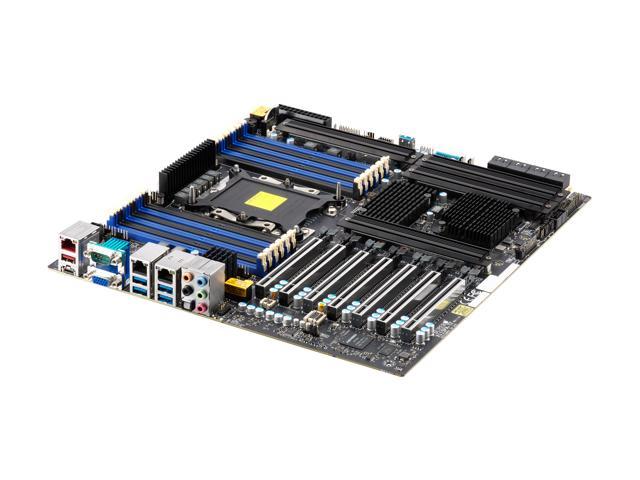

SUPERMICRO MBD-X11SPA-TF-O Extended ATX Server Motherboard LGA 3647 Intel C621
SKU: 9SIA2F8J9R491126.630.175₫
Intel C621 Socket P (LGA 3647), 1st and 2nd Generation Xeon Scalable Processor (Cascade Lake-SP) ReadyUp to 3TB ECC RDIMM / LRIMM DDR4 2933MHz in 12 DIMM slots7 PCI-Express 3.0 x16 slots for maximized expandability4 M.2 + 8 SATA both with RAID 0, 1, 5, and 10 optionsAquantia AQC107 10 GbE LAN and Intel i210AT GbE LAN2 rear USB 3.1 Gen2 + 1 Type A and 1 Type C Front Panel headerAI optimized, deep learning, simulation, and content creation
Description
Learn more about the Supermicro MBD-X11SPA-TF-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SPA-TF-O |

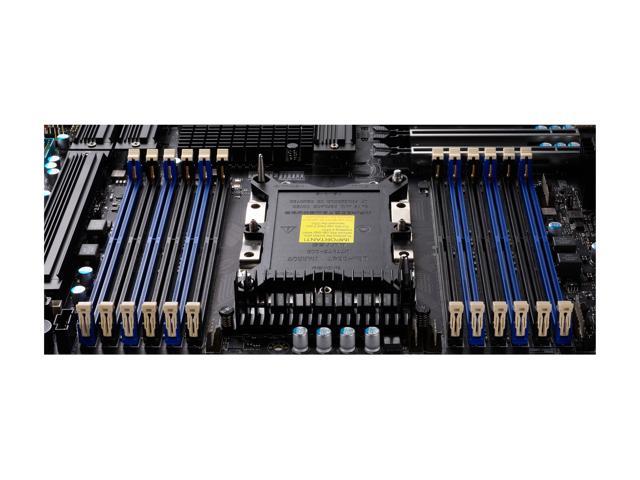

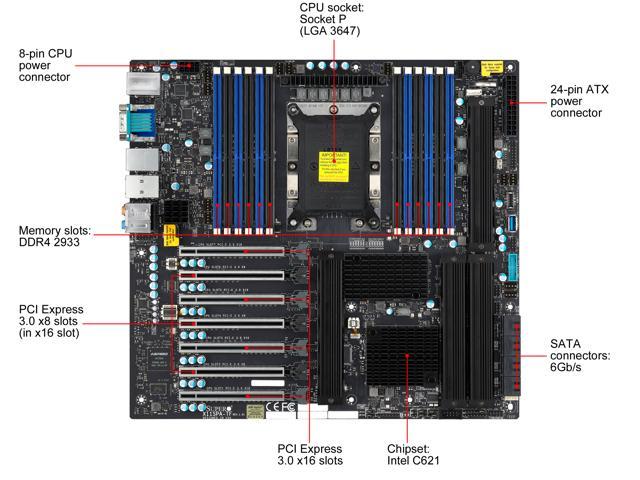

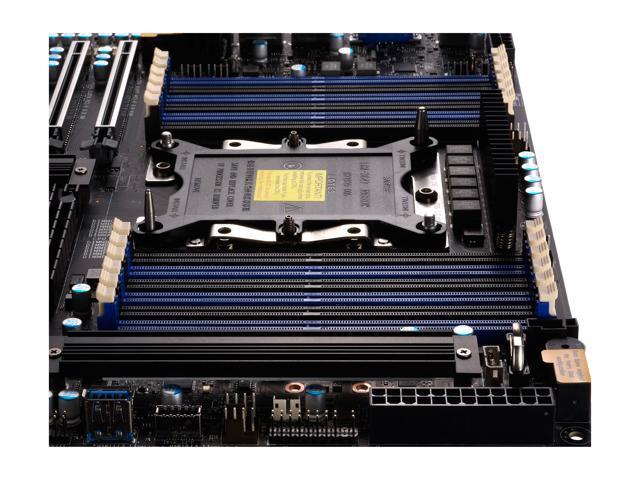

| CPU Socket Type | LGA 3647 |
|---|---|
| CPU Type | Supports 1st / 2nd Gen Intel Xeon Scalable Processors |
| North Bridge | Intel C621 |
|---|

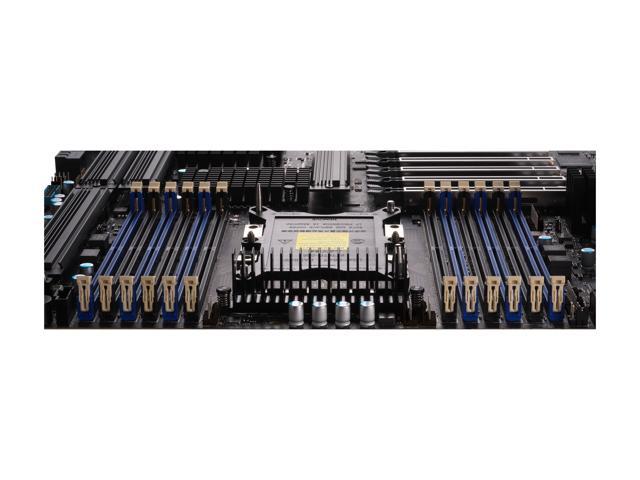

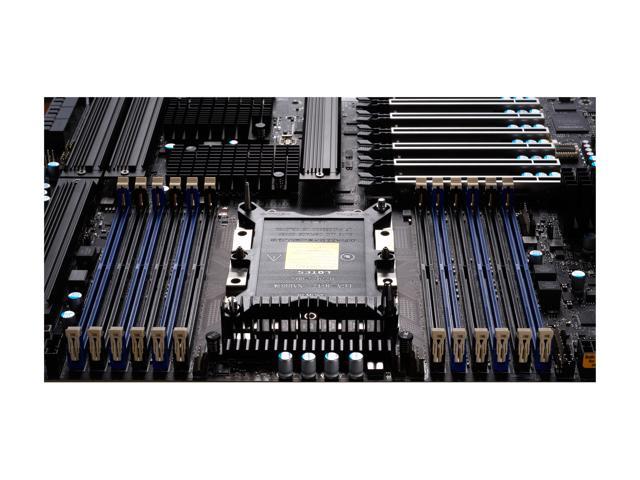

| Number of DDR4 Slots | 12 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2933 |
| Maximum Memory Supported | Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
Up to 3TB Intel Optane Persistent Memory, DDR4-2666MHz |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | 4 |
|---|---|
| PCI Express x8 | 3 PCI-E 3.0 x8 (in x16 slot)
* PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8) |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10/5 |
| M.2 | M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2242/2260/2280/22110 Key: M-Key M.2 support RAID 0,1 (up to RAID 5, 10), VROC key is required for Raid. |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 |
|---|
| Audio Chipset Audio Chipset | ALC 888S HD Audio |
|---|
| LAN Chipset | AQUANTIA AQC107 |
|---|---|
| LAN Speed | 10Gbps |
| Second LAN Chipset | Single LAN with Intel Ethernet Controller I210-AT Single LAN with Realtek RTL8211E PHY (dedicated IPMI) |
| Max LAN Speed | 10Gbps + Dual 10/100/1000Mbps |

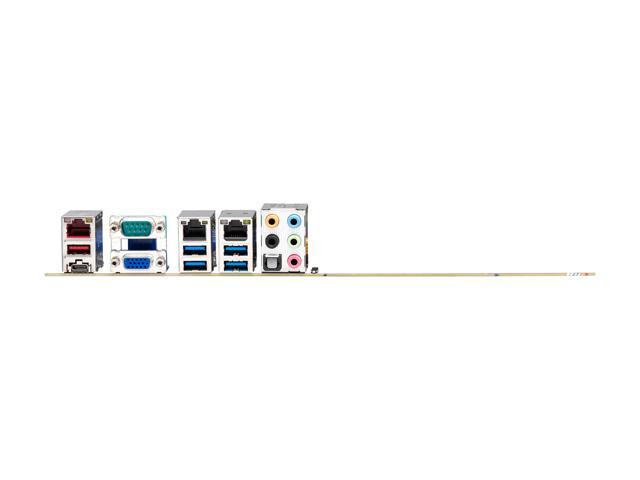

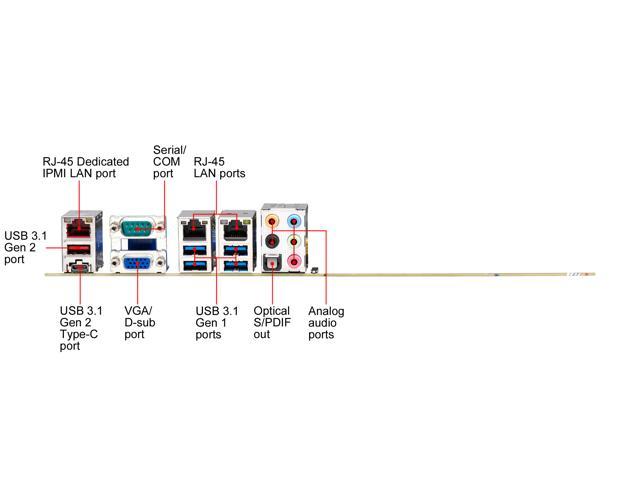

| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x Optical S/PDIF Out / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 3 x LAN (RJ45) / 4 x USB 3.1 Gen 1 Type-A / 5 x Audio Jacks |
|---|
| Onboard USB | One front accessible USB 2.0 header with two (2) USB connections One front accessible USB 3.1 Gen1 header with two (2) USB connections Two front accessible USB 3.1 Gen2 headers (1 x Type A, 1 x Type C) |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 13.0″ |
| Date First Available | October 21, 2022 |
|---|
Customer Reviews of the Supermicro MBD-X11SPA-TF-O
