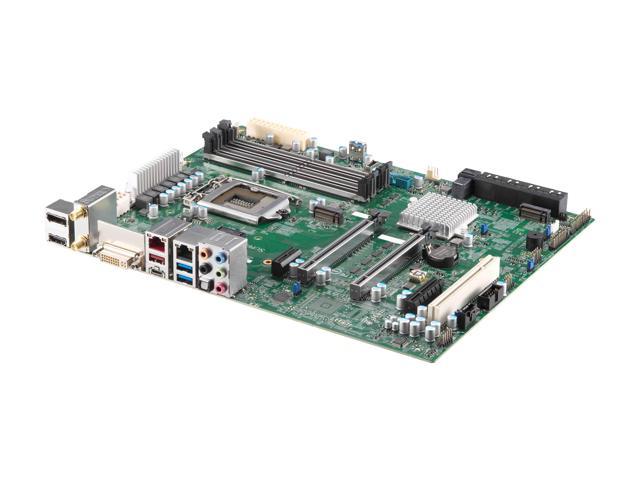

SUPERMICRO MBD-X11SCA-W-O ATX Server Motherboard LGA 1151 Intel C246
SKU: 9SIARFYHNM005318.957.705₫
LGA 1151
Intel C246
Description
Learn more about the Supermicro MBD-X11SCA-W-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SCA-W-O |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Supports: Intel Xeon E-2100 Processor Intel Xeon E-2200 Processor 8th/9th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium /Celeron Processor |
| North Bridge | Intel C246 |
|---|
| DDR4 Standard | 2666 / 2400 / 2133 / 1866 / 1600 MHz ECC / Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM |
|---|---|
| Maximum Memory Supported | Up to 64GB Unbuffered ECC / non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slot |
| PCI Express x16 | 2 x PCI-E x16 slots are running at NA/16, or 8/8 |
|---|---|
| PCI Express x4 | 1 x PCI-E 3.0 x4 |
| PCI Express x1 | 1 x PCI-E 3.0 x1 |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset Onboard Video Chipset | Intel UHD P630 graphic (For CPU Xeon E-21XXG series only) |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| Second LAN Chipset | Intel I219-LM |
| Max LAN Speed | Dual 10/100/1000Mbps |
| RJ45 | 2 x 1 GbE LAN ports |
|---|---|
| USB 3.1 | 2 x USB 3.1 Gen1 ports (2 Rears Type A) 2 x USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C) |
| Features | 8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processor, Intel Celeron, Intel Pentium, Intel Xeon E processor (Coffee Lake-S) Server, Intel Xeon E processor (Coffee Lake-S) Workstation, Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
Intel C246 Up to 64GB Unbuffered ECC / non-ECC UDIMM, DDR4-2666 MHz, in 4 DIMM slots 1 x PCI-E 3.0 x4 1 x HDMI port, 1 x DVI – D port, 1 x DP (DisplayPort) port, Intel UHD P630 graphic (For CPU Xeon E-21XXG series only) Intel C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 Single LAN with Intel Ethernet Controller I210-AT, Single LAN with Intel PHY I219LM LAN controller, Support vPro, Single LAN with, Gigabit LAN Wi-Fi + Bluetooth 5.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Date First Available | April 30, 2022 |
|---|
