SUPERMICRO MBD-X10SRH-CF-O ATX Server Motherboard LGA 2011-3
SKU: N82E1681318293019.702.605₫
LGA 2011 Intel C612
Description
/* Insert SKU number in place of “sku-13-182-930” */
#overview-content.sku-13-182-930 .banner {width:100%; height:60px; margin-bottom:0; background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-930/SUPERMICRO_041916.jpg) no-repeat left; }
#overview-content .bt{ color: #333333;font-size: 24px; font-weight: bold; line-height: 30px; text-align:center}
#overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;}
#overview-content .st {margin:0 auto 20px;background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-930/title_041916.jpg) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; }
#overview-content table.specs { width:100%; margin:0 auto; border:#CCC 1px solid; border-collapse:collapse; font-size:12px;}
#overview-content table.specs td{ border:#CCC 1px solid; border-collapse:collapse;}
#overview-content h2{ color: #333333;font-weight: bold;font-size: 24px;text-transform: uppercase;}

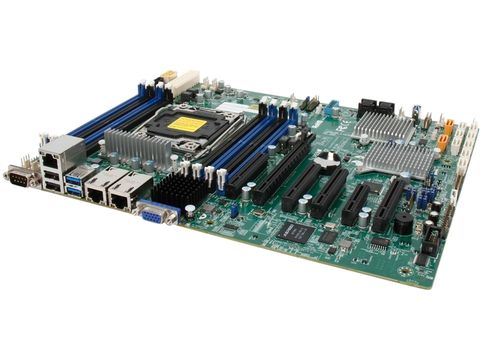

SUPERMICRO MBD-X10SRH-CF-O ATX Server Motherboard
Features
- Single socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4†/ v3 and E5-1600 v3 family - Intel® C612 chipset
- Up to 1TB† ECC 3DS LRDIMM , up to
DDR4- 2400†MHz ; 8x DIMM slots - 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8
(in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0
x2 (in x4), 1 PCI-E 2.0 x4 (in x8) - Intel® i350-AM2 Dual port GbE LAN
- 10x SATA3 (6Gbps) via C612
- 8x SAS3 (12Gbps) via LSI 3008 SW
controller; RAID 0, 1, 10 - 1x VGA, 2x COM, 1x TPM
- 4x USB 3.0 ports, 8x USB 2.0 ports
- 2x SuperDOM with built-in power
Specifications
| Product SKUs | |
| MBD-X10SRH-CF -B | X10SRH-CF (Bulk Pack) |
| Physical Stats | |
| Form Factor | ATX |
| Dimensions | 12″ x 9.6″, (30.5cm x 24.4cm) |
| Processor/Cache | |
| CPU |
|
| Cores / Cache | Up to 22 Cores† / Up to 55MB† Cache |
| Note | † BIOS version 2.0 or above is required |
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes |
|
| Memory Voltage | 1.2 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel C612 chipset |
| SAS |
|
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Graphics | ASPEED AST2400 BMC |
| Input / Output | |
| SAS | 8x SAS3 (12Gbps) ports |
| SATA | 10x SATA3 (6Gbps) ports |
| LAN |
|
| USB |
|
| Video | 1x VGA port |
| Serial Port / Header | 2x fast UART 16550 serial, 2 COM ports (1 rear, 1 header) |
| SuperDOM | 2x SuperDOM (Disk on Module) ports with built-in power |
| TPM | 1x TPM 1.2 20-pin Header |
| Expansion Slots | |
| PCI-Express |
|
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
| FAN |
|
| Temperature |
|
| LED |
|
| Other Features |
|
What’s in the Box
Learn more about the Supermicro MBD-X10SRH-CF-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X10SRH-CF-O |
| CPU Socket Type | LGA 2011-3 |
|---|---|
| CPU Type | Supports: Intel Xeon Processor E5-1600 v3 Intel Xeon Processor E5-1600 v4 Intel Xeon processor E5-2600 v3 Intel Xeon processor E5-2600 v4 |
| Other Chipset | Intel C612 |
|---|
| ECC Supported | Yes |
|---|
| Other Slots | 1x PCI-E 3.0 x8 (in x16) slot 2x PCI-E 3.0 x8 slots 1x PCI-E 2.0 x2 slot 1x PCI-E 2.0 x4 (in x8) slot |
|---|
| SATA | 10x SATA3 (6Gbps) ports |
|---|---|
| SATA RAID | 0/1/10 |
| SAS | 8x SAS3 (12Gbps) ports |
| SAS RAID | SW RAID 0, 1, 10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2400 |
|---|
| LAN Chipset | Intel I350-AM2 |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| COM | 2 |
|---|---|
| USB 1.1/2.0 | 8 x USB 2.0 |
| USB 3.0 USB 3.0 | 4 x USB 3.0 |
| Features | 8x 284-pin DDR4 DIMM sockets 4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 and E5-1600 v3 family Intel C612 chipset Up to 512GB ECC DDR4 2133MHz LRDIMM; 8x DIMM sockets 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8(in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x2 (in x4), 1 PCI-E 2.0 x4 (in x8) Intel i350-AM4 Quad port GbE LAN 10x SATA3 (6Gbps) via C612 8x SAS3 (12Gbps) via LSI 3008 SW controller; RAID 0, 1, 10 1x VGA, 2x COM, 1x TPM 4x USB 3.0 ports, 8x USB 2.0 ports 2x SuperDOM with built-in power |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Date First Available | September 16, 2014 |
|---|
