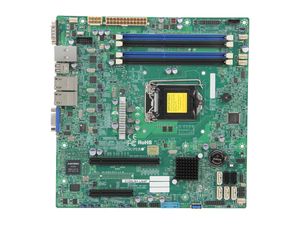

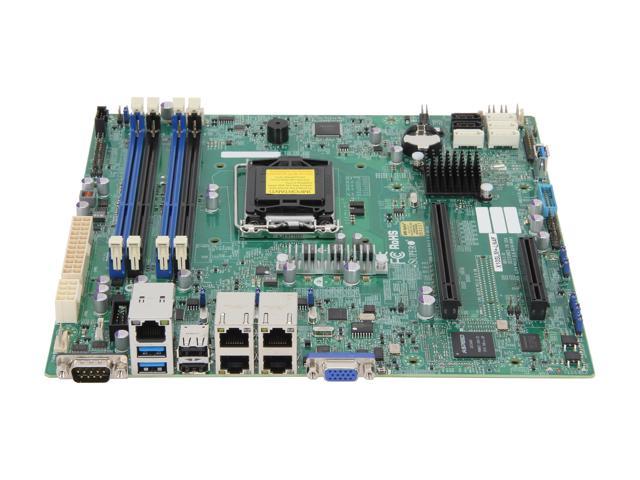

SUPERMICRO MBD-X10SLM+LN4F-O Micro ATX Server Motherboard

Features

• Single socket H3 (LGA 1150) supports
  Intel® Xeon® E3-1200 v3/v4, 4th gen.
  Core i3, Pentium, Celeron processors
• Intel® C224 Express PCH
• Up to 32GB DDR3 ECC 1600MHz
  UDIMMs in 4 sockets
• Quad Gigabit Ethernet LAN ports via
  Intel® i210AT
• 4x SATA (6Gbps), 2x SATA (3Gbps)
• Expansion slots: 1x PCI-E 3.0 x16,
  1x PCI-E 2.0 x2 (in x8)
• 4x USB 3.0 and 6x USB 2.0
• Integrated IPMI 2.0 with KVM and
  Dedicated LAN
• SATA DOM power connector support
• VGA D-sub connector, TPM header
• Support Intel Node Manager

Specifications

Product SKUs
MBD-X10SLM+-LN4F	X10SLM+-LN4F (Bulk Pack)
Physical Stats
Form Factor	microATX
Dimensions	9.6″ x 9.6″, (24.4cm x 24.4 cm)
Processor/Cache
CPU	Intel® Xeon® processor E3-1200 v3/v4 and 4th Gen Core i3, Pentium, Celeron processors Single Socket H3 (LGA 1150)
System Memory
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5V, 1.35V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C224 Express PCH
SATA	SATA3 (6Gbps) w/ RAID 0, 1, 10, 5 SATA2 (3Gbps) w/ RAID 0, 1
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2400
Network Controllers	Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
VGA	BMC integrated Aspeed AST2400
Input / Output
Serial ATA	4x SATA3 (6Gbps) ports 2x SATA2 (3Gbps) ports
LAN	4x Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (2 rear, 1 Type-A, 1 via header 6x USB 2.0 ports (2 rear, 4 via header)
VGA	1x VGA D-Sub Connector
Serial Port / Header	2x COM ports (1 rear, 1 header)
DOM	SATA DOM (Disk on Module) power connector support
TPM	1x TPM 1.2 20-pin Header
SuperServer(s) with X10SLM+-LN4F
Model(s)	SYS-5018D-MTLN4F
Expansion Slots
PCI-Express	1x PCI-E 3.0 x16 slot 1x PCI-E 2.0 x2 (in x8) slot
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support
Management
Software	IPMI (Intelligent Platform Management Interface) v2.0 with KVM support SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on
PC Health Monitoring
Voltage	Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of five 4-pin fan headers supporting up to 5 fans 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED +5V Standby alert LED
Other Features	Chassis intrusion detection Chassis intrusion header

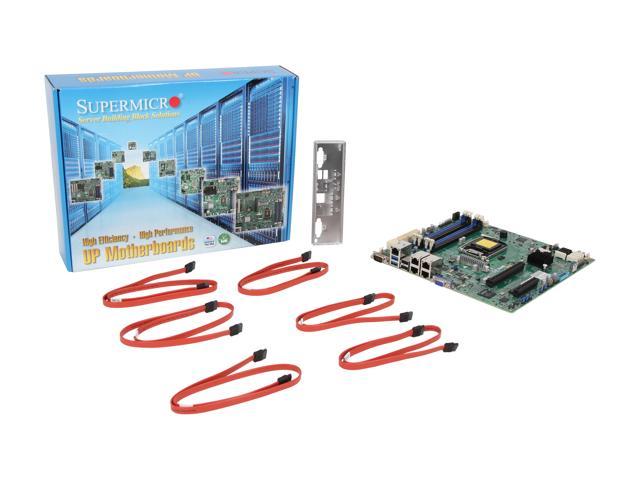

Whats in the Box
