SUPERMICRO MBD-X10SL7-F-O Micro ATX Server Motherboard LGA 1150 Intel C222 DDR3 1600

Name: SUPERMICRO MBD-X10SL7-F-O Micro ATX Server Motherboard LGA 1150 Intel C222 DDR3 1600
SKU: 9SIA17PHFP7069
Price: 21266895 VND
Availability: InStock

SKU: 9SIA17PHFP7069

Post Views: 200

21.266.895₫

LGA 1150
Intel C222
4 x 240 pin

Hotline tư vấn mua hàng

0927.000.333

Hỗ trợ thông tin

Zalo Official

Category: Mainboard Supermicro

Description
Reviews

Description

/* Insert SKU number in place of “sku-13-182-821” */
#overview-content.sku-13-182-821 .banner {width:100%; height:60px; margin-bottom:0; background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-821/SUPERMICRO_102215.jpg) no-repeat left; }
#overview-content .bt{ color: #333333;font-size: 24px; font-weight: bold; line-height: 30px; text-align:center}
#overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;}
#overview-content .st {margin:0 auto 20px;background:url(//images10.newegg.com/BizIntell/item/13/182/13-182-821/title_102215.jpg) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; }
#overview-content table.specs { width:100%; margin:0 auto; border:#CCC 1px solid; border-collapse:collapse; font-size:12px;}
#overview-content table.specs td{ border:#CCC 1px solid; border-collapse:collapse;}
#overview-content h2{ color: #333333;font-weight: bold;font-size: 24px;text-transform: uppercase;}

SUPERMICRO MBD-X10SL7-F-O Micro ATX Server Motherboard

Features

MBD-X10SL7-F-O

Single socket H3 (LGA 1150) supports
Intel® Xeon® E3-1200 v3/v4, 4th gen.
Core i3, Pentium, Celeron processors
Intel® C222 Express PCH
Up to 32GB DDR3 ECC 1600MHz
UDIMMs in 4 sockets
Dual Gigabit Ethernet LAN ports via
Intel® i210AT
2x SATA (6Gbps), 4x SATA (3Gbps)
8x SAS2 (6Gbps) via LSI 2308
Expansion slots: 1x PCI-E 3.0 x8
(in x16), 1x PCI-E 2.0 x4 (in x8)
2x USB 3.0 (1 Type-A + 1 via header)
6x USB 2.0 (4 rear + 2 via header)
Integrated IPMI 2.0 with KVM and
Dedicated LAN
SATA DOM power connector support
VGA D-sub connector, TPM header

Specifications

Product SKUs
MBD-X10SL7-F	X10SL7-F (Bulk Pack)
Physical Stats
Form Factor	microATX
Dimensions	9.6″ x 9.6″, (24.4cm x 24.4 cm)
Processor/Cache
CPU	Intel® Xeon® processor E3-1200 v3/v4 and 4th Gen Core i3, Pentium, Celeron processors Single Socket H3 (LGA 1150)
System Memory
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5V, 1.35V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C222 Express PCH
SATA	SATA3 (6Gbps) w/ RAID 0, 1 SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
SAS	SAS2 (6Gbps) via LSI 2308 SW RAID 0, 1, 1E, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2400 with 10/100/1000M bps MAC
Network Controllers	Intel® i210AT dual port GbE Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
VGA	BMC integrated Aspeed AST2400
Input / Output
Serial ATA	2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports
SAS	8x SAS2 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports (1 via header, 1 Type-A) 6x USB 2.0 ports (4 rear, 2 via header)
VGA	1x VGA D-Sub Connector
Serial Port / Header	2x COM ports (1 rear, 1 header)
DOM	SATA DOM (Disk on Module) power connector support
TPM	1x TPM 1.2 20-pin Header

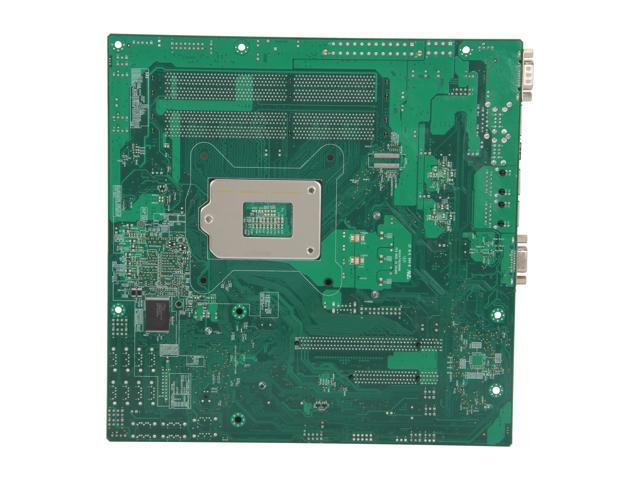

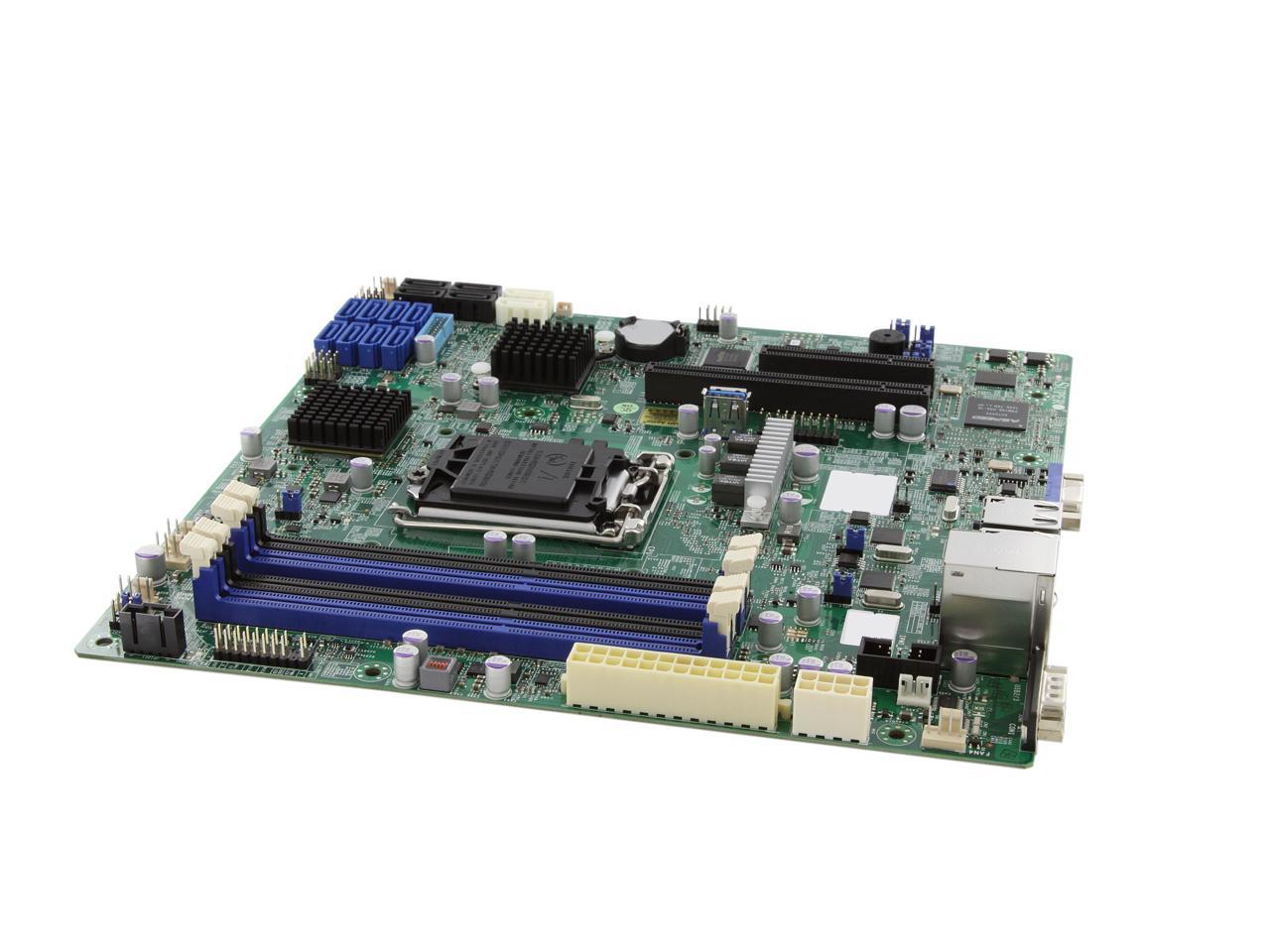

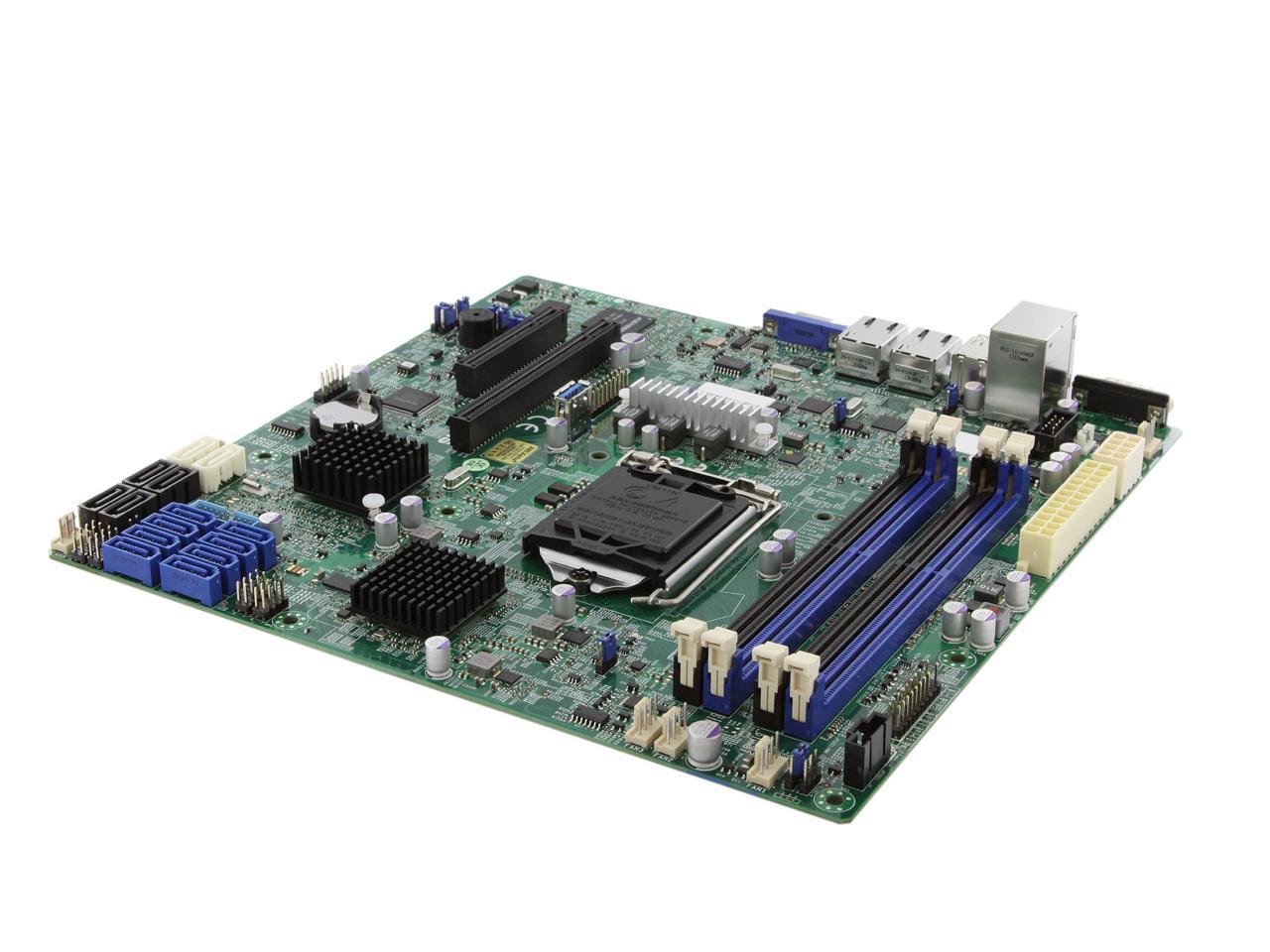

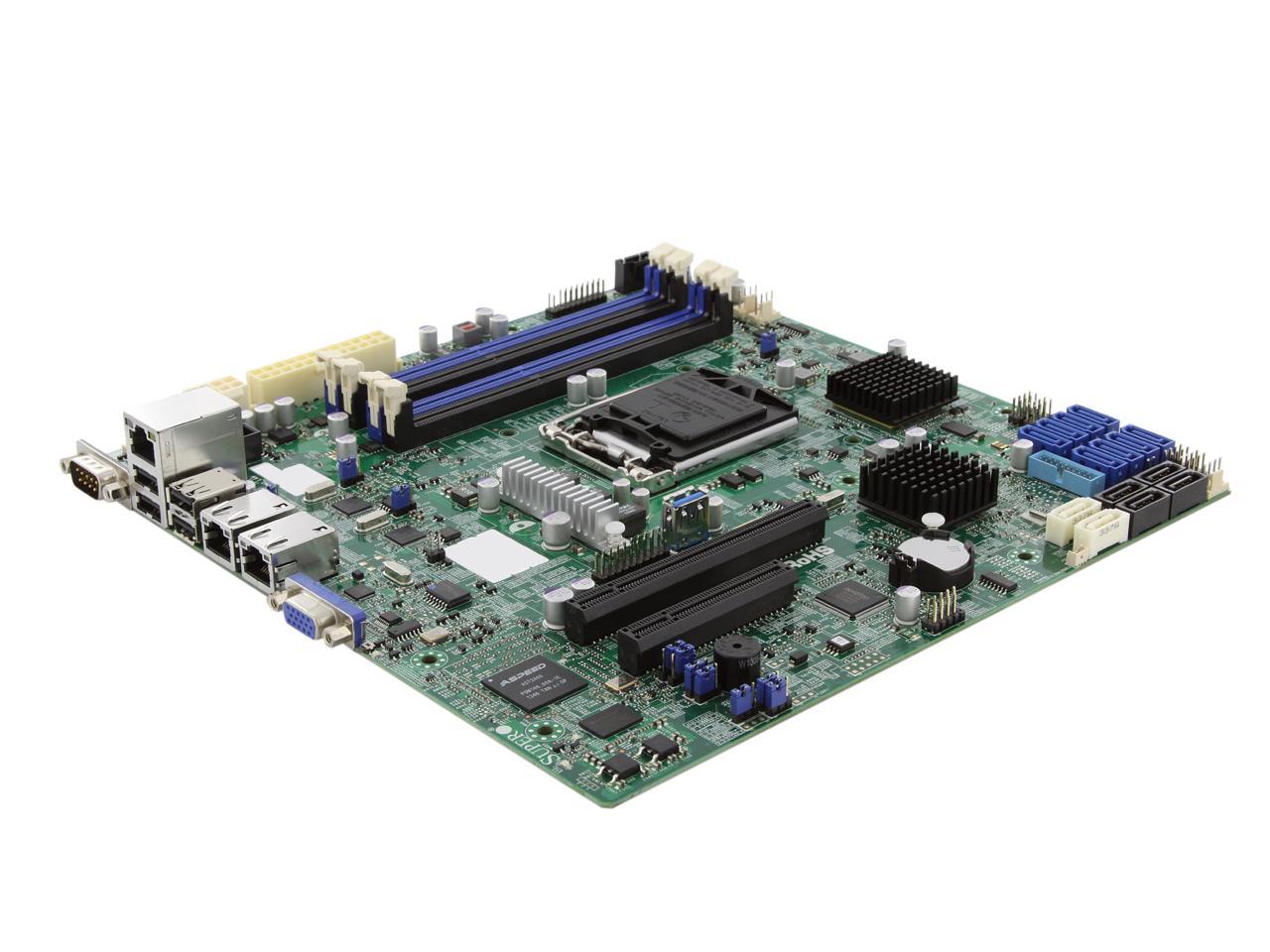

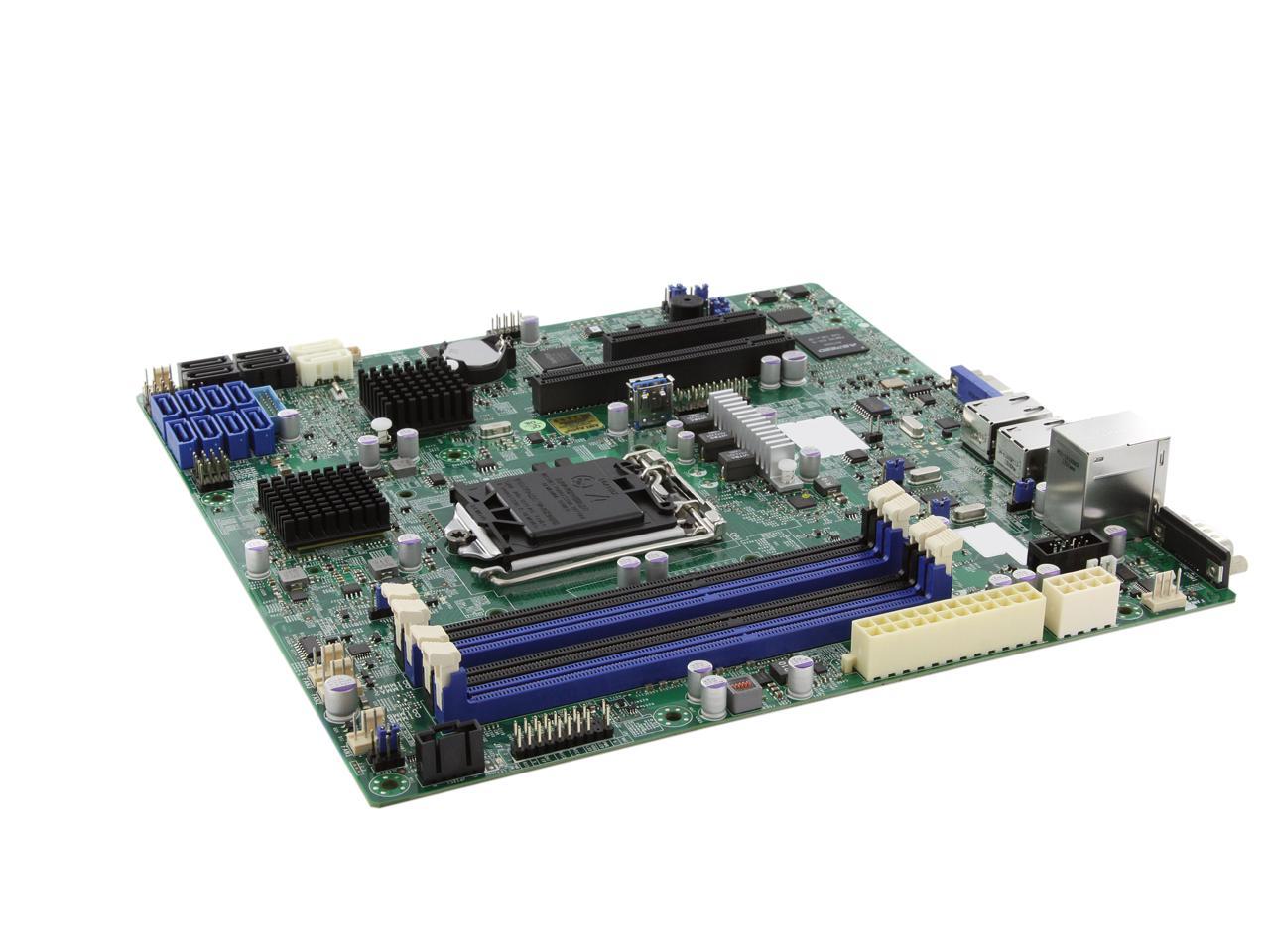

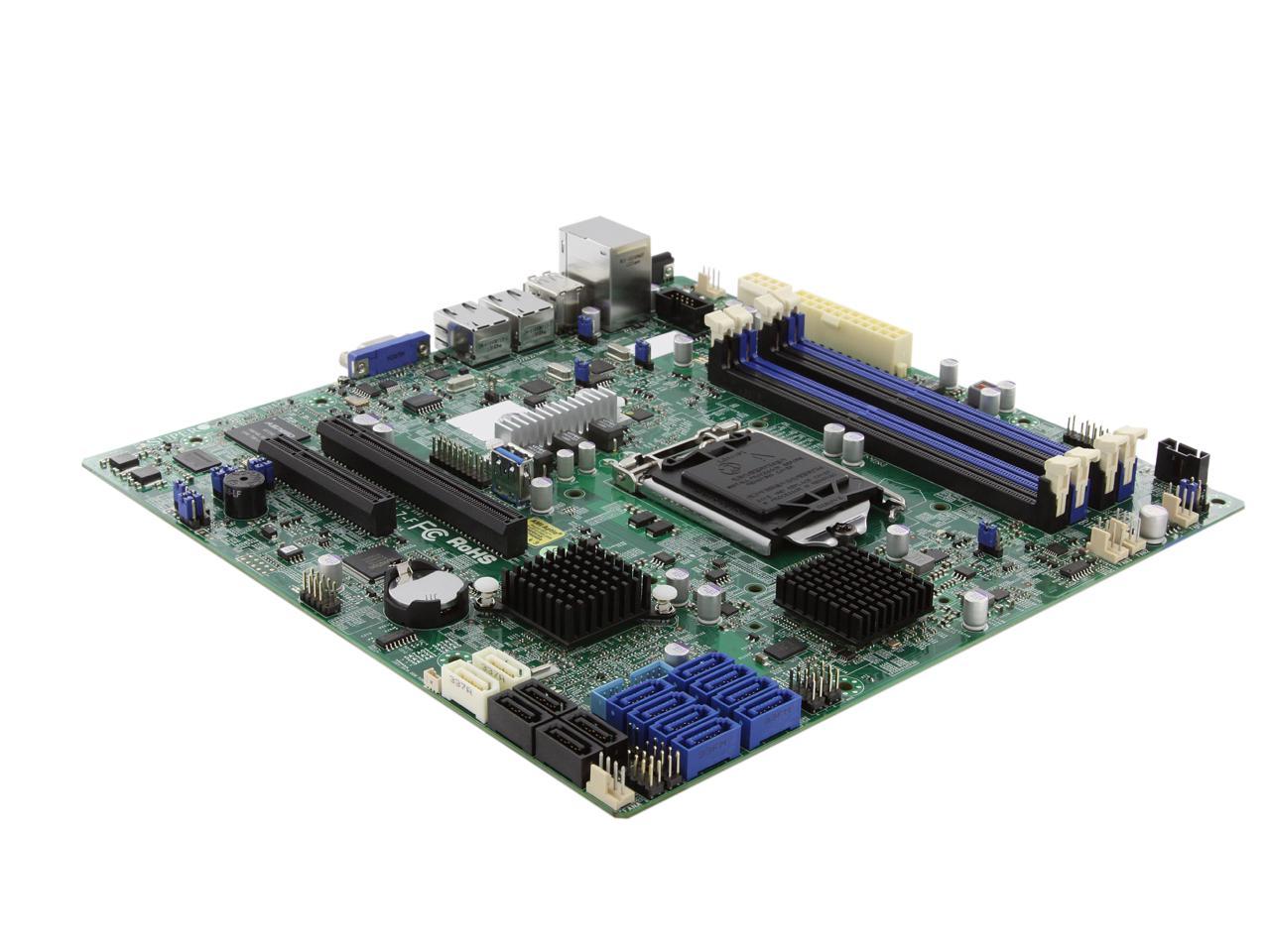

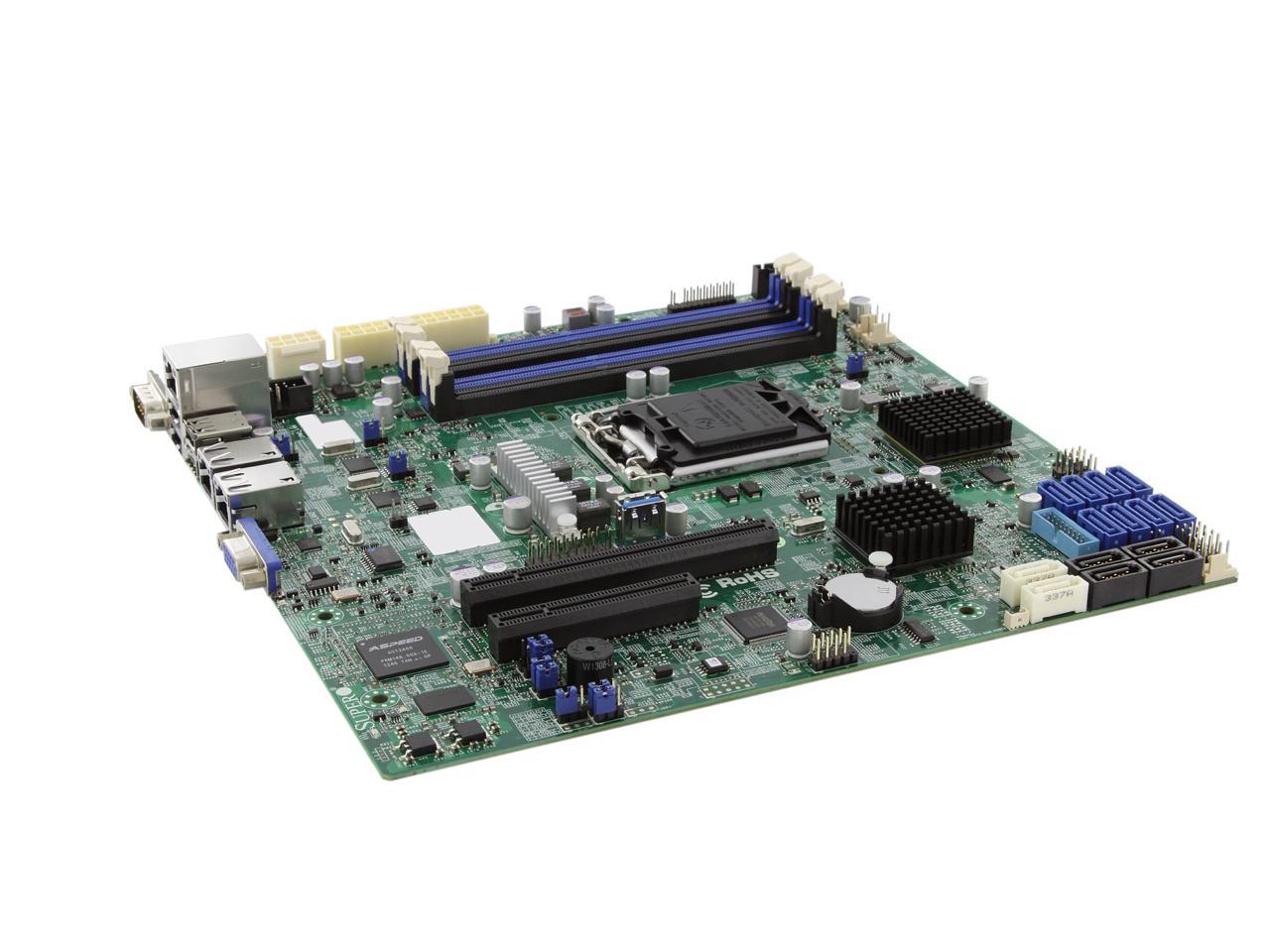

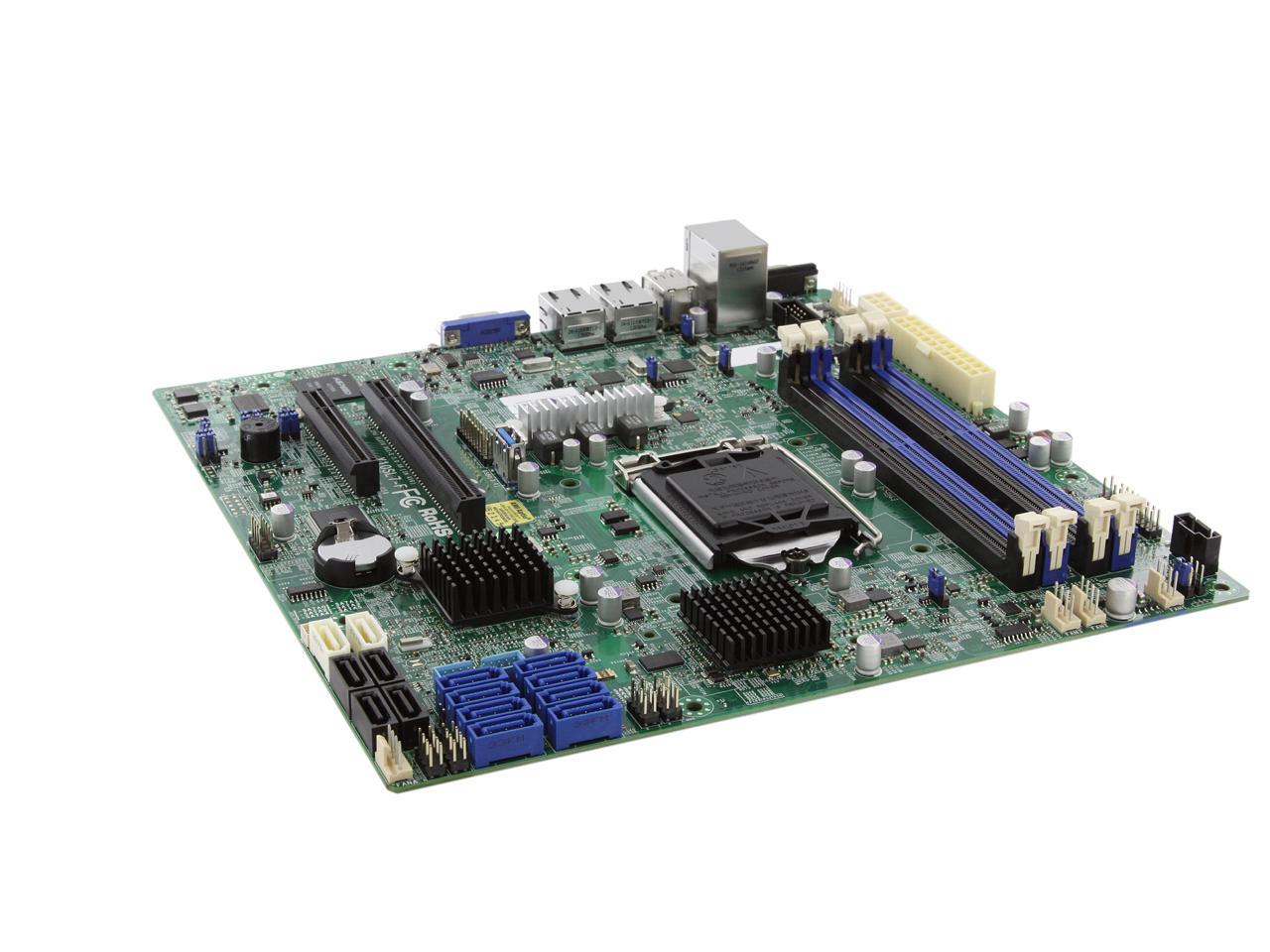

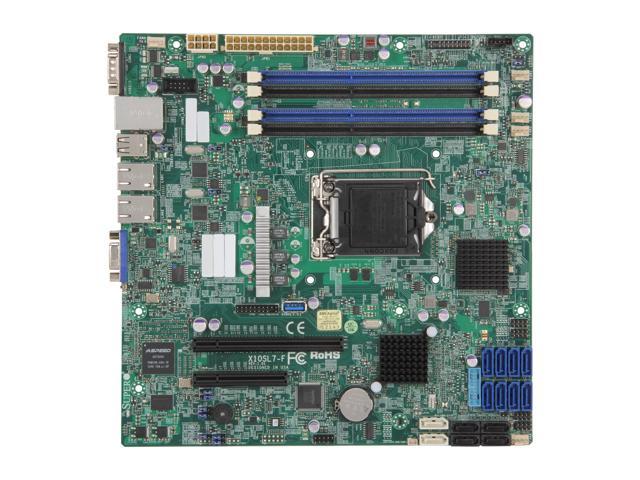

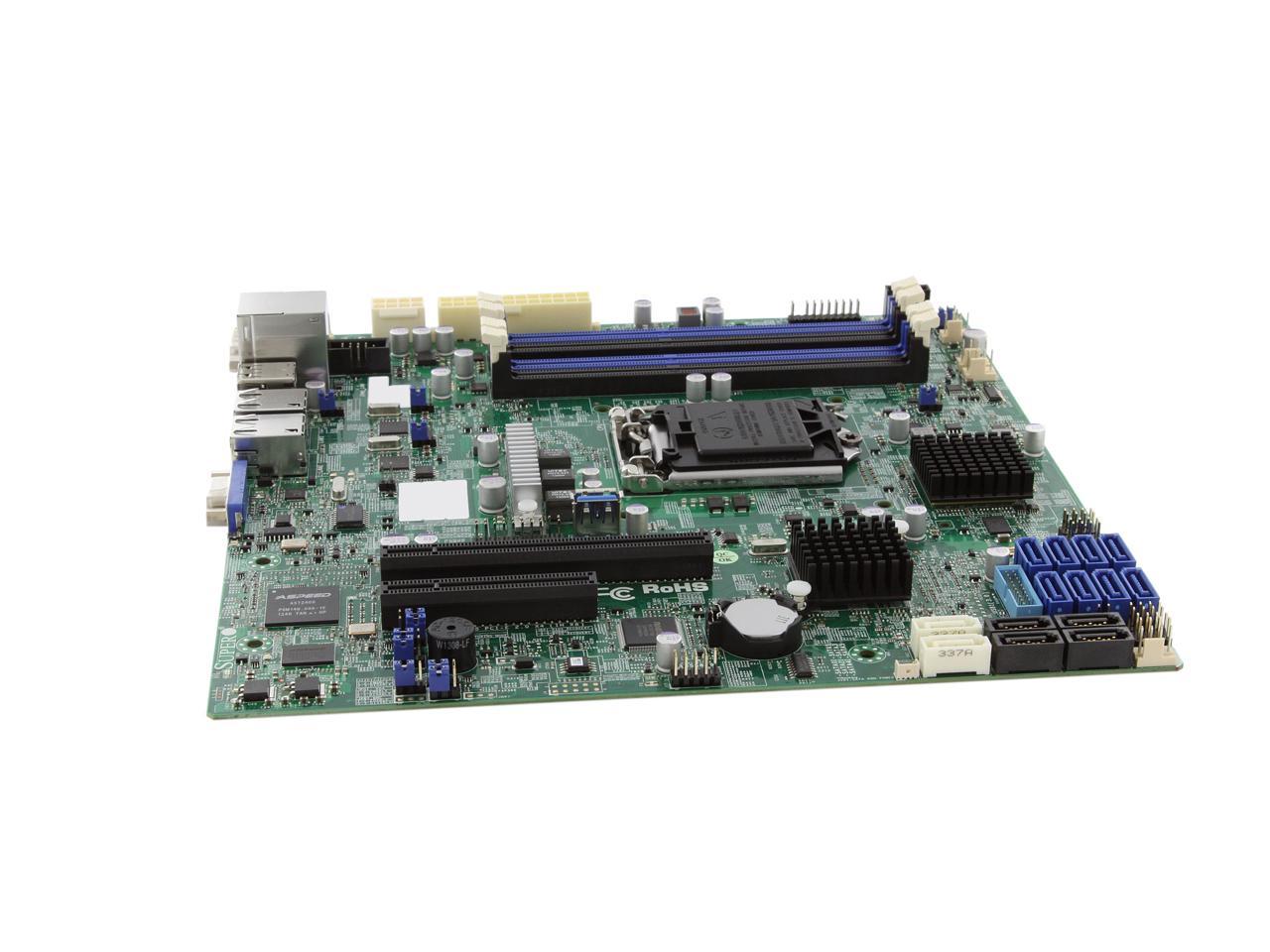

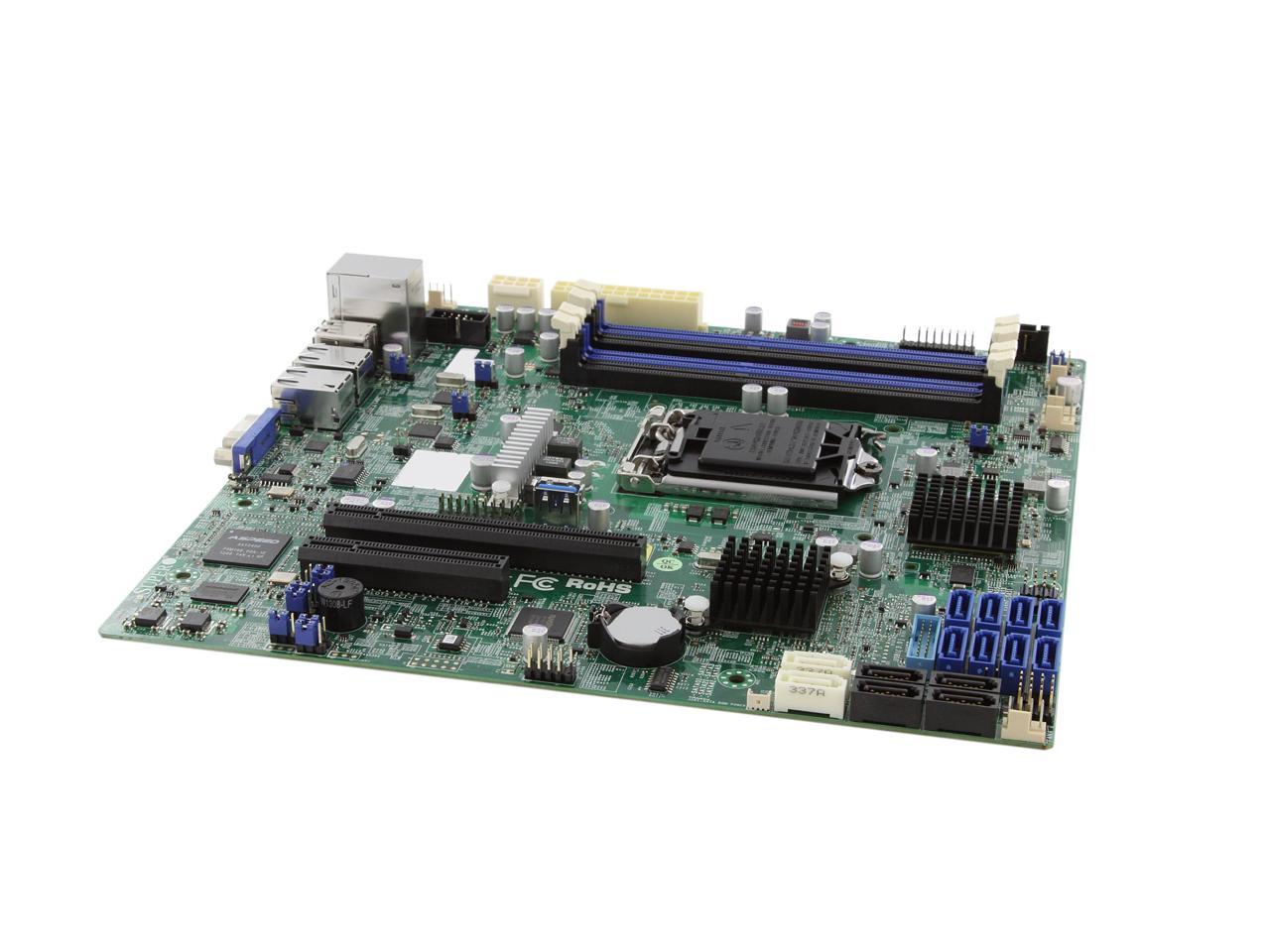

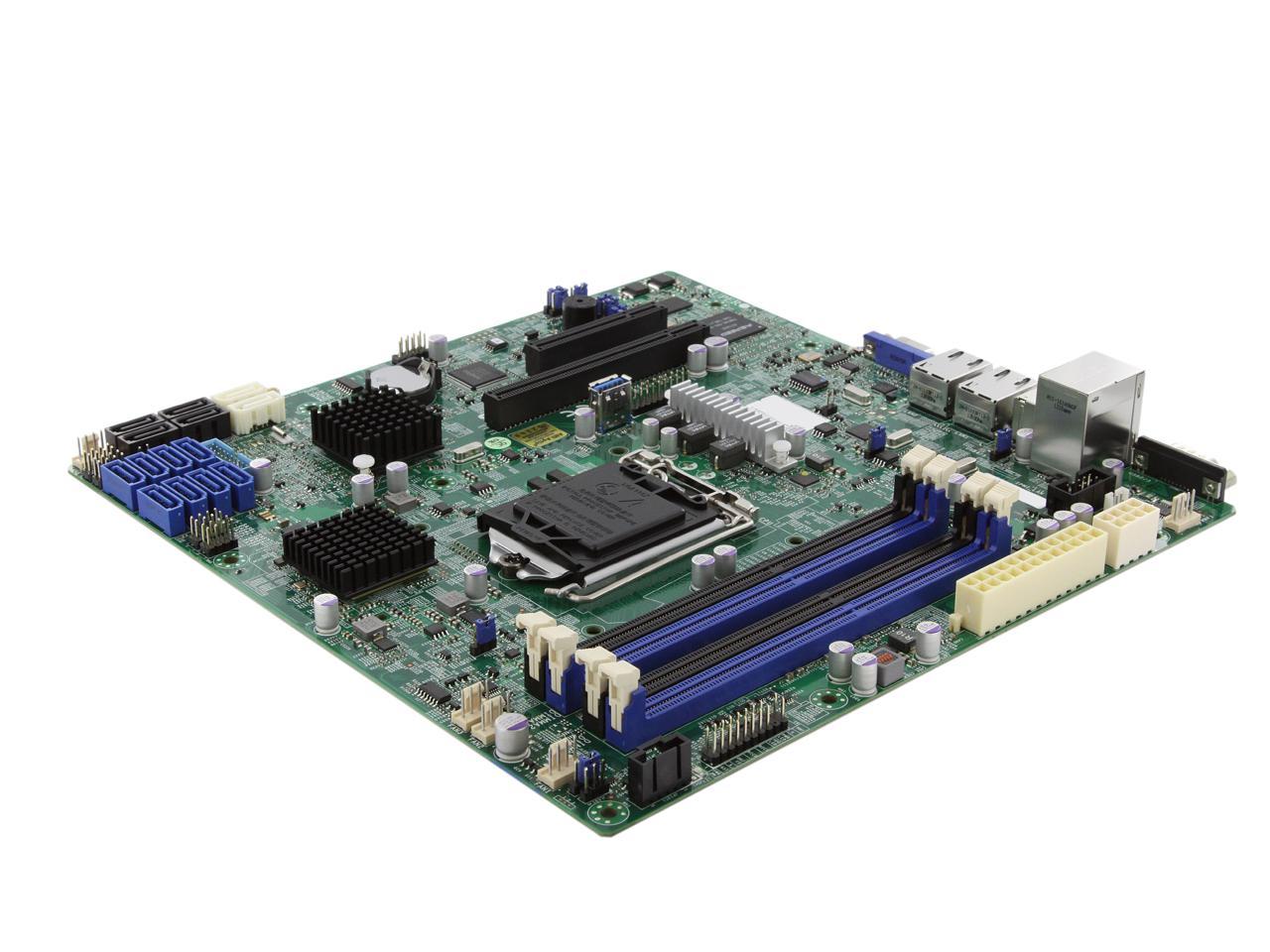

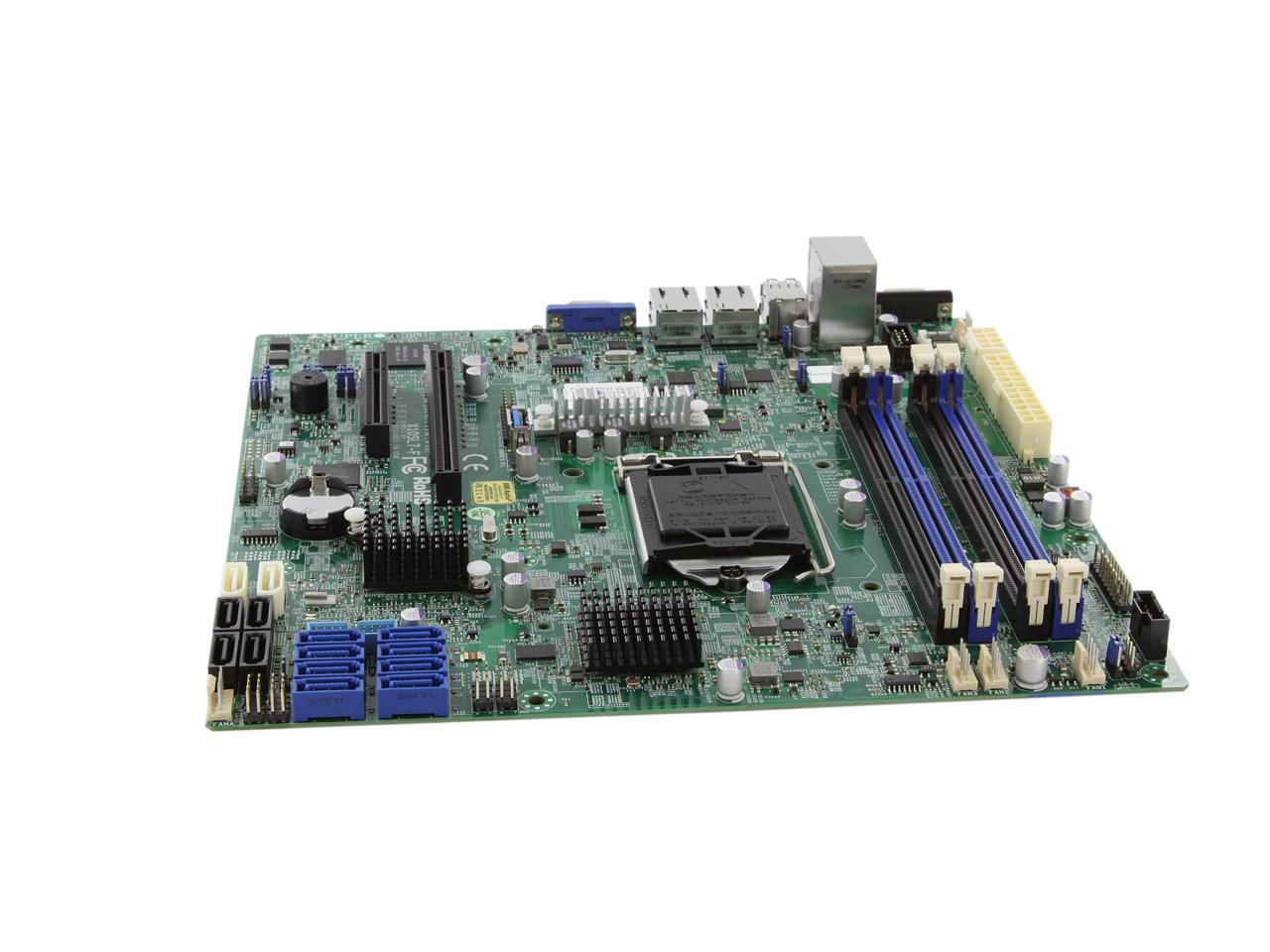

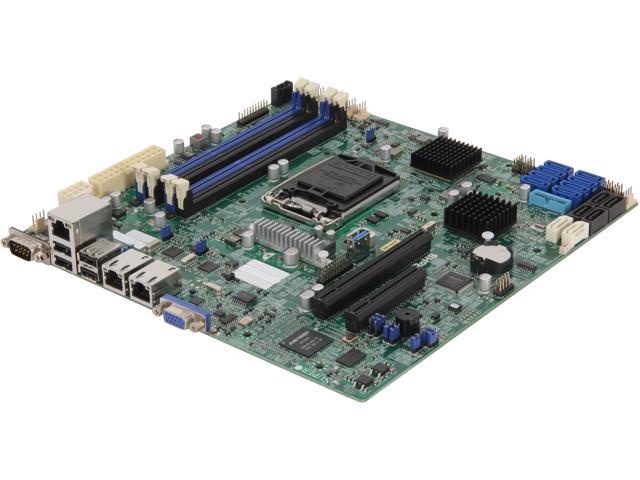

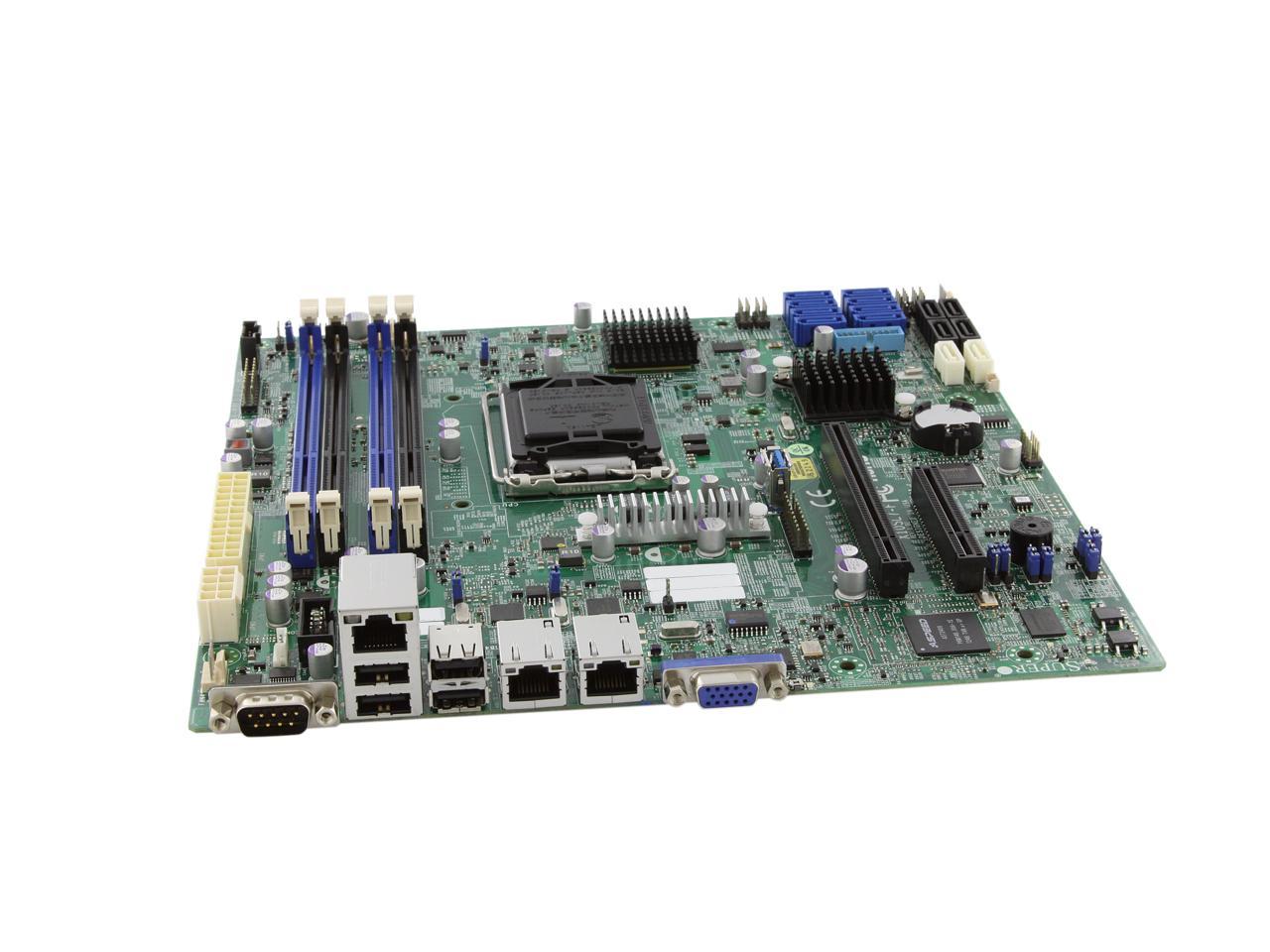

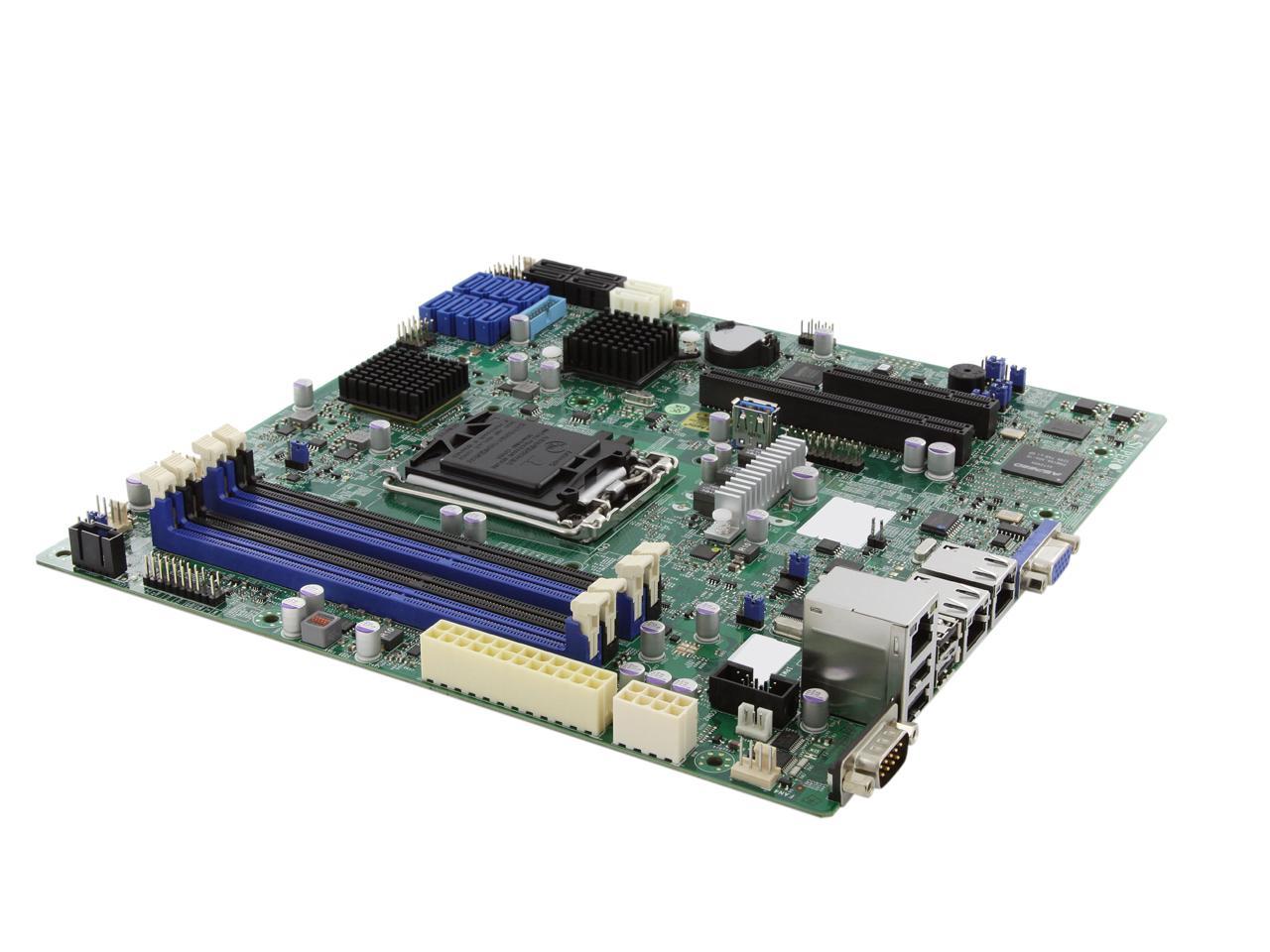

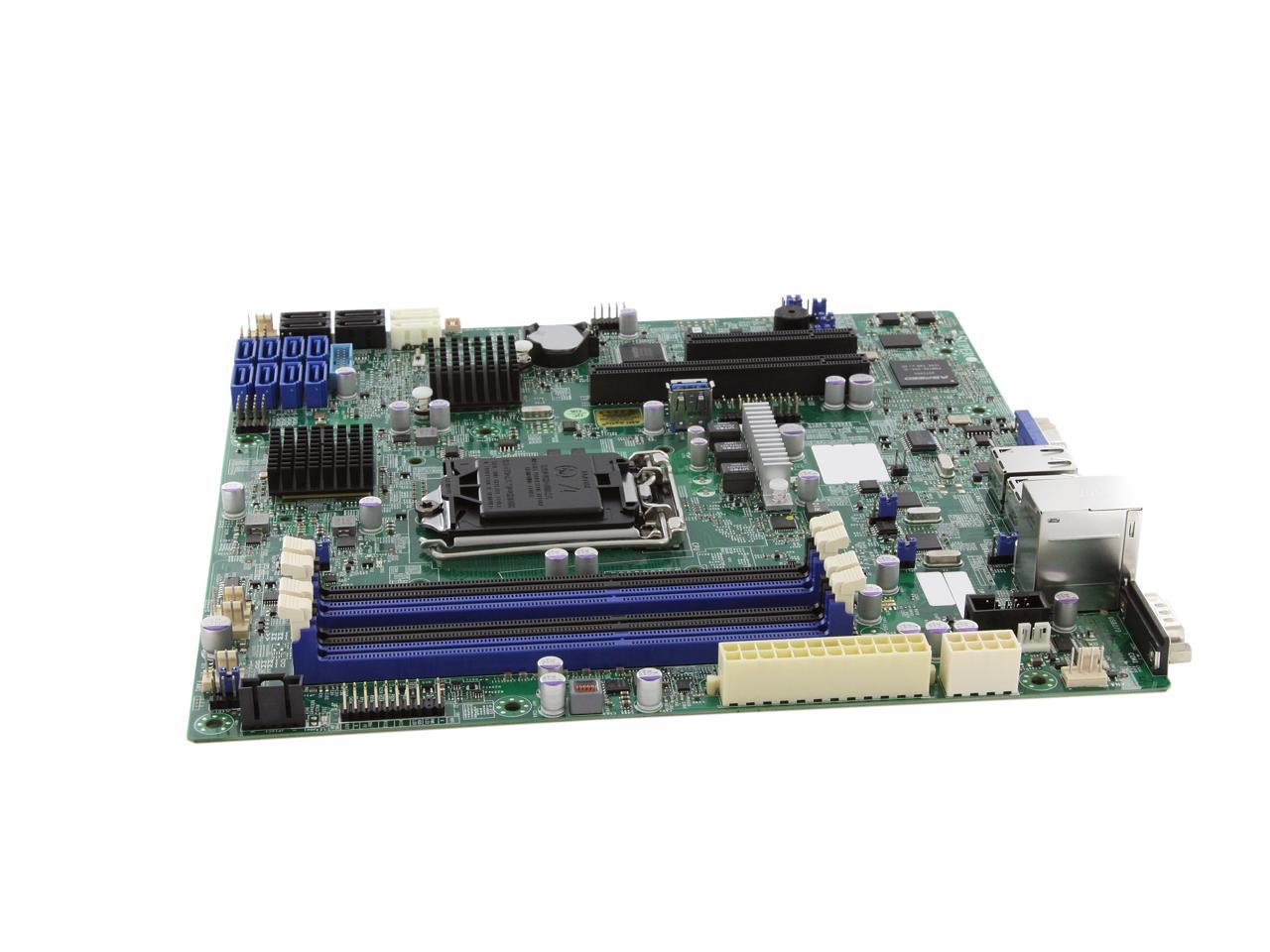

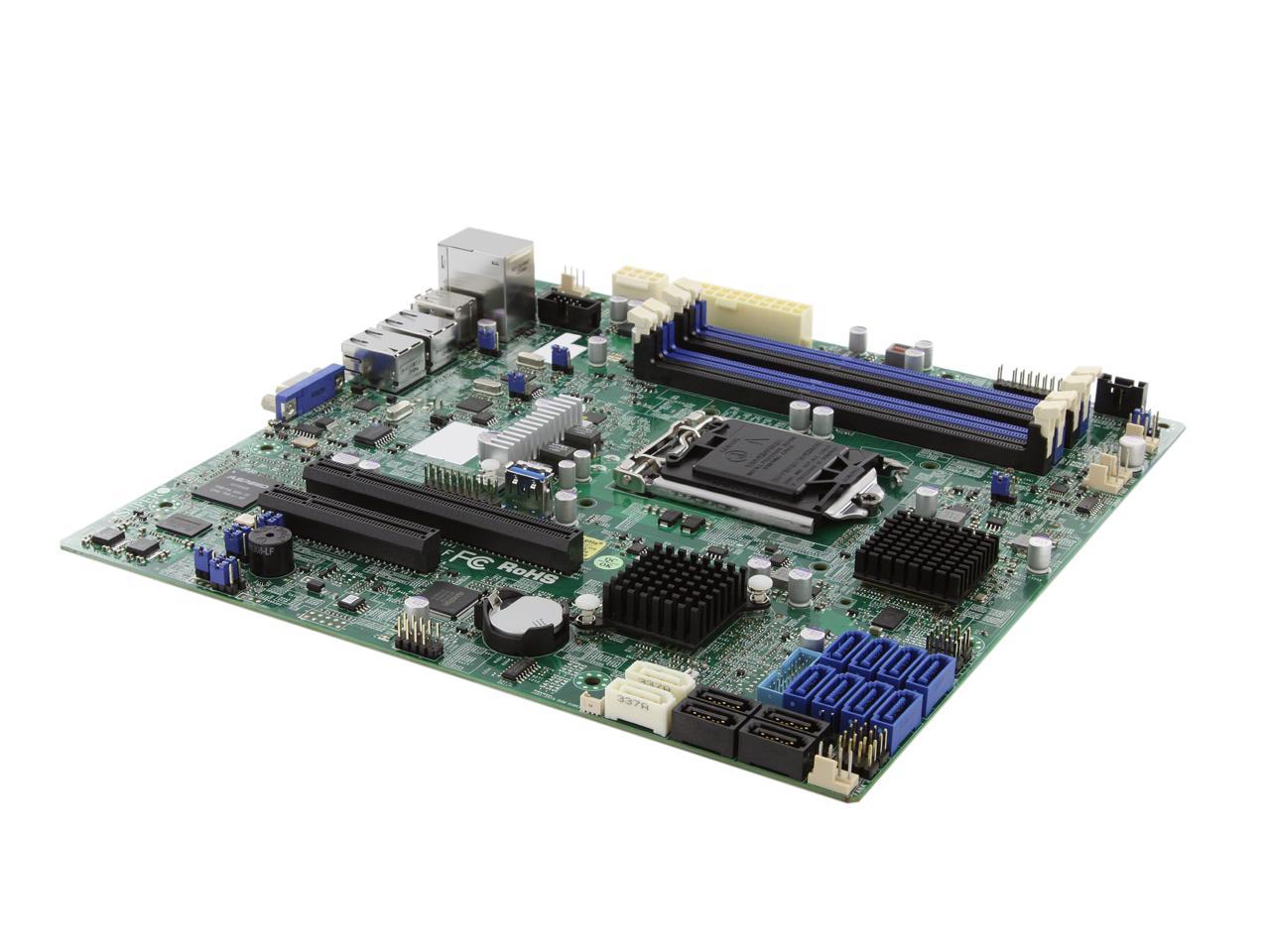

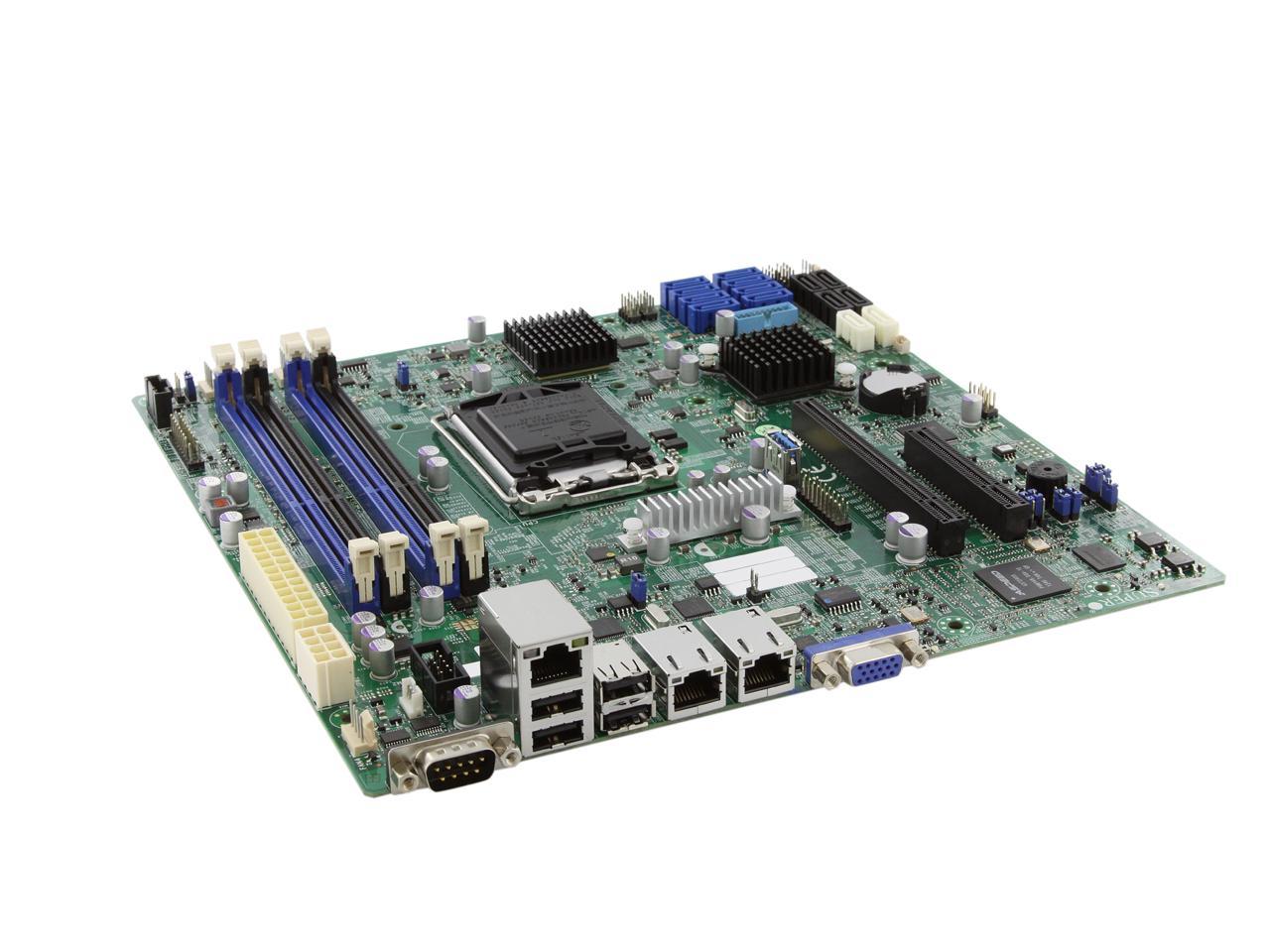

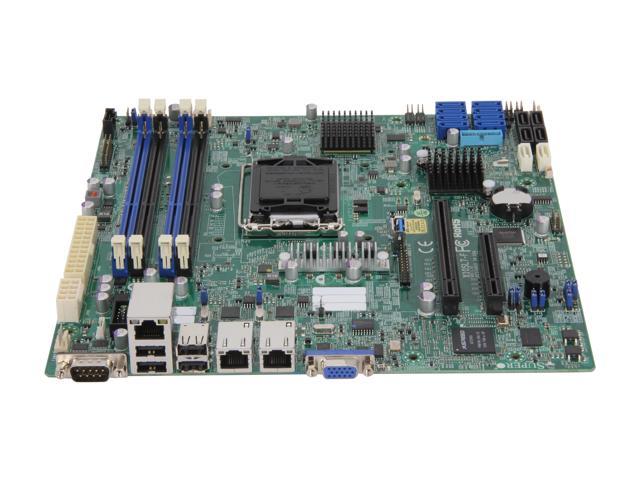

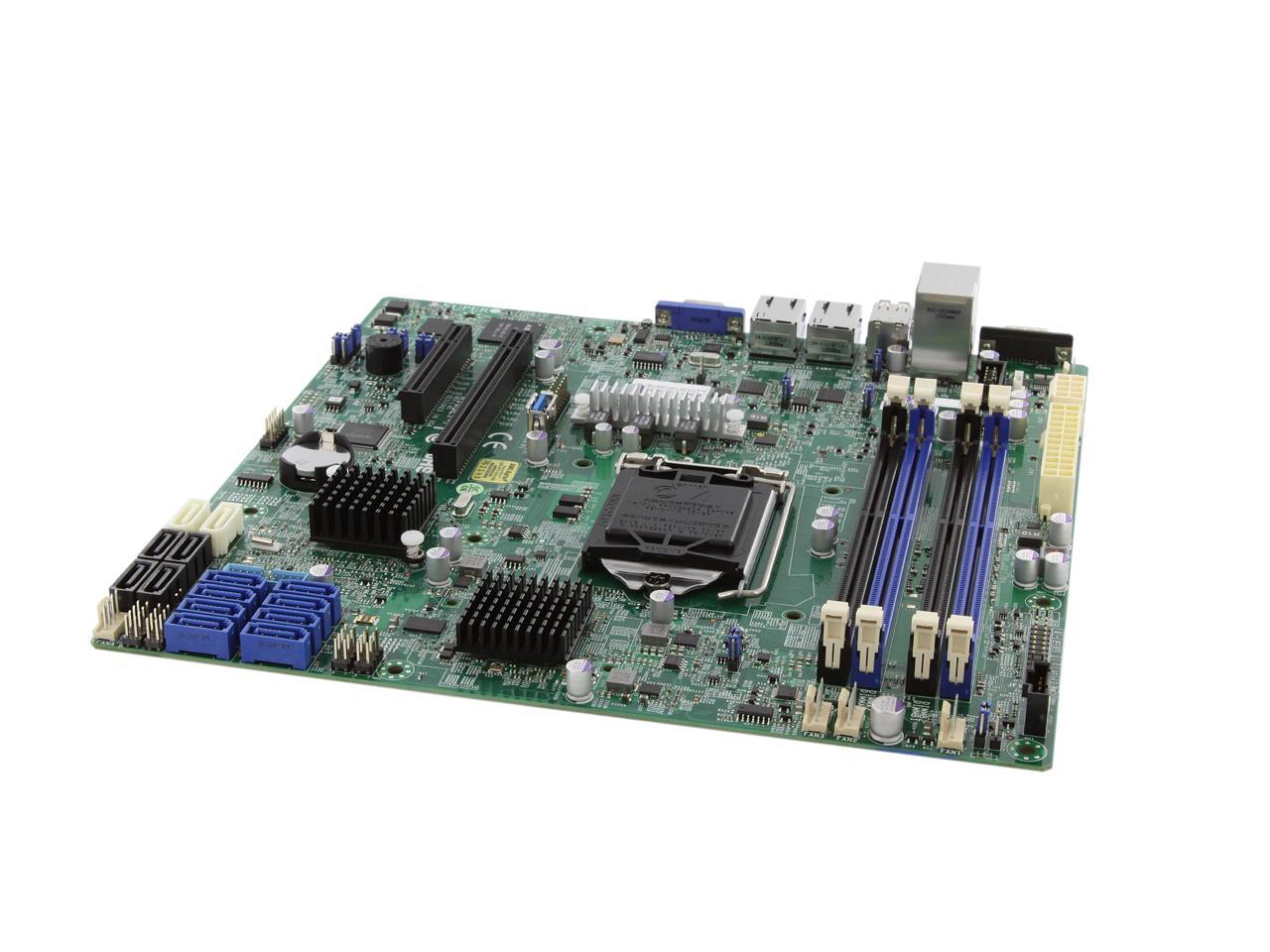

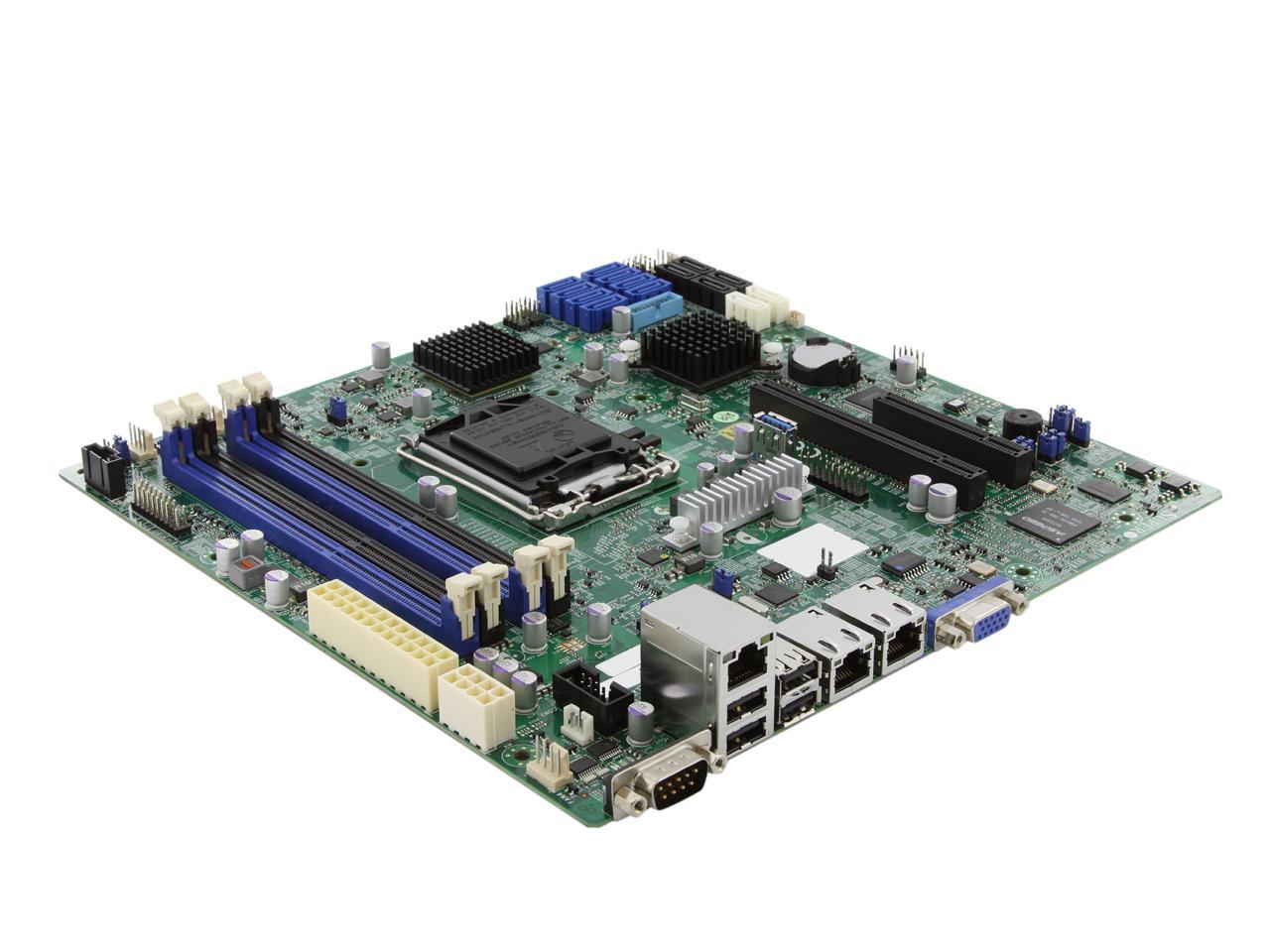

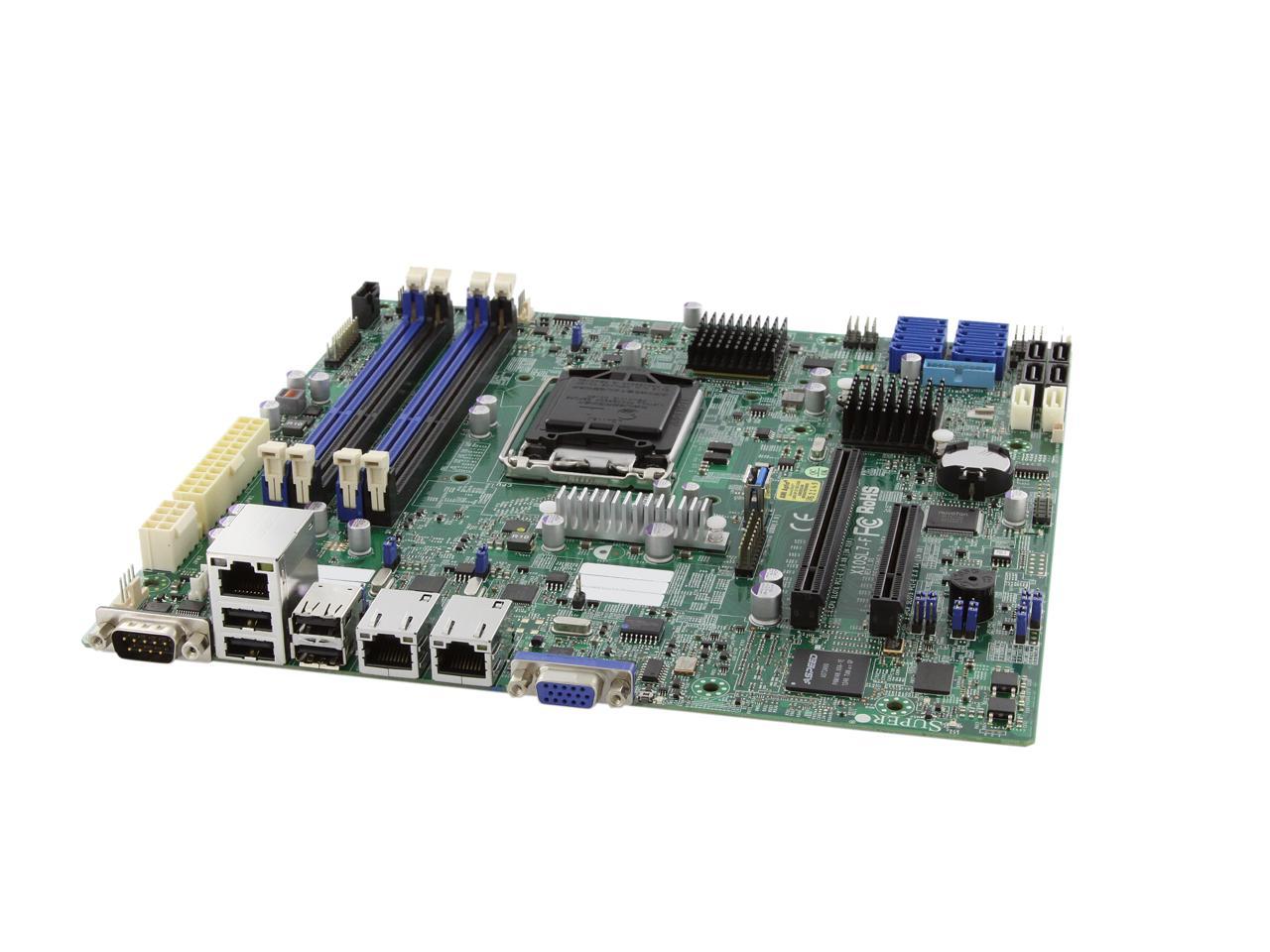

Gallery

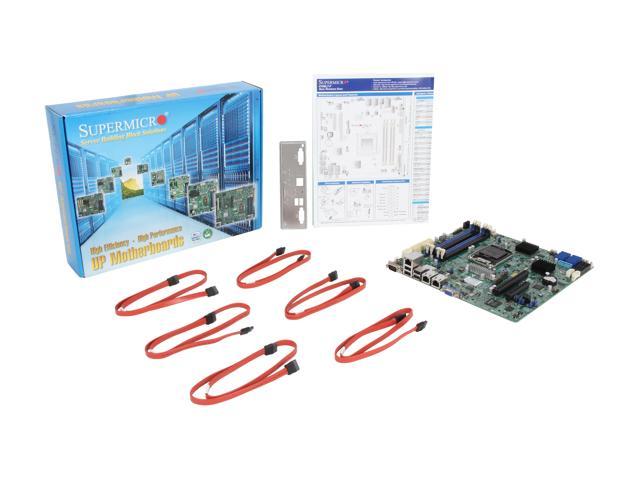

Whats in the Box

MBD-X10SL7-F-O

Learn more about the Supermicro MBD-X10SL7-F-O

Model
Brand	SUPERMICRO
Model	MBD-X10SL7-F-O

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Intel Xeon E3-1200 v3 / v4 and 4th Gen Core i3, Pentium, Celeron processors

Chipsets
North Bridge	Intel C222

Memory
Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1600
Maximum Memory Supported	32GB
ECC Supported	Yes

Expansion Slots
Other Slots	1 x PCI-E 3.0 x8 (in x16) slot 1 x PCI-E 2.0 x4 (in x8) slot

Storage Devices
SATA	4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID	SATA3 (6 Gbps) w/ RAID 0, 1 SATA2 (3 Gbps) w/ RAID 0, 1, 5, 10
SAS	8 x SAS2 (6 Gbps) ports via LSI 2308
SAS RAID	SW RAID 0, 1, 1E, 10 support

Onboard Video
Onboard Video Chipset Onboard Video Chipset	Aspeed AST2400

Onboard LAN
LAN Chipset	Intel I210-AT
LAN Speed	10/100/1000Mbps
Max LAN Speed	Dual 10/100/1000Mbps

Rear Panel Ports
COM	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0

Features
Features	Single socket H3 (LGA 1150) supports Intel Xeon E3-1200 v3 / v4, 4th gen. Core i3, Pentium, Celeron processors Intel C222 Express PCH Up to 32GB DDR3 ECC 1600 MHz UDIMMs in 4 sockets Dual Gigabit Ethernet LAN ports via Intel i210AT 2 x SATA (6 Gbps), 4 x SATA (3 Gbps) 8 x SAS2 (6 Gbps) via LSI 2308 Expansion slots: 1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 2.0 x4 (in x8) 2 x USB 3.0 (1 Type-A + 1 via header), 6 x USB 2.0 (4 rear + 2 via header) Integrated IPMI 2.0 with KVM and Dedicated LAN SATA DOM power connector support VGA D-sub connector, TPM header

Dimensions
Form Factor	Micro ATX
Dimensions (W x L)	9.6″ x 9.6″

Additional Information
Date First Available	April 14, 2022

Customer Reviews of the Supermicro MBD-X10SL7-F-O

There are no reviews yet.
