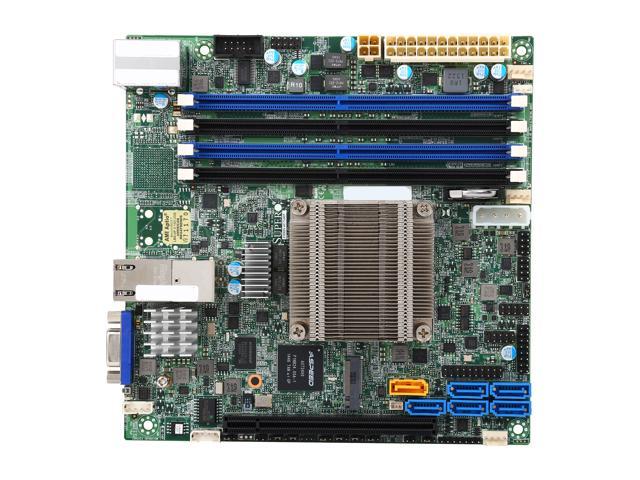

SUPERMICRO MBD-X10SDV-4C-TLN2F-O Mini ITX Server Motherboard

Features

• Intel® Xeon® processor D-1521,
  Single socket FCBGA 1667;
  4-Core, 8 Threads, 45W
• System on Chip
• Up to 128GB ECC RDIMM DDR4
  2133MHz or 64GB ECC/non-ECC
  UDIMM in 4 sockets
• Expansion slot: 1x PCIe 3.0 x16
  M.2 PCIe 3.0 x4, M Key 2242/2280
• Dual 10GbE LAN
• 6x SATA3 (6Gbps) ports via SoC
• 2x USB 3.0 ports (rear)
  4x USB 2.0 ports (via headers)
• 1x SuperDOM, 1x COM, TPM 1.2
  header, GPIO and SMbus headers
• 12V DC input and ATX Power Source

Specifications

Product SKUs
Motherboard	X10SDV-4C-TLN2F (Bulk Pack)
Physical Stats
Form Factor	Mini-ITX
Dimensions	6.7″ x 6.7″, (17cm x 17cm)
Processor/Cache
CPU	Intel® Xeon® processor D-1521 FCBGA 1667 CPU TDP support 45W, 2.2-2.6GHz, 12MB, 4 Cores, 8 Threads
System Memory
Memory Capacity	4x DDR4 DIMM sockets Supports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes	32GB, 16GB, 8GB, 4GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	System on Chip
SATA	System on Chip
Network Controllers	Dual LAN via SoC 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	Aspeed AST2400
TPM	TPM header

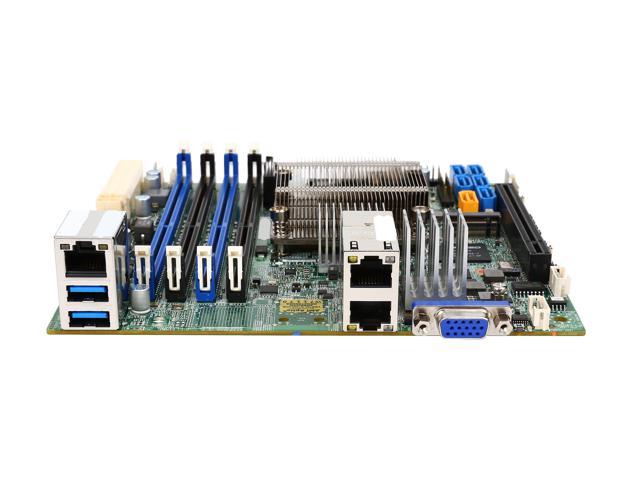

Input / Output
SATA	6x SATA3 (6Gbps) ports
LAN	2x RJ45 10GBase-T ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports (rear) 4x USB 2.0 ports (via headers)
Video	1x VGA port
Serial Port / Header	1x COM port (header)
DOM	1x SuperDOM (Disk on Module) power connector

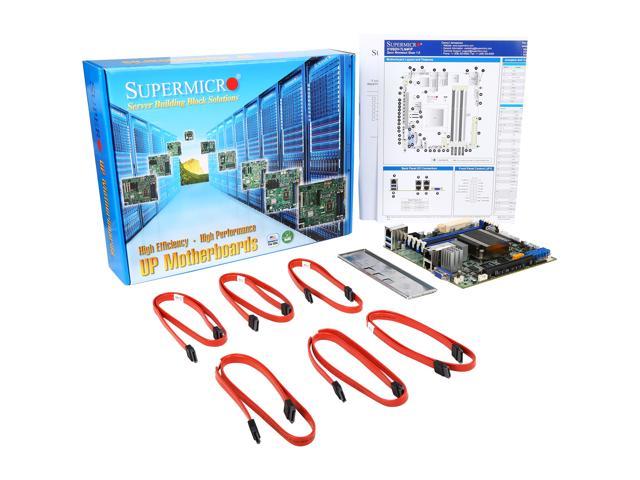

Whats in the Box
