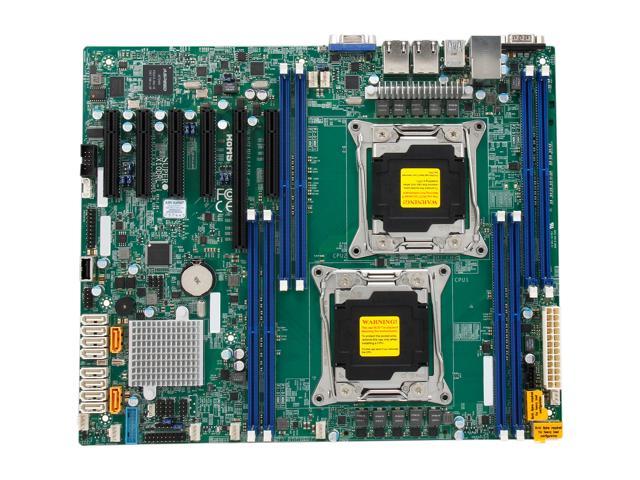

SUPERMICRO MBD-X10DRL-I ATX Server Motherboard

Features

• Dual socket R3 (LGA 2011) supports
  Intel® Xeon® processor E5-2600 v3
  family; QPI up to 9.6GT/s
• Intel® C612 chipset
• Up to 512GB ECC DDR4 2133MHz;
  8x DIMM slots
• 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8),
  1 PCI-E 3.0 x16, 1 PCI-E 2.0 x4 (in x8)
• Intel® i210 GbE LAN, 2 ports
• Integrated IPMI 2.0 and KVM with
  Dedicated LAN
• 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
• 4x USB 3.0 (2 rear, 2 via header)
  5x USB 2.0 (2 rear, 2 via header,
  1 Type A)

Specifications

Product SKUs
MBD-X10DRL-i -O	X10DRL-i (Standard Retail Pack)
MBD-X10DRL-i -B	X10DRL-i (Bulk Pack)
Physical Stats
Form Factor	ATX
Dimensions	12″ x 10″ (30.48cm x 25.4cm)
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 18 Cores / Up to 45MB Cache
System Bus	QPI up to 9.6 GT/s
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity	8x 288-pin DDR4 DIMM slots Up to 512GB ECC LRDIMM, 512GB ECC RDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
AHCI SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i210 Gigabit Ethernet controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
Video	ASPEED AST2400 BMC
Input / Output
SATA	10x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (2 rear + 2 via header) 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Video	1x VGA port
Serial Port / Header	2x Fast UART 16550 port / 1 Header
TPM	1x TPM 1.2 20-pin Header
DOM	DOM (Disk on Module) power connector
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) PCI 2.3 ACPI 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1

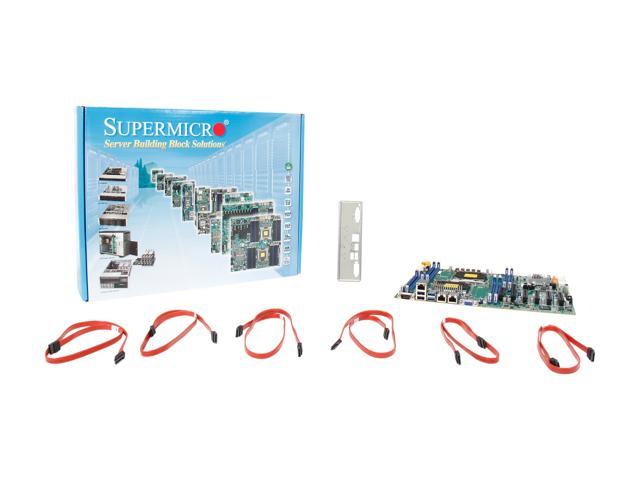

Whats in the Box
