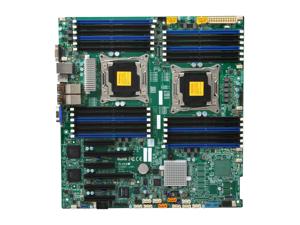

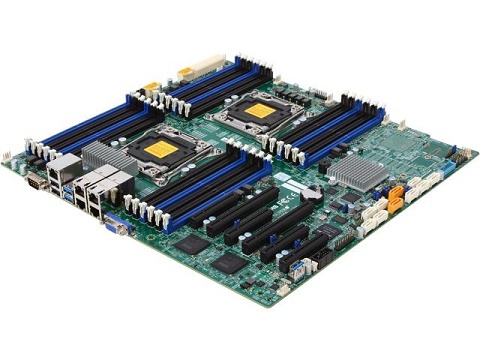

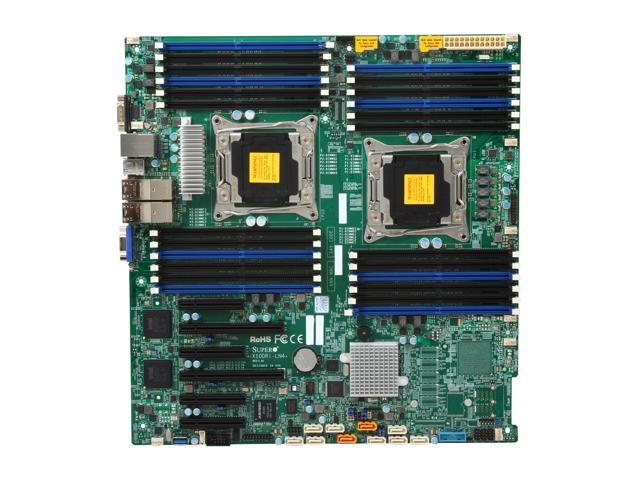

SUPERMICRO MBD-X10DRI-LN4+-O Enhanced Extended ATX Xeon Server Motherboard

Features

• Dual socket R3 (LGA 2011) supports
  Intel® Xeon® processor E5-2600
  v4†/ v3 family; QPI up to 9.6GT/s
• Intel® C612 chipset
• Up to 3TB† ECC 3DS LRDIMM , up to
  DDR4- 2400†MHz ; 24x DIMM slots
• 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and
  1 PCI-E 2.0 x4 (in x8) slot
• Quad LAN w/ Intel® i350 GbE
• 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
• Integrated IPMI 2.0 and KVM with
  Dedicated LAN
• 5x USB 3.0 (2 rear, 2 front panel,
  1 Type A), 4x USB 2.0 ports
  (2 rear, 2 front panel)

Specifications

Product SKUs
MBD-X10DRi-LN4+ -B	X10DRi-LN4+ (Bulk Pack)
MBD-X10DRi-LN4+ -O	X10DRi-LN4+ (Retail Pack)
Physical Stats
Form Factor	Enhanced Extended ATX
Dimensions	13.68″ x 13″ (34.74cm x 33cm)
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP**) Dual Socket R3 (LGA 2011)
Core / Cache	Up to 22 Cores† / Up to 55MB† Cache
System Bus	QPI up to 9.6 GT/s
Note	† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity	24x 288-pin DDR4 DIMM slots Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type	2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
AHCI SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i350 Quad Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	ASPEED AST2400 BMC
Expansion Slots
PCI-Express	2 PCI-E 3.0 x16 3 PCI-E 3.0 x8 1 PCI-E 2.0 x4 (in x8)

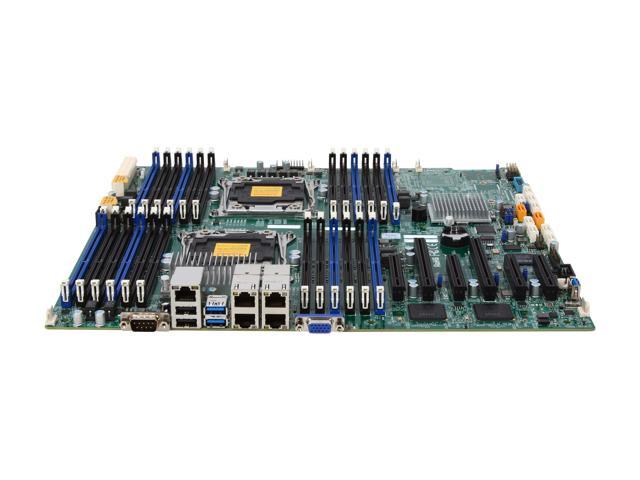

Input / Output
SATA	10x SATA3 (6Gbps) ports
LAN	4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	5x USB 3.0 (2 rear, 2 front panel, 1 Type A) 4x USB 2.0 ports (2 rear, 2 front panel)
Video	1x VGA port
Serial Port / Header	2x Fast UART 16550 serial 2x COM Ports (1 rear, 1 header)
SuperDOM	2x SuperDOM (Disk on Module) ports
TPM	1x TPM 1.2 20-pin Header
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1
Management
Software	Intel® Node Manager 3.0 NMI SPM SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
PC Health Monitoring
Voltage	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 6 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support RoHS
Operating Environment
Operating Temperature Range	10°C – 35°C (50°F – 95°F)
Non-Operating Temperature Range	-40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range	8% – 90% (non-condensing)
Non-Operating Relative Humidity Range	5% – 95% (non-condensing)

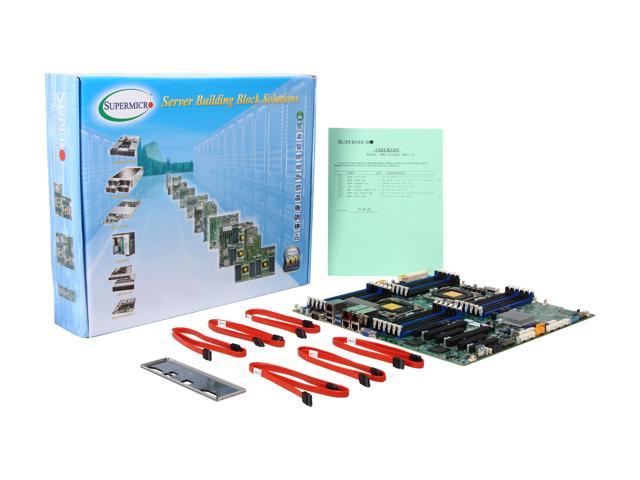

What’s in the Box
