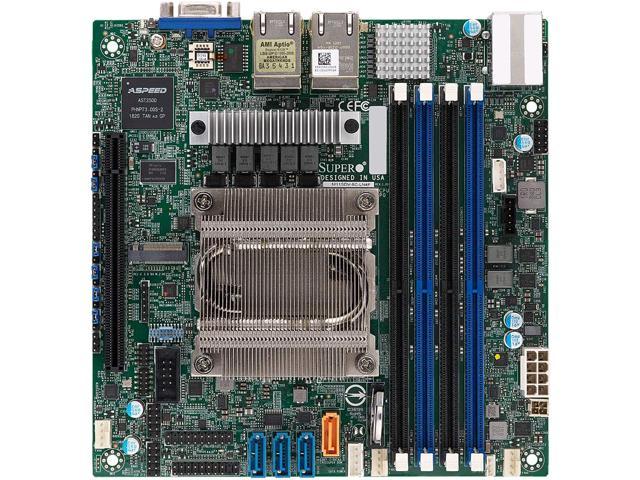

SUPERMICRO MBD-M11SDV-8C-LN4F AMD EPYC 3251 SoC 8 Core / 16 Thread Mini ITX Server Motherboard
SKU: 9SIA5EM93R054833.483.255₫
AMD EPYC 3251 SoC Processor, 8 Core/16 Thread, 55W
Up to 512GB ECC Registered, DDR4-2666MHz SDRAM in 4 DIMMs
1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key
SoC controller for 4 SATA 3.0
4 Gigabit Ethernet ports, 1 dedicated IPMI LAN
ASPEED AST2500 BMC graphics
Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports
1 COM port, TPM 2.0 header
3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring
Description
SuperMicro M11SDV-8C-LN4F Mini-ITX Motherboard with EPYC™ 3251 SoC Processor
Learn more about the Supermicro MBD-M11SDV-8C-LN4F
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-M11SDV-8C-LN4F |
| CPU Socket Type | SoC |
|---|---|
| CPU Type | Single AMD EPYC 3251 SoC Processor |
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs |
| Maximum Memory Supported | Supports up to 512GB Registered ECC DDR4 2666 MHz SDRAM in 4 x DIMMs |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | 1 |
|---|
| SATA | 4 x SATA 6.0Gb/s |
|---|
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 BMC |
|---|
| Number of LAN | 4 x 1 GbE with Intel I350-AM4 |
|---|---|
| LAN Chipset | Intel I350-AM4 |
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I350-AM4 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Quad 10/100/1000Mbps |
| RJ45 | 4 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port |
|---|
| Features | AMD EPYC 3251 SoC Processor, 8 Core / 16 Thread, 50W
Up to 512GB ECC Registered, DDR4-2666 MHz SDRAM in 4 x DIMMs 1 x PCI-E 3.0 x16 slot, 1 x M.2 PCI-E 3.0 x4, 2280, M Key SoC controller for 4 x SATA 3.0 4 x Gigabit Ethernet ports, 1 x dedicated IPMI LAN ASPEED AST2500 BMC graphics Up to 2 x USB 3.0 ports, Up to 6 x USB 2.0 ports 1 x COM port, TPM 2.0 header 3 x fan header, 4-pin type fan header, 3 x fans with tachometer monitoring |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7″ x 6.7″ |
| Date First Available | April 16, 2019 |
|---|
