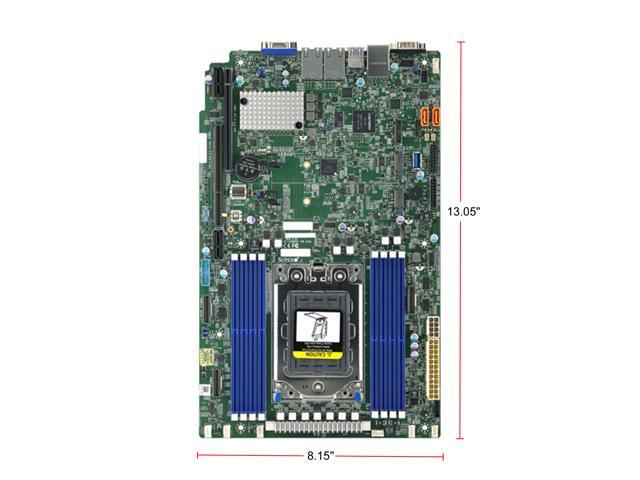

SUPERMICRO MBD-H12SSW-IN-O Proprietary Server Motherboard Socket SP3
SKU: N82E1681318371218.436.275₫
Socket SP3
Description
Learn more about the Supermicro MBD-H12SSW-IN-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-H12SSW-IN-O |
| CPU Socket Type | Socket SP3 |
|---|---|
| CPU Type | AMD EPYC 7002 Series Processor |
| Supported CPU Technologies | Up to 64 Cores |
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 2TB |
| Channel Supported Channel Supported | Eight Channel |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | 1 PCI-E 4.0 x32 Left Riser Slot 1 PCI-E 4.0 x16 Right Riser Slot |
|---|
| SATA | 2 x SATA3 (6 Gbps) ports 16 x SATA3 / 4 NVMe (PCI-E Gen3) |
|---|---|
| M.2 | Interface: 2 x SATA/PCI-E 3.0 x2 Form Factor: 2280, 22110 Key: M-key |
| Onboard Video Chipset Onboard Video Chipset | ASPEED AST2500 BMC |
|---|
| Number of LAN | 2 x 1GbE LAN Ports via Broadcom BCM5720L 1 x Realtek RTL8211E PHY (dedicated IPMI) |
|---|
| COM | 1 |
|---|---|
| Video Ports | 1 x VGA |
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port |
| USB 3.0 USB 3.0 | 7 x USB 3.0 ports (4 rear, 2 via header, 1 Type A) |
| Other Connectors | 2 x SuperDOM power connectors 1 x TPM 1.2/2.0 header |
|---|
| Features | Single AMD EPYC 7002 Series Processor 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs Expansion slots: – 1 PCI-E 4.0 x32 Left Riser Slot – 1 PCI-E 4.0 x16 Right Riser Slot – M.2 Interface: 2 SATA/PCI-E 3.0 x2 – M.2 Form Factor: 2280, 22110 – M.2 Key: M-key 16 SATA3, 2 M.2, 2 SuperDOM 2 NVMe via SlimSAS, 4 NVMe or 16 SATA3 via SlimSAS, 2 M.2, 2 SATA3 1 Realtek RTL8211E PHY (dedicated IPMI) SPEED AST2500 BMC graphics Up to 7 USB 3.0 ports 6x 4-pin PWM Fans & Speed control |
|---|
| Form Factor | Proprietary |
|---|---|
| Dimensions (W x L) | 8.15″ x 13.05″ |
| Date First Available | May 16, 2022 |
|---|
