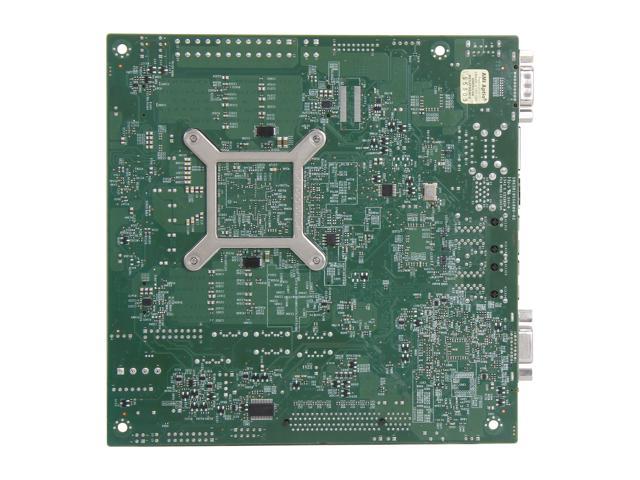

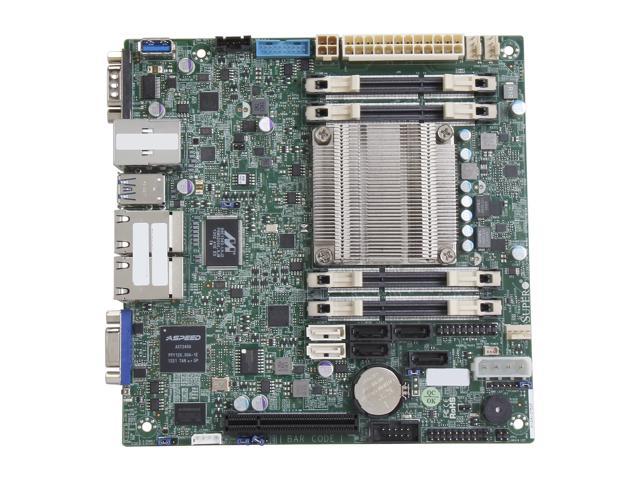

SUPERMICRO MBD-A1SAi-2750F-O Mini ITX Server Motherboard

Features

• Intel® Atom processor C2750, SoC,
  FCBGA 1283, 20W 8-Core
• Up to 64GB DDR3 1600MHz ECC
  SO-DIMM in 4 DIMM sockets
• Up to 1TB ECC DDR4 2133MHz;
  16x DIMM slots
• Quad GbE LAN ports
• IPMI with dedicated LAN
• 2x SATA3 and 4x SATA2 ports
• 1x PCI-E 2.0 x8 slot
• 4x USB 3.0 (2 rear, 1 via header, 1 Type A), 2x USB 2.0 ports (rear)
• 12V DC or ATX power input
• Operating Temperature: 0°C – 60°C

Specifications

Product SKUs
MBD-A1SAi-2750F -O	A1SAi-2750F (Retail Pack)
MBD-A1SAi-2750F -B	A1SAi-2750F (Bulk Pack)
Physical Stats
Form Factor	Mini-ITX
Dimensions	6.75″ x 6.75″, (17.145cm x 17.145cm)
Processor/Cache
CPU	Intel® Atom™ Processor C2750 CPU TDP 20W (8-Core) FCBGA 1283 System-on-Chip
System Memory
Memory Capacity	4x 204-pin DDR3 SO-DIMM socket Supports up to 64GB DDR3 ECC Un-Buffered memory
Memory Type	1600/1333MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB, 2GB
Memory Voltage	1.5 V, 1.35 V
On-Board Devices
SATA	C2000 SoC SATA3 (6Gbps), SATA2 (3Gbps)
Network Controllers	C2000 SoC I354 Quad GbE controllers (MACs) Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
USB 3.0	Renesas uPD720201
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Video	BMC integrated Aspeed AST2400

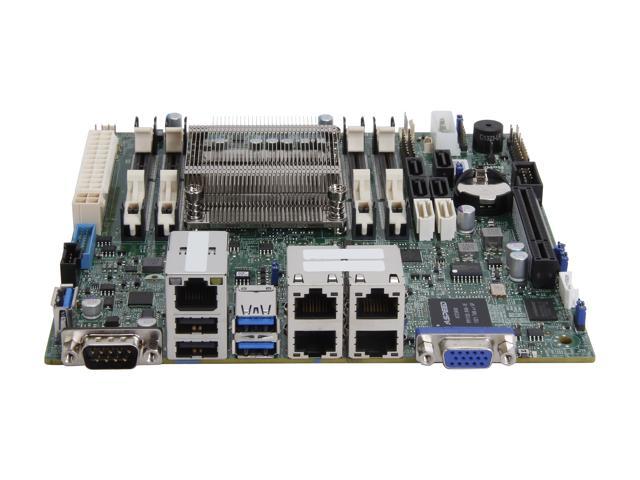

Input / Output
Serial ATA	2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports
LAN	4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (2 rear, 1 Type A, 1 via header) 1x RJ45 Dedicated IPMI LAN port
Serial Port	2x Fast UART 16550 Serial Port (1 rear, 1 via header)
DOM	1x SATA DOM (Disk on Module) power connector
VGA	1x VGA Port
Others	TPM 1.2 header 4-pin 12V DC power input or 24-pin ATX Power input

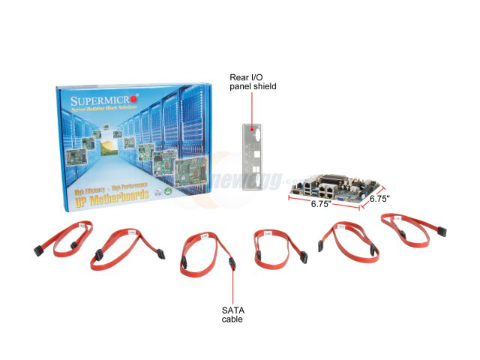

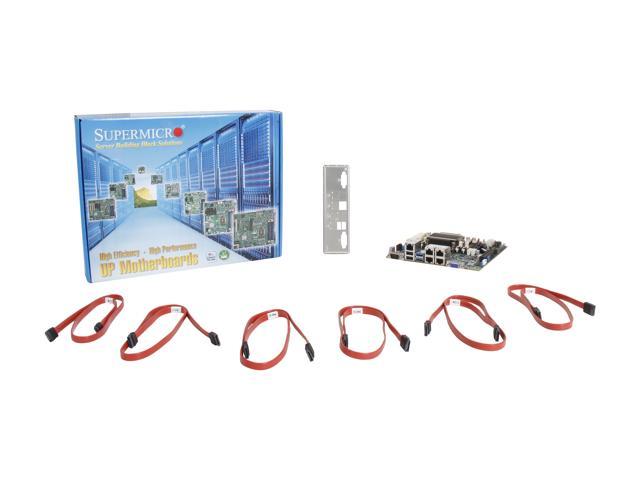

Whats in the Box
