Supermicro H12SSL-i Motherboard + AMD EPYC 7542 32 Core CPU + 128GB RAMs -8x Samsung 16GB 2666MHz DDR4 ECC RAMs Sever Memory

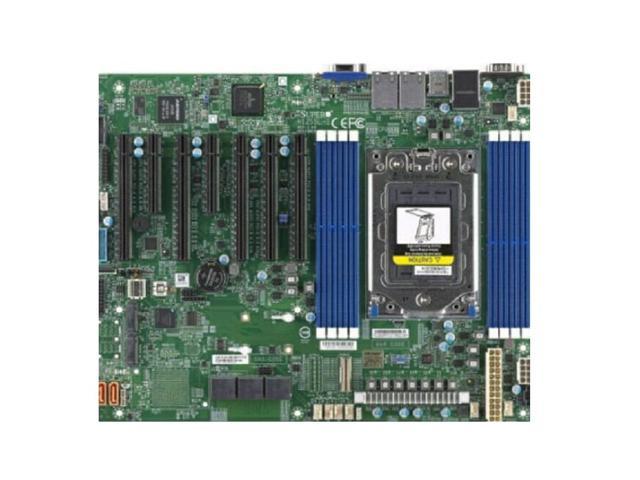

1x Supermicro H12SSL-i motherboard

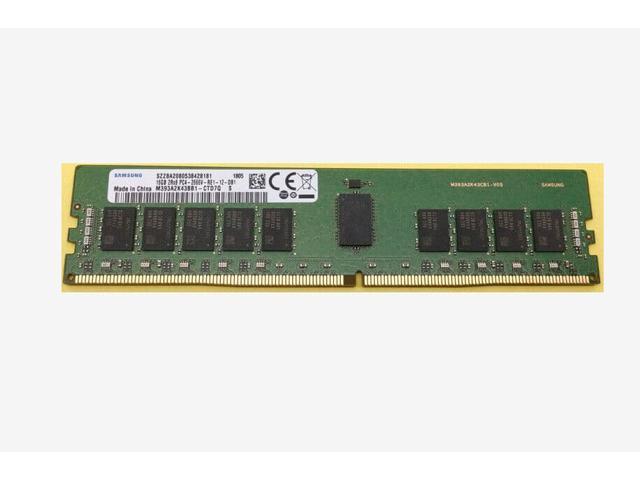

8x Samsung 16GB 2666MHz DDR4 ECC RAMs

The default shipping method is: FedEx international express shipping!

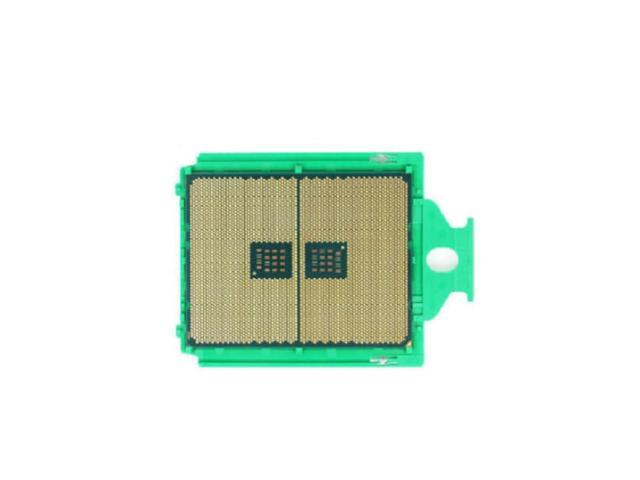

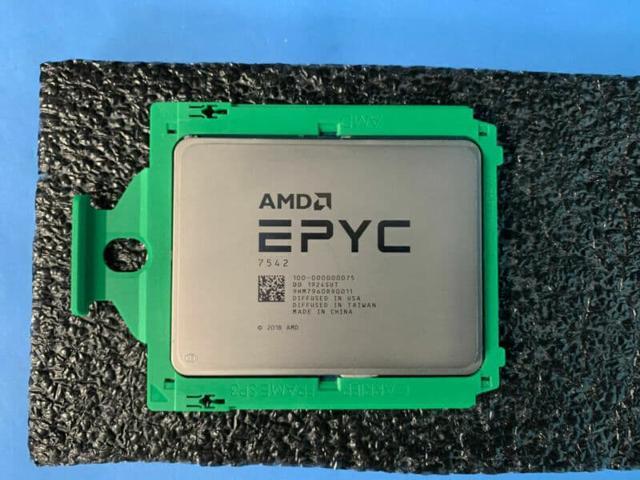

AMD EPYC 7542

Specifications

# of CPU Cores
32
# of Threads
64
Base Clock
2.9GH z
Max Boost Clock
Up to 3.4GH z
Total L3 Cache
128MB
Package
SP3
Socket Count
1P/2P
PCI Express® Version
PCIe 4.0 x128
Default TDP / TDP
225W
System Memory
System Memory Specification
Up to 3200MHz
System Memory Type
DDR4
Memory Channels
8
Per Socket Mem BW
204.8 GB/s
Key Features
Supported Technologies
AMD Infinity Architecture
Workload Affinity
Analytics
CAE/CFD/FEA
ERM/SCM/CRM apps
Media streaming
Medium capacity data mgmt (NR/RDBMS)
VDI
VM Density
Foundation
Product Family
AMD EPYC
Product Line
AMD EPYC 7002 Series
Platform
Server
OPN Tray
100-000000075
OPN PIB
100-100000075WOF

Specifications

Product SKUs

MBD-H12SSL-i
H12SSL-i
MBD-H12SSL-i-O
H12SSL-i (Retail Pack)

Physical Stats

Form Factor
ATX
Dimensions
12″ x 9.6″ ( 30.5 cm x 24.4 cm)

Processor/Chipset

CPU
Single AMD EPYC 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
Socket SP3
Cores
Up to 64 Cores
Chipset
System on Chip

System Memory

Memory Capacity
8 DIMM slots
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
Memory Type
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIM
Ms
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v. 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
Dual gigabit LAN via Broadcom BCM5720
1 Realtek RTL8211F PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC

Input / Output

SATA
8 SATA3 (6 Gbps) ports
SATA/NVMe Hybrid
8 SATA3 or 2 NVMe via single SlimSAS x8
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 3.0 ports
(4 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connectors
1 TPM 2.0 header

Expansion Slots

PCI-Express
5 PCI-E 4.0 x16
2 PCI-E 4.0 x8

M. 2
Interface: 2 PCI-E 4.0 x4
Form factor: 2280, 22110
Key: M-key

Chassis ( Optimized for H12SSL-i )

1U
SC813MFTQC-350CB2
SC813MFTQC-R407CB
2U
SC213BAC8-R1K23LPB
SC216BE1C4-R1K23LPB
SC825MBTQC-R802LPB
SC825TQC-R802LPB
SC826BE1C4-R1K23LPB
SCLA26AC12-R920LP1
3U
SC835TQC-R802B
SC836BE1C-R1K23B
Mid-Tower
SC732i-903B
Tower/4U
SC745BAC-R1K23B
SC846BE1C-R1K23B

Server (s) ( with H12SSL-i )

Model (s)
AS -2014S-TR
AS -3014TS-i

System BIOS

BIOS Type
AMI 256Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1. 1

Management

Software
Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations
ACPI Power Management
Power-on mode control for AC power loss recovery

PC Health Monitoring

CPU
Monitors CPU Core Voltages, + 3.3V, +5V, +5V standby, + 3.3V standby
CPU switching voltage regulator
Supports system management utility
VBAT
FAN
Up to 7-fan status tachometer monitoring
Up to 7 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 7x Fan connectors
I²C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
UID

Operating Environment / Compliance

Environmental

Specifications

Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
