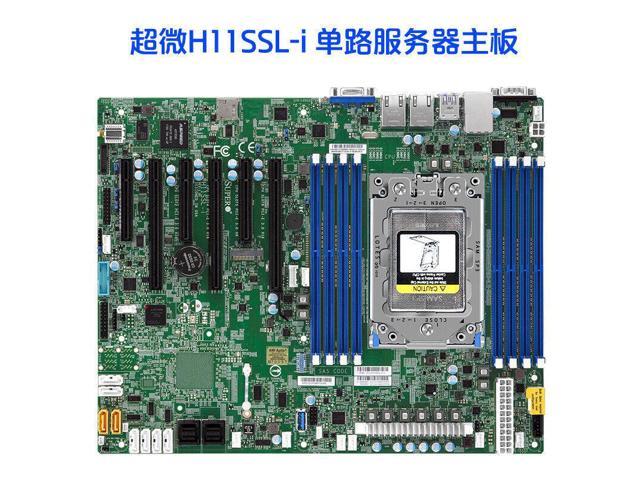

Supermicro H11SSL-i Mainboard + AMD EPYC 7302P CPU 16 Cores 3.3GHz 100-000000049

The default shipping method is: FedEx international express shipping!

The revision of the motherboard is REV 2.0.

Product description
CPU: Socket SP3 Supports Single AMD EPYC 7000-series Processor Up to 32
Cores Chipset: System on
Chip Memory: 8x 288pin DDR4-2666 MHz DIMM Slots, 8-channel, Registered ECC, Max Capacity of 1TB
Slots: 3x PCI-Express 3. 0 x16 Slots, 3x PCI-Express 3. 0 x8
Slots SATA: 16x
SATA3 Ports Video: Speed
AST2500 BMC Graphics LAN: 2x Intel I210 Gigabit Ethernet Controllers, 1x Relate RTL8211E PHY (dedicated
IPMI) Ports: 5x USB 3. 0 Ports (2 rear, 2 via header, 1 Type-A), 4x USB 2. 0 Ports (2 rear, 2 via header), 1x VGA Port, 1x Serial Port (rear), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: ATX, 12. 0 x 9. 6 inch / 30. 5 x 24. 4 cm. Dual Gigabit Ethernet LAN Ports.
Operating Temperature: 10 Degrees Celsius to 35 Degrees Celsius (50 Degrees Fahrenheit to 95 Degrees Fahrenheit).

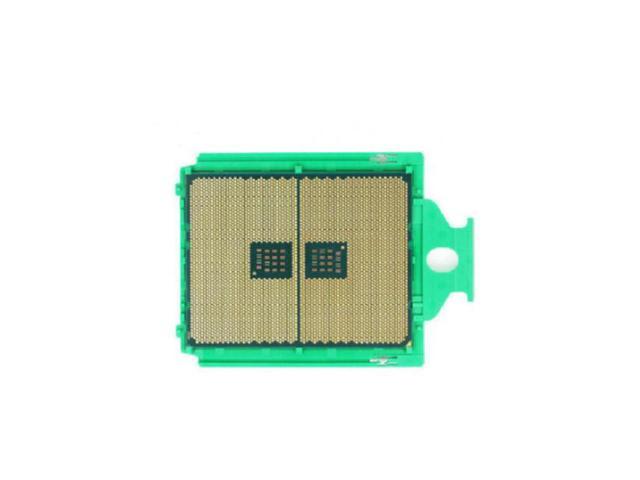

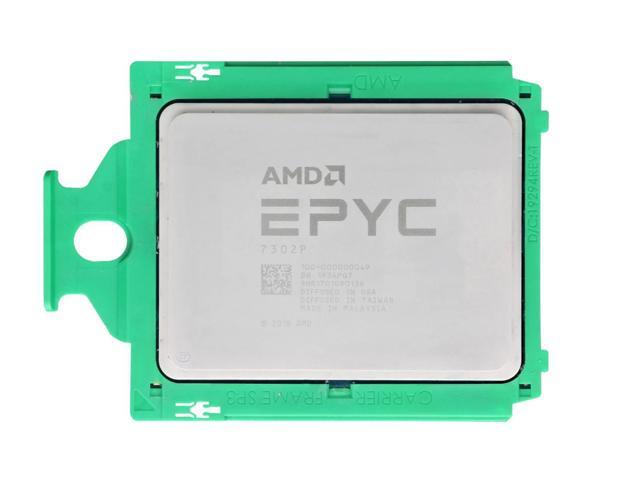

AMD EPYC 7302P
General

Specifications

Platform
Server
Product Family
AMD EPYC
Product Line
AMD EPYC 7002 Series
# of CPU Cores
16
# of Threads
32
Max. Boost Clock
Up to 3.3GH z
Base Clock
3.0GH z
L3 Cache
128MB
Default TDP
155W
CPU Socket
SP3
Socket Count
1P
Connectivity
PCI Express® Version
PCIe 4.0 x128
System Memory Type
DDR4
Memory Channels
8
System Memory Specification
Up to 3200MHz
Per Socket Mem BW
204.8 GB/s
Product IDs
Product ID Boxed
100-100000049WOF
Product ID Tray
100-000000049
