Supermicro H11DSI-NT + 2x AMD EPYC 7302 CPU +128GB 2666MHz RAM – 8x Samsung 16GB 2666MHz DDR4 ECC server RAMs + 2x CPU cooler
SKU: 9SIAXFZJNH336974.452.755₫
1x Supermicor H11DSI-NT Motherboard2x AMD EPYC 7302 CPU8x Samsung 16GB 2666MHz DDR4 ECC server RAMs .2x CPU coolerNote: The product is brand new without original packagingWe always pay attention to product quality, any item will be strictly tested
Description
You need to pay the customs duties by yourself. so, please tell us how much should we declare for the customs value.
Package include: 1x Supermicor H11DSI-NT Motherboard
Package include: 1x Supermicor H11DSI-NT Motherboard
2x AMD EPYC 7302 CPU

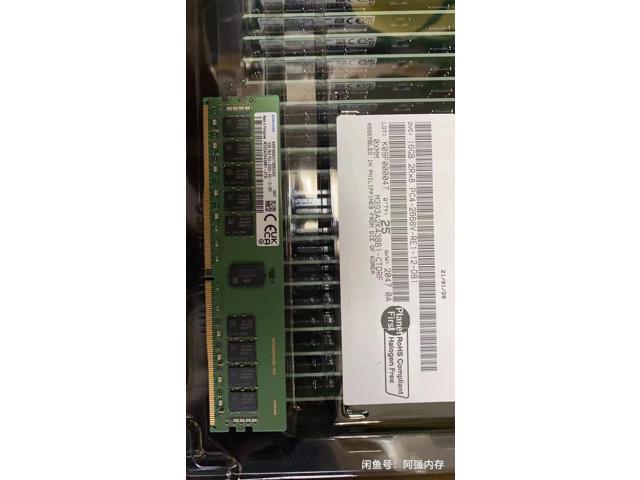

8x Samsung 16GB 2666MHz DDR4 ECC server RAMs.

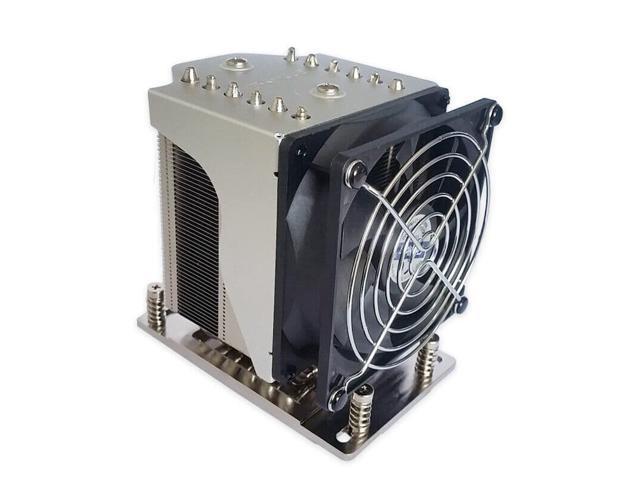

2x CPU cooler

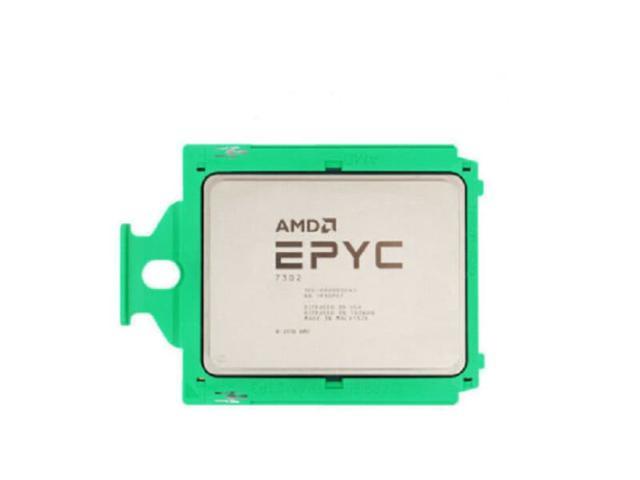

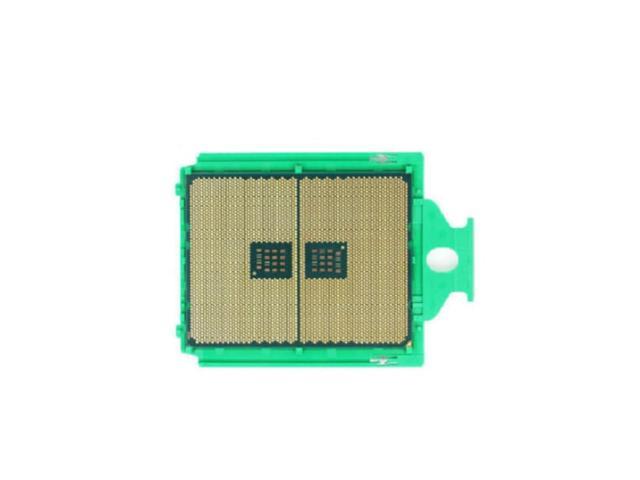

AMD EPYC 7302
General
Specifications
Platform
Server
Product Family
AMD EPYC
Product Line
AMD EPYC 7002 Series
# of CPU Cores
16
# of Threads
32
Max. Boost Clock
Up to 3.3GH z
Base Clock
3.0GH z
Total L3 Cache
128MB
Default TDP
155W
CPU Socket
SP3
Socket Count
1P/2P
Connectivity
PCI Express® Version
PCIe 4.0 x128
System Memory Type
DDR4
Memory Channels
8
System Memory Specification
Up to 3200MHz
Per Socket Mem BW
204.8 GB/s
Product IDs
Product ID Boxed
100-100000043WOF
Product ID Tray
100-000000043
Specifications
Product SKUs
MBD-H11DSi-NT
H11DSi-NT
MBD-H11DSi-NT-B
H11DSi-NT (Bulk Pack)
Physical Stats
Form Factor
E-ATX
Dimensions
12″ x 13.05″ ( 30.5 cm x 33.1 cm)
Processor/Chipset
CPU
Dual AMD EPYC 7001/7002* series Processors (*Board revision 2. x required)
Socket SP3
Up to 240W TDP
Cores
Up to 32 Cores
Up to 64 Cores (Board revision 2. x required)
Chipset
System on Chip
System Memory
Memory Capacity
16 DIMM sockets
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2. x required)
8-channel memory bus
Memory Type
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2. x required)
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2. x required)
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v. 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
Intel® X550 10G Base-T Ethernet Controller
1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC
Input / Output
SATA
10 SATA3 (6 Gbps) ports
NVMe
2 Internal NVMe Ports (PCI-E 3.0 x4)
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (2 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connectors
1 TPM 2.0 header
Expansion Slots
PCI-Express
3 PCI-E 3.0 x8
2 PCI-E 3.0 x16
M. 2
Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M. 2 module)
Form factor: 2280, 22110
Key: M-key
Learn more about the Detailed Specifications
| CPU Type | AMD EPYC |
|---|
| Date First Available | October 19, 2022 |
|---|
