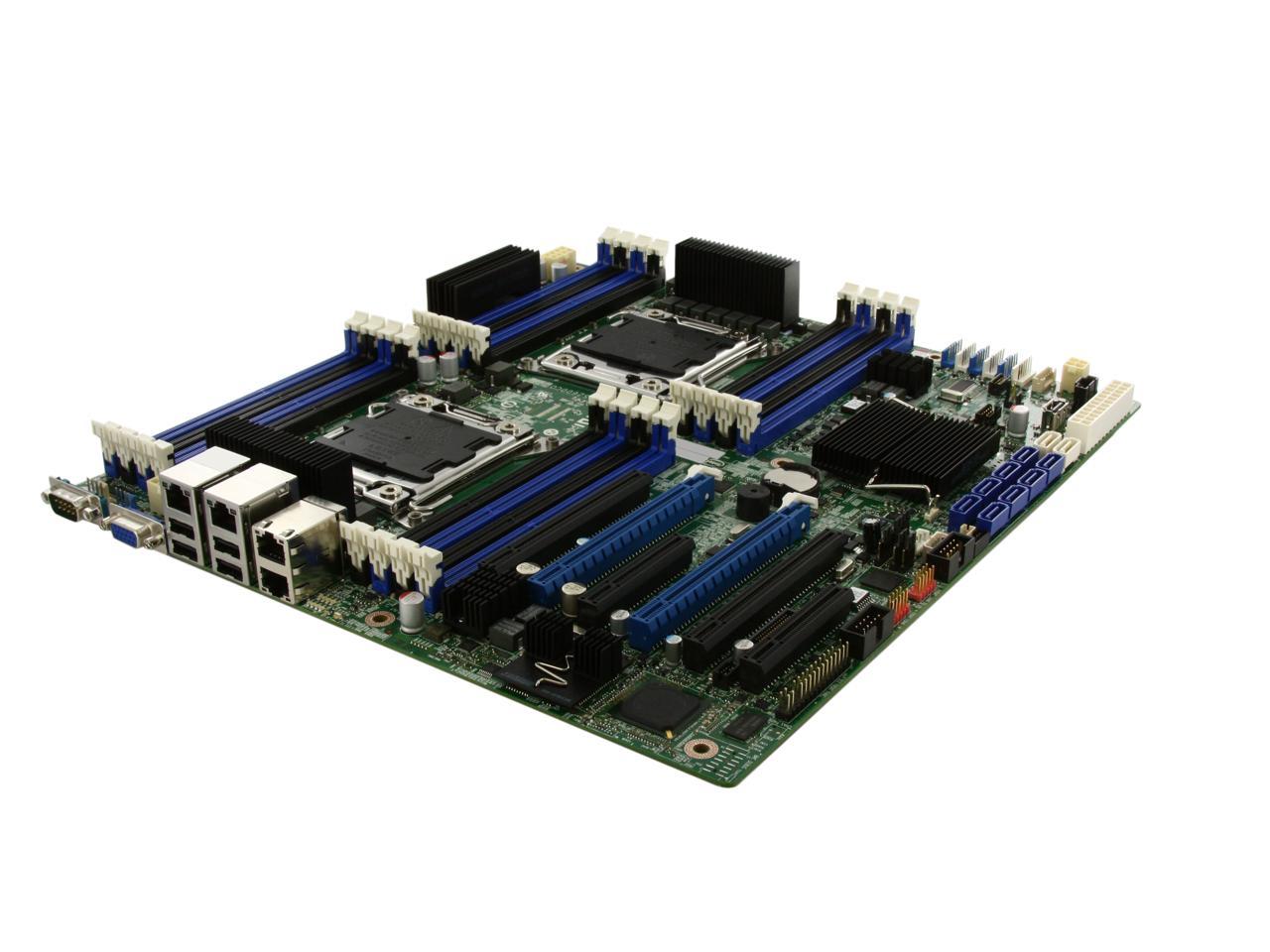

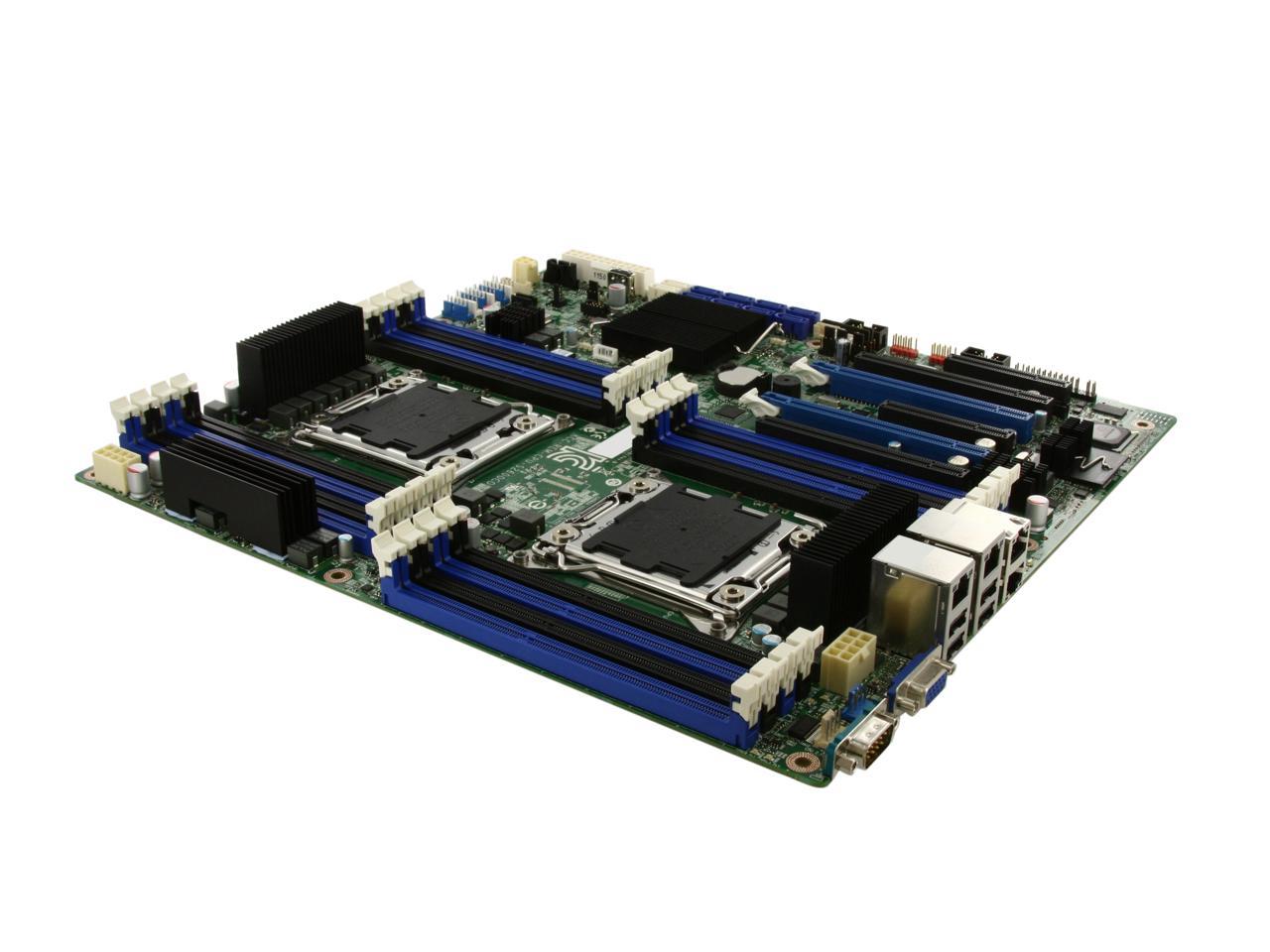

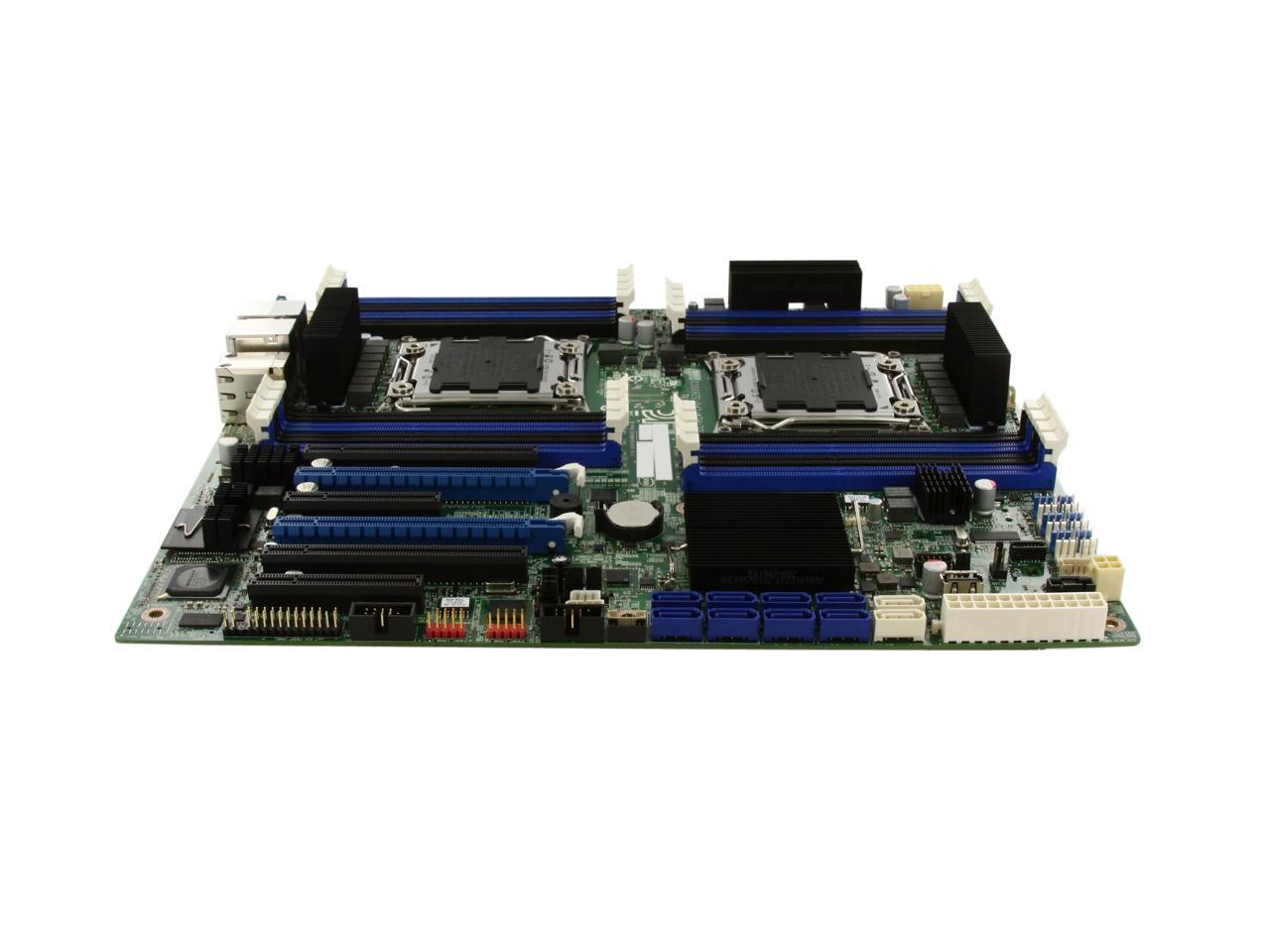

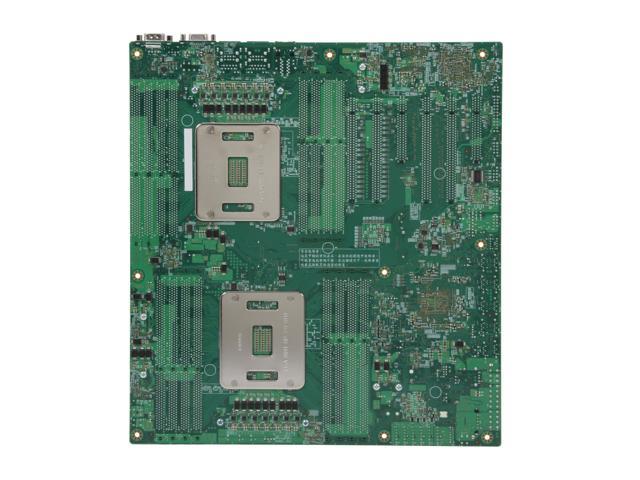

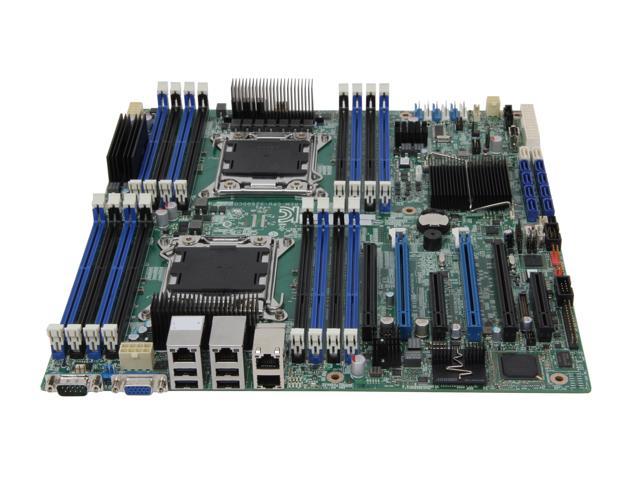

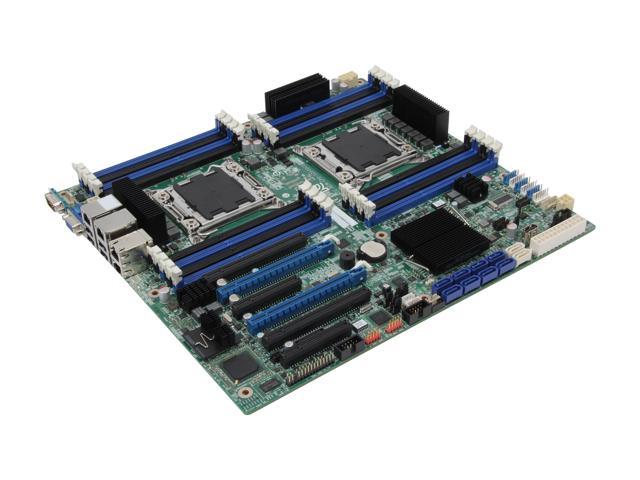

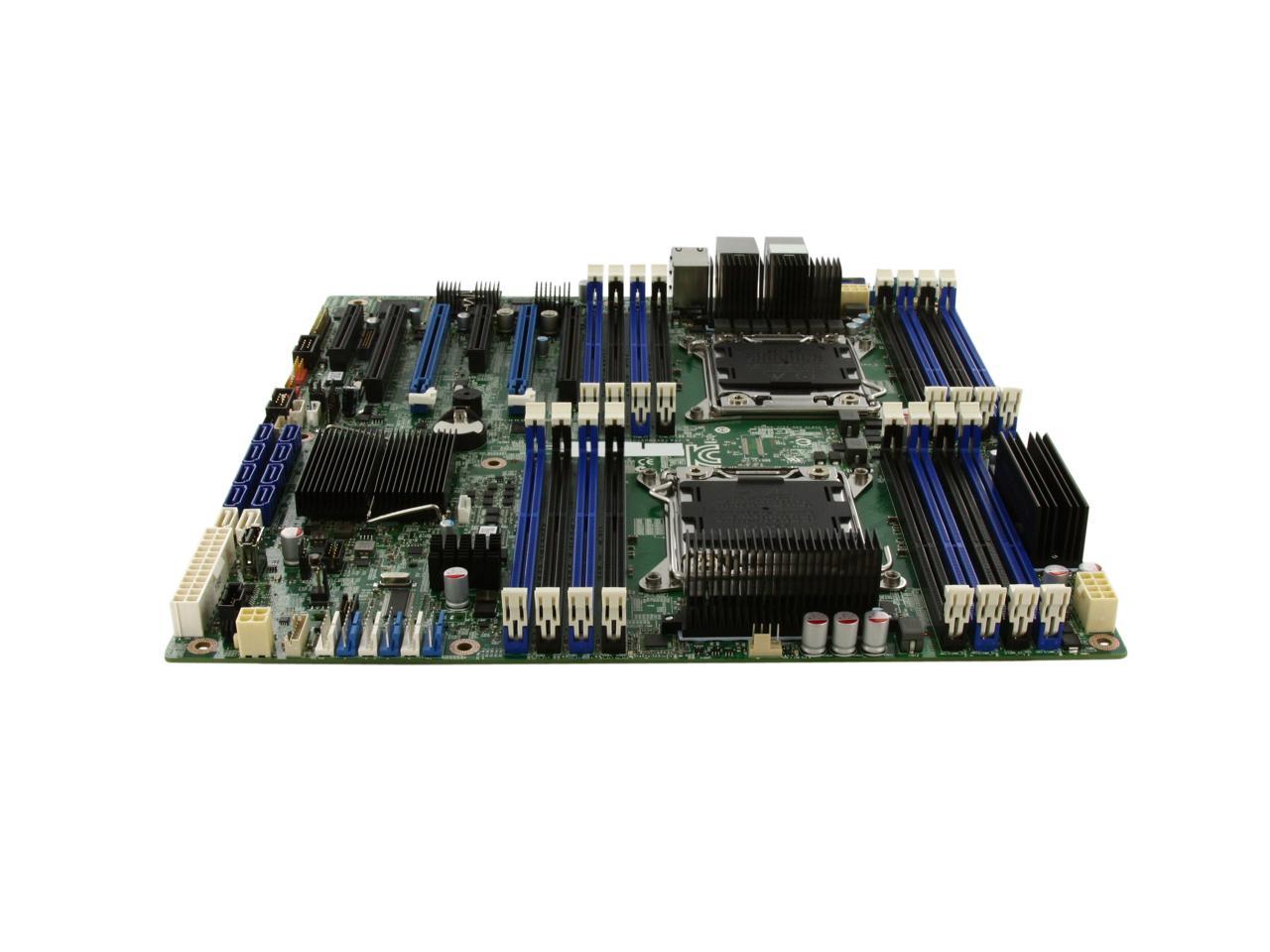

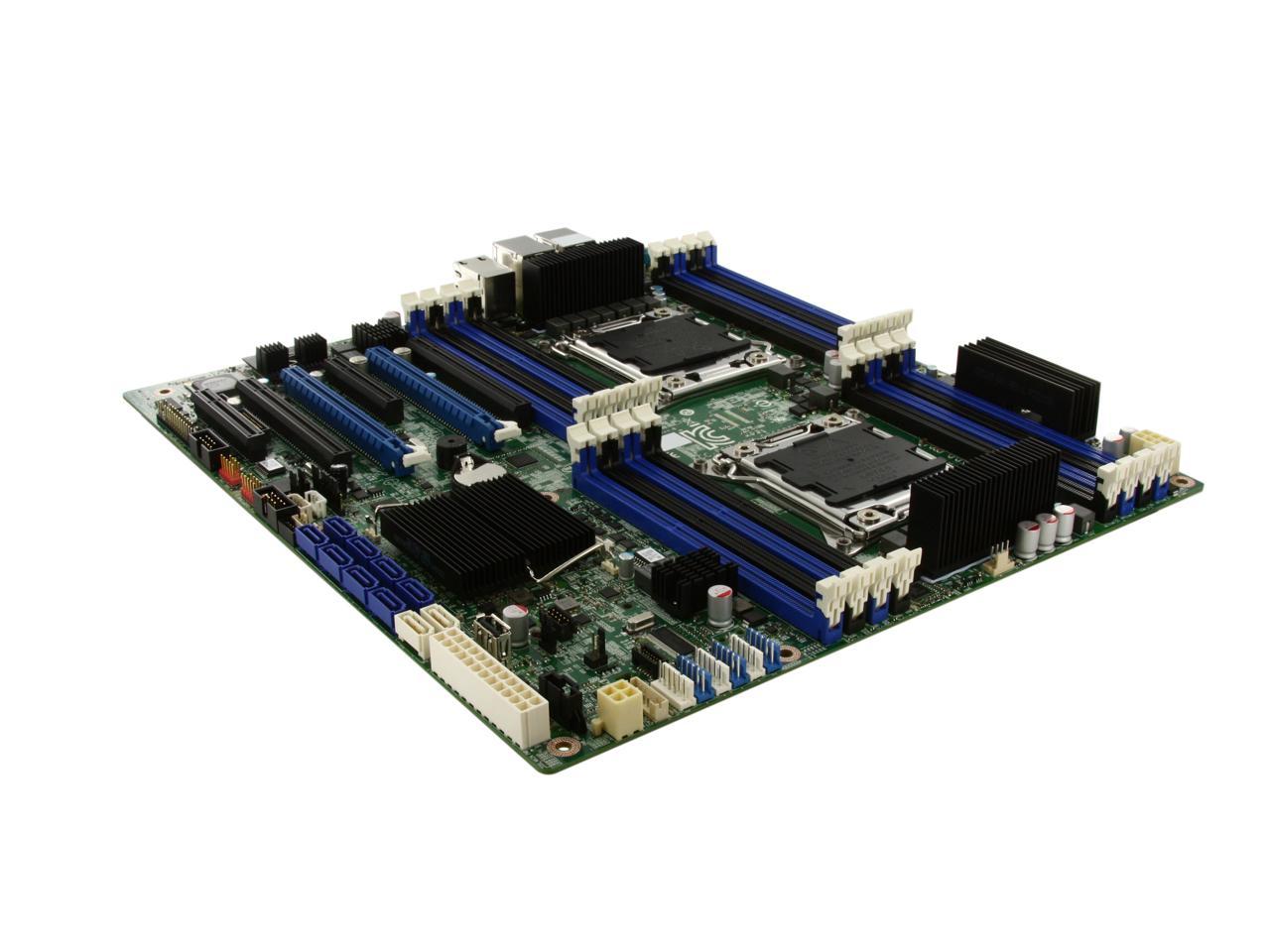

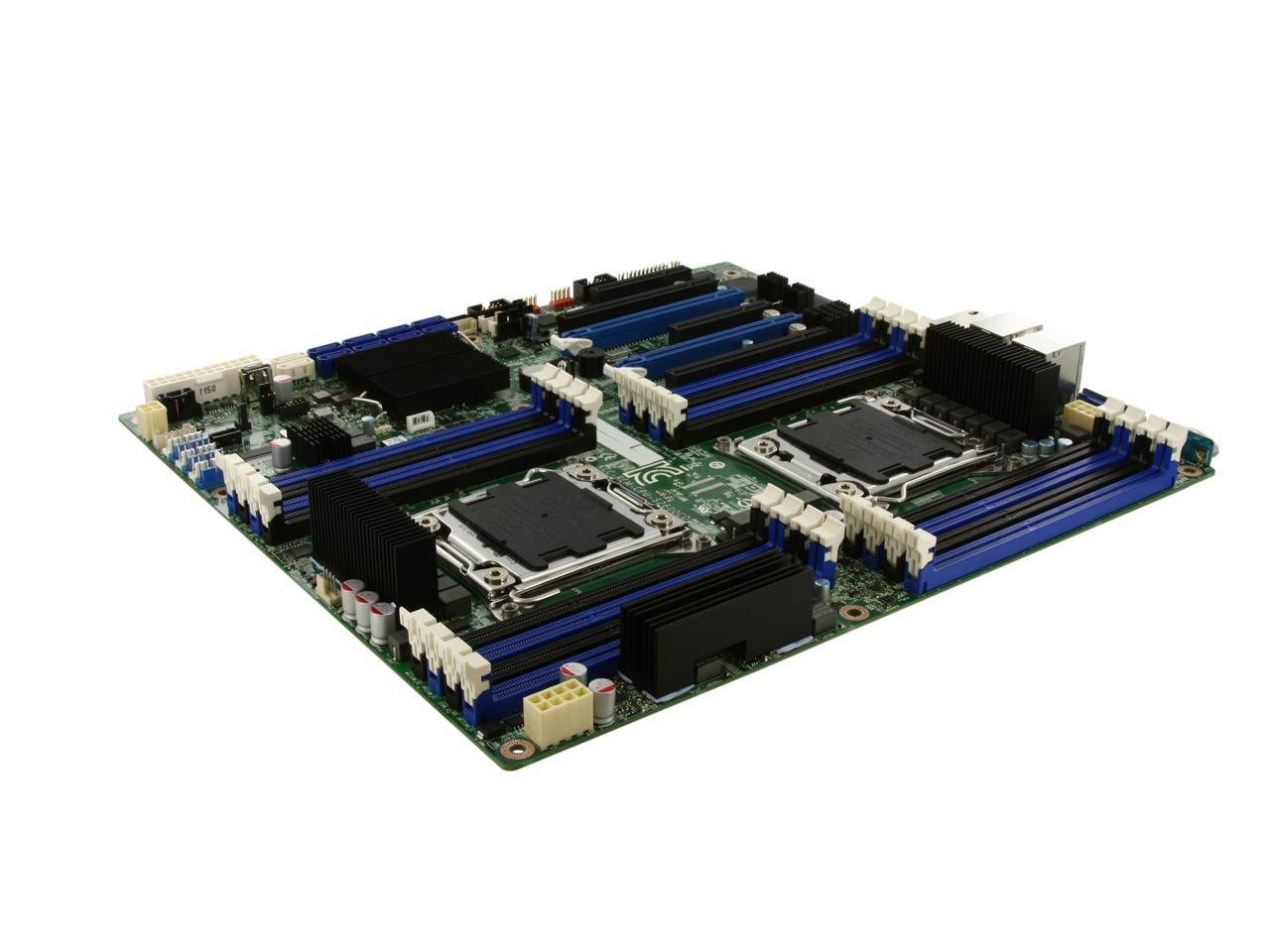

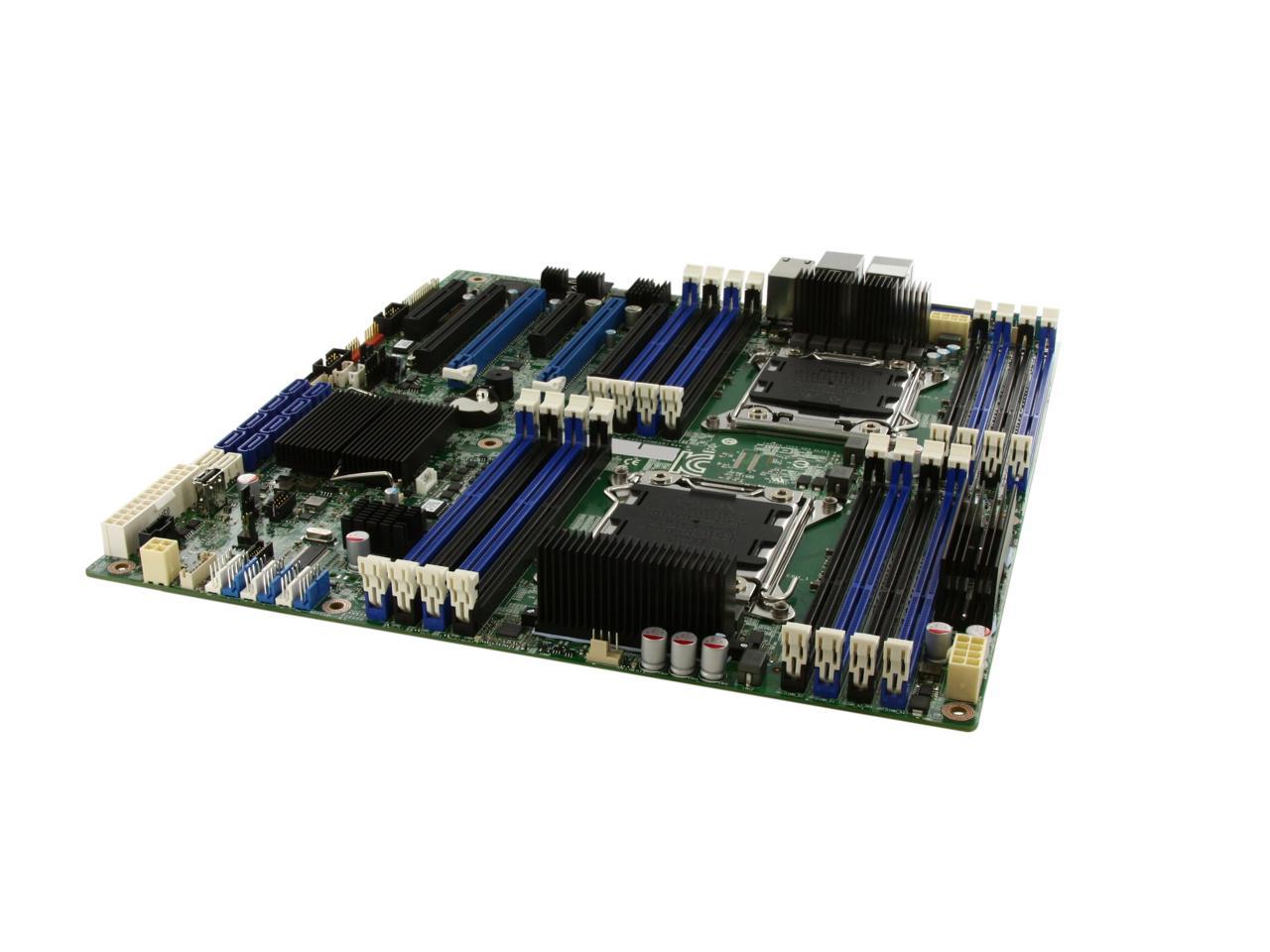

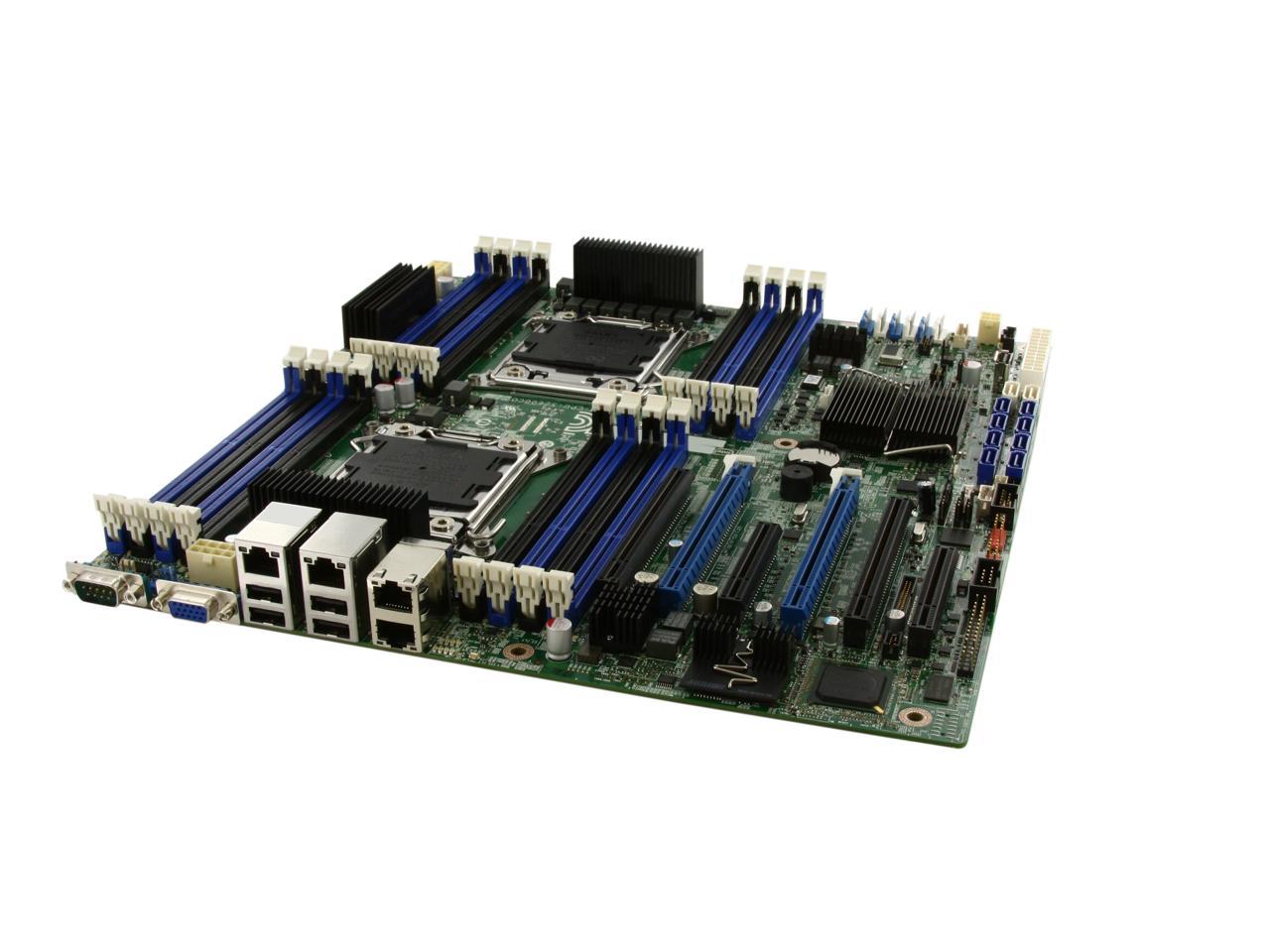

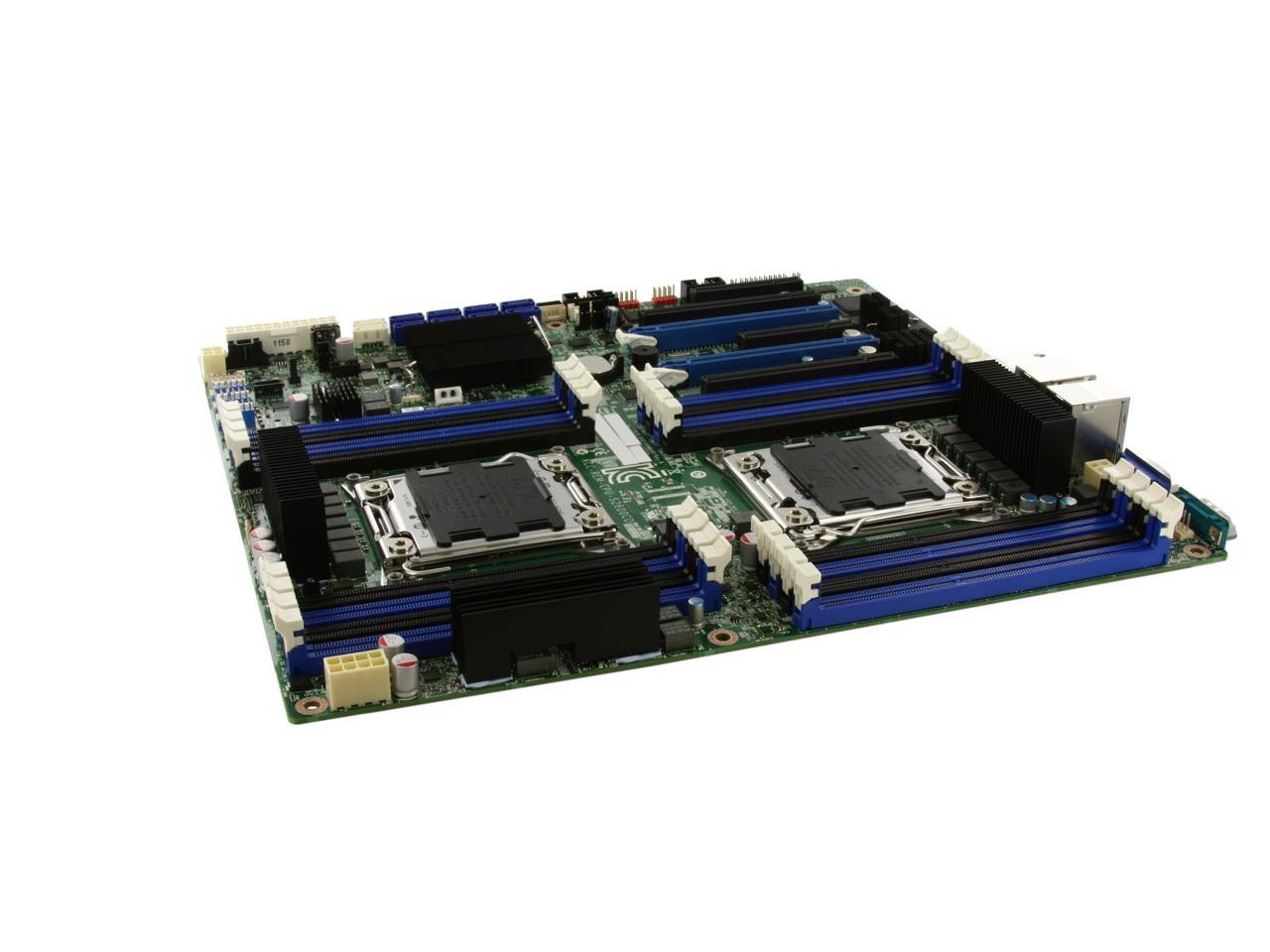

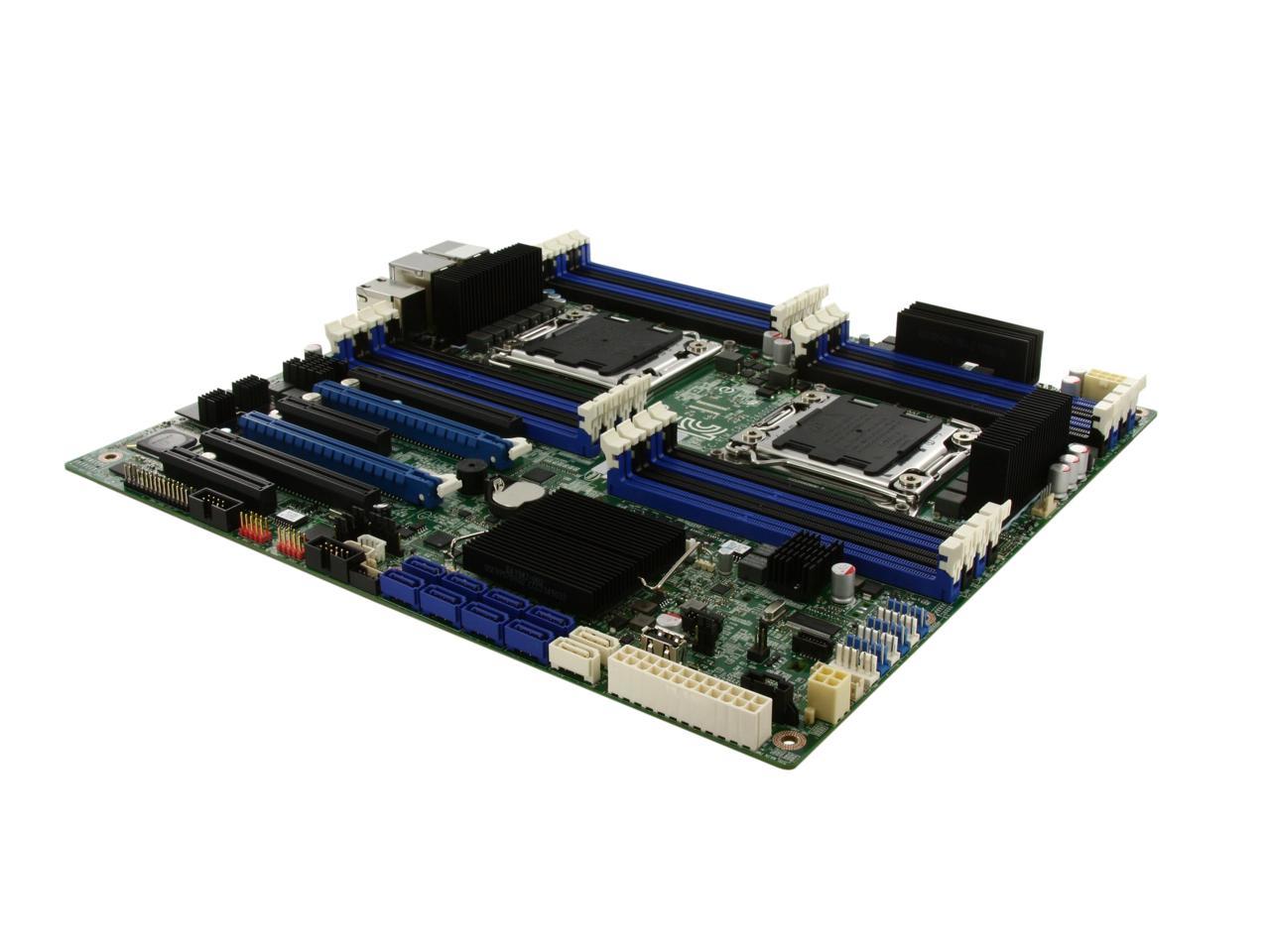

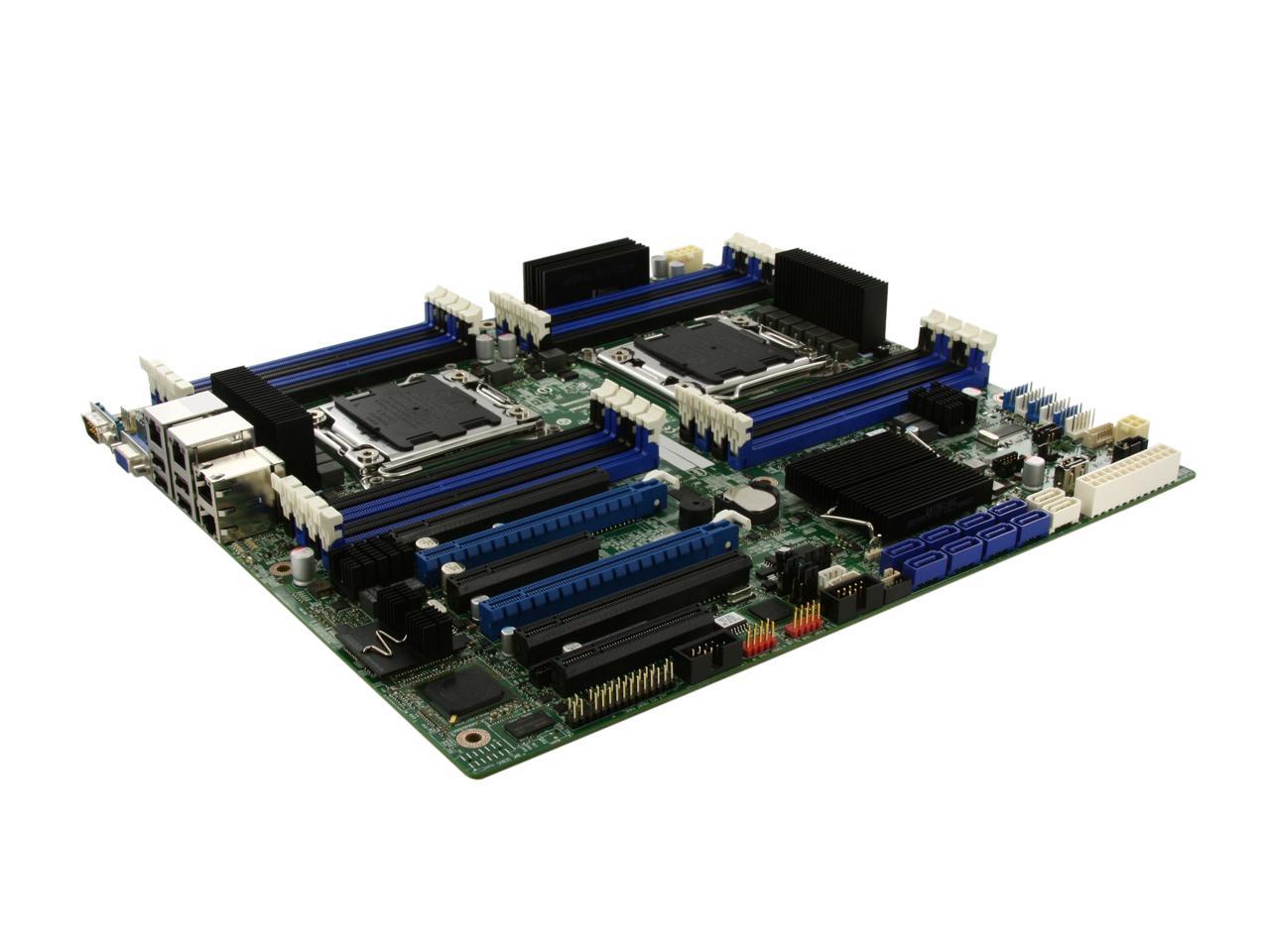

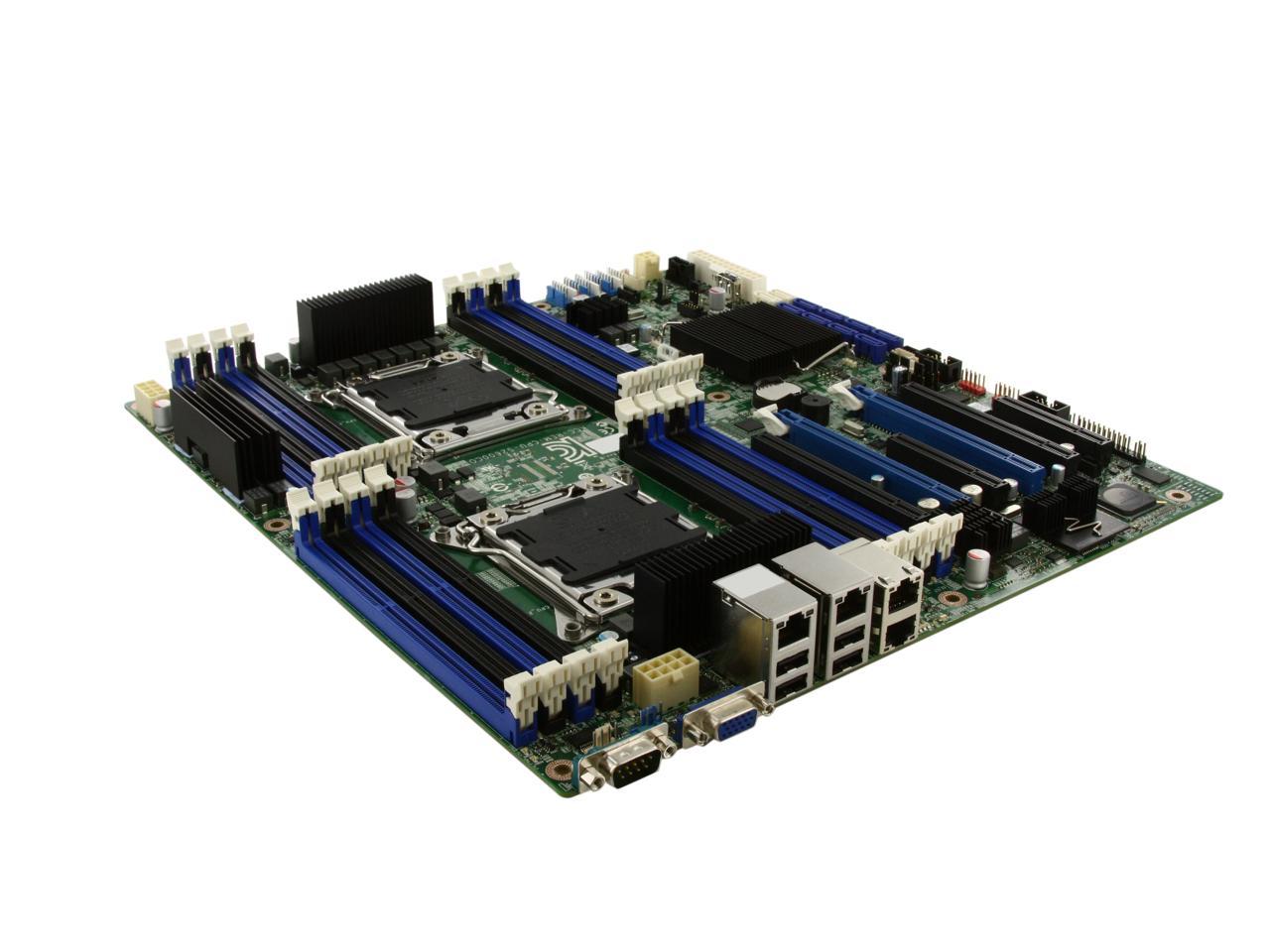

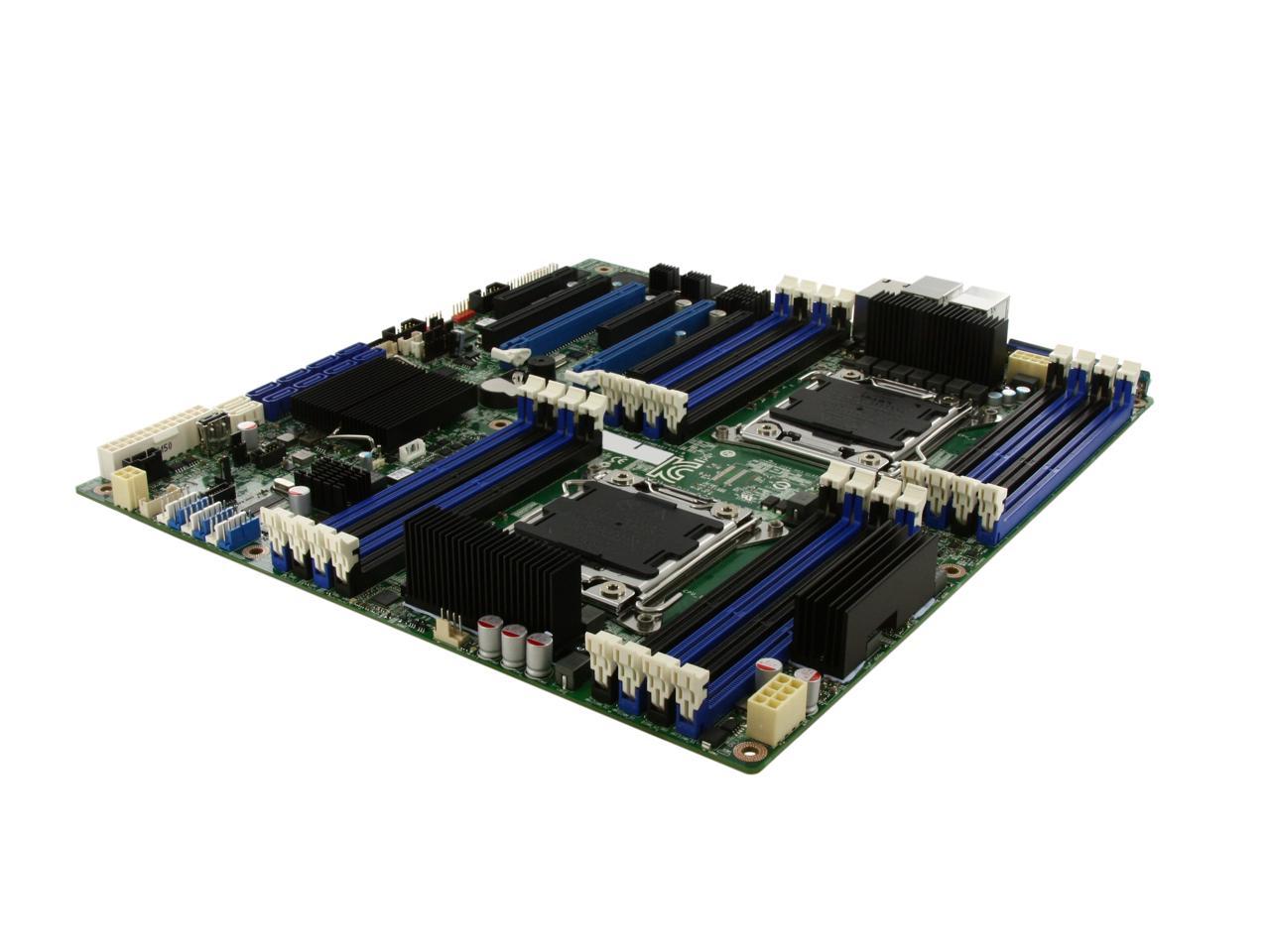

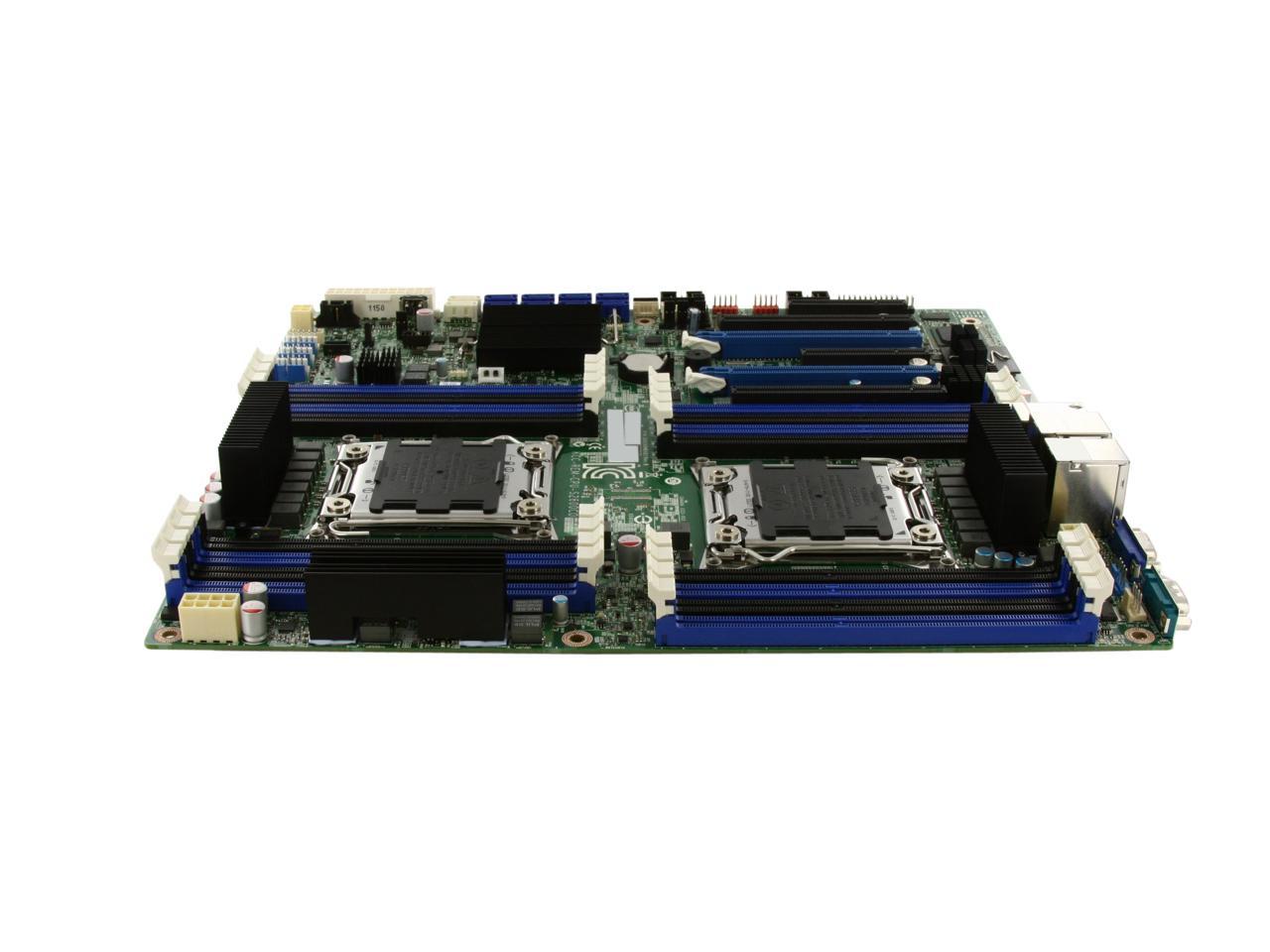

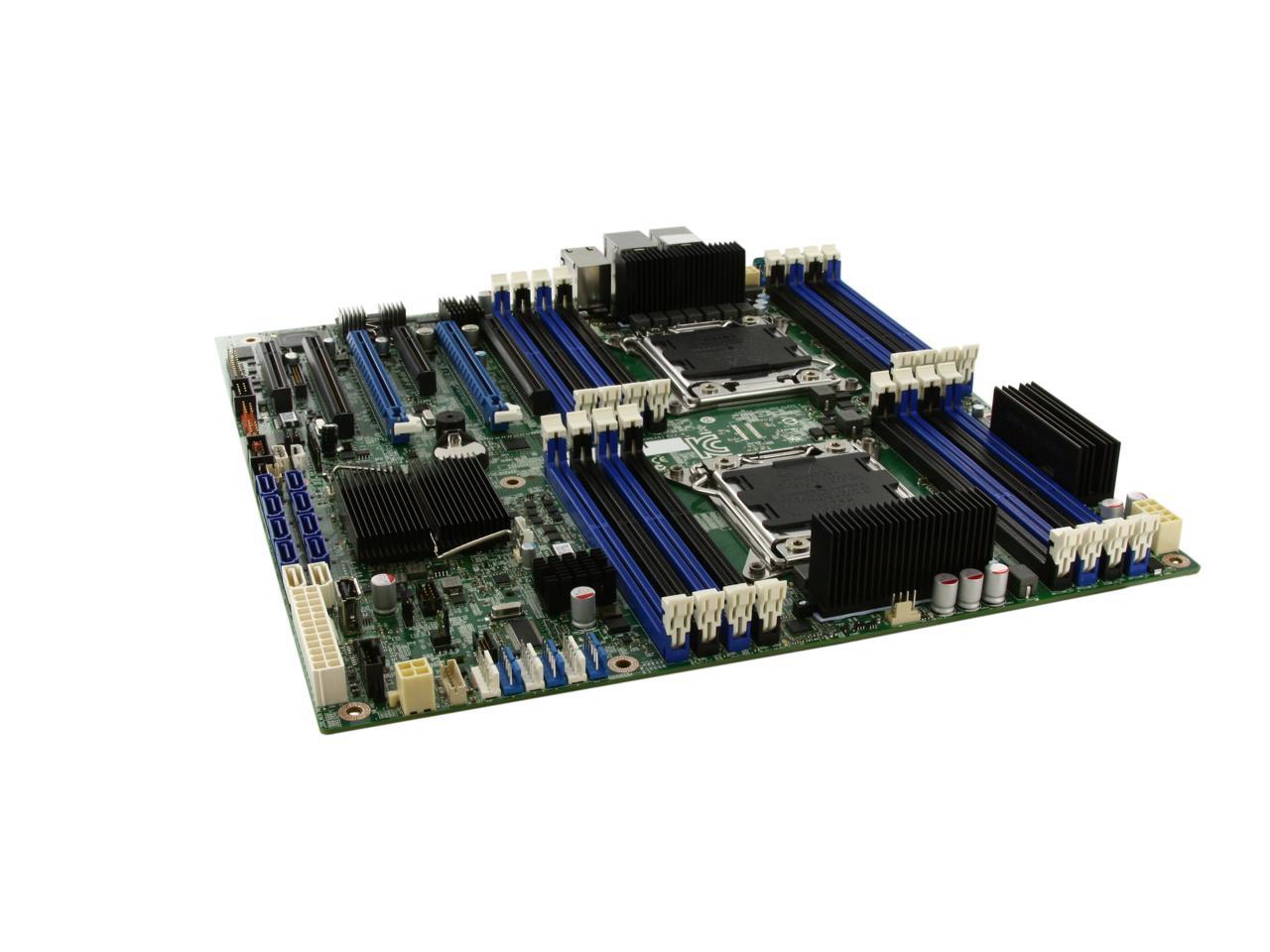

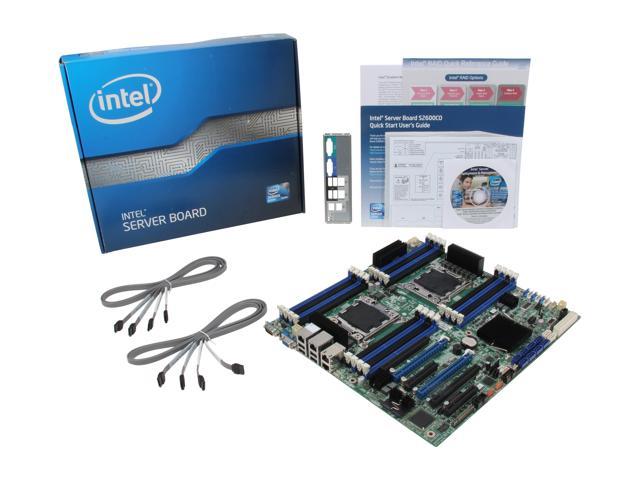

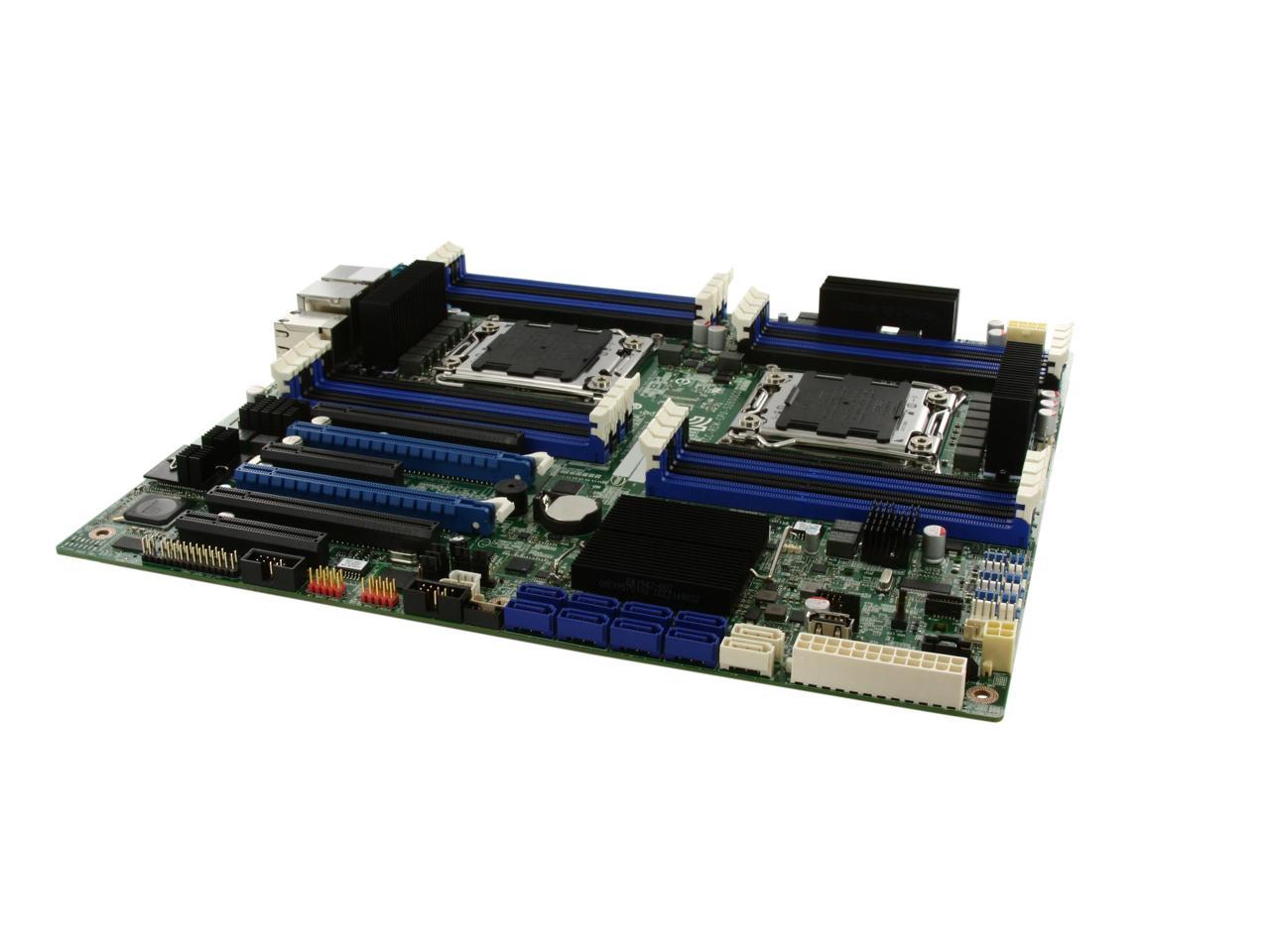

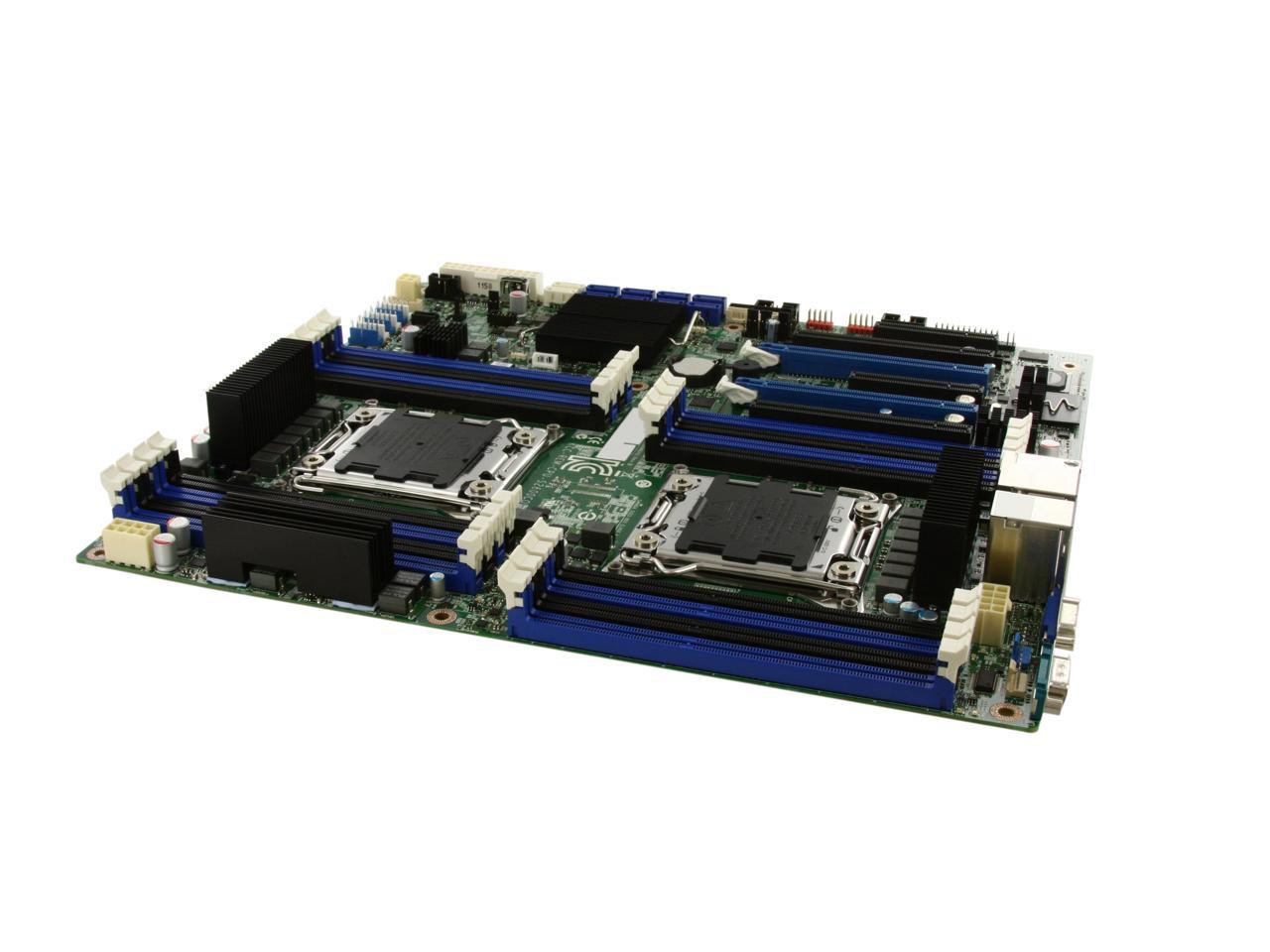

Intel S2600COE SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600
SKU: 9SIA17PJDV105726.928.135₫
Dual LGA 2011
16 x 240pin
Description
Built for Scalable Performance and Flexibility
The Intel Server Board S2600CO family features the new Intel Xeon processor E5-2600 product family, 16 DIMMs, four 1 Gb Ethernet ports, and advanced server features in a flexible (EEB) form factor. This product is on the Intel extended life roadmap and comes with a minimum 5-year committed life. Intel Server Board S2600CO is the perfect server building block with the performance, storage capacity, and I/O flexibility required by most for small- and medium-size businesses (SMB) and embedded applications. It is an ideal server solution for embedded storage systems and SMB’s seeking advanced server features and a long life cycle.
Dual Intel Xeon E5 CPUs SupportThe Intel S2600COE supports up to two Intel Xeon E5-2600 processors to address the demanding needs for high performance and balanced architecture by modern business. The Intel Xeon E5 processor packs more cores, larger cache, greater memory, and new technologies like Intel Turbo Boost Technology 2.0, delivering up to 80% performance boost, reduced I/O network latency and increased energy efficiency.
MemoryThe Intel S2600COE has 16 DIMM sockets that can support up to 512GB of DDR3 memory, delivering ample capacity for demanding applications.

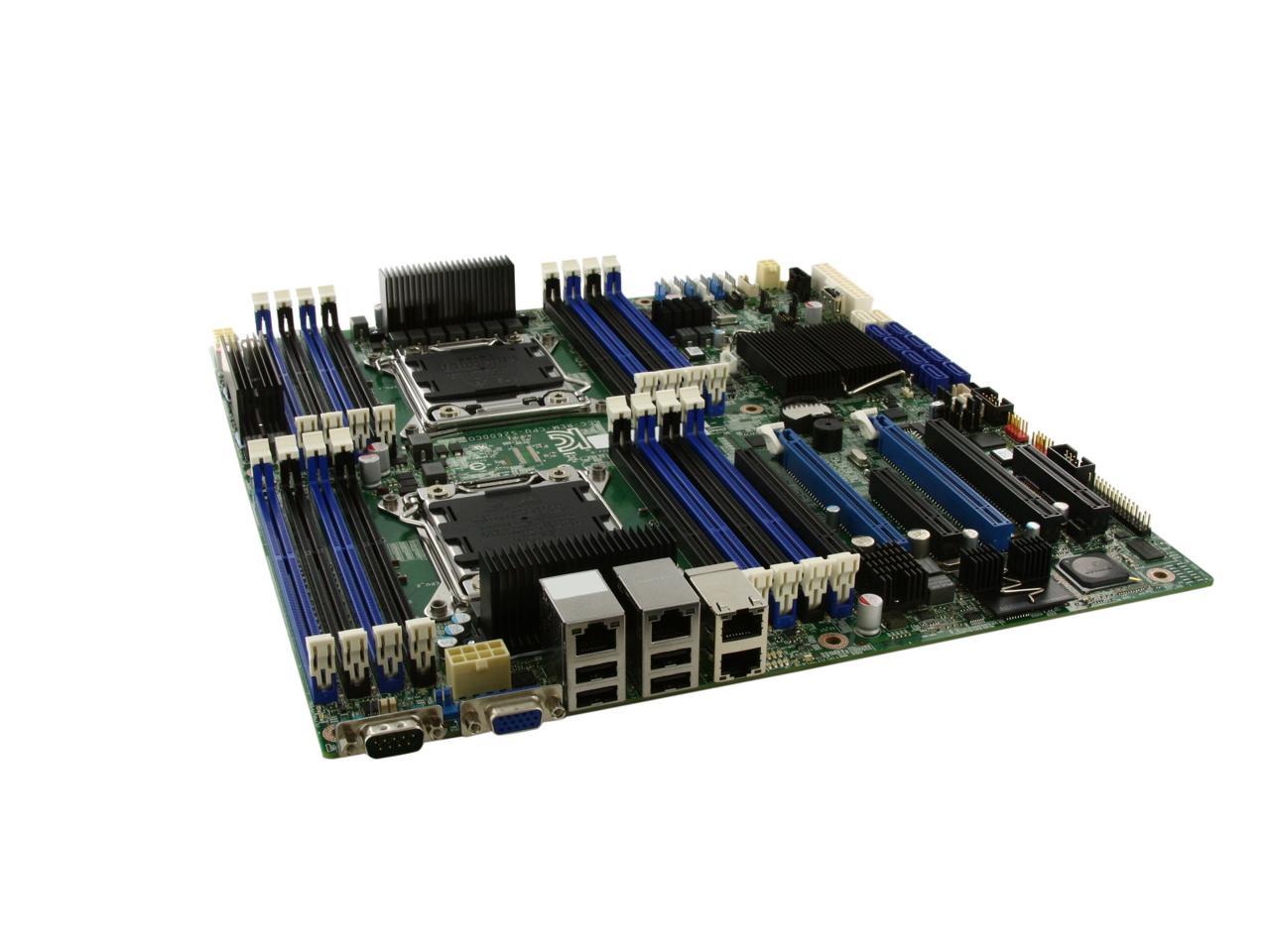

Quad Gigabit LAN PortsThe Intel S2600COE server motherboard is outfitted with four Gigabit Ethernet LAN ports to optimize network bandwidth, data throughput and communication efficiency.
Easy ExpandabilityFour PCIe 3.0 x16 slots, one PCIe 3.0 x8 slot and one PCIe 2.0 x4 slots support a range of I/O expansion cards and discrete graphics cards for flexible expansion.
Intel TXT Technology (TPM header on board)Intel Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. Intel Trusted Execution Technology provides hardware-based mechanisms that help protect against software-based attacks and protects the confidentiality and integrity of data stored or created on the client PC. It does this by enabling an environment where applications can run within their own space, protected from all other software on the system. These capabilities provide the protection mechanisms, rooted in hardware, that are necessary to provide trust in the application’s execution environment. In turn, this can help to protect vital data and processes from being compromised by malicious software running on the platform
Dual Intel Xeon E5 CPUs SupportThe Intel S2600COE supports up to two Intel Xeon E5-2600 processors to address the demanding needs for high performance and balanced architecture by modern business. The Intel Xeon E5 processor packs more cores, larger cache, greater memory, and new technologies like Intel Turbo Boost Technology 2.0, delivering up to 80% performance boost, reduced I/O network latency and increased energy efficiency.
MemoryThe Intel S2600COE has 16 DIMM sockets that can support up to 512GB of DDR3 memory, delivering ample capacity for demanding applications.
Quad Gigabit LAN PortsThe Intel S2600COE server motherboard is outfitted with four Gigabit Ethernet LAN ports to optimize network bandwidth, data throughput and communication efficiency.
Easy ExpandabilityFour PCIe 3.0 x16 slots, one PCIe 3.0 x8 slot and one PCIe 2.0 x4 slots support a range of I/O expansion cards and discrete graphics cards for flexible expansion.
Intel TXT Technology (TPM header on board)Intel Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. Intel Trusted Execution Technology provides hardware-based mechanisms that help protect against software-based attacks and protects the confidentiality and integrity of data stored or created on the client PC. It does this by enabling an environment where applications can run within their own space, protected from all other software on the system. These capabilities provide the protection mechanisms, rooted in hardware, that are necessary to provide trust in the application’s execution environment. In turn, this can help to protect vital data and processes from being compromised by malicious software running on the platformLearn more about the Intel S2600COE
| Brand | Intel |
|---|---|
| Model | S2600COE |
| CPU Socket Type | Dual LGA 2011 |
|---|---|
| CPU Type | Dual Intel Xeon E5-2600 Series |
| Number of DDR3 Slots | 16 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600 |
| Maximum Memory Supported | 512GB |
| PCI Express 3.0 x16 | 4 |
|---|---|
| PCI Express x8 | 1 x PCIe x8 Gen 3 |
| PCI Express x4 | 1 x PCIe x4 Gen 2.x |
| SATA | 10 |
|---|---|
| SATA RAID | Up to SW Raid 5 (LSI + RSTE) |
| LAN Chipset | 4 1GbE LAN |
|---|---|
| Max LAN Speed | Quad 10/100/1000Mbps |
| COM | 1 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Features | Intel TXT Technology (TPM header on board)
SATA DOM supported via SATA_0 connector 150W CPU support Firewire 1394b support |
|---|
| Form Factor | SSI EEB |
|---|---|
| Dimensions (W x L) | 12.0″ x 13.0″ |
| Date First Available | December 04, 2022 |
|---|
