Gigabyte MZ72-HB0 Motherbaord Rev3.0 + 2x AMD EPYC Rome 7H12 CPU , 128 Cores

2x AMD EPYC Rome 7H12 CPU

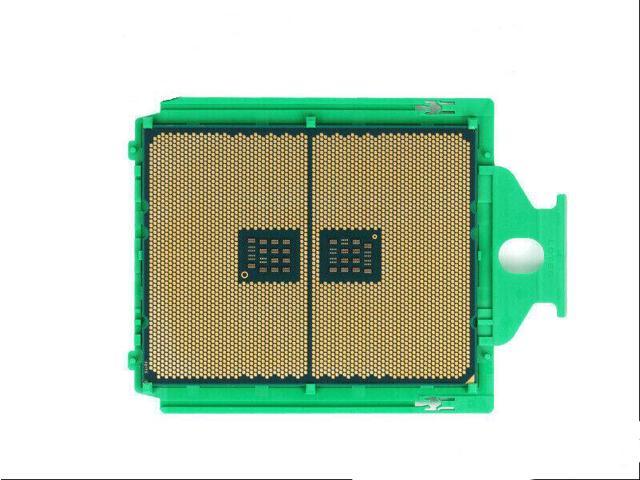

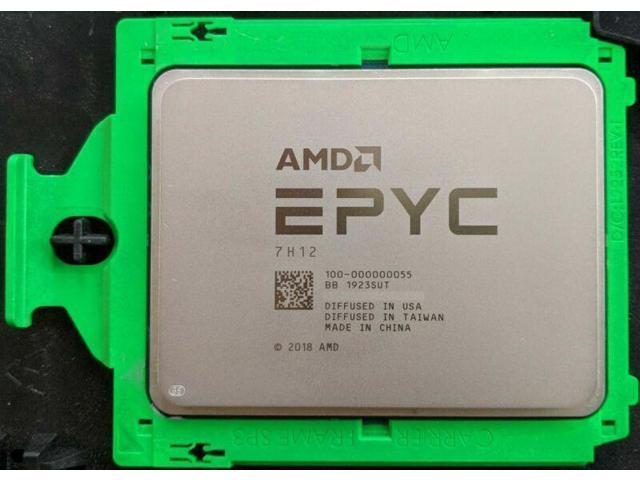

AMD EPYC 7H12

Specifications

# of CPU Cores
64
# of Threads
128
Base Clock
2.6GH z
Max Boost Clock
Up to 3.3GH z
Total L3 Cache
256MB
Package
SP3
Socket Count
1P/2P
PCI Express® Version
PCIe 4.0 x128
Default TDP / TDP
280W
System Memory
System Memory Specification
Up to 3200MHz
System Memory Type
DDR4
Memory Channels
8
Per Socket Mem BW
204.8 GB/s
Key Features
Supported Technologies
AMD Infinity Architecture
Workload Affinity
Specialized CAE/CFD/FEA
Foundation
Product Family
AMD EPYC
Product Line
AMD EPYC 7002 Series
Platform
Server
OPN Tray
100-000000055
OPN PIB
100-100000055WOF

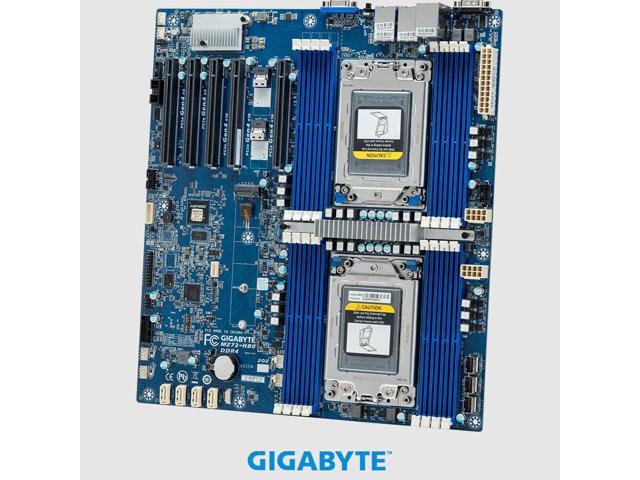

MZ72-HB0 (rev. 3.0 )
AMD EPYC 7003 Dual Sockets Server Motherboard
AMD EPYC 7003 processors with AMD 3D V-Cache Technology
AMD EPYC 7003 series processor family
8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIM
Ms
2 x 10Gb/s BASE-T LAN ports (Broadcom® BCM57416)
1 x Dedicated management port
4 x 7-pin SATA 6Gb/s ports
3 x SlimSAS (with 12 x SATA 6Gb/s or 3 x NVMe PCIe Gen4 x4) ports
2 x SlimSAS (with 2 x NVMe PCIe Gen4 x4) ports
1 x Ultra-Fast M. 2 with PCIe Gen4 x4 bandwidth
Up to 5 x PCIe Gen4 slots

Board Size
E-ATX
305W x 330D (mm)
Processor Supported
AMD EPYC 7003 processors with AMD 3D V-Cache Technology
AMD EPYC 7003 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 280W

Compatible with AMD EPYC 7002 series processor family
Socket
Socket SP3
Chipset Description
System on Chip
Memory Type
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200/ 2933 MHz
Integrated Network
2 x 10GbE BASE-T LAN ports (1 x Broadcom® BCM57416)
1 x 10/100/1000 management LAN
Integrated Video Controller
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920×1200@60Hz 32bpp
Integrated Audio Controller
N/A
Integrated SAS Controller
N/A
Integrated SATA Controller
4 x 7-pin SATA 6Gb/s ports
*3 x SlimSAS (with 12 x SATA 6Gb/s or 3 x NVMe PCIe Gen4 x4) ports

1 x
M. 2 slot:
– M-key
– PCIe Gen4 x4
– Supports 2280/22110 cards

2 x NVMe ports:
– SlimSAS 4i type
– PCIe Gen4 x4 per port

* NOTE:
Default setting is SATA, please go to BIOS Setup section, Advances>PCI Subsystem setting for advanced configuration manually.
Support RAID Function
N/A
Expansion Slot
Slot_ 6: 1 x PCIe x16 (Gen4 x16 bus) slot ( from CPU_0)
Slot_ 4: 1 x PCIe x16 (Gen4 x16 bus) slot ( from CPU_0)
Slot_ 3: 1 x PCIe x16 (Gen4 x16 bus) slot ( from CPU_1)
Slot_ 2: 1 x PCIe x16 (Gen4 x8 bus) slot ( from CPU_0)
Slot_ 1: 1 x PCIe x16 (Gen4 x8 bus) slot ( from CPU_1)
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
5 x SlimSAS connectors
4 x SATA 7-pin connects
1 x M. 2 slot
2 x CPU fan headers
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

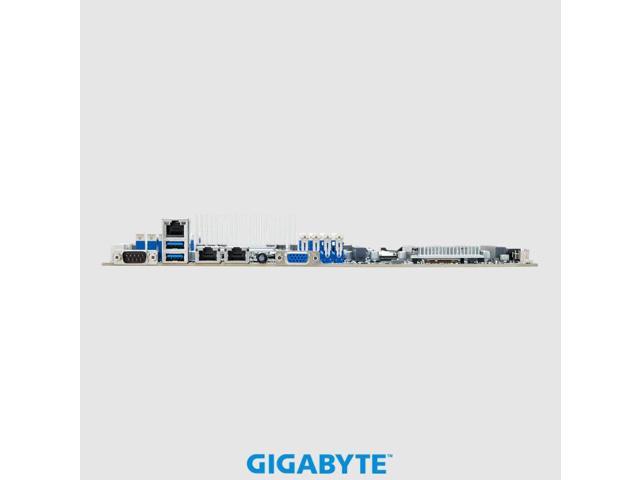

Rear I/O Connectors
2 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM 2.0 kit: CTM010
OS Driver Supported
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04. 5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Citrix Hypervisor 8.2. 0 or later
