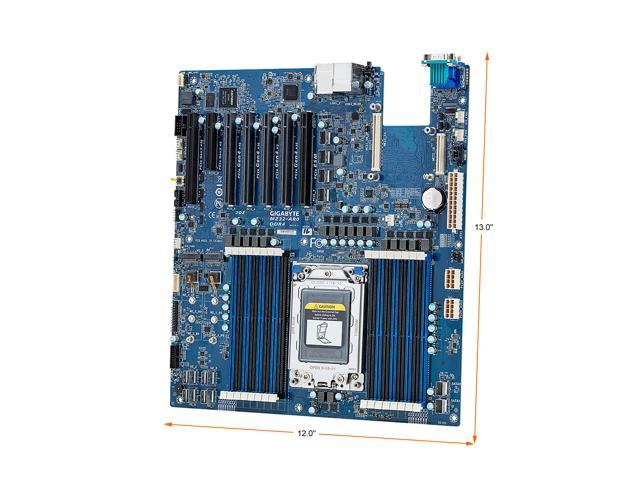

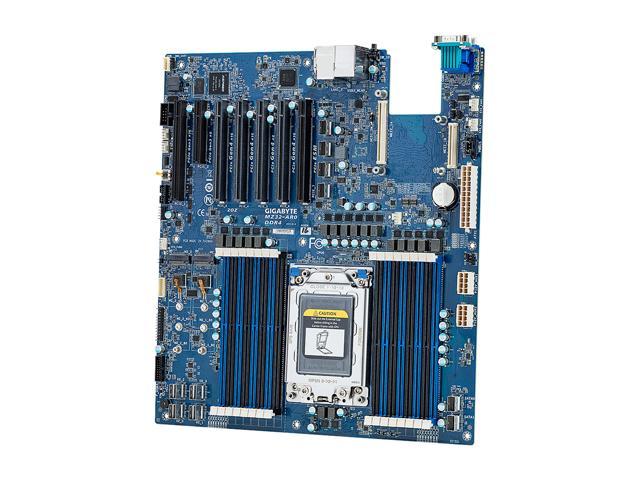

GIGABYTE MZ32-AR0 rev 3.0 Server Motherboard Socket SP3
SKU: 9SIAYTVHJ4271822.607.715₫

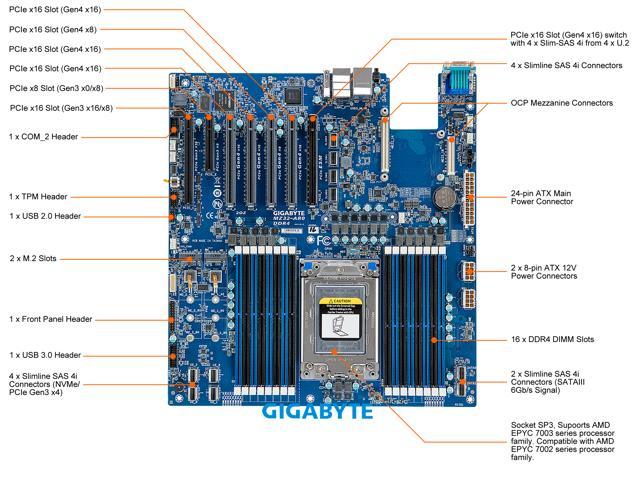

Single AMD EPYC 7002 series processor family8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs2 x 1Gb/s LAN ports (Intel I350-AM2)1 x Dedicated management port2 x SlimSAS (with 8 x SATA 6Gb/s) ports4 x SlimSAS (with 4 x NVMe) portsUltra-Fast M.2 with PCIe Gen3 x4 interfaceUp to 5 x PCIe Gen4 slots and 2 x PCIe Gen3 slots1 x OCP 2.0 Gen3 x16 mezzanine slotAspeed AST2500 remote management controller
Description
Learn more about the GIGABYTE MZ32-AR0 rev 3.0
| Brand | GIGABYTE |
|---|---|
| Model | MZ32-AR0 rev 3.0 |
| CPU Socket Type | Socket SP3 |
|---|---|
| CPU Type | Supports AMD EPYC 7002 series processor family |
| Number of Processor Support | 1 |
| Number of DDR4 Slots | 16 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Channel Supported Channel Supported | Eight Channel |
| PCI Express 4.0 x16 | Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot; shared with 4 x NVMe ports Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot |
|---|---|
| PCI Express 3.0 x16 | Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2 |
| PCI Express x8 | Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot |
| M.2 | 2 x M.2 slots: – M-key – PCIe Gen3 x4 – Supports 2242/2260/2280 cards |
|---|---|
| SAS | 2 x SlimSAS (with 8 x SATA 6Gb/s) ports 4 x SlimSAS (with 4 x NVMe) ports |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I350-AM2 |
|---|---|
| LAN Speed | 10/100/1000Mbps |

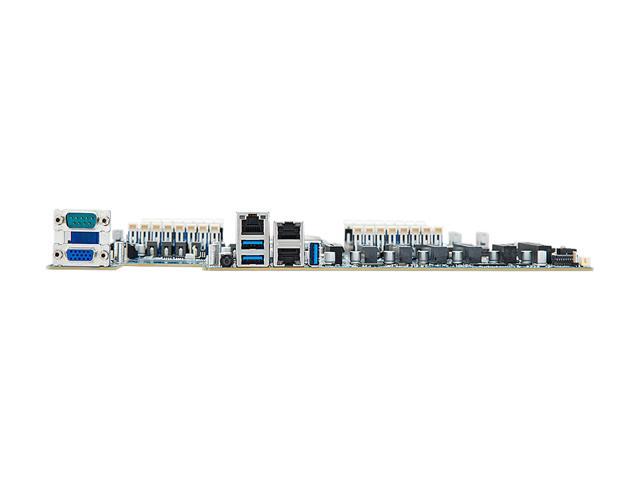

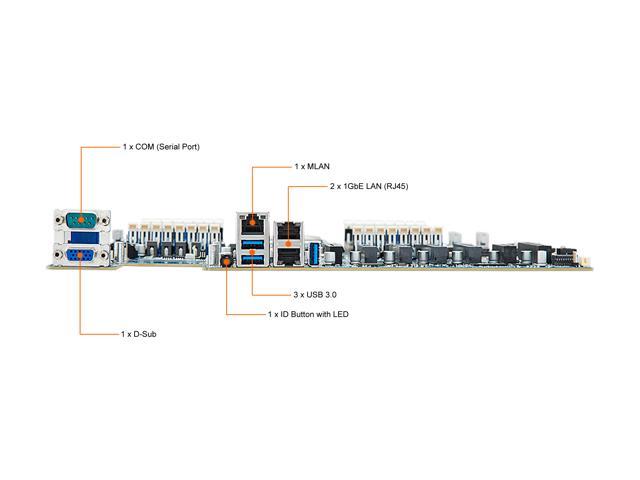

| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x MLAN / 2 x LAN (RJ45) / 3 x USB 3.0 |
|---|
| Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 10 x SlimSAS connectors 2 x M.2 slots 1 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x USB 2.0 header 1 x COM_2 header 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer |
|---|
| Package Contents | 1 x MZ32-AR0 1 x I/O shield 1 x Quick start guide 2 x SlimSAS for 8 x SATAIII 6Gb/s cables |
|---|
| Date First Available | August 18, 2022 |
|---|
