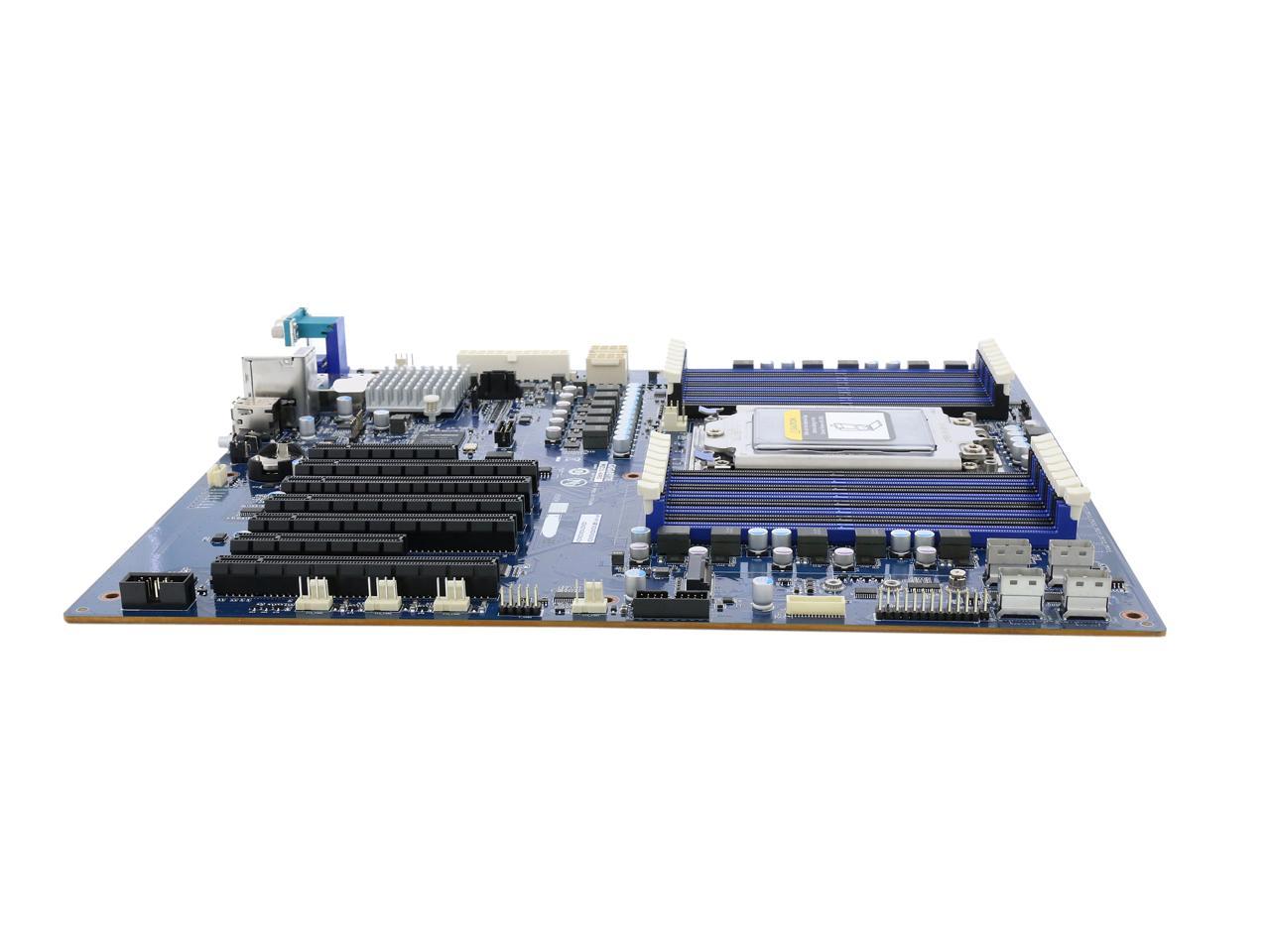

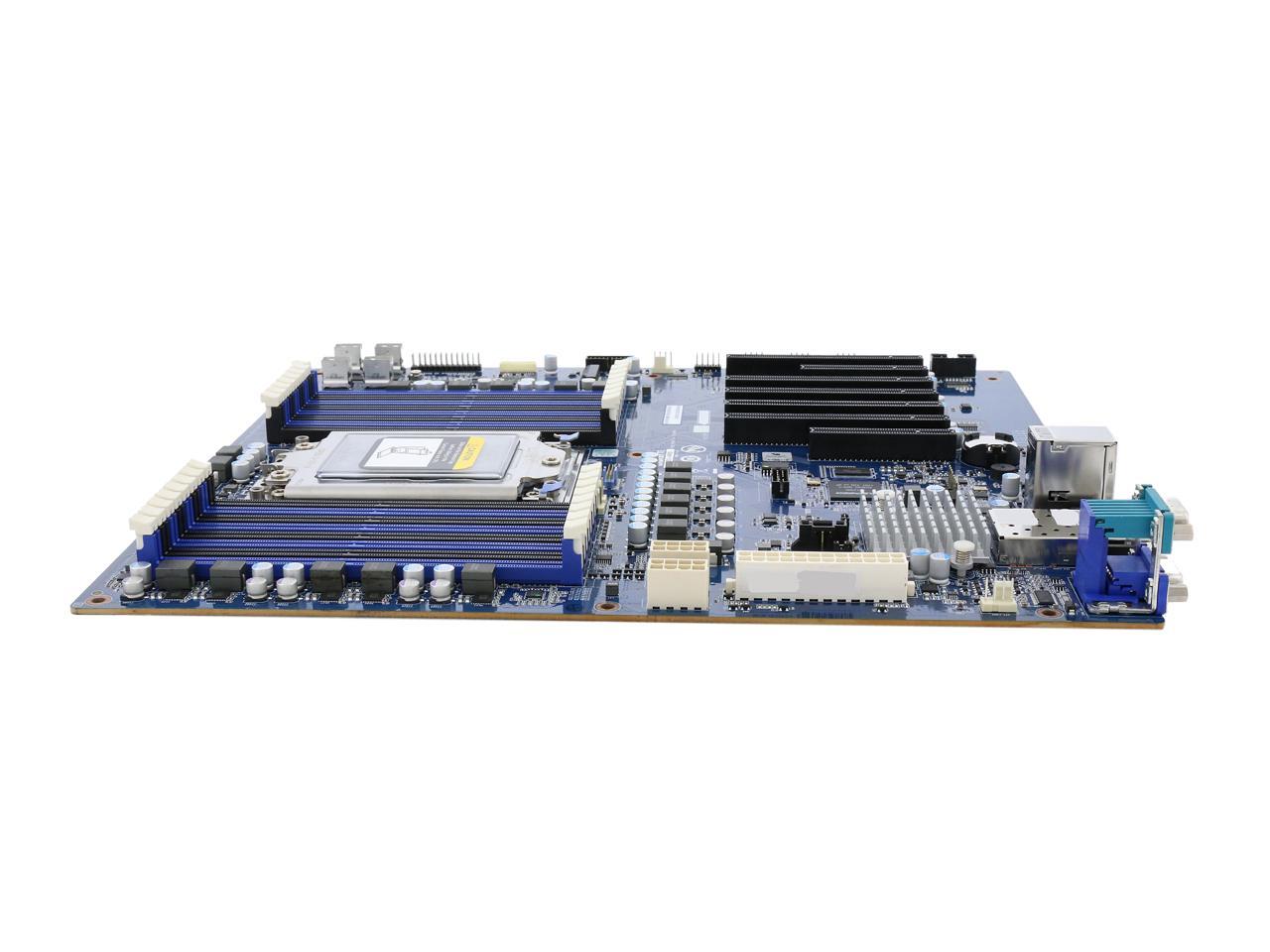

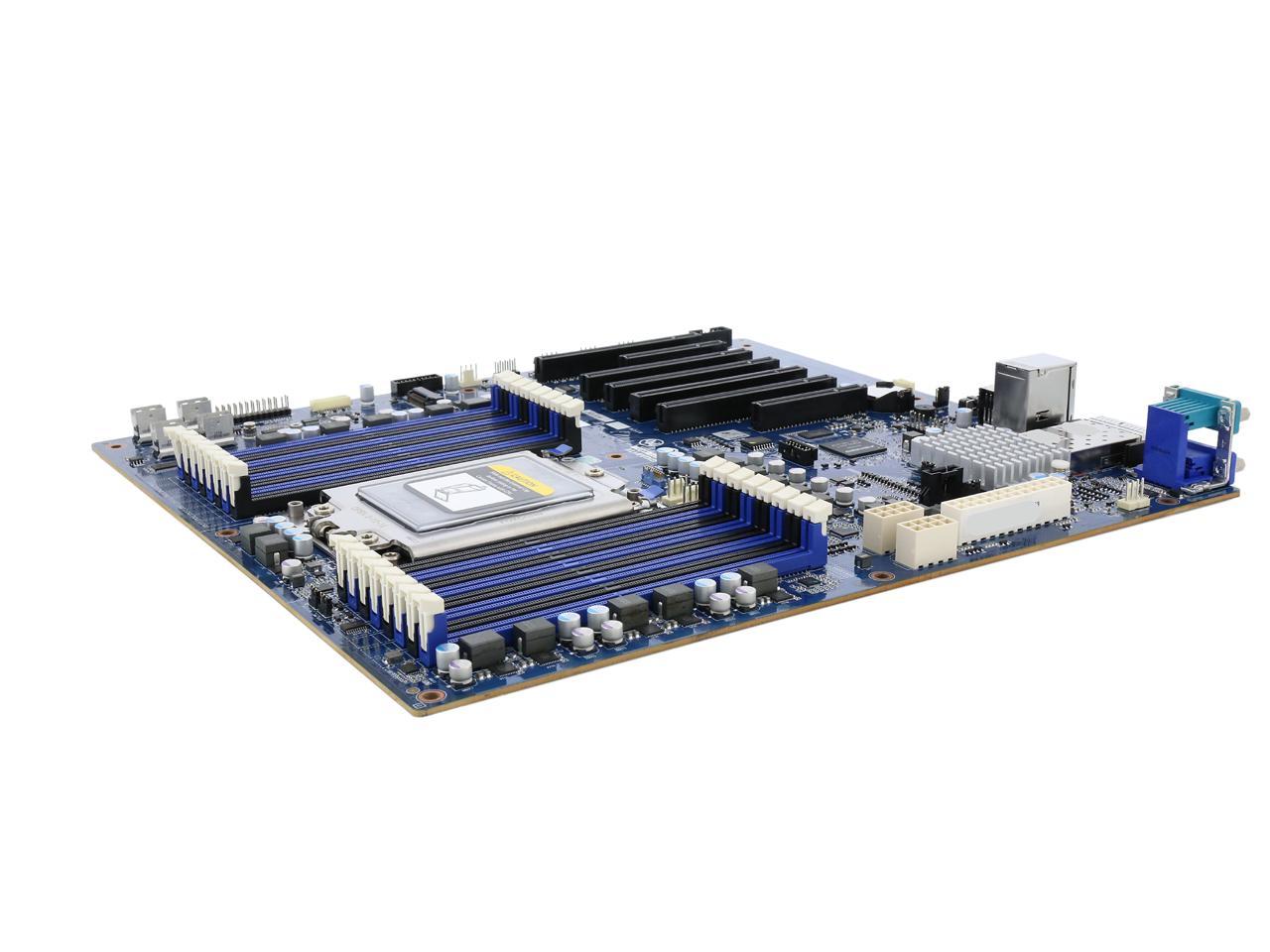

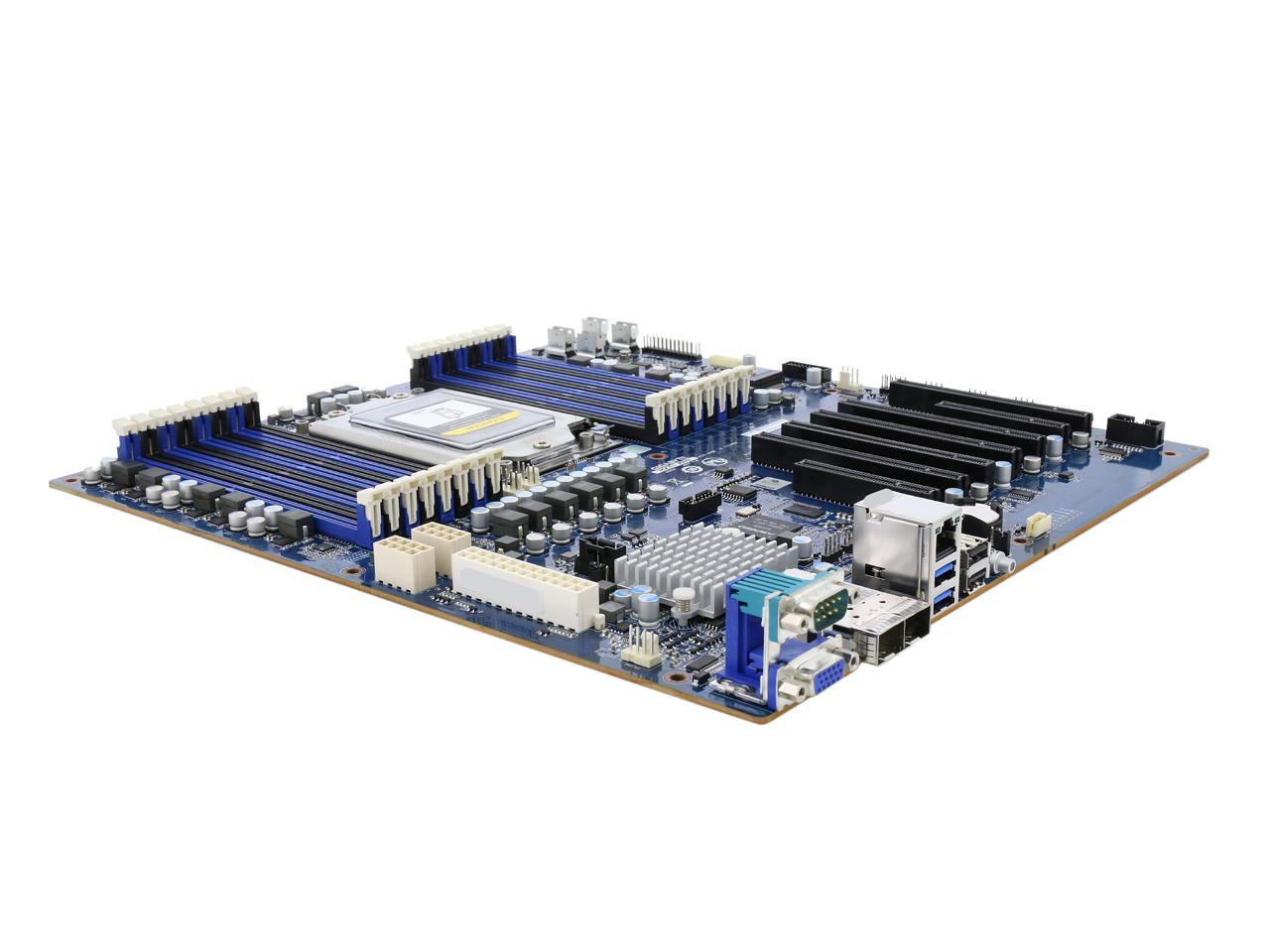

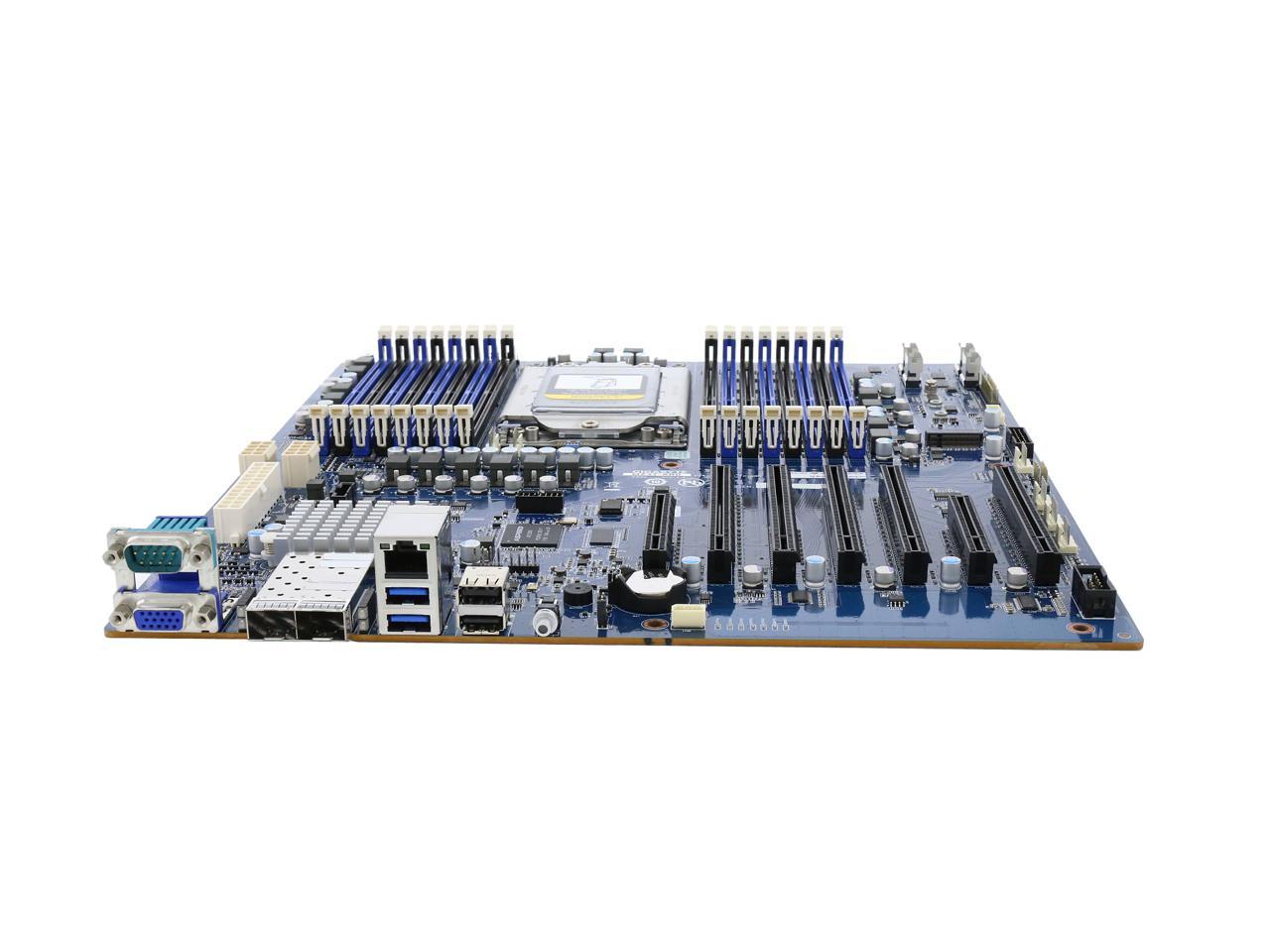

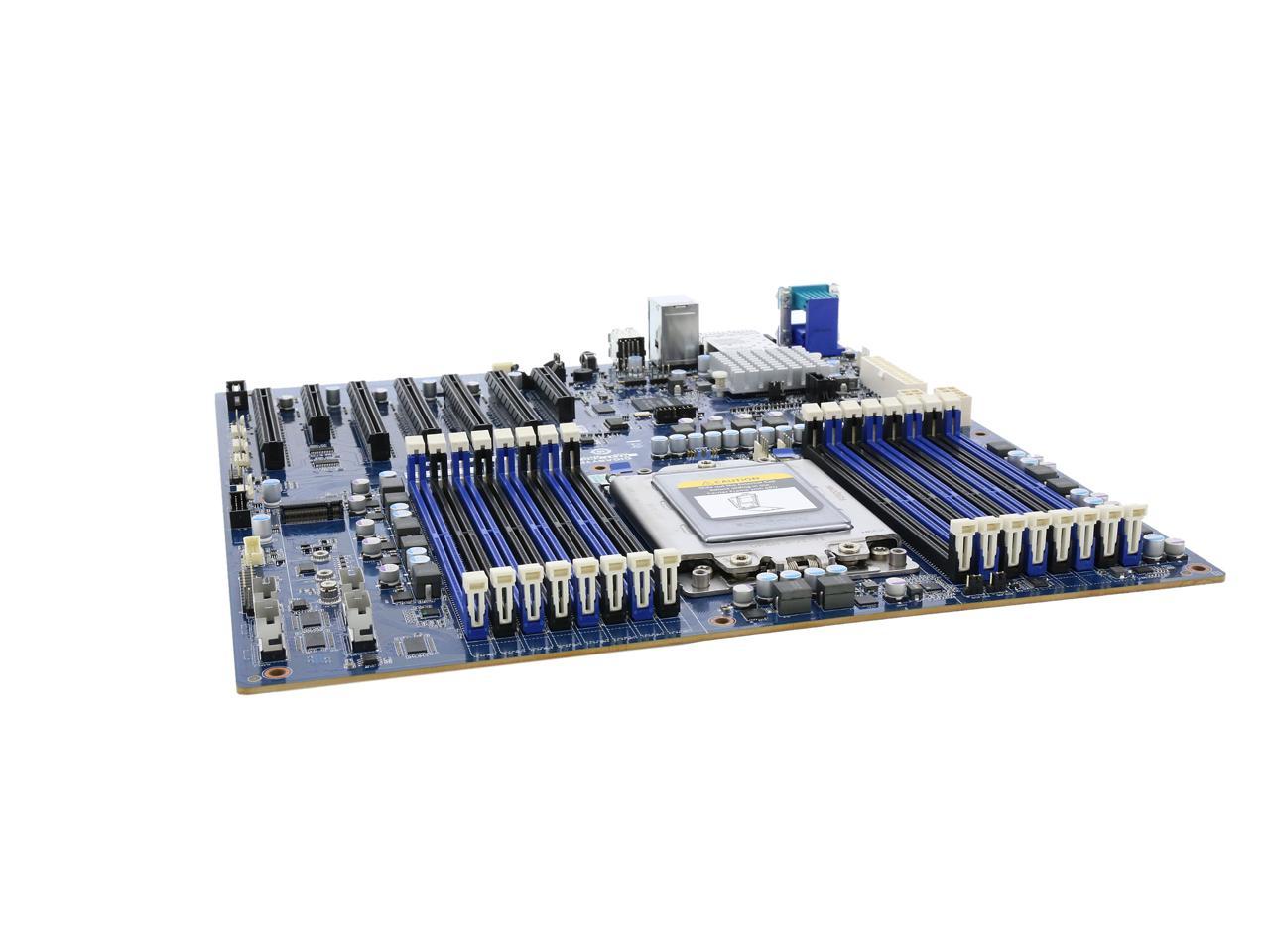

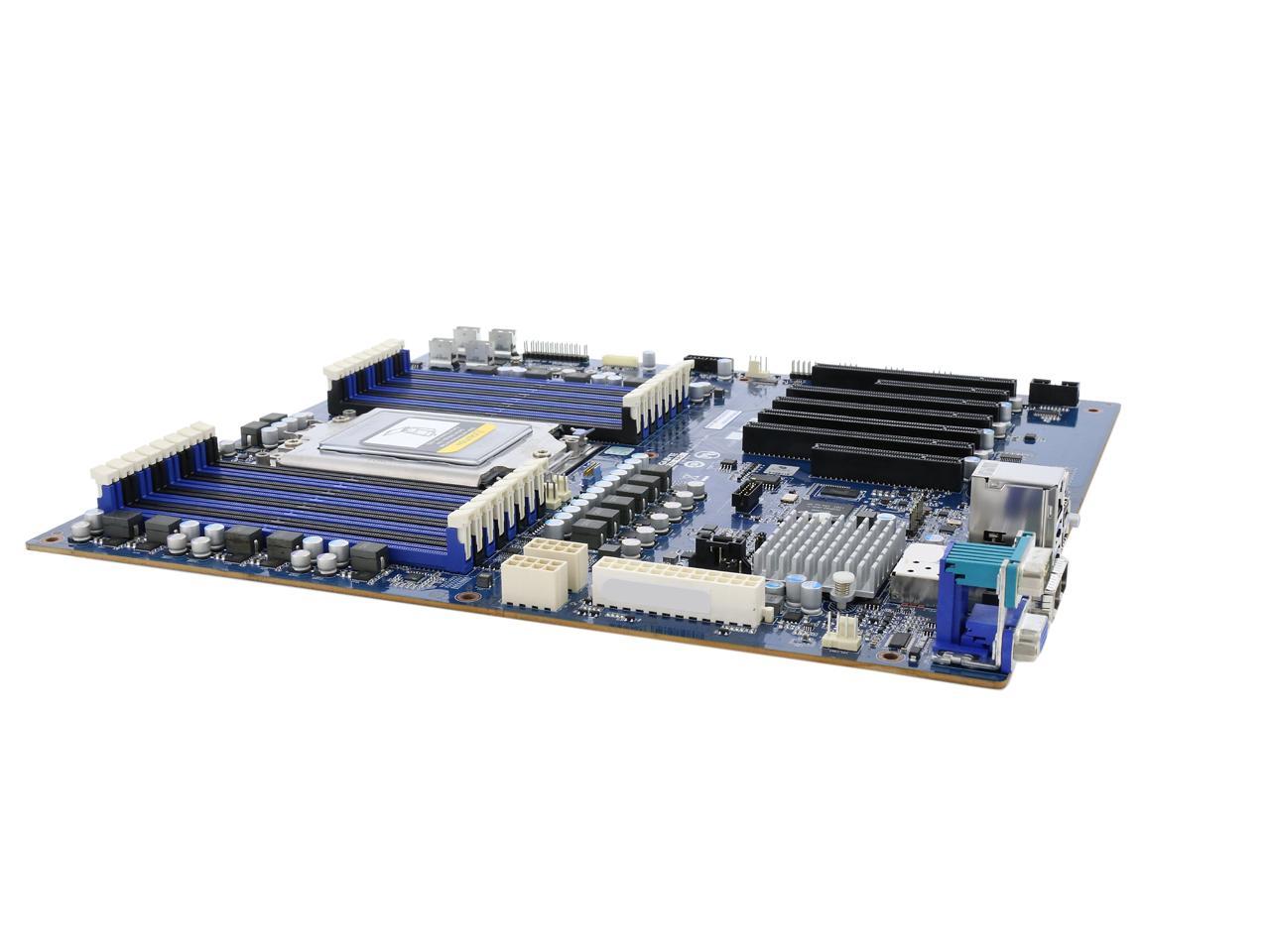

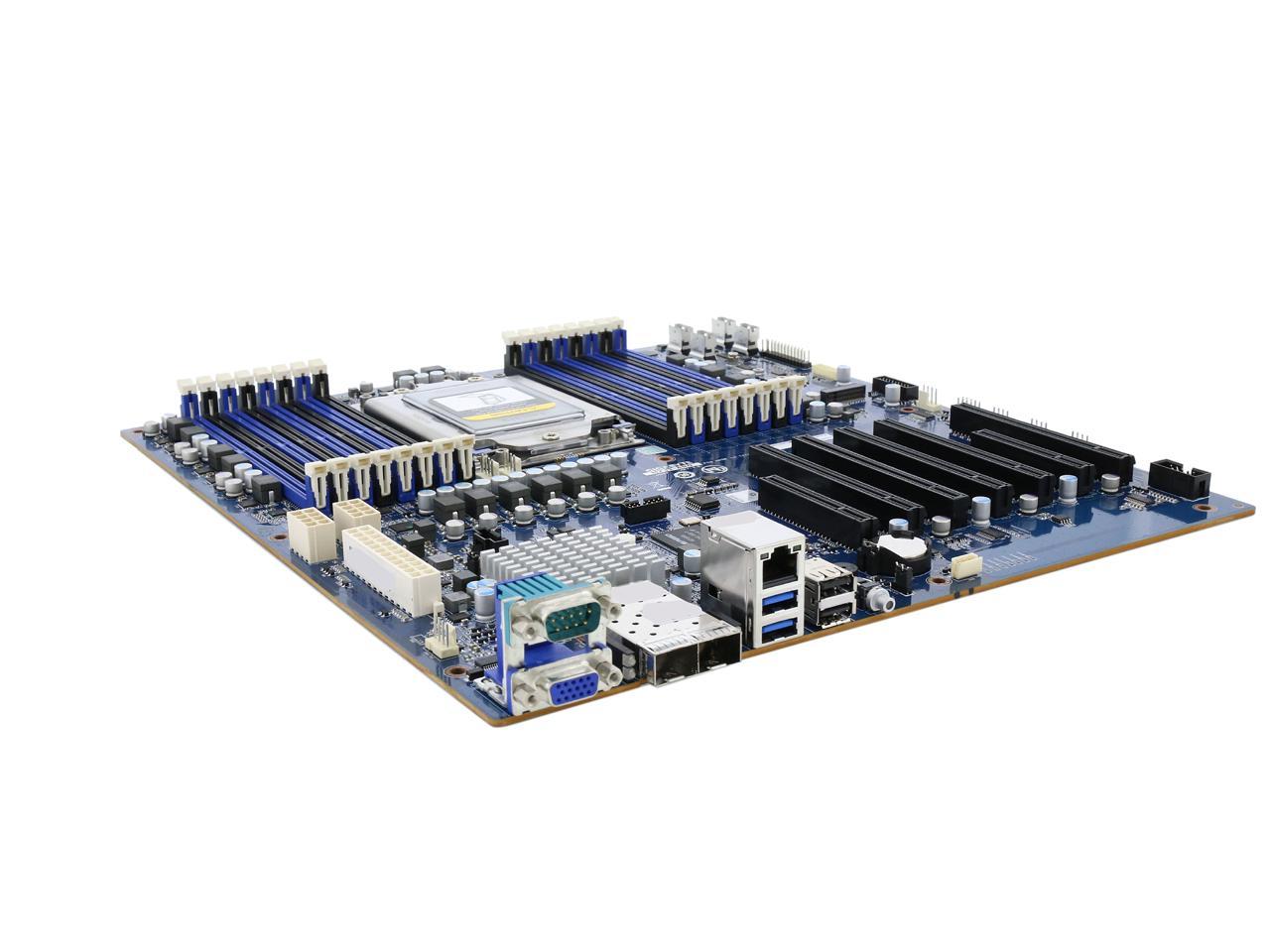

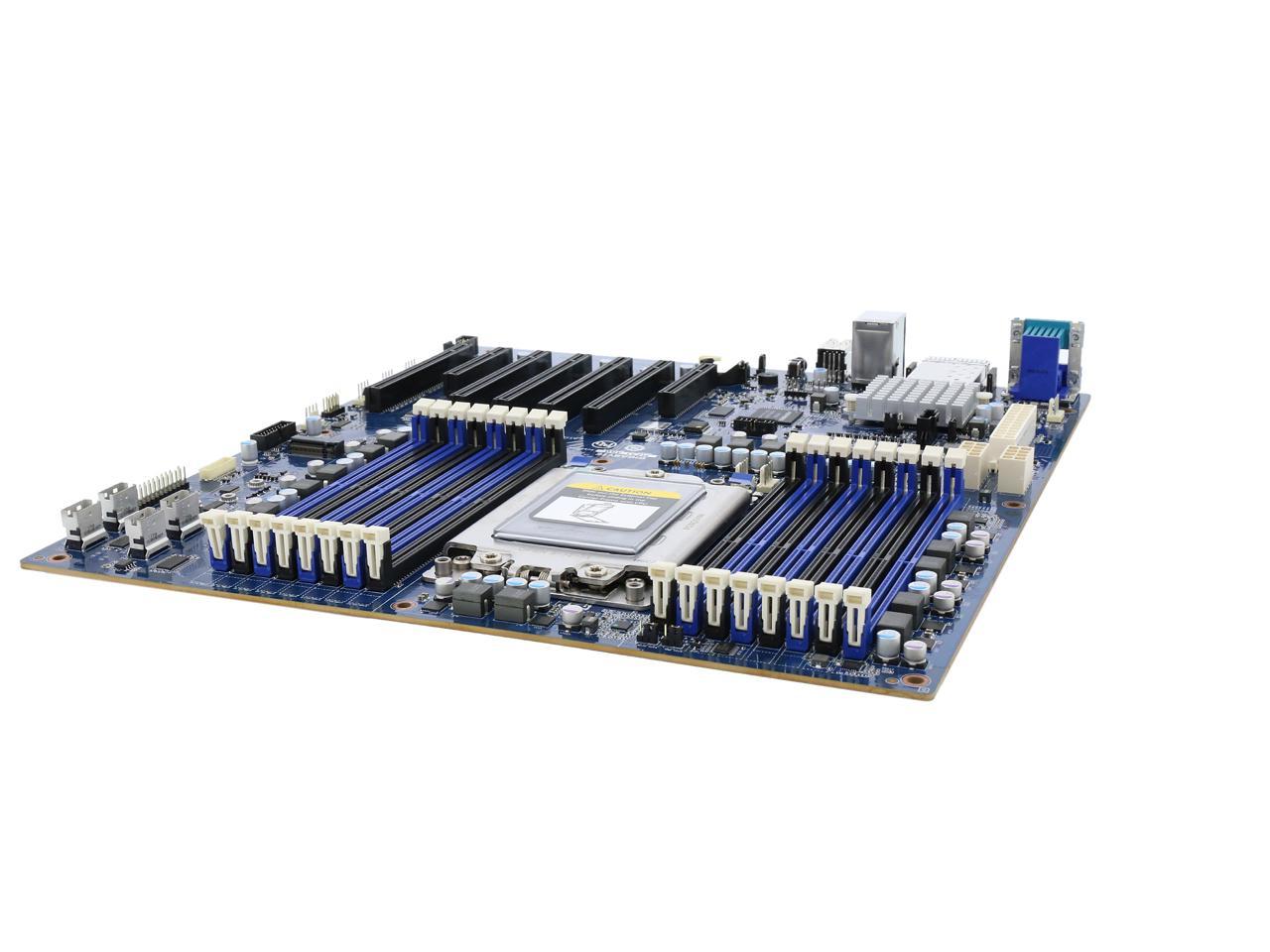

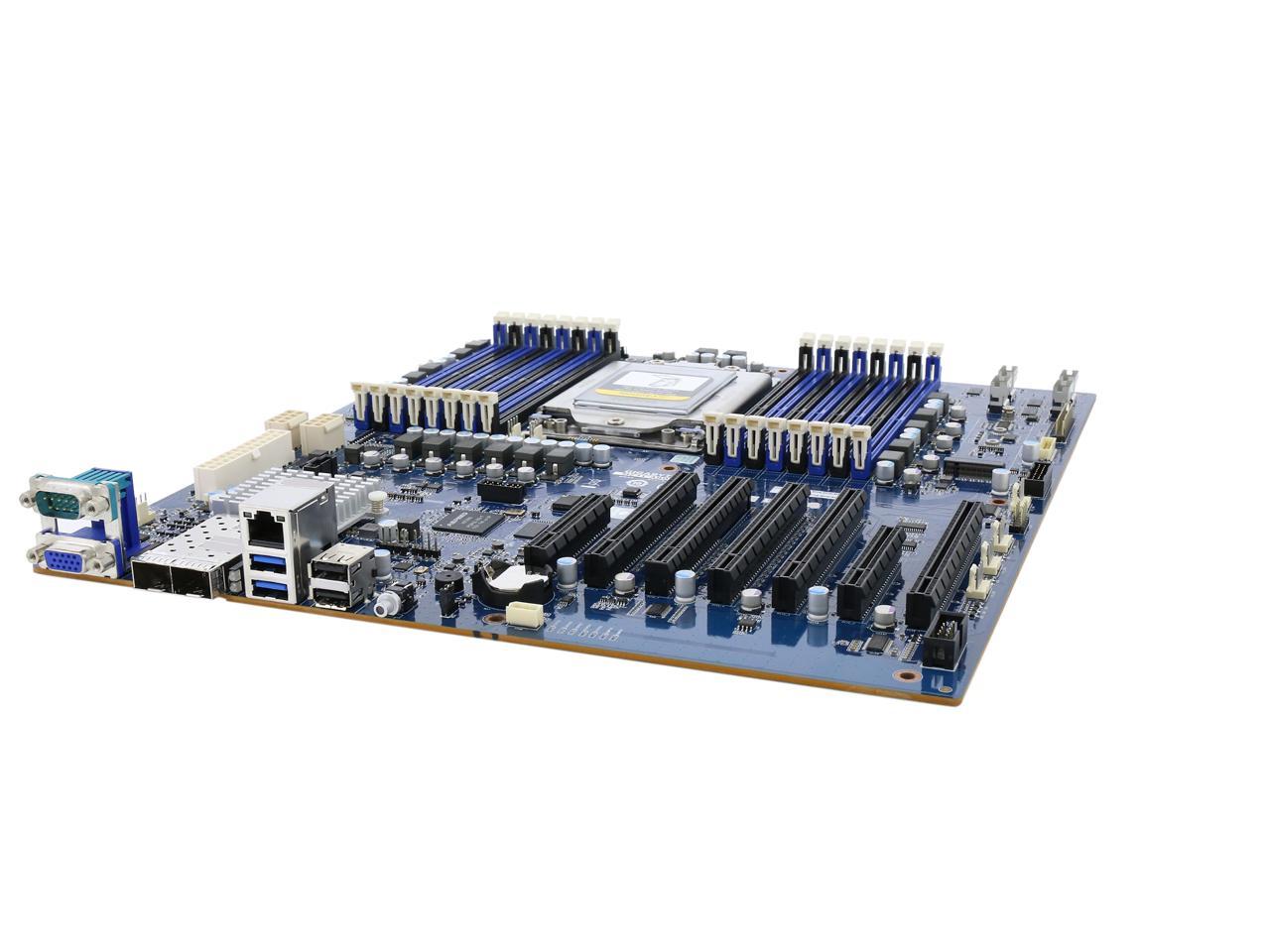

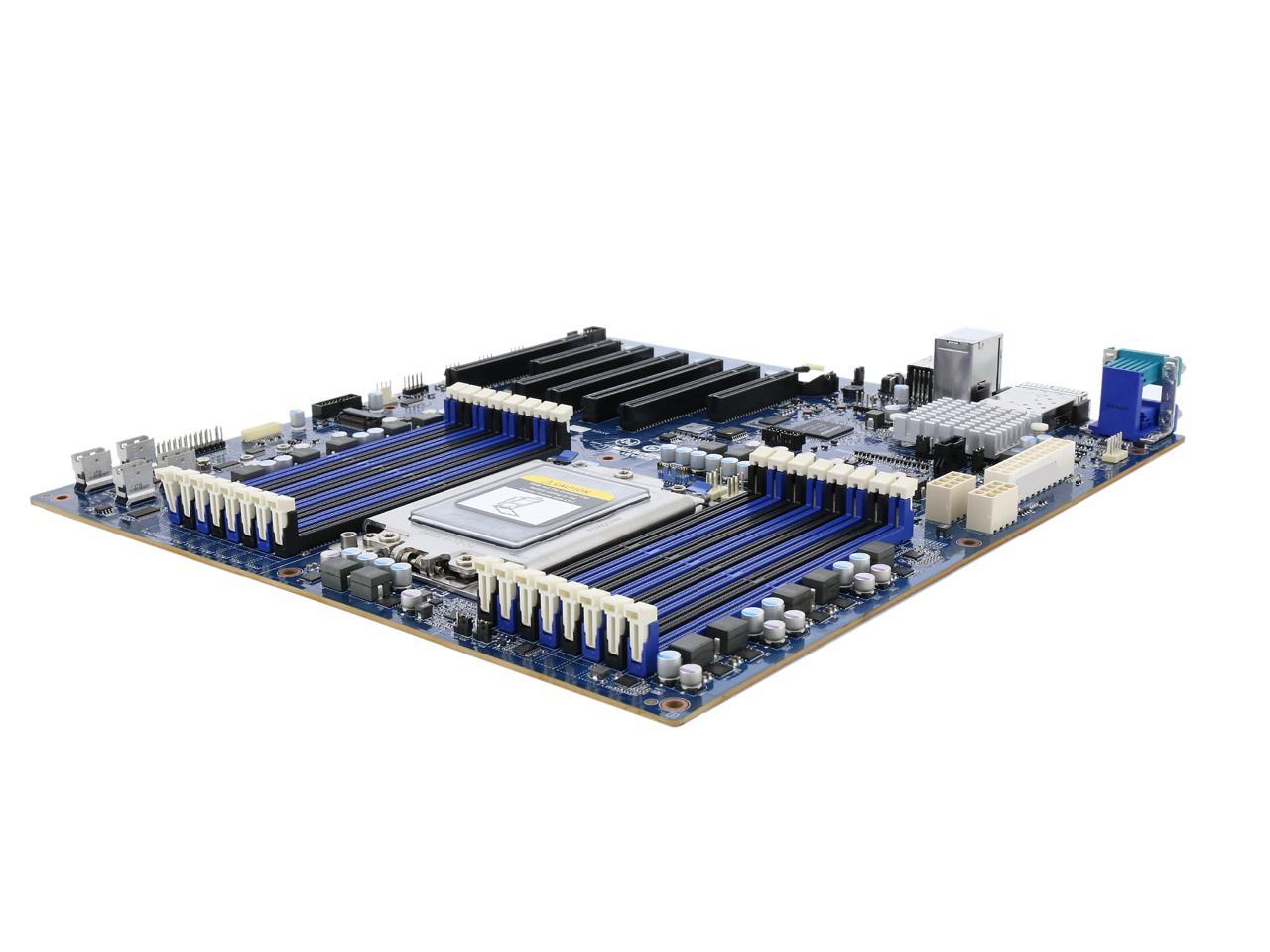

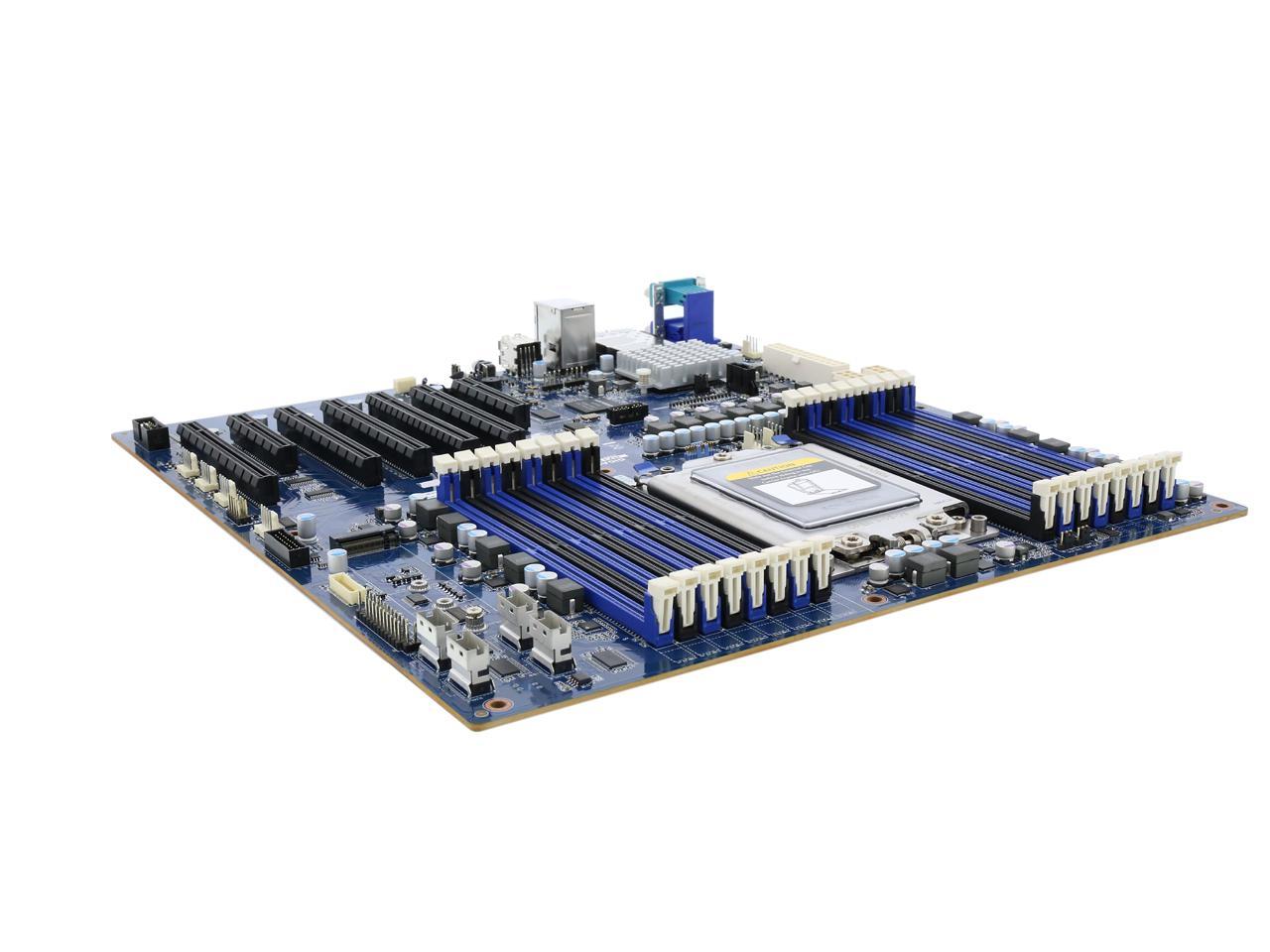

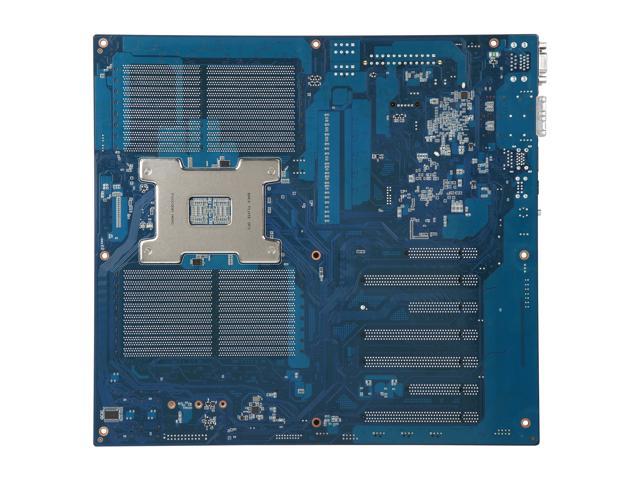

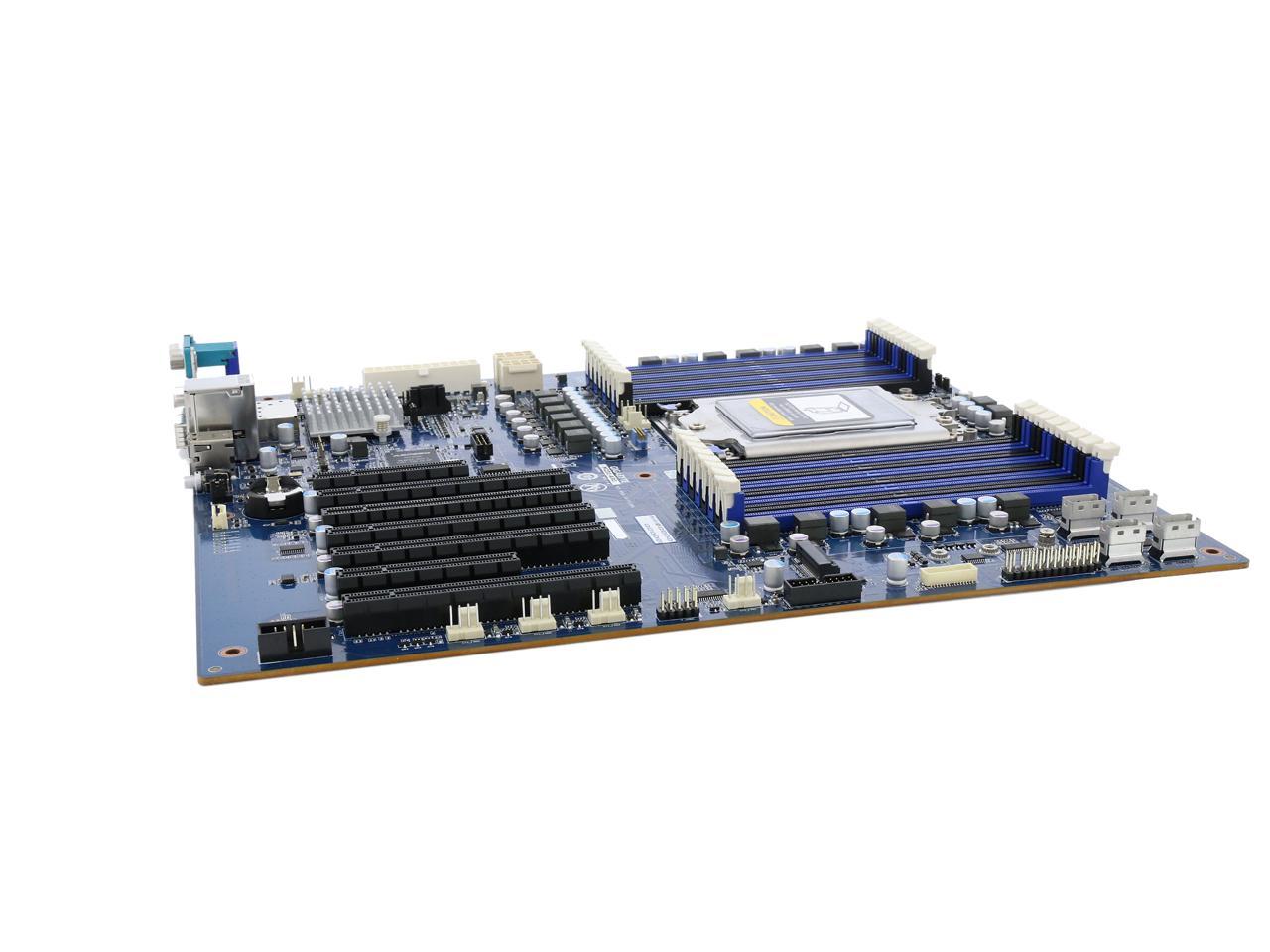

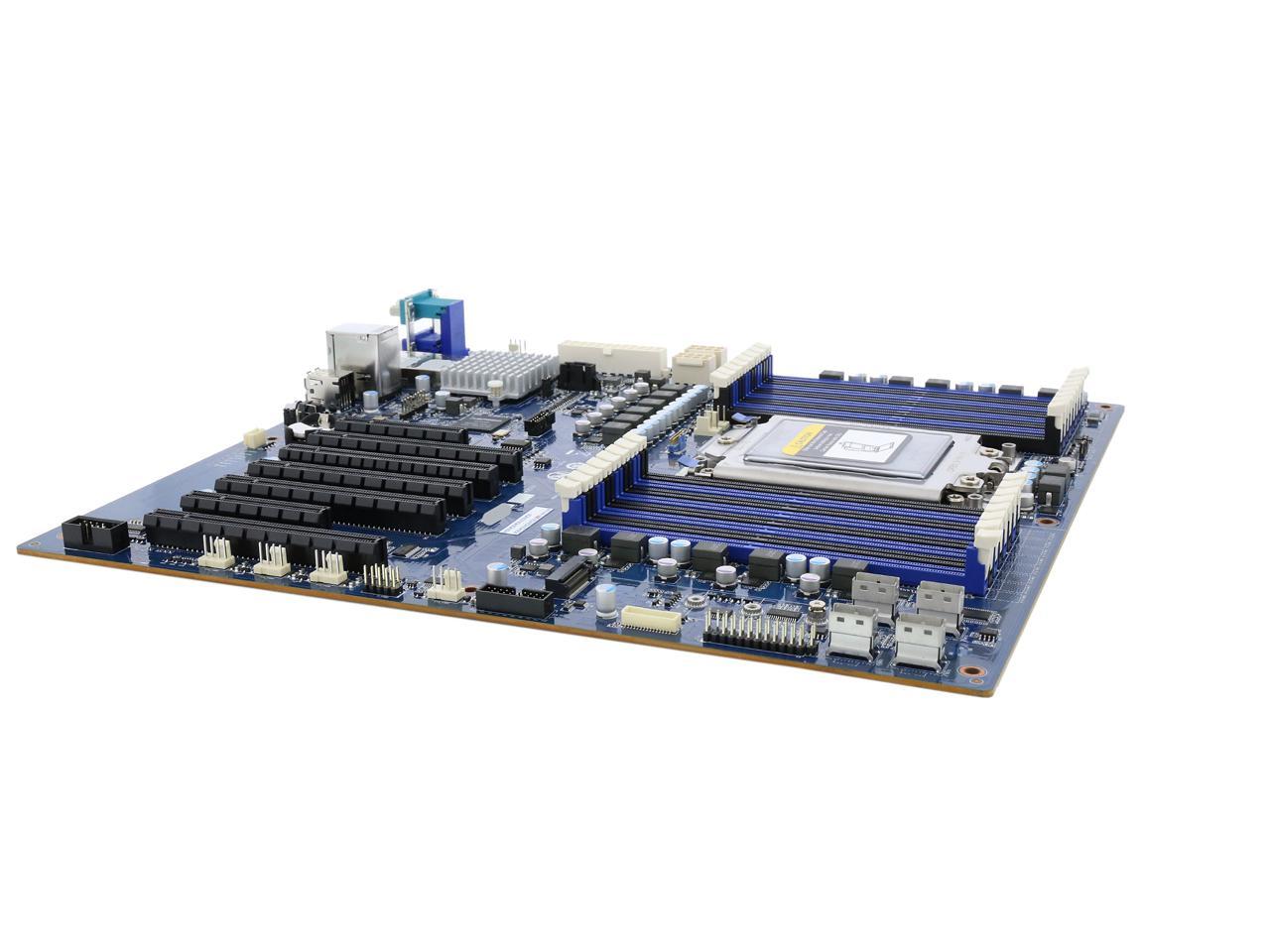

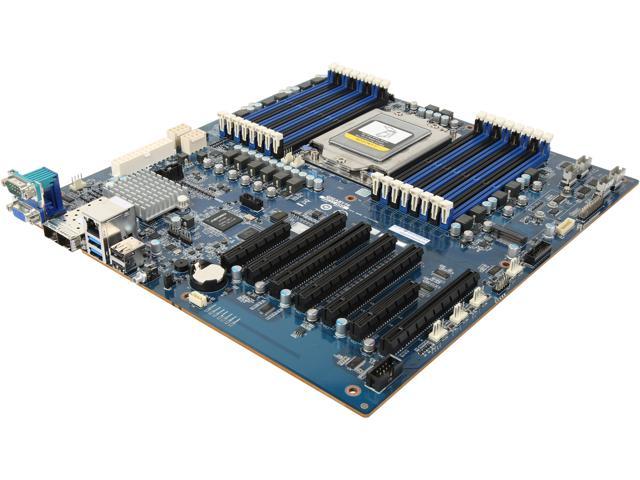

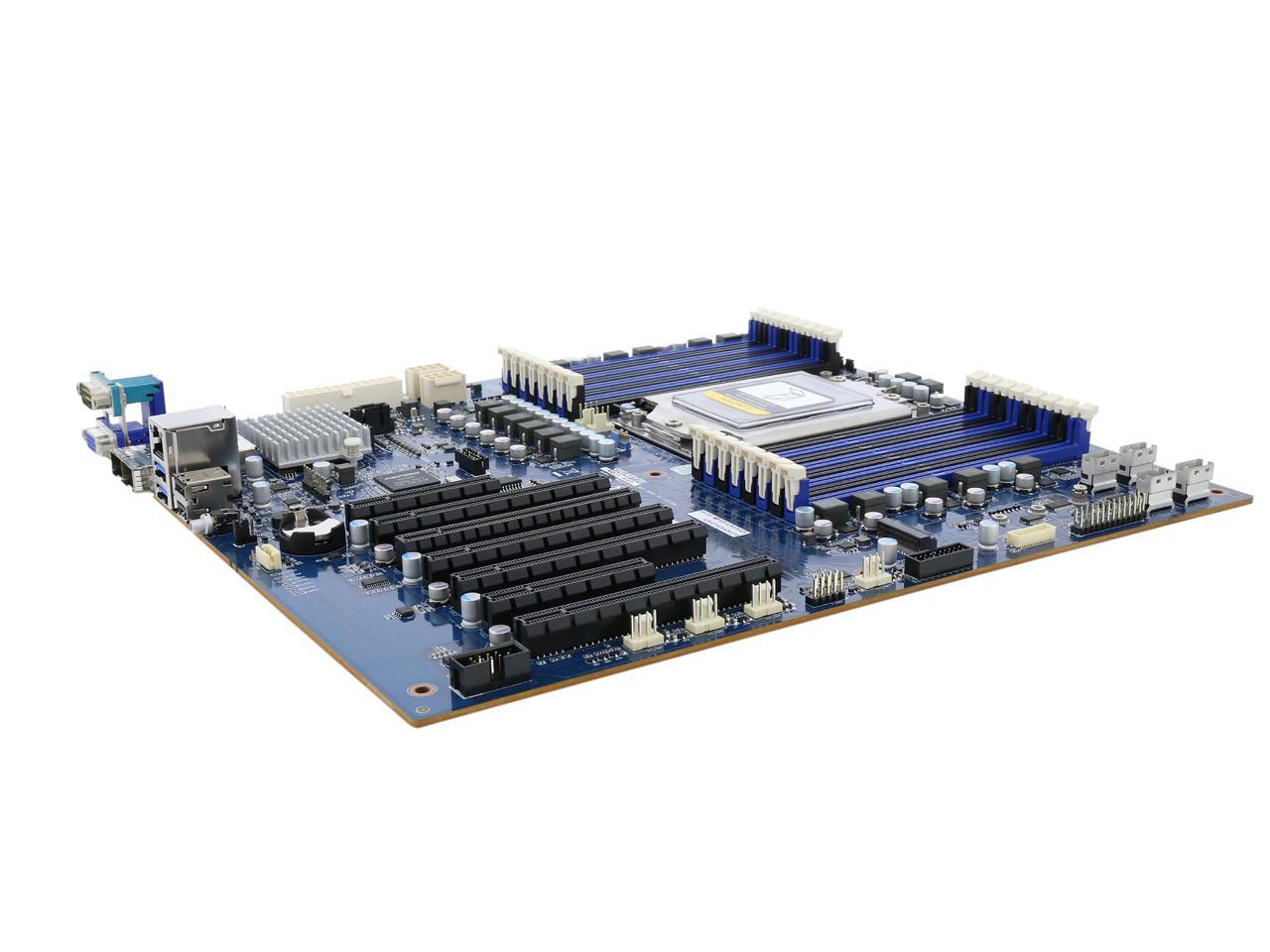

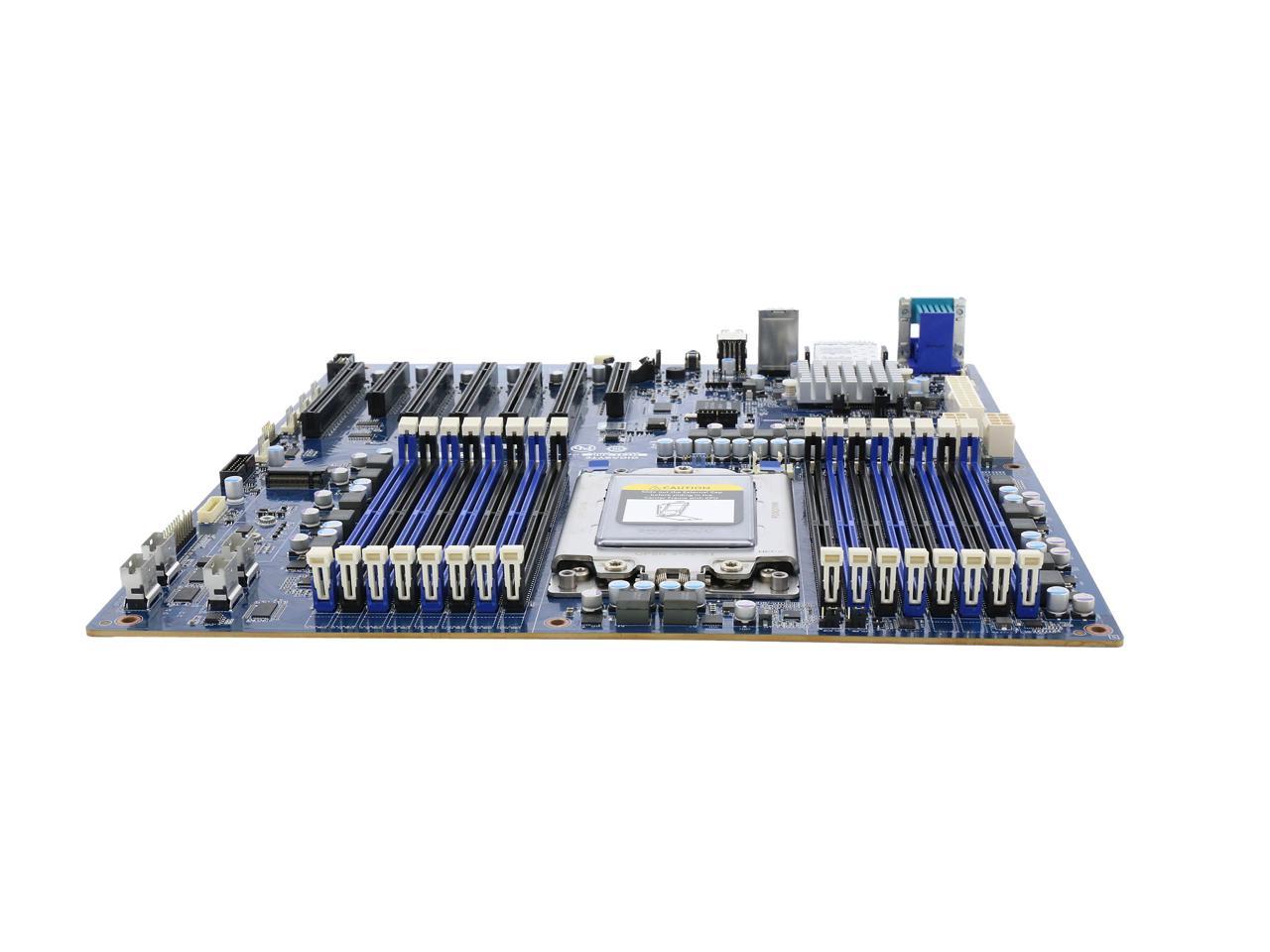

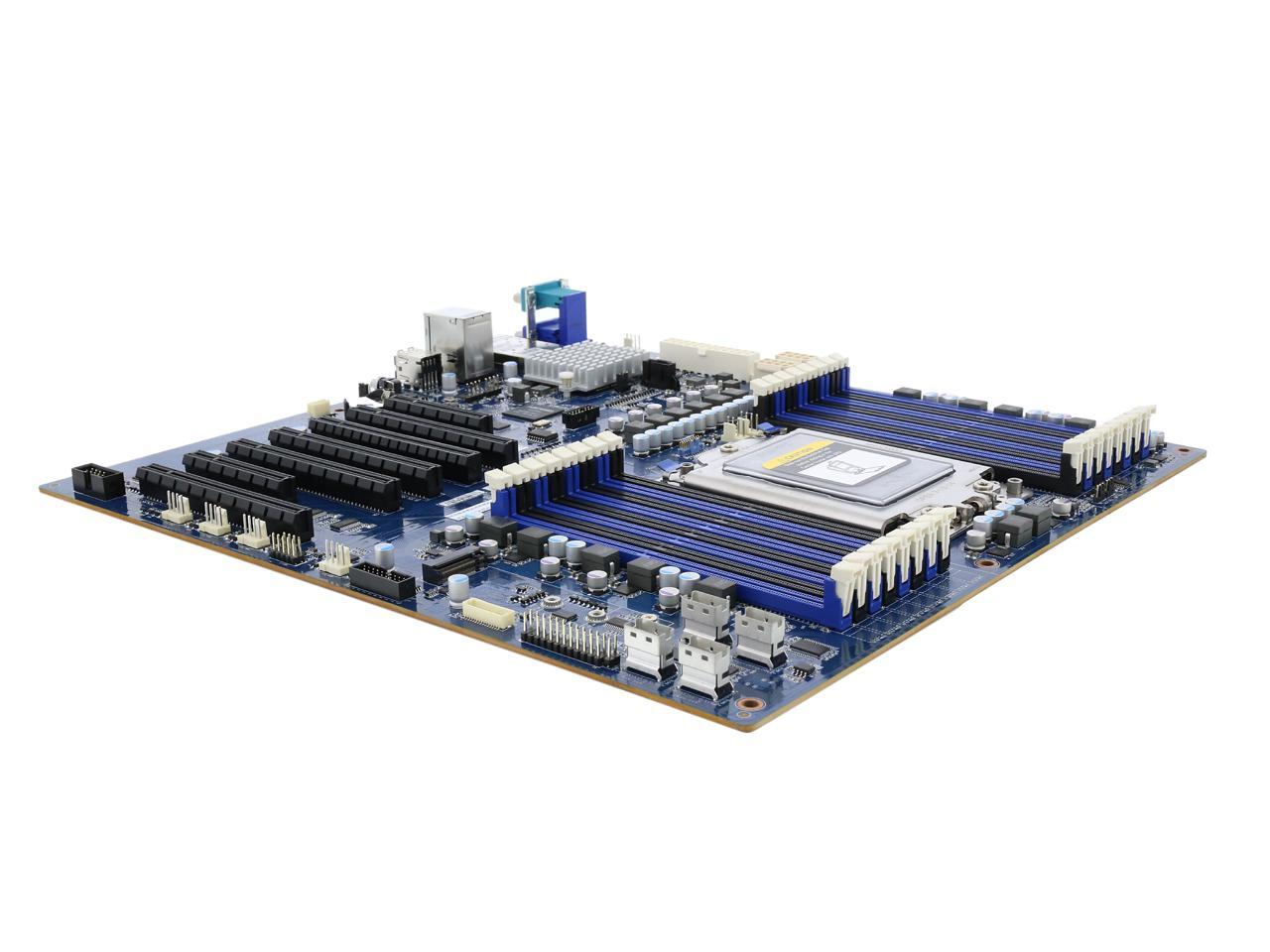

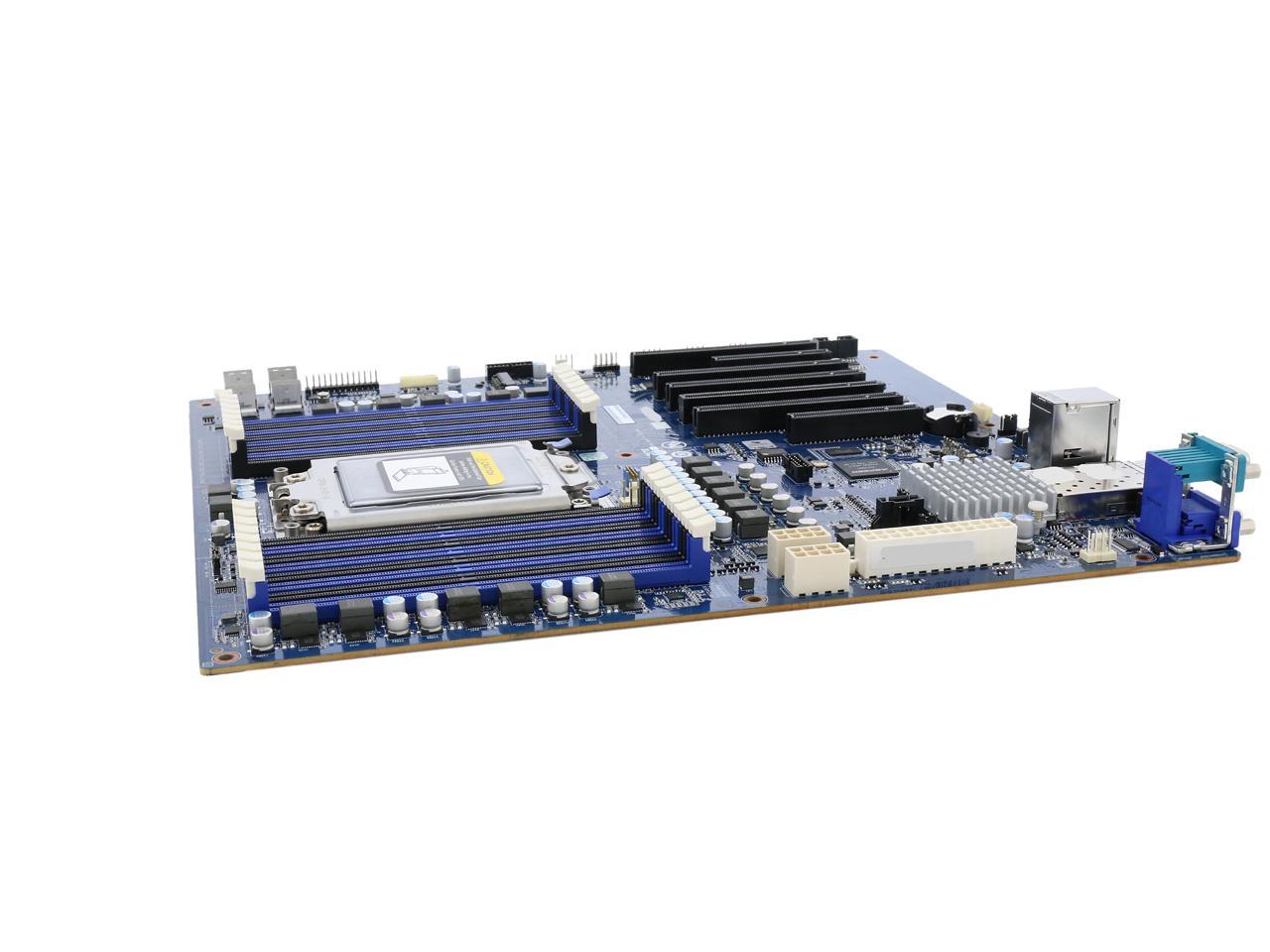

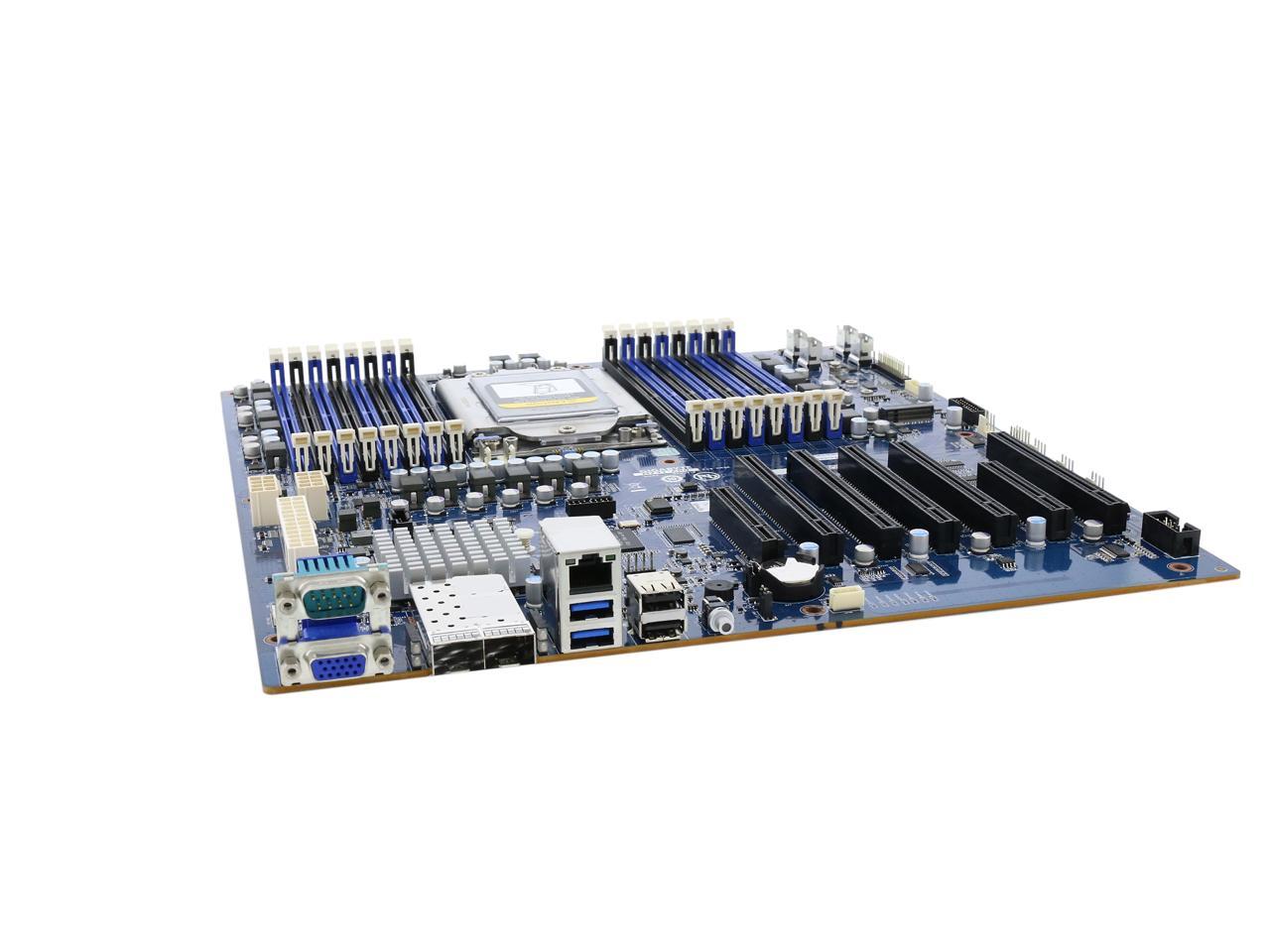

GIGABYTE MZ31-AR0 Extended ATX Server Motherboard Socket SP3
SKU: 9SIA4REJEJ376431.807.230₫
AMD EPYC 7000 series processor family
2 x SFP+ 10Gb/s LAN ports (Broadcom BCM 57810S)
4 x SlimSAS (for 16 x SATA 6Gb/s) ports
Ultra-Fast M.2 with PCIe Gen3 x4 interface
Description
Learn more about the GIGABYTE MZ31-AR0

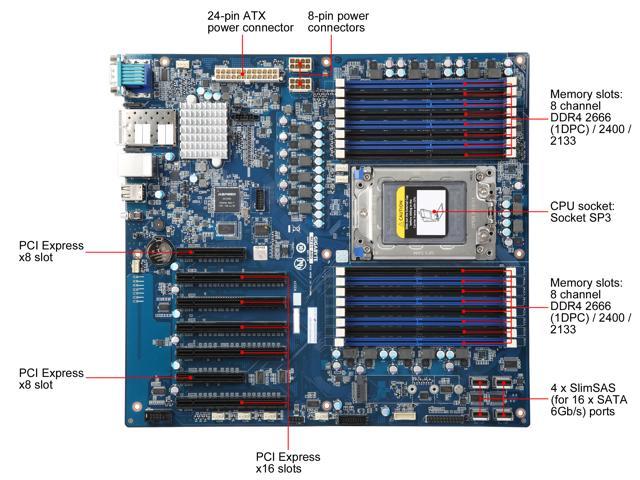

| Brand | GIGABYTE |
|---|---|
| Model | MZ31-AR0 |
| CPU Socket Type | Socket SP3 |
|---|---|
| CPU Type | AMD EPYC 7000 series processor family Single processor, 14nm Up to 32-core, 64 threads TDP up to 180W |
| DDR4 Standard | DDR4 2666 (1DPC) / 2400 / 2133 MHz |
|---|---|
| Maximum Memory Supported | RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported |
| Channel Supported Channel Supported | 8-Channel |
| PCI Express 3.0 x16 | Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot |
|---|---|
| PCI Express x8 | Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot |
| Other Slots | 1 x M.2 slot: M-key PCIe Gen3 x4 Supports NGFF-2242 / 2260 / 2280 cards |
| SATA | 4 x Slim SAS for 16 x SATA III 6Gb/s ports |
|---|
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 |
|---|

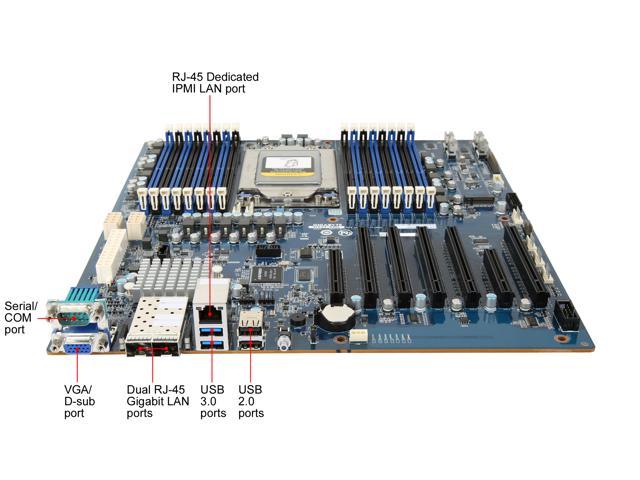

| LAN Chipset | 2 x SFP+ 10Gb/s LAN ports (Broadcom BCM 57810S) 1 x 10/100/1000 management LAN |
|---|
| COM | 1 |
|---|---|
| Video Ports | 1 x VGA port |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| Features | AMD EPYC 7000 series processor family
8-Channel RDIMM / LRDIMM DDR4, 16 x DIMMs 2 x SFP+ 10Gb/s LAN ports (Broadcom BCM 57810S) 1 x Dedicated management port 4 x SlimSAS (for 16 x SATA 6Gb/s) ports Ultra-Fast M.2 with PCIe Gen3 x4 interface Up to 4 x PCIe Gen3 x16 slots and 3 x PCIe Gen3 x8 slots Aspeed AST2500 remote management controller |
|---|
| Form Factor | Extended ATX |
|---|---|

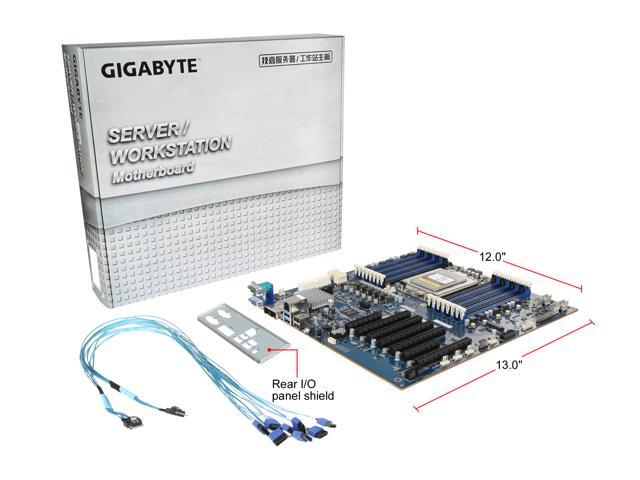

| Dimensions (W x L) | 12.0″ x 13.0″ |
| Date First Available | June 07, 2022 |
|---|
