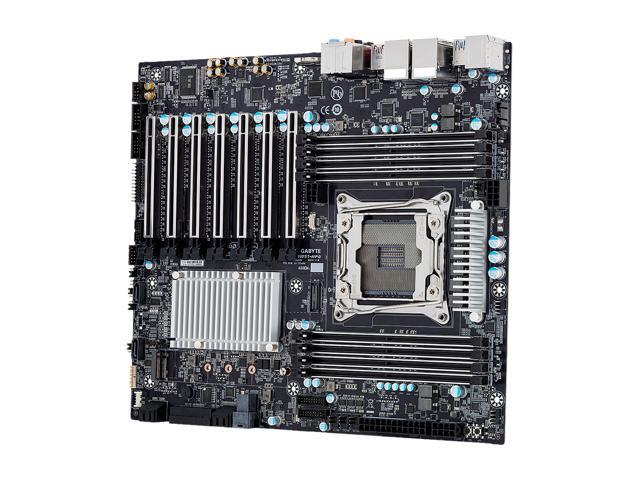

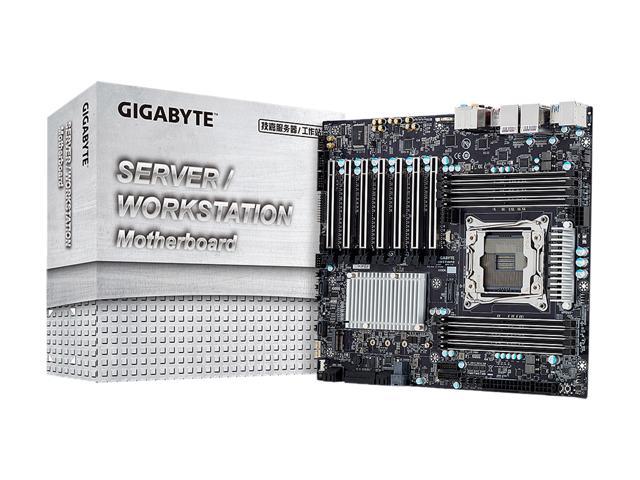

GIGABYTE MW51-HP0 CEB Server Motherboard LGA 2066 Intel C422
SKU: 9SIAYTVH1T519816.597.824.555₫
LGA 2066
Intel C422
Description
Intel Xeon W-series Processor Family Intel C422 Express Chipset Quad Channel RDIMM/LRDIMM DDR4, 8 x DIMMs Intel VROC ready ASMedia 2142 USB 3.1 Gen 2 USB controller Realtek ALC1150 HD audio codec 2 x GbE LAN ports (Intel I210) 8 x SATA III 6Gb/s ports from C422, supports SATA DOM 2 x SATA III 6Gb/s ports from Marvell 88SE9172 controller Ultra-Fast M.2 and U.2 with PCIe Gen3 x4 interface 4 x Full speed PCIe Gen3 x16 slots; total 7 x expansion PCIe x16 slots Intel Xeon W – Engineered For Your Enterprise GIGABYTE brings Intel’s Skylake architecture to the SOHO segment with a new offering: the ‘Basin Falls’ single-socket platfor…Chipset Manufacturer: IntelTotal Processor Supported: 1Processor Socket: Socket R4 LGA-2066Processor Supported: XeonNumber of Memory Slots: 8Memory Form Factor: RDIMMMemory Form Factor: LRDIMMMemory Form Factor: DIMMMaximum Memory: 64 GBMemory Speed Supported: 2.67 GHzMemory Speed Supported: 2.40 GHzMemory Speed Supported: 2.13 GHzMemory Speed Supported: 1.87 GHzMemory Technology: DDR4 SDRAMController Type: Serial ATA/600RAID Supported: YesRAID Levels: 10RAID Levels: 5RAID Levels: 1RAID Levels: 0Onboard Video: NoAudio Channels: 7.1Gigabit Ethernet: YesNumber of Total Expansion Slots: 7Total Number of PCI Express Slots: 7Number of PCI Express x16 Slots: 7Total Number of USB Ports: 10Number of USB 3.0 Ports: 8Number of USB 3.1 Ports: 2S/PDIF: YesNumber of SATA Interfaces: 10Number of M.2 Interfaces: 1Total Number of Onboard USB Ports: 6Number of Onboard USB 3.0 Ports: 4Form Factor: SSI CEBWidth: 12Depth: 10.5″Environmentally Friendly: YesEnvironmental Certification: China RoHSEnvironmental Certification: RoHSEnvironmental Certification: WEEELimited Warranty: 3 Year”
Learn more about the GIGABYTE MW51-HP0
| Brand | GIGABYTE |
|---|---|
| Model | MW51-HP0 |
| CPU Socket Type | LGA 2066 |
|---|---|
| CPU Type | Supports Intel Xeon W-2200 / W-2100 Processor Family |
| North Bridge | Intel C422 |
|---|
| DDR4 Standard | DDR4 1866 / 2133 / 2400 / 2666 (1DPC) MHz |
|---|---|
| Maximum Memory Supported | RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported |
| Channel Supported Channel Supported | Quad Channel |
| PCI Express x16 | Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU0 Slot_6: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_5: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_6 Slot_4: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_3: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_4 Slot_2: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_2 |
|---|---|
| Other Slots | 1 x M.2 slot: M-key PCIe Gen3 x4 Supports NGFF-2242/2260/2280/22110 cards 1 x U.2 connector: |

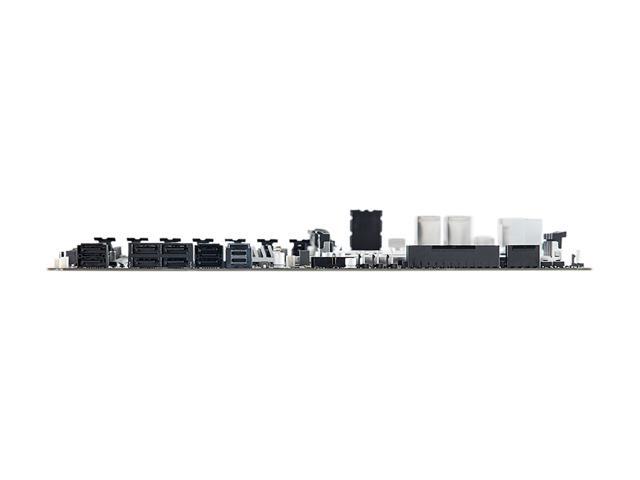

| SATA | 8 x SATA III 6Gb/s ports with 2 x SATA DOM supported 2 x SATA III 6Gb/s ports (Marvell 88SE9172 controller) |
|---|---|
| SATA RAID | Intel SATA RAID 0/1/10/5 |
| Audio Chipset Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210 |
| Second LAN Speed | 10/100/1000Mbps |
| PS/2 PS/2 | 1 |
|---|---|
| Video Ports | 1 x VGA |
| RJ45 | 2 x RJ45 |
| USB 3.0 USB 3.0 | 8 x USB 3.0 |
| USB 3.1 | 2 x USB 3.1 in Type-A (red) and Type-C (red) (5V / 3A) |
| Audio Ports | 5 Ports |
| Features | Intel Xeon W-series Processor Family
Intel C422 Express Chipset Quad Channel RDIMM / LRDIMM DDR4, 8 x DIMMs Intel VROC ready ASMedia 2142 USB 3.1 Gen 2 USB controller Realtek ALC1150 HD audio codec 2 x GbE LAN ports (Intel I210) 8 x SATA III 6Gb/s ports from C422, supports SATA DOM 2 x SATA III 6Gb/s ports from Marvell 88SE9172 controller Ultra-Fast M.2 and U.2 with PCIe Gen3 x4 interface 4 x Full speed PCIe Gen3 x16 slots; total 7 x expansion PCIe x16 slots |
|---|
| Form Factor | CEB |
|---|---|
| Dimensions (W x L) | 12.0″ x 10.5″ |
| Package Contents | 1 x MW51-HP0 1 x Driver CD 1 x I/O shield 1 x User manual 8 x SATA III 6Gb/s cables (500mm) 1 x External thermistor cable (2P / 900mm) |
|---|
| Date First Available | February 25, 2022 |
|---|
