GIGABYTE MU72-SU0 ATX Server Motherboard Socket P+ Intel C621A
SKU: N82E1681314533922.272.510₫
3rd Gen. Intel Xeon Scalable Processors
Intel Xeon W-3300 Processor Family
8-Channel RDIMM/LRDIMM DDR4 per processor, 8 x DIMMs
Supports Intel Optane Persistent Memory 200 series
Intel C621A Express Chipset
Dual 1Gb/s LAN ports (Intel I210-AT)
1 x Dedicated management port
3 x SlimSAS (for 12 x SATA 6Gb/s) ports
Ultra-Fast M.2 and with PCIe Gen3 x4 interface
Up to 7 PCIe Gen4 expansion slots
Description
Learn more about the GIGABYTE MU72-SU0
| Best Seller Ranking | #33 in Server Motherboards |
|---|
| Brand | GIGABYTE |
|---|---|
| Model | MU72-SU0 |
| CPU Socket Type | Socket P+ |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable Processors Supports Intel Xeon Platinum / Xeon Gold / Xeon Silver Processors |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 256GB |
| PCI Express 4.0 x16 | Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_6: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_5 Slot_5: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot Slot_4: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_3 Slot_3: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot Slot_2: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_1 Slot_1: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot |
|---|
| SATA RAID | 0/1/10/5 |
|---|---|
| M.2 | 1 x M.2 slot: – M-key – PCIe Gen3 x4 per slot – Supports NGFF-2280 cards |
| SAS | 3 x SlimSAS for 12 x SATA III 6Gb/s ports |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10/100/1000Mbps |

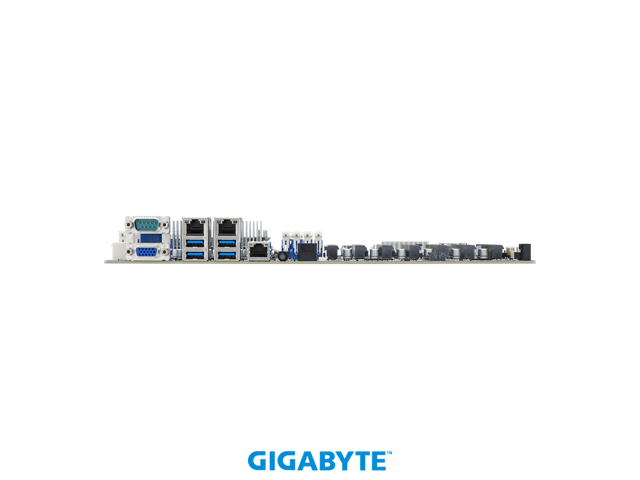

| Back I/O Ports | 4 x USB 3.0 1 x VGA 1 x COM 2 x RJ45 1 x MLAN 1 x ID button with LED |
|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector ( for PCIe slot) 3 x SlimSAS connectors 1 x M.2 slot 1 x CPU fan header 6 x System fan headers 1 x USB 3.0 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x Buzzer |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12″ x 10″ |
| Package Contents | 1 x MU72-SU0 1 x I/O shield 1 x Quick start guide 1 x SlimSAS for 4 x SATAIII 6Gb/s cable |
|---|
| Date First Available | January 10, 2022 |
|---|
