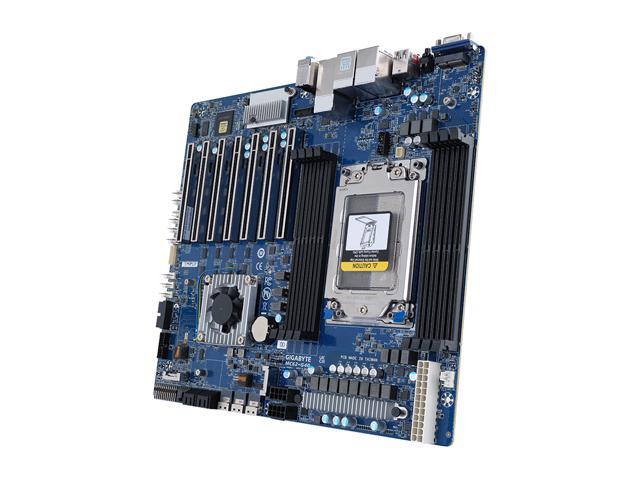

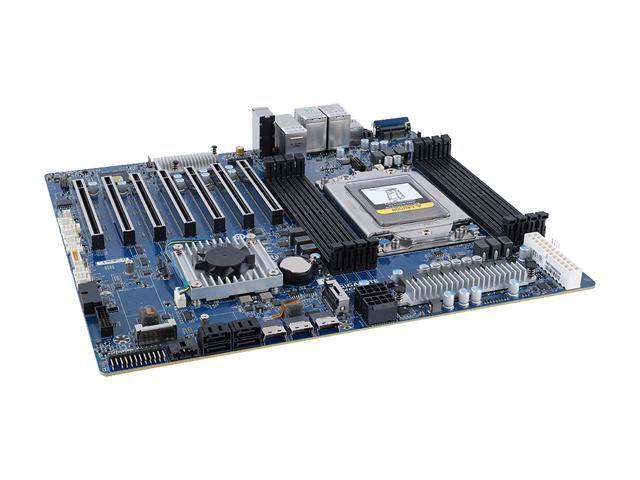

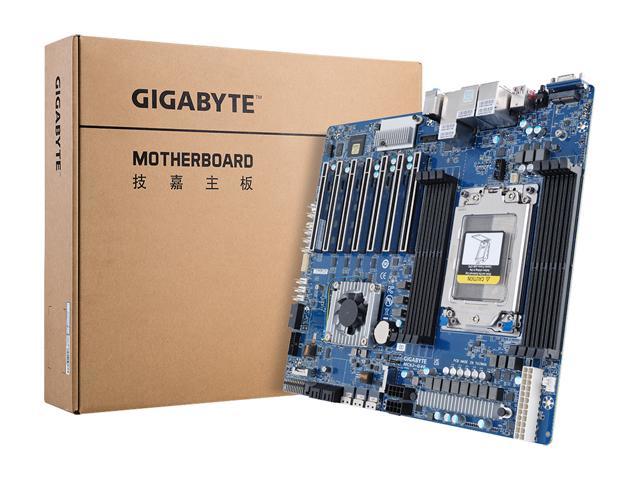

GIGABYTE MC62-G40 AMD Ryzen Threadripper PRO Workstation Board
SKU: 9SIBD50J4W487436.984.285₫
AMD Ryzen Threadripper PRO 5000WX and 3000WX Processors8-Channel DDR4 UDIMM/RDIMM/3DS RDIMM/LRDIMM 8 x DIMMsDual Intel 10GbE and 1GbE LAN Ports1 x Dedicated Management Port7 x PCIe 4.0 Slots for Multi-GPU4x SATA Ports, 3x SlimSAS Ports (PCIe Gen4 or SATA)Dual M.2 (PCIe Gen4 or SATA) and USB 3.2 Gen2
Description
Learn more about the GIGABYTE MC62-G40
| Best Seller Ranking | #78 in Server Motherboards |
|---|
| Brand | GIGABYTE |
|---|---|
| Model | MC62-G40 |
| CPU Socket Type | Socket sWRX8 |
|---|---|
| CPU Type | Supports AMD Ryzen Threadripper PRO 5000WX Series Processors Supports AMD Ryzen Threadripper PRO 3000WX Series Processors |
| Number of DDR4 Slots | 8 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Channel Supported Channel Supported | Eight Channel |
| PCI Express 4.0 x16 | 6 |
|---|---|
| PCI Express x16 | 7 x PCIe 4.0 Slots for Multi-GPU |
| PCI Express x8 | 1 x PCI Express x8 |
| SATA | 4 x SATA III 6Gb/s ports 3 x SlimSAS ports (PCIe Gen4 x4 or 4x SATA III 6Gb/s each) |
|---|---|
| Additional SATA RAID | 0/1/5/10 |
| M.2 | 2 x M.2 slot for storage (PCIe Gen4 x4 or SATA III 6Gb/s) |
| Audio Chipset Audio Chipset | Realtek ALC4080 |
|---|---|
| Audio Channels Audio Channels | 7.1 Channels |
| Number of LAN | 2 |
|---|---|
| LAN Chipset | Intel X550-AT2 |
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10/100/1000Mbps |
| Video Ports | D-Sub |
|---|---|
| RJ45 | 2 x RJ45 (red) (10GbE LAN) 1 x RJ45 (GbE LAN) |
| USB 3.2 | 2 x USB 3.2 gen2 (Type-A + Type-C) 4 x USB 3.2 gen2 Type-A |
| Onboard USB | 2 x USB 3.0 headers for 4 ports |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x PCH fan header 8 x System fan headers 1 x PMBus connector 4 x SATA III 6Gb/s ports 2 x M.2 slot for storage 1 x M.2 slot for Wi-Fi 3 x U.2 connector 1 x Front panel header 1 x Back plane board header 1 x PMBus header 1 x IPMB header 1 x TPM header 1 x COM header |
| Form Factor | CEB |
|---|
| Date First Available | August 22, 2022 |
|---|
