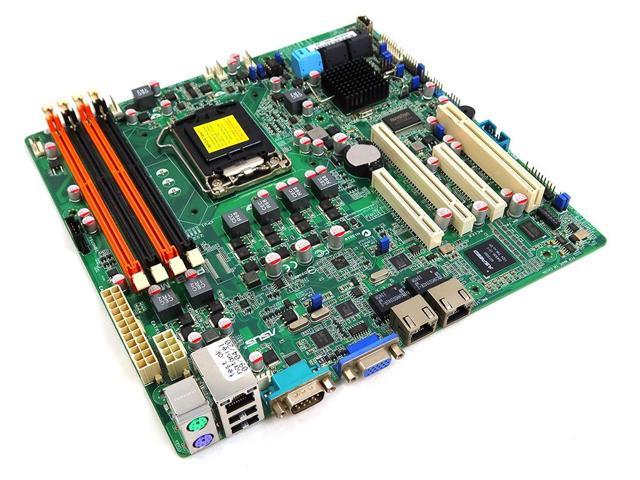

P8B-M Asus Intel Chipset C204 Socket LGA1155 DDR3 Sata M-ATX Server Motherboard Intel LGA1155 Motherboard

Model: P8B-M

Part Number: 90-MSVDL0-G0UAY0YZ

Chipset: Intel C204

Socket: Intel LGA1155

Compatible/Supported CPU: Intel Xeon E3-1200, i3-2100, G8X0, G6X0 Processor

Max Supported Memory: Up to 32GB
Number of
Memory Slots: 4 (2-Channel)

Memory Type: DDR3 SDRAM

Video Chipset/GPU Model: Aspeed AST2050

Graphics Memory: 16MB VRAM

Network/Communications: 2x Intel 82574L + 1x Mgmt LAN

Connectors: 2x SATA3 6Gb/s, 4x SATA2 3Gb/s, 1x TPM header, 1x PSU Power, 24-pin ATX power + 8-pin ATX 12V power, 1x USB connector, 2x USB pin header Up to 4 Devices, 5x Fan Header 4pin, 1x SMBus, 1x Chassis Intruder, 1x Serial Port Header

Input/Output Ports: 1x External Serial, 2x External USB Port, 1x VGA Port, 2x RJ-45, 1x PS/2 KB/Mouse

Expansion Slots: 1x PCI 32bit, 2x PCI-E x8, 1x PCI-E x16

Form Factor: Micro-ATX

Type: Server Motherboard

Please note, this motherboard does not come with rear I/O shield also known as back-plate cover or any other accessories. This item is used and has minor scuffs and scratches, but is fully operational and functions as intended!

• Grade B, Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
