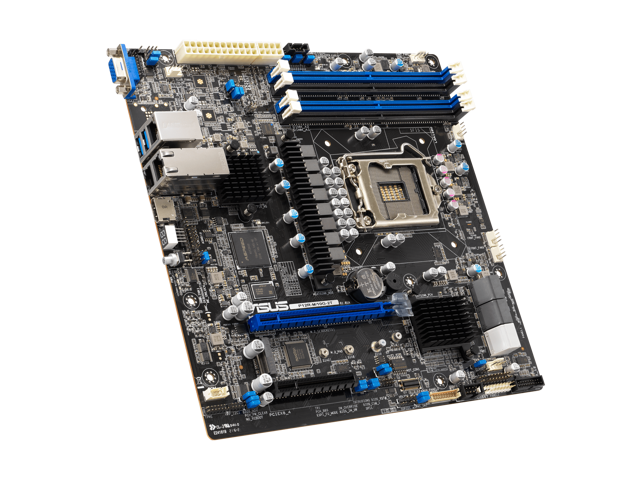

Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual 10G LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM
SKU: N82E1681311955716.015.350₫
Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
Dual Intel X710AT Gigabit Ethernet with teaming support
One M.2 for up to 32 Gbps performance for faster OS booting
HDMI 1.4 support for high-resolution display maintenance and monitoring
Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Description
Learn more about the ASUS P12R-M/10G-2T
| Best Seller Ranking | #38 in Server Motherboards |
|---|
| Brand | ASUS |
|---|---|
| Model | P12R-M/10G-2T |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports Intel Pentium / Xeon E processors |
| North Bridge | Intel C252 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | Slot Location 6 : PCI-E x16 (Gen4 X16 Link) |
|---|---|
| PCI Express x8 | Slot Location 4 : PCI-E x8 (Gen4 X4 Link) |
| SATA | 6 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Back I/O Ports | 2 x USB 3.2 Gen 2 1 x VGA Port 1 x HDMI Port 2 x 10 GbE LAN + 1 x Mgmt LAN |
|---|
| Other Connectors | 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x USB3.2 Gen2 ports 1 x USB3.2 Gen1 header 1 x USB 2.0 pin header 6 x Fan Header, 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector 1 x VGA Header 1 x Onboard header for optional management card |
|---|
| Form Factor | uATX |
|---|---|
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Date First Available | May 09, 2022 |
|---|
