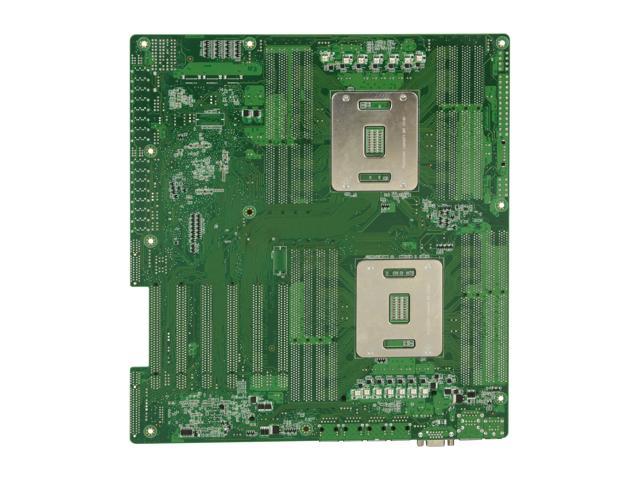

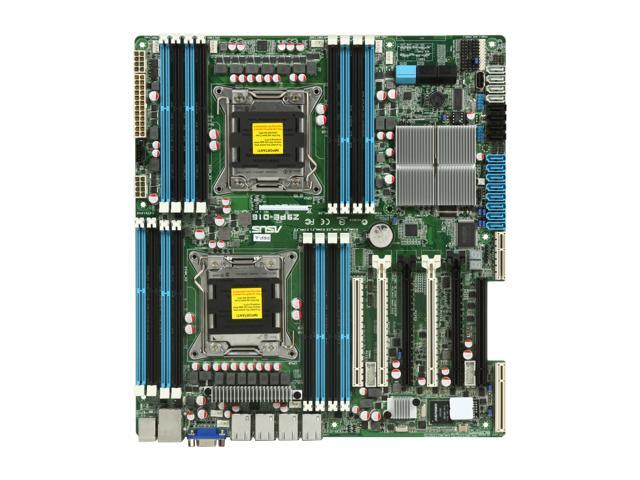

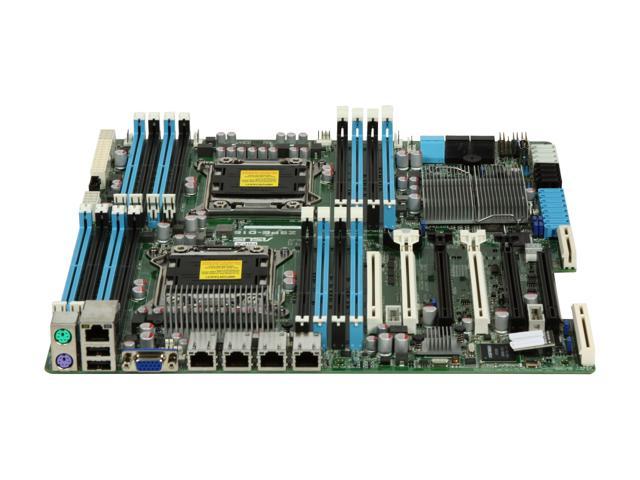

ASUS Z9PE-D16 SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600
SKU: 9SIA4REGAY403913.370.955₫
Dual LGA 2011
16 x 240pin
Intel C602 PCH
Description
#overview-content.sku-13-131-814 .banner {width: 100%; height: 80px; margin-bottom: 0px; background:none; }
#overview-content.sku-13-131-814 .main .main-image {height:304px; margin:0 auto 20px; background: url(//images10.newegg.com/BizIntell/item/13/131/13-131-814/banner.jpg) no-repeat center center; }
#overview-content .title {margin: 0 auto 20px; padding: 8px 0; border: 0; background-color: #020149; color: #fff; text-align: center; font-size: 16px; font-weight: bold; }
Innovative Technologies Deliver Easy Expandability, Complete Storage and High Power Efficiency
The ASUS Z9PE-D16 serverboard provides an ideal foundation for reliable performance and future upgrades. Through innovative ASUS design, it offers a high power efficiency of up to 90%, quad Intel® LAN ports with great virtualization support, and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server.
Features
Complete Storage Support
The Z9PE-D16 boasts multiple SAS implementation, from Intel® SCU/AHCI to ASUS PIKE, supporting the latest SATA/SAS 6Gbps technology. While ASUS optional PIKE provides slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved via a unique slot — without sacrificing expansion capability. ASUS PIKE further provides customers with multiple I/O options and RAID functionality, and various storage expansion choices for different applications.
ASMB6-iKVM Upgrade Kit for Easy Troubleshooting
The ASMB6-iKVM enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers.
Green and Highly Power Efficient
Z9PE-D16 voltage regulation manages up to 90% peak power efficiency, with 88%+ during heavy CPU loading. This ensures high power efficiency for the entire system to help customers save operating costs.
Cutting-Edge Architecture
The Z9PE-D16 supports the latest Intel® E5-2600 series processors (Sandy Bridge-EP). Through ASUS design and research expertise, it has been adapted to support upcoming E5-2600 V2 processors (Ivy Bridge-EP) to protect customer investment. Featuring 16-DIMM slots, it can take up to 512GB of DDR3 1600 / 1333 / 1066 RDIMM / UDIMM / LRDIMM memory, providing high computing capability. Additionally, with PCI Express 3.0 support, the Z9PE-D16 enables higher bandwidth to meet various demanding application requirements.
Server-Class Quad LAN Connection
The new serverboard ships with the industry’s first fully integrated Intel® I350 quad-port Ethernet controller, which supports energy efficient Ethernet and DMA coalescing and offers reliable and fast network connections. With VT-d technology and new VMDq queuing, the Z9PE-D16 easily manages virtualization applications while maintaining superior performance.

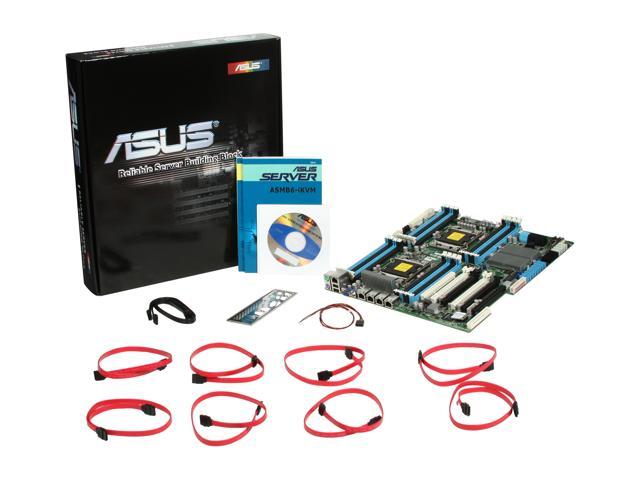

What’s in the Box
Learn more about the ASUS Z9PE-D16
| Brand | ASUS |
|---|---|
| Model | Z9PE-D16 |
| CPU Socket Type | Dual LGA 2011 |
|---|---|
| CPU Type | Dual Intel Xeon E5-2600 product family |
| QPI | 6.4 / 7.2 / 8.0 GT/s |
| Other Chipset | Intel C602 PCH |
|---|
| Number of DDR3 Slots | 16 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600 |
| Maximum Memory Supported | 512GB |
| PCI Express 3.0 x16 | Slot Location 1: PCI-E x16 Slot Location 2: PCI-E x16 (Gen3 X16 Link) Slot Location 3: PCI-E x16 (Gen3 X16 Link) Slot Location 4: PCI-E x16 (Gen3 X16 Link) Slot Location 5: PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied Slot Location 6: PCI-E x16 MIO supported |
|---|---|
| Other Slots | Additional Slot 1: PIKE Slot for Storage Expansion |
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10/5 |
| Additional SATA | 4 x SATA 3.0Gb/s |
| Additional SATA RAID | 0/1/5/10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2300 16MB |
|---|
| LAN Chipset | Intel I350-AM4 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Quad 10/100/1000Mbps |
| PS/2 PS/2 | 2 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 1 * USB connector (Type A USB socket) 2 * USB pin header (up to 4 devices) |
|---|
| Features | High Power Efficiency: Up to 91% VR Efficiency 88%+ power efficiency during CPU heavy loading ASUS Latest 6G PIKE solutions On board SATA 6G supported from Intel PCH (AHCI) Support PCI-E Gen3 |
|---|
| Form Factor | SSI EEB |
|---|---|
| Dimensions (W x L) | 12.0″ x 13.0″ |
| Date First Available | October 26, 2021 |
|---|
