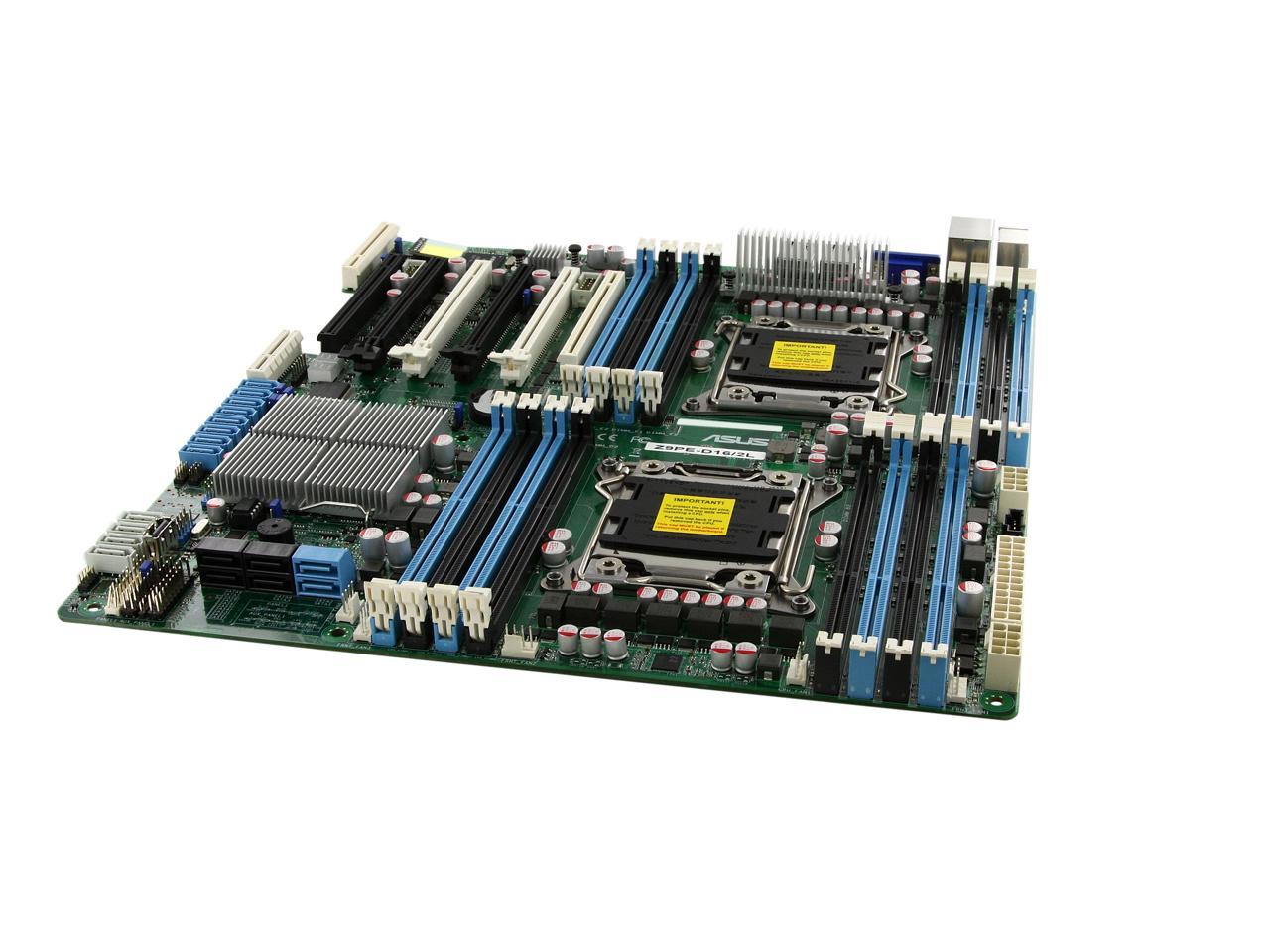

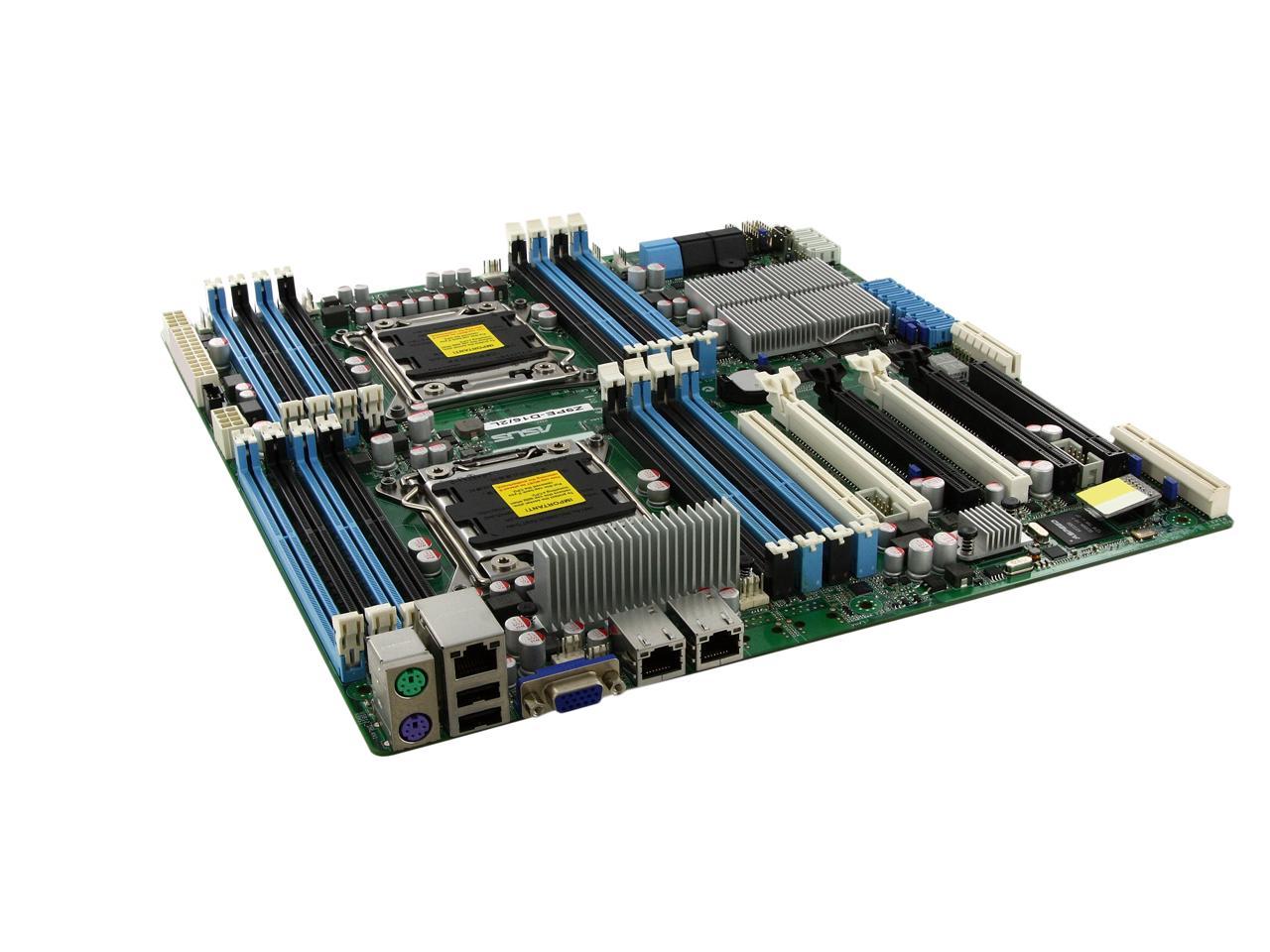

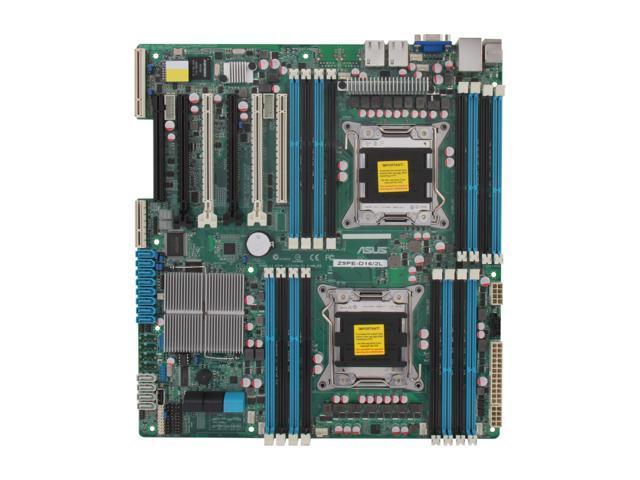

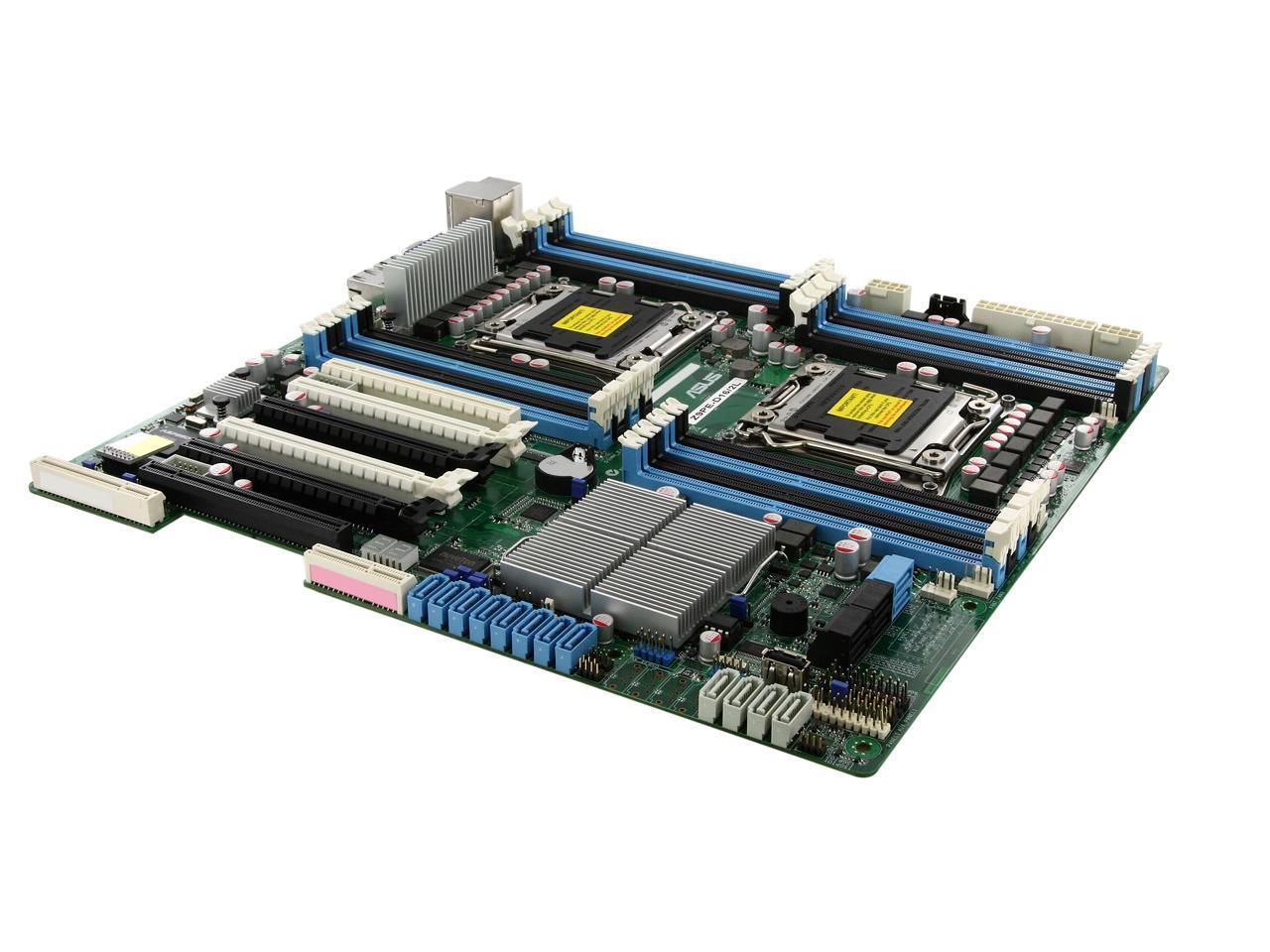

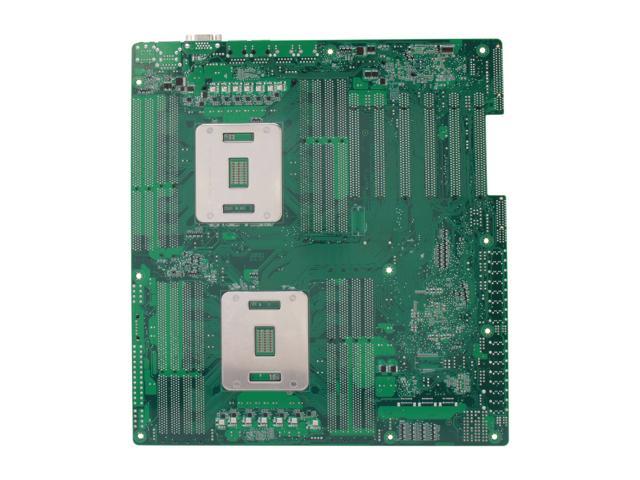

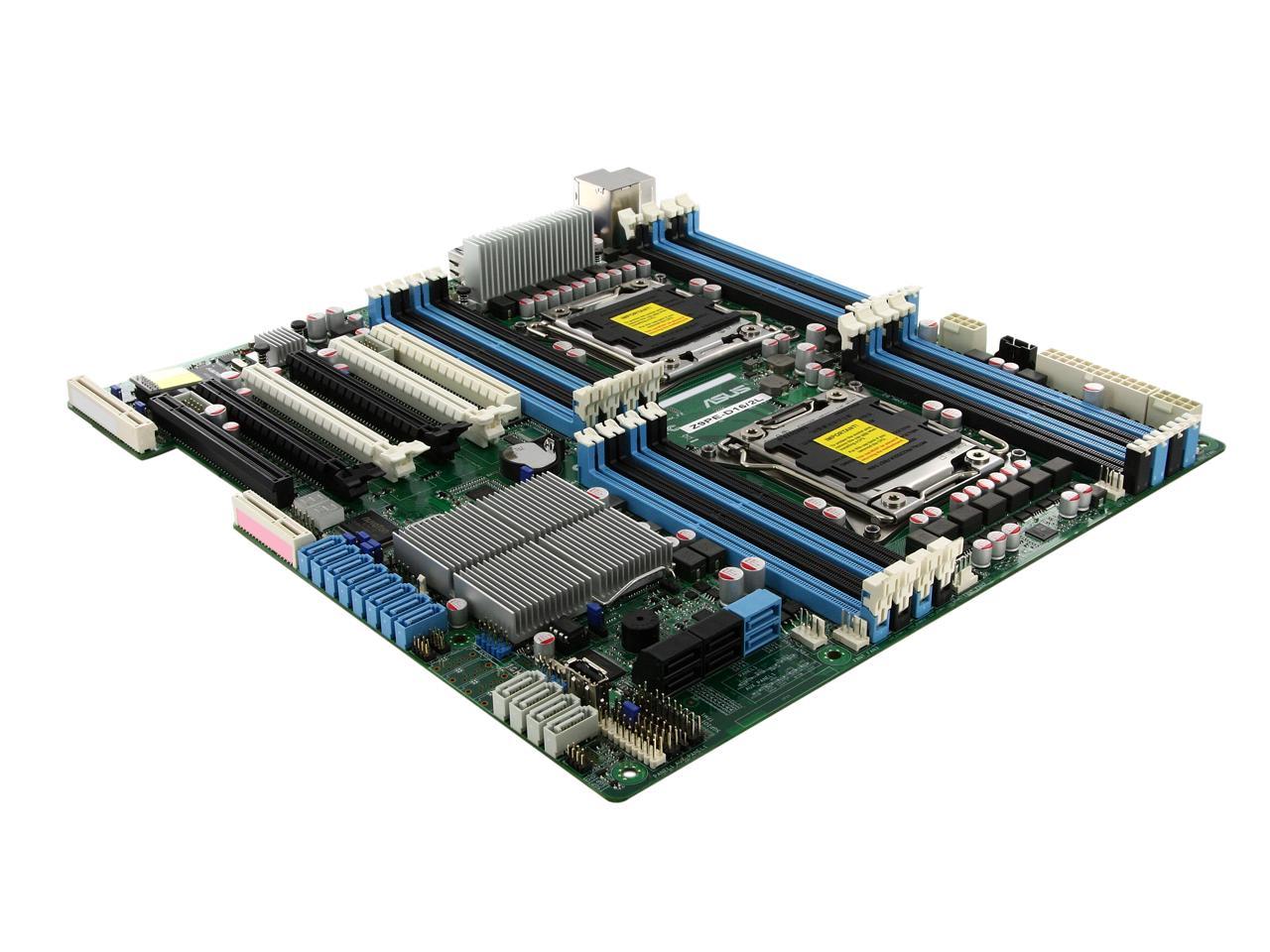

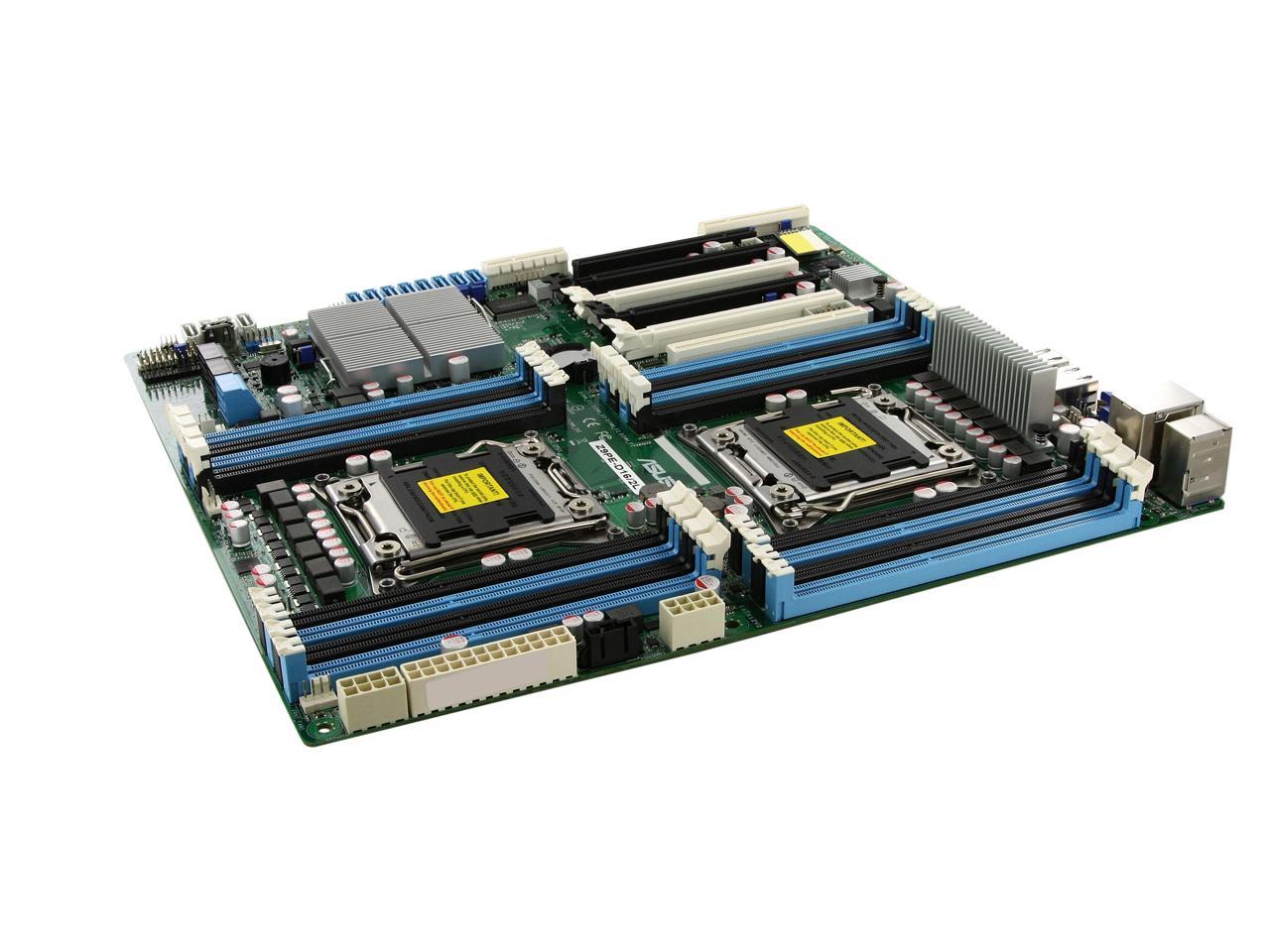

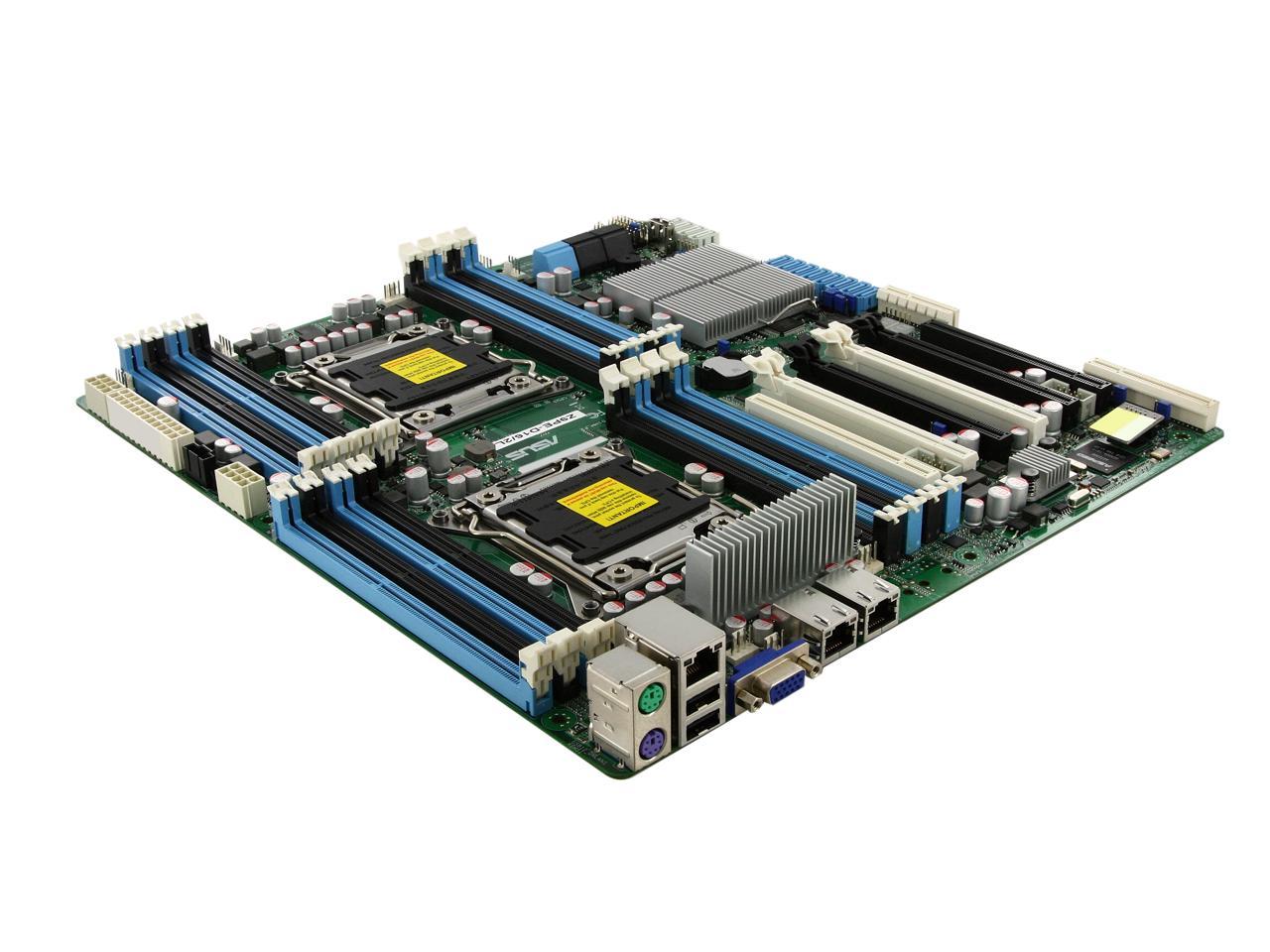

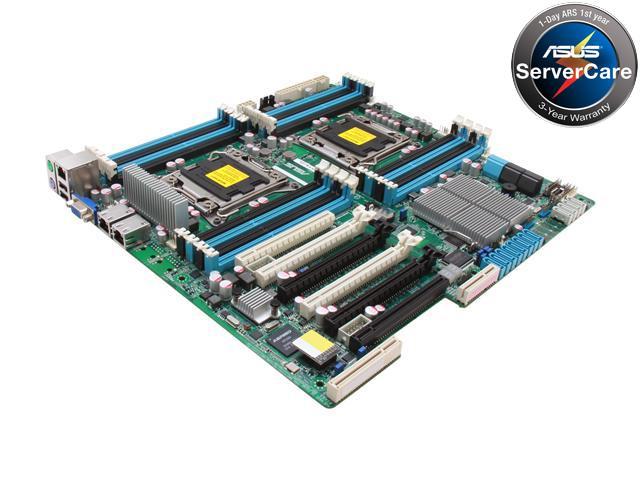

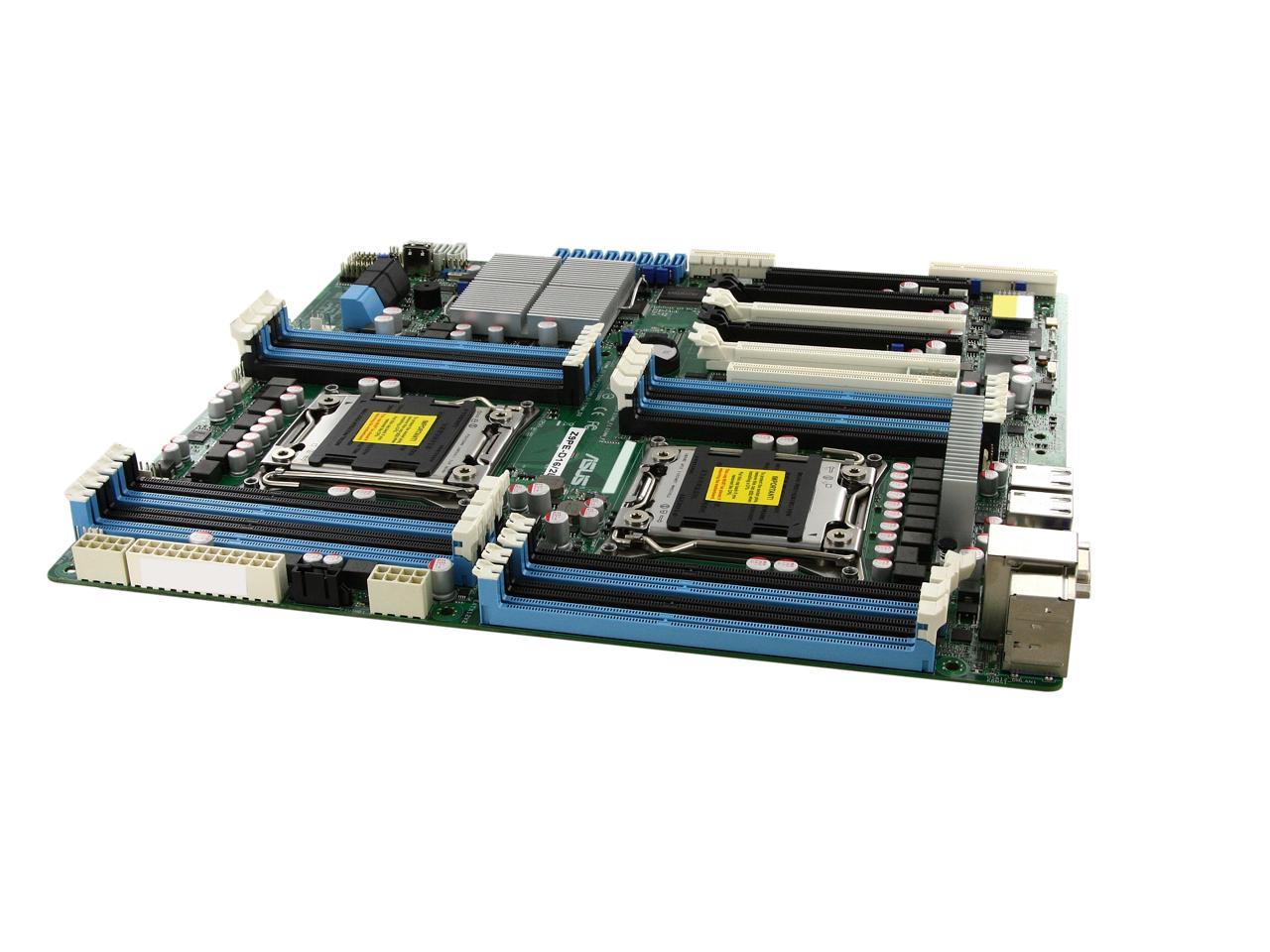

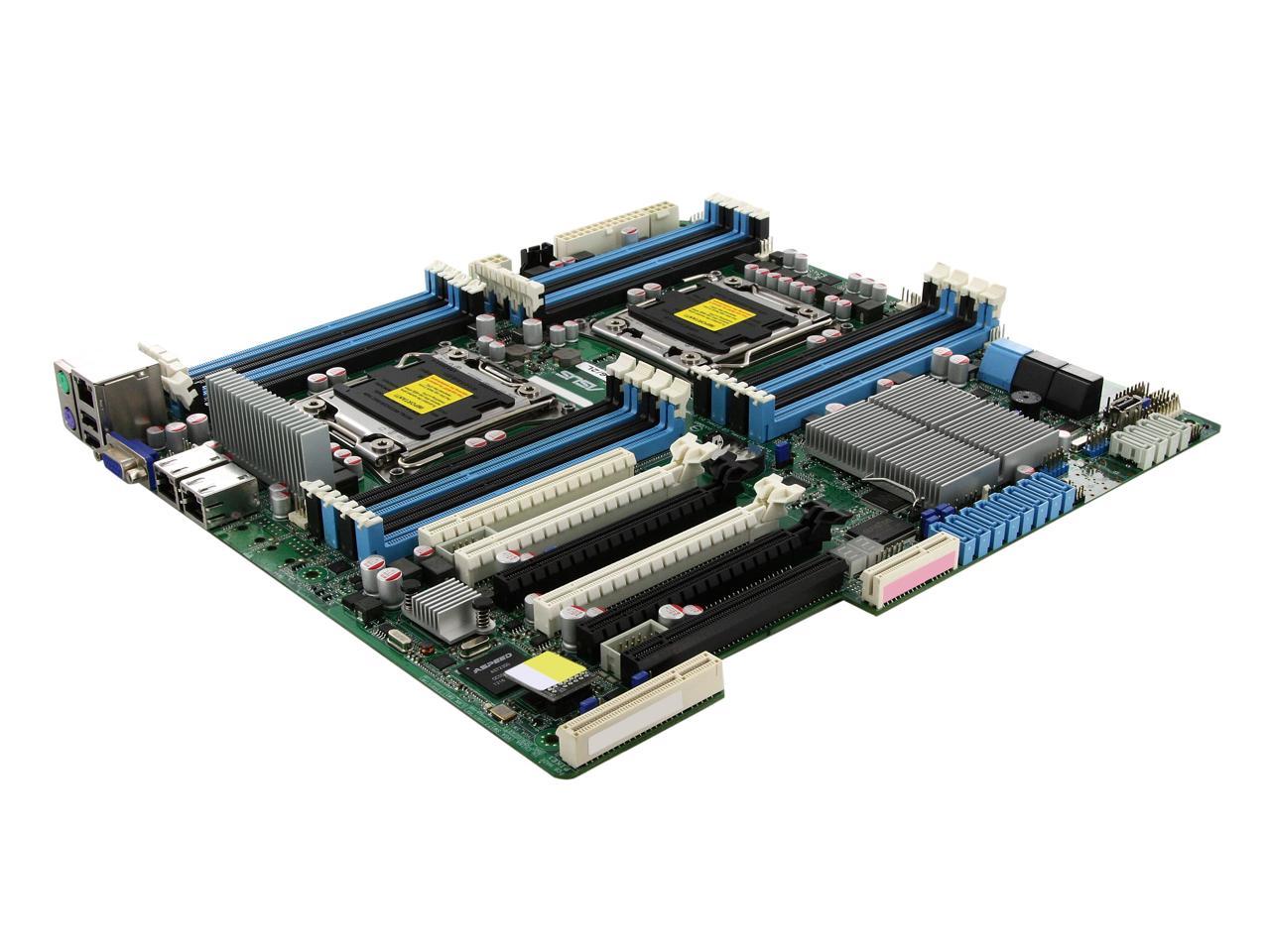

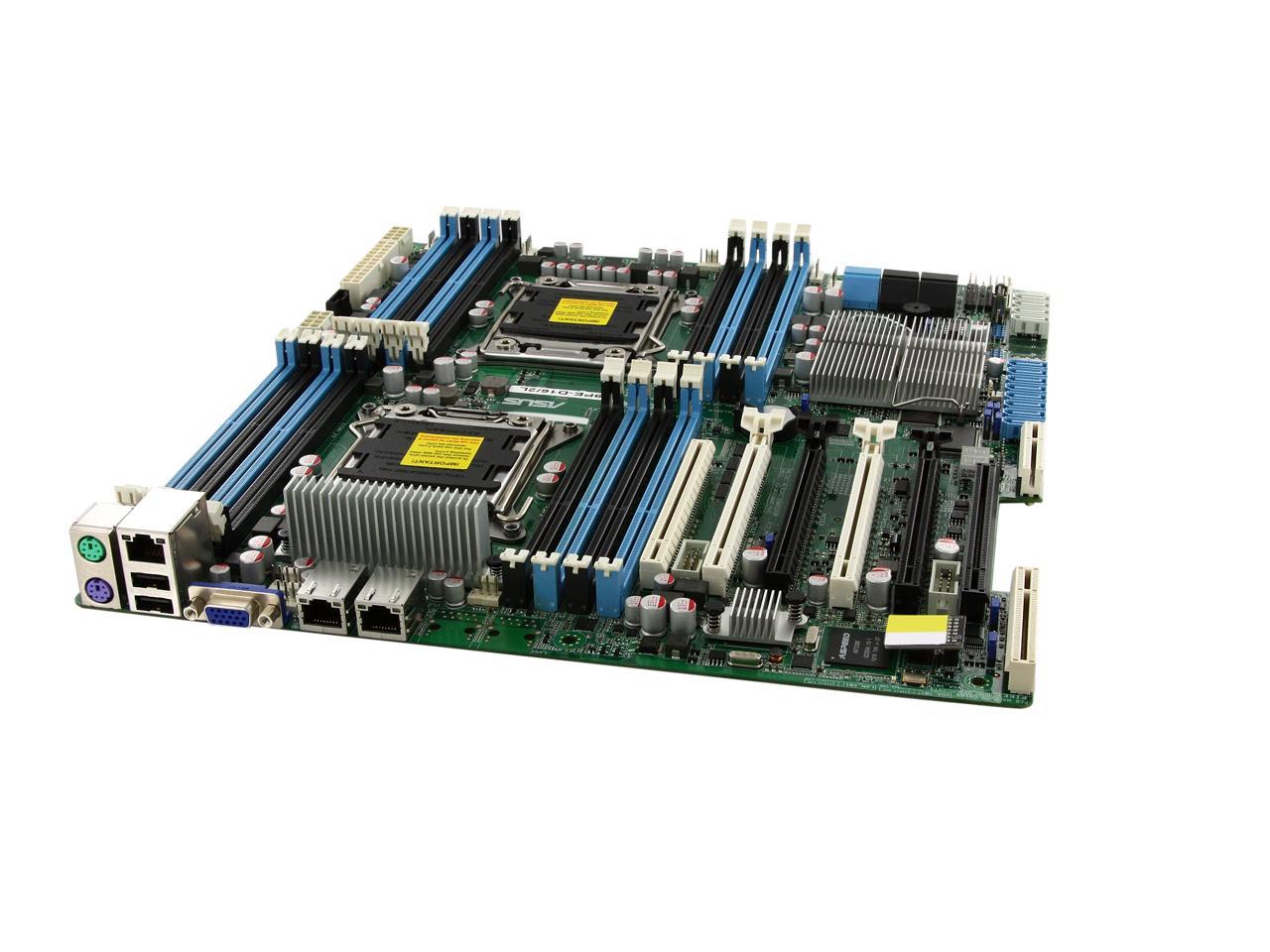

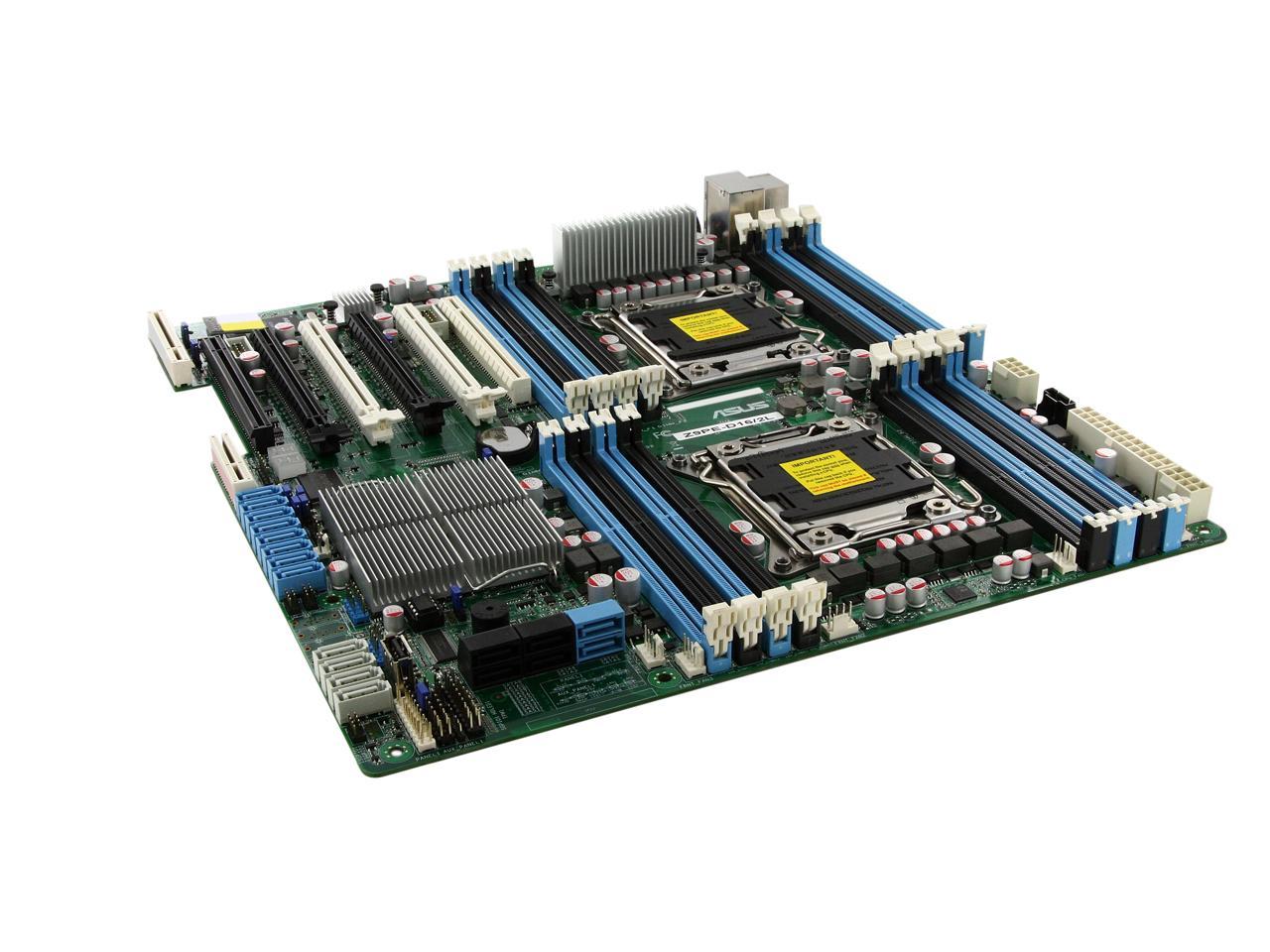

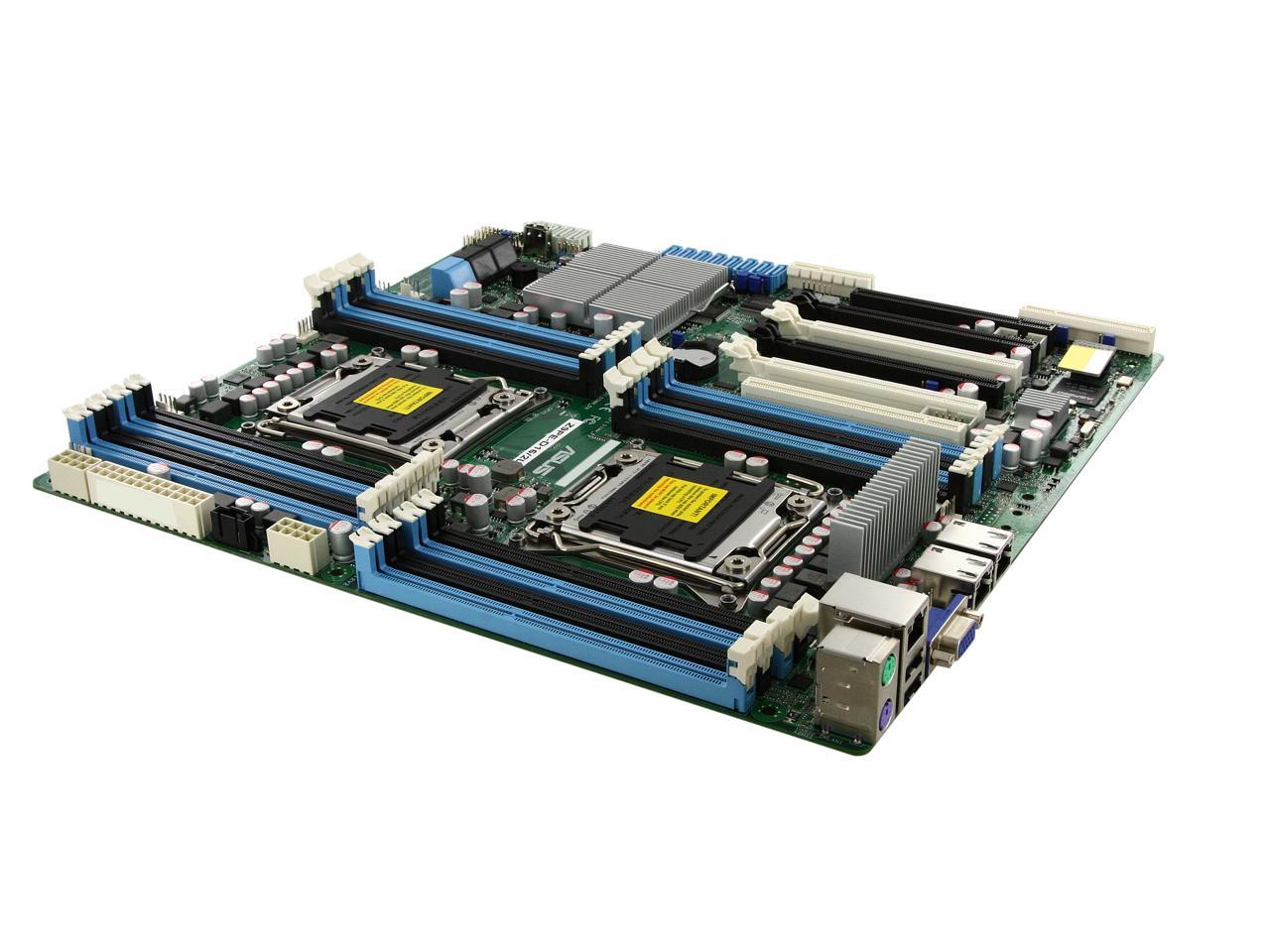

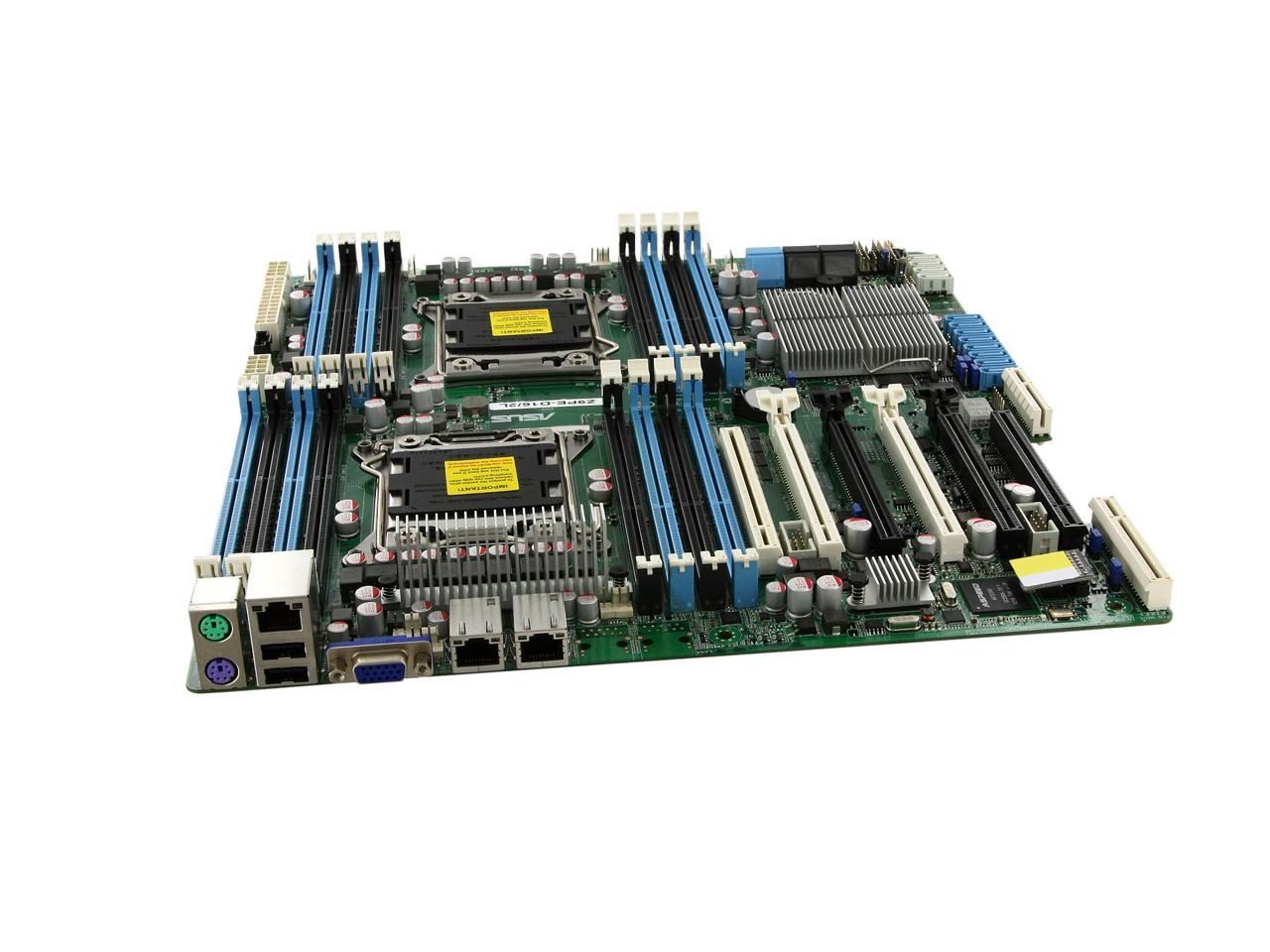

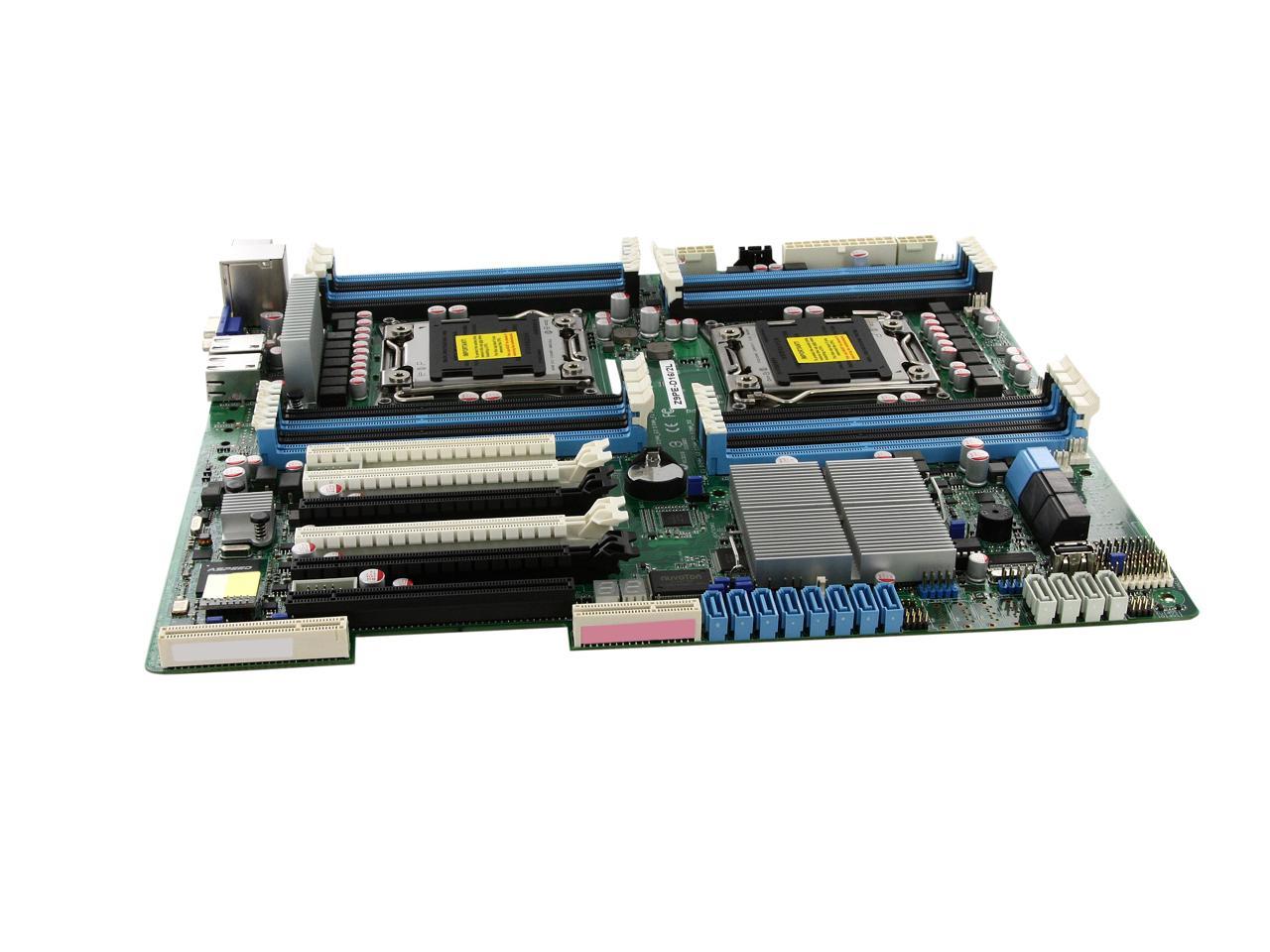

ASUS Z9PE-D16/2L SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600
SKU: 9SIA4REGAY395210.018.905₫
Dual LGA 2011
Intel C602-A PCH
16 x 240pin
Description
#overview-content.sku-13-131-861 .banner {width:100%; height:64px; margin-bottom:10px; background:url(//images10.newegg.com/BizIntell/item/13/131/13-131-861/logo.jpg) no-repeat center center; }
#overview-content.sku-13-131-861 .main .main-image {height:346px; margin:0 auto 10px; background:url(//images10.newegg.com/BizIntell/item/13/131/13-131-861/hero.jpg) no-repeat center center; }
#overview-content .title {margin:0 auto 20px; padding:5px 0; border:1px solid #000; background-color:#000; color:#fff; text-align:center; font-size:16px; font-weight:bold; }
#overview-content .lt{font-size:20px; font-weight:bold; line-height:30px; }
#overview-content .wt{font-size:22px; font-weight:bold; line-height:30px; color:#2894f8; }
#overview-content .tx{background:url(//images10.newegg.com/BizIntell/item/13/131/13-131-861/m.jpg) repeat-x; height:37px;}

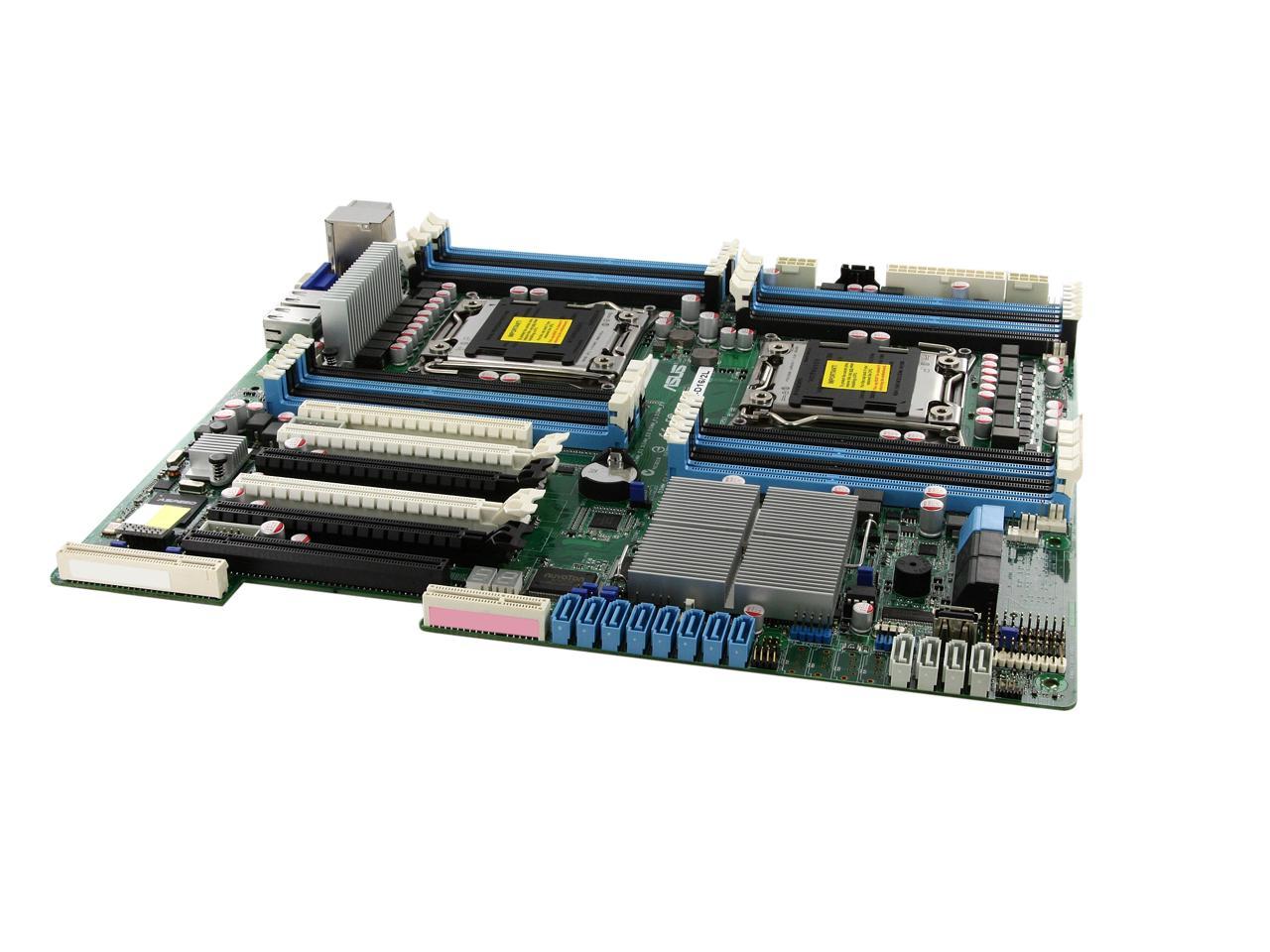

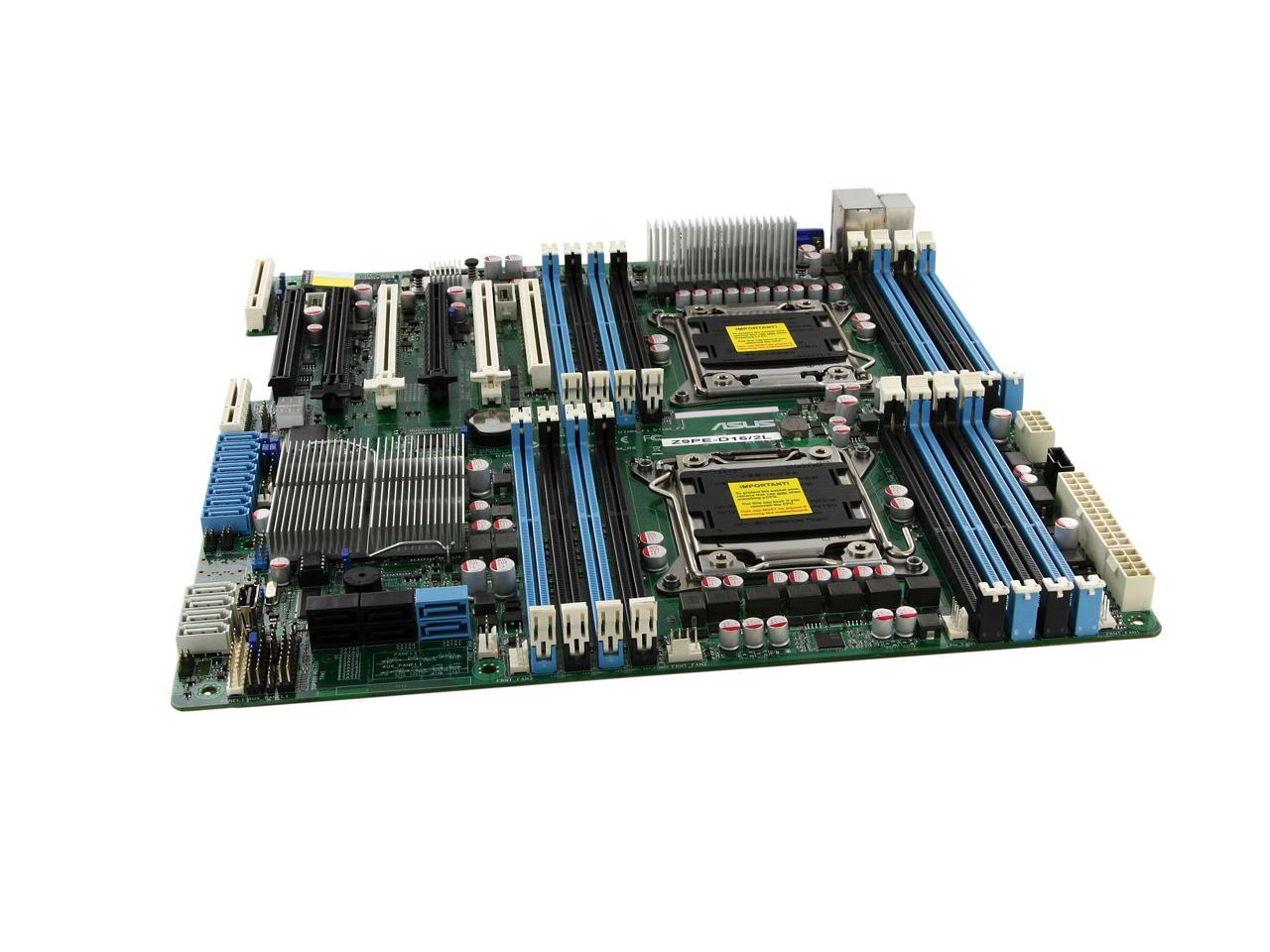

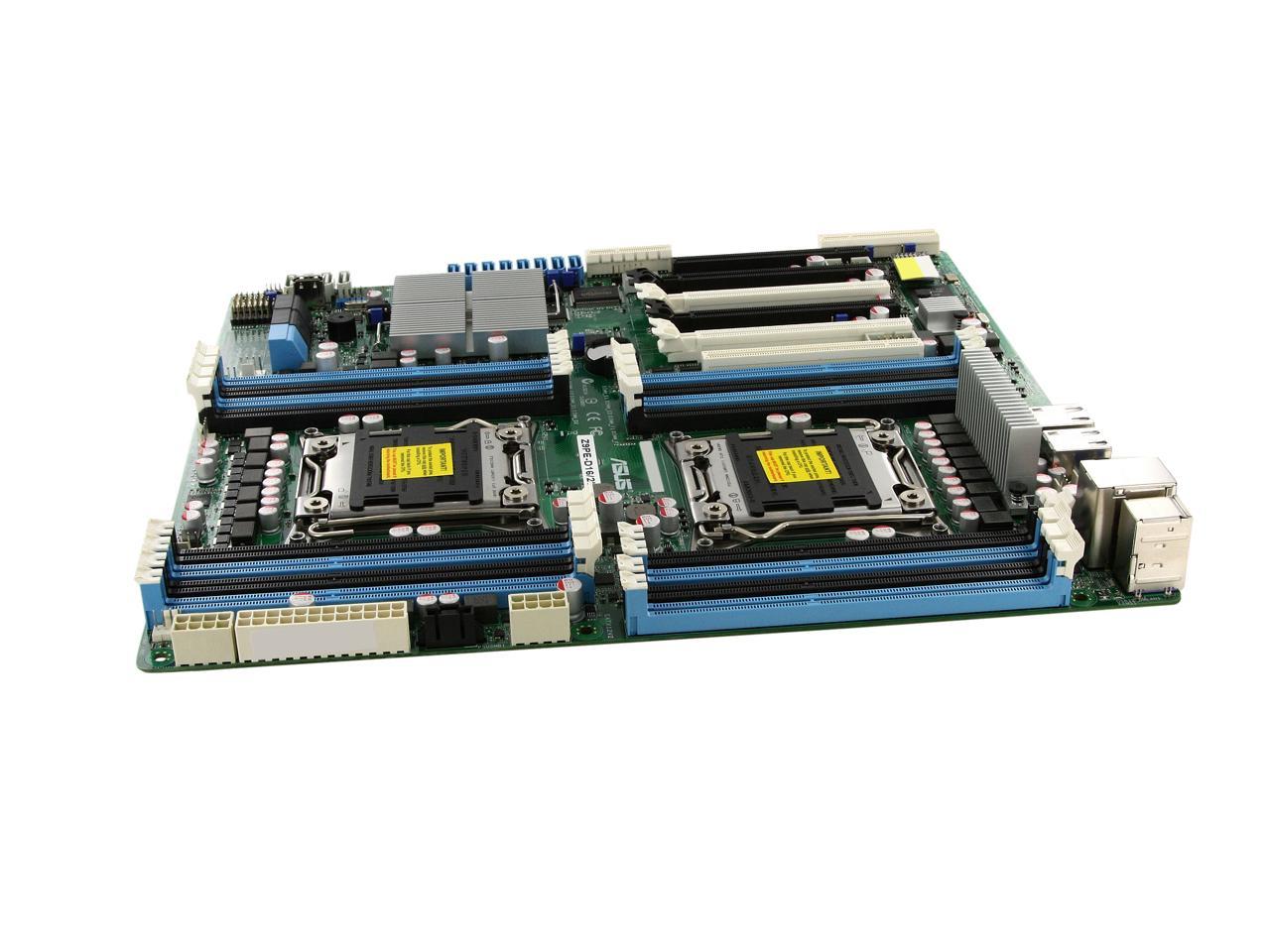

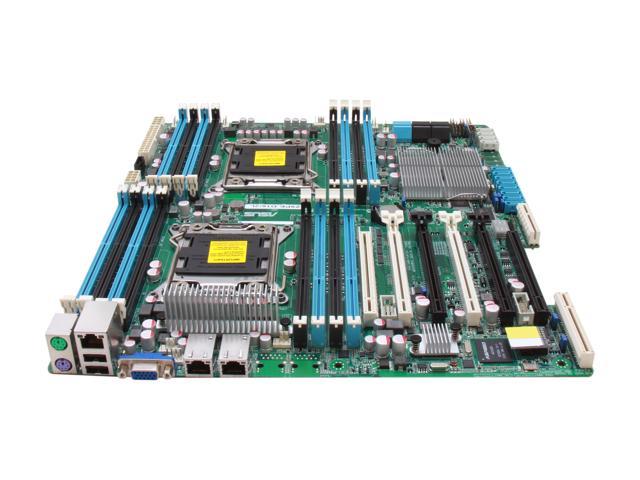

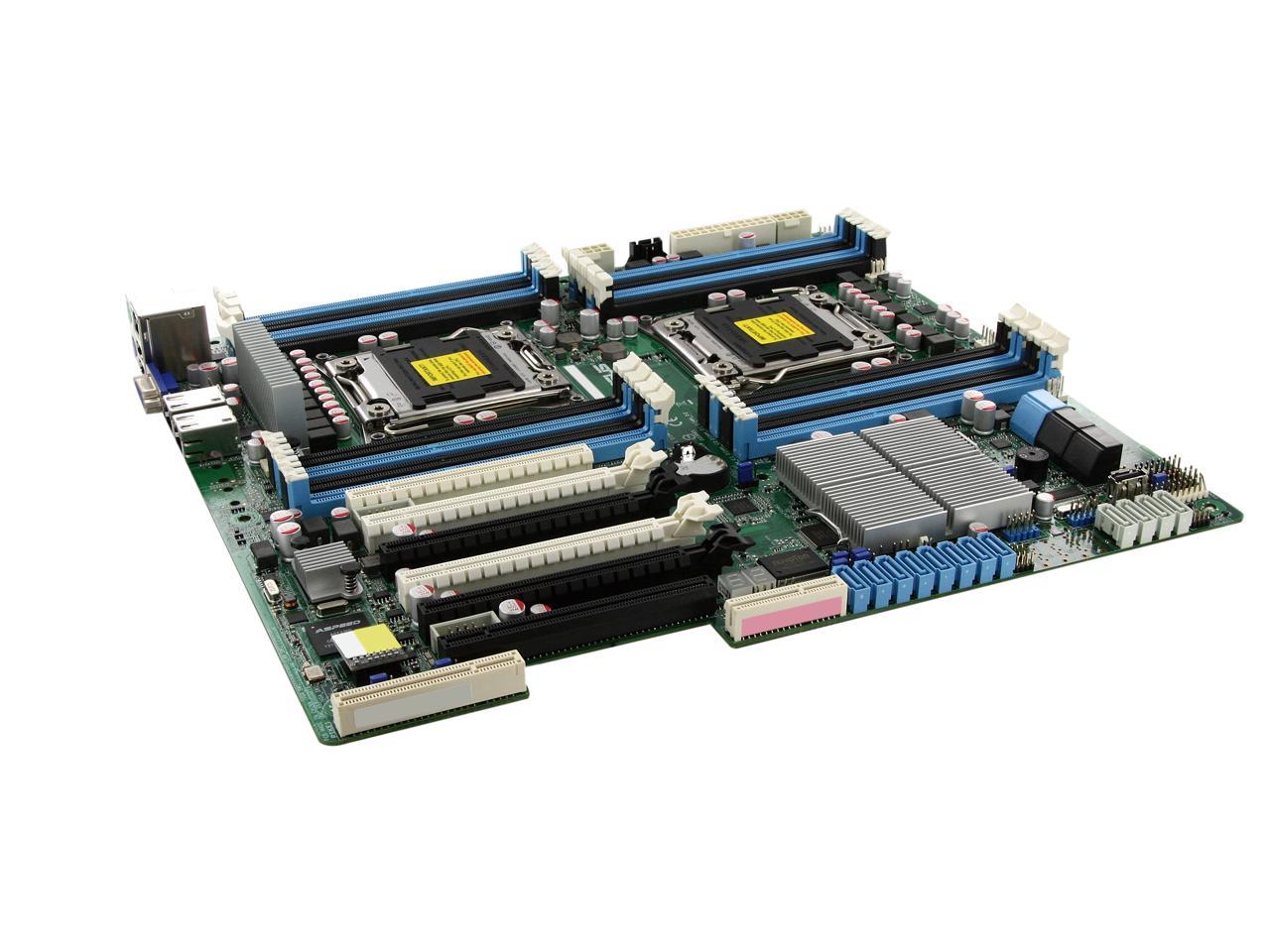

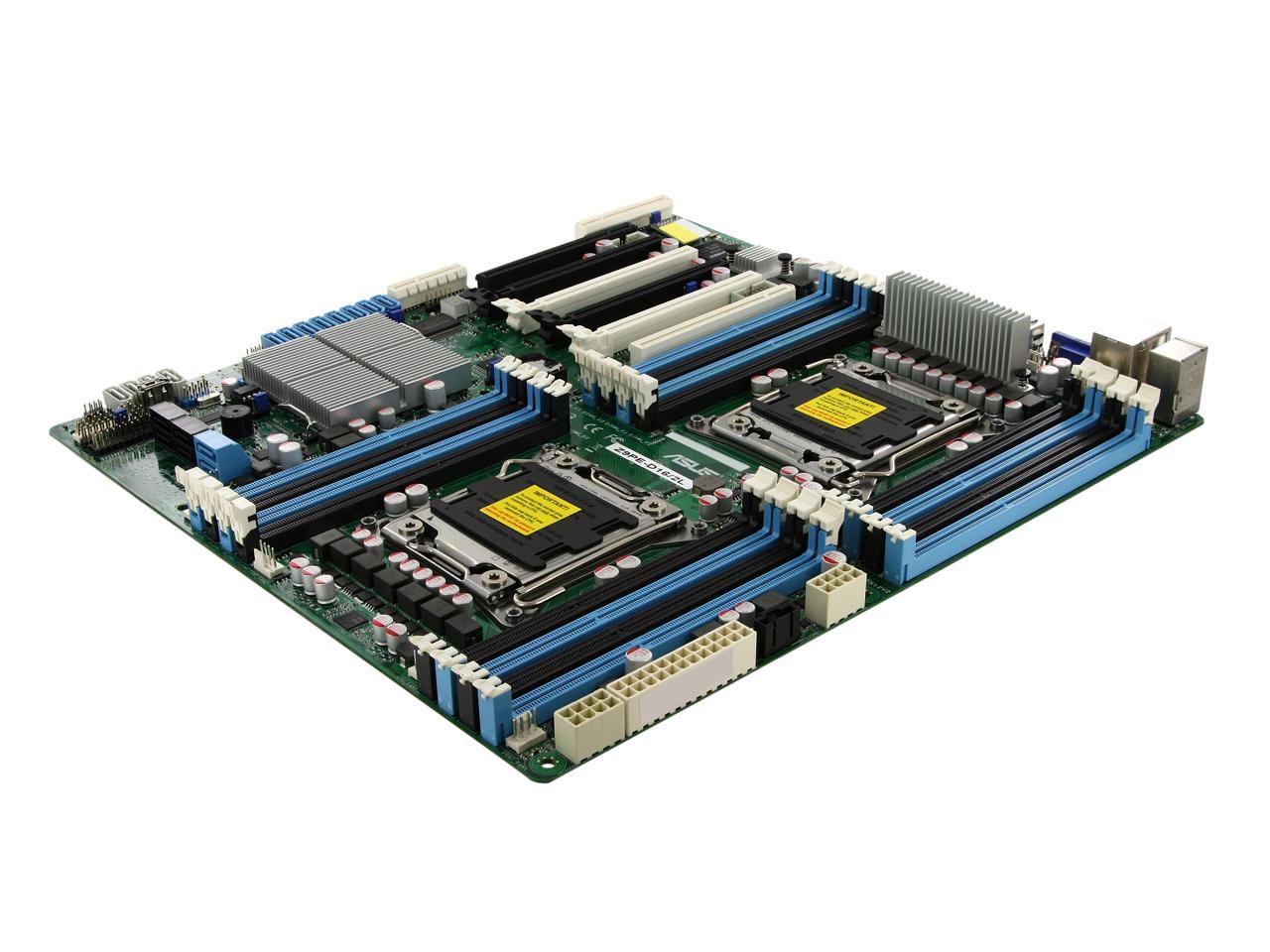

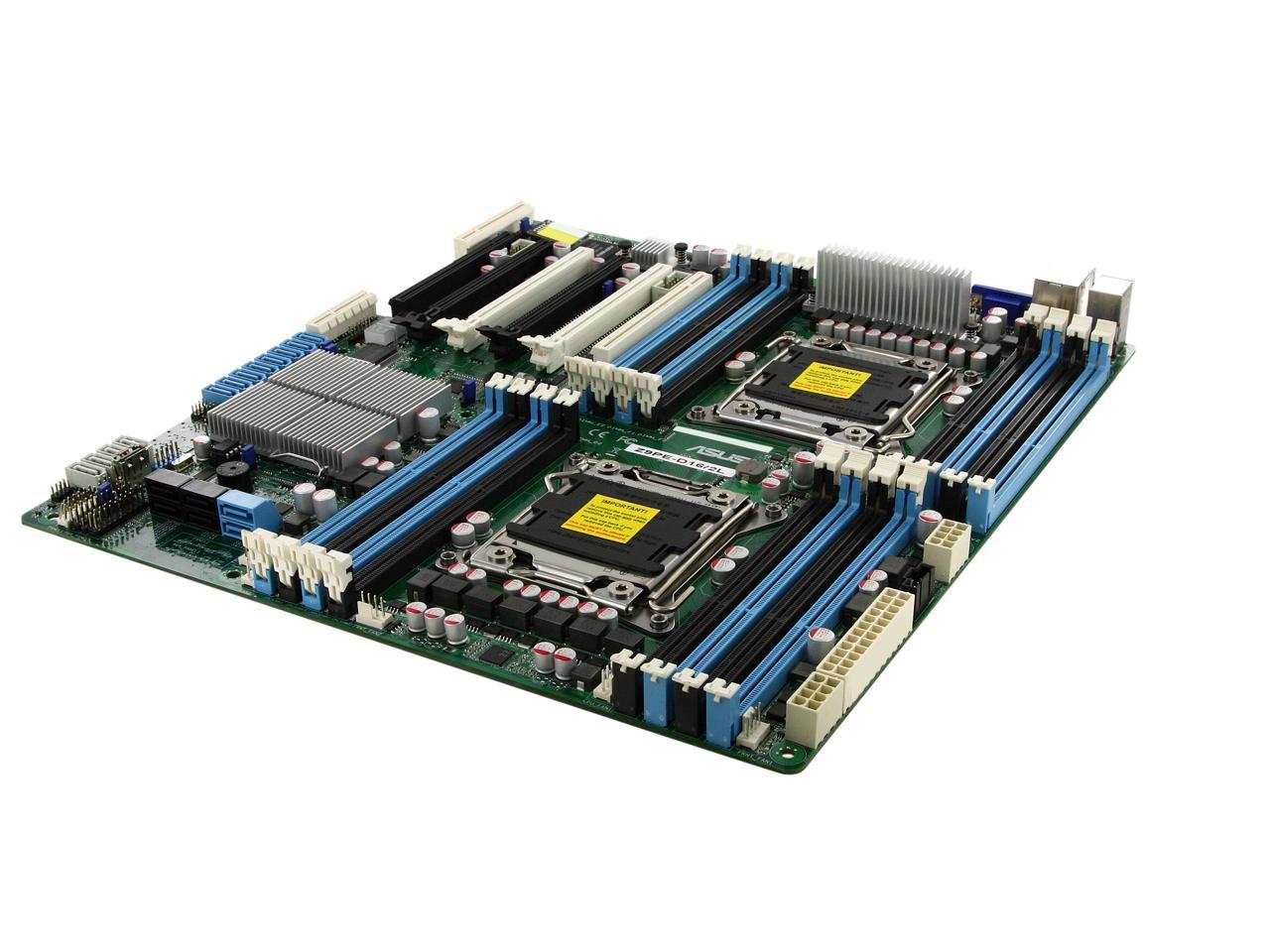

ASUS Z9PE-D16 / 2L SSI EEB Server Motherboard Dual LGA 2011 DDR3 1600
Innovative Technologies Deliver Easy Expandability, Complete Storage and High Power Efficiency
The ASUS Z9PE-D16/2L serverboard provides an ideal foundation for reliable performance and future upgrades. Through innovative ASUS design, it offers high power efficiency of up to 90%, dual Intel® LAN ports with great virtualization support, and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server.
Innovative Technologies Deliver Easy Expandability, Complete Storage and High Power Efficiency
Complete Storage Support
The Z9PE-D16/2L boasts multiple SAS/SATA implementation, from Intel® AHCI to ASUS PIKE, supporting the latest SATA/SAS 6Gbps technology. While ASUS optional PIKE provides slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved via a unique slot — without sacrificing expansion capability. ASUS PIKE further provides customers with multiple I/O options and RAID functionality, and various storage expansion choices for different applications.
Green and Highly Power Efficient
Z9PE-D16/2L voltage regulation manages up to 90% peak power efficiency, with 88%+ during heavy CPU loading. This ensures high power efficiency for the entire system to help customers save operating costs.
Built-In BMC Engine, KVM-over-IP Enabled by ASMB6 Module for Easy Troubleshooting
The ASMB6-iKVM enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers.
Cutting-Edge Architecture
The Z9PE-D16/2L supports the latest Intel® E5-2600 series processors (Sandy Bridge-EP). Through ASUS design and research expertise, it has been adapted to support E5-2600 V2 processors (Ivy Bridge-EP) to protect customer investment. Featuring 16-DIMM slots, it can take up to 512GB of DDR3 1600/1333/1066 RDIMM, and DDR3 1333/1066 UDIMM/LRDIMM memory, providing high computing capability. Additionally, with PCI Express 3.0 support, the Z9PE-D16/2L enables higher bandwidth to meet various demanding application requirements.
Server-Class Dual LAN Connection
The new serverboard ships with the industry’s first fully integrated Intel® I350 dual-port Ethernet controller, which supports energy efficient Ethernet and DMA coalescing and offers reliable and fast network connections. With VT-d technology and new VMDq queuing, the Z9PE-D16/2L easily manages virtualization applications while maintaining superior performance.

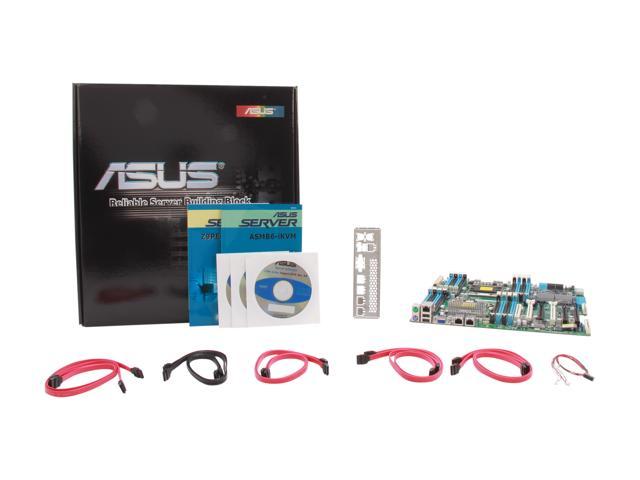

What’s in the Box
Learn more about the ASUS Z9PE-D16/2L
| Brand | ASUS |
|---|---|
| Model | Z9PE-D16/2L |
| CPU Socket Type | Dual LGA 2011 |
|---|---|
| CPU Type | Dual Intel Xeon E5-2600 series |
| QPI | Up to 6.4 / 7.2 / 8.0 GT/s |
| Other Chipset | Intel C602-A PCH |
|---|
| Number of DDR3 Slots | 16 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600 |
| Maximum Memory Supported | 512GB |
| PCI Express 3.0 x16 | Slot Location 1: PCI-E x16 (Gen3 X8 Link) Slot Location 2: PCI-E x16 (Gen3 X16 Link) Slot Location 3: PCI-E x16 (Gen3 X16 Link) Slot Location 4: PCI-E x16 (Gen3 X16 Link) Slot Location 5: PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied Slot Location 6: PCI-E x16 (Gen3 X8 Link), MIO supported |
|---|---|
| Other Slots | Additional Slot 1: PIKE Slot for Stroage expansion |
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI MegaRAID (For Linux/Windows) |
| Additional SATA | 4 x SATA 3.0Gb/s |
| Additional SATA RAID | Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2300 with 16MB VRAM |
|---|
| LAN Chipset | Intel I350-AM2 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| PS/2 PS/2 | 2 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Features | ASMB6-iKVM for KVM-over-Internet
1 x Mgmt LAN |
|---|
| Form Factor | SSI EEB |
|---|---|
| Dimensions (W x L) | 12.0″ x 13.0″ |
| Date First Available | October 26, 2021 |
|---|
