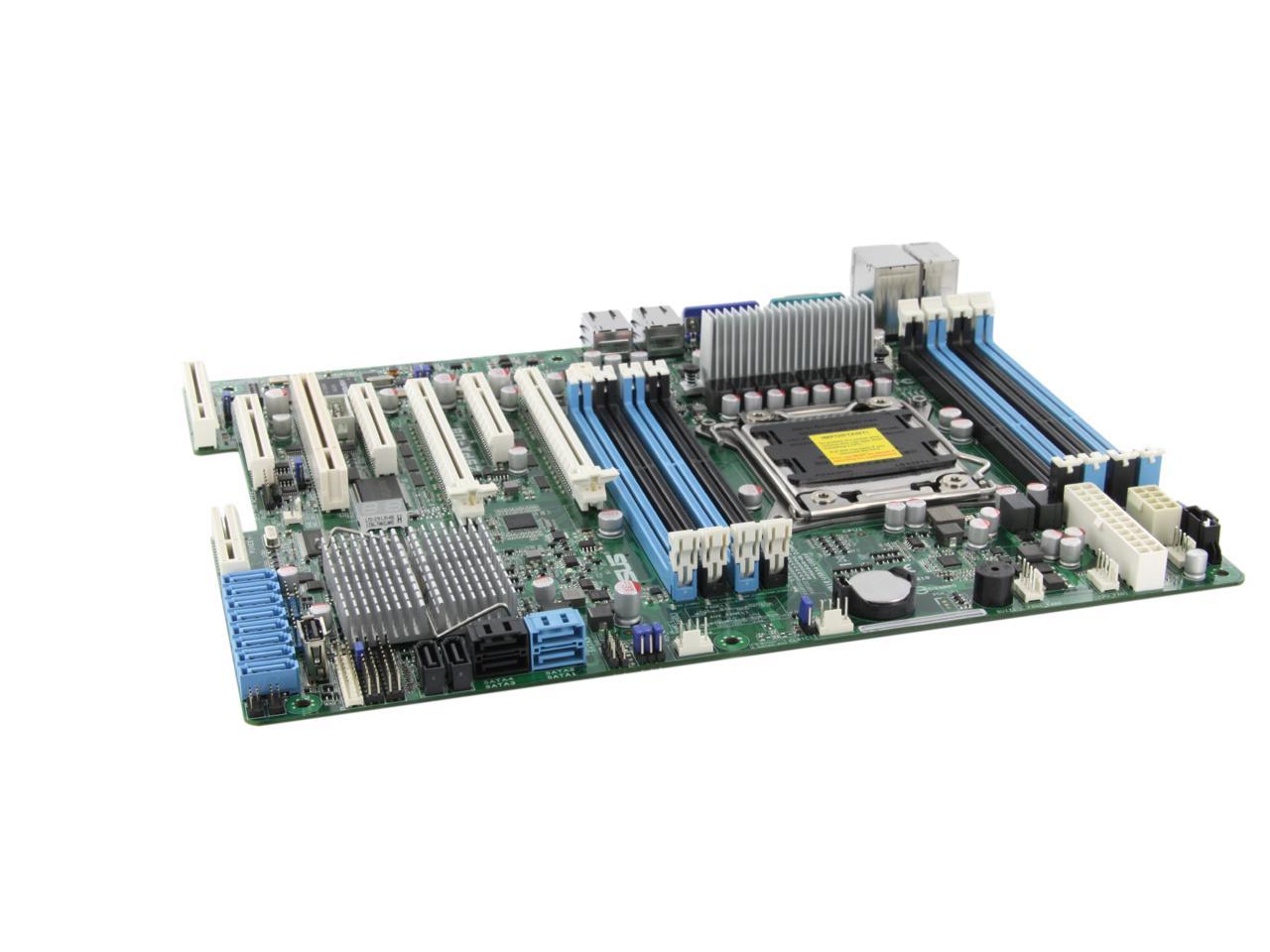

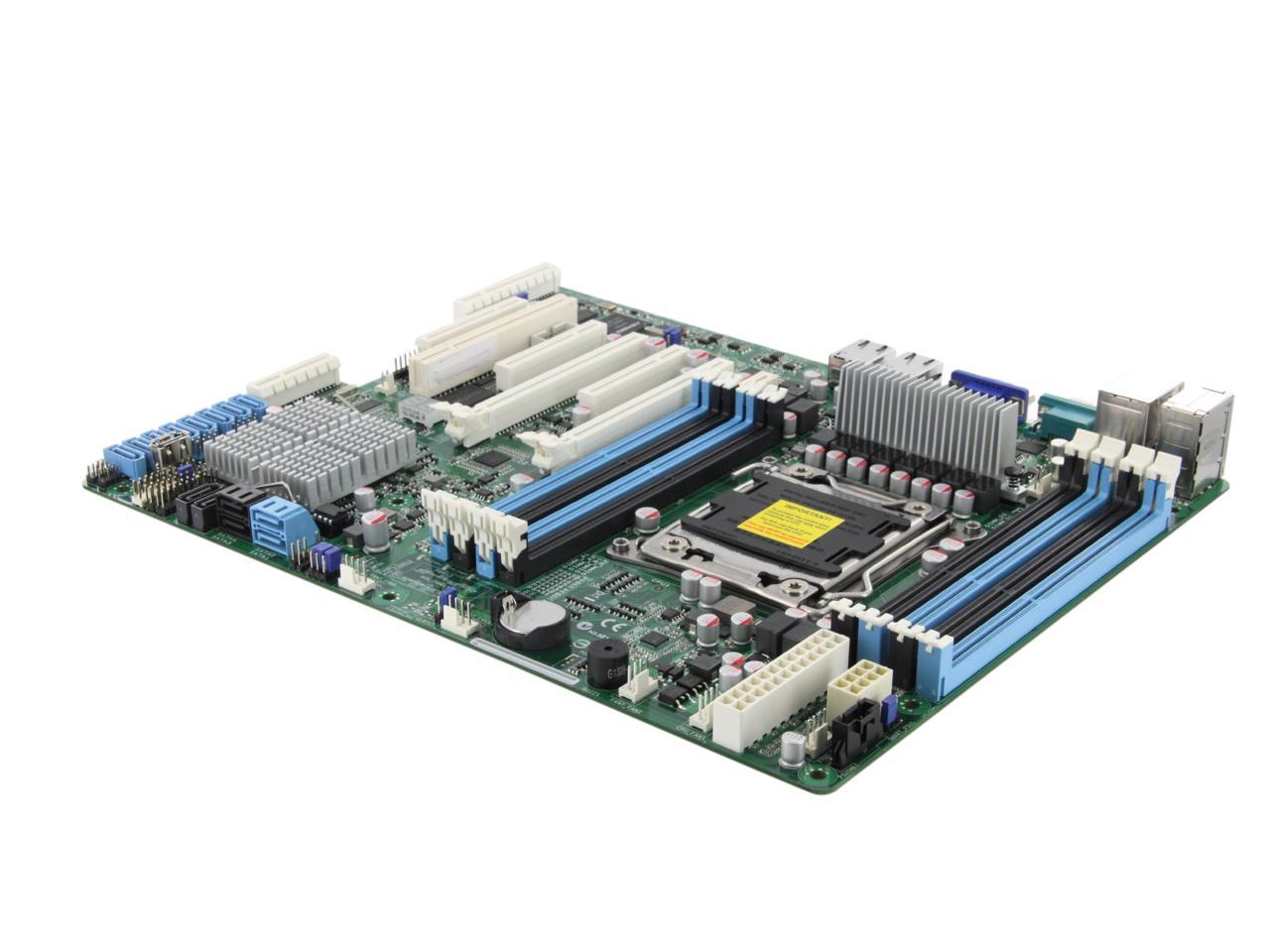

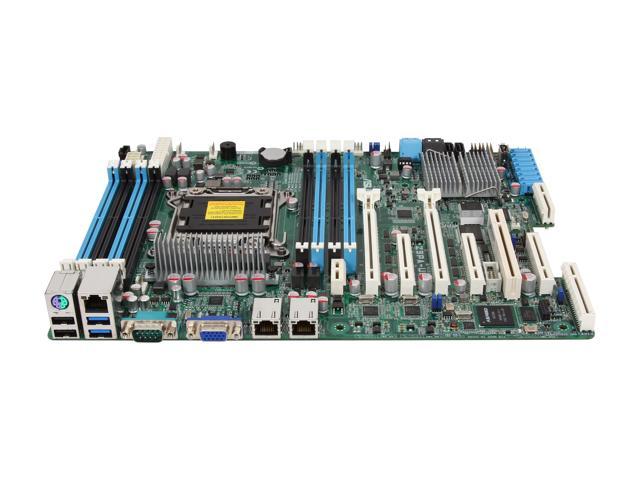

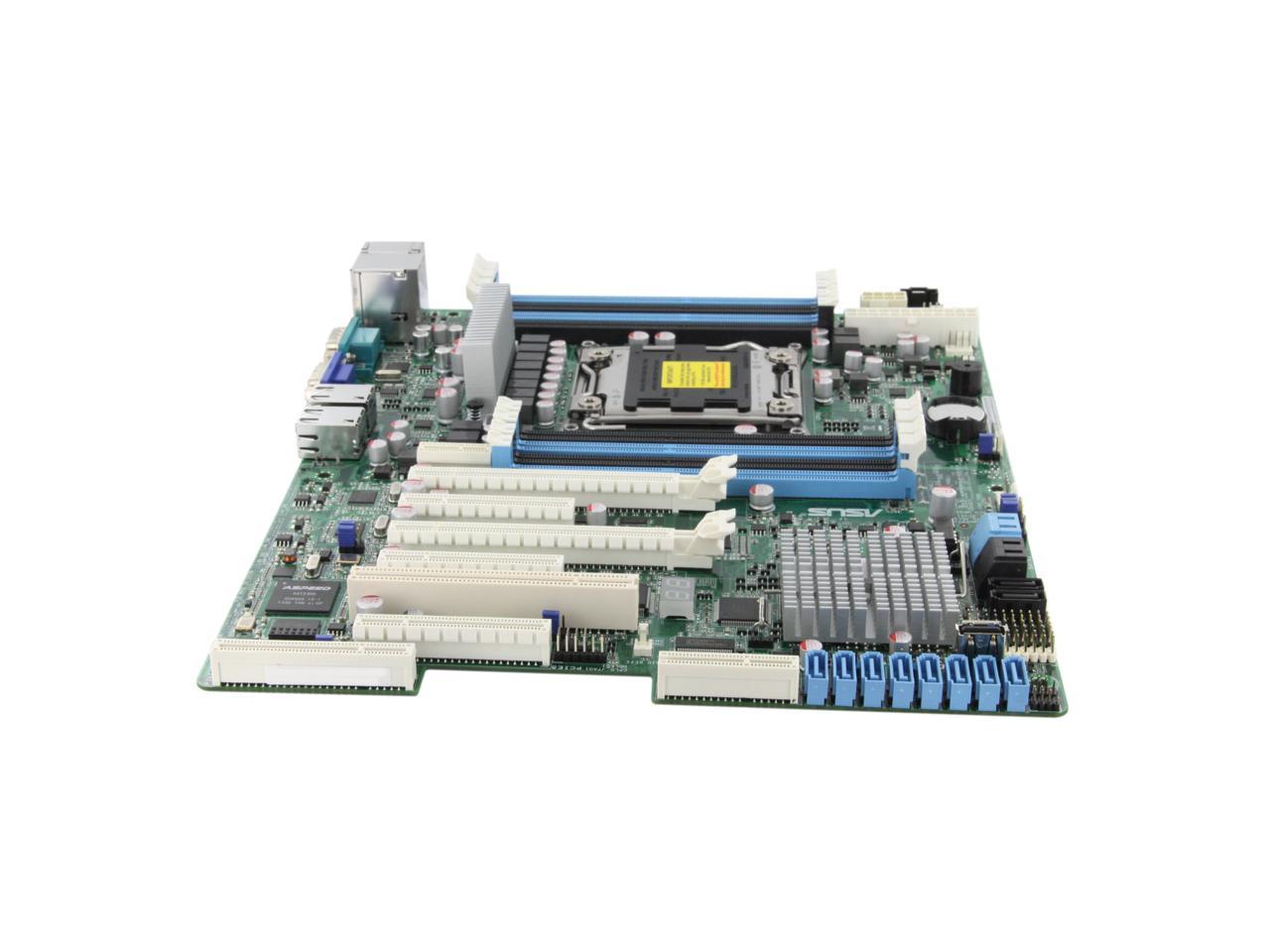

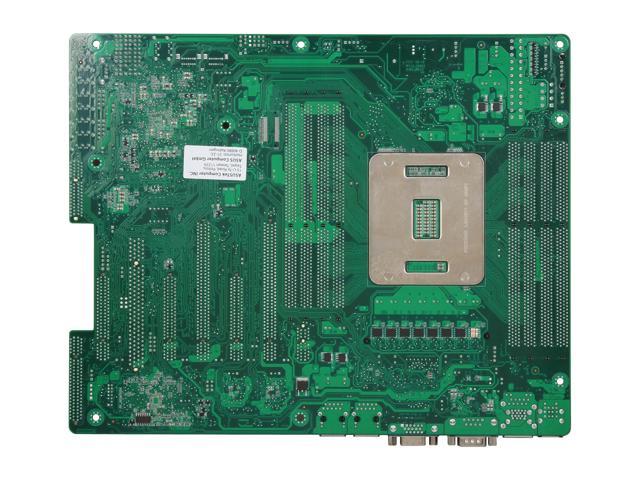

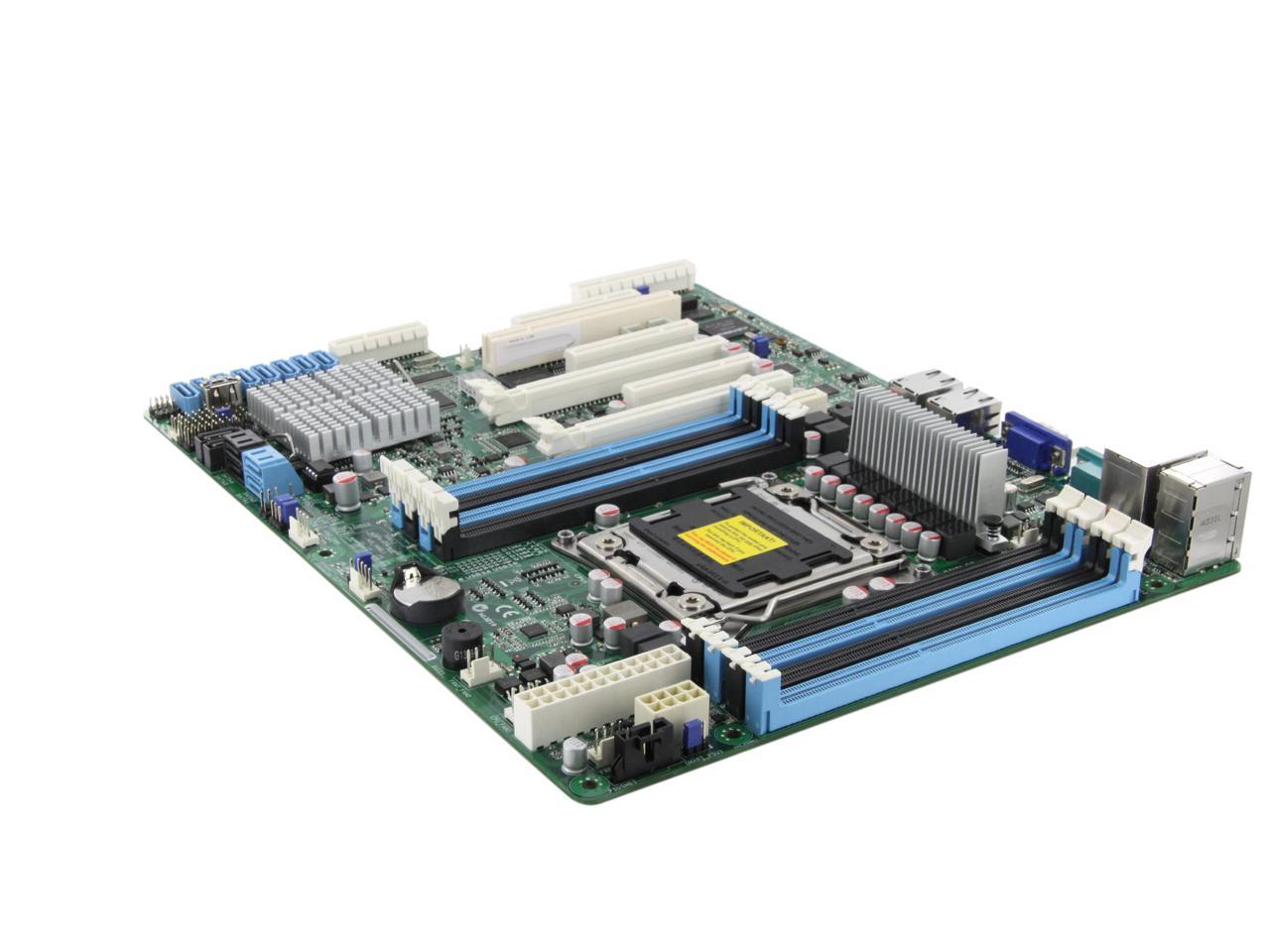

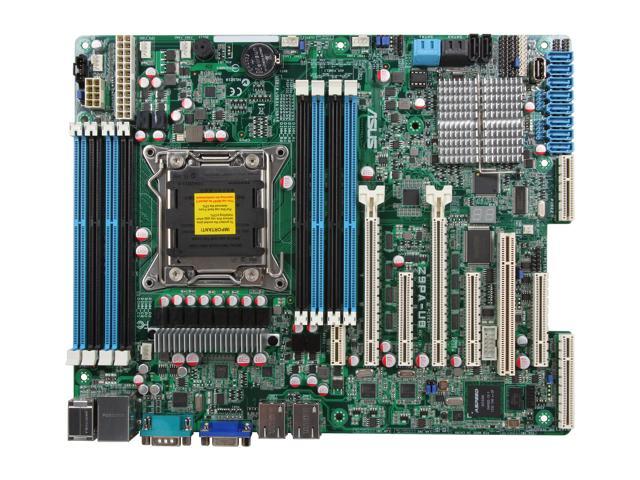

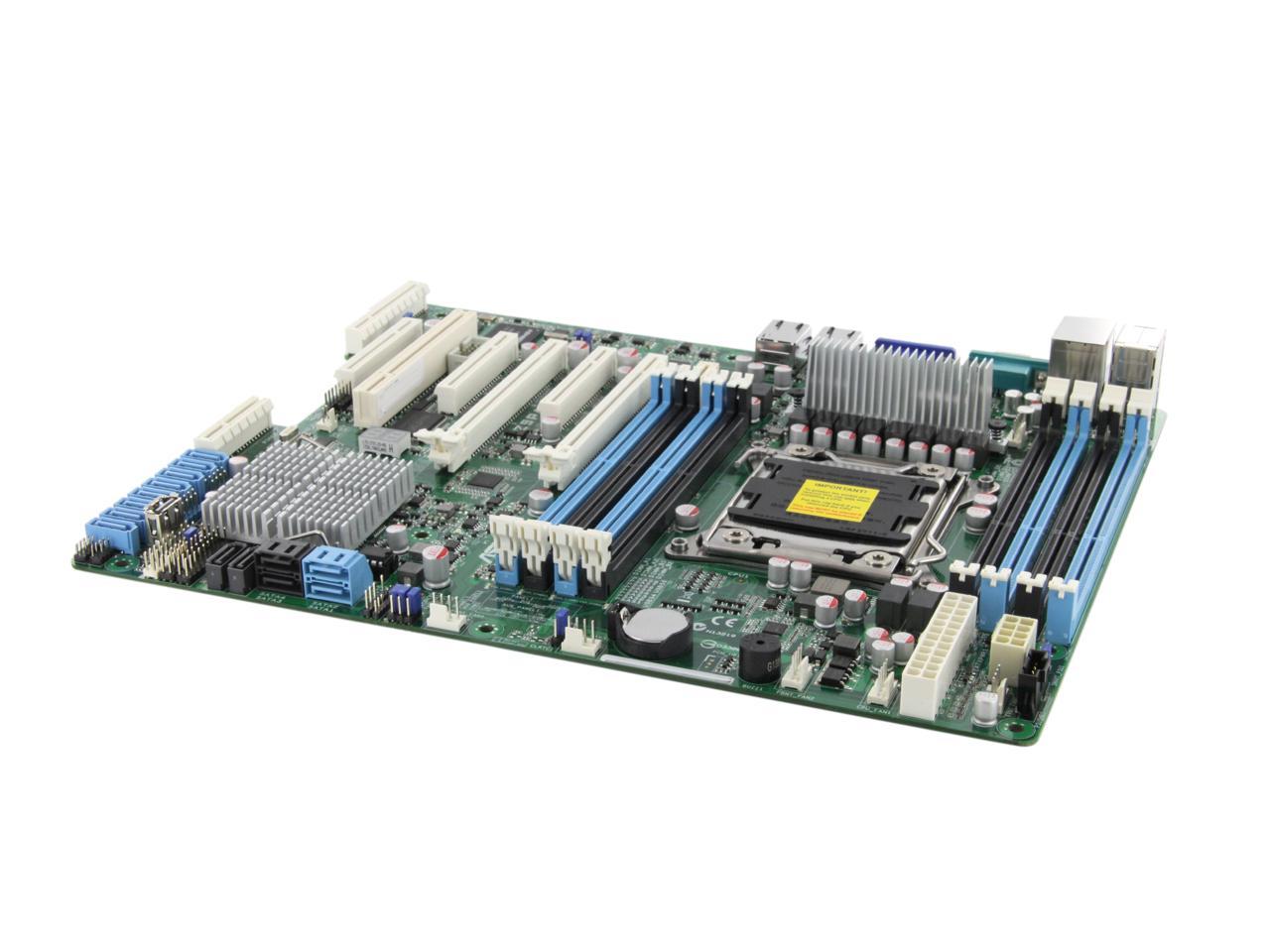

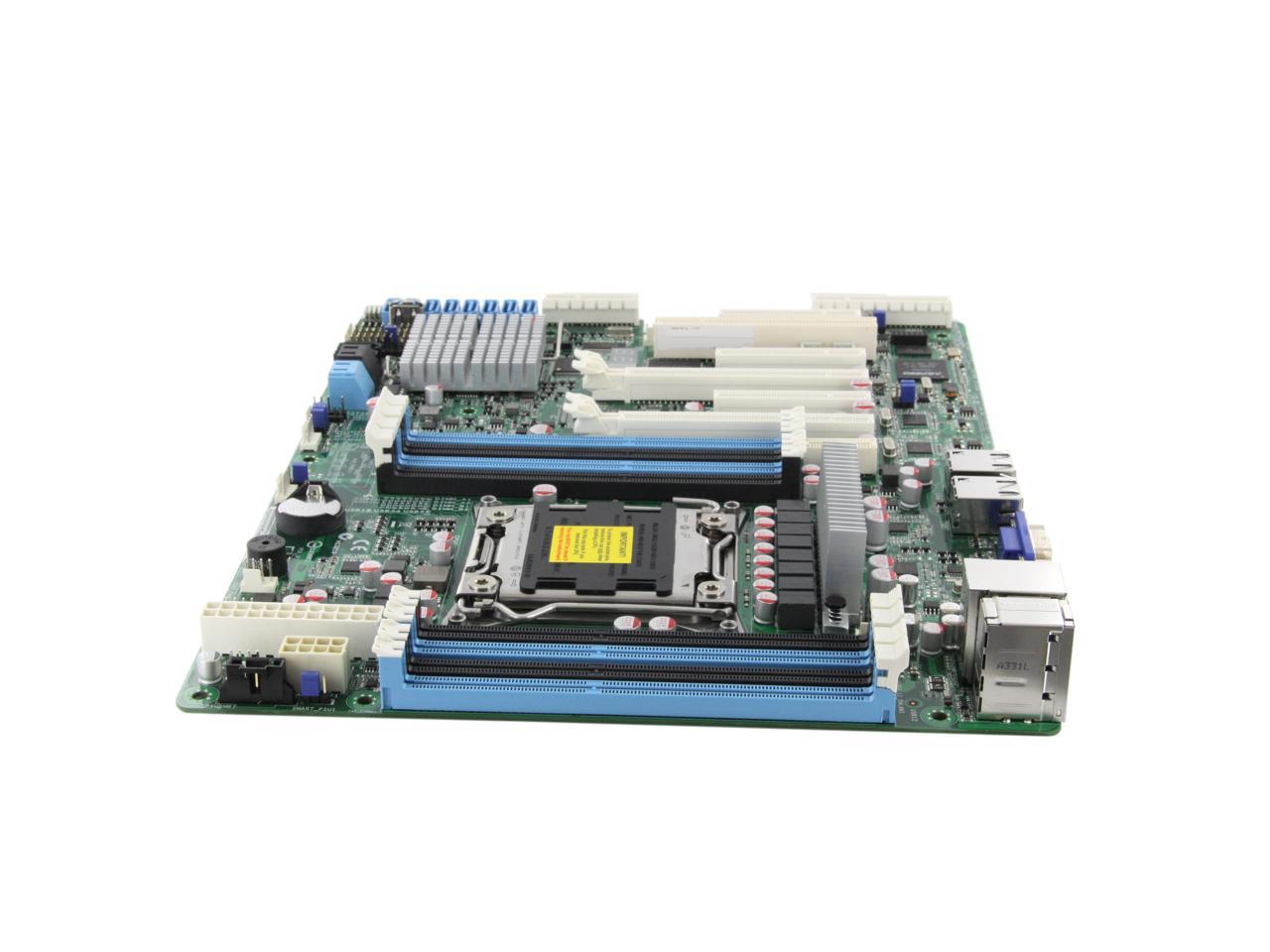

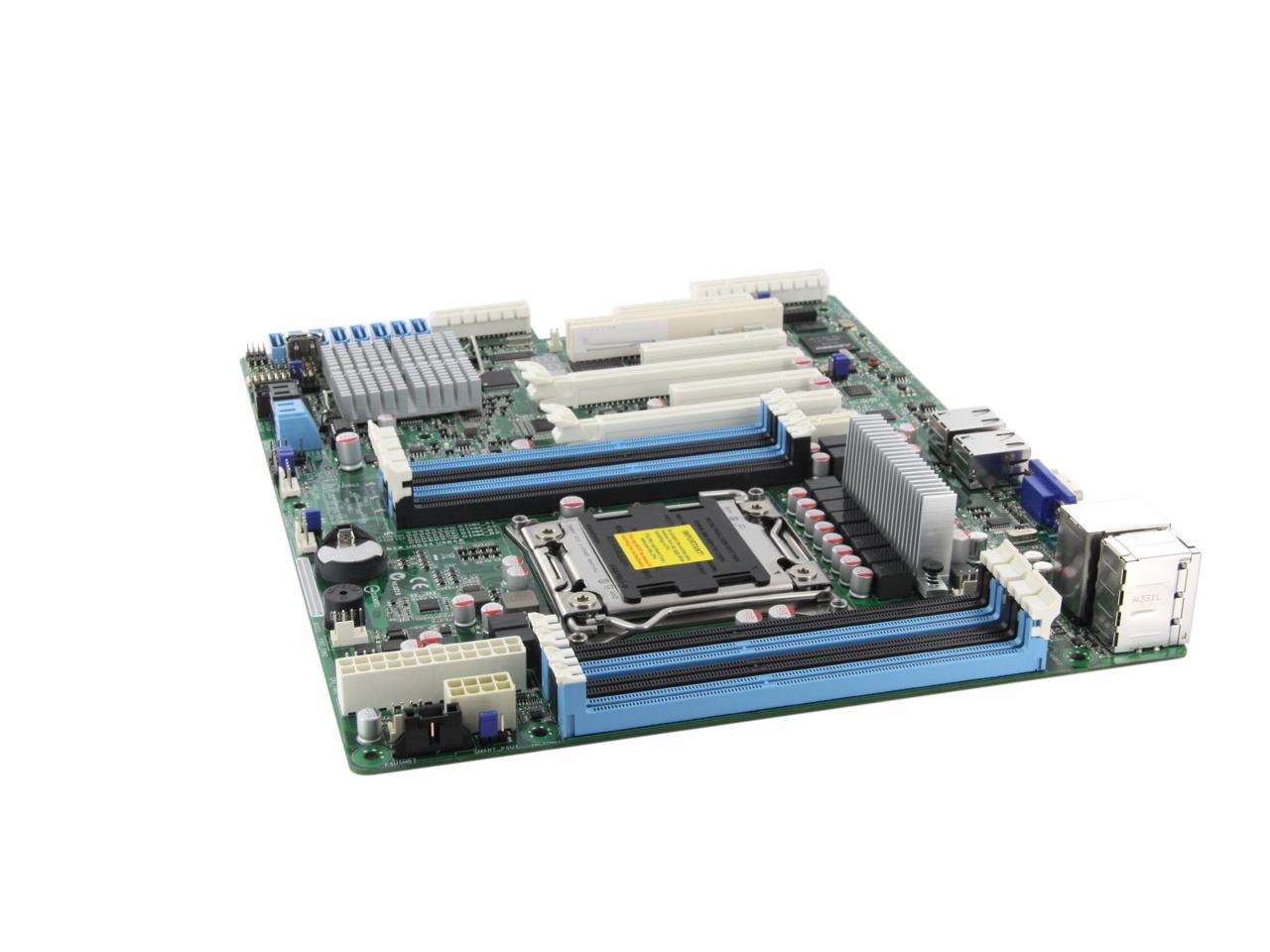

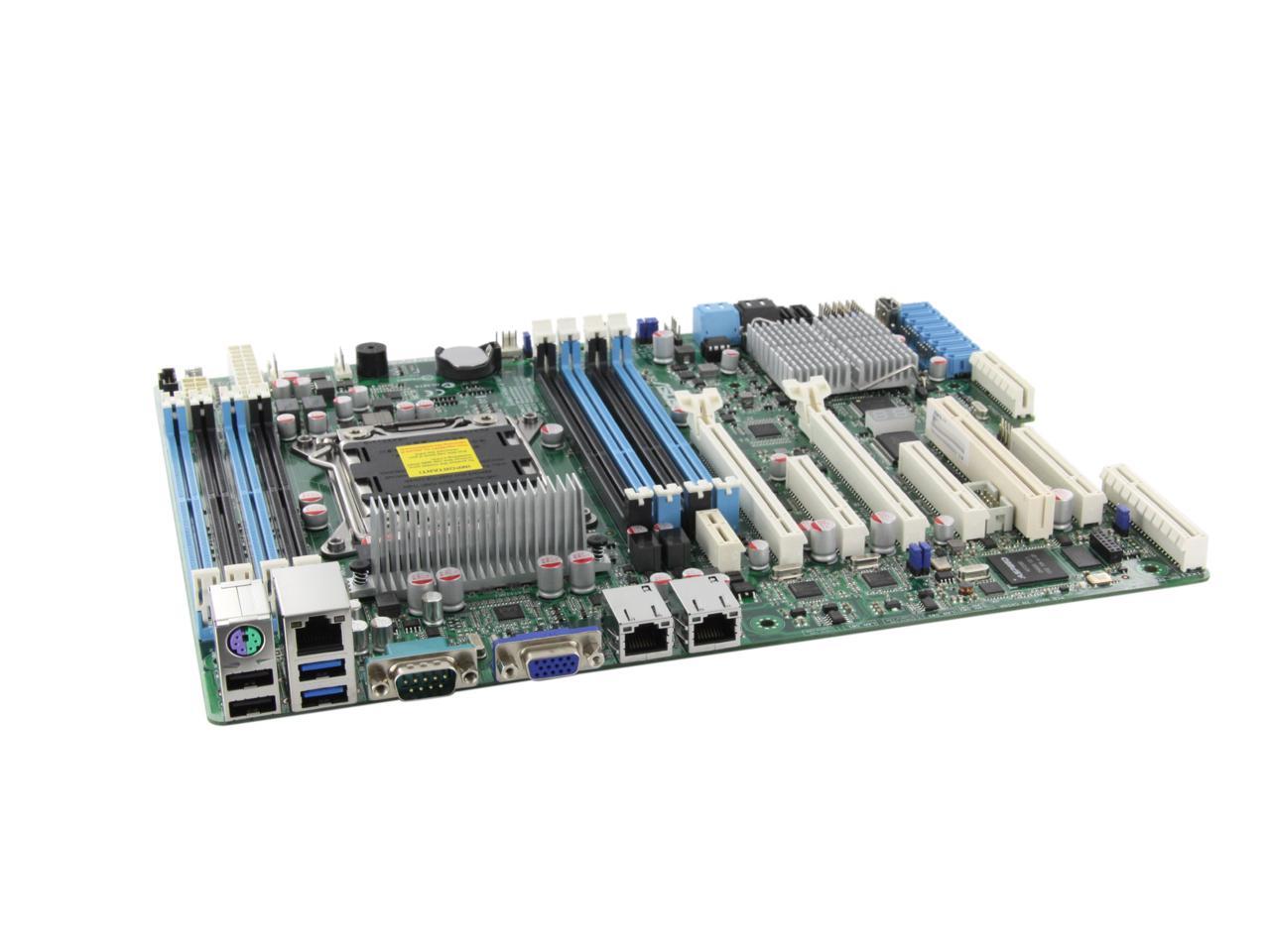

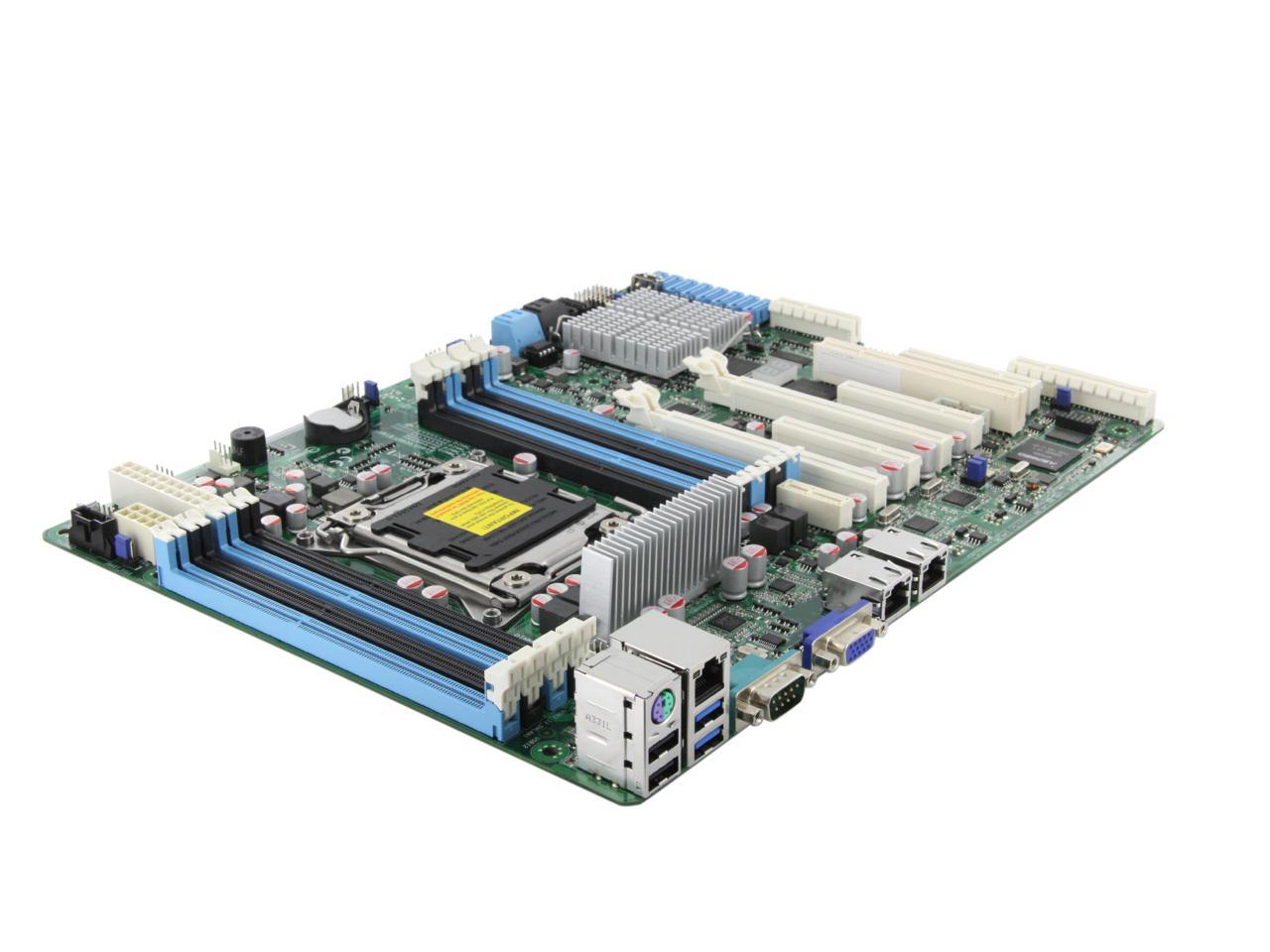

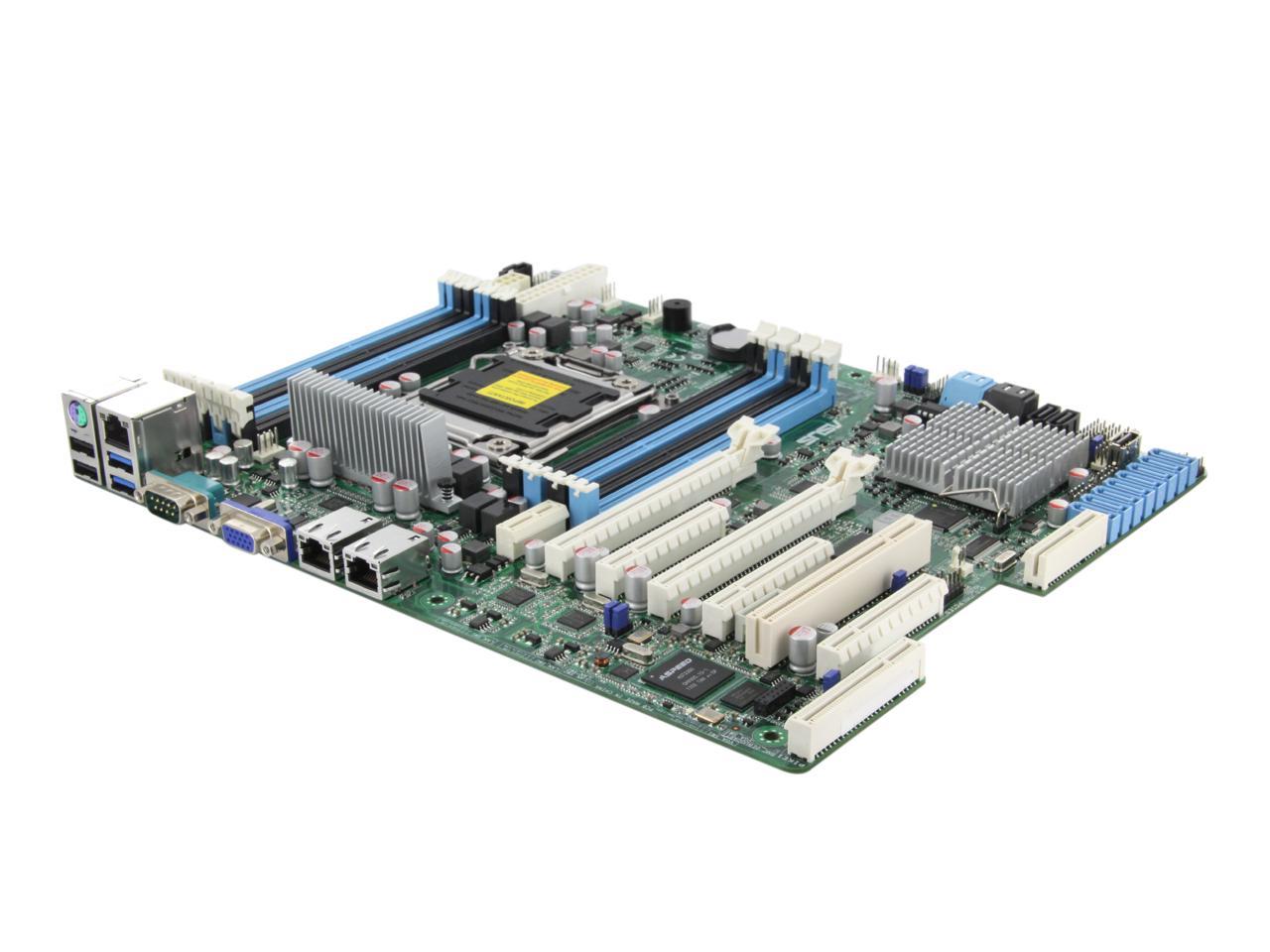

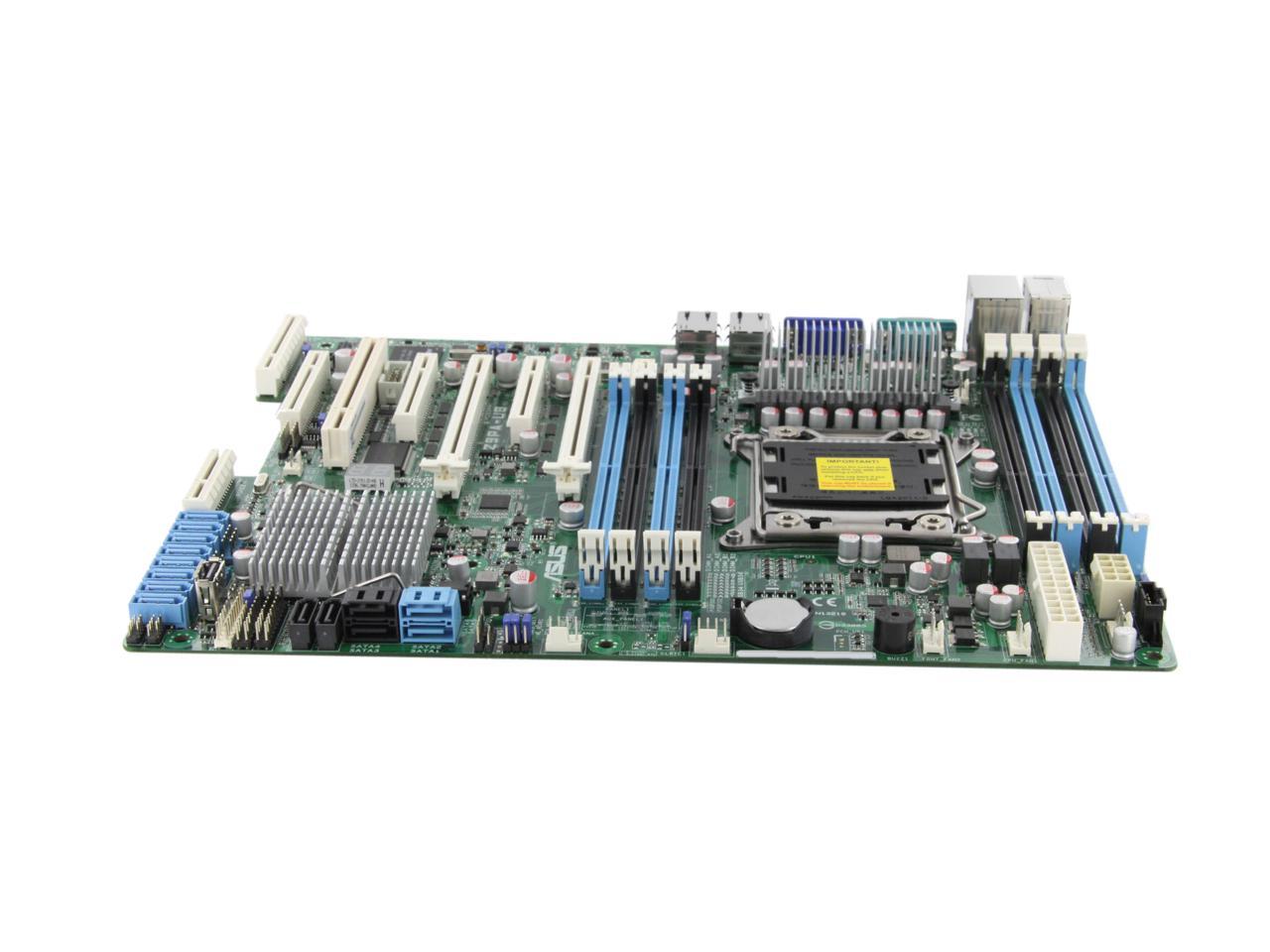

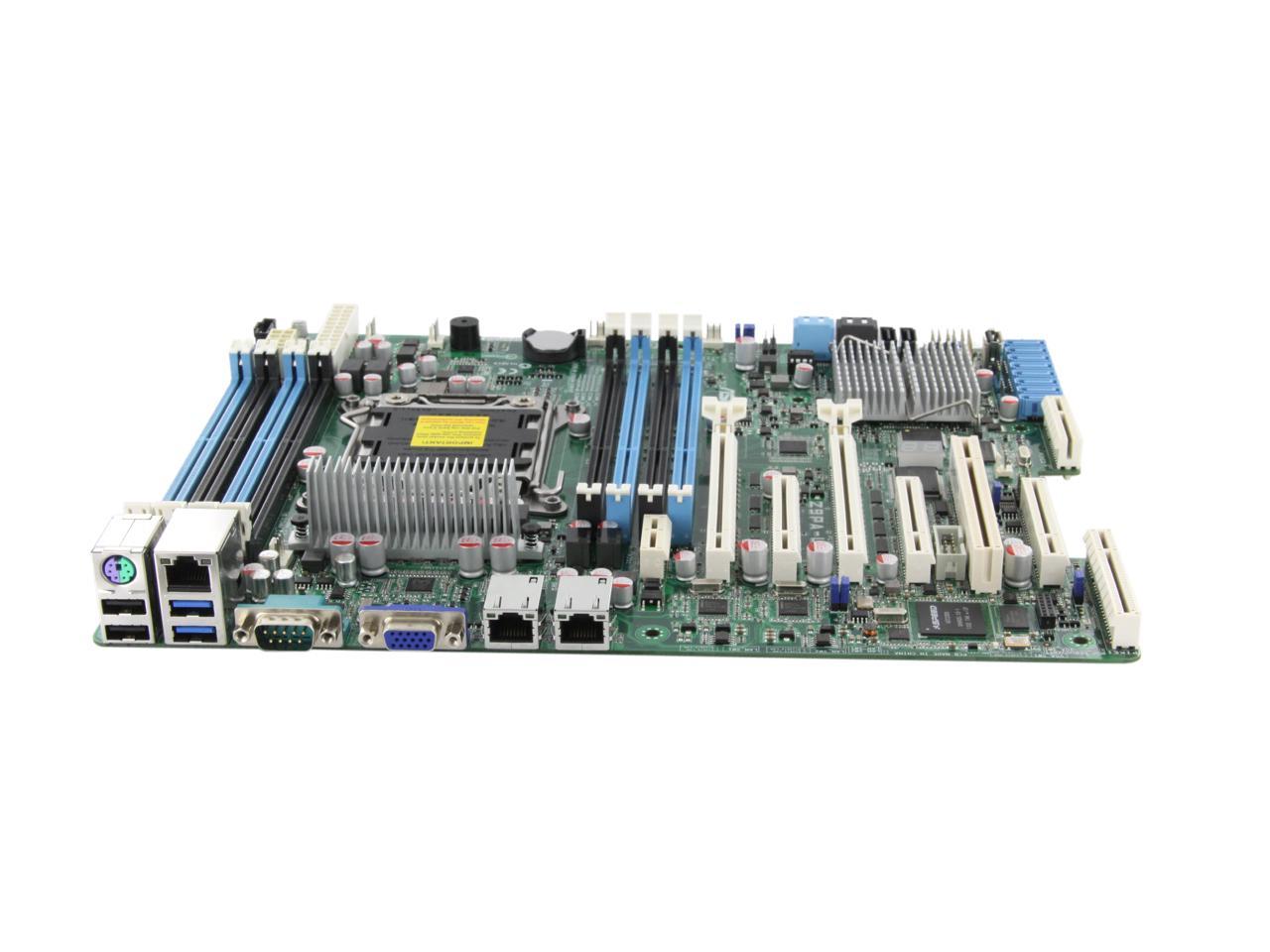

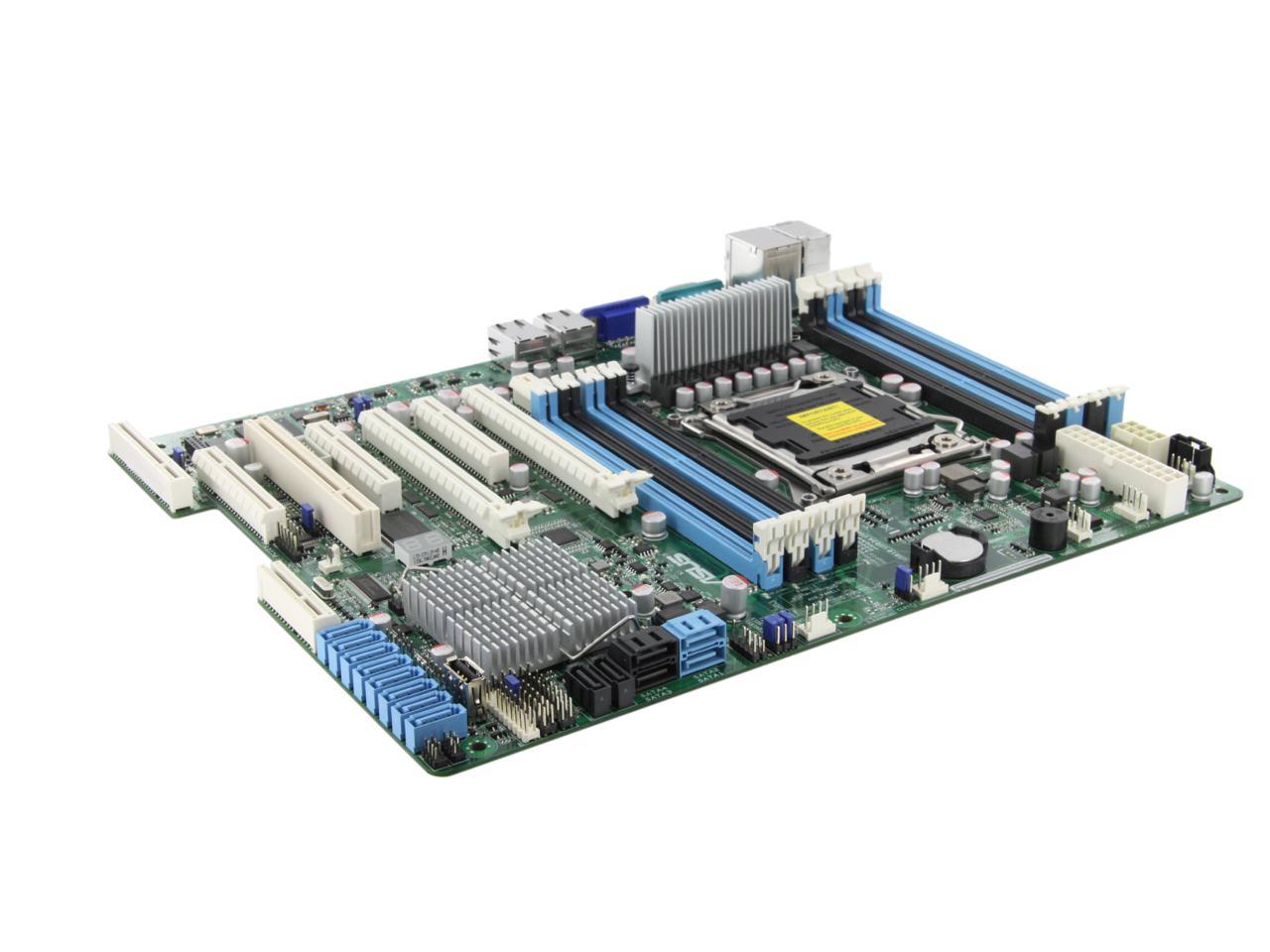

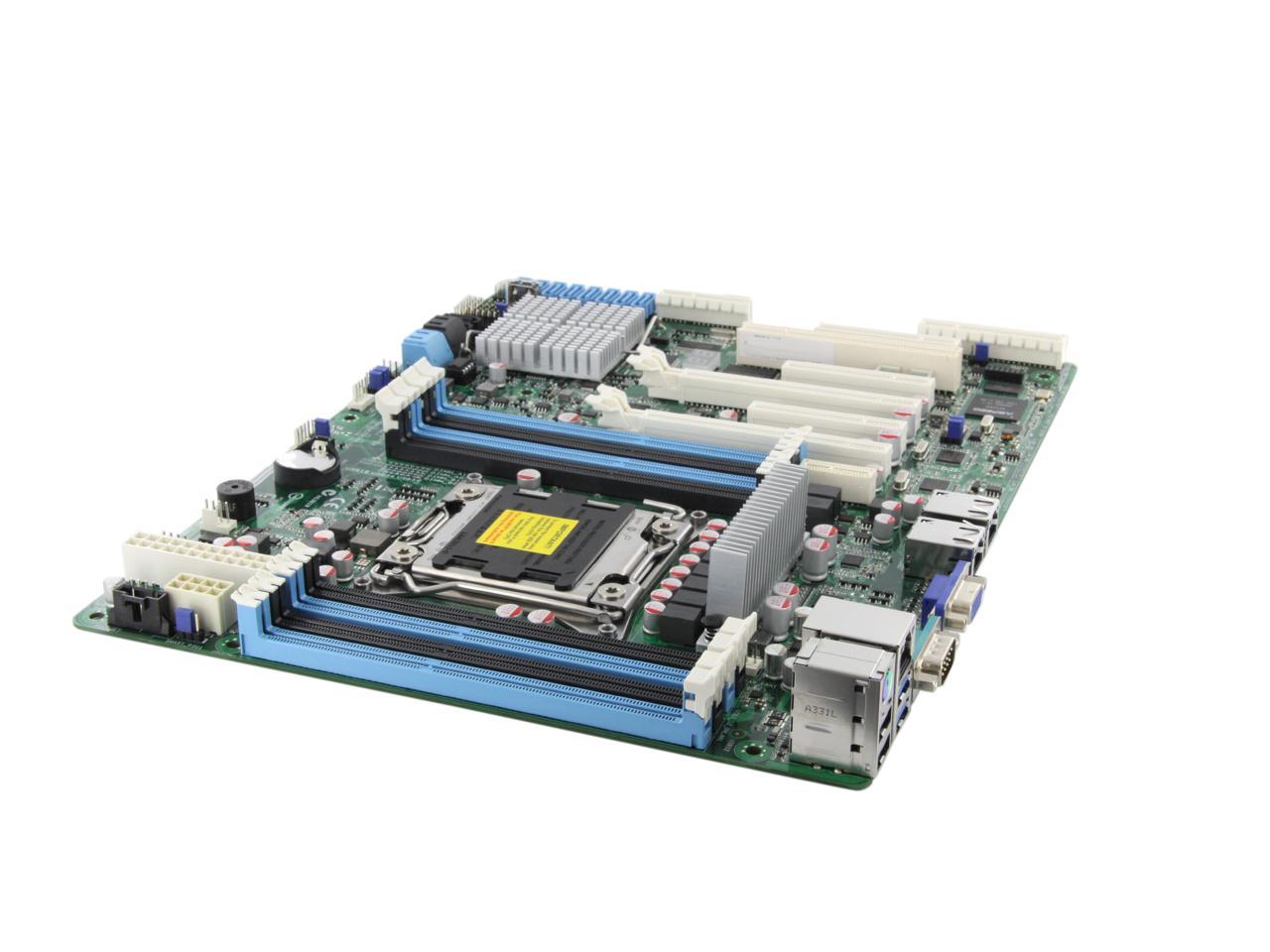

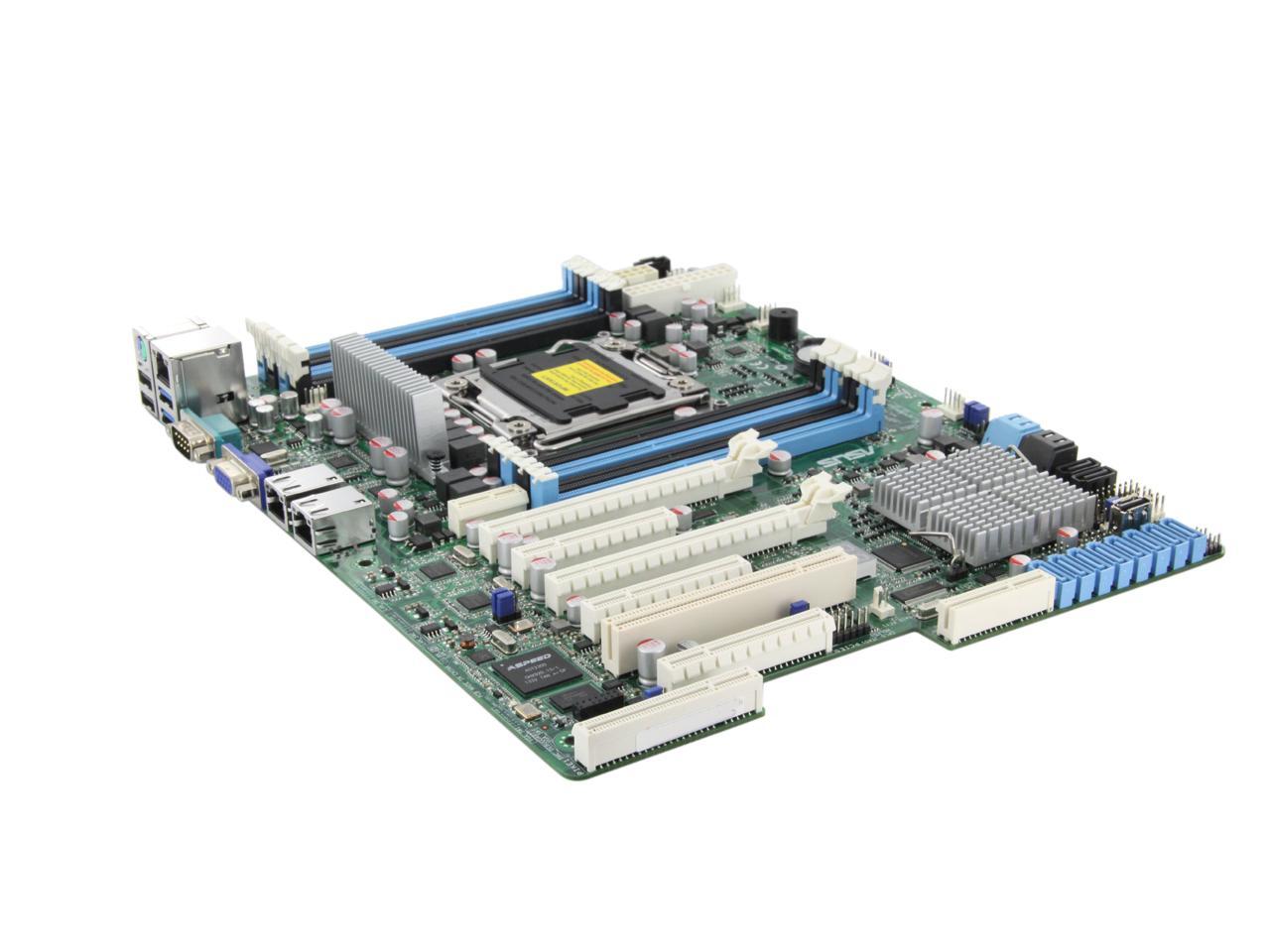

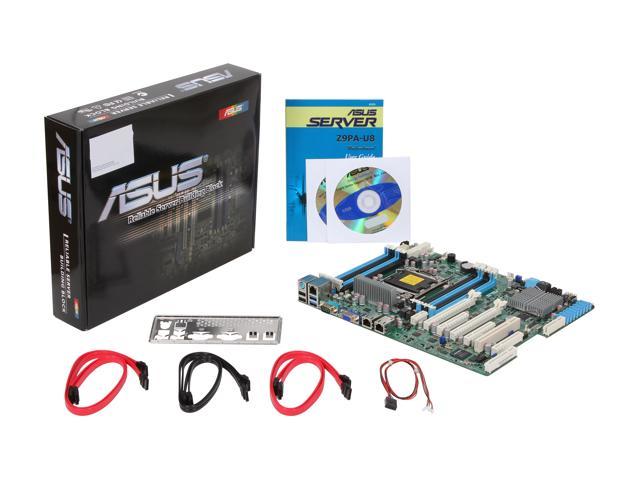

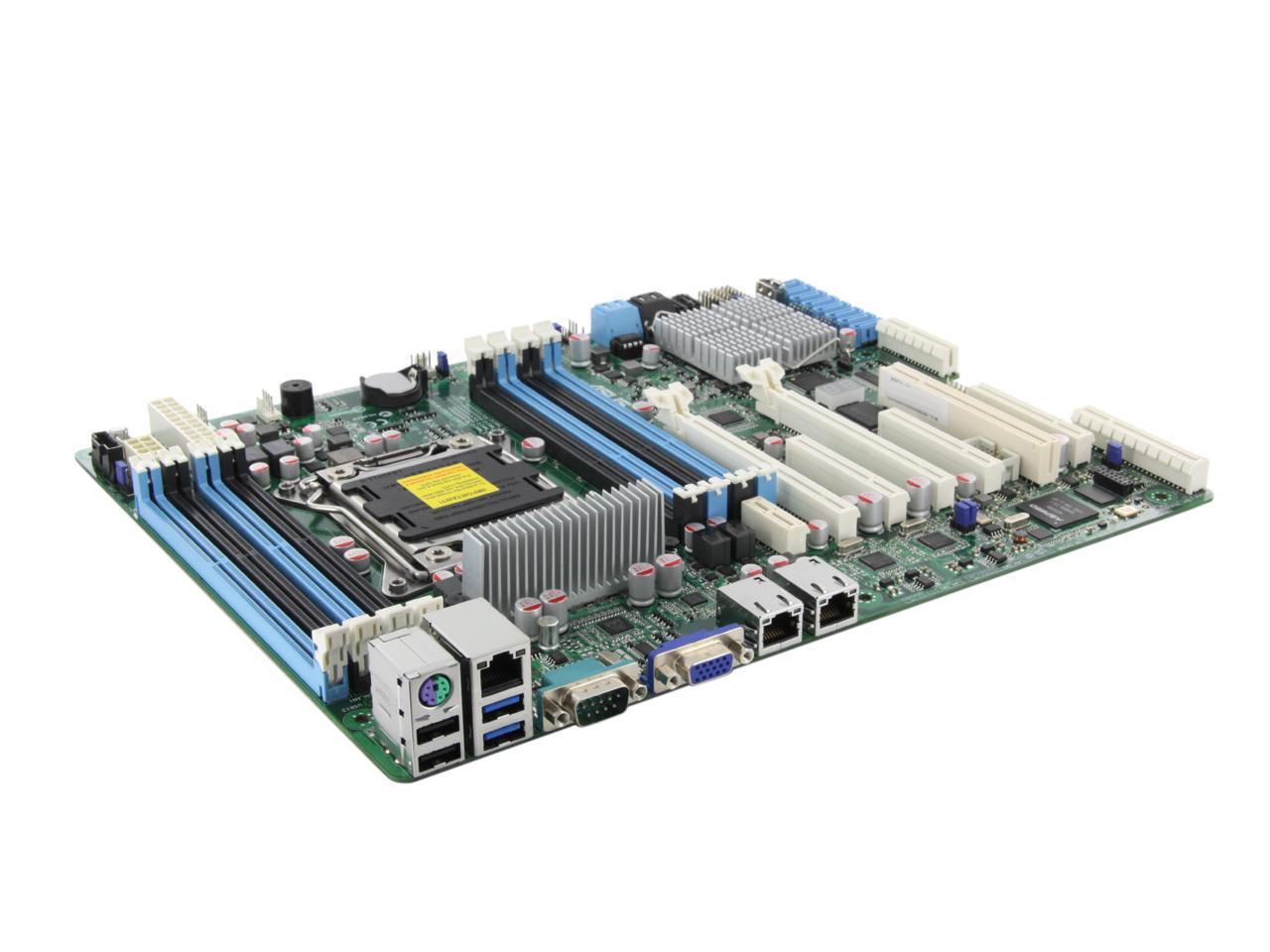

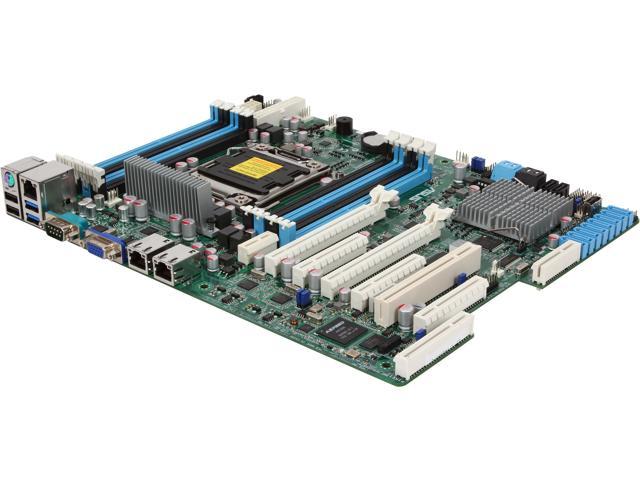

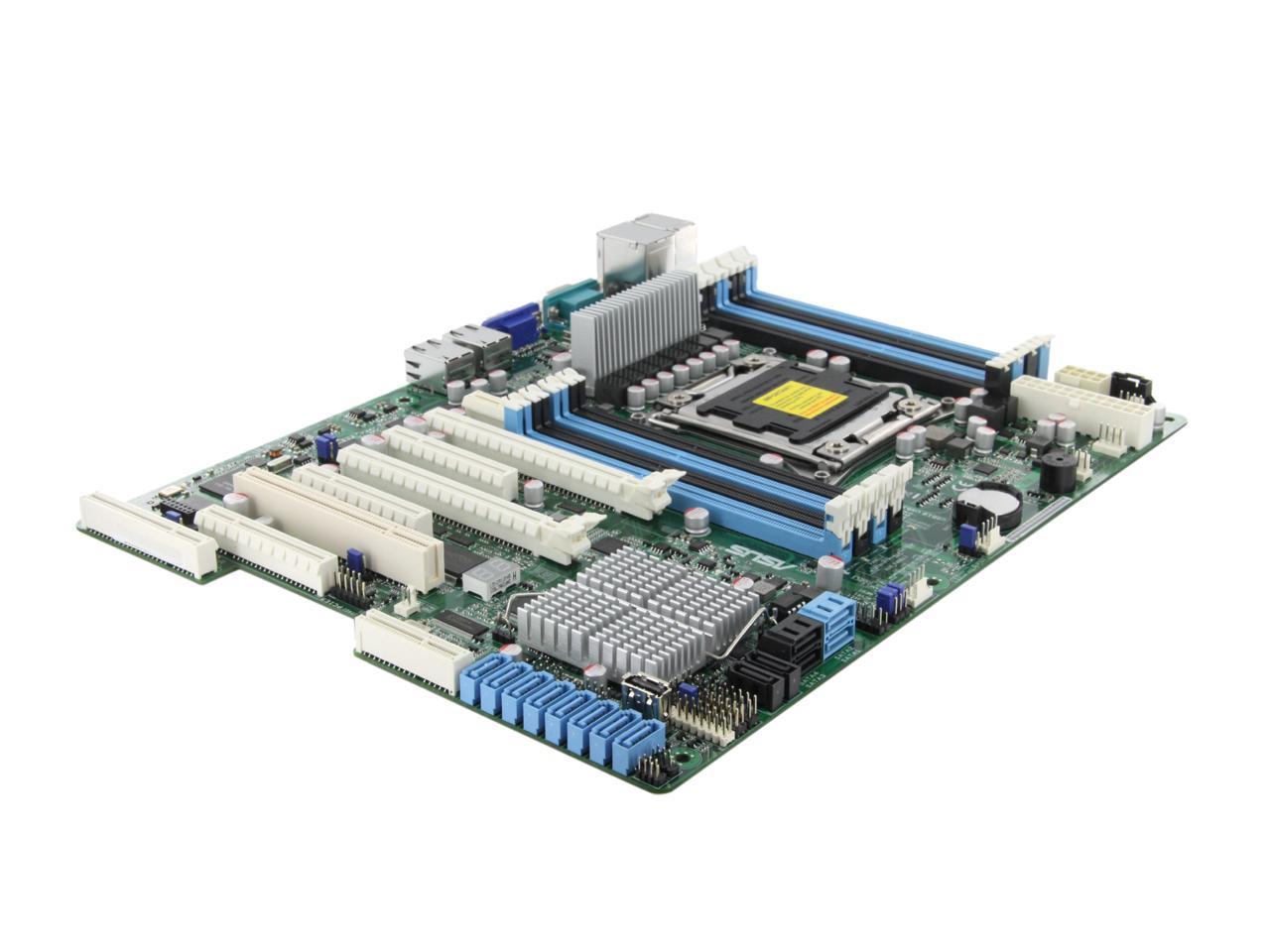

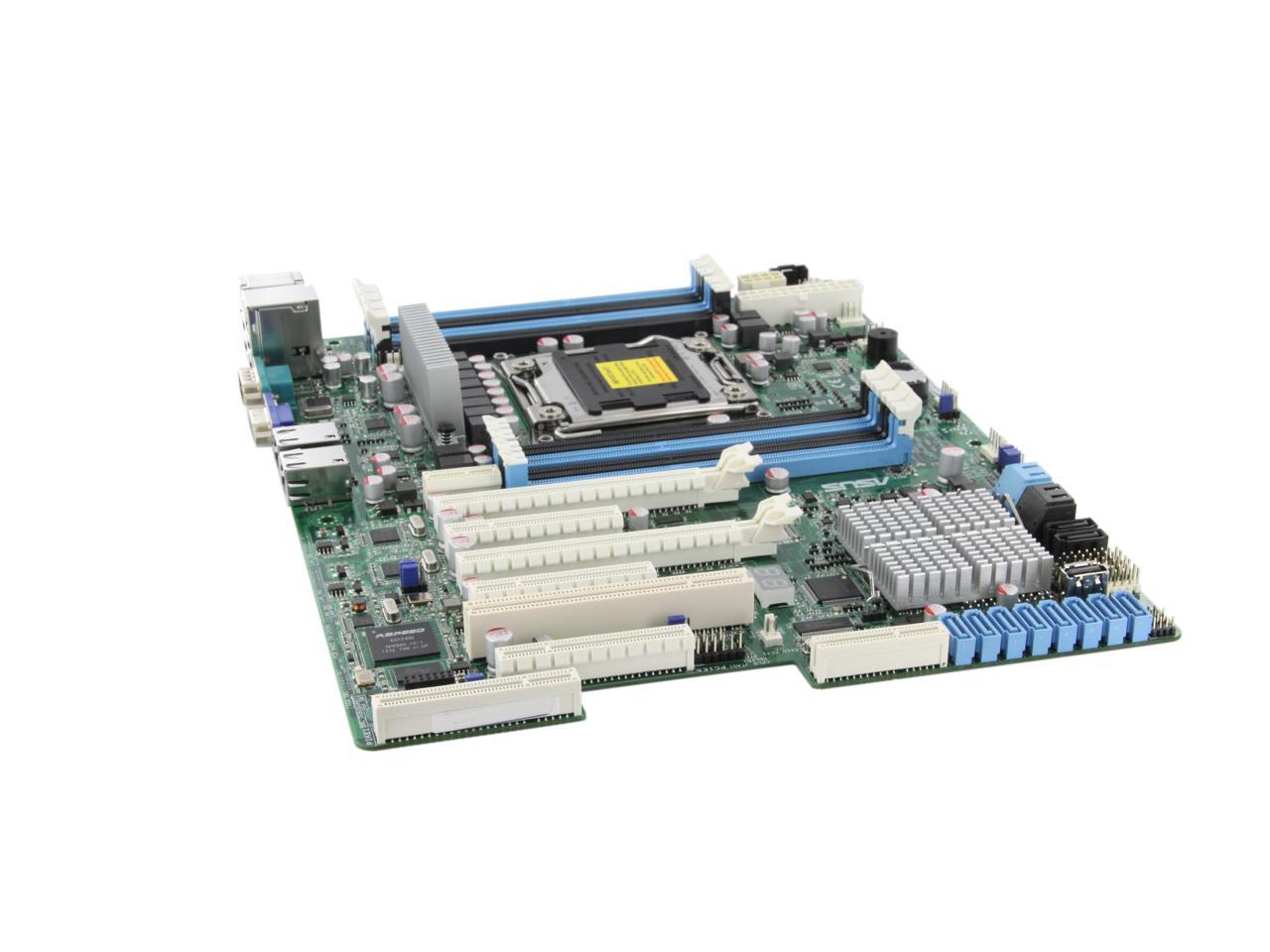

ASUS Z9PA-U8 ATX Server Motherboard LGA 2011 DDR3 1600/1333/1066
SKU: 9SIA4REGAY29926.294.405₫
LGA 2011
Intel C602-A PCH
8 x 240pin
Description
#overview-content.sku-13-131-852 .banner {width: 100%; height: 80px; margin-bottom: 0px; background:none; }
#overview-content.sku-13-131-852 .main .main-image {height:304px; margin:0 auto 20px; background: url(//images10.newegg.com/BizIntell/item/13/131/13-131-915/banner.jpg) no-repeat center center; }
#overview-content .title {margin: 0 auto 20px; padding: 8px 0; border: 0; background-color: #020149; color: #fff; text-align: center; font-size: 16px; font-weight: bold; }
Optimized Dual-Use Server and High-End Workstation Performance
The ATX-sized (EEB mounting) Z9PA-U8 supports the latest Intel® Xeon® processor E5-2600 and E5-1600 product family, featuring high computing capacity and faster data transmission. Additionally, the Z9PA-U8 fulfills different storage configurations via ASUS PIKE RAID cards, and through the ASUS ASMB6-iKVM server management interface offers better system management.
Commercial Way to Upgrade to Romley Platform
The ATX-sized (EEB mounting hole locations) Z9PA-U8 supports the latest Intel® Xeon® E5-1600 and E5-2600 processor family, featuring high computing capacity and faster data transmission. This server motherboard provides customer a cost-effective way to enter into Romley platform with one way CPU and Desktop (ATX) power supply.
Designed for Datacenter Cache Server Applications
The Z9PA-U8 delivers outstanding data transmission performance with two DIMM per channel and up to 256GB LRDIMM. Thus, it is suitable for datacenters on Cache Server applications, speeding up the access to data and gaining a quick response on the demand from network.
Dual Use for Server and High End Workstation
The design and features of the Z9PA-U8 accommodate usage as a medium to large scale server or high-end workstation for even the most complex tasks. Additionally, it adopts the latest hardware standards, including USB 3.0 for faster data transfers and PCI Express 3.0 enhanced signaling and data integrity.
MIO-892 Card Supported for 7.1-Channel Audio Experience
The Z9PA-U8 supports the latest ASUS MIO-892 Card. With better enhanced signal-to-noise ratio in a 7.1-channel surround, the MIO card offers great sound quality to complement the robust video power — delivering exhilarating surround sound. Accompanied with a graphics card and MIO-892, Z9PA-U8 becomes a powerful E5-2600 single socket workstation.
Comprehensive Server Management Solution: ASMB6-iKVM and ASWM Enterprise
The ASMB6-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, management LAN fail-over support, and user-friendly web-based graphical interfaces through all major browsers. Moreover, ASWM Enterprise provides one-to-multiple centralized management including BIOS flash, remote control, and power control through a colorful, graphical, and informative interface.
Learn more about the ASUS Z9PA-U8
| Brand | ASUS |
|---|---|
| Model | Z9PA-U8 |
| CPU Socket Type | LGA 2011 |
|---|---|
| CPU Type | Intel Xeon E5-2600/1600 series |
| Other Chipset | Intel C602-A PCH |
|---|
| Number of DDR3 Slots | 8 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333/1066 |
| Maximum Memory Supported | 256GB LRDIMM |
| PCI Express 3.0 x16 | Slot Location 4: PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied Slot Location 6: PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied |
|---|---|
| PCI Express x8 | Slot Location 1: PCI-E x8 (Gen2 X4 Link) Slot Location 3: PCI-E x8 (Gen3 X8 Link) Slot Location 5: PCI-E x8 (Gen3 X8 Link) |
| PCI Slots | Slot Location 2: PCI 32bit/33MHz |
| Other Slots | Slot Location 7: MIO Slot for Audio card Additional Slot 1: PIKE Slot for Stroage expansion |
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2300 16M |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| PS/2 PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 3.0 + 2 x USB 2.0 |
| Onboard USB | 1 x USB connector 2 x USB pin header , Up to 4 Devices |
|---|
| Features | Management: ASWM Enterprise |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Date First Available | October 26, 2021 |
|---|
