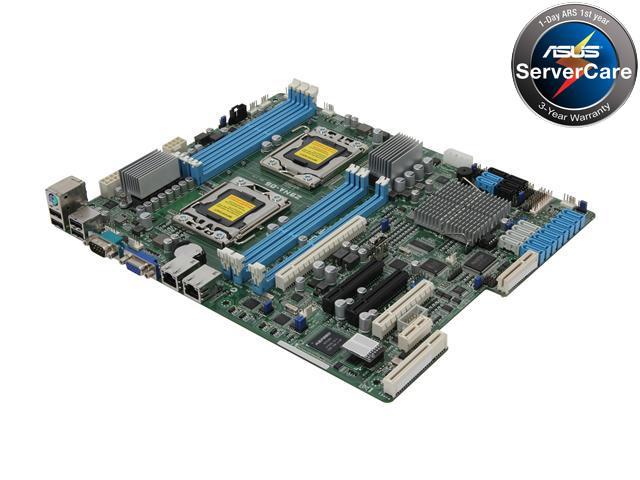

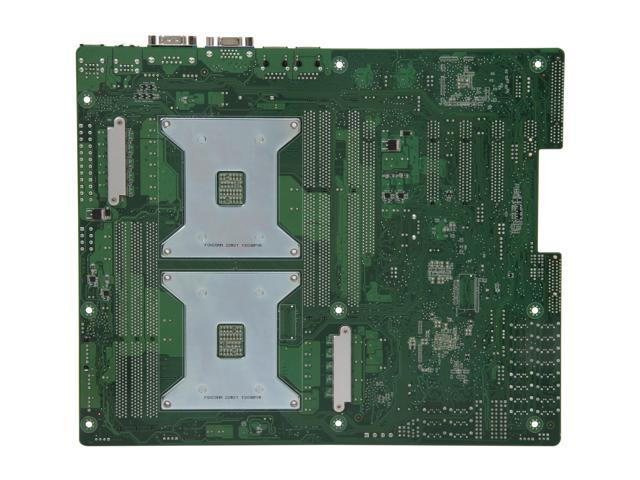

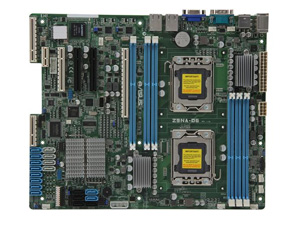

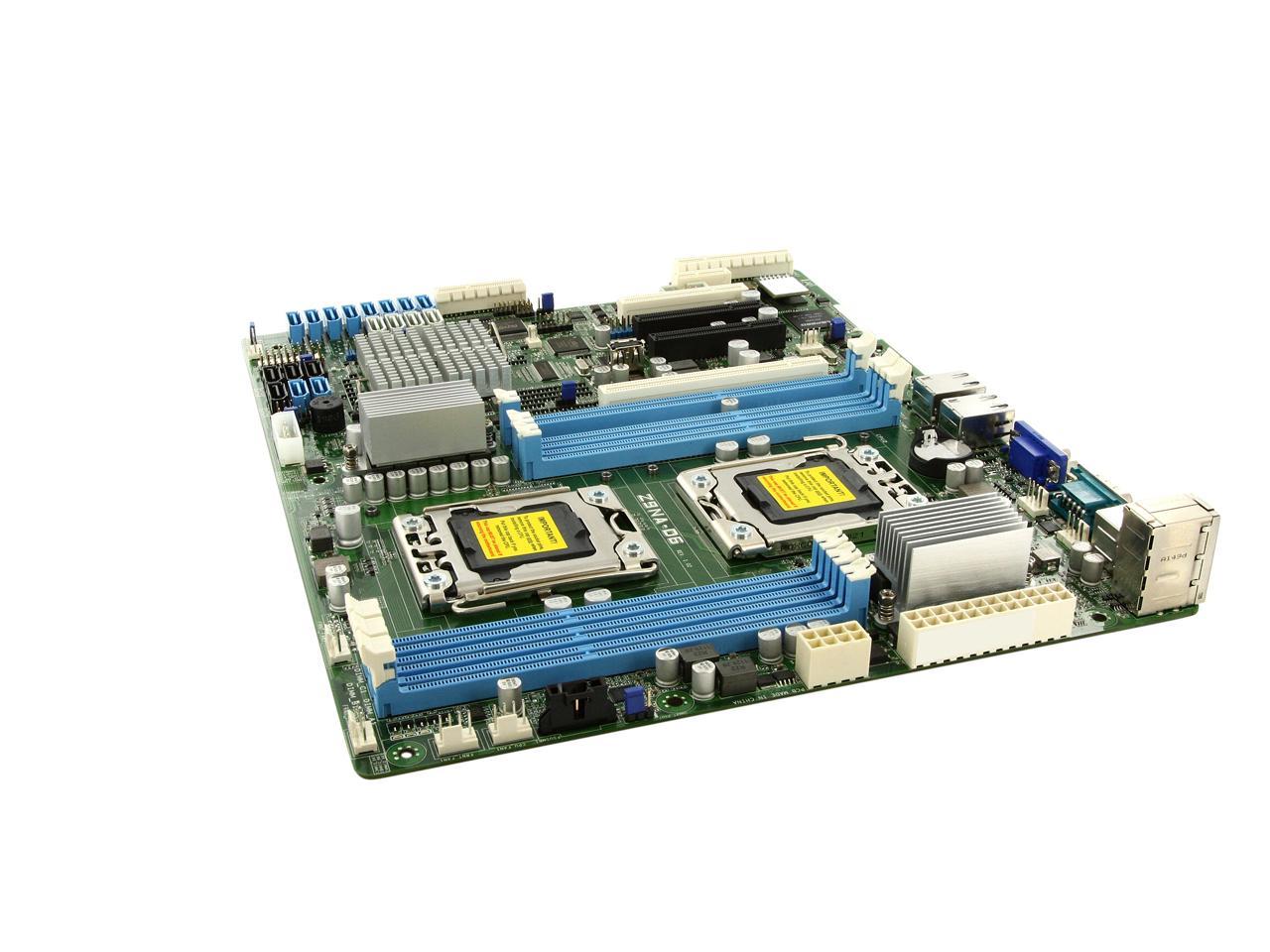

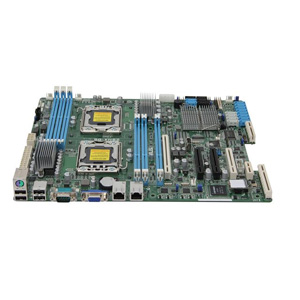

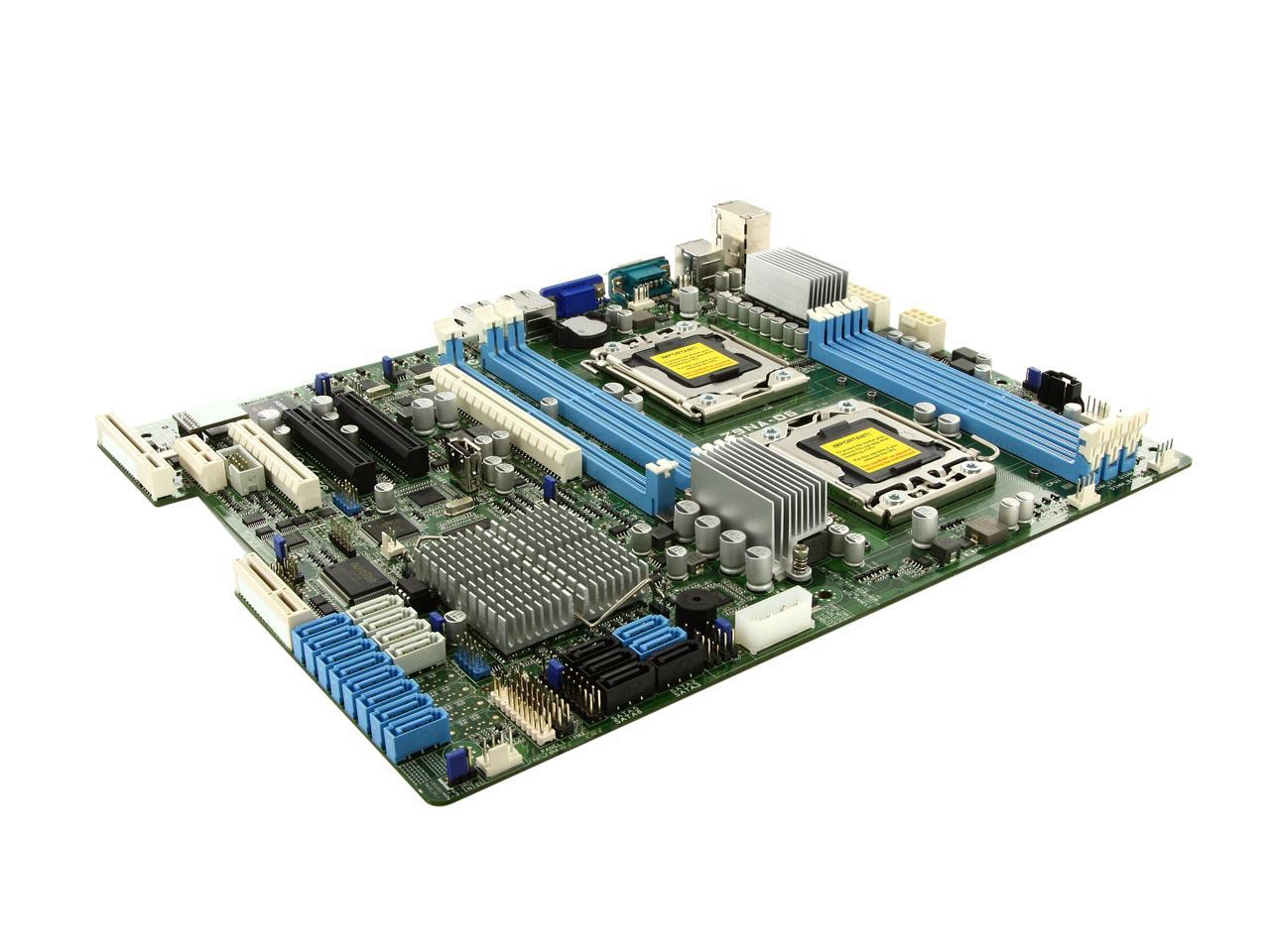

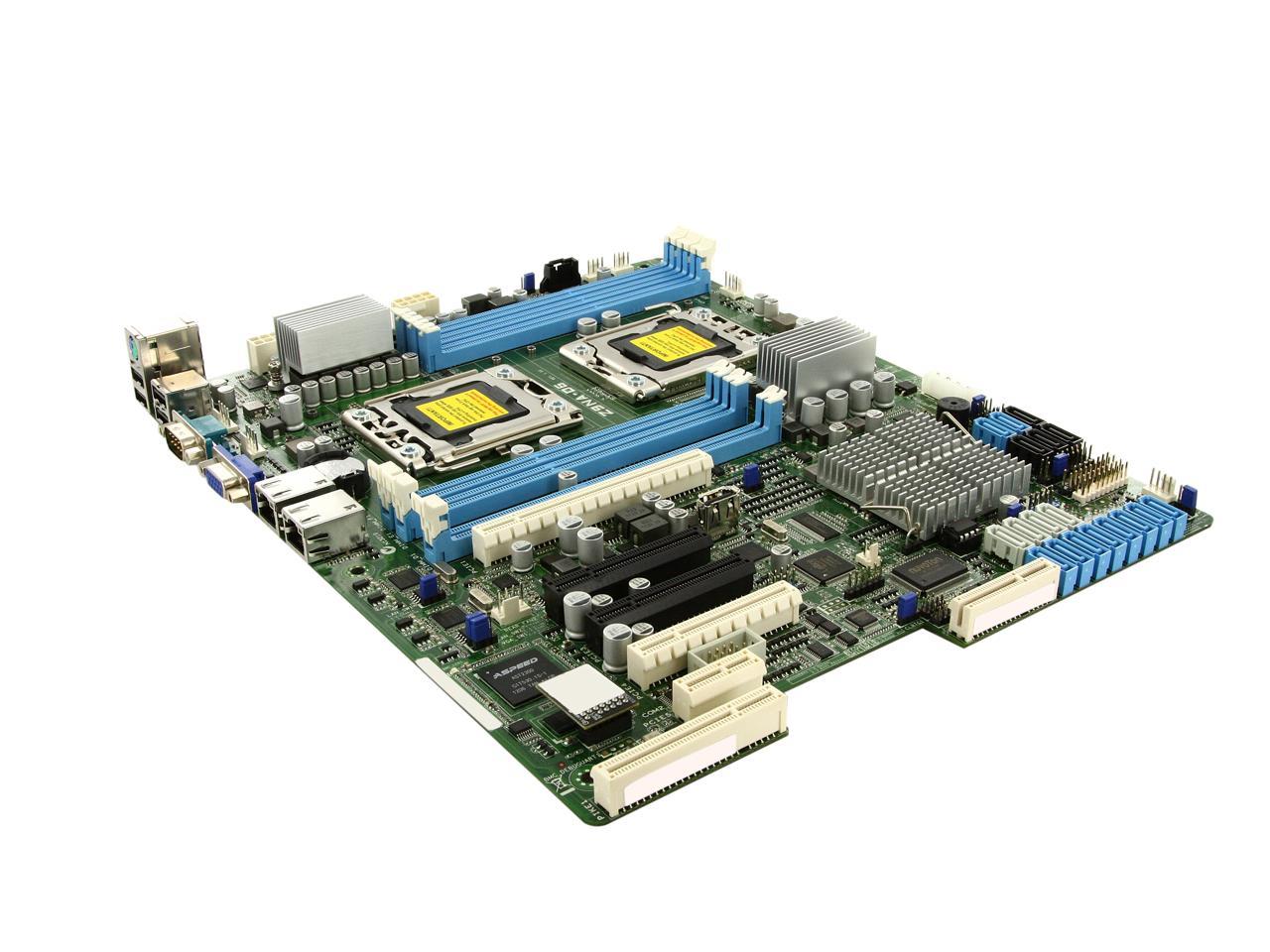

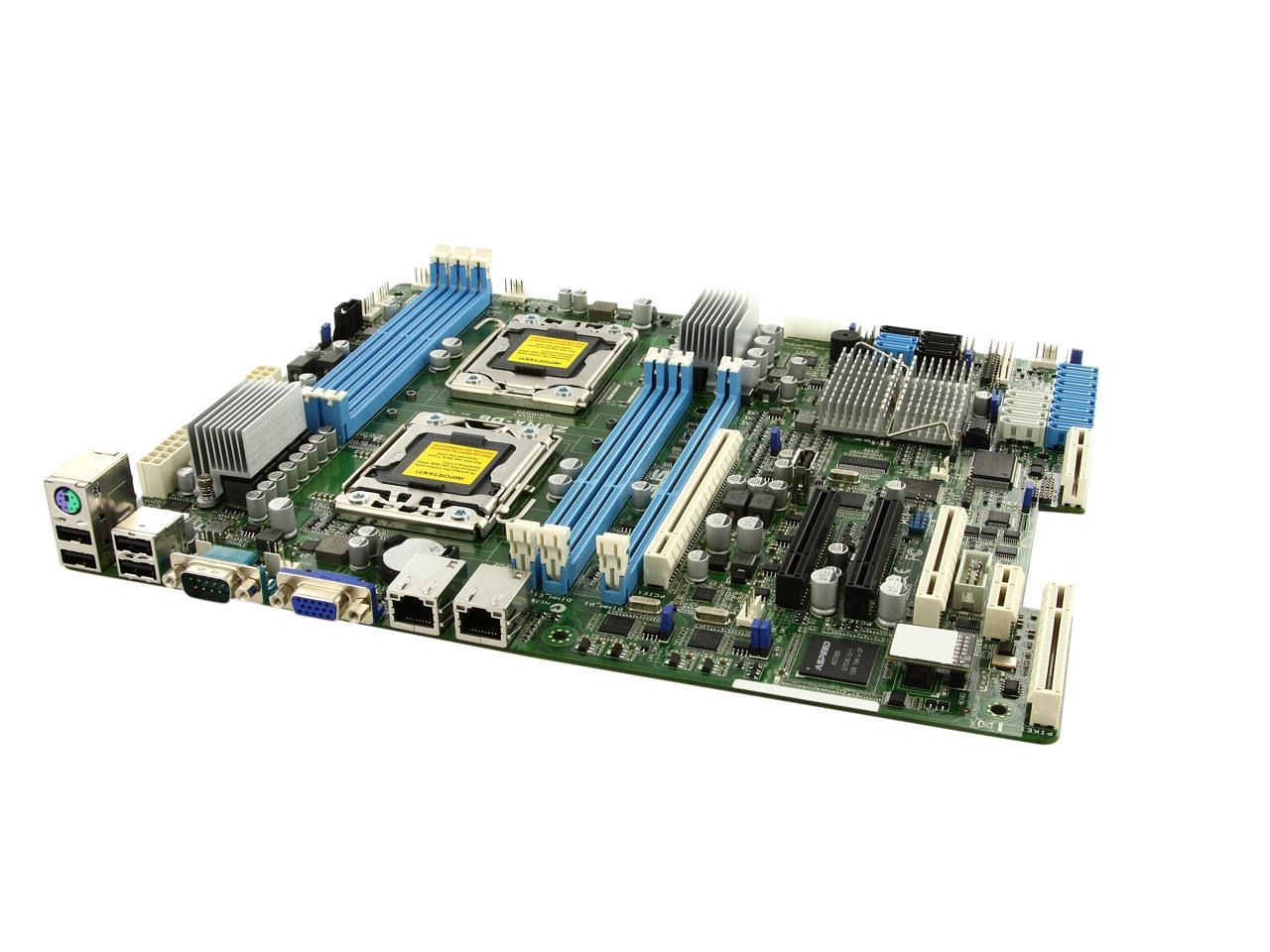

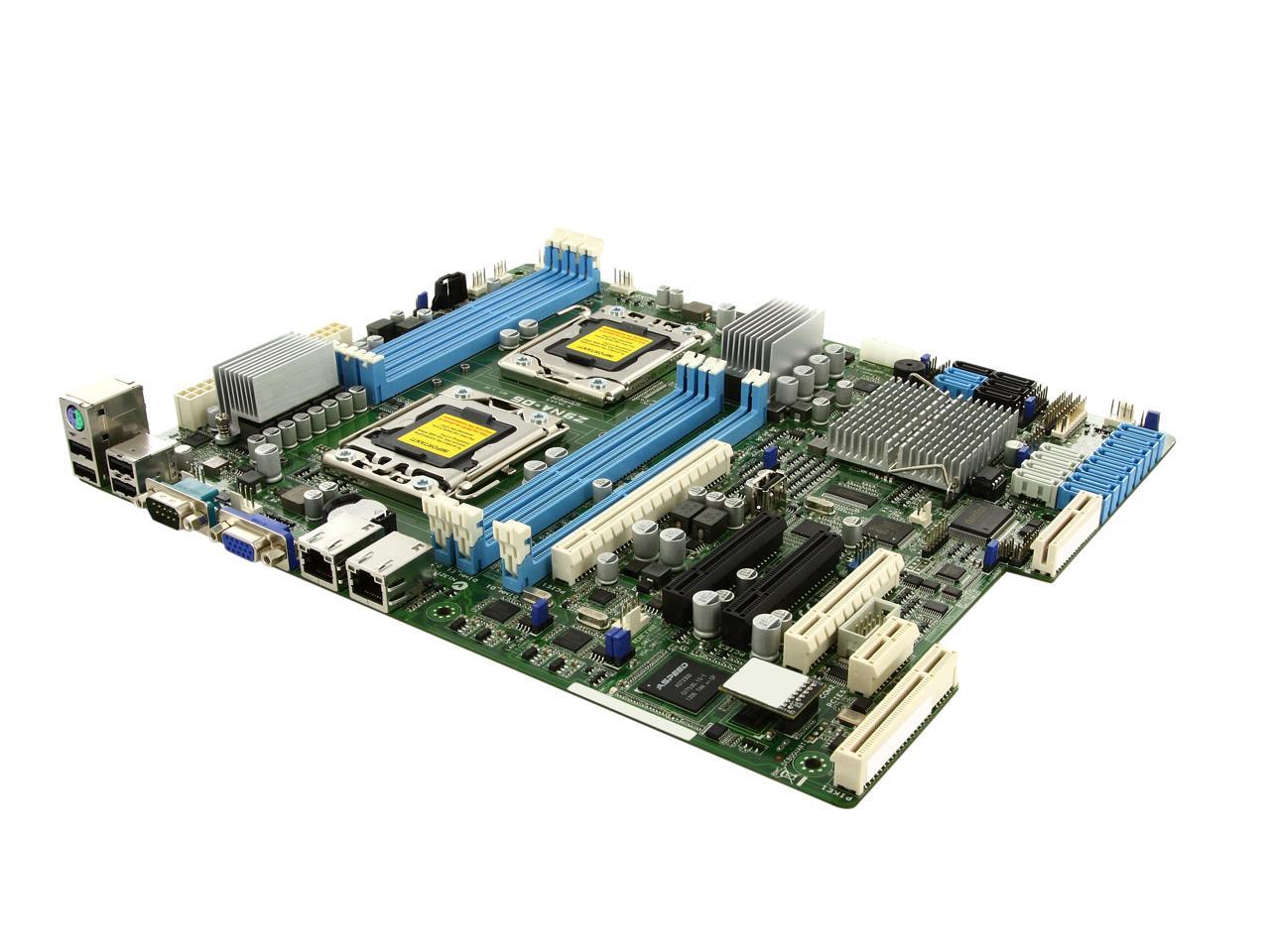

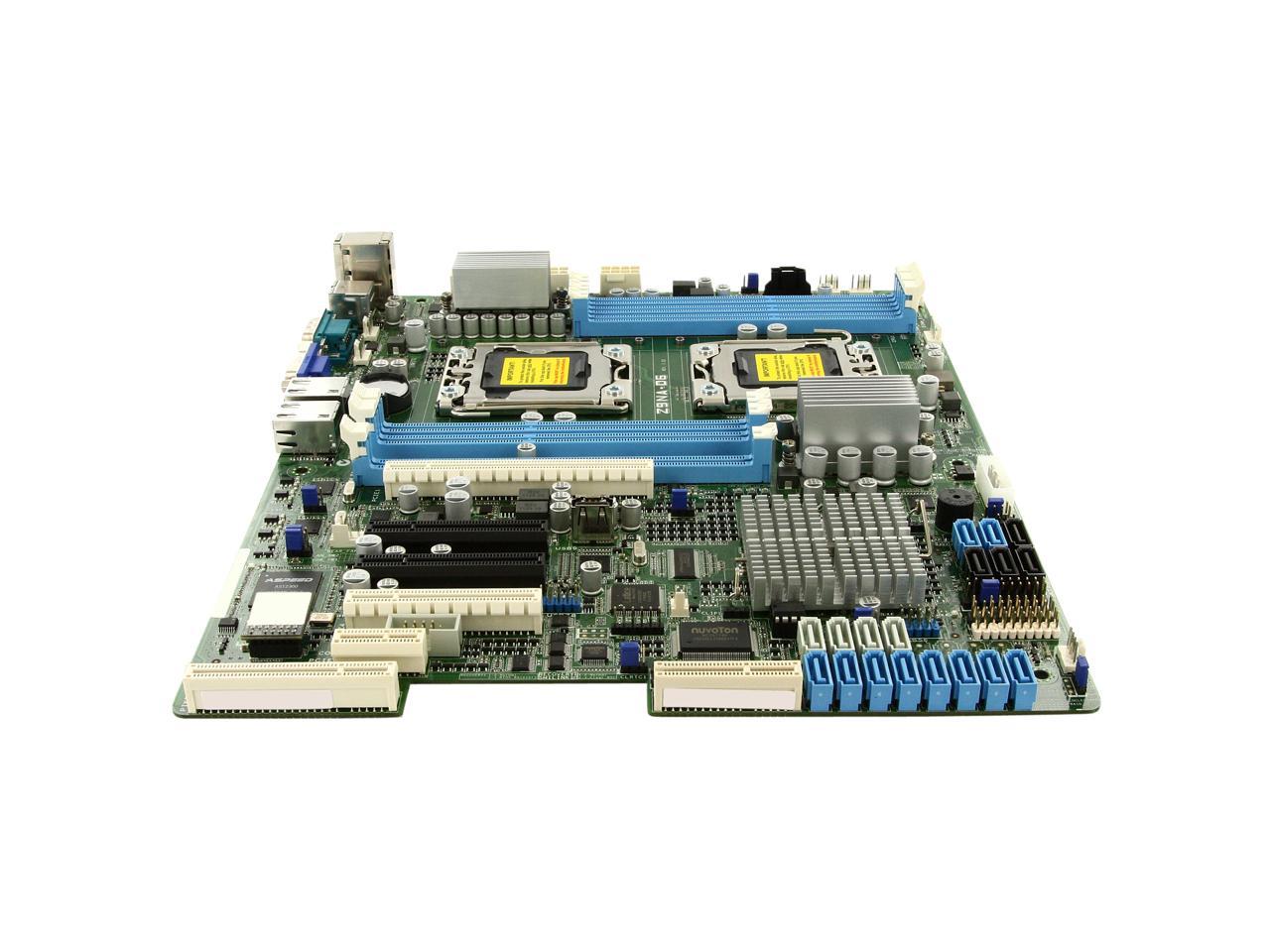

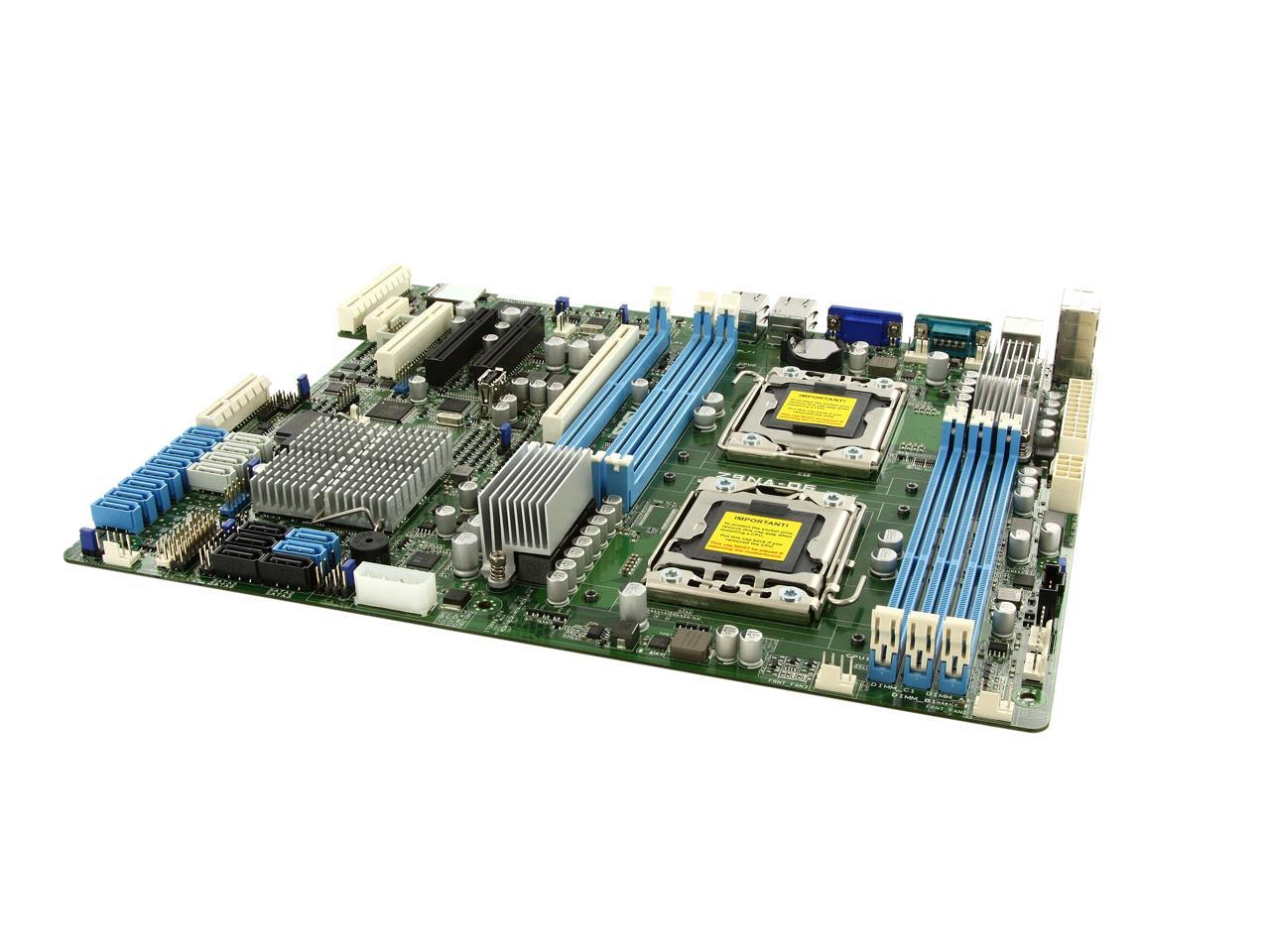

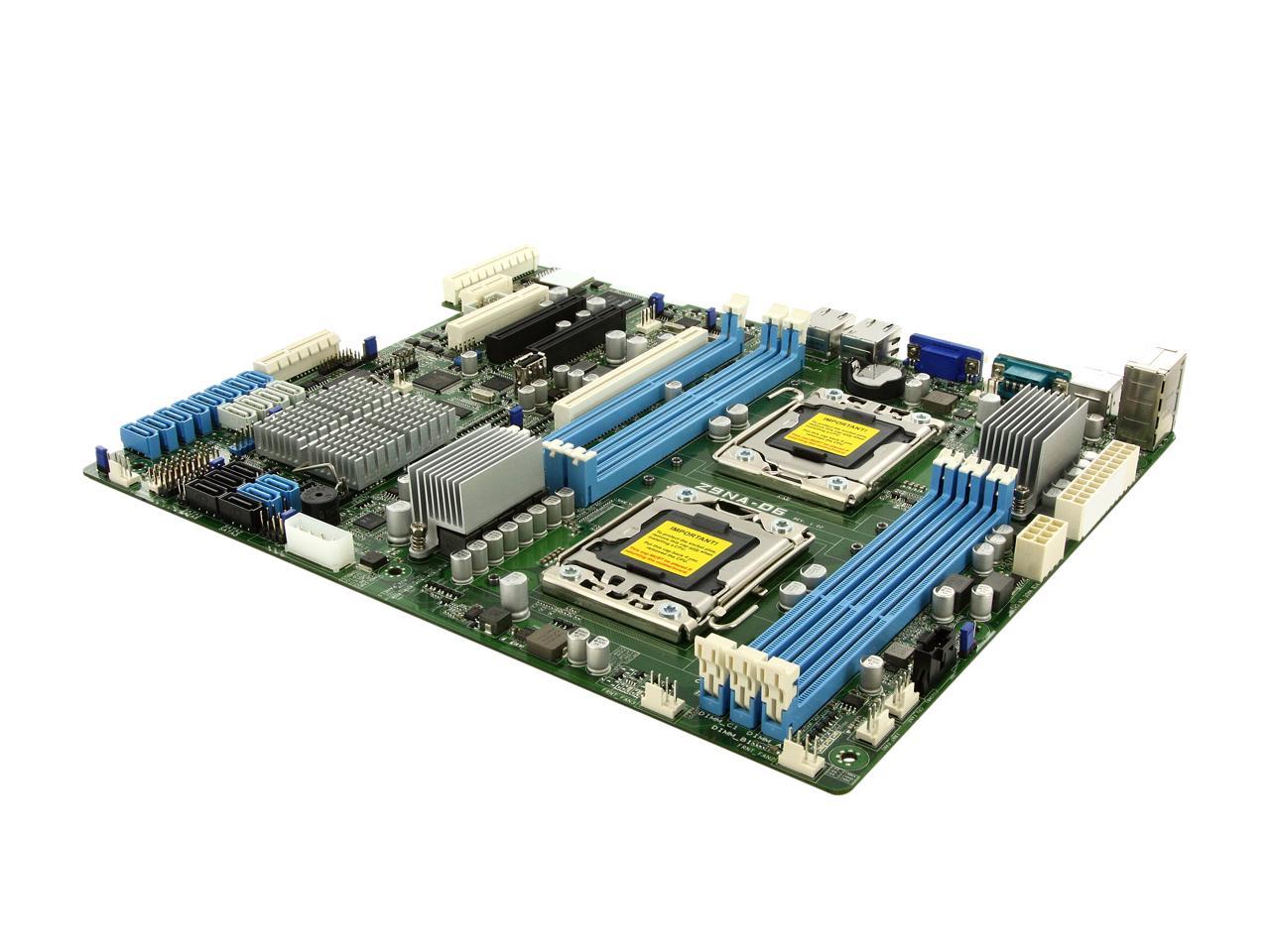

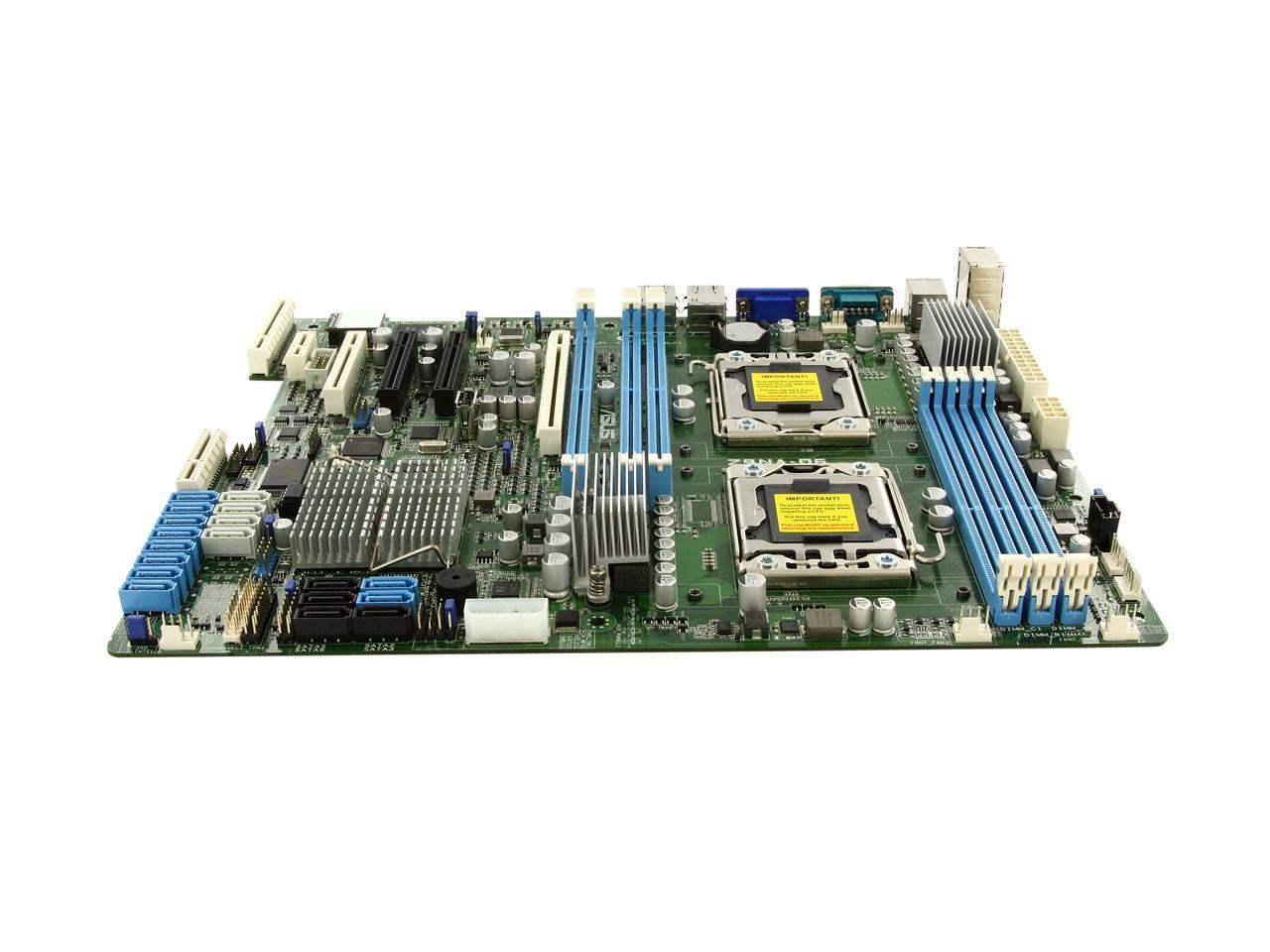

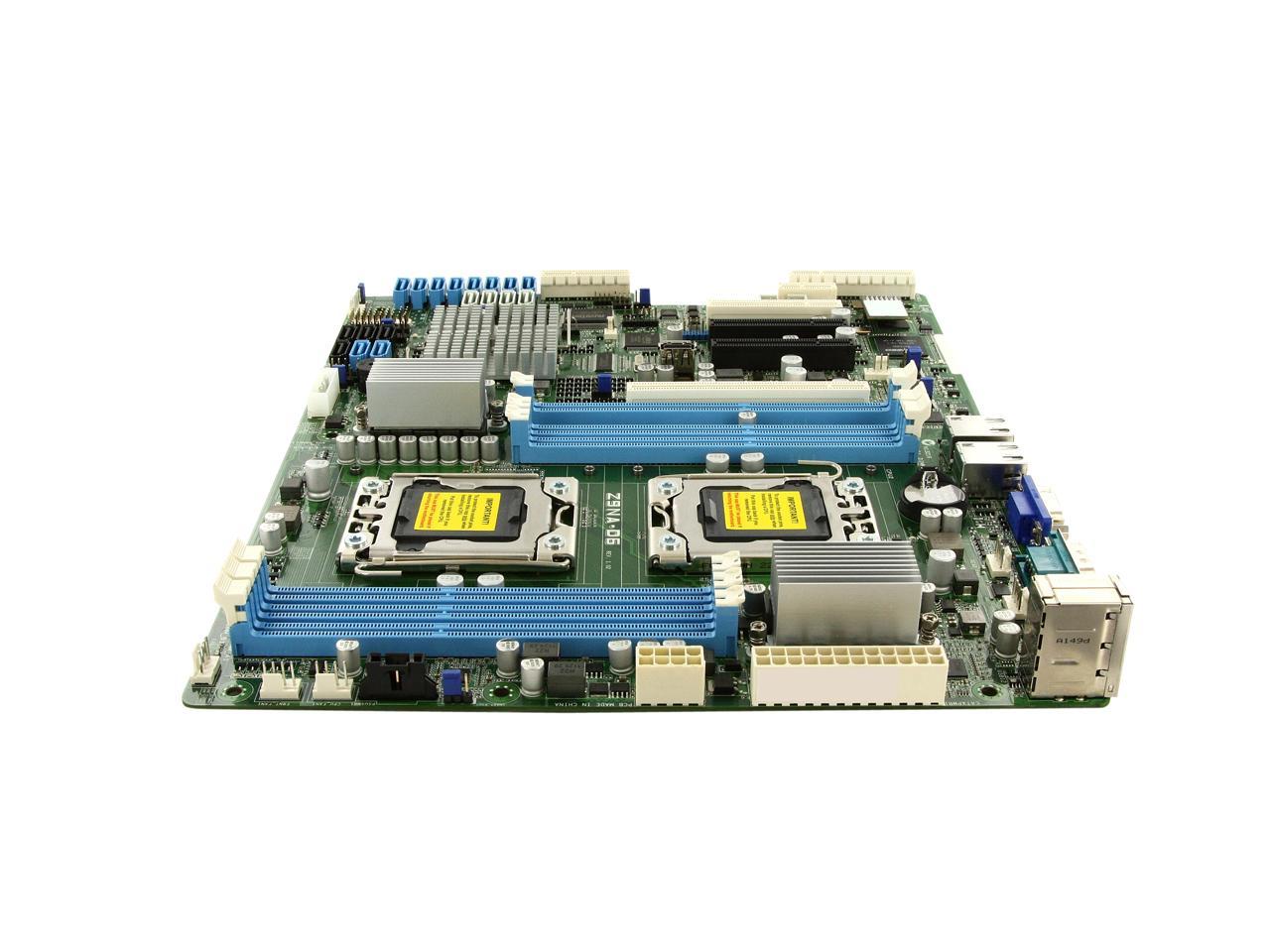

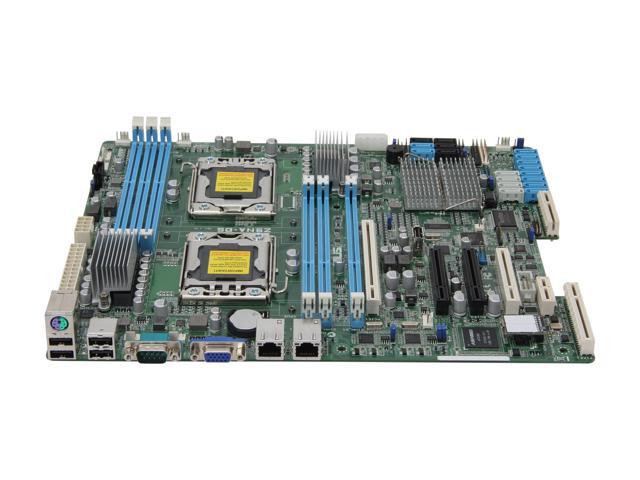

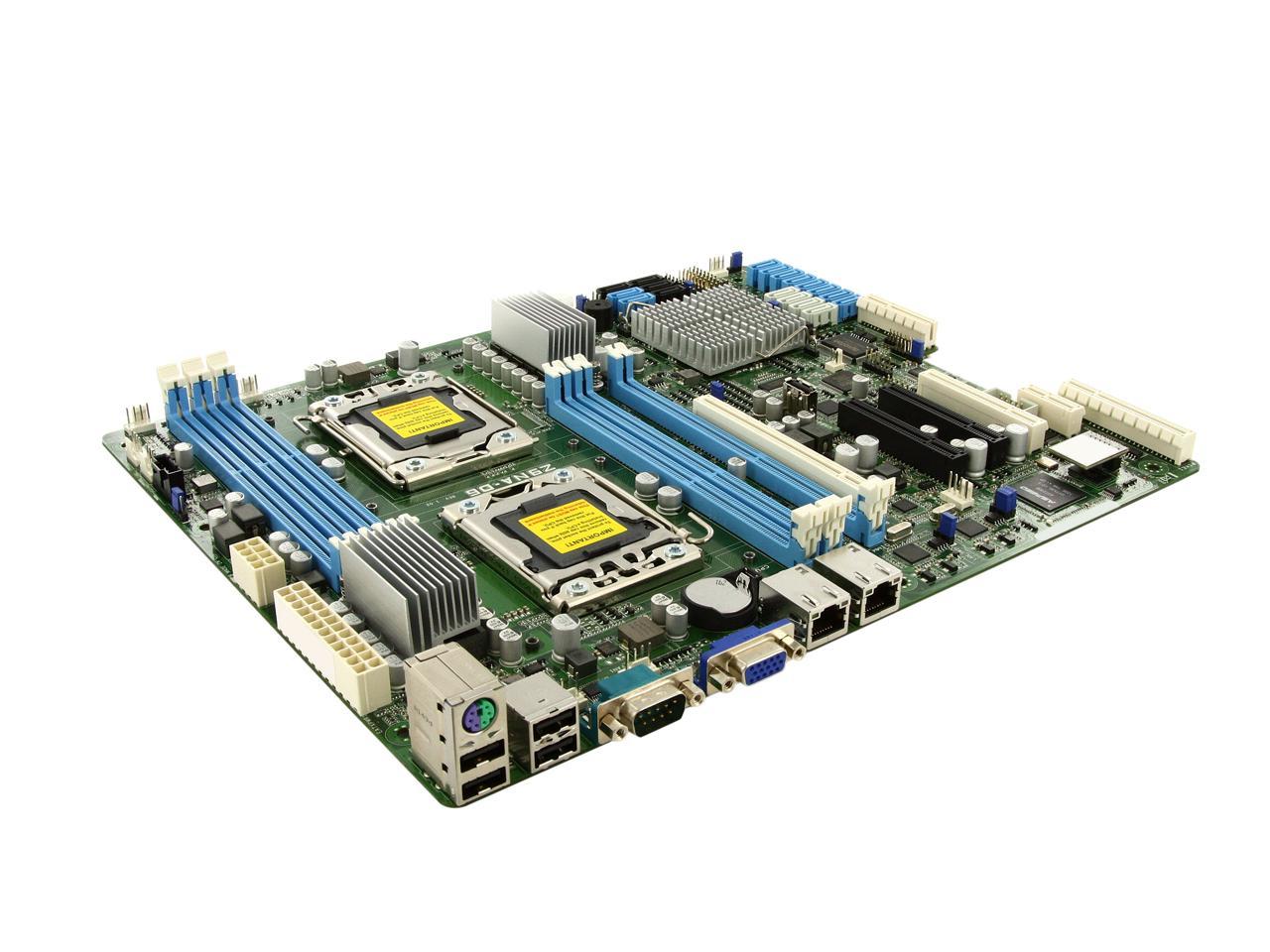

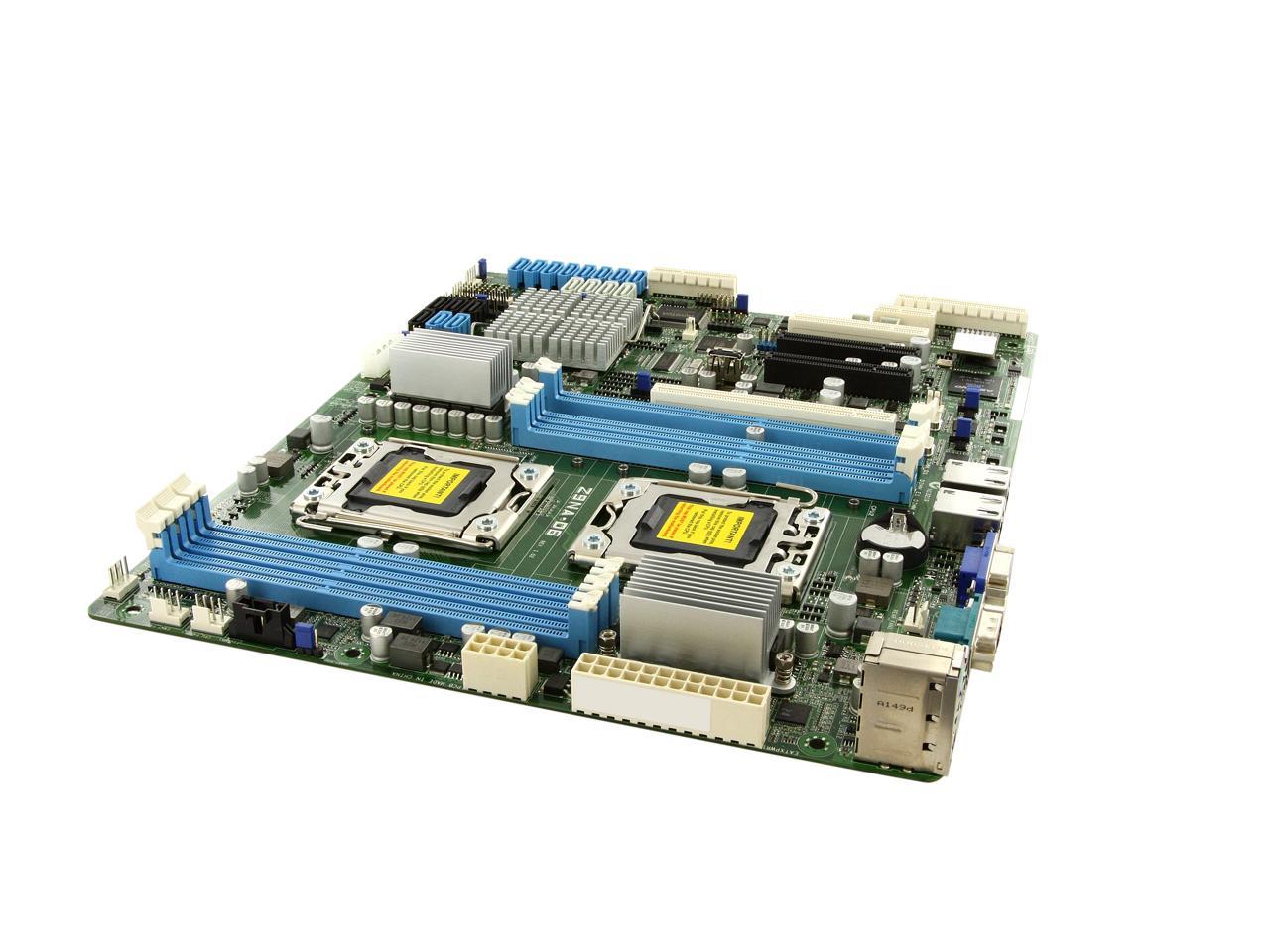

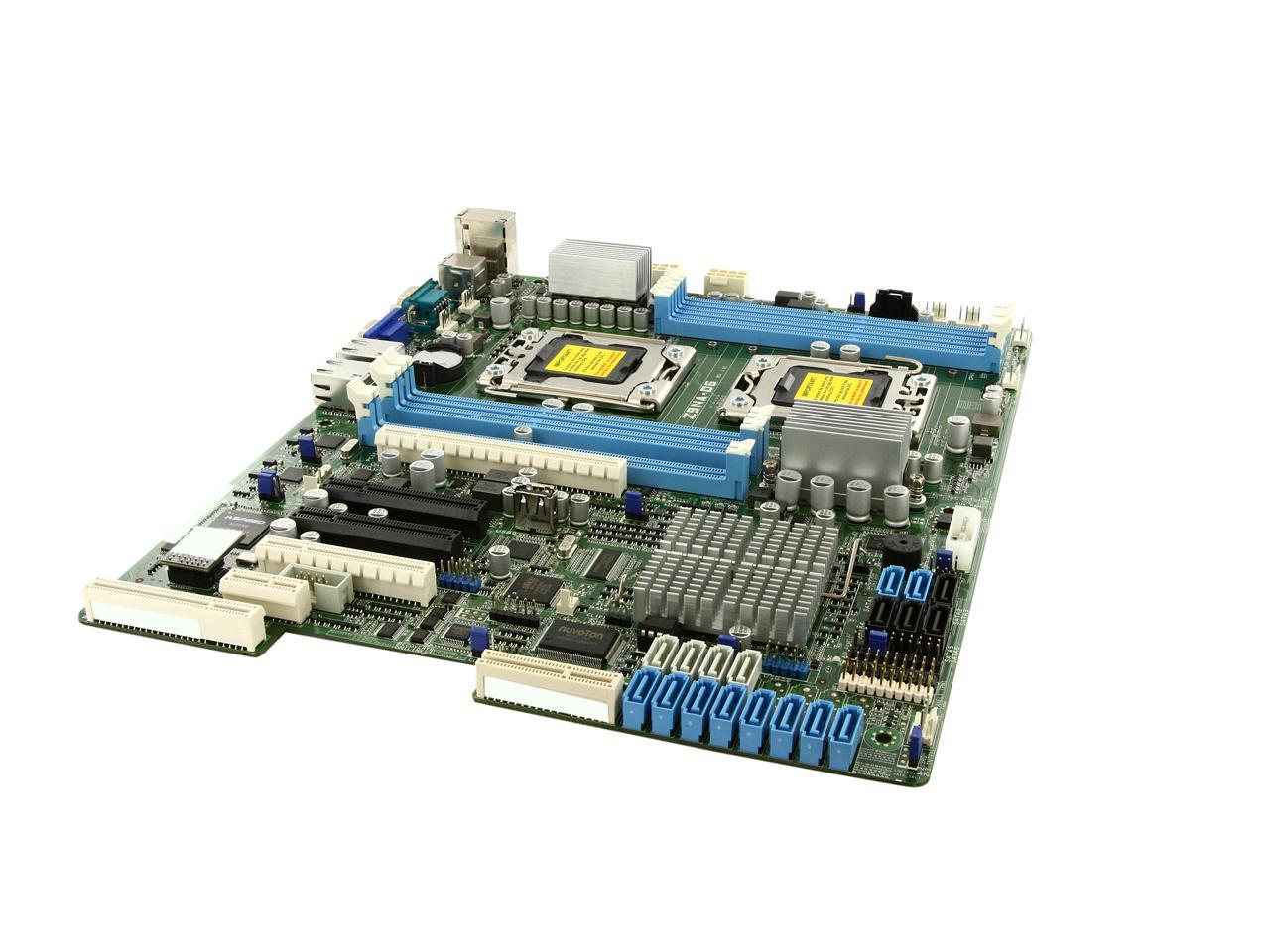

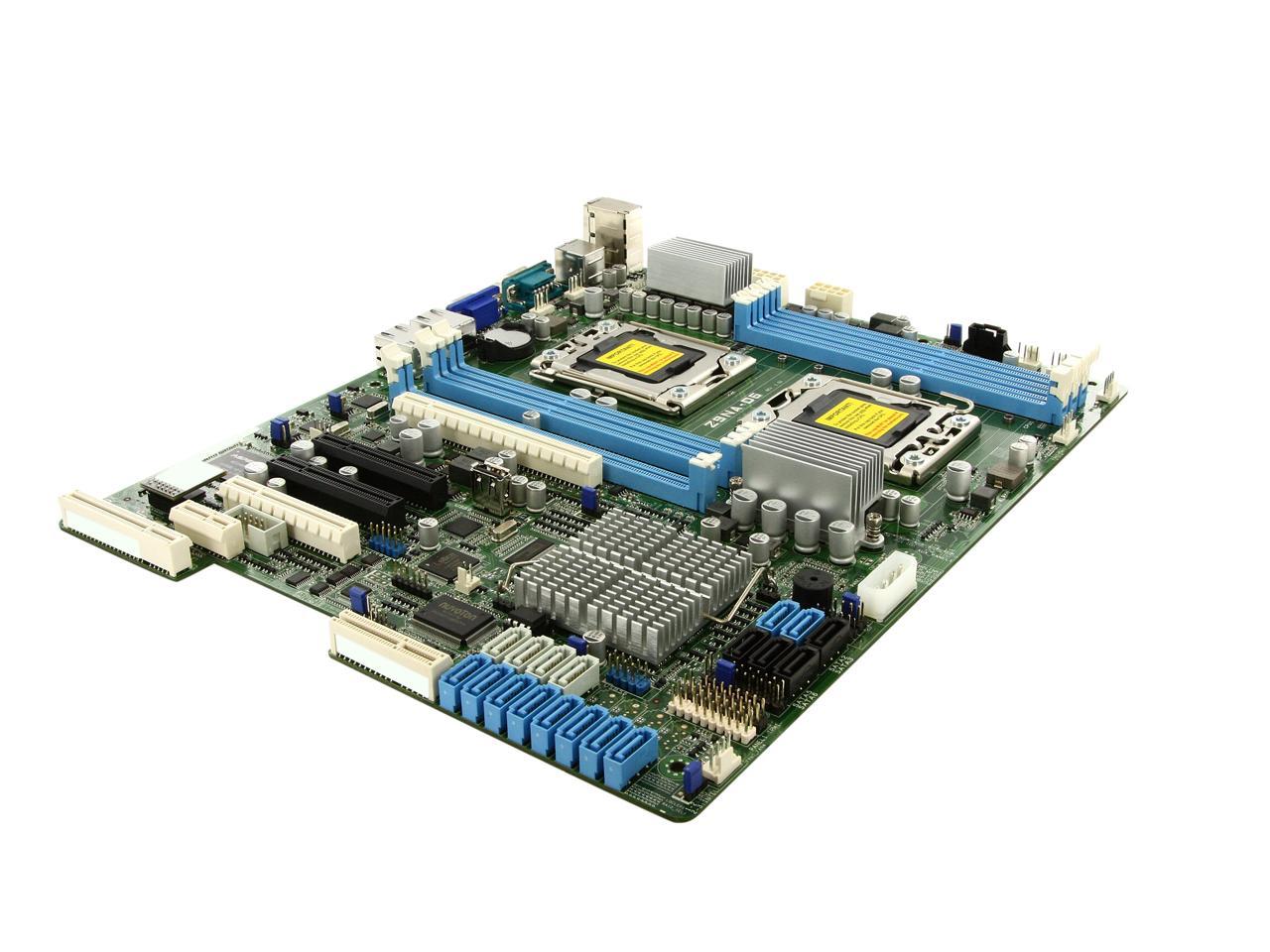

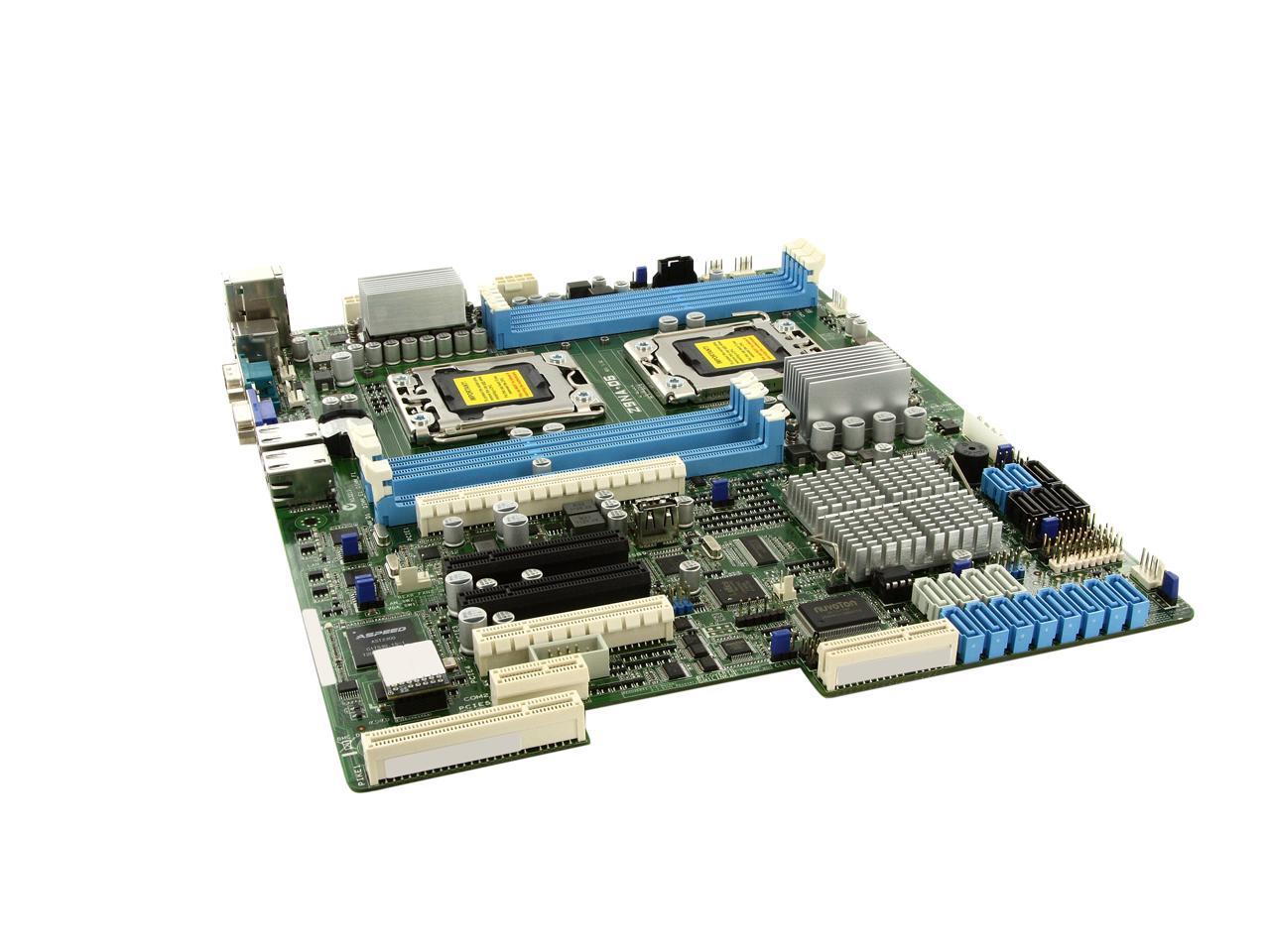

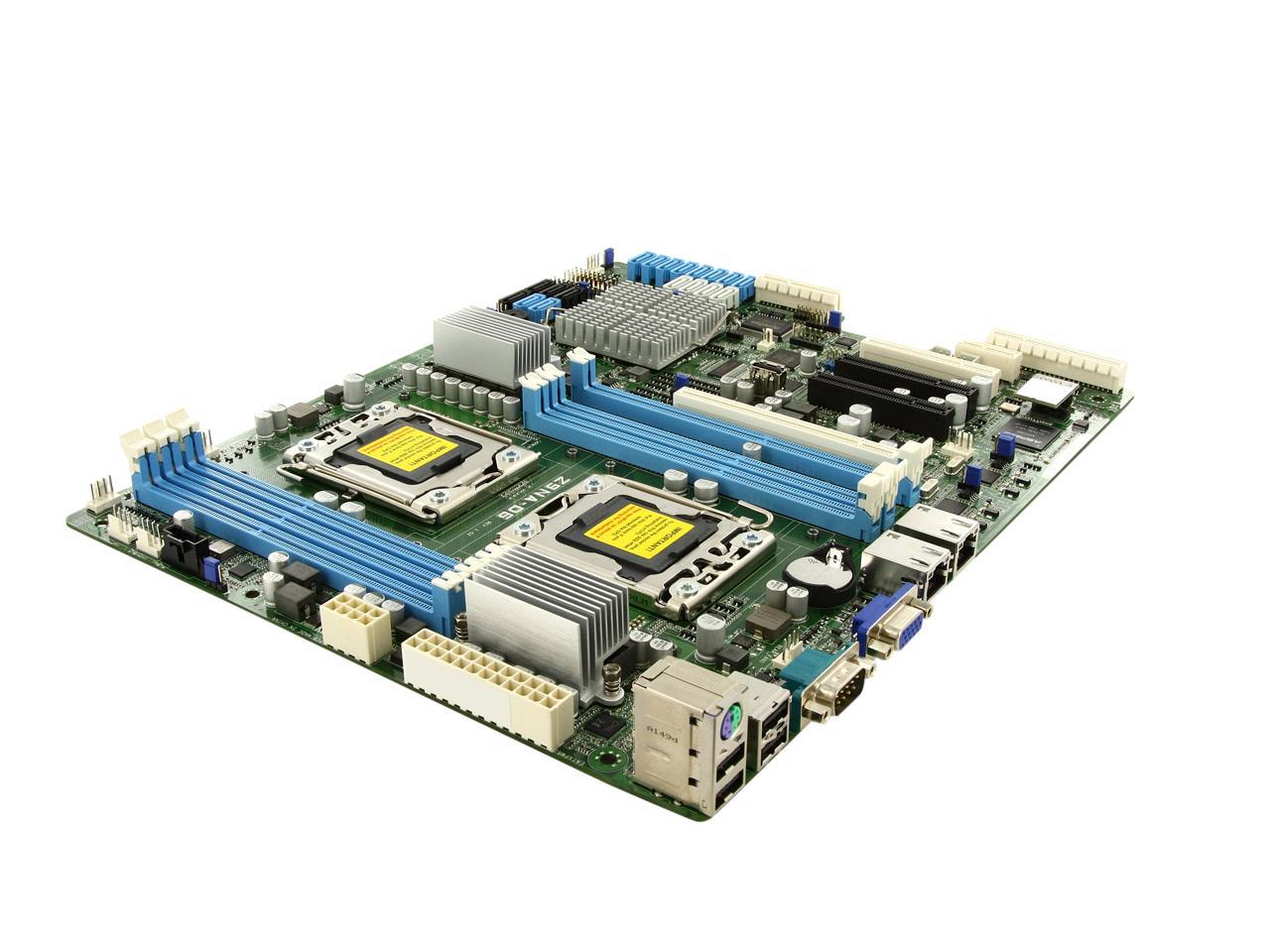

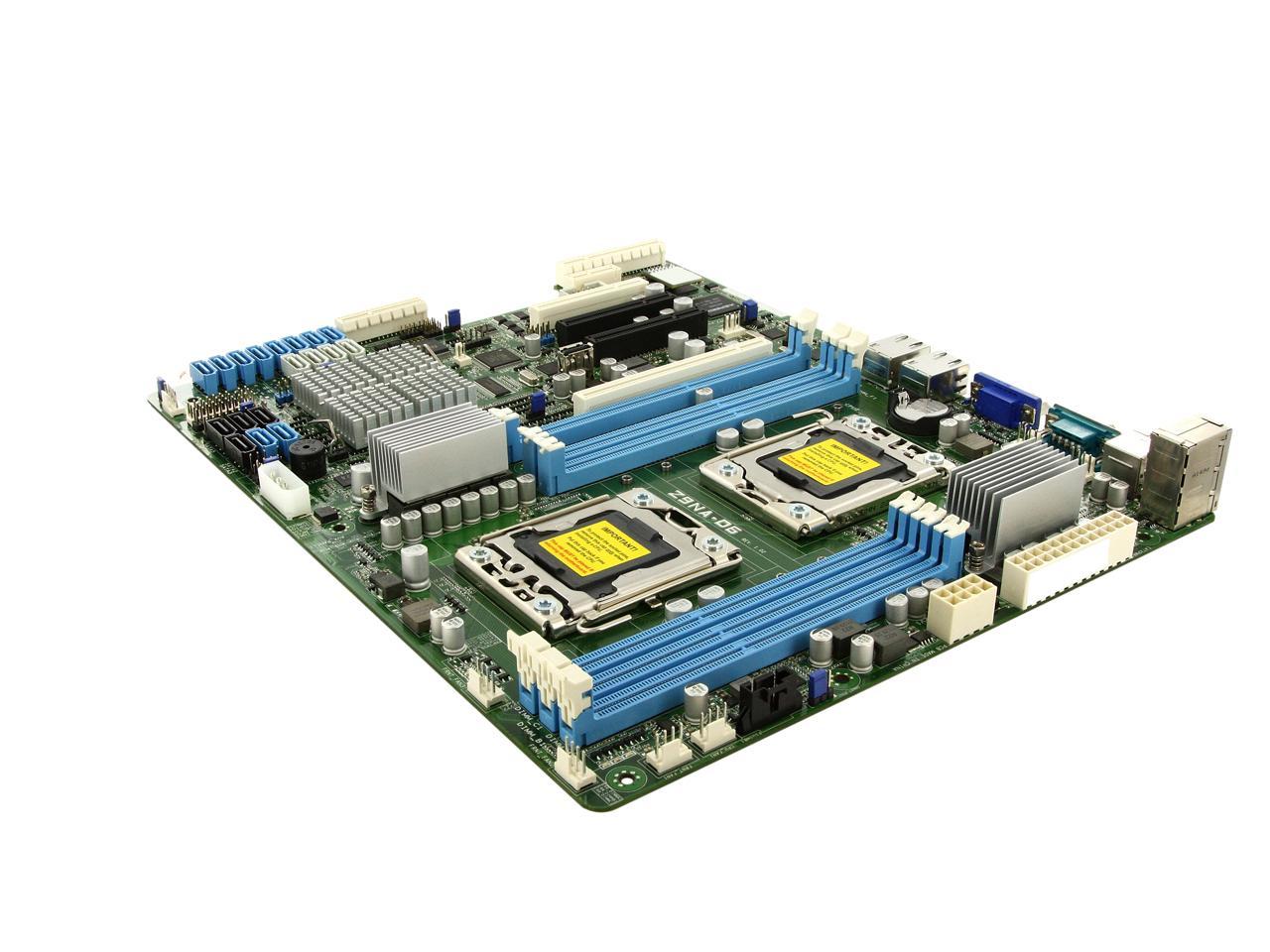

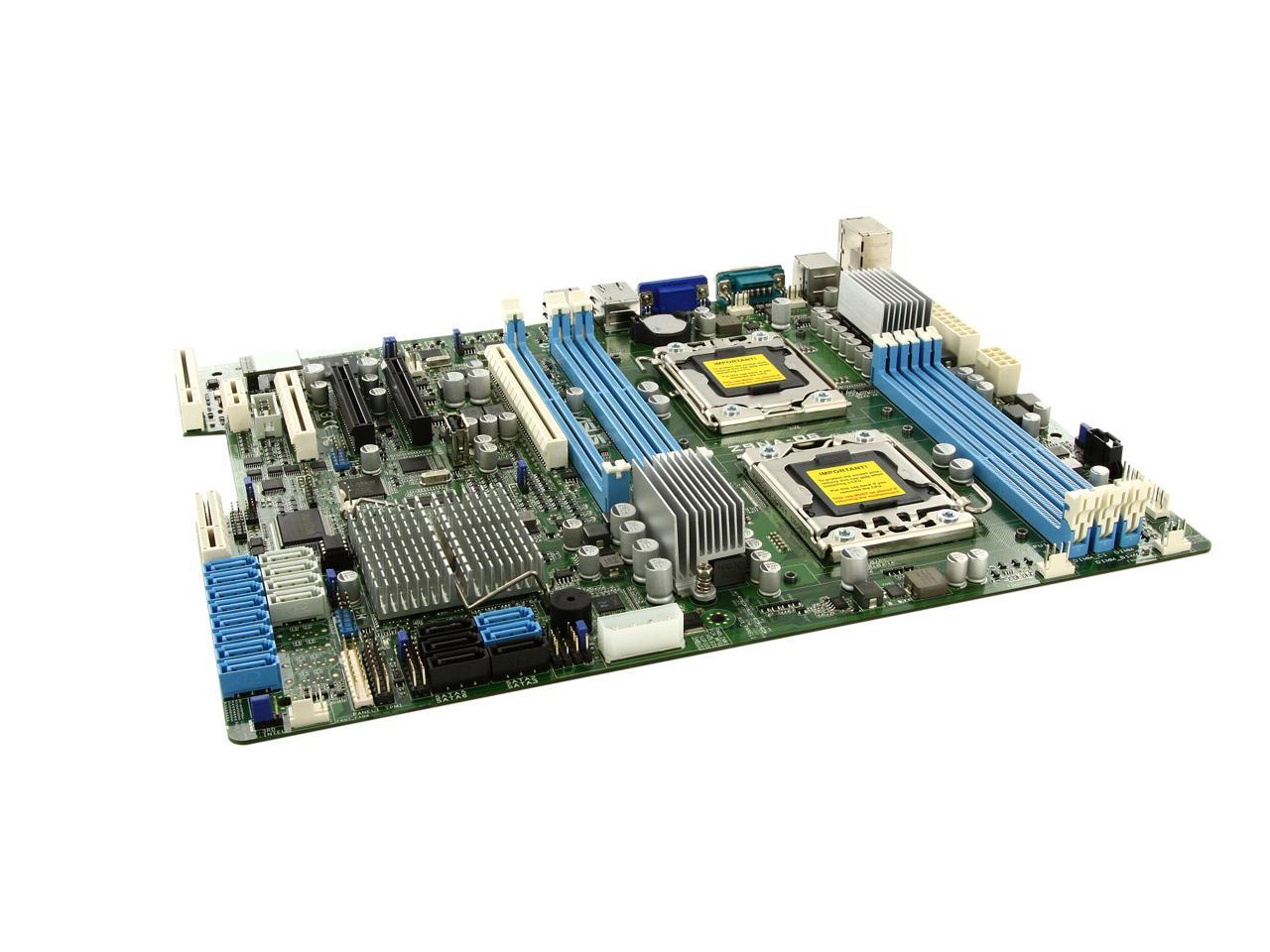

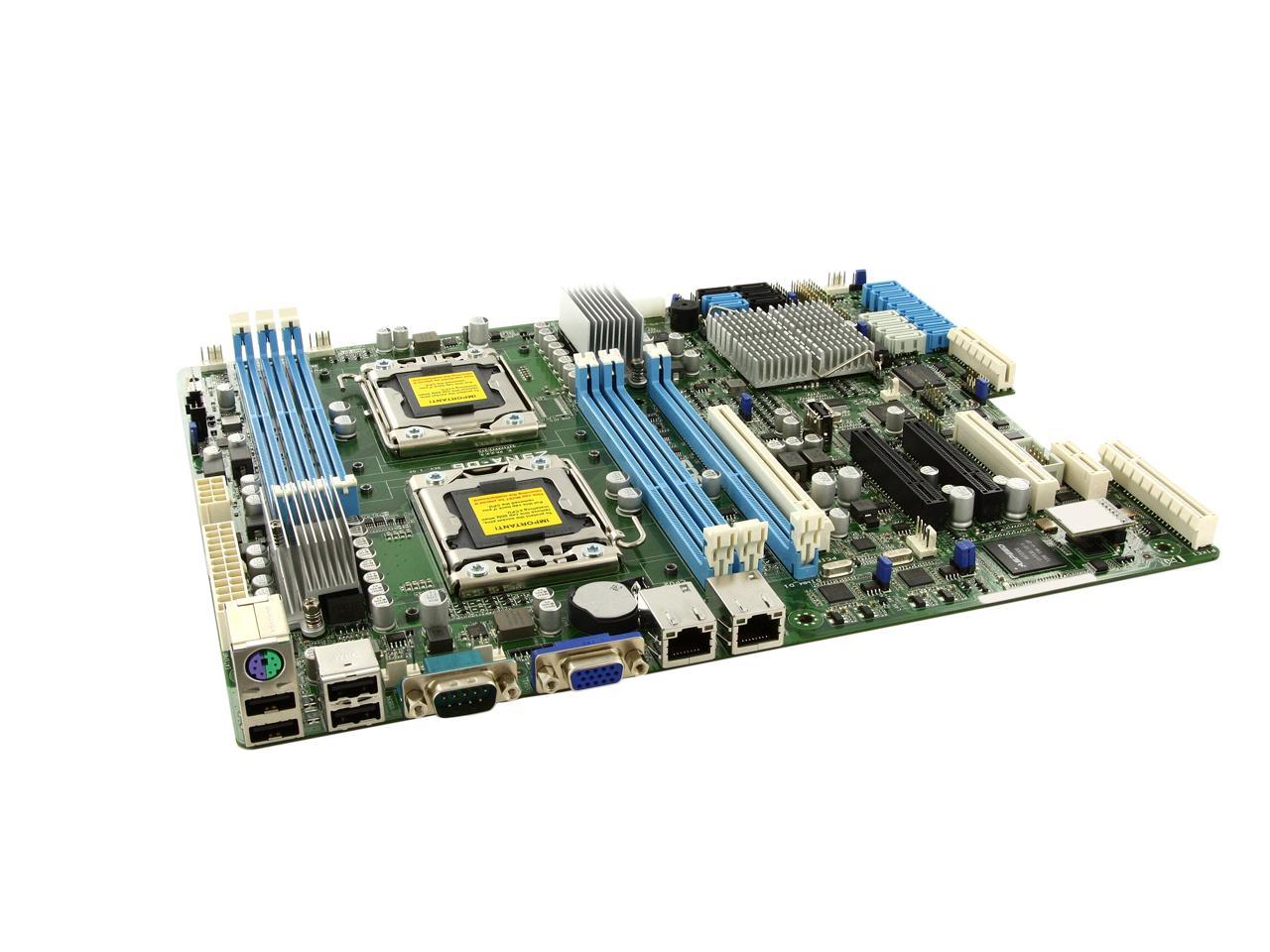

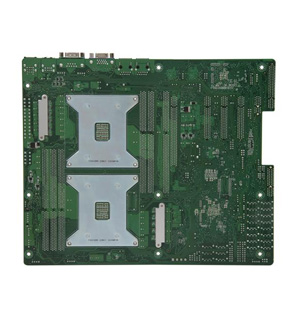

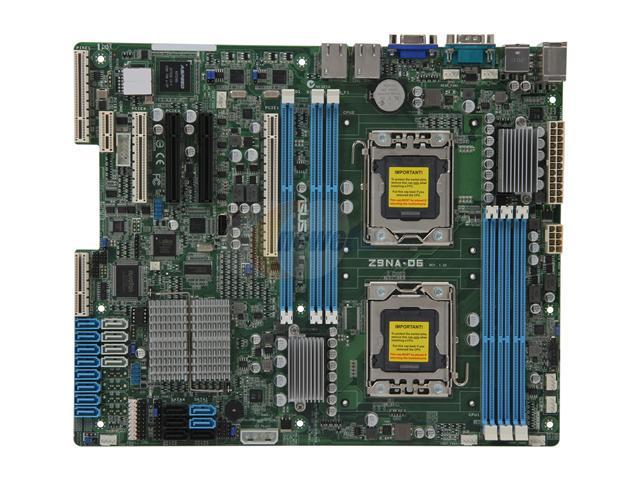

ASUS Z9NA-D6 ATX Server Motherboard Dual LGA 1356 (Socket B2) DDR3 1600

ATX Case and Power Supply Compatible

The Z9NA-D6 server board supports dual Intel® Xeon® server processors in a compact size. It follows standard ATX mounting hole locations and is also ready for ATX power supplies*. The design makes this board able to fit into server rack and tower chassis as well as standard PC ATX cases. Users looking for access to server performance with easily-available PC components will find what they’re looking for here.

*Please refer to product specifications below for power supply requirement.

Complete Storage Solutions

The Z9NA-D6 server board ships with two SATA 6Gbps ports and provides an SAS 6Gbps storage upgrade path via ASUS PIKE technology. The ASUS optional PIKE provides slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved via a unique slot — without sacrificing expansion capability. SATA DOM (Disk on Module) support, which is widely used in various embedded server applications, benefits customers building a diverse range of appliance servers. These technologies enable faster data retrieval, while also creating enhanced storage expandability.

Extremely Long-Lasting and Ultra-Reliable

100% Ultra-durable solid state capacitors offer ultra durability, improved lifespan, and enhanced thermal capabilities compared to traditional capacitors. These long-life solid state capacitors can sustain 5,000 hours at 105°C ambient temperature, or 500,000 hours of operation at 65°C ambient temperature, further ensuring the Z9NA-D6 remains reliable running even in extreme environments.

Digital Power Solution

All-new digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable CPU Vcore voltages. The Z9NA-D6 voltage regulation manages up to 89% peak power efficiency, with 85%+ during most normal operation. This ensures high power efficiency for the entire system to help customers save more electrical bills.

Comprehensive Server Management Solution: ASMB6-iKVM and ASWM Enterprise

The ASMB6-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or off-line, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers. ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, remote control, power control through a colorful, graphical, and informative interface.

Up-to-Date Intel Xeon® Processor E5-2400 Support

The motherboard supports the latest Intel Xeon® processor E5-2400 product family in LGA 1356 package with integrated memory controller to supports three-channel (6 DIMM per CPU) DDR3 memory.

System builders can also choose between robust server-grade DDR3 RDIMM/LRDIMM and ECC UDIMM, and more mainstream, widely available DDR3 non-ECC UDIMM. Additionally, with PCI Express 3.0 support ensures Z9NA-D6 to meet various performance demanding application. By supporting different processor, memory types and PCI Express 3.0 cards, the Z9NA-D6 becomes a versatile MB to cover a wide range of server and entry workstation.
