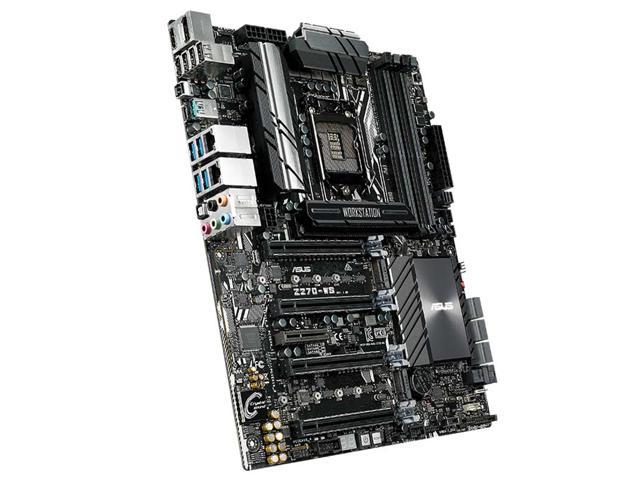

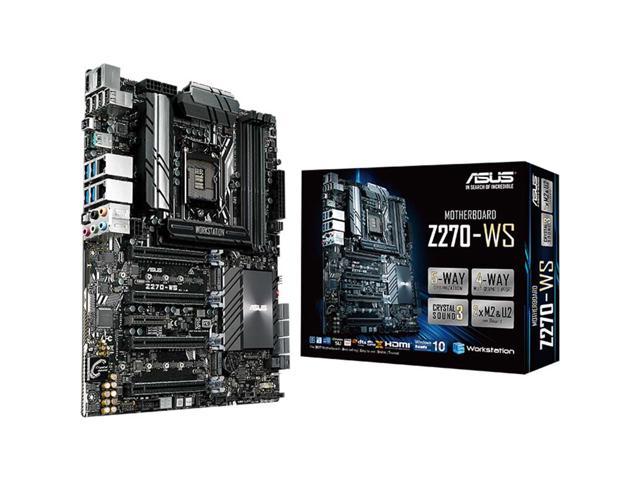

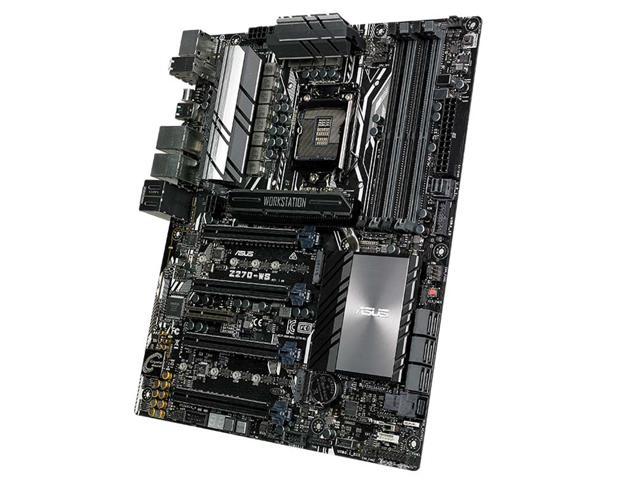

ASUS Z270-WS Dual Gigabit LAN and USB 3.1 ATX Workstation Motherboard- Intel® Z270- LGA1151
SKU: 9SIA4REGEH646412.936.976.260₫
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)Ultimate graphics power with 4-Way NVIDIA® SLI™ and AMD® Crossfire X™Next-gen transfer speeds with 32Gbps Dual M.2 and U..2, 10Gbps USB 3.1
Description
if (typeof (Webcollage) == “undefined”) {
jQuery.ajax({
type: “GET”,
url: “https://scontent.webcollage.net/api/v2/product-content”,
success: function () {
Webcollage.loadContent(“newegg”,
“9SIAA3D63X2013”,
{ reload: true })
},
dataType: ‘script’,
cache: true
});
} else {
Webcollage.loadContent(“newegg”,
“9SIAA3D63X2013”,
{ reload: true })
}
Learn more about the ASUS Z270-WS
| Brand | ASUS |
|---|---|
| Model | Z270-WS |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors |
| Supported CPU Technologies | Supports Intel® 14 nm CPU;Supports Intel® Turbo Boost Technology 2.0 |
| North Bridge | Intel® Z270 |
|---|
| DDR4 Standard | DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory |
|---|---|
| Maximum Memory Supported | Max. 64GB |
| Channel Supported Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | Storage: 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2; 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3 |
|---|---|
| Other Slots | 4 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x16 mode, triple at x16/x8/x8 mode or quad x8/x8/x8/x8 mode); 1 x PCIe x4 (max at x4 mode) |
| SATA | Storage: 6 x SATA 6Gb/s port(s)*2; 2 x U.2 connector*3 |
|---|---|
| SATA RAID | 0, 1, 5, 10 |
| Onboard Video Chipset Onboard Video Chipset | Integrated Graphics Processor- Intel® HD Graphics support; Multi-VGA output support : HDMI/DisplayPort ports; – Supports HDMI 2.0 with max. resolution 4096 x 2160 @ 60 / 24 Hz*1; – Supports DisplayPort with max. resolution 4096 x 2304 @ 24 Hz / 4096 x 2304 @ 60 Hz; – Supports High Dynamic Range(HDR),Wide Color Gamut(Rec.2020),HDCP 2.2; Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™; Supports up to 2 displays simultaneously; DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
|---|
| Audio Chipset Audio Chipset | 1.Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3: – Impedance sense for front and rear headphone outputs; – Supports : Jack-detection, Multi-streaming; 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); 2.Audio Feature : – DTS Connect; – DTS Headphone:X ; – Optical S/PDIF out port(s) at back panel; – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; – Unique de-pop circuit: Reduces start-up popping noise to audio outputs; – EMI protection cover to prevent electrical noise to affect the amplifier quality; – Power pre-regulator: Reduces power input noise to ensure consistent performance; Separate layer for left and right track, ensuring both sound deliver equal quality; Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity; |
|---|
| LAN Chipset | Intel® I210-AT, 1 x Gigabit LAN Controller(s); Intel® I219-LM , 1 x Gigabit LAN; Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance; ASUS Turbo LAN Utility; |
|---|
| Video Ports | Multi-GPU Support: Supports NVIDIA® Quad-GPU SLI™ Technology *7; Supports NVIDIA® 4-Way SLI™ Technology *7; Supports AMD Quad-GPU CrossFireX™ Technology *7; Supports AMD 4-Way CrossFireX Technology *7 |
|---|---|
| USB 1.1/2.0 | Intel® Z270 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board) |
| USB 3.1 | Intel® Z270 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-0board); ASMedia® USB 3.1 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM); 1 x USB 3.1 front panel connector port(s) |
| Features | 1.Special Features: OC Design – ASUS PRO Clock Technology: – Full BCLK range for extreme overclocking performance; 5-Way Optimization by Dual Intelligent Processors 5: – Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Gamer’s Guardian: – SafeSlot; ASUS TPU : – Auto Tuning; – GPU Boost ; ASUS EPU : – EPU; ASUS Digital Power Design : – Industry leading Digital 8 + 4 + 2 Phase Power Design; ASUS Exclusive Features : – USB BIOS Flashback; – MemOK!; – AI Suite 3; – Ai Charger ; – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface; – Turbo LAN; – Crystal Sound 3; – EZ XMP ASUS Exclusive Features; ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-pipe solution; – ASUS Fan Xpert 4; ASUS EZ DIY : – ASUS CrashFree BIOS; – ASUS EZ Flash 3; – ASUS USB BIOS Flashback; CPU Installation Tool: – Three-step simplicity and safety; ASUS Q-Design : – ASUS Q-Shield; – ASUS Q-Code; – ASUS Q-LED (CPU, DRAM, VGA, HDD LED); – ASUS Q-Slot; – ASUS Q-DIMM; – ASUS Q-Connector; Performance Optimization : – Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control; Turbo App; Key Express; M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2); 2.Back I/O Ports: 1 x DisplayPort; 1 x HDMI; 2 x LAN (RJ45) port(s); 1 x USB 3.1 Gen 2 (teal blue)Type-A; 1 x USB 3.1 USB Type-CTM; 4 x USB 3.1 Gen 1; 4 x USB 2.0 ; 1 x Optical S/PDIF out; 1 x USB BIOS Flashback Button(s); 1 x 8-channel Audio I/O; 3.Internal I/O Ports: 1 x RGB Header(s); 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s); 2 x M.2 So |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Package Contents | User’s manual; ASUS Q-Shield; 1 x 2-Way SLI bridge(s); 1 x COM port cable(s); 6 x SATA 6Gb/s cable(s); 2 x M.2 Screw Package; 1 x CPU installation tool; 1 x Supporting DVD; 1 x 3-Way SLI bridge(s); 1 x 4-Way SLI bridge(s); 1 x Q-Connector; 1 x 2-port USB 2.0 module(s); 1 x Extension Cable for RGB strips (80 cm); |
|---|
| Date First Available | November 05, 2021 |
|---|
Customer Reviews of the ASUS Z270-WS
