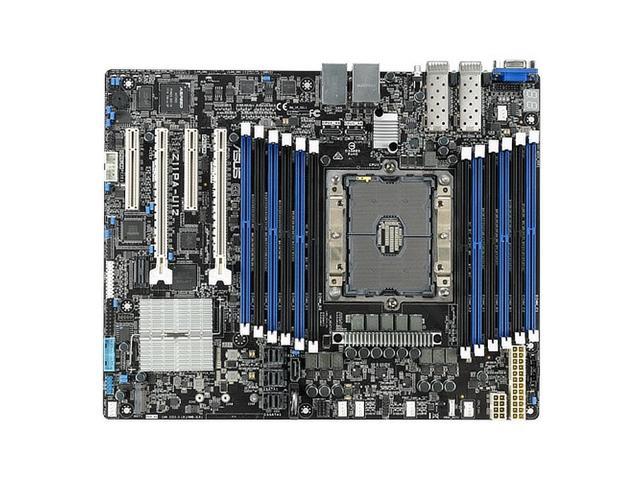

ASUS Z11PA-U12/10G-2S LGA 3647 Intel DDR4 ATX Motherboard (90SB06A0-M0UAY1)
SKU: 9SIAYB7JJA974027.896.505₫
LGA 3647IntelATXDDR41536 GB
Description
Internal IO
- Number of M.2 (M) slots: 1
- Ethernet LAN connectors: 2
- Supported storage drive interfaces: Serial ATA III
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Power fan connector: Yes
- Peripheral (Molex) power connectors (4-pin): 6
- Number of SATA III connectors: 13
- CPU fan connector: Yes
- ATX Power connector (24-pin): Yes
Technical details
- Motherboard chipset family: Intel
- PC health monitoring: CPU, Fan
- On-board graphics adapter: Yes
- Cooling type: Active
- Motherboard form factor: ATX
- Component for: PC
Performance
- Supported storage drive types: HDD & SSD
- Motherboard chipset family: Intel
- PC health monitoring: CPU, Fan
- Cooling type: Active
- Motherboard form factor: ATX
- Component for: PC
Processor
- Processor manufacturer: Intel
- Compatible processor series: Intel Xeon Phi
- Processor socket: LGA 3647
Memory
- Number of memory slots: 12
- Memory slots type: DIMM
- Supported memory types: DDR4-SDRAM
- Memory channels: Single-channel
- Supported memory clock speeds: 2400,2666,2933 MHz
- Supported memory module capacities: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
- Maximum internal memory: 1536 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: Serial ATA III
Graphics
- Maximum graphics adapter memory: 64 MB
- On-board graphics adapter: Yes
- Graphics adapter family: ASPEED
- Graphics adapter: AST2500

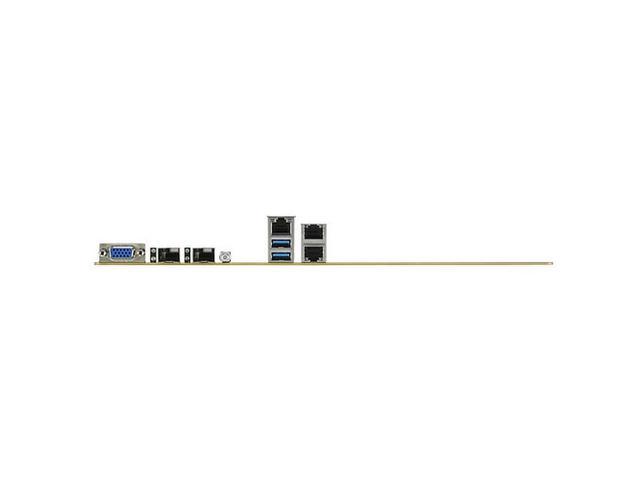

Rear panel IO ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- Ethernet LAN (RJ-45) ports: 3
Network
- Ethernet LAN: Yes
- Wi-Fi: No
- Ethernet interface type: 10 Gigabit Ethernet
Features
- Power source type: ATX
- Motherboard chipset family: Intel
- PC health monitoring: CPU, Fan
- Cooling type: Active
- Motherboard form factor: ATX
- Component for: PC
Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x16 dual x8x8 mode: Yes
- PCI Express x16 (Gen 3.x) @ dual x8x8 mode slots: 1
- PCI Express x8 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
Power
- Power source type: ATX
Operational conditions
- Storage temperature (T-T): -40 – 70 °C
- Operating temperature (T-T): 10 – 35 °C
- Storage relative humidity (H-H): 20 – 90%
Video
- Maximum graphics adapter memory: 64 MB
- Graphics adapter family: ASPEED
- Graphics adapter: AST2500
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
Other features
- PCI Express x16 dual x8x8 mode: Yes
- Ethernet LAN connectors: 2
- PCI Express x8 (Gen 3.x) slots: 2
Learn more about the Detailed Specifications
| CPU Socket Type | LGA 3647 |
|---|---|
| CPU Type | Intel Xeon |
| North Bridge | Intel |
|---|
| Form Factor | ATX |
|---|
| Date First Available | September 01, 2022 |
|---|
