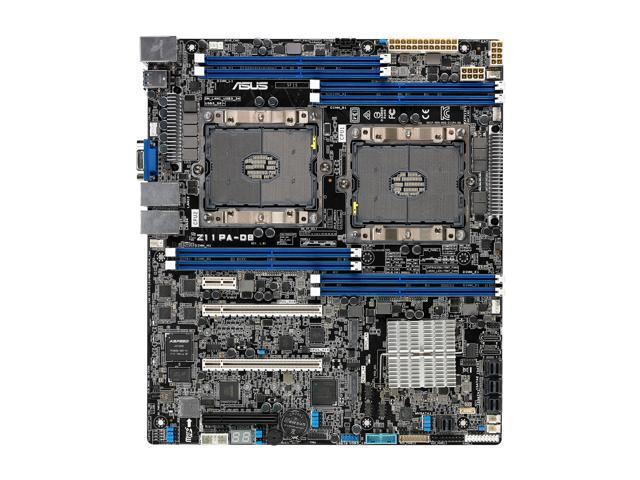

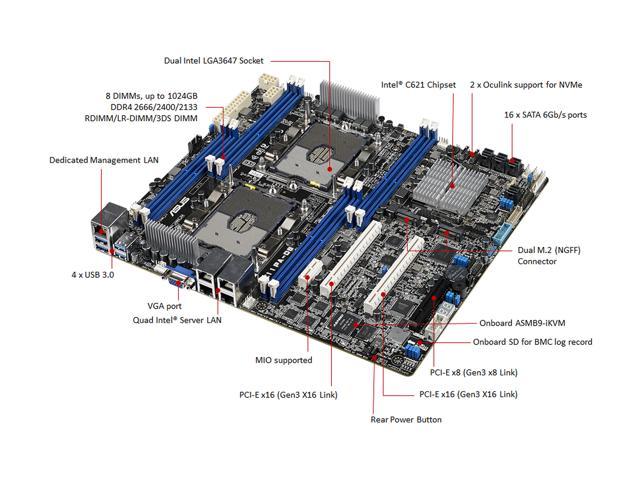

ASUS Z11PA-D8 CEB Server Motherboard Dual LGA 3647
SKU: 9SIAYB7JJA981723.240.880₫
Dual LGA 3647
Intel Lewisburg PCH C621
Description
Learn more about the ASUS Z11PA-D8
| Brand | ASUS |
|---|---|
| Model | Z11PA-D8 |
| CPU Socket Type | Dual LGA 3647 |
|---|---|
| CPU Type | Supports 1st / 2nd Gen Intel Xeon Scalable Processor Family |
| Other Chipset | Intel Lewisburg PCH C621 |
|---|
| DDR4 Standard | DDR4 2666 / 2400 |
|---|---|
| Maximum Memory Supported | Maximum up to 256GB RDIMM / Maximum up to 512GB LRDIMM / Maximum up to 1024GB LR-DIMM 3DS |
| PCI Express 3.0 x16 | Slot Location 3: PCI-E x16 Slot Location 5: PCI-E x16 |
|---|---|
| PCI Express x8 | Slot Location 1: PCI-E x8 |
| Other Slots | Slot Location 6: MIO Slot for Audio card |
| SATA | 12 x SATA3 6Gb/s ports (12 by 3 mini-SAS Connector) |
|---|---|
| SATA RAID | 0/1/5/10 |
| SAS | SAS Controllers Available (Sold Separatly): ASUS PIKE II 3008-8i 8-port SAS 12G RAID card (Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card (Optional) |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 with 64MB VRAM |
|---|
| Number of LAN | 4 x Intel I210AT + 1 x Mgmt LAN |
|---|---|
| LAN Chipset | Intel I210-AT |
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210-AT |
| Second LAN Speed | 10/100/1000Mbps |

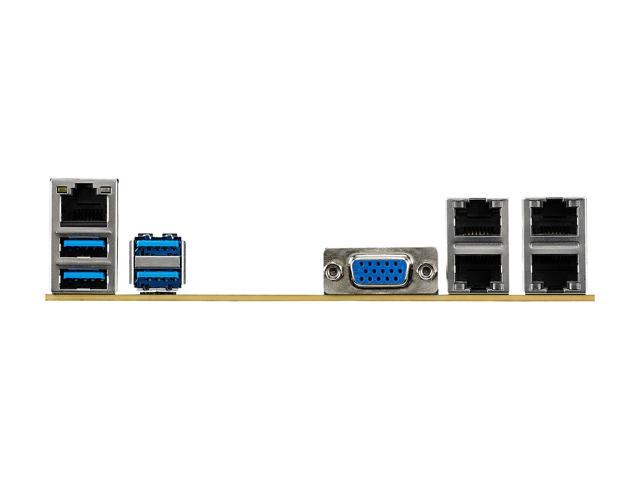

| Video Ports | 1 x VGA Port |
|---|---|
| RJ45 | 4 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port |
| USB 3.0 USB 3.0 | 4 x USB 3.0 |
| Features | Powerful performance with Intel Xeon Scalable processor and ECC memory
Increased performance or data redundancy with dual M.2 SSDs in RAID mode High-speed storage interface support with dual OCuLink for NVMe Connect up to 16 SATA 6Gb/s storage devices Comprehensive IT infrastructure management software More flexible storage capability with SD card support Quick initialization guidance for faster BIOS tracking enhancement |
|---|
| Form Factor | CEB |
|---|---|
| Dimensions (W x L) | 12.0″ x 10.5″ |
| Date First Available | September 01, 2022 |
|---|
Customer Reviews of the ASUS Z11PA-D8
