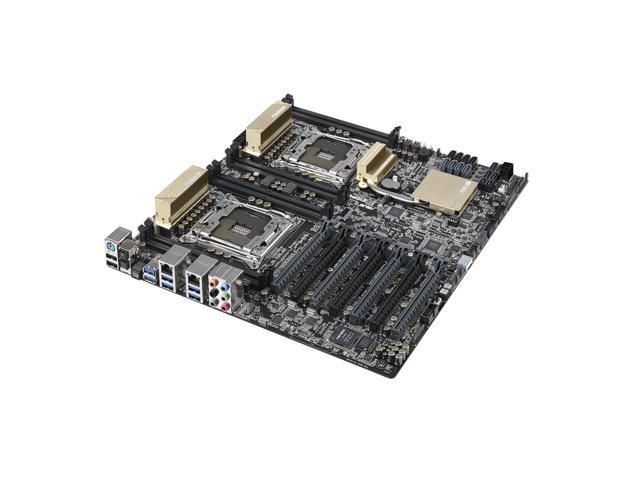

ASUS Z10PE-D8 WS EEB Workstations Motherboard- Intel® C612 PCH- Dual Socket 2011-3
SKU: 9SIB417JRE0075285.352.455.765₫
Quad Strength Graphic PowerSupreme Power Solution Unique BIOS for Dual CPU O.CSuperb storage flexibilityEasy maintenance
Description
1. Quad-Strength Graphic Power Seven native PCI Express 3.0 x16 slots mean Z10PE-D8 WS is equipped for immense graphics-processing power, so it’s perfect for use in professional fields such as mechanical, architectural, interior design, aeronautics, audio and video design. The ample graphics potential also opens Z10PE-D8 WS to run even the most demanding PC games in full detail — so it’s great for work or play.
2. Supreme Power Solutions ASUS Z10PE-D8 WS couples innovative thinking with premium components to deliver industry-leading power efficiency. Carefully engineered with Beat Thermal Chokes II made of highly conductive and efficient design for minimal-loss power delivery and integrated Dr.
2. Supreme Power Solutions ASUS Z10PE-D8 WS couples innovative thinking with premium components to deliver industry-leading power efficiency. Carefully engineered with Beat Thermal Chokes II made of highly conductive and efficient design for minimal-loss power delivery and integrated Dr.
MOS MOSFET that both saves space and reduces operating temperatures. For the latest workstation motherboard, ASUS introduce the industry’s most durable 12K solid capacitors, and exclusive ASUS ProCool power connectors. Z10PE-D8 WS is built to stay cool under pressure — and boosts performance, power efficiency and product longevity into extreme levels!
3. Dual CPU overclocking for incredible performance Z10PE-D8 WS breaks performance barriers by giving you the capability to overclock dual CPUs. Ai Overclock Tuner and Xeon Turbo Charger in the BIOS are dedicated to boosting the CPU’s overclocking performance by up to 10% to reach incredible CPU High Performance Linpack (HPL) scores and improves SPEC CPU™ 2006 benchmark results by up to 6.77 %.
4. Q-Code Logger – one-touch checker Q-Code logger is your one-touch checker that lets users easily check system status at any time. Plug a flash drive into adjacent USB port, press the motherboard’s dedicated Q-Code logger button and all ASUS Q-Code event logs for the current live session will be copied to the drive even with the system off.
5. Dr. Power for intelligent PSU detection As the Z10PE-D8 WS is meant for professional users who rely on non-stop operation, stable power delivery is critical. Real time power supply health detection helps prevent sudden system shutdown and provides hassle-free notifications should power delivery be insufficient.
Additionally, LED messages on the board clearly indicate any relevant power issues in the event your system fails to boot.
6. Evolve your storage speed with SATA Express SATA Express provides up to 10Gbit/s data-transfer speeds from two PCIE 2.0 lanes, resolving the higher bandwidth request in the near future. The current SSDs consume up to 550MB/s, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard — and ensures that you and your system won’t get left behind.
7. Speed up your system with M. 2 With four native PCI Express 3.0 bandwidth, M. 2 supports up to 32Gbit/s data-transfer speeds and up to 22110 NGFF. It is the perfect choice for an operating system drive, making your whole PC work that much faster.

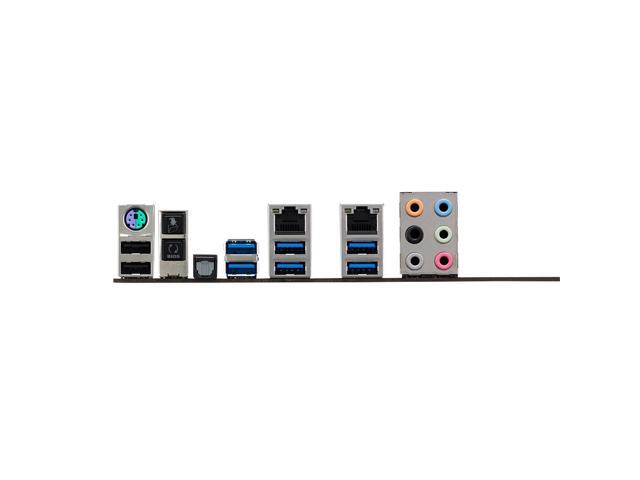

8. Total Feature Enhancement with Complete I/O Z10PE-D8 WS packs advanced features onto a standard Enterprise Electronics Bay (EEB) form factor to deliver superior flexibility and performance, with dual Intel® Xeon
Learn more about the ASUS Z10PE-D8 WS
| Brand | ASUS |
|---|---|
| Model | Z10PE-D8 WS |
| CPU Socket Type | Dual LGA 2011-3 |
|---|---|
| CPU Type | Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors; Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family; Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family |
| North Bridge | Intel® C612 PCH |
|---|
| DDR4 Standard | DDR4 2400/2133/1866/1600/1333 MHz RDIMM, LR-DIMM Memory |
|---|---|
| Maximum Memory Supported | Max. 512GB |
| Channel Supported Channel Supported | Quad Channel |
| Other Slots | 4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) *2; 2 x PCIe 3.0/2.0 x16 (dual x16) *2; 1 x PCIe 3.0/2.0 x16 (dual x8) *2 |
|---|
| SATA | Storage: 1.Intel® C612 chipset : 4 x SATA 6Gb/s port(s), gray, *3, 4 x SATA 6Gb/s port(s), black, *3, 1 x SATA Express port, gray, *4; 1 x M.2 Socket 3, *5 2.ASMedia® SATA Express controller : 1 x SATA Express port, gray, , Compatible with 2 x SATA 6.0 Gb/s ports |
|---|---|
| SATA RAID | 0, 1, 5, 10 |
| Onboard Video Chipset Onboard Video Chipset | ASpeed AST2400 32MB; VGA port*1; – Supports VGA with max. resolution 1920 x 1200 @ 60 Hz |
|---|
| Audio Chipset Audio Chipset | 1.Realtek® ALC1150 8-Channel High Definition Audio CODEC : – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; – High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in); 2.Audio Feature : – DTS Ultra PC II; – DTS Connect; – Optical S/PDIF out port(s) at back panel; – BD Audio Layer Content Protection; – Absolute Pitch 192khz/24bit true BD lossless sound; |
|---|
| LAN Chipset | Intel® I210-AT, 2 x Gigabit LAN Controller(s) |
|---|
| Video Ports | Multi-GPU Support: Supports NVIDIA® 4-Way SLI™ Technology; Supports AMD 4-Way CrossFireX Technology |
|---|---|
| USB 1.1/2.0 | Intel® C612 chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) |
| USB 3.1 | 1.Intel® C612 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, ); 2.ASMedia® USB 3.0 controller : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board); |
| Features | 1.Workstation Feature: 7 x PCIe x 16 slot(s); ASWM Enterprise; ASUS Dr. Power; 12K hours Capacitors; ProCool Power Connector; Q-Code Logger; USB BIOS Flashback; ASUS PIKE SAS upgrade kit(Optional); 2.Special Features: ASUS Digital Power Design : – Industry leading Digital 8 Phase Power Design; – Industry leading Digital 2 Phase DRAM Power Design; ASUS Exclusive Features : – Front Panel USB 3.0 Support; ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-pipe solution; ASUS EZ DIY : – ASUS CrashFree BIOS 3; – ASUS EZ Flash 2; – ASUS MyLogo 2; ASUS Q-Design : – ASUS Q-Shield; – ASUS Q-Code; – ASUS Q-Slot; – ASUS Q-DIMM; 3.Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s); 2 x LAN (RJ45) port(s); 6 x USB 3.1 Gen 1 (blue); 2 x USB 2.0 *6; 1 x Optical S/PDIF out; 1 x USB BIOS Flashback Button(s); 1 x Q-Code Logger button; 1 x 8-channel Audio I/O; 4.Internal I/O Ports: 1 x AAFP connector; 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin); 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s); 2 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports; 1 x M.2 Socket 3; 1 x TPM connector(s) ; 1 x COM port(s) connector(s); 8 x SATA 6Gb/s connector(s); 2 x CPU Fan connector(s) (2 x 4 -pin); 7 x Chassis Fan connector(s) (7 x 4 -pin); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 2 x 8-pin ATX 12V Power connector(s); 1 x RAID key header(s); 1 x VGA connector(s); 1 x AUX panel header(s); 1 x SMBus header(s); 1 x System panel(s); 1 x Power-on button(s); 1 x Reset button(s); 1 x Clear CMOS button(s); 1 x Dr.Power switch(es); 1 x Serial Port header; 1 x ASMB8-iKVM connector; 1 x 6-pin EATX 12V_3 Power connector; |
|---|
| Form Factor | EEB |
|---|---|
| Dimensions (W x L) | 12.0″ x 13.0″ |

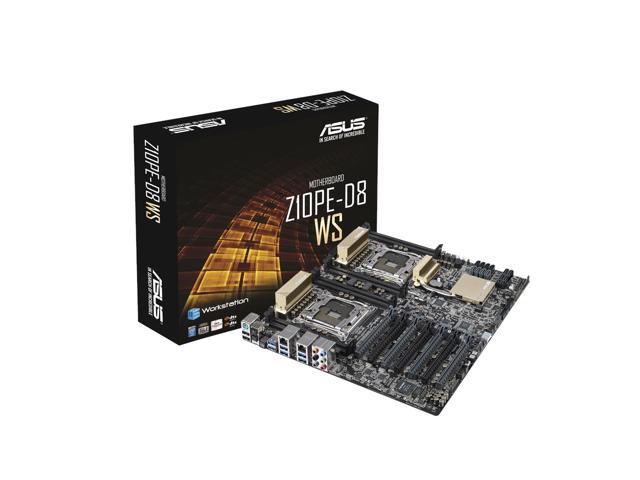

| Package Contents | I/O Shield; 1 x COM port cable(s); 12 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x 3-Way SLI bridge(s); 1 x 4-Way SLI bridge(s); 1 x SLI bridge(s); 1 x 2-port USB 2.0 module(s); 1 x VGA bracket(s); 1 x ASWM Enterprise SDVD |
|---|
| Date First Available | December 02, 2022 |
|---|
Customer Reviews of the ASUS Z10PE-D8 WS
