ASUS Z10PE-D8 WS EEB Workstations Motherboard- Intel® C612 PCH- Dual Socket 2011-3

1. Quad-Strength Graphic Power Seven native PCI Express 3.0 x16 slots mean Z10PE-D8 WS is equipped for immense graphics-processing power, so its perfect for use in professional fields such as mechanical, architectural, interior design, aeronautics, audio and video design. The ample graphics potential also opens Z10PE-D8 WS to run even the most demanding PC games in full detail so its great for work or play. 2. Supreme Power Solutions ASUS Z10PE-D8 WS couples innovative thinking with premium components to deliver industry-leading power efficiency. Carefully engineered with Beat Thermal Chokes II made of highly conductive and efficient design for minimal-loss power delivery and integrated Dr.

MOS MOSFET that both saves space and reduces operating temperatures. For the latest workstation motherboard, ASUS introduce the industry’s most durable 12K solid capacitors, and exclusive ASUS ProCool power connectors. Z10PE-D8 WS is built to stay cool under pressure and boosts performance, power efficiency and product longevity into extreme levels! 3. Dual CPU overclocking for incredible performance Z10PE-D8 WS breaks performance barriers by giving you the capability to overclock dual CPUs. Ai Overclock Tuner and Xeon Turbo Charger in the BIOS are dedicated to boosting the CPUs overclocking performance by up to 10% to reach incredible CPU High Performance Linpack (HPL) scores and improves SPEC CPU 2006 benchmark results by up to 6.77 %.

4. Q-Code Logger one-touch checker Q-Code logger is your one-touch checker that lets users easily check system status at any time. Plug a flash drive into adjacent USB port, press the motherboard’s dedicated Q-Code logger button and all ASUS Q-Code event logs for the current live session will be copied to the drive even with the system off. 5. Dr. Power for intelligent PSU detection As the Z10PE-D8 WS is meant for professional users who rely on non-stop operation, stable power delivery is critical. Real time power supply health detection helps prevent sudden system shutdown and provides hassle-free notifications should power delivery be insufficient.

Additionally, LED messages on the board clearly indicate any relevant power issues in the event your system fails to boot. 6. Evolve your storage speed with SATA Express SATA Express provides up to 10Gbit/s data-transfer speeds from two PCIE 2.0 lanes, resolving the higher bandwidth request in the near future. The current SSDs consume up to 550MB/s, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard and ensures that you and your system won’t get left behind.

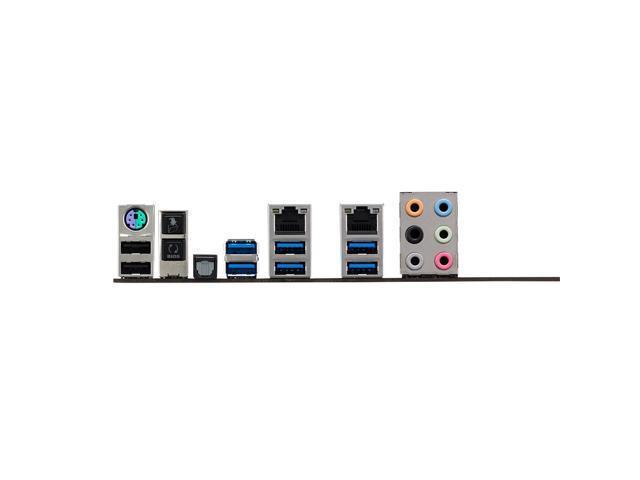

7. Speed up your system with M. 2 With four native PCI Express 3.0 bandwidth, M. 2 supports up to 32Gbit/s data-transfer speeds and up to 22110 NGFF. It is the perfect choice for an operating system drive, making your whole PC work that much faster. 8. Total Feature Enhancement with Complete I/O Z10PE-D8 WS packs advanced features onto a standard Enterprise Electronics Bay (EEB) form factor to deliver superior flexibility and performance, with dual Intel® Xeon
