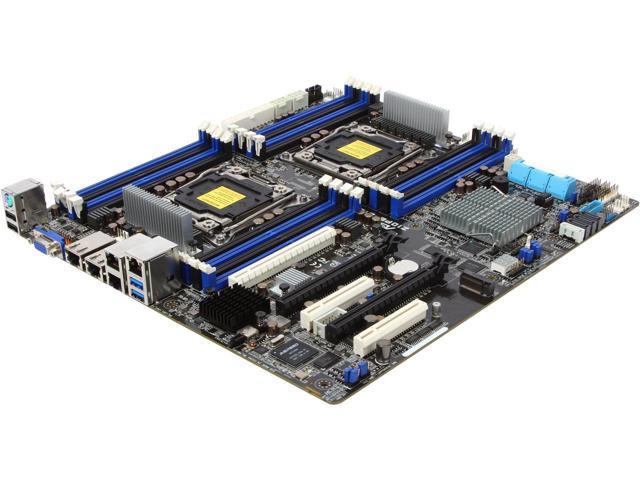

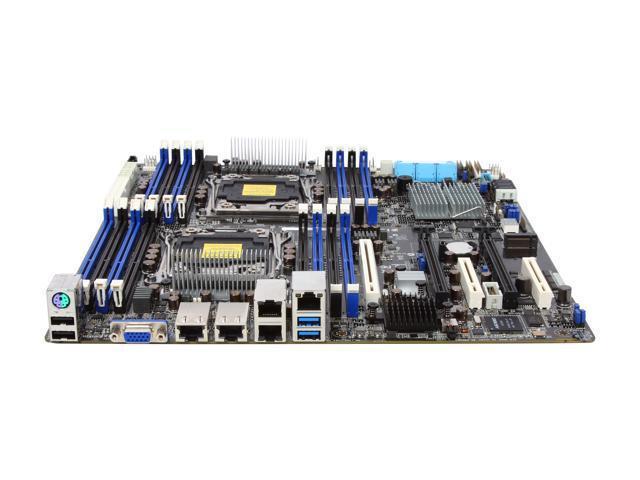

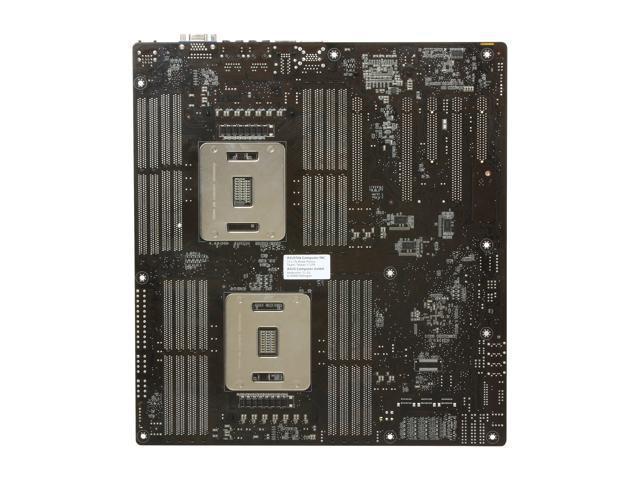

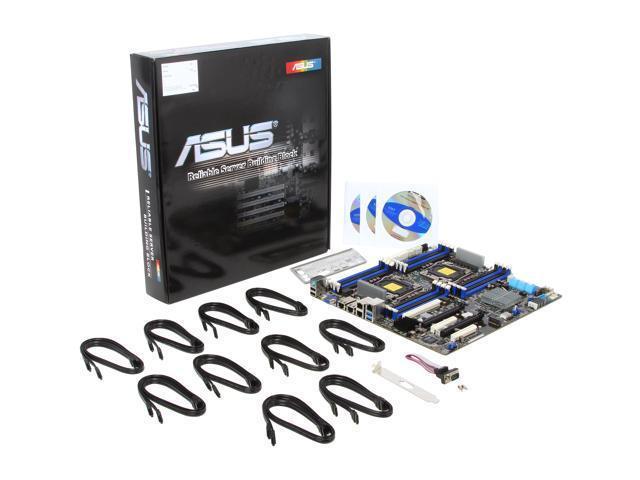

ASUS Z10PE-D16/4L SSI EEB Server Motherboard Dual LGA 2011 R3

ASUS Z10PE-D16/4L SSI EEB Server Motherboard Dual LGA 2011
R3 Model: Z10PE-D16/4L Powerful Expandability with Supreme Computing Power ASUS Z10PE-D16/4L is perfectly built for expandability and extreme computing performance. ASUS Z10PE-D16/4L has mass storage capacity, along with an M. 2 slot for added flexibility, and is engineered with premium components for premium efficiency. Together with optimized user experience and an intuitive remote-management solution, Z10PE-D16/4L is ideal for enterprise general purpose and being the computing / memcache node in the data center. Mass Storage Capacity and Additional OS Storage Z10PE-D16/4L is equipped with ten 6Gbps SATA ports, offering support for mass storage capacity. In an alternative configuration, Z10PE-D16/4L has nine 6Gbps SATA and an M. 2 slot for a solid-state drive ideal for an operating system boot drive! In this generation, ASUS has a whole new PIKE solution, standard PCI-E form factor for user to equip with multiple PIKE II cards on one motherboard which maximizes the expandability and utilizations. Just placing the PIKE II card, Z10PE-D16/4L can immediately enlarge the capacity, upgrade to 12G solution and improve the performance, making it the great upgrade option. Five Expansion Slots Z10PE-D16/4L has great expandability with five expansion ports: three PCI Express 3.0 x16 slots and two PCI Express 3.0 x8 slots. Additionally, Z10PE-D16/4L is equipped for a diverse range of applications including the usage of multiple host bus adapters (HBA). Premium Components for Premium Efficiency ASUS Z10 server board series design the premium power solution with the hand-chosen components and provide premium efficiency which is up to 94%. The premium power solution consist 4 pillars to achieve the 94% premium efficiency: Beat Thermal Choke, Dr. MOS, 12K capacitor and Digi+ VRM. A special fin design of Beat-Thermal-Choke results in 37 – 41°F (3 – 5°C)-lower choke temperatures and raise the stability, and translates into minimal-loss power delivery. The Dr. MOS is a proven stable circuit integrated MOSFET, which can optimize the switching performance and contribute the efficiency to the system. ASUS DIGI+ VRM design empowers users with superior flexibility and has the perfect precision to ensure optimized performance, extreme system stability. Moreover, ASUS is the worlds first server manufacturer to introduce 12K solid capacitors which are able to withstand up to 1, 200, 000 hours of temperatures as high as 149°F (65°C) (12K hours @ 221°F (105°C)). These 12K capacitors can also lower equivalent series resistance (ESR) and thus to increase efficiency and minimal heat generation. Quick Initialization Guidance The ASUS Z10 Series features quick initialization guidance which lets users realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The quick initialization guidance during the POST includes 2 phases.

In phase 1 – POST in seconds, the screen lightens in seconds to make users instantly access to system initializing status. In phase 2, device scanning information and two-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for maintenance. Complete Remote Server Management The ASMB8-iKVM (IPMI 2.0 -compliant) enables remote update BIOS, standalone KVM/Java utility, video recording and BSOD capture. Based on out-of-band management, even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control, and power control, all through a colorful and informative graphical interface. Through ASUS rem
