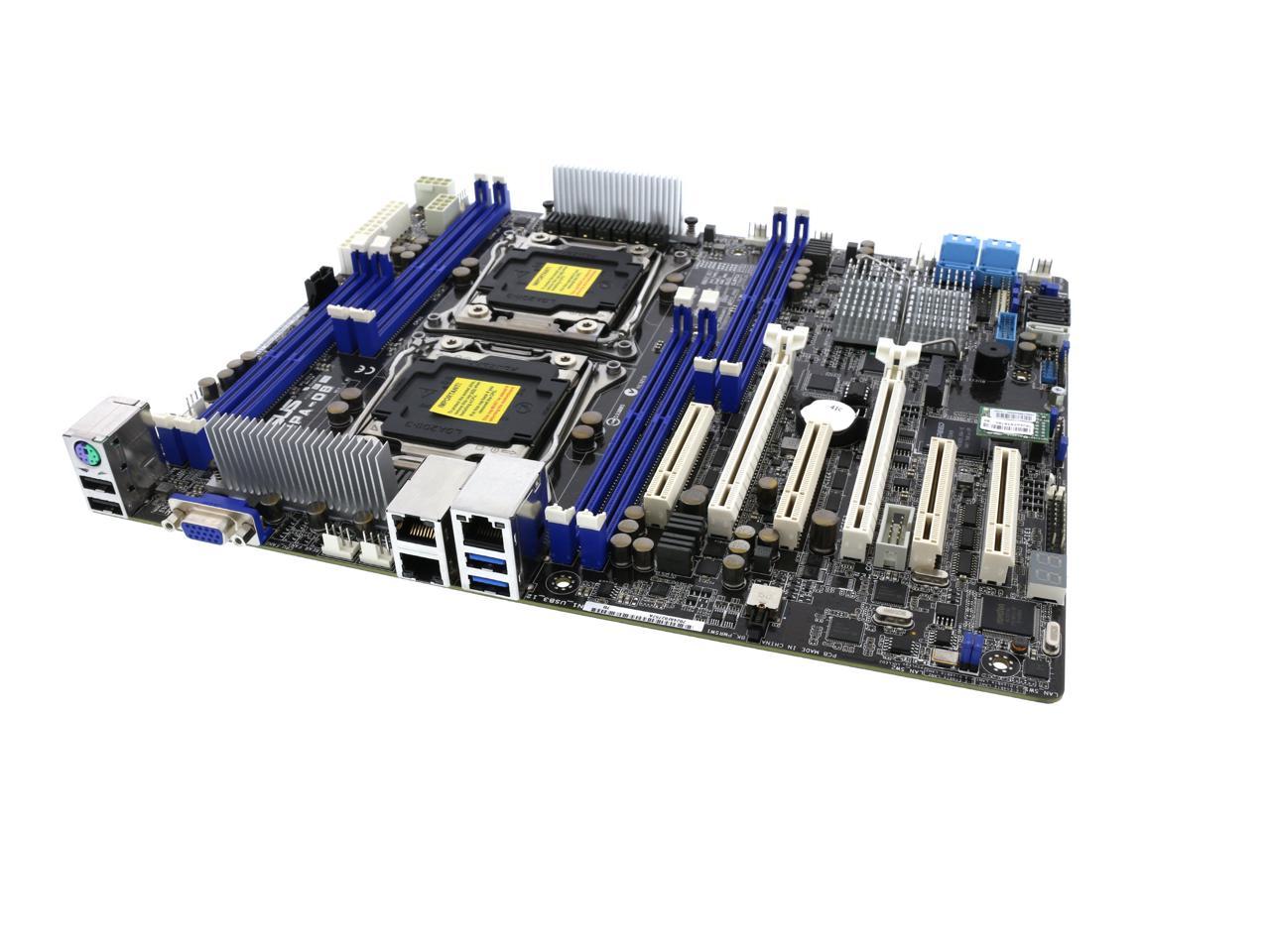

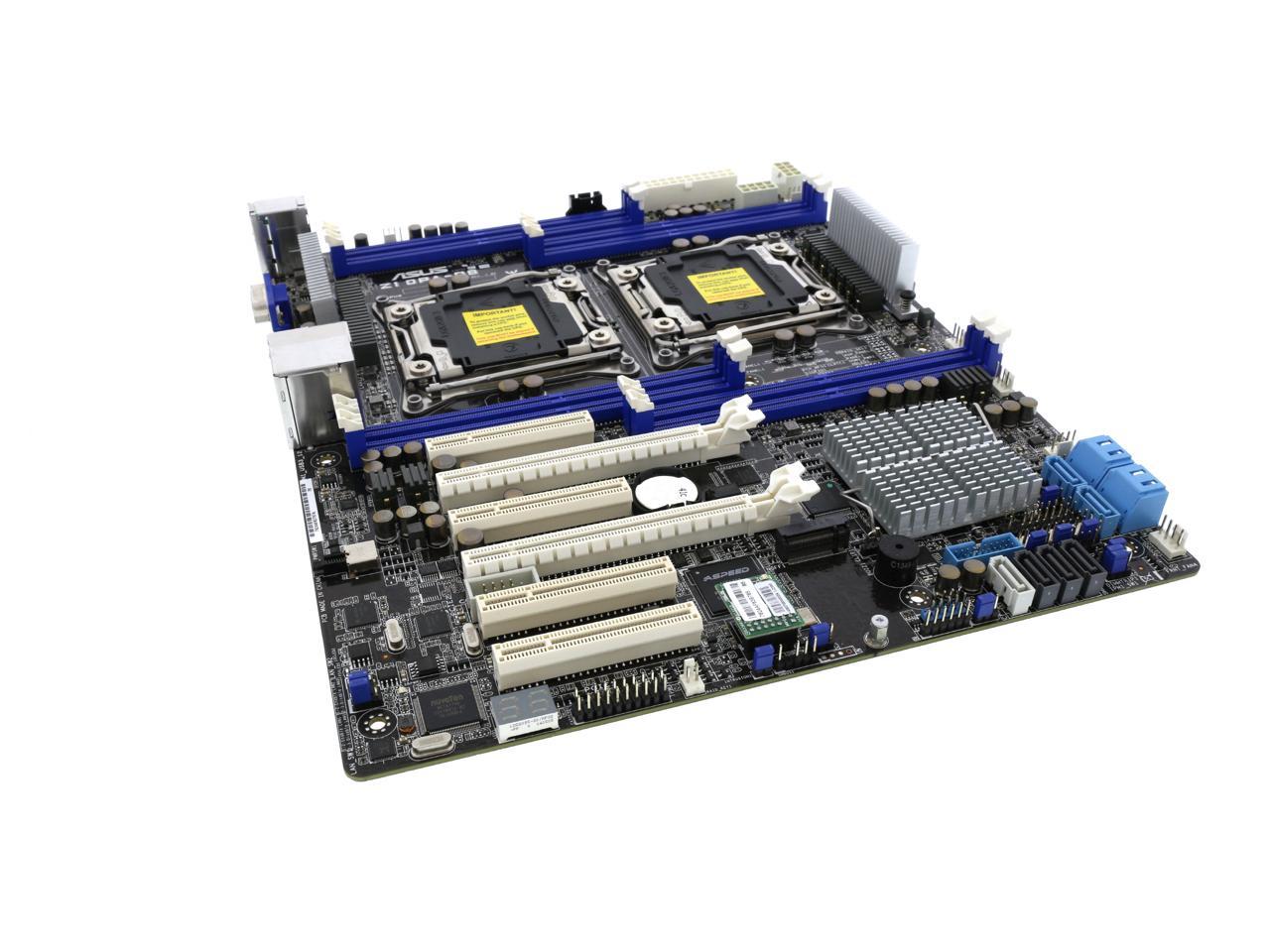

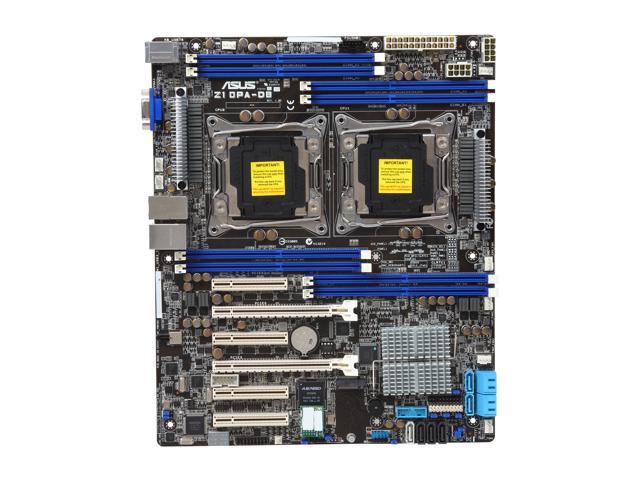

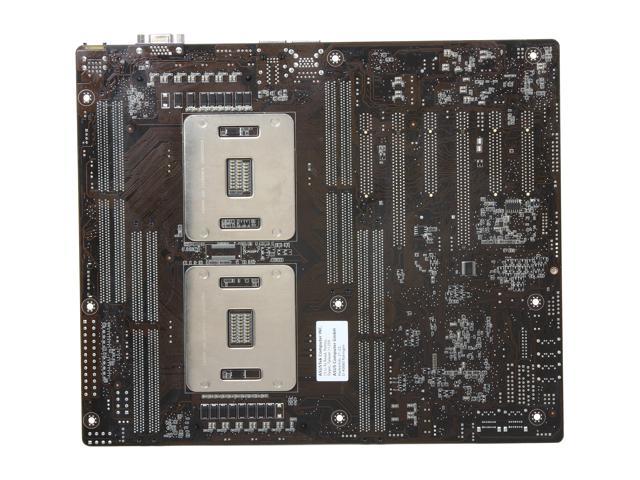

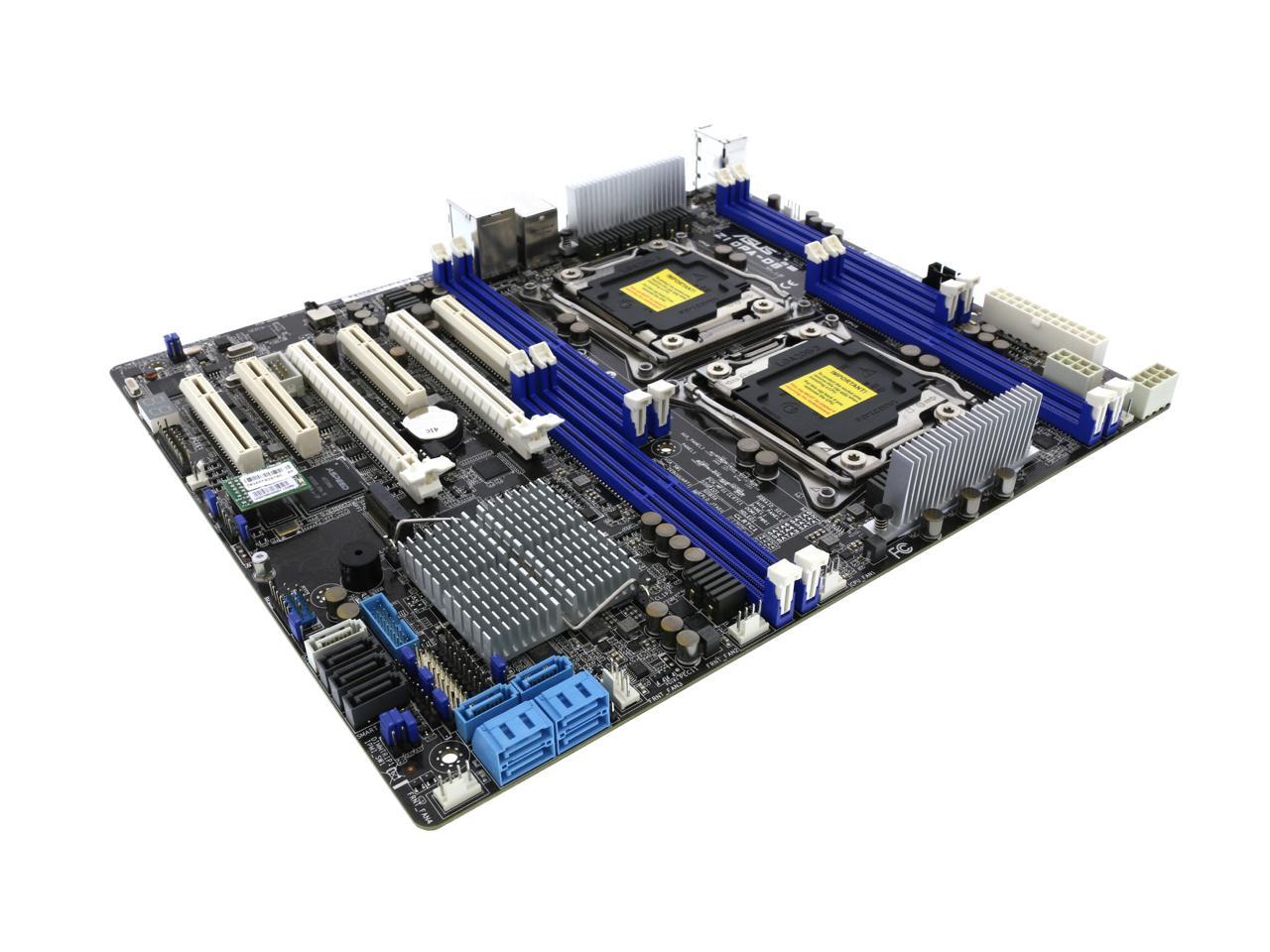

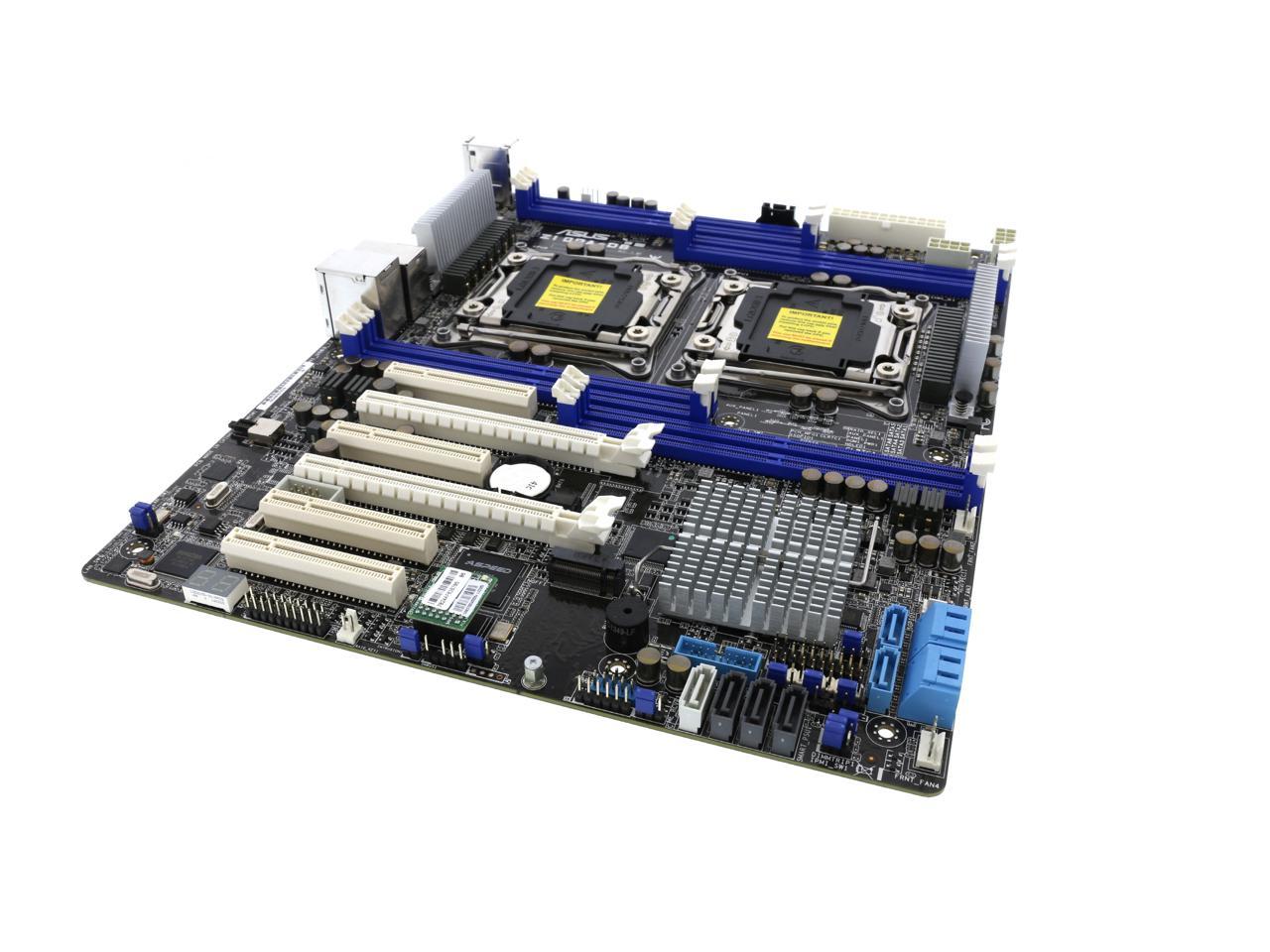

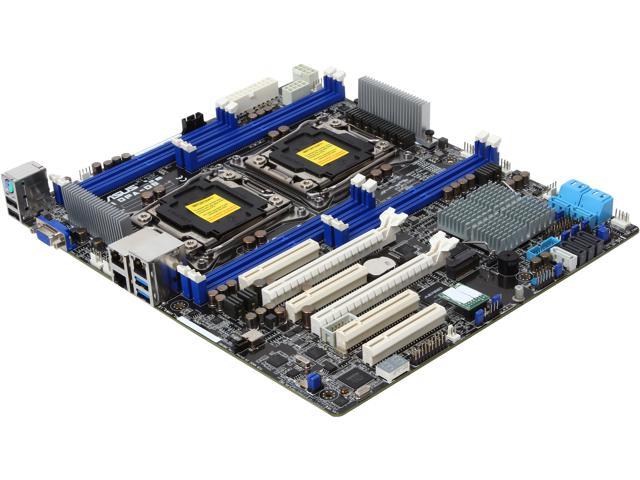

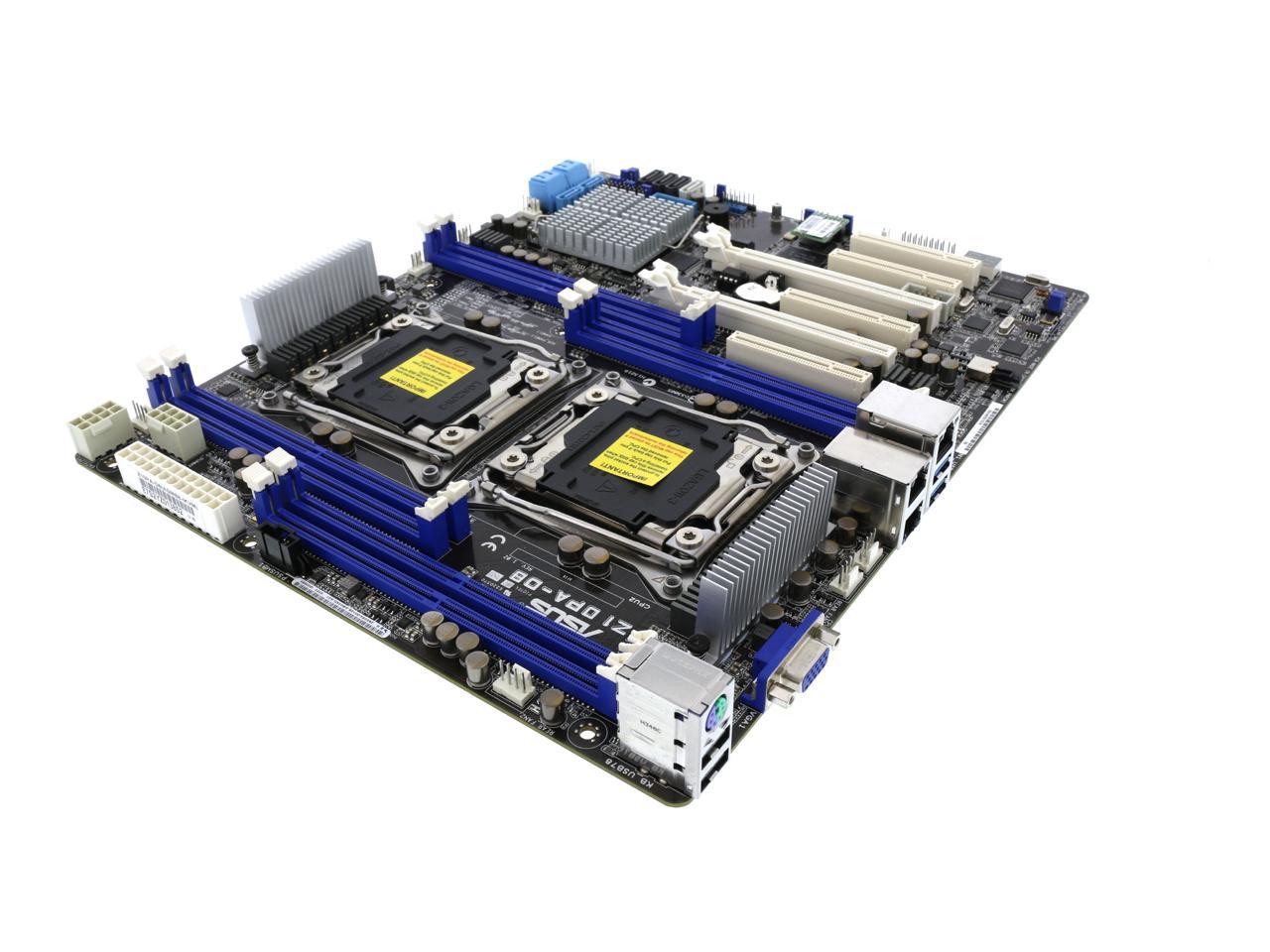

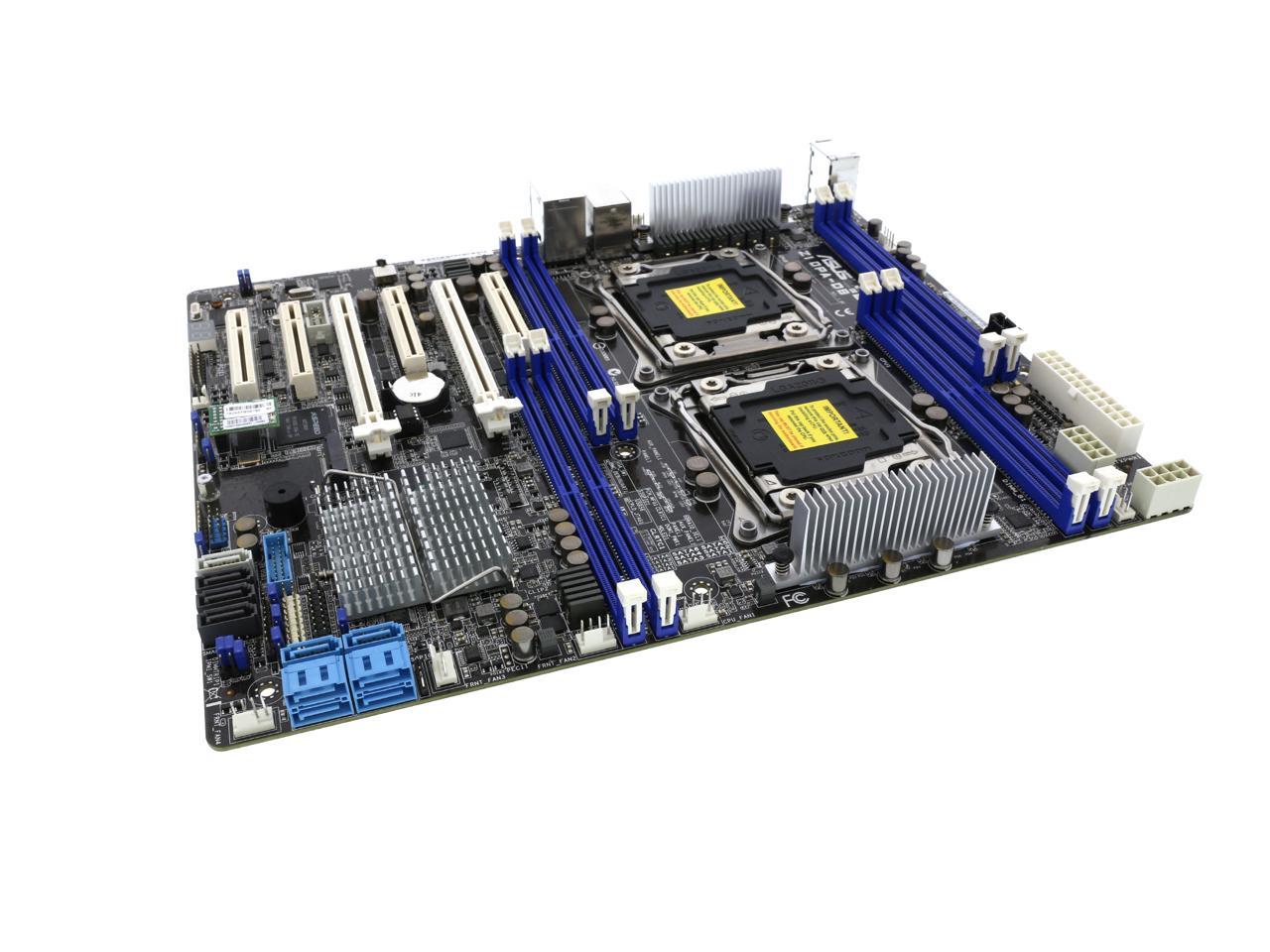

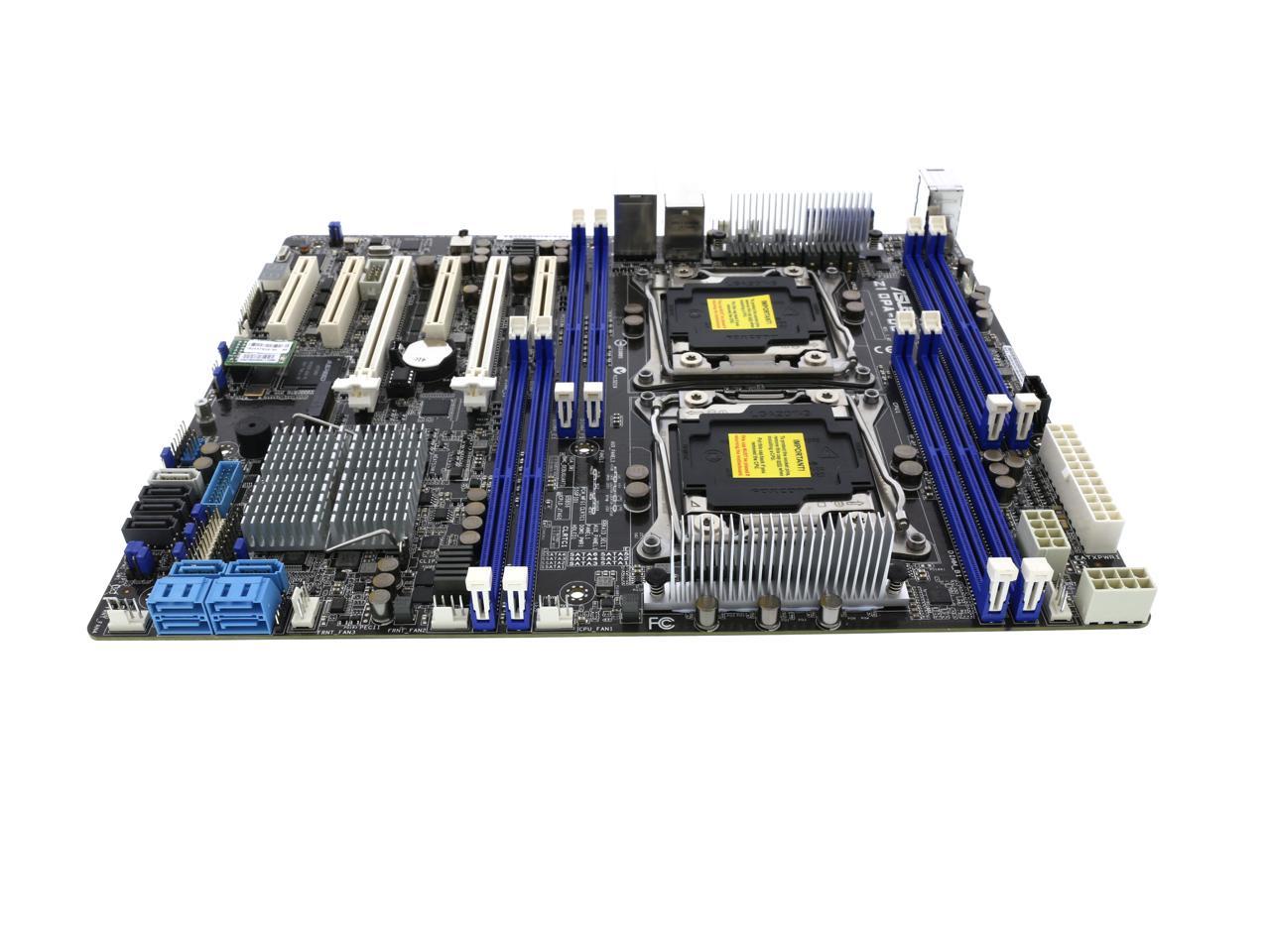

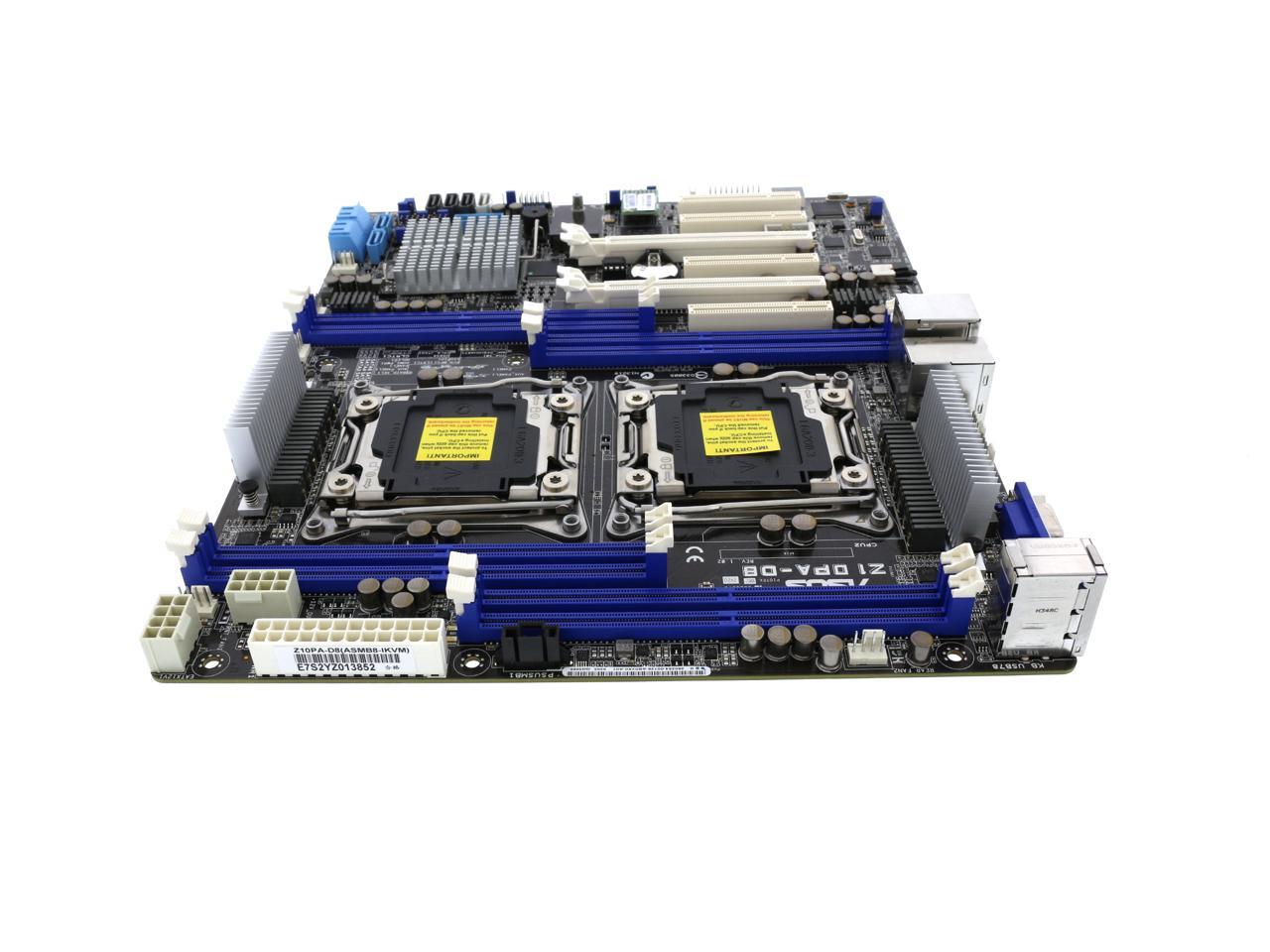

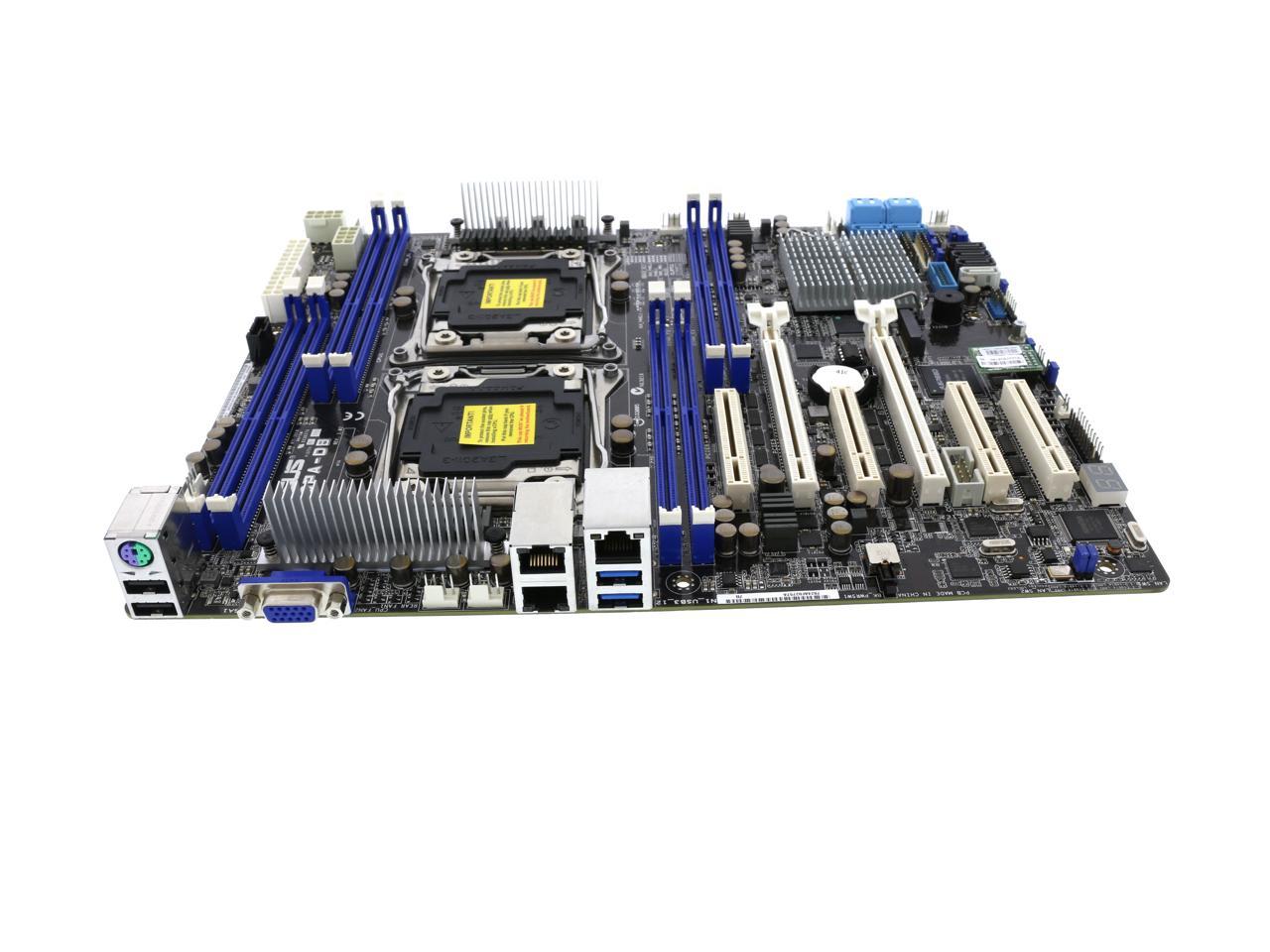

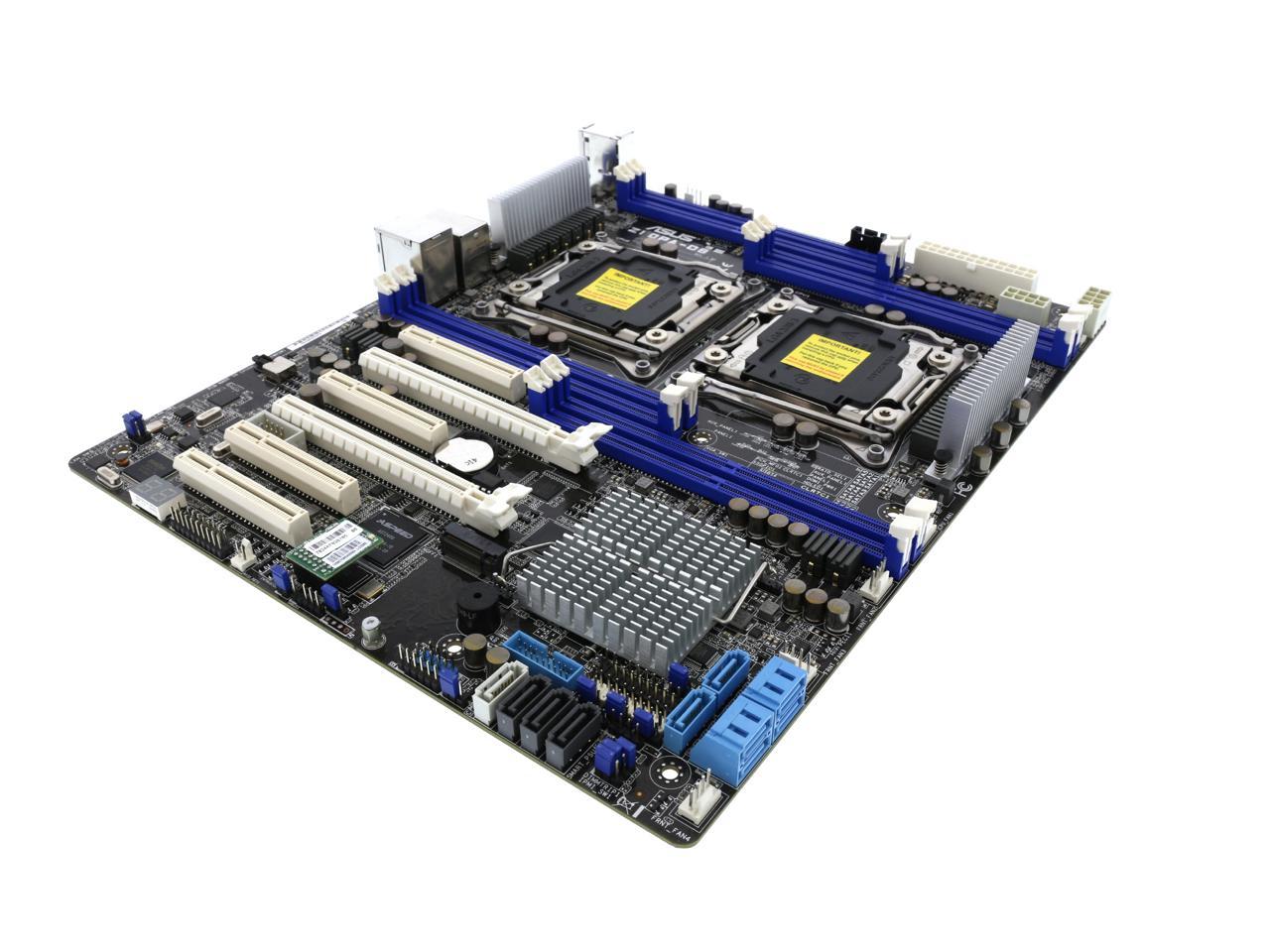

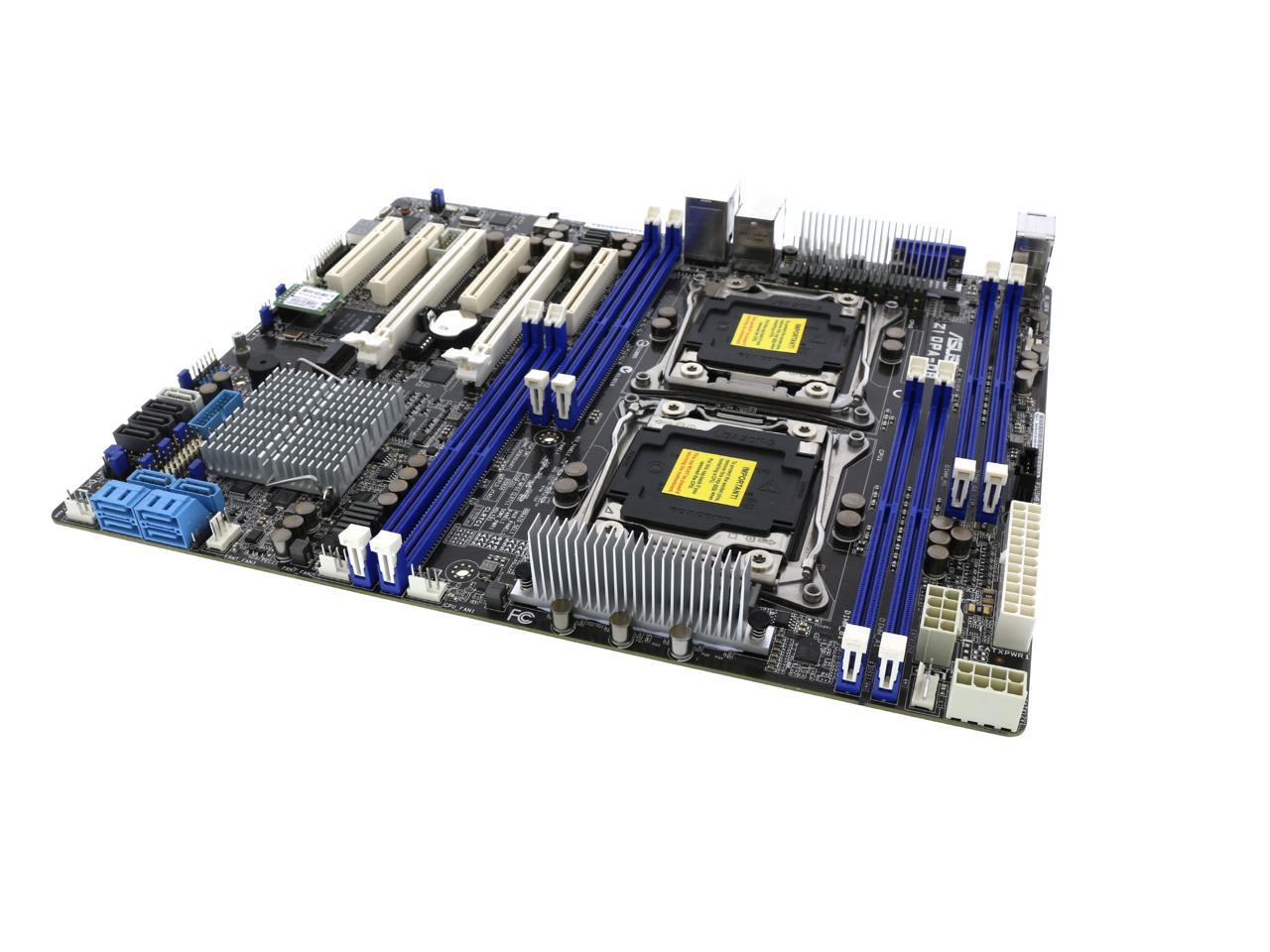

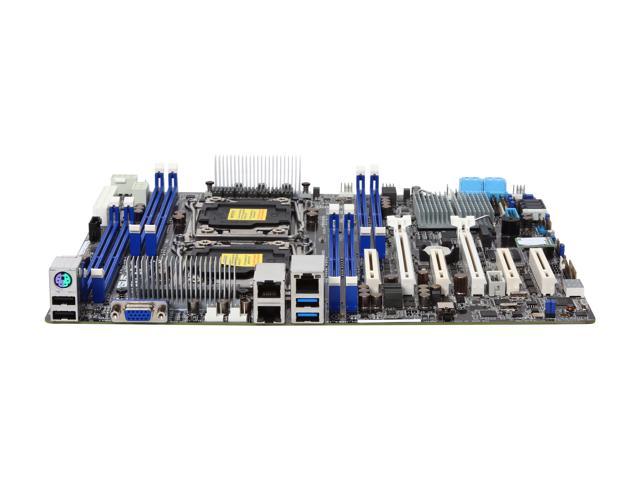

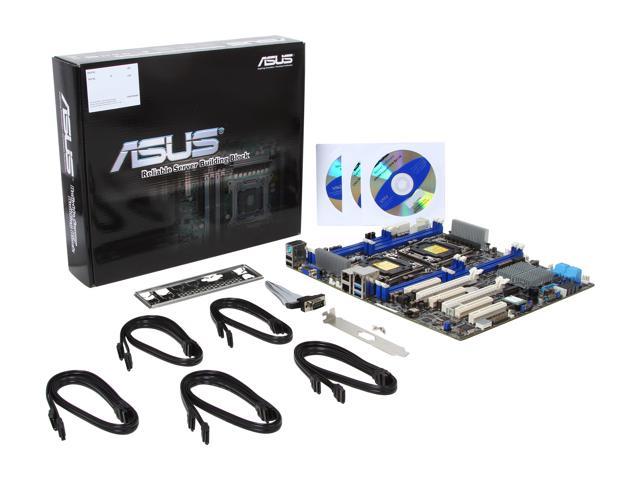

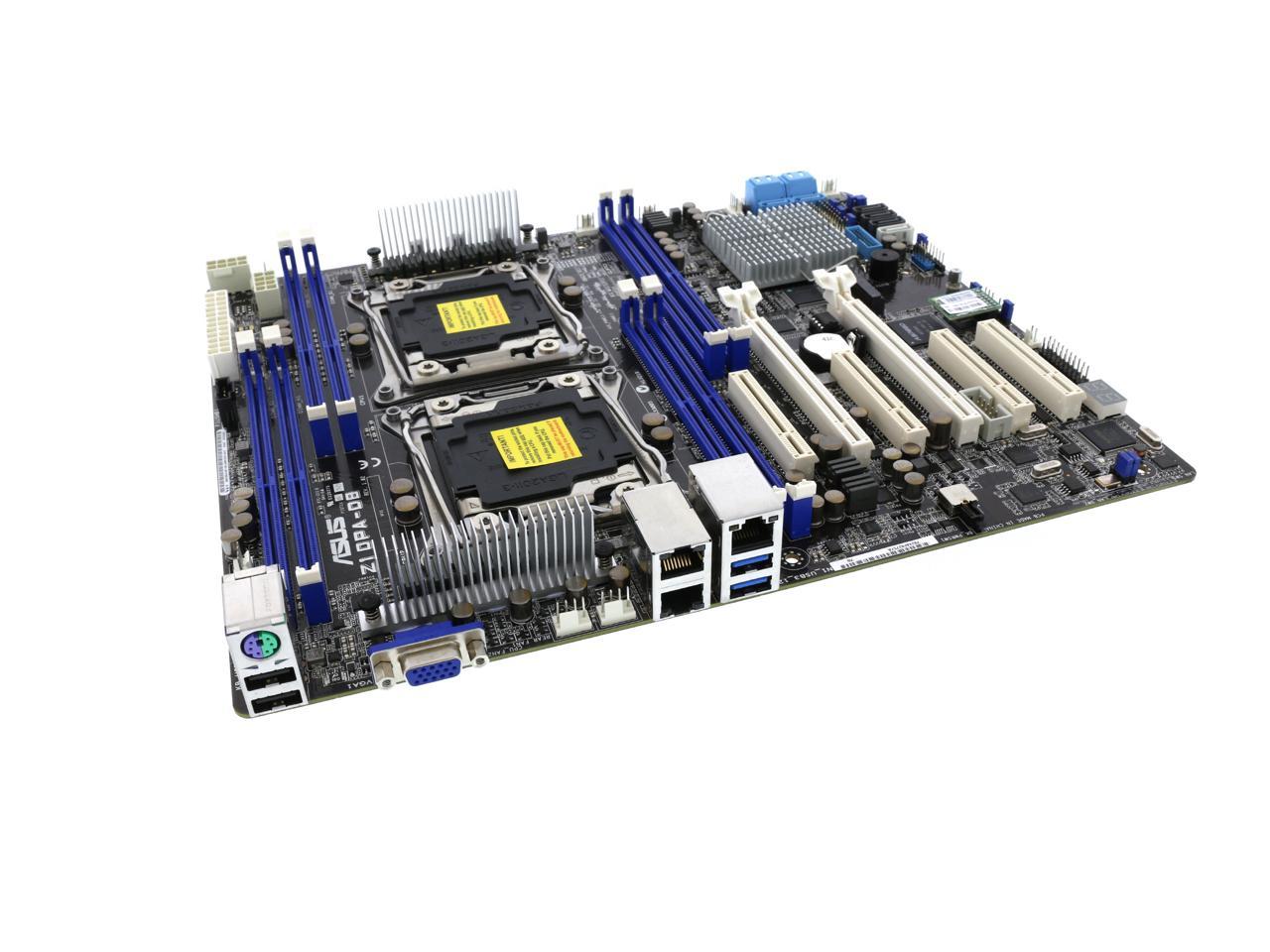

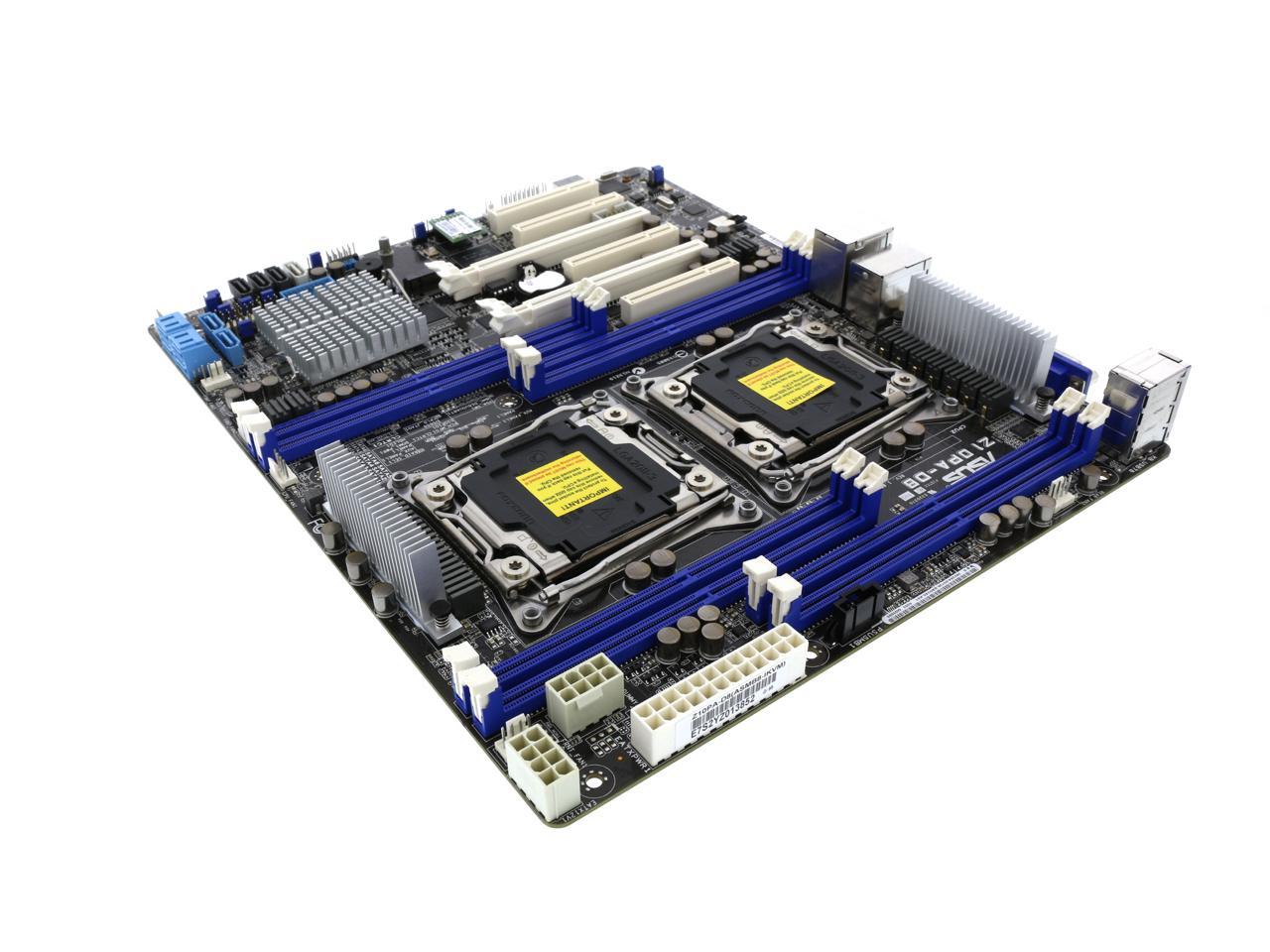

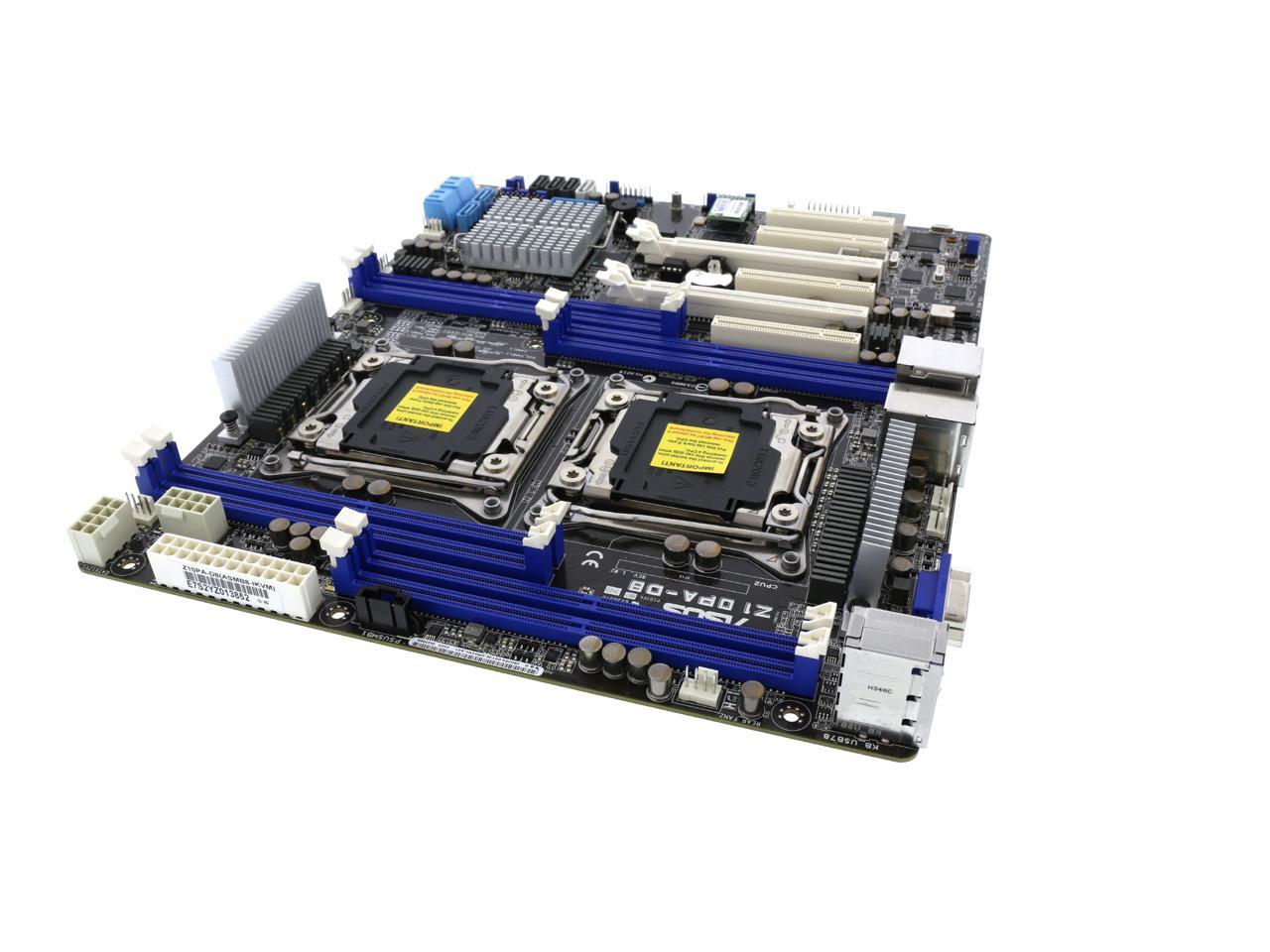

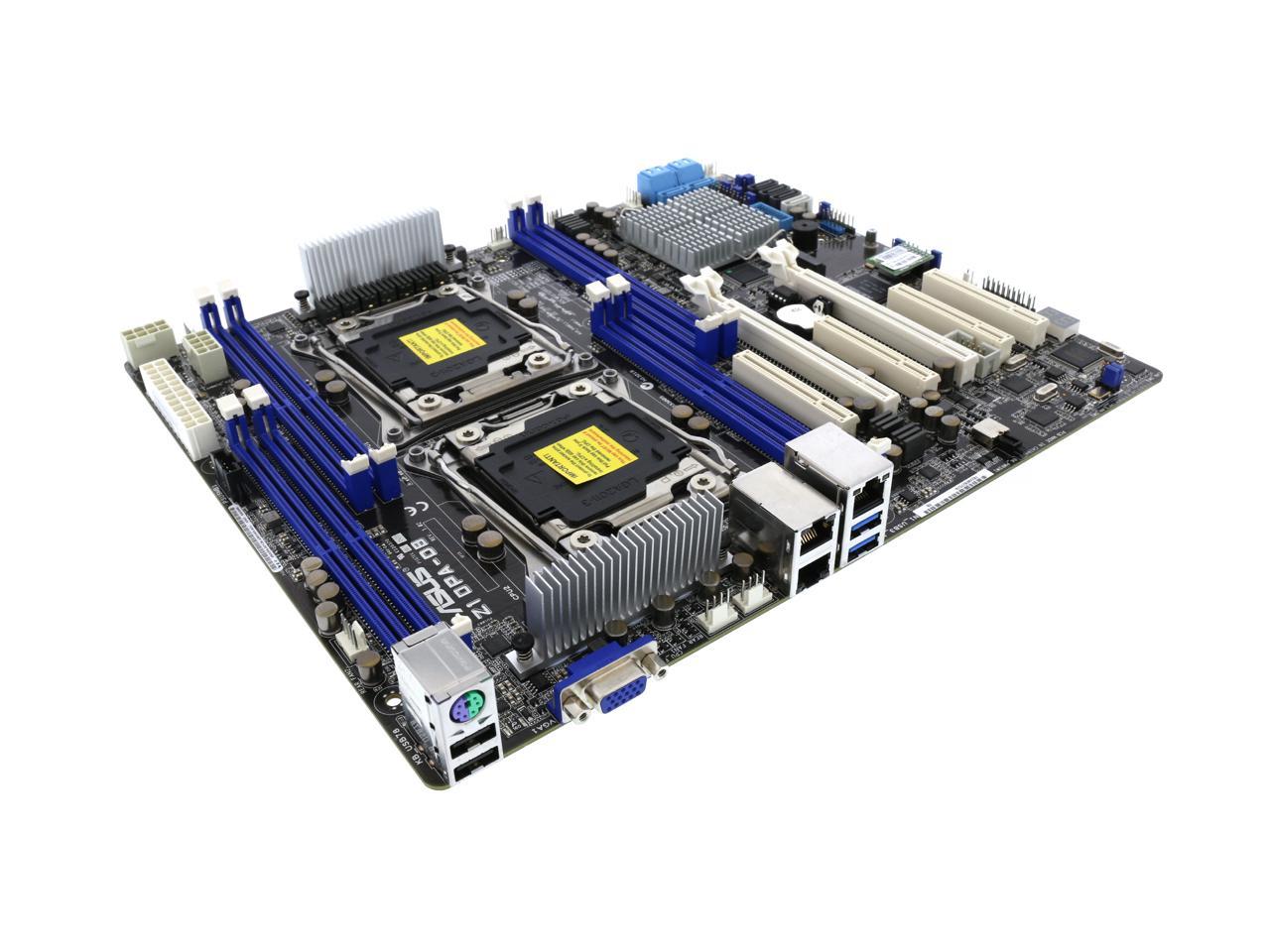

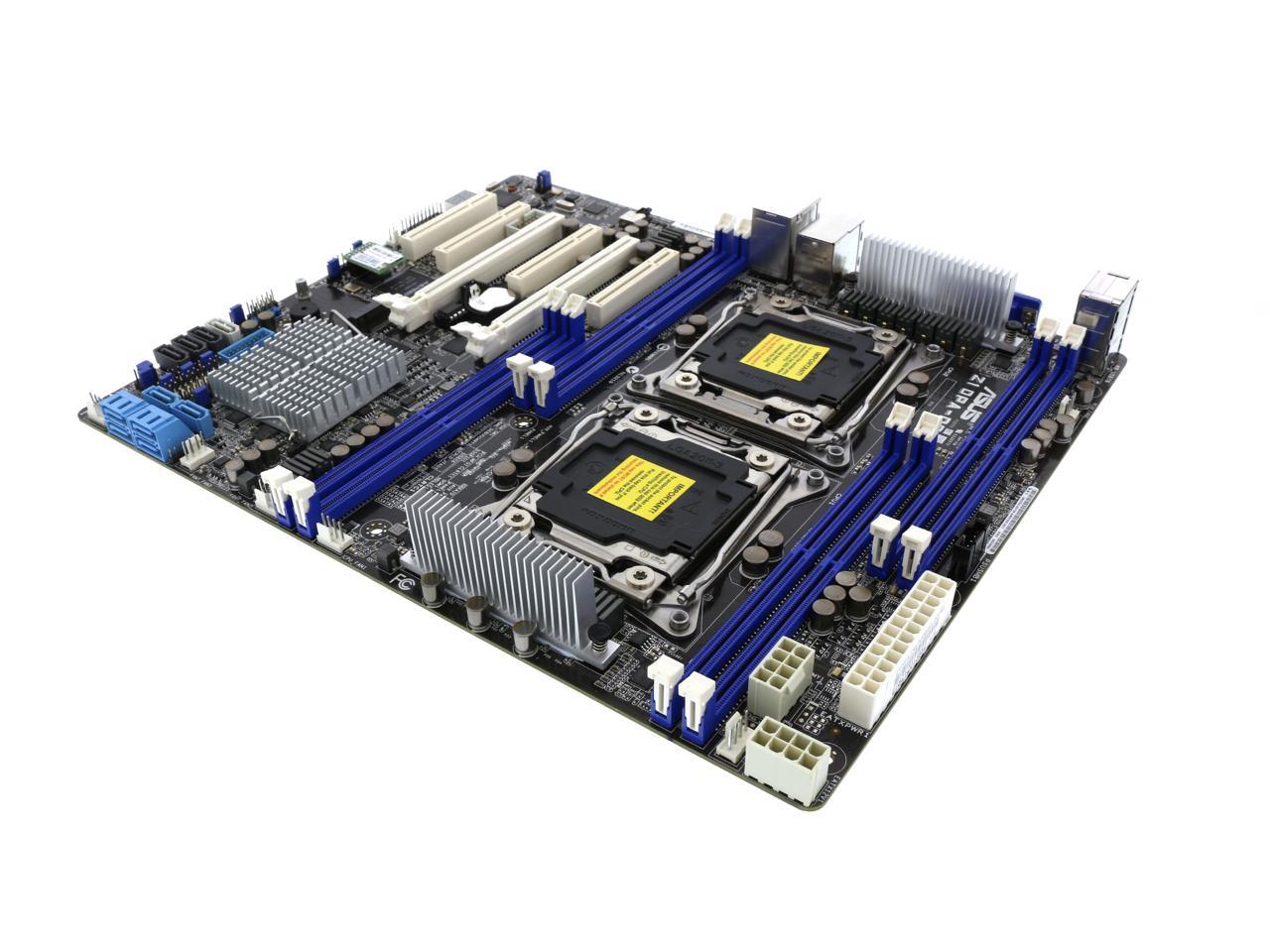

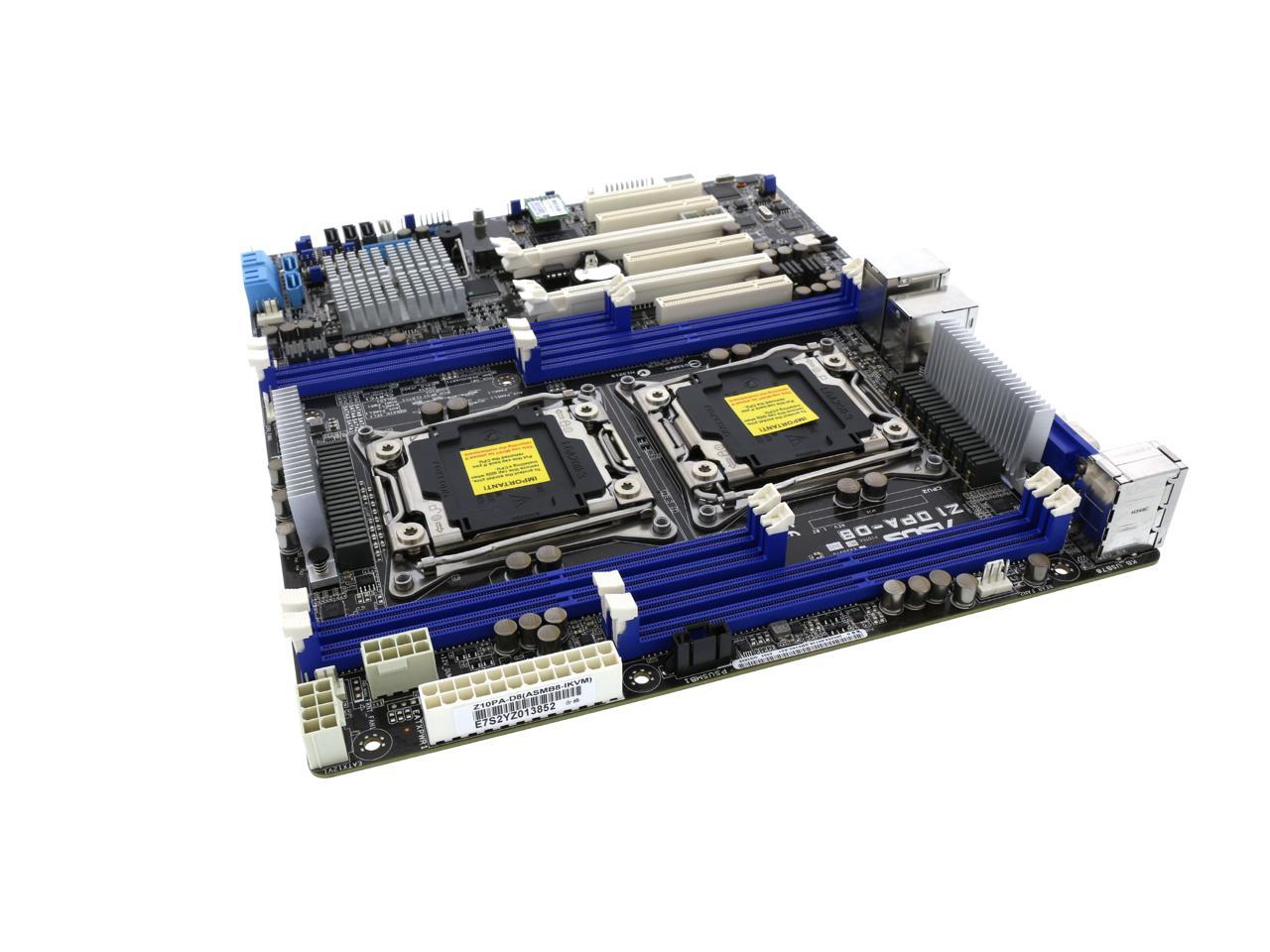

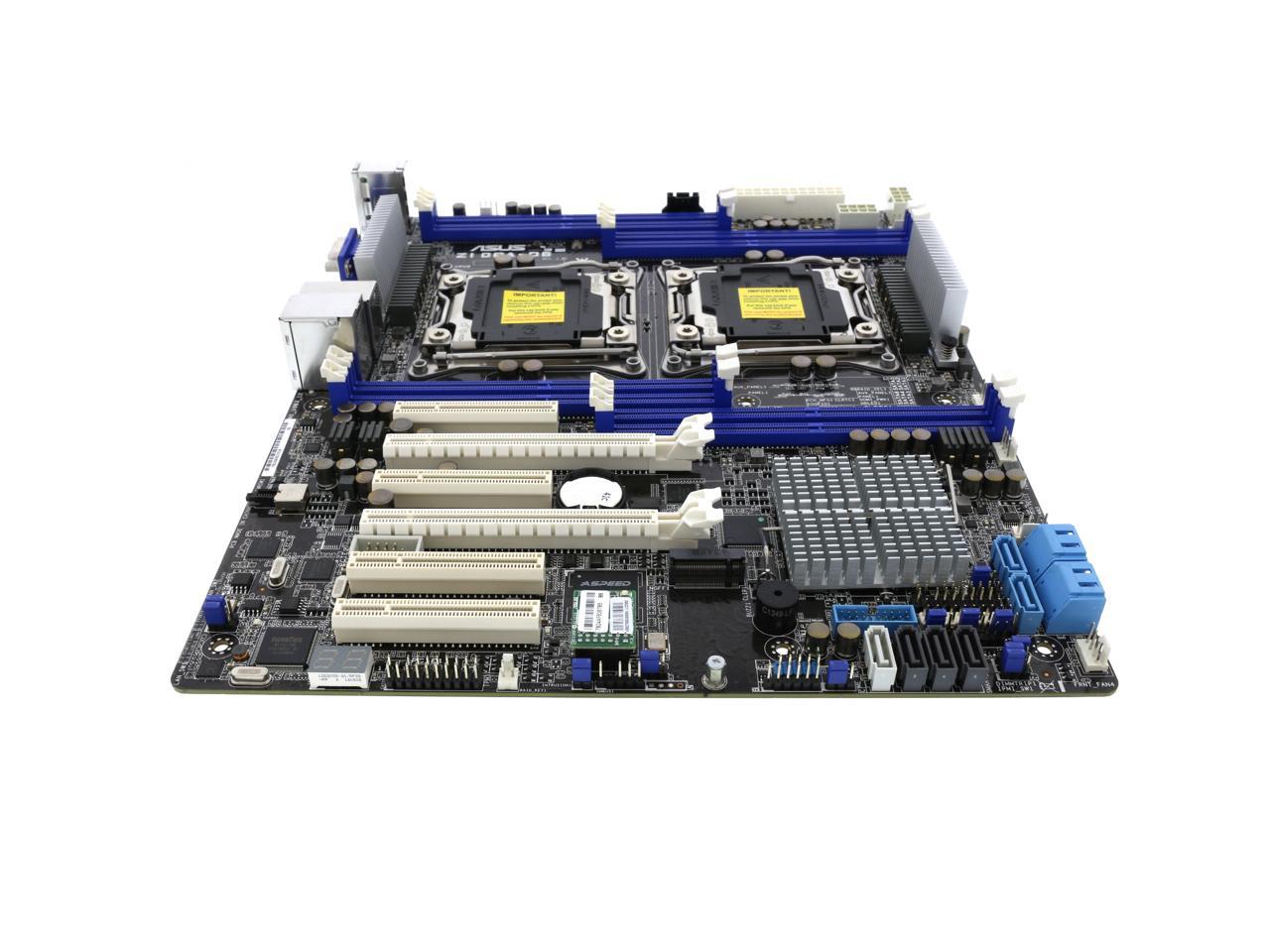

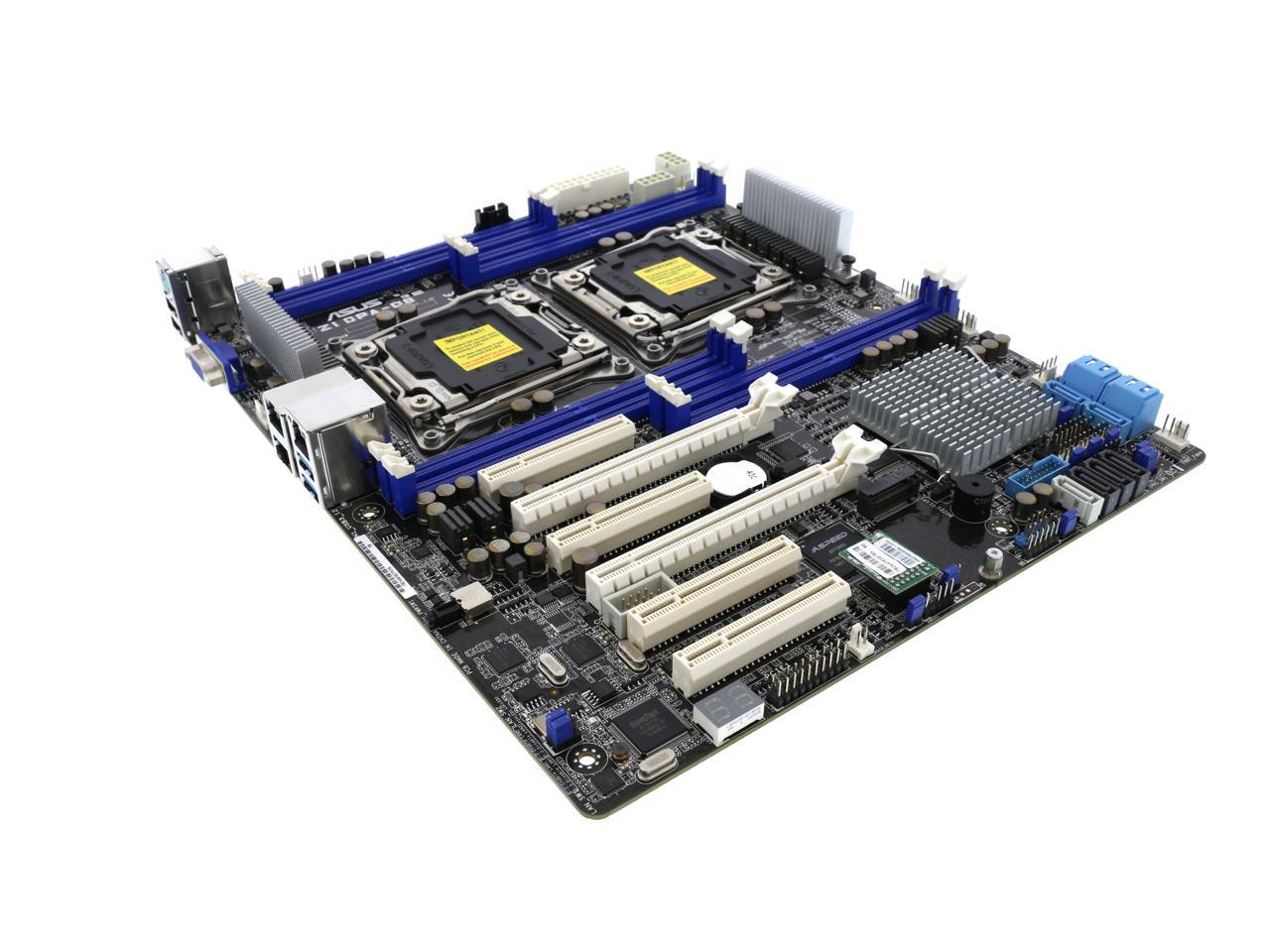

ASUS Z10PA-D8 ATX Server Motherboard Dual LGA 2011-3
SKU: 9SIA4RE8CE183714.488.305₫
2 x Socket R3 (LGA 2011-3)
Intel Xeon processor E5-2600 v3 product family
Intel C612
Description
Asus Z10PA-D8 Server Motherboard – Intel Chipset – Socket LGA 2011-v3 – 512 GB – 8 x Memory Slots – Gigabit Ethernet – 2 x USB 3.0 Port – 3 x RJ-45 – 10 x SATA Interfaces
Learn more about the ASUS Z10PA-D8
| Best Seller Ranking | #79 in Server Motherboards |
|---|
| Brand | ASUS |
|---|---|
| Model | Z10PA-D8 |
| CPU Socket Type | Dual LGA 2011-3 |
|---|---|
| CPU Type | Intel Xeon processor E5-2600 v4 product family Intel Xeon processor E5-2600 v3 product family |
| QPI | Up to 6.4 / 8.0 / 9.6 GT/s |
| Other Chipset | Intel C612 PCH |
|---|
| Number of DDR4 Slots | 8 |
|---|---|
| DDR4 Standard | DDR4 2400 / 2133 / 1866 / 1600 / 1333 RDIMM DDR4 2400 / 2133 / 1866 / 1600 / 1333 LRDIMM |
| Maximum Memory Supported | 512GB |
| Channel Supported Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | Slot Location 3 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied |
|---|---|
| PCI Express x8 | Slot Location 1: PCI-E x8 (Gen2 X4 Link) Slot Location 2: PCI-E x8 (Gen3 X8 Link) Slot Location 4: PCI-E x8 (Gen3 X8 Link) Slot Location 6: PCI-E x8 (Gen3 X8 Link), MIO supported |
| SATA | 10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector |
|---|---|
| SATA RAID | Intel RSTe (for Windows only; Support software RAID 0, 1, 10 & 5) LSI MegaRAID driver supports software RAID 0, 1 & 10 (Windows & Linux) |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2400 32MB |
|---|
| Number of LAN | 2 x Intel I210AT + 1 x Mgmt LAN |
|---|---|
| LAN Chipset | Intel I210-AT |
| Second LAN Chipset | Intel I210-AT |
| PS/2 PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x VGA Port |
| RJ45 | 3 x RJ45 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12″ x 10″ |
| Date First Available | October 26, 2018 |
|---|
