ASUS Server Motherboard P10S-V/4L, Intel C236, LGA1151, ATX (Motherboard with an IO-Shield Only).
SKU: 9SIB8UPH1043016.257.160₫

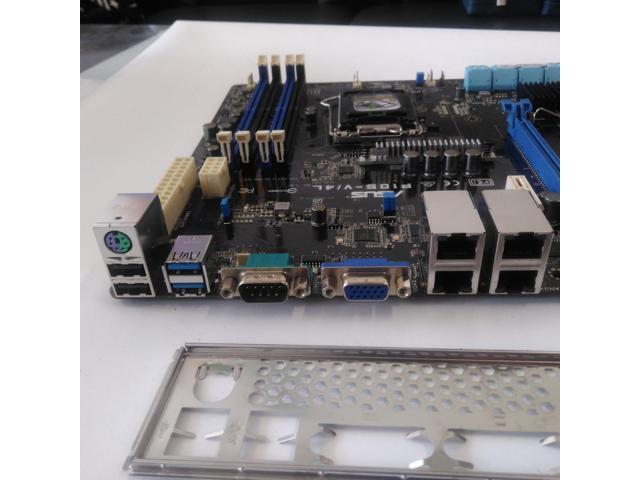

Package Content: A Motherboard With an IO-Shield Only. No Retail Box and No Other Accessories.Advanced I/O Design with Legacy PCI SupportQuad Intel® I210AT Gigabit EthernetNext-Gen Storage NVMe SupportHigh Power Efficiency with Platinum Power SolutionServiceability Quick BootOptional PIKE II 3×08 Series SAS 12Gb/s solution
Description
The P10S-V/4L is the latest ASUS UP ATX serverboard, based on Intel® Greenlow platform and Intel® C236 chipset. It is an attractive entry model, featuring quad server-class Intel® Ethernet, native 8 SATA 6G onboard, 2 Gen3 expansion slots to provide advanced I/O design.
Learn more about the ASUS P10S-V/4L
| Brand | ASUS |
|---|---|
| Model | P10S-V/4L |

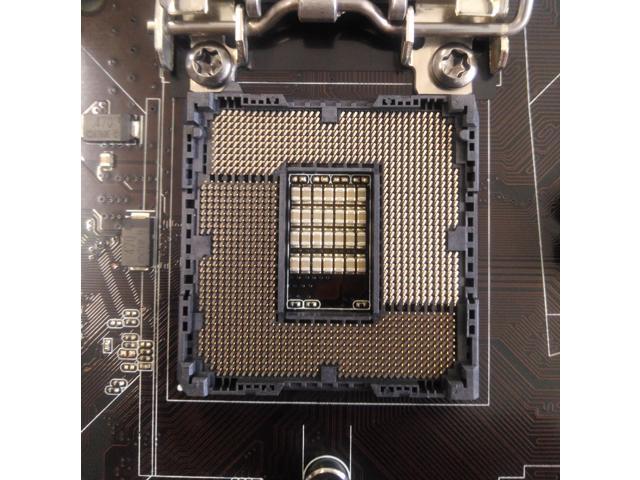

| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel Xeon E3 series, Core i3 / i5 / i7 |
| Number of Processor Support | 1 |
| North Bridge | Intel C236 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2133 |
| Maximum Memory Supported | 64GB |
| ECC Supported | Yes |
| Registered | NO |
| PCI Express 3.0 x16 | 1 |
|---|---|
| PCI Express x8 | 1 x PCI Express x8 |
| PCI Slots | 4 x PCI Slots |

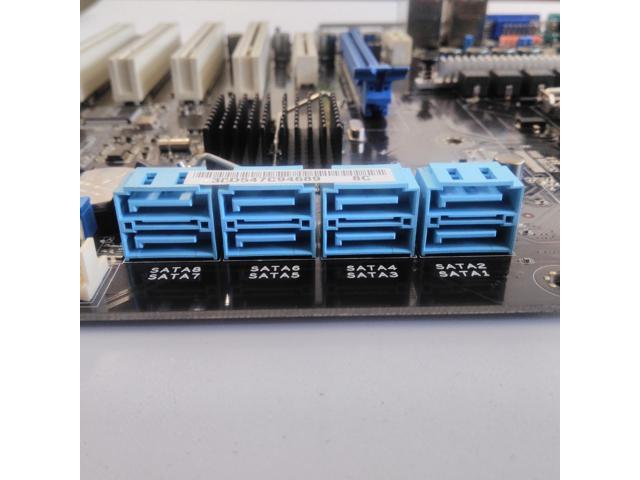

| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10/5 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST1400 |
|---|
| Number of LAN | 4 |
|---|---|
| LAN Chipset | 4 x Intel I210-AT |
| LAN Speed | 10/100/1000Mbps |
| PS/2 PS/2 | 1 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| RJ45 | 4 x RJ45 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.1 | 2 x USB 3.1 |
| Onboard USB | 1 x USB 3.0 + 1 x USB 2.0 |
|---|---|
| Other Connectors | 1 x TPM header |
| Features | Quad Intel® I210AT Gigabit Ethernet |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12″ x 9.6″ |
| Windows Vista | Works with Windows Vista |

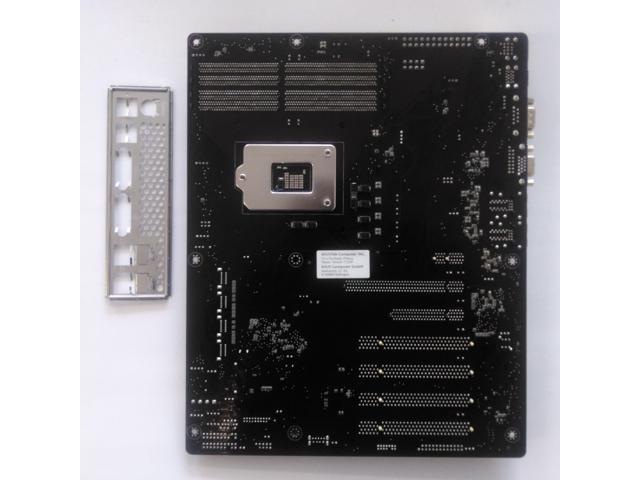

| Package Contents | Motherboard with an IO-Shield Only |
|---|
| Date First Available | March 29, 2022 |
|---|
