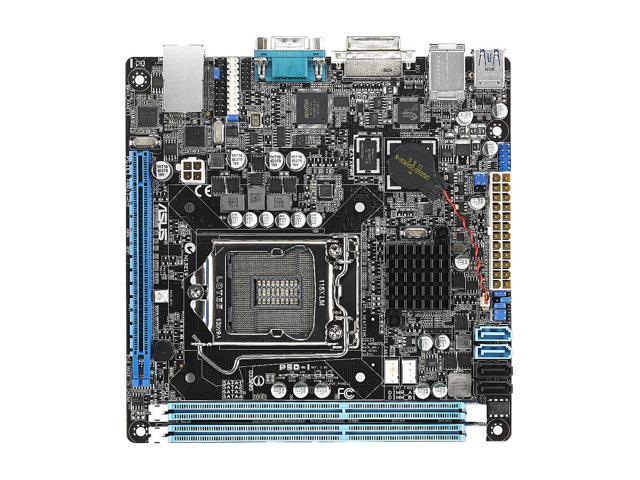

ASUS P9D-I LGA1150/ Intel C222/ DDR3/ SATA3&USB3.0/ V&2GbE/ Mini-ITX Server Motherboard
SKU: 9SIA4REGRU23574.730.115₫
LGA 1150
Intel C222
Description
SpecificationsMfr Part Number: P9D-ICPU: LGA1150Supports Intel Xeon E3-1200 v3 Family ProcessorsChipset: Intel C222Memory: 2x DDR3-1600/1333 DIMM Slots, Channel, ECC, Unbuffered, Max Capacity of 16GBSlots: 1x PCI-Express 3.0 x16 SlotSATA: 2x SATA3 Ports, 2x SATA2 Ports, Support RAID 0, 1, 5, 10 (Windows Only), Support RAID 0, 1, 10 (Linux & Windows)Video: Aspeed AST 2300 Graphics w/ 32MB VRAM Video MemoryLAN: 2x Intel I210AT Gigabit Ethernet ControllersPorts: 2x USB 3.0 Ports (rear), 4x USB 2.0 Ports (2 rear, 2 via header), 1x DVI Port, 1x PS/2 Keyboard/Mouse Port, 1x Serial Port ( rear), 2x RJ45 LAN PortsPower Connector: 1x 24pin ATX Power Connector, 1x 4pin ATX 12V Power ConnectorForm Factor: Mini-ITX, 6.7 x 6.7 inch
Learn more about the ASUS P9D-I
| Brand | ASUS |
|---|---|
| Model | P9D-I |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Intel Xeon processor E3-1200 v3 product family 4th Gen Intel Core i3 processors Intel Pentium processors Intel Celeron processors |
| North Bridge | Intel C222 |
|---|
| DDR3 Standard | DDR3 1600 / 1333 UDIMM with ECC |
|---|---|
| Maximum Memory Supported | 16GB |
| Other Slots | Total Slot : 1 Slot Location 7 : PCI-E x16 (Gen3 X16 Link) Follow SSI Location# |
|---|
| SCSI | Serial ATA/600 Serial ATA/300 |
|---|
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2300 with 32MB VRAM |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| Second LAN Chipset | Intel I210-AT |
| PS/2 PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | DVI |
| RJ45 | 2 x RJ45 |
| USB 1.1/2.0 | 2 x USB 3.0 + 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 4 x External USB Port (2 x USB 3.0, 2 x USB 2.0) |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7″ x 6.7″ |
| Date First Available | November 12, 2021 |
|---|
