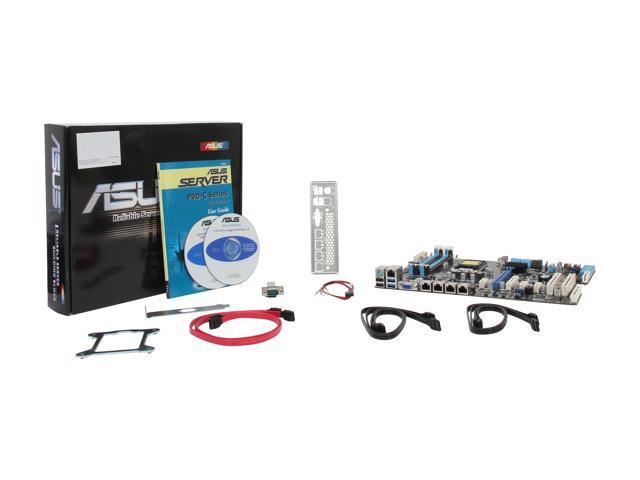

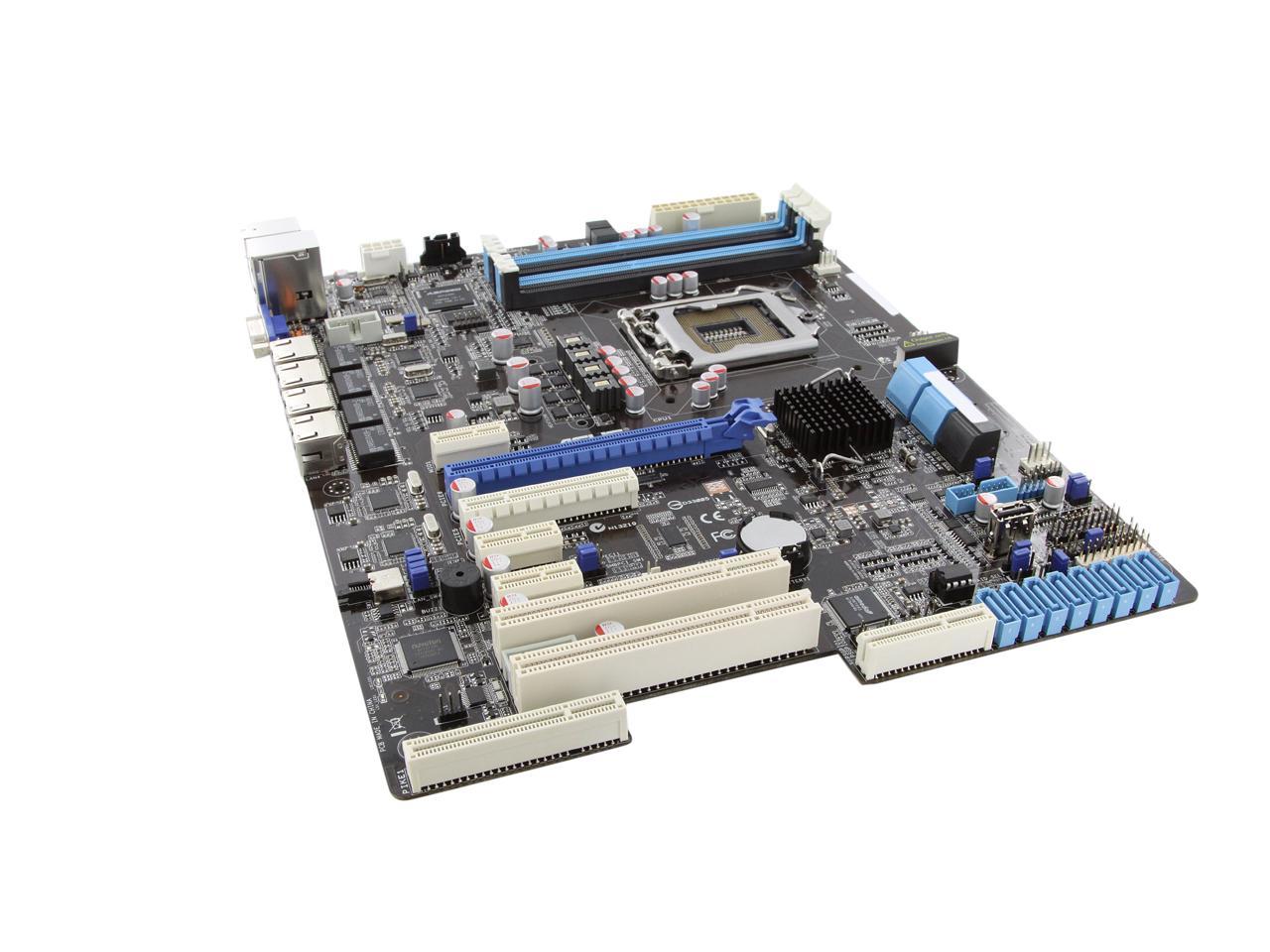

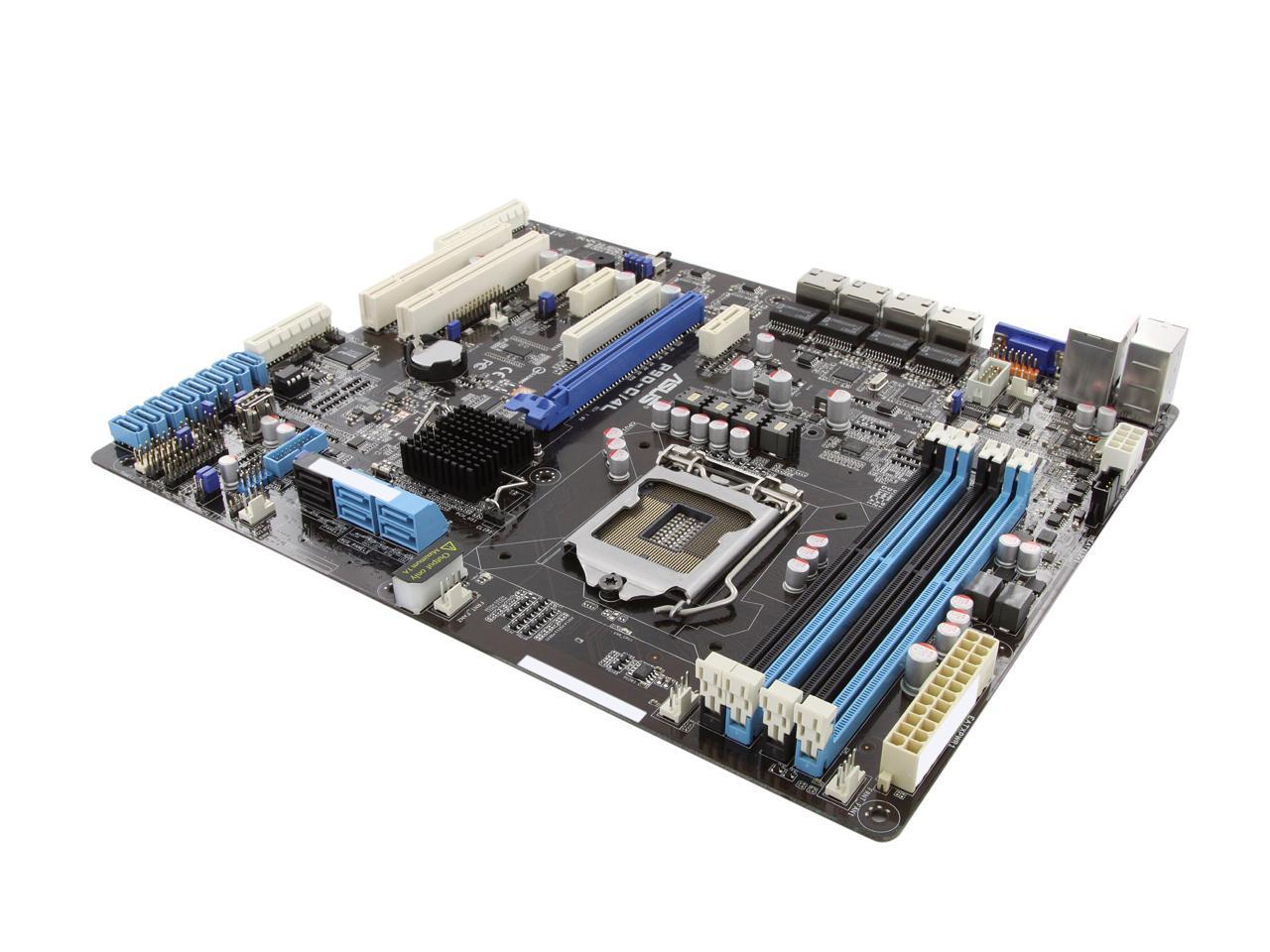

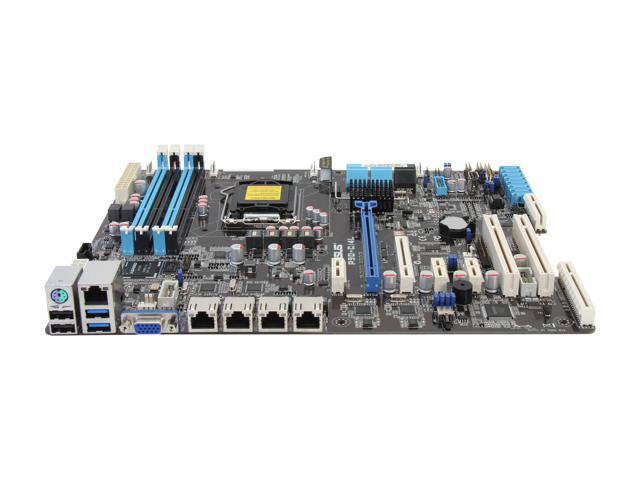

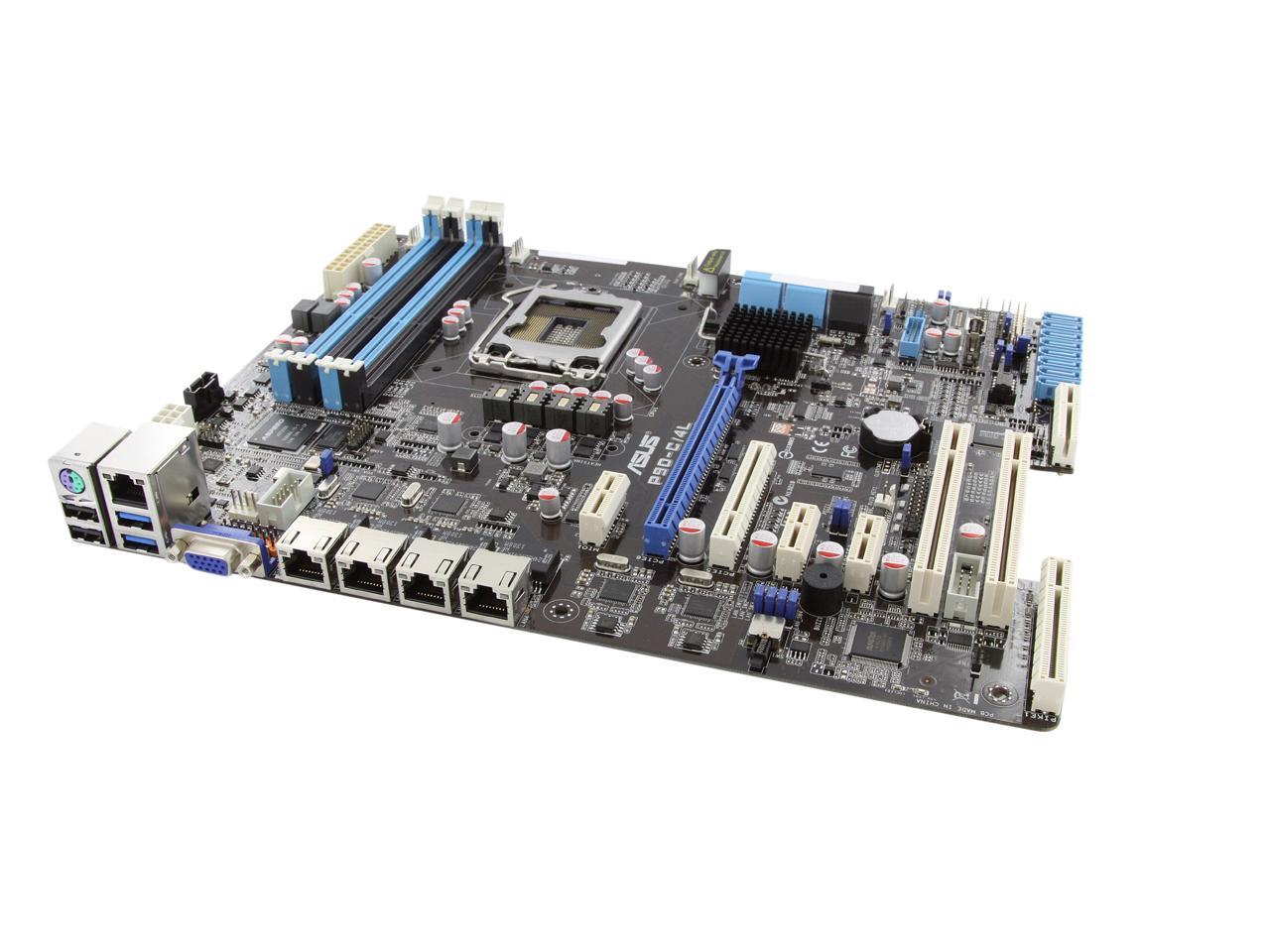

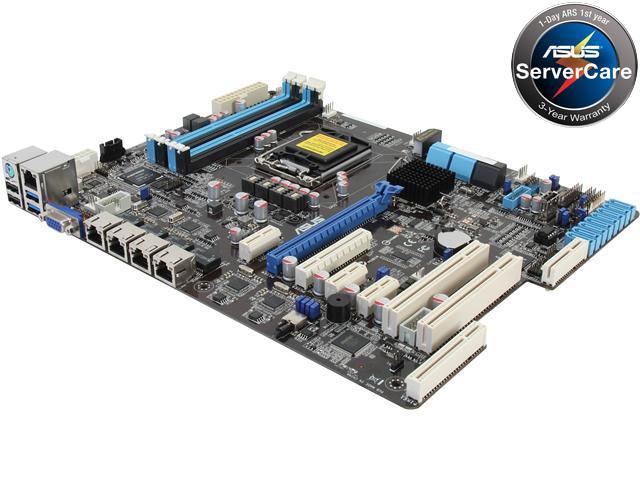

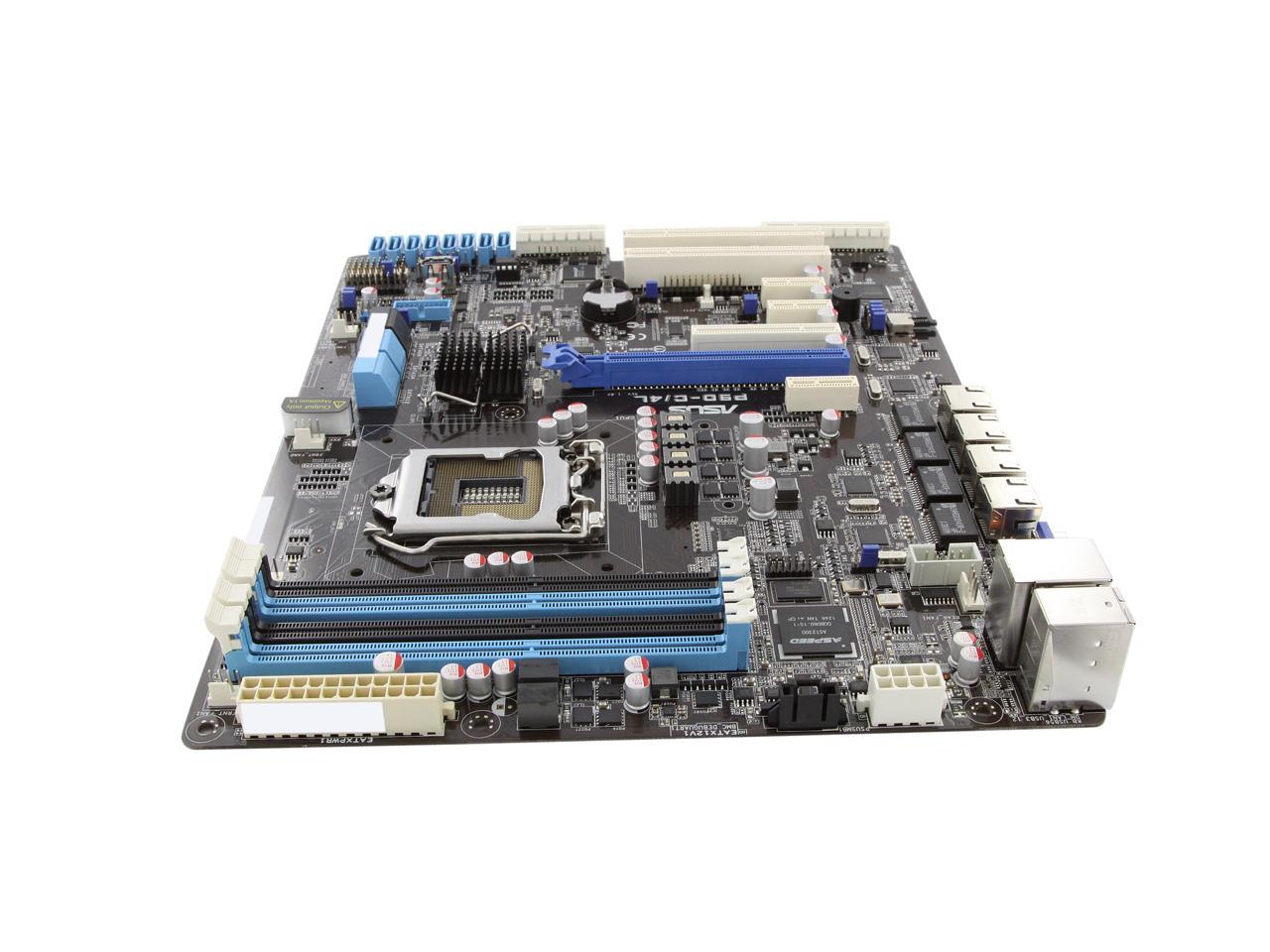

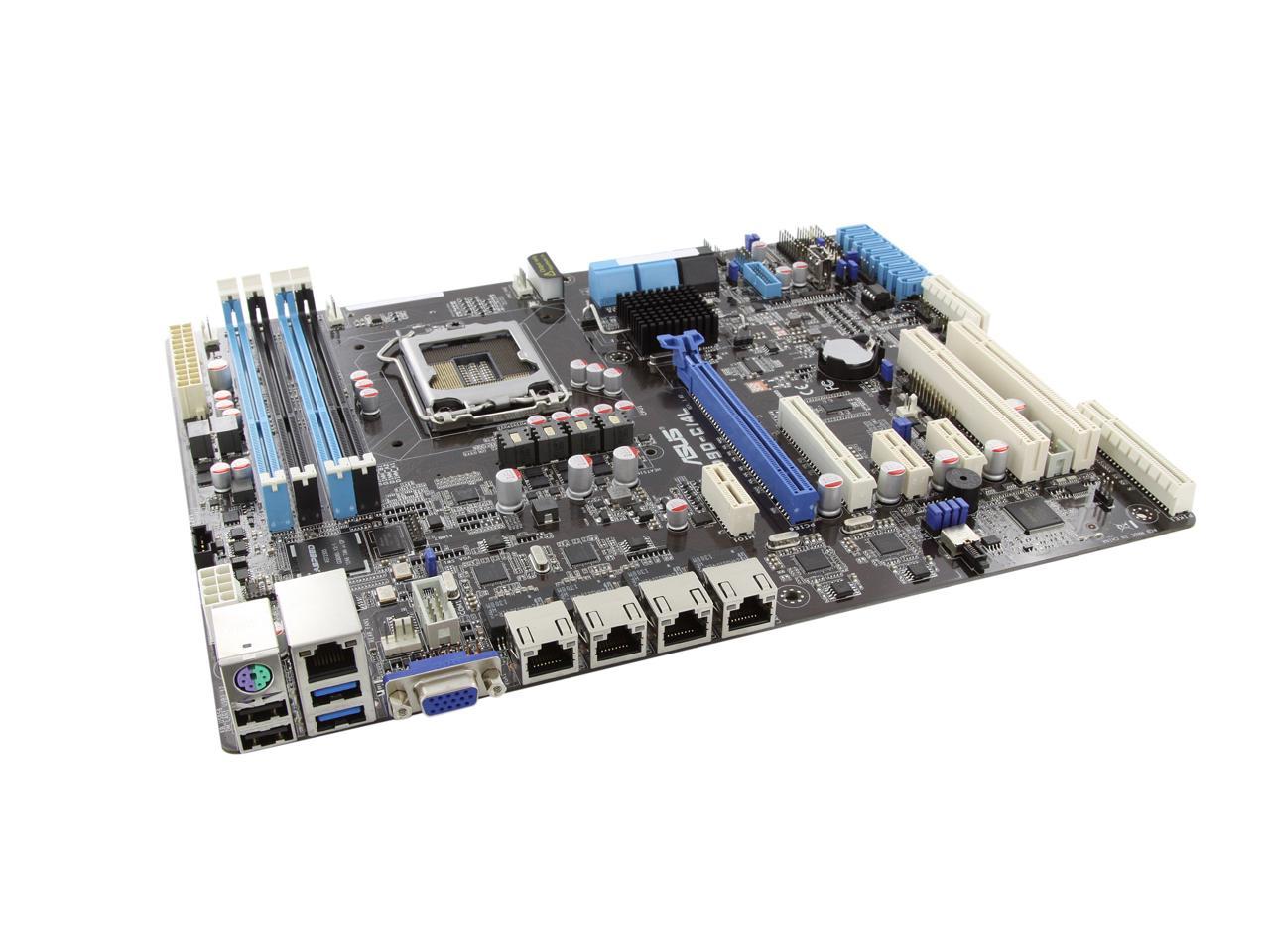

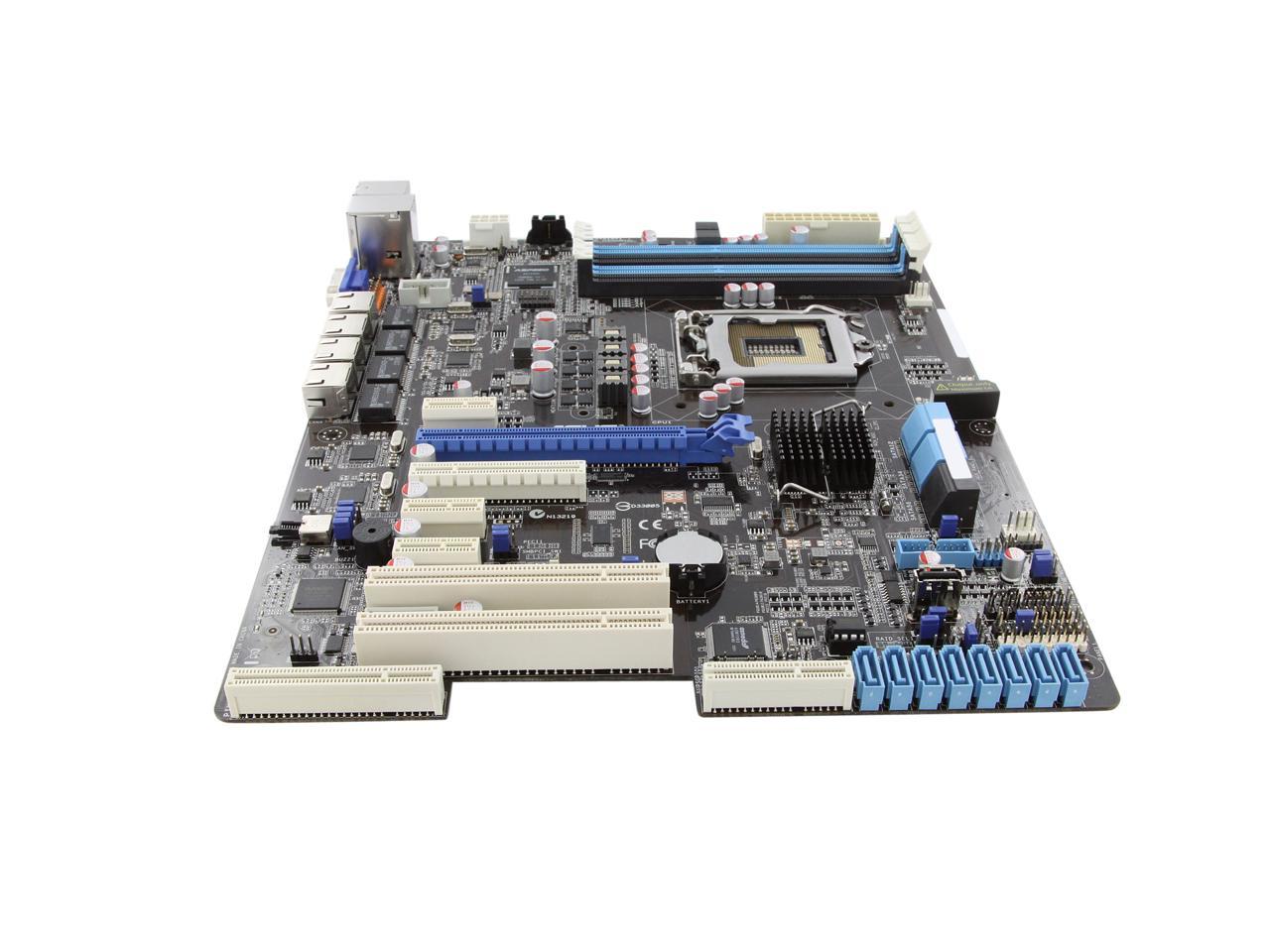

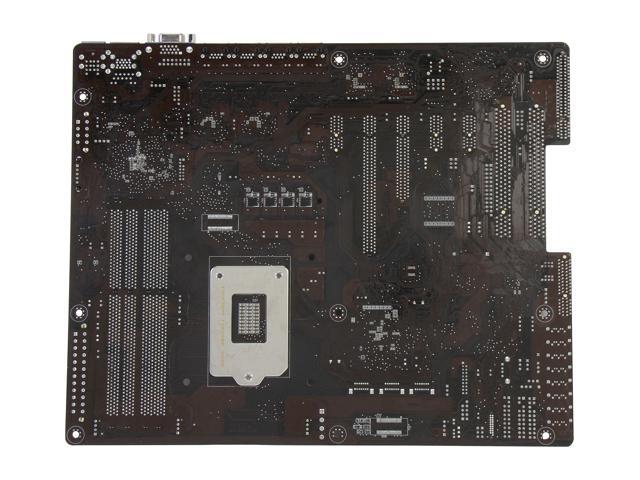

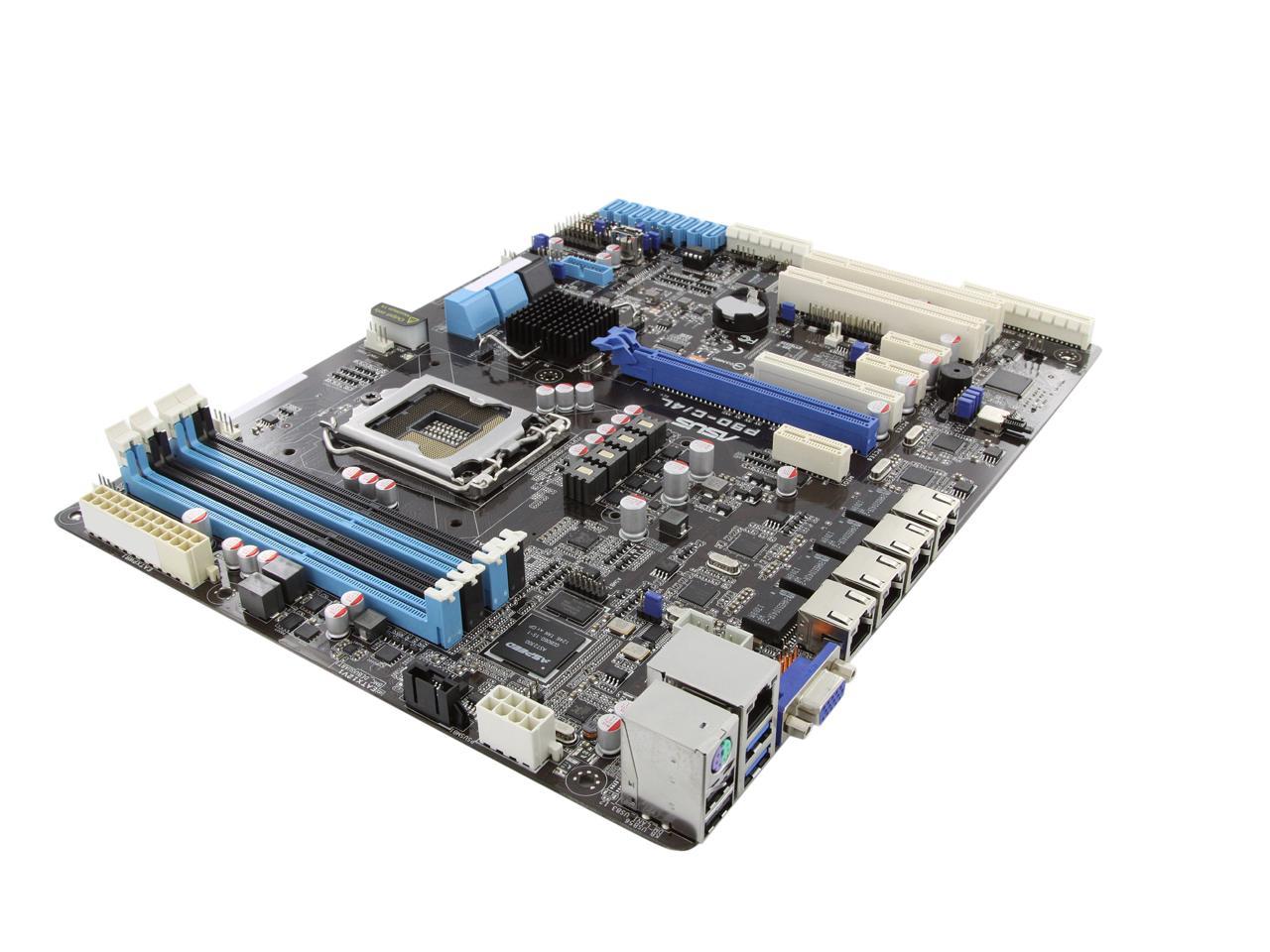

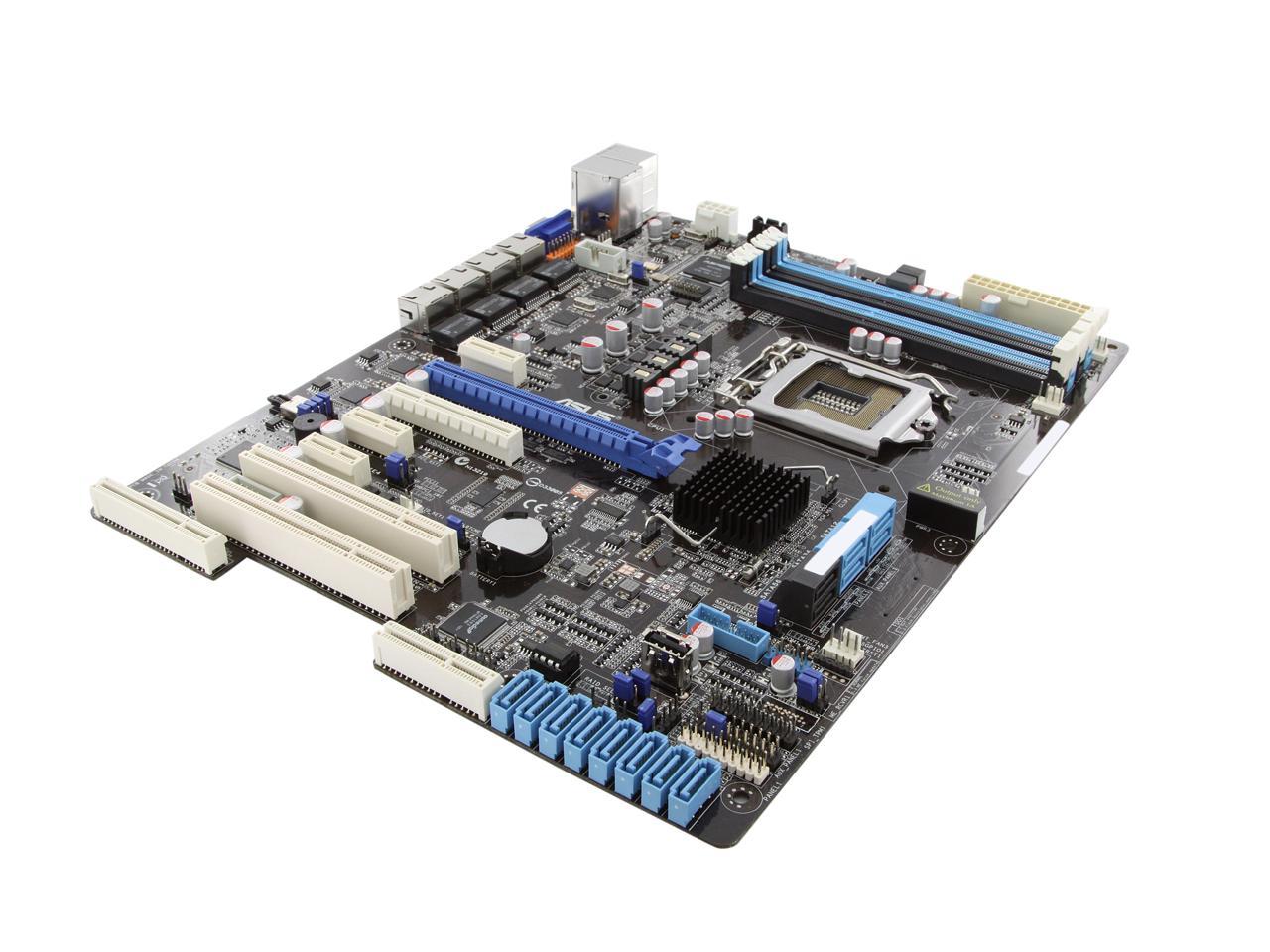

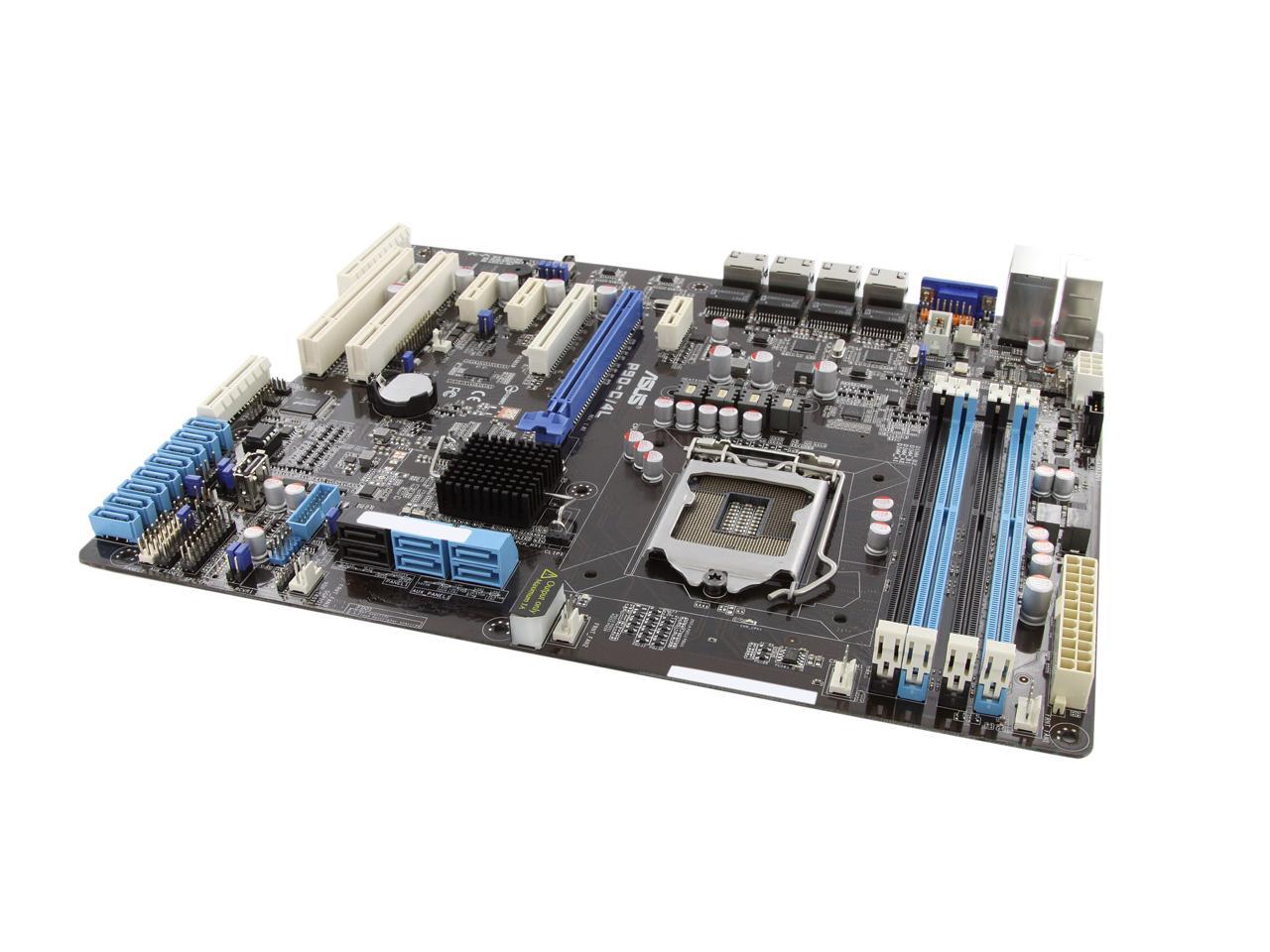

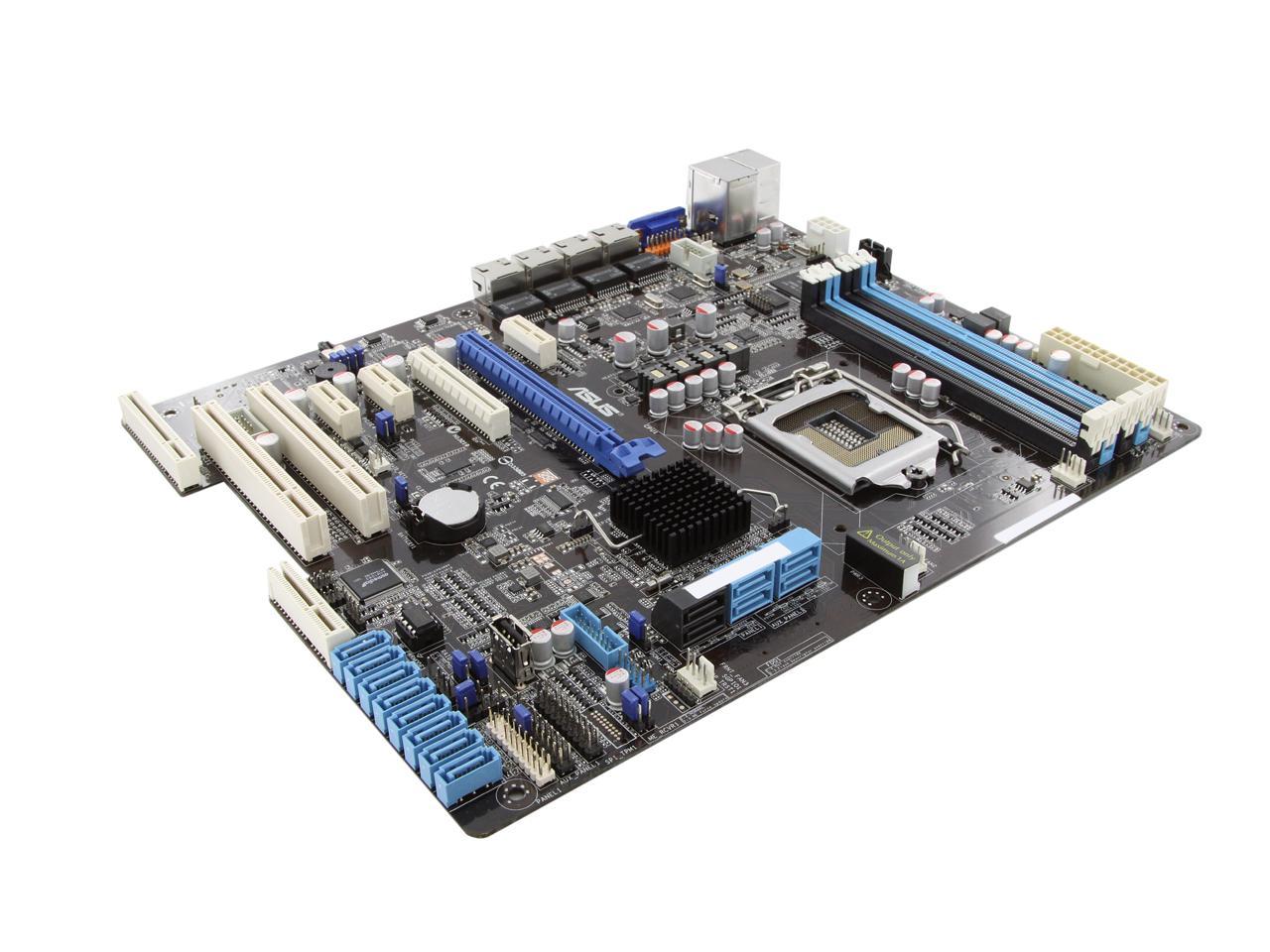

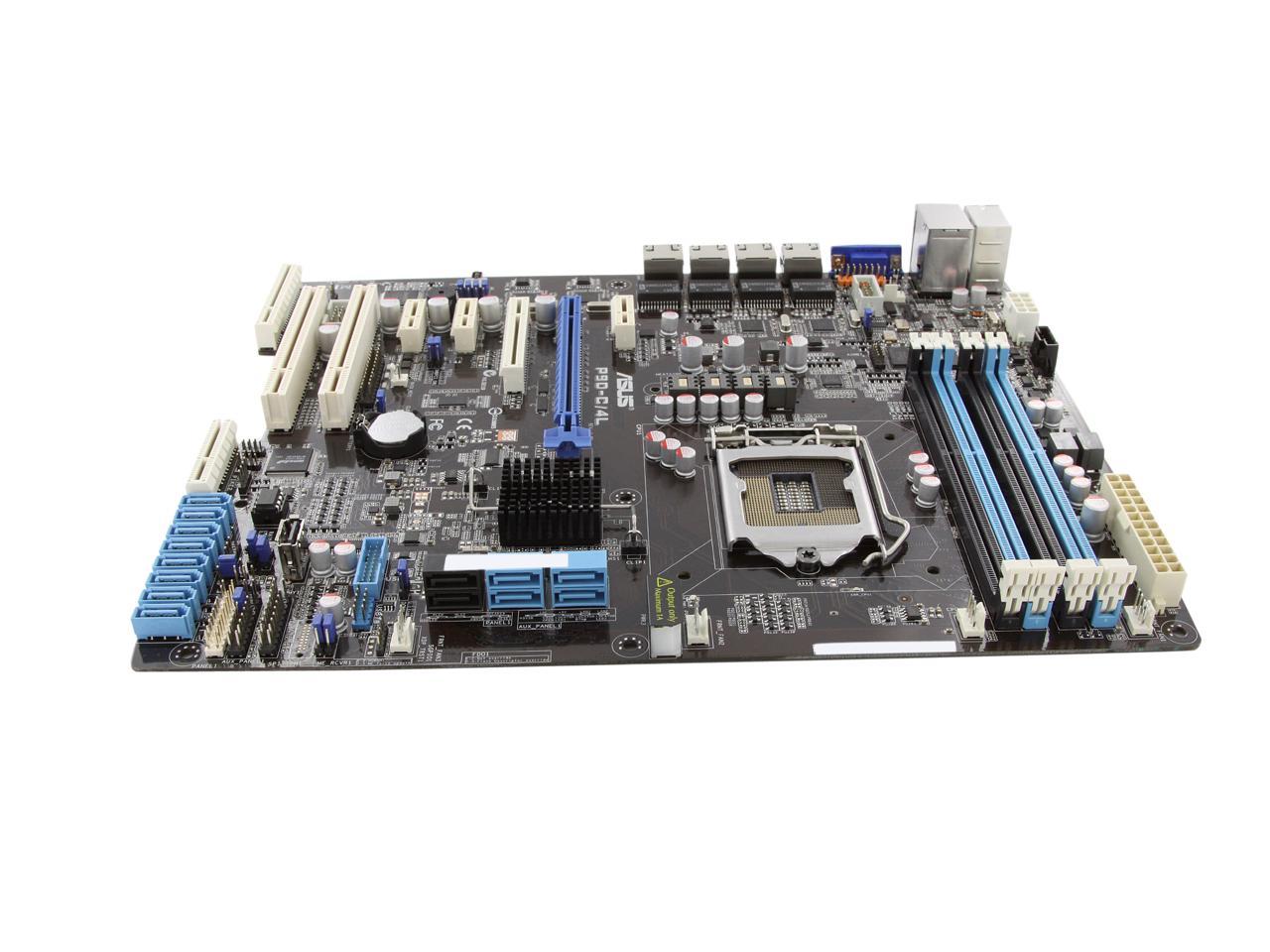

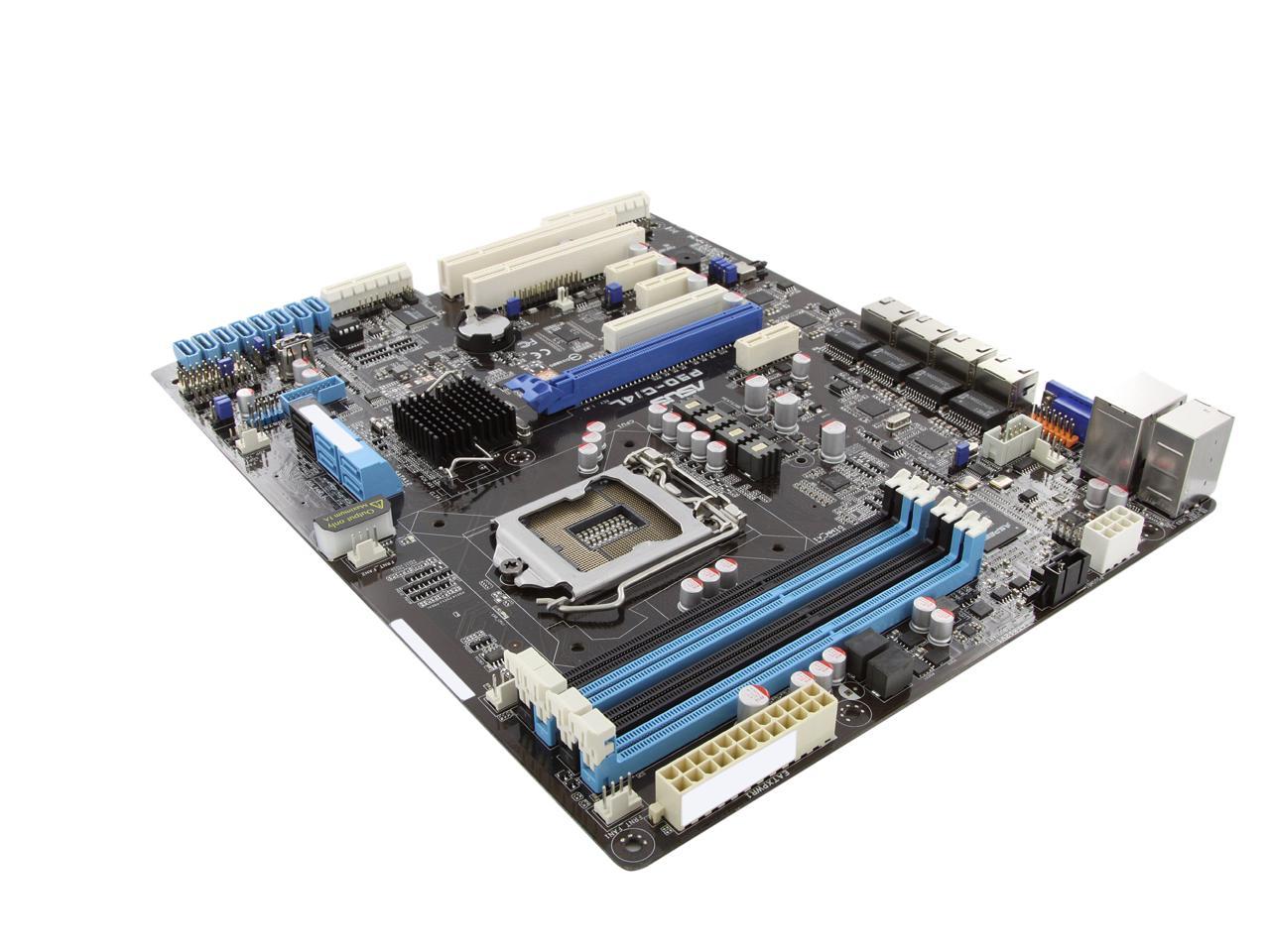

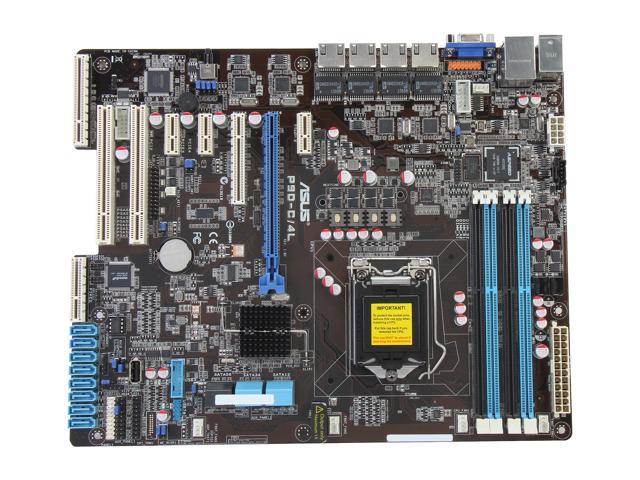

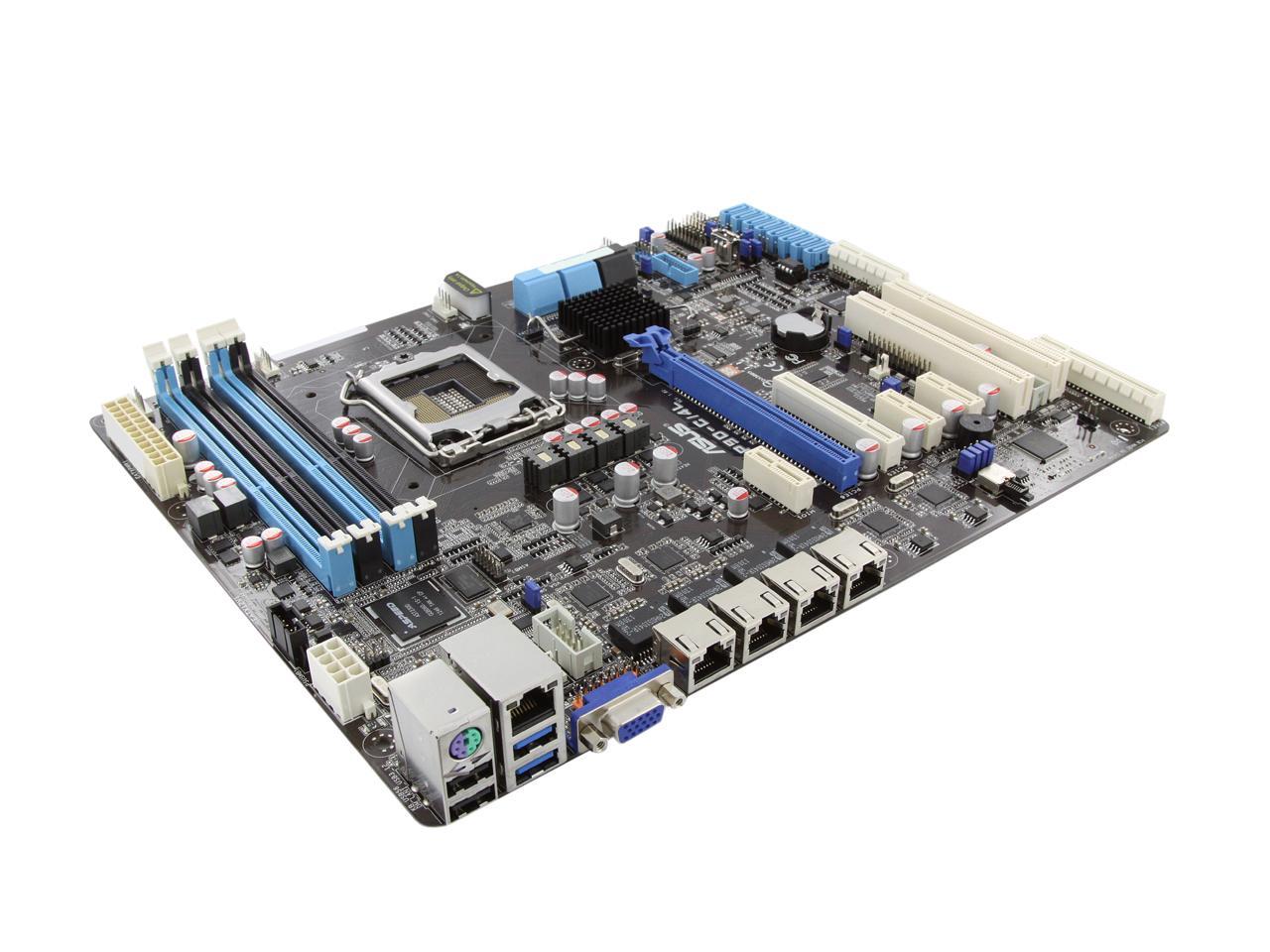

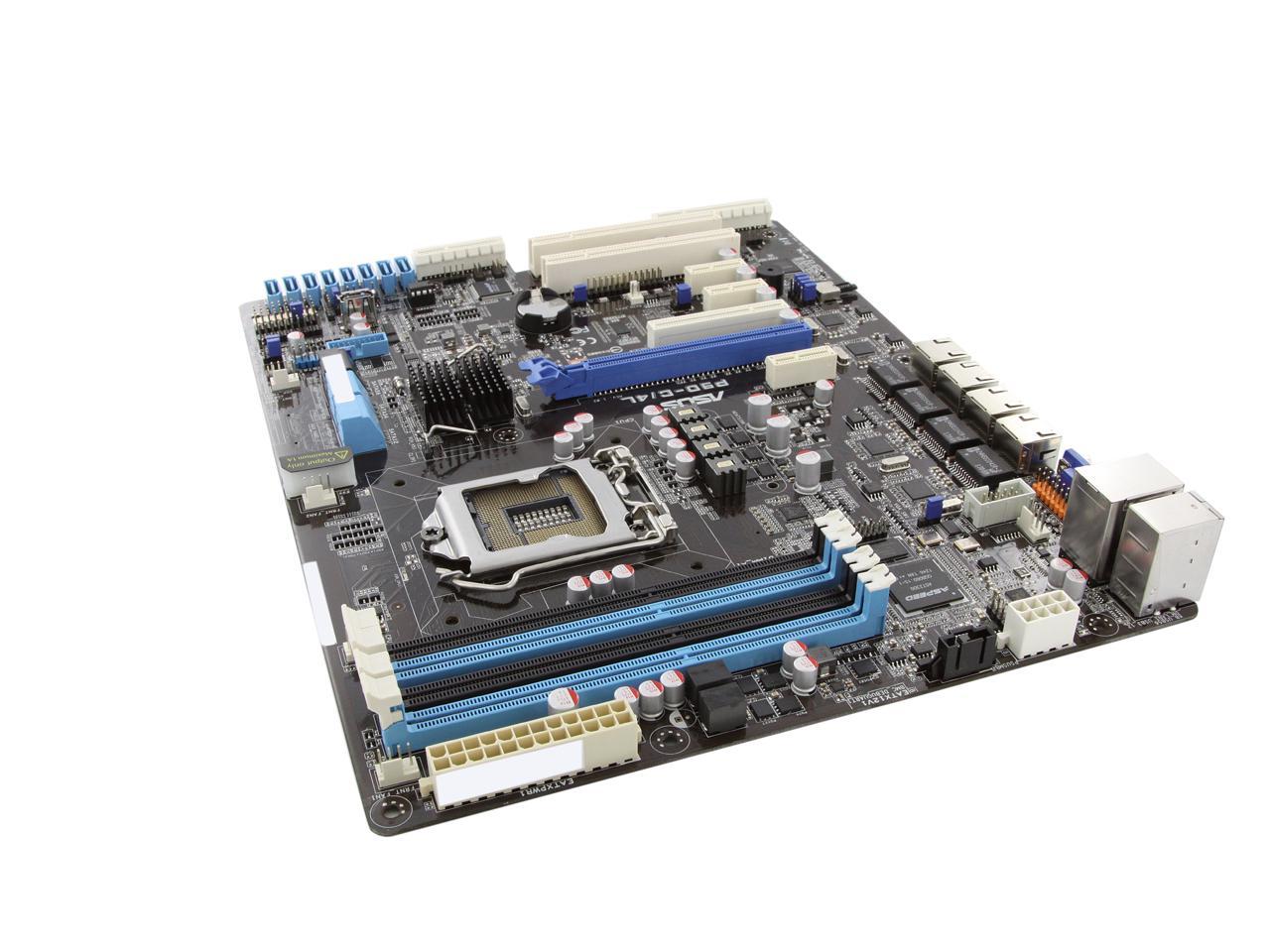

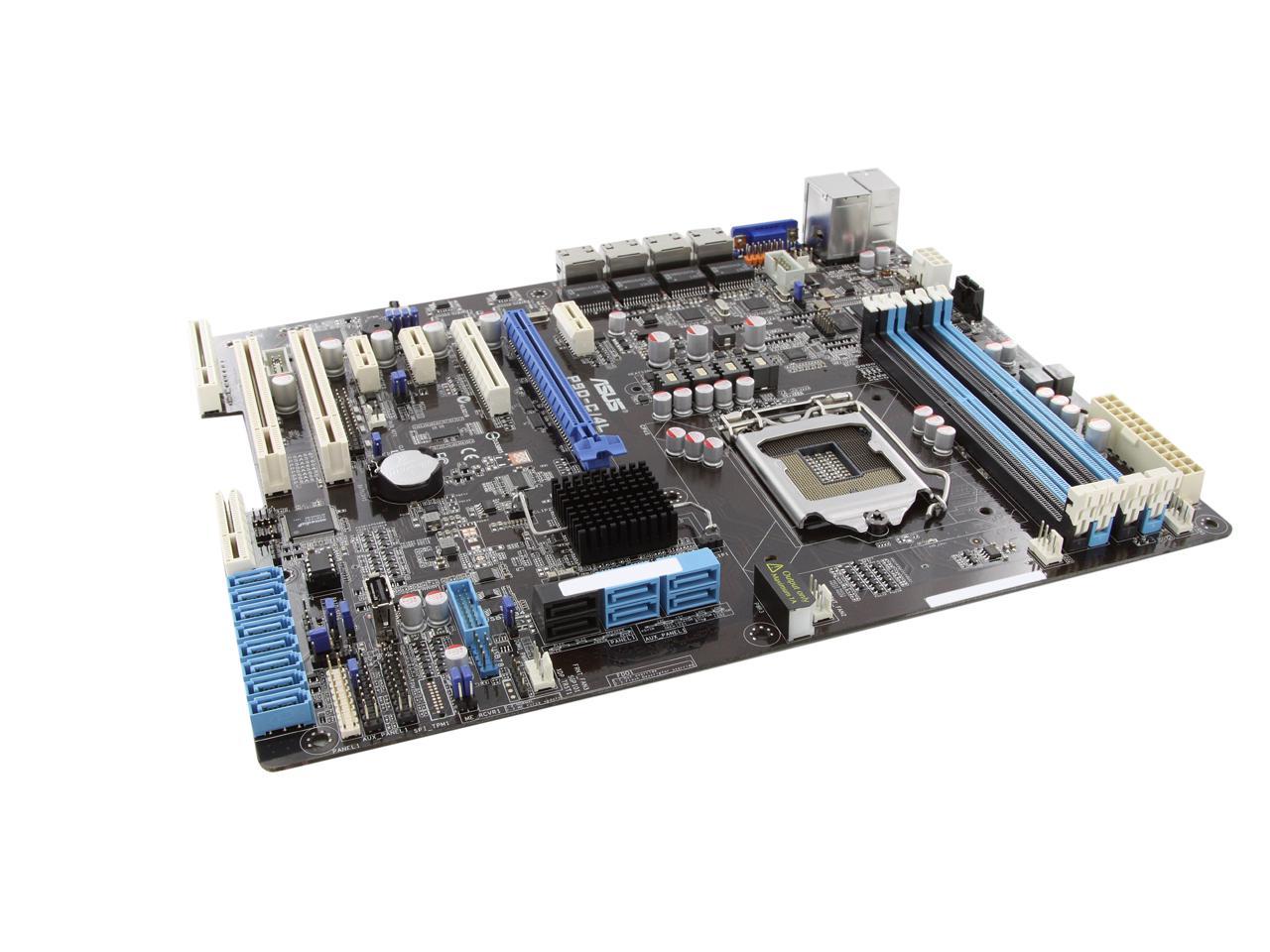

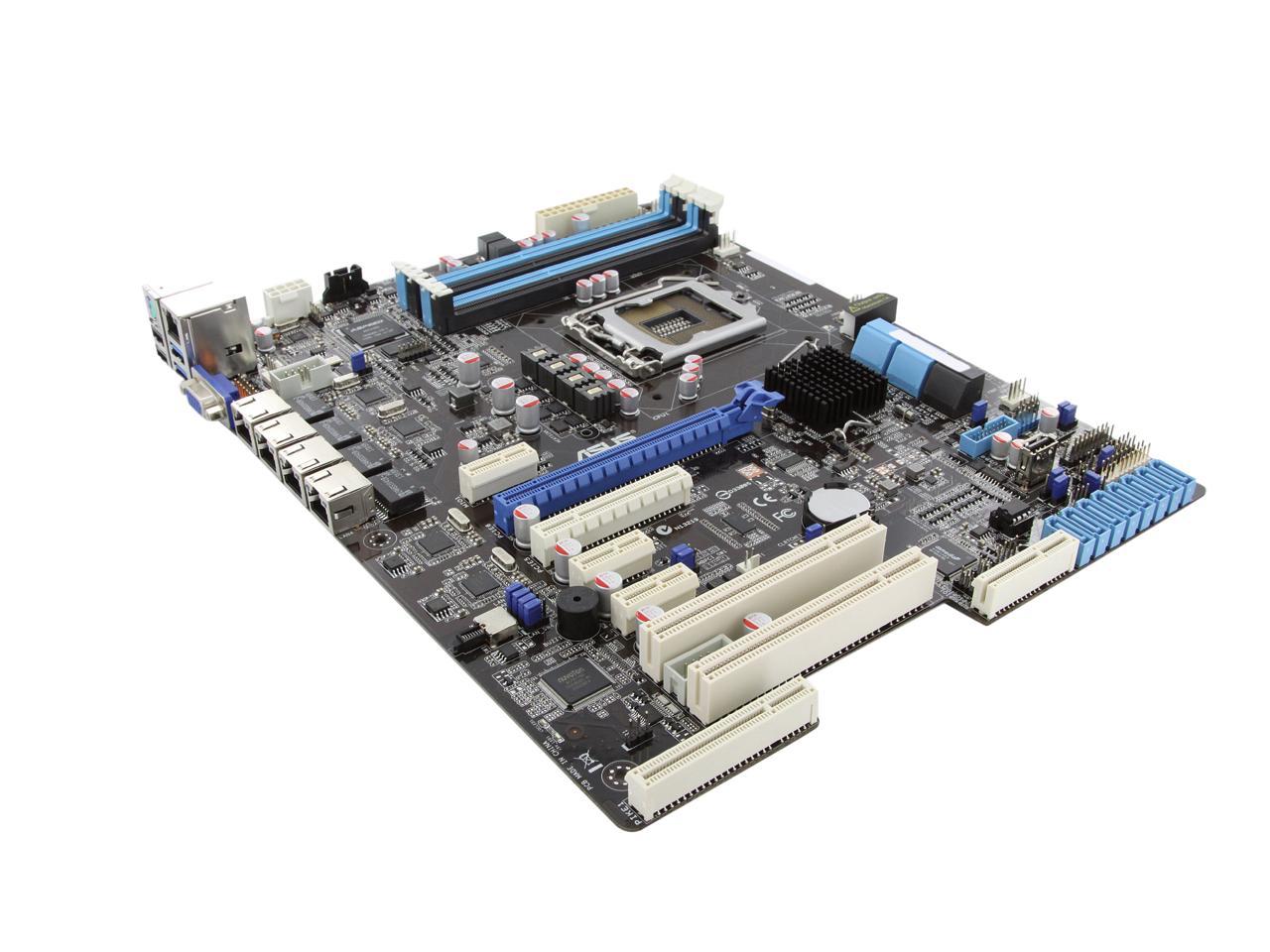

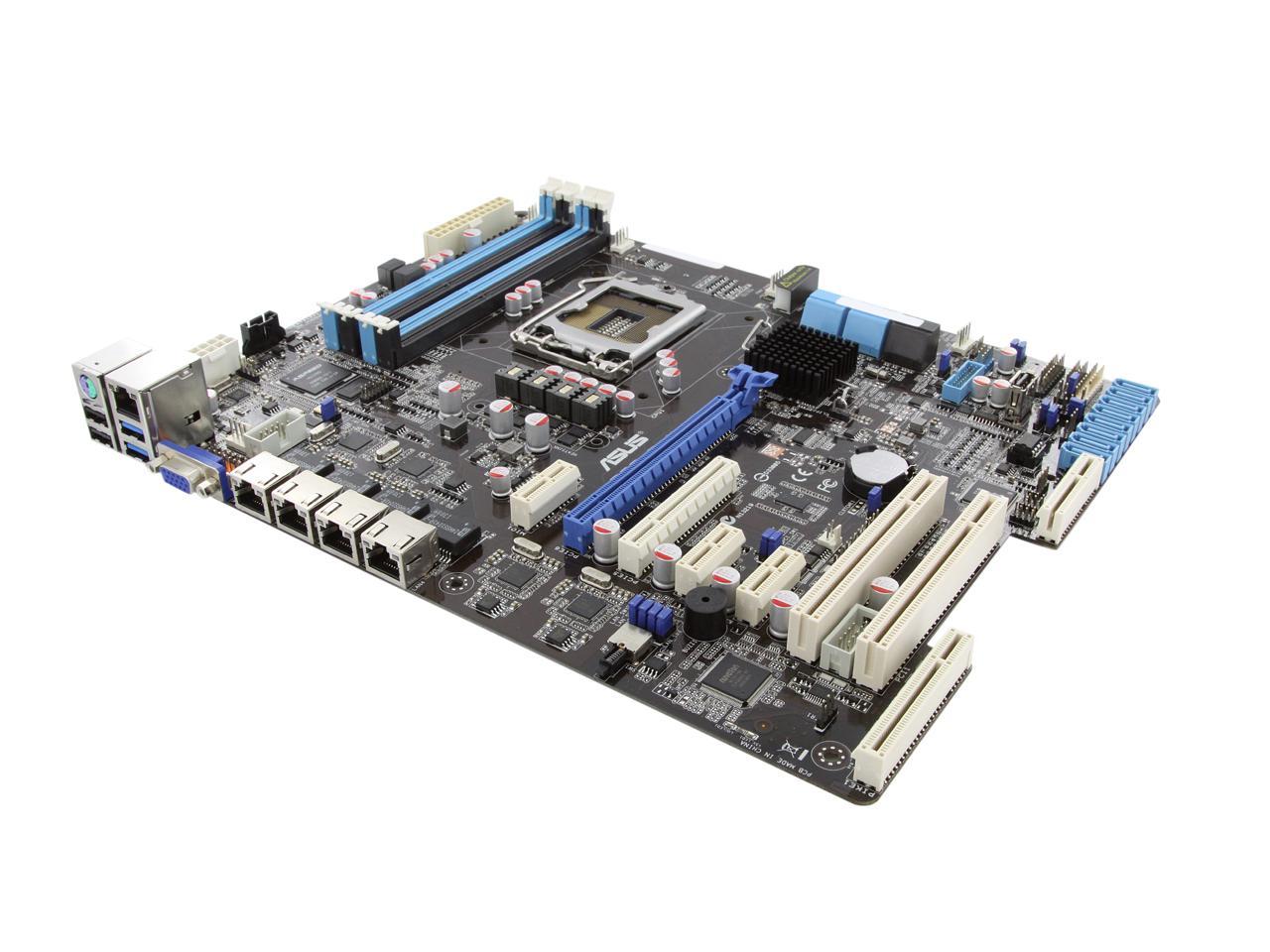

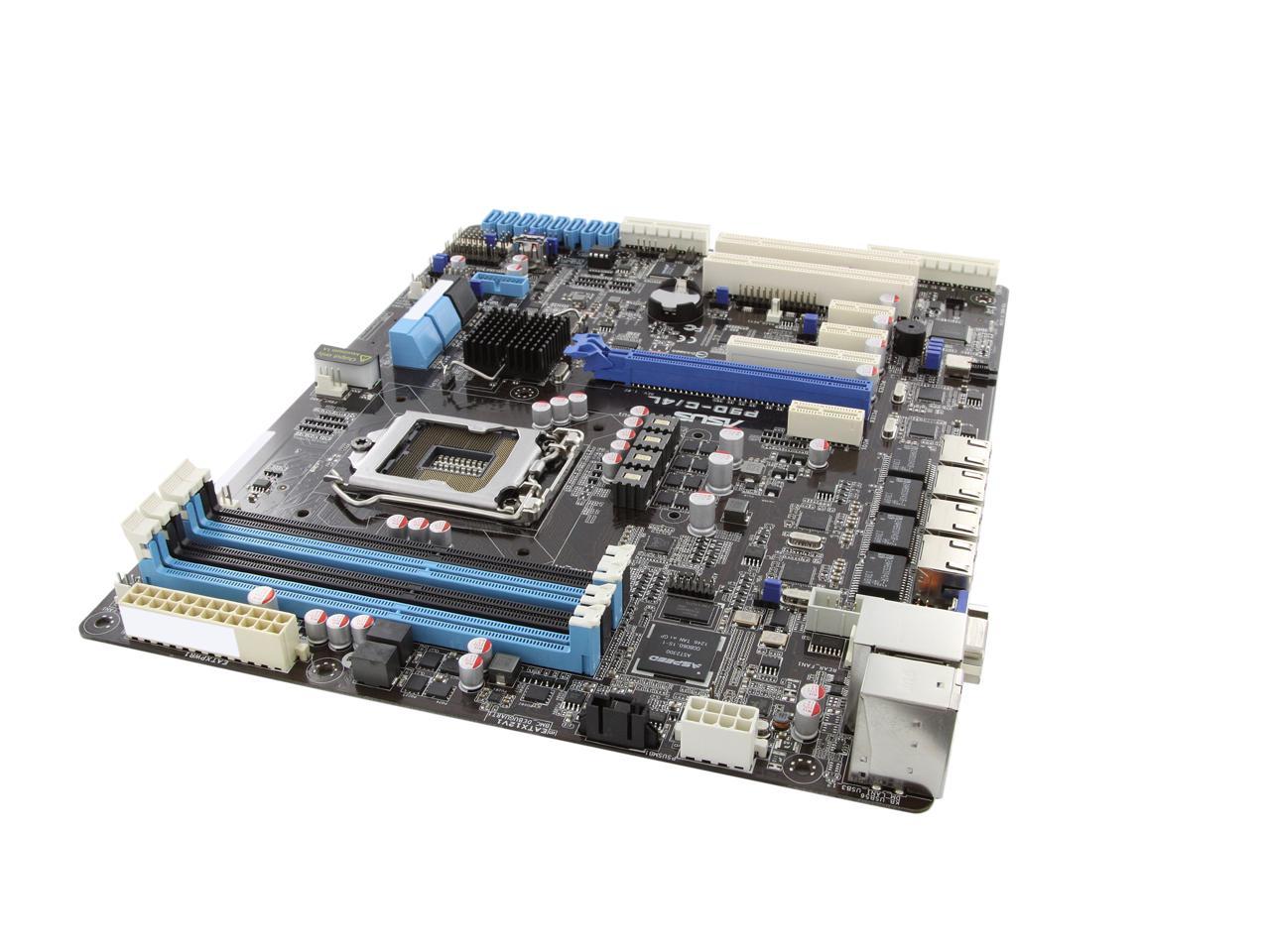

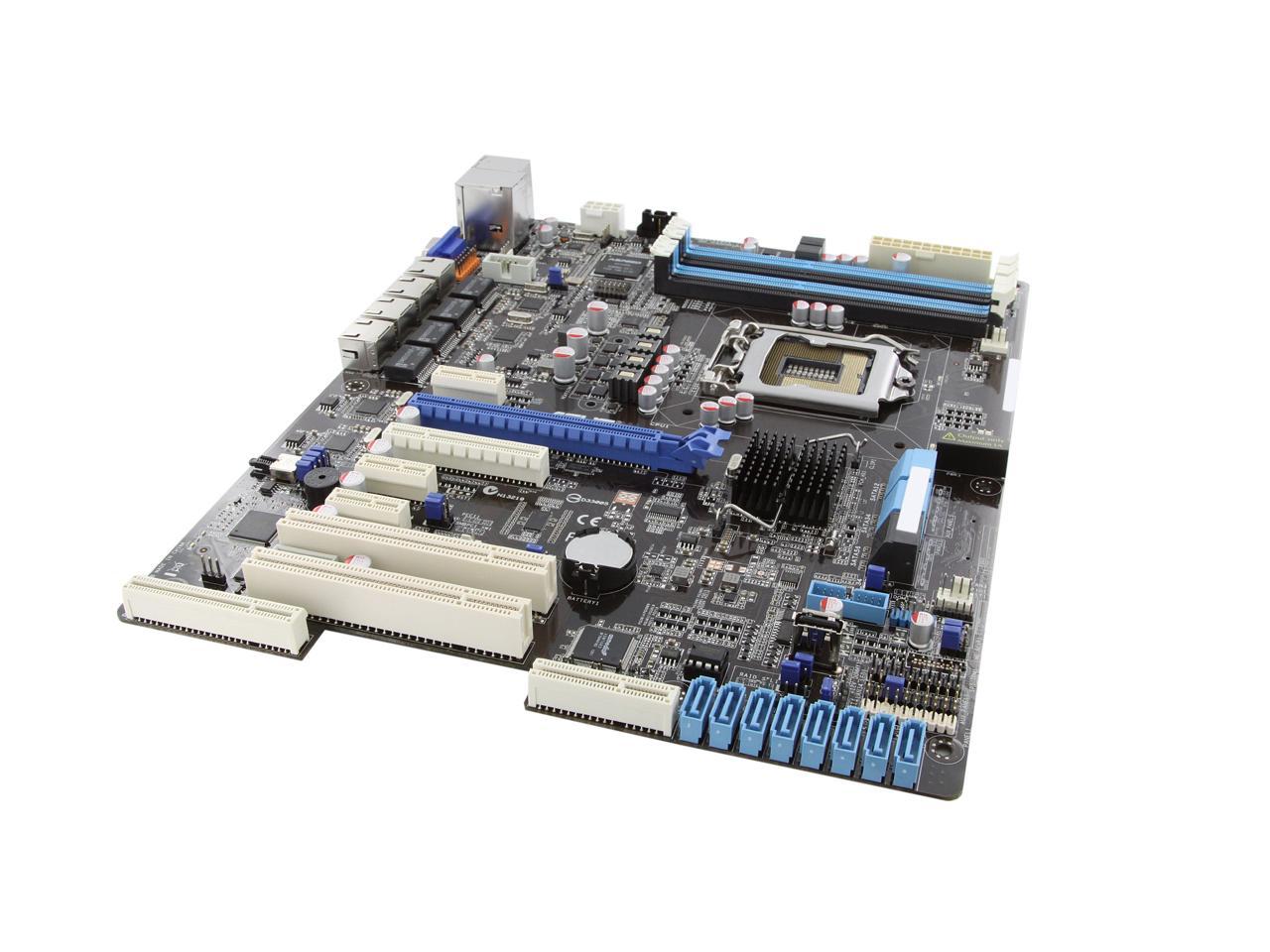

ASUS P9D-C/4L ATX Server Motherboard LGA 1150 DDR3 1600 / 1333
SKU: 9SIA4RE8DD409311.918.400₫
1 x Socket LGA1150
Supports Intel Xeon E3-1200 v3 & 4th Gen Intel Core i3 processors
DDR3 1600 / 1333 UDIMM with ECC
4 x SATA3 & 2 x SATA2 ports
4 x RJ-45 + 1 x Mgmt LAN
Description
Learn more about the ASUS P9D-C/4L
| Brand | ASUS |
|---|---|
| Model | P9D-C/4L |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Intel Xeon processor E3-1200 v3 product family 4th Gen Intel Core i3 processors Intel Pentium processors Intel Celeron processors |
| North Bridge | Intel C224 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600 / 1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | Slot Location 6: PCI-E x16 (Gen3 X8 Link) |
|---|---|
| PCI Express x8 | Slot Location 5: PCI-E x8 (Gen3 X4 Link) |
| PCI Express x1 | Slot Location 3: PCI-E x1 (Gen2 X1 Link) Slot Location 4: PCI-E x1 (Gen2 X1 Link) |
| PCI Slots | Slot Location 1: PCI 32-bit/33 MHz Slot Location 2: PCI 32-bit/33 MHz |
| Other Slots | Slot Location 7: MIO Slot for Audio card |
| SATA | 2 x SATA 3.0Gb/s + 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI MegaRAID (For Linux / Windows) (Support Software RAID 0, 1, 10 ) |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2300 32MB |
|---|
| Number of LAN | 4 x Intel I210AT + 1 x Mgmt LAN |
|---|---|
| LAN Chipset | Intel I210-AT |
| LAN Speed | 10/100/1000Mbps |
| PS/2 PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x VGA Port |
| RJ45 | 4 x RJ-45 + 1 x Mgmt LAN |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 2 x USB 3.1 |
| Features | The ASUS P9D-C/4L provides a cost-efficient serverboard without compromising on performance and scalability.
It supports the latest Intel Xeon E3-1200 v3 processor family, PCI Express 3.0, and legacy PCI for diverse applications. With all these features, the P9D-C/4L fits great as part of a firewall, gateway, web / printer / mail server, and more. |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Date First Available | November 01, 2018 |
|---|
