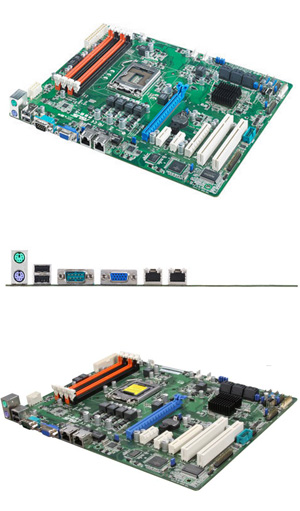

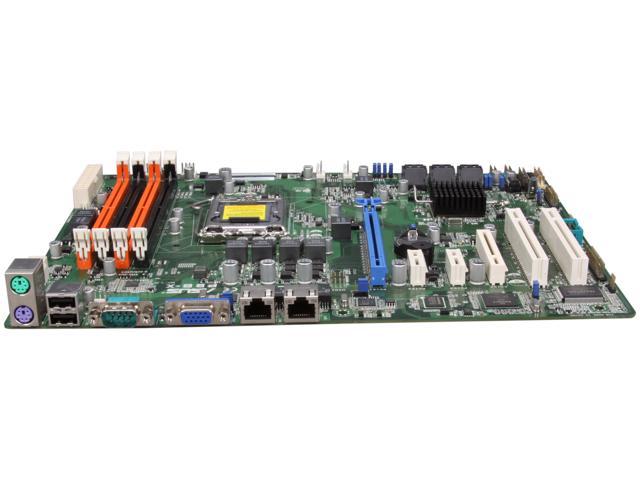

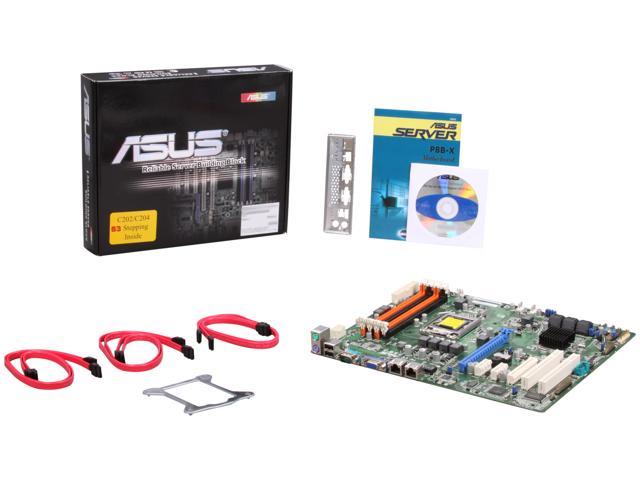

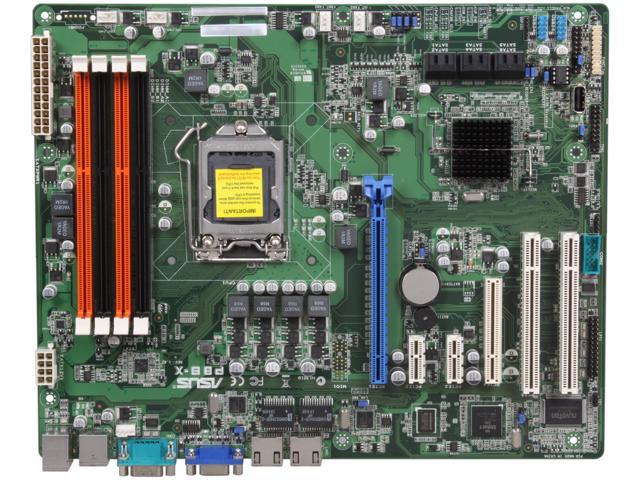

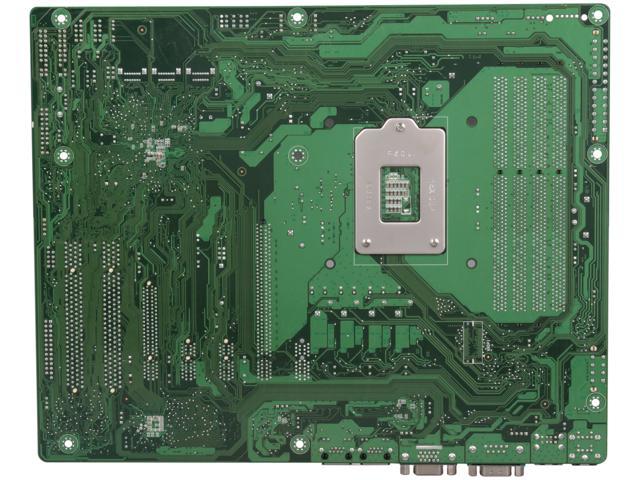

ASUS P8B-X LGA 1155 Intel C202 ATX Intel Xeon E3 Server Motherboard



Bromolow Combat Model with Dual Intel® Server LAN

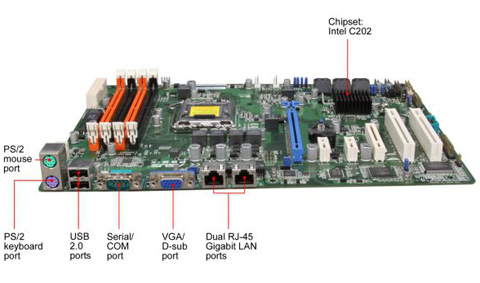

P8B-X is the latest ASUS UP serverboard designed as Bromolow platform entry model, featuring an Intel® C202 PCH chipset, with support of leading-edge architecture, high expandability, dual Intel server class GbE and cost-effective solutions, the P8B-X is ideal for SMB, web, print/file and other entry-level applications.

Up-to-Date LGA1155 Socket Platform for Outstanding Performance

P8B-X supports wide-range CPUs to cover different levels of market segment including Intel® Xeon® E3-1200 processor family, Intel® CoreTM i3-2100 Processor Family, and Intel® CoreTM G8x0/G6x0 Processor Family. The new platform architecture uses an LGA1155 package with memory and PCI Express controllers integrated to support dual-channel DDR3 ECC memory and 20 PCI Express 2.0 lanes. The support of ECC (Error Correcting Code) memory improves data integrity to offer higher reliability. Provision of more PCI Express 2.0 lanes benefits various server applications. Most important, the motherboard provides significant performance improvement around 25% over previous generations.

Dual Intel Server Class GbE, IPv6 Support Ready

With the fast explode of internet traffic, the P8B-X equipped Intel® GbE LAN controllers with IPv6 support and backward compatible with IPv4 protocol. With IPv6 ready support, customer can deploy new systems seamlessly work with existing Ethernet environment. With teaming function which supports Fault Tolerance technology. Also, the Load Balance handles network traffics delicately which is good at enhancing network functionality.

Most Cost-Saving Solutions for Customers

The P8B-X focus on easy-available chassis, standard ATX form factor, power supply, and UDIMM memory with desktop MB, so that customers can upgrade to the new generation platform only with a new serverboard and protect their existing investment. Meanwhile, the product is power saving with low power-consuming Intel Xeon processor, and therefore requires lower thermal solution cost.

Wide Range OS Support

The P8B-X supports wide-range mainstream server and client OS, including Windows 2008 R2, Windows 7, Cent OS, redhat, SuSE Linux and so on to meet the demand of different customers.

UEFI BIOS Support

To meet the trend of large capacity hard disk drives, P8B-X equips UEFI BIOS. The UEFI BIOS supports the latest GPT (GUID Partition Table) partition format and backward compatible with legacy MBR (Master Boot Record) partition format, users can easily and flexibly manage a very large capacity hard disk drive or partition, like, for example, a single hard disk or single partition larger than 2.2TB.
