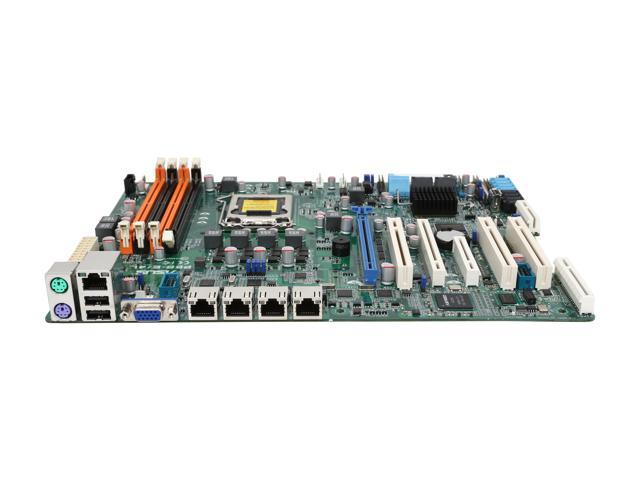

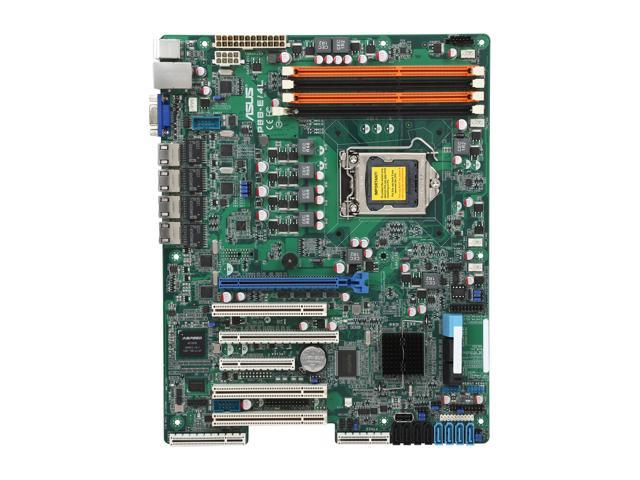

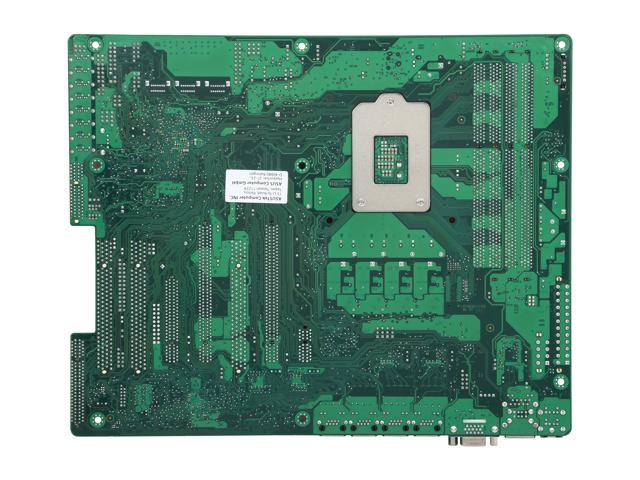

ASUS P8B-E/4L ATX Server Motherboard LGA 1155 Intel C204 DDR3 ECC UDIMM
SKU: 9SIB8UPHYH28003.501.030₫
LGA 1155
Intel C204
4 x 240pin
Description
Learn more about the ASUS P8B-E/4L
| Brand | ASUS |
|---|---|
| Model | P8B-E/4L |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Intel Xeon E3-1200 / Core i3-2100 / Core G8X0 / Core G6X0 Family Processor |
| North Bridge | Intel C204 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 ECC UDIMM |
| Maximum Memory Supported | 32GB UDIMM |
| Channel Supported Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 1 x PCI-E x16 (x16 link)(Auto switch to x8 link if slot 4 is occupied) 1 x PCI-E x16 (x8 link) |
|---|---|
| PCI Express x8 | 1 x PCI-E x8 (x4 link) |
| PCI Slots | 3 x PCI 32bit/33 MHz |
| Other Slots | 1 x PIKE Slot for Storage expansion |
| SATA | 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | Intel Rapid Storage Technology(RST)(For Windows Only): Support Software RAID 0,1,5,10
LSI MegaRAID (For Linux/Windows): Support Software RAID 0,1,10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2050 with 16MB VRAM |
|---|
| LAN Chipset | 4 x Intel 82574L + 1 x Mgmt LAN |
|---|---|
| Max LAN Speed | Quad 10/100/1000Mbps |
| PS/2 PS/2 | 2 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Features | Onboard I/O Connectors: 1 x TPM header 1 x PSU Power Connector, 24-pin ATX power connector + 8-pin ATX 12V power connector 1 x Management Connector, Onboard socket for optional management card 1 x Internal A Type USB Port 2 x USB pin header, Up to 4 Devices 5 x Fan Header, 4pin (3pin/4pin fan dual support) 1 x SMBus 1 x Chassis Intruder 2 x Serial Port Header Monitoring: Operation temperature: 10°C ~ 35°C |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |

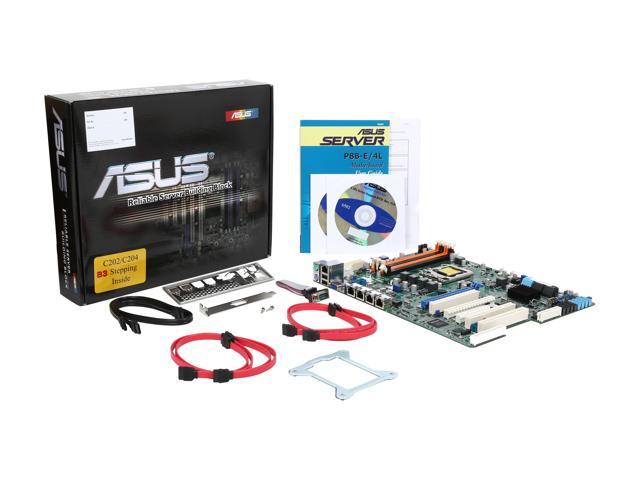

| Package Contents | 1 x User Guide 1 x Support CD 1 x I/O shield 2 x SATA 6G cables + 4 x SATA 3G cables 1 x Plate for LGA1155 |
|---|
| Date First Available | June 10, 2022 |
|---|
