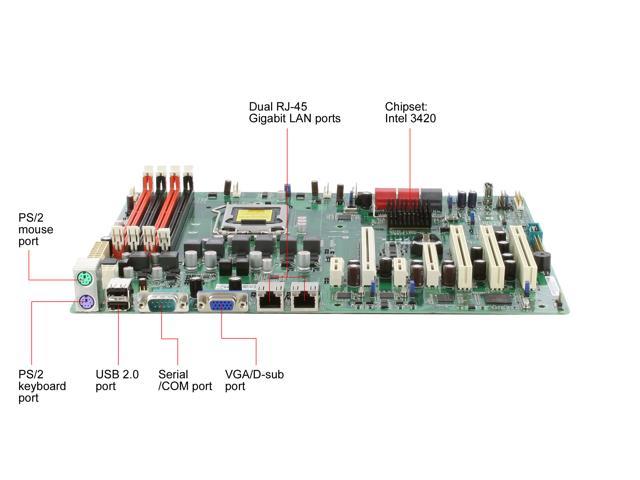

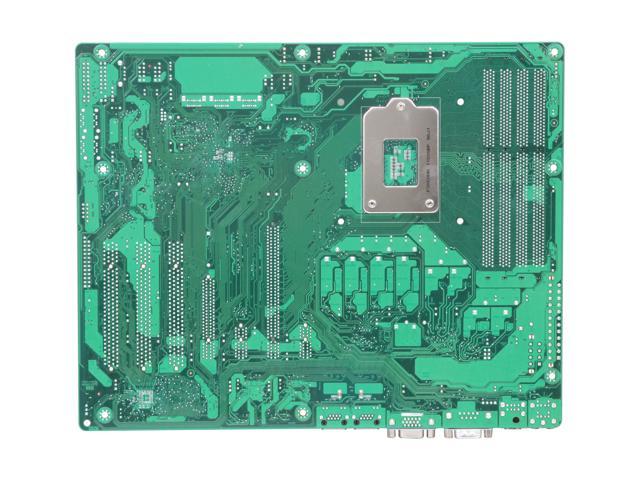

ASUS P7F-X ATX Server Motherboard LGA 1156 Intel 3420
SKU: 9SIA4REBZ834975.288.790₫
LGA 1156
Intel 3420
4 x 240pin
Description
Get great performance from Asus’ P7F-X motherboard. Powered by Intel’s 3420 chipset, it supports Intel Xeon 3400 series, Core i7-800 series and Core i5-700 series. It features superior display performance with reduced power demands and native DDR3 1333 support for up to 16GB.
The Intel 3420 is the consummate solution for professional workstation graphics at a PC price. Eight channels of HD sound complement the video display for a true movie-going experience.
Six 3Gb/s SATA controllers offer multiple possible RAID configurations for extra security and high-speed performance. Two USB 2.0 connectors give you excellent flexibility in attaching peripherals.

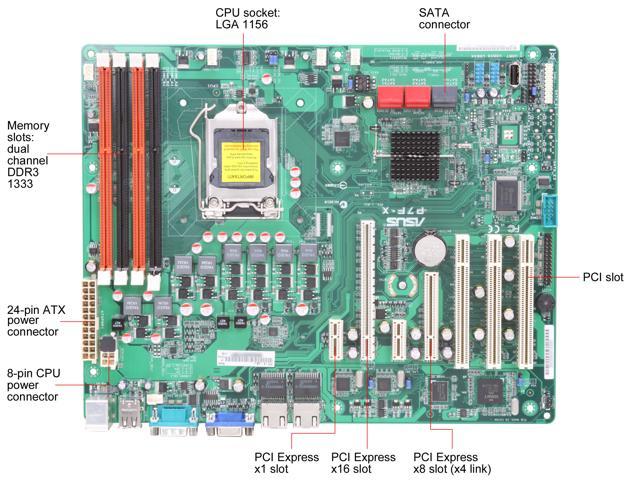

Intel LGA 1156The ASUS P7F-X supports Intel LGA 1156 processors including the Xeon 3400 series, Core i7-800 series and Core i5-700 series.
DDR3 Memory SupportThe ASUS P7F-X features four DDR3 UDIMM slots to support up to 16GB of DDR3 1333MHz memory for extreme performance.
PCI Express x16 Graphics InterfaceThe latest PCI Express x16 graphics interface delivers over 3.5 times the bandwidth of AGP 8X to support the latest high-performance graphics cards.
Dual Gigabit LANThe integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
Serial ATA with RAIDThe ASUS P7F-X features revolutionary Serial ATA interface to provide scalable performance for storage devices. SATA technology enables easy-to-install, high-performance and low-power hard drives. The six SATA ports support RAID 0, 1, 10 and 5 for better performance, enhanced data security, and flexible capacity upgrades.
Intel LGA 1156The ASUS P7F-X supports Intel LGA 1156 processors including the Xeon 3400 series, Core i7-800 series and Core i5-700 series.
DDR3 Memory SupportThe ASUS P7F-X features four DDR3 UDIMM slots to support up to 16GB of DDR3 1333MHz memory for extreme performance.
PCI Express x16 Graphics InterfaceThe latest PCI Express x16 graphics interface delivers over 3.5 times the bandwidth of AGP 8X to support the latest high-performance graphics cards.
Dual Gigabit LANThe integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
Serial ATA with RAIDThe ASUS P7F-X features revolutionary Serial ATA interface to provide scalable performance for storage devices. SATA technology enables easy-to-install, high-performance and low-power hard drives. The six SATA ports support RAID 0, 1, 10 and 5 for better performance, enhanced data security, and flexible capacity upgrades.Learn more about the ASUS P7F-X
| Brand | ASUS |
|---|---|
| Model | P7F-X |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Intel Xeon 3400 series / Core i7-800 series / Core i5-700 series |
| North Bridge | Intel 3420 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1066/1333 ECC UDIMM (Refer to www.asus.com for detail memory AVL & non ECC UDIMM vs CPU support list) |
| Maximum Memory Supported | up to 16GB (UDIMM) |
| Channel Supported Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x8 | 1 x PCI-E x8 (x4 link) |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| Other Slots | 1 x MIO Slot for Audio card (PCI-E x1 is not supported) |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | Intel Matrix Storage utility supports software RAID 0, 1, 10 & 5(Windows) |
| Onboard Video Chipset Onboard Video Chipset | XGI Z9s Video Memory 64MB shared |
|---|
| LAN Chipset | Marvell 88E8056 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Marvell 88E8056 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| PS/2 PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Form Factor | ATX |
|---|---|

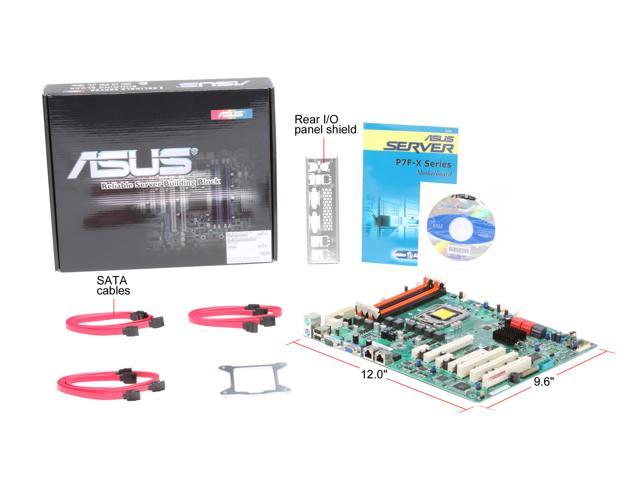

| Dimensions (W x L) | 12.0″ x 9.6″ |
| Date First Available | September 01, 2020 |
|---|
